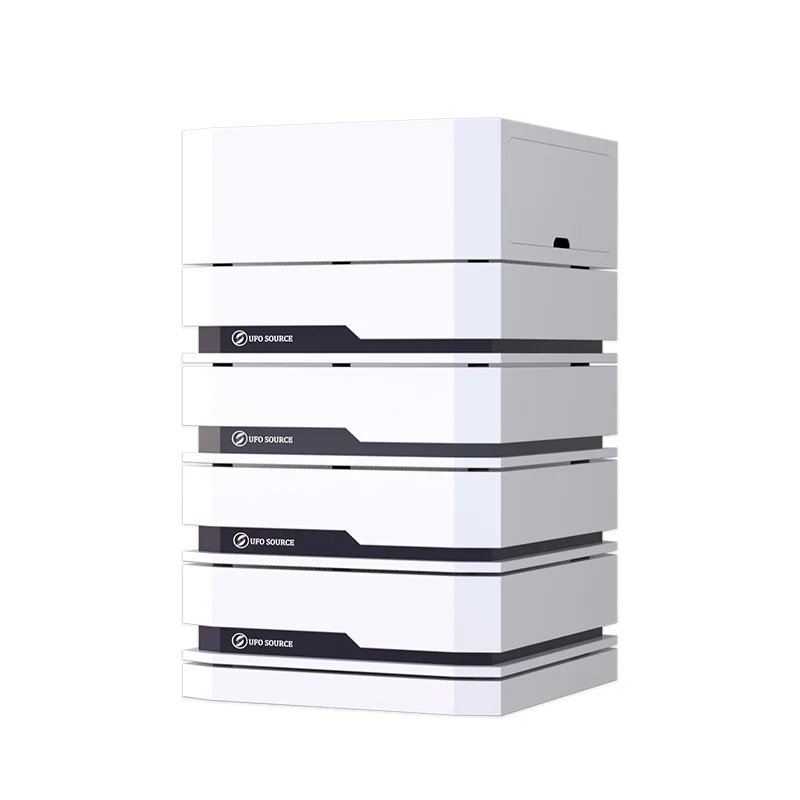

UFO High Voltage 354v 18kwh 15kwh 12kwh 10kwh 7kwh 5kwh Solar Battery BMS LifePo4 Lithium Ion Battery
- Category: >>>
- Supplier: Shenzhen UFO Power Technology Co. Ltd
Share on (1600512918193):
Product Overview
Description
Energy Storage Lifepo4 Battery 5kwh 7Kwh 10Kwh 12Kwh 15KWh 18Kwh Home Power Storage Solar Wind Power System Power Brick Battery
Product Description
Specification
Product Name | UFO Power Storage Brick | ||||||||||
Total Energy (kwh) | 5.12 | 7.68 | 10.24 | 12.58 | 15.36 | 17.92 | |||||
Capacity (Ah) | 50Ah | ||||||||||
Nominal Voltage (V) | 102.4 | 153.6 | 204.8 | 256 | 307.2 | 358.4 | |||||
Voltage Range (V) | 86.4 - 116.8 | 129.6 - 175.2 | 172.8 - 233.6 | 216 - 292 | 259.2-350.4 | 302.4 - 408.8 | |||||
Weight(kgs) | 58 | 81 | 104 | 127 | 150 | 173 | |||||
Dimension(W*D*H)mm | 500*258*683 | 500*258*898 | 500*258*1113 | 500*258*1328 | 500*258*1543 | 500*258*1758 | |||||
Normal Charge /Discharge Current(A) | 10 | ||||||||||
Max .Charge/ Discharge Current(A) | 50 | ||||||||||
Expected Lifetime | 10 years | ||||||||||
Charge Temperature Range(℃） | 0 ~ +55 ( 0℃ ~ 15℃ will be derating) | ||||||||||
Discharge Temperature Range(℃） | -20 ~ + 60 | ||||||||||
Communication | RS485 / CAN | ||||||||||
Enclosure Protection Rating | IP65 | ||||||||||
Certification Standard | IEC62619 /TUV / UN38.3 / UL /CE / ISO90001 | ||||||||||
Energy Storage Lifepo4 Battery 5kwh 7Kwh 10Kwh 12Kwh 15KWh 18Kwh Home Power Storage Solar Wind Power System Power Brick Battery
UFO energy storage brick is newly launched. Based on the original cabinet-type solar energy storage battery, ESS adopts the latest
HESS battery system. According to market demand, this type of energy storage battery with high energy density, space saving and
powerful power was developed.
HESS battery system. According to market demand, this type of energy storage battery with high energy density, space saving and
powerful power was developed.

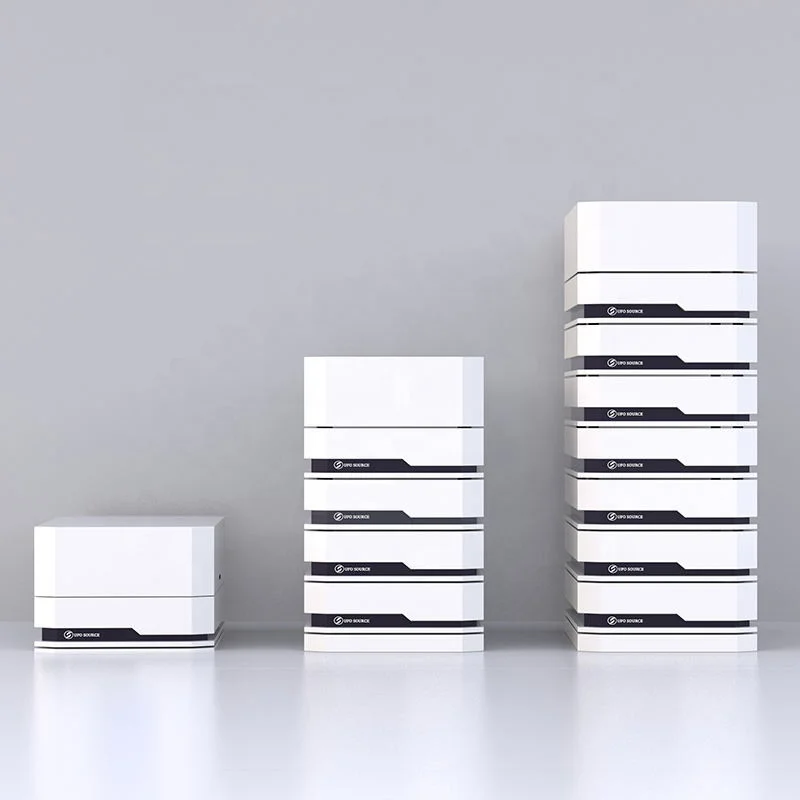

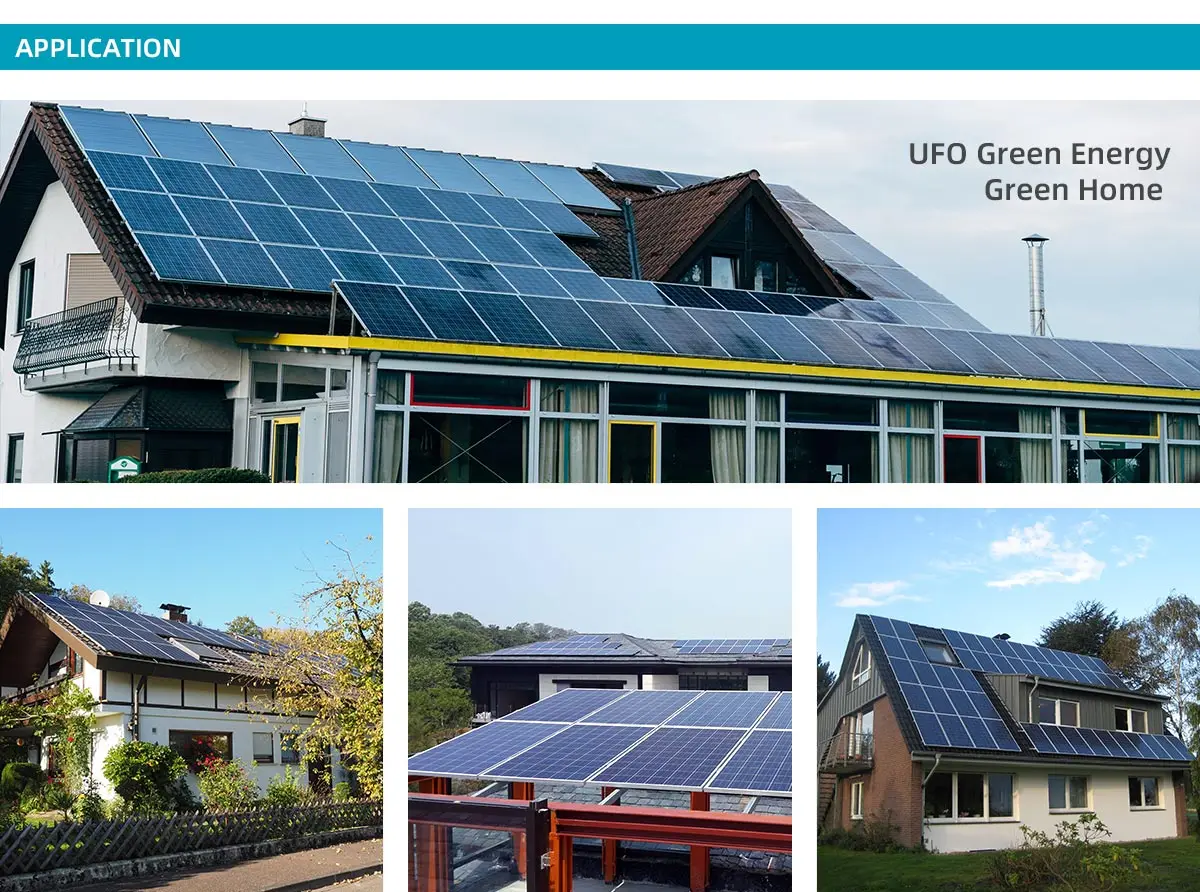

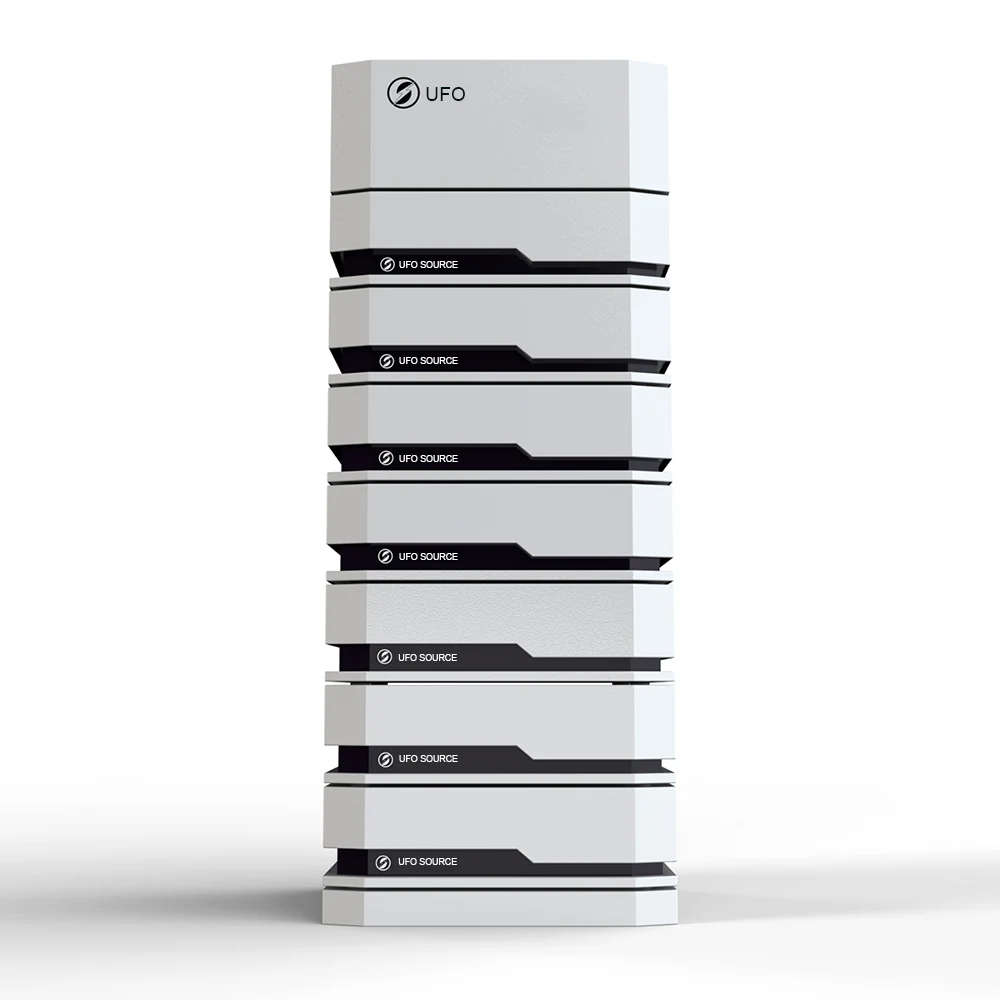

UFO energy storage bricks are stacked in parallel with 2units or 6units batteries. In the process of power transmission, power consumption is reduced. Fully retain the use of load power. The battery cell uses the best safety LIFEPO4 battery to save costs. This energy storage system (ESS) provides high-efficiency power regulation capabilities, and its applications include power demand management, power dispatch, and renewable energy. Residential, school, commercial and public utility applications.
Power Storage for 24Hours
It's home energy storage system with smart BMS that delivers DC current power services catering to all scenarios. Special perfect for home, microgrid or commercial school use.
Rechargeable lithium batteries use safe lithium cell LIFEPO4. Lithium-ion batteries are rechargeable lithium-ion batteries that can be used in tandem for more energy storage. Energy input are from wind energy or solar energy etc green energy, the electrical energy storage devices, can use different times to output electricity. For example, wind energy and solar energy are unstable and not easy to supply current all the time. Combined with wall-mounted battery packs, energy storage system problems will be solved.
This battery is designed to achieve market leading energy density.
Rechargeable lithium batteries use safe lithium cell LIFEPO4. Lithium-ion batteries are rechargeable lithium-ion batteries that can be used in tandem for more energy storage. Energy input are from wind energy or solar energy etc green energy, the electrical energy storage devices, can use different times to output electricity. For example, wind energy and solar energy are unstable and not easy to supply current all the time. Combined with wall-mounted battery packs, energy storage system problems will be solved.
This battery is designed to achieve market leading energy density.

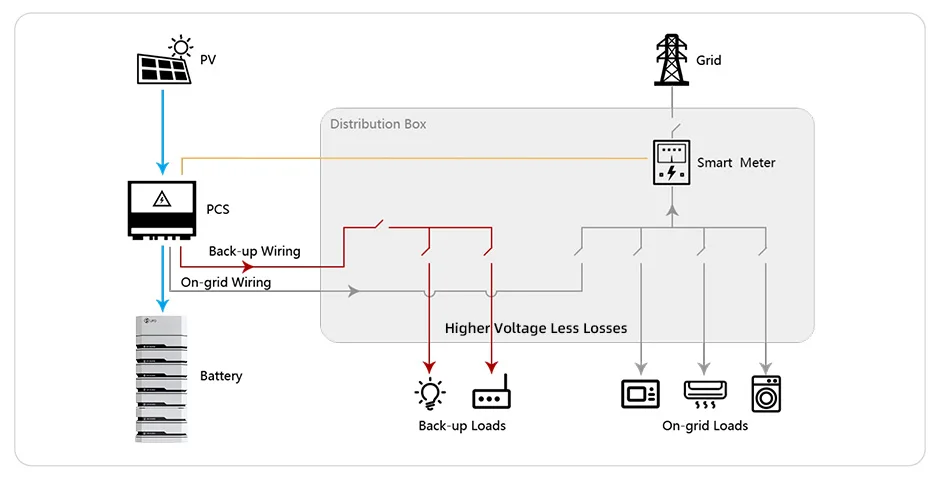

Higher Voltage Less Losses
UFO Home Power Storage Brick Battery uses the latest HVLL( High Voltage Less Loss) technology to efficiently utilize the electricity stored in lithium batteries by reducing normal consumption in power transmission. The higher voltage, the lower current and the less losses of the internal resistance, so the battery generates less heat at high power than at low power. Home Power Storage Brick Battery the effective utilization rate of ordinary transmission at 0.2Am 98%. Nice performance!
IoT (lnternet of Things) Wireless Remote
------WiFi / Blue Tooth / 3G / 4G------

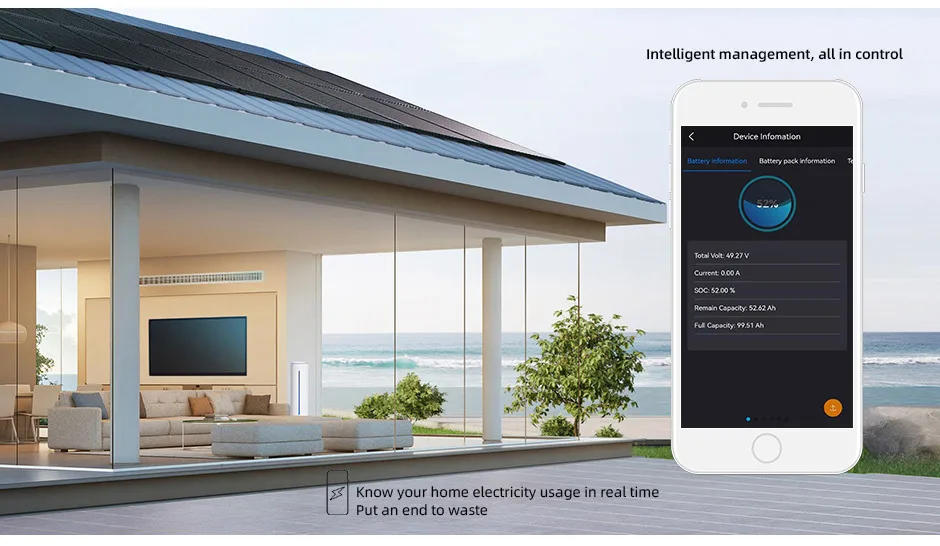

How to monitor the energy storage system for long distance at home or in the office? Stackable backup power system contains remote Internet of Things communication function. It's perfectly realizes remote and simple operation. There is a master controller in the stacked lithium battery pack, which contains the Internet of Things function. Wireless communication for remote management of the Internet of Things. Through sensing technology, wireless communication signals are received through WIFI/Bluetooth/3G/4G to realize remote control and management. This is a green and environmentally friendly energy solar off-grid backup power system. The battery material Stackable backup power system is LIFEPO(LFP) instead of lead-acid ratio to avoid environmental pollution. Lithium iron phosphate battery has the advantages of high temperature resistance, strong safety and stability, low price and better cycle performance. Lifepo4 battery pack has high energy density and is very safe.
Stacked movable energy storage systems, customized battery packs of different VOLTAGE and electrical capacities according to customer needs, configured on demand, compact, flexible and practical. It is an essential energy storage artifact for families, schools, fences, shopping malls, restaurants or hotels!
Stacked movable energy storage systems, customized battery packs of different VOLTAGE and electrical capacities according to customer needs, configured on demand, compact, flexible and practical. It is an essential energy storage artifact for families, schools, fences, shopping malls, restaurants or hotels!
Packing & Delivery
Company Profile
Manufacturing Technique
Certifications
Please Contact Us Now!
Email Address: sale(at)UFO-battery.com
FAQ
Q1: Are you a manufacturing factory?
A1: Yes, We are a lithium battery manufacturer from China since 2010. You are welcome to visit our factory and production process.If the quantity is suitable, we accept OEM/ODM.
Q2: What’s your product range?
A2: We focus on Lithium-ion battery, Lithium iron phosphate (LiFePO4) battery for residential and commercial energy storage system, telecom tower, UPS, AGVs, golf carts, boat, RVs, camping, electric vehicles, etc.
Q3: What is the production time for your lithium battery?
A3: The sample delivery time is about 5-10 days. The bulk order delivery time is about 25-35days according to quantity.
Q4: Can I buy one or two units for the sample first?
A4: Yes. Samples are welcome for the LiFePO4 battery. Please contact our sales manager to place the order.
Q5: Can you give us a discount?
A5: We can of course talk to specific numbers, but let’s make sure we’re on the same page about this solution being a good fit for your needs.
Q6: How do you guarantee the quality?
A6: Always a pre-production sample before mass production.
Always final Inspection before shipment.
Q7: Why we can choose you?
A7: Reliable-- Our certifications like MSDS, CE is our commitment to quality and safety for our lithium batteries.
Professional--We provide battery solutions and technical support for more than 10 years.
Factory-- We have factory, so have competitive price.
A1: Yes, We are a lithium battery manufacturer from China since 2010. You are welcome to visit our factory and production process.If the quantity is suitable, we accept OEM/ODM.
Q2: What’s your product range?
A2: We focus on Lithium-ion battery, Lithium iron phosphate (LiFePO4) battery for residential and commercial energy storage system, telecom tower, UPS, AGVs, golf carts, boat, RVs, camping, electric vehicles, etc.
Q3: What is the production time for your lithium battery?
A3: The sample delivery time is about 5-10 days. The bulk order delivery time is about 25-35days according to quantity.
Q4: Can I buy one or two units for the sample first?
A4: Yes. Samples are welcome for the LiFePO4 battery. Please contact our sales manager to place the order.
Q5: Can you give us a discount?
A5: We can of course talk to specific numbers, but let’s make sure we’re on the same page about this solution being a good fit for your needs.
Q6: How do you guarantee the quality?
A6: Always a pre-production sample before mass production.
Always final Inspection before shipment.
Q7: Why we can choose you?
A7: Reliable-- Our certifications like MSDS, CE is our commitment to quality and safety for our lithium batteries.
Professional--We provide battery solutions and technical support for more than 10 years.
Factory-- We have factory, so have competitive price.
