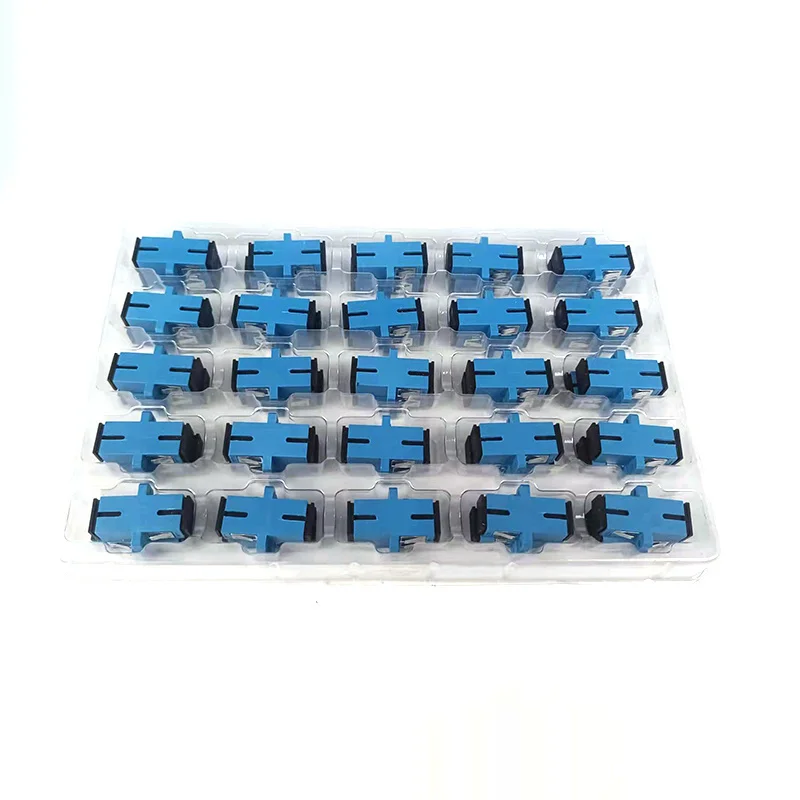

SC/APC SC/UPC Singlemode simplex duplex Coupler LC ST FC fiber optical fiber adapter

Product Overview

Description



Description

SC adaptors which have high precision alignment sleeves for reliability and improvedreconnectability.

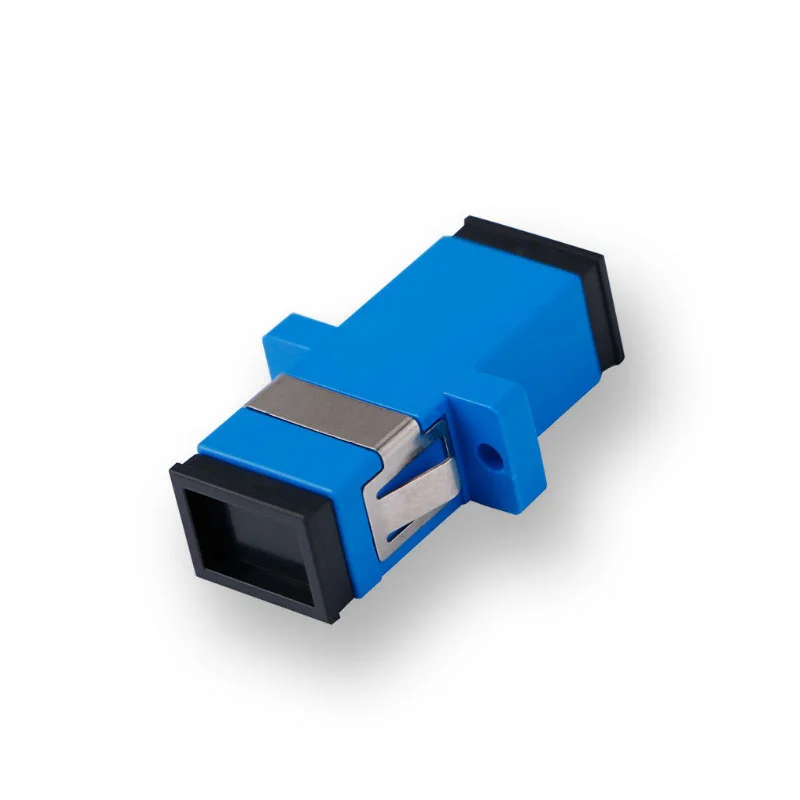

For singlemode applications a ceramic sleeve is supplied to ensure a highprecision alignment.

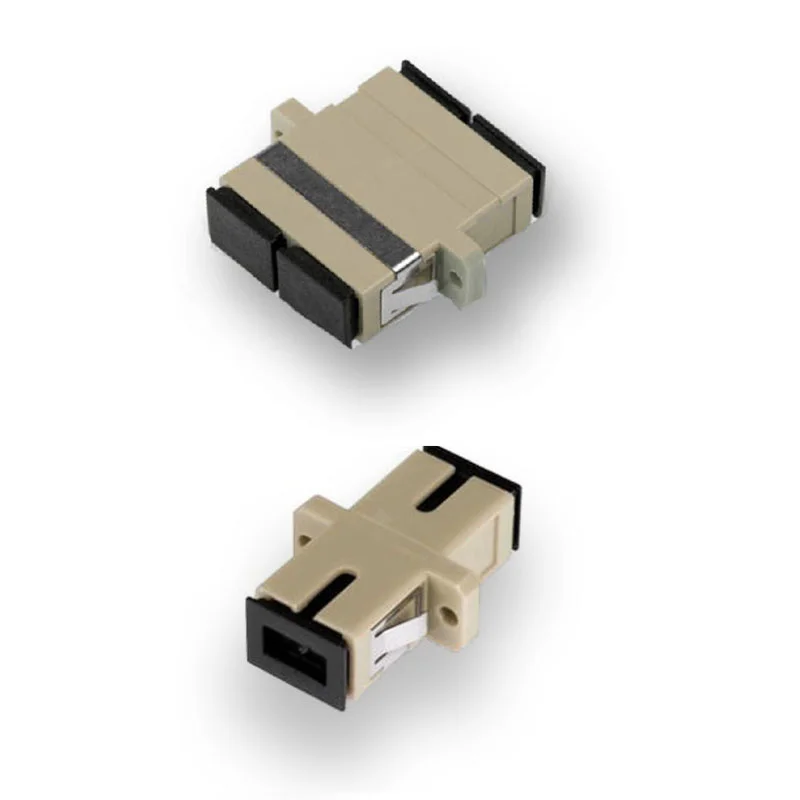

For multimode applications a phosphor bronze sleeve is supplied.
The housing is available in different colours with options for flange or flangeless body, metal clips
or inbuilt clips



Features

Complies with IEC 61754-4 and
IEC 60784-14 standards
High precision alignment sleeve
L ow insertion loss and improved
reconnectability
RoHS, REACH SvHC compliant

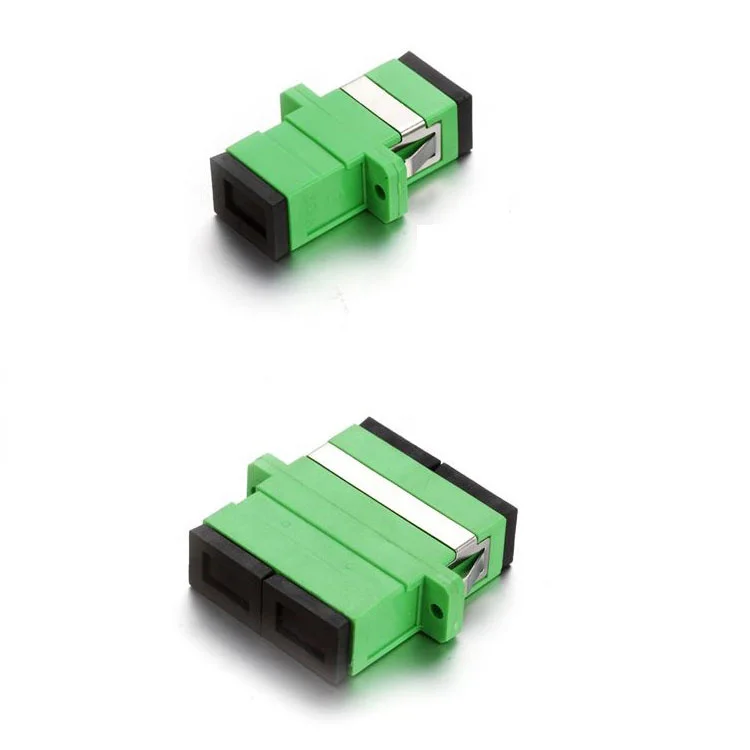

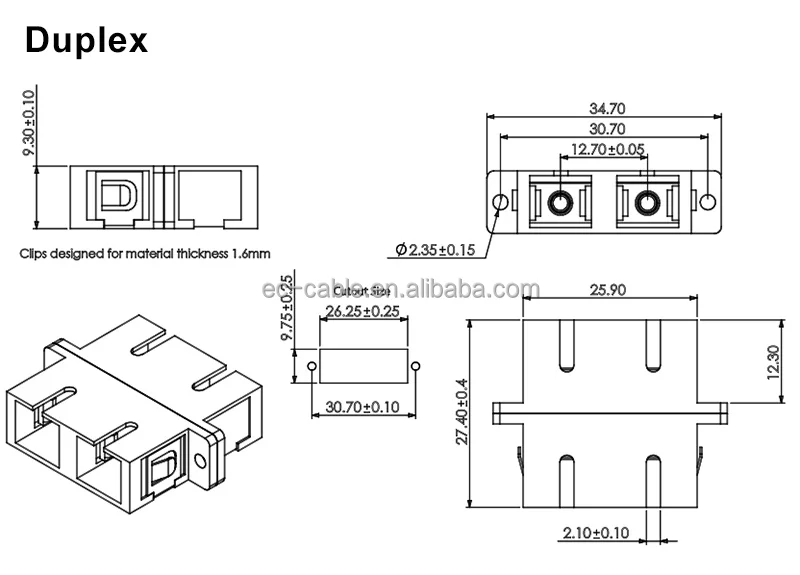

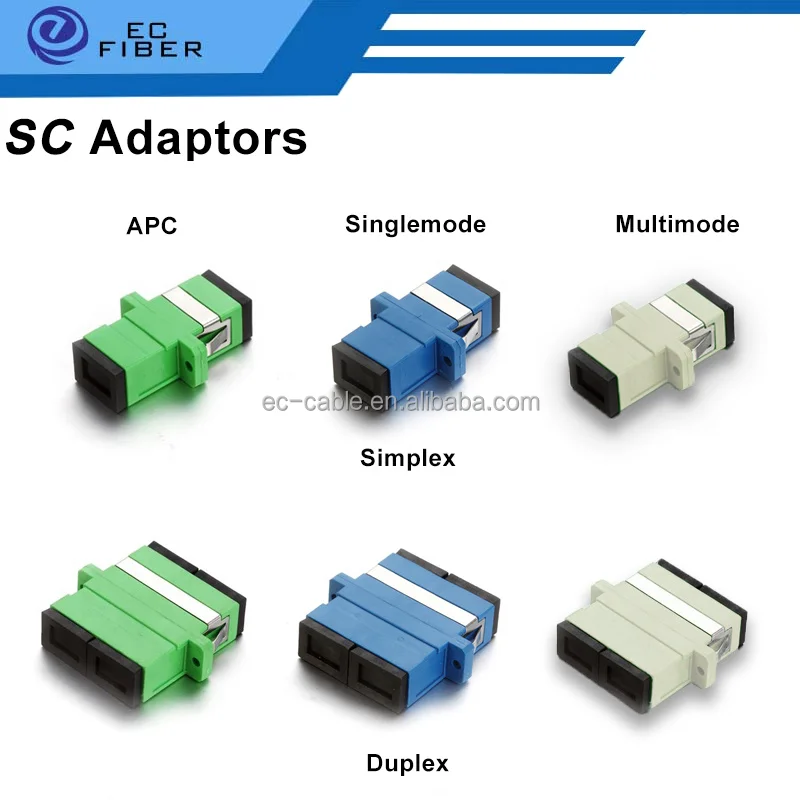

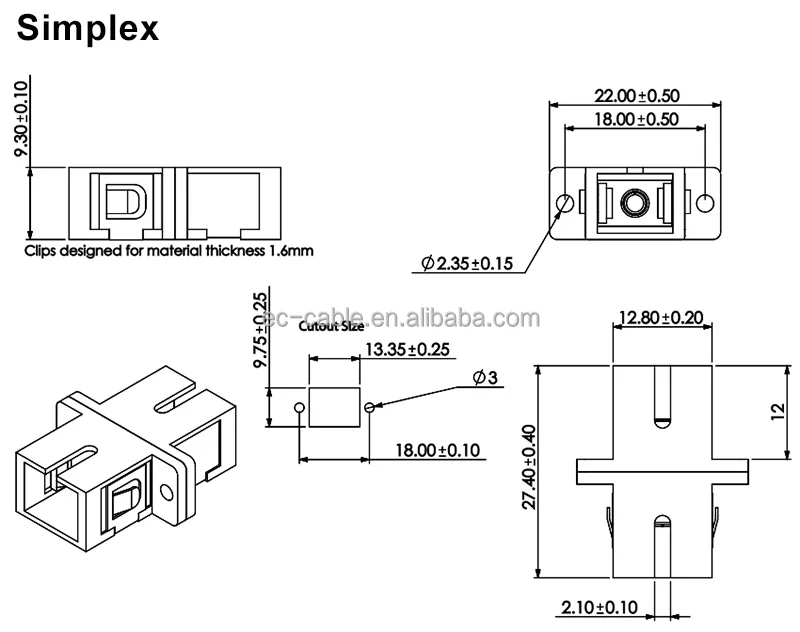

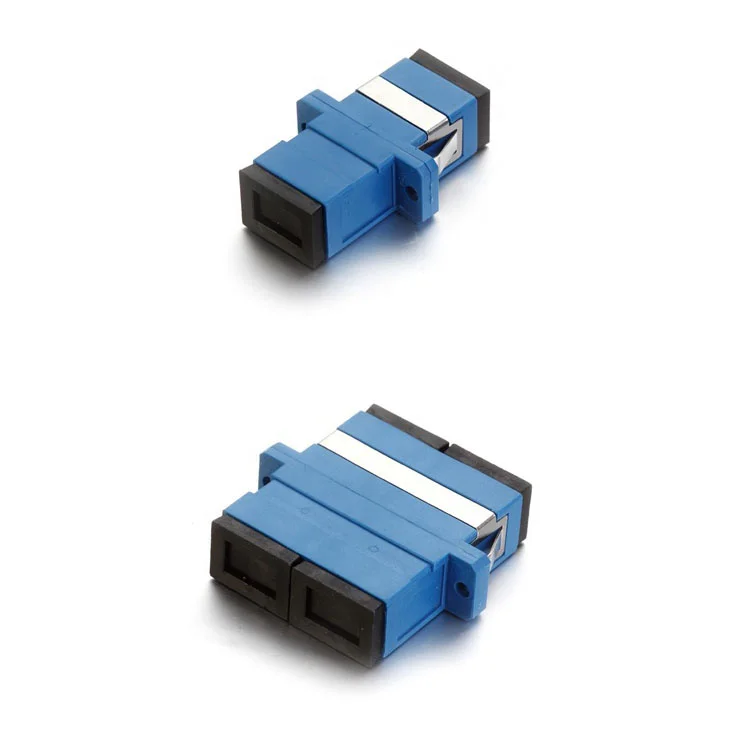

Available in simplex and duplex adaptors
SC simplex adaptors are available with
a shutter (see page 8 for details)



Applications

Data centres, premise installations,
telecommunication networks
Ethernet, fibre channel, ATM,
L AN, MAN and WAN



Technical Specification

	Ceramic	Phosphor Bronze	Onformance
Insertion Loss(Typ)	0.1 dB	0.15 dB	IEC 61300-3-4
Mating Durability	-	500	IEC61300-2-2
Receptacle Retention force	-	2N-5.9N	IEC61754-4
Operating temperature	-	-25 to+70,12 cycles	IEC61300-2-22
