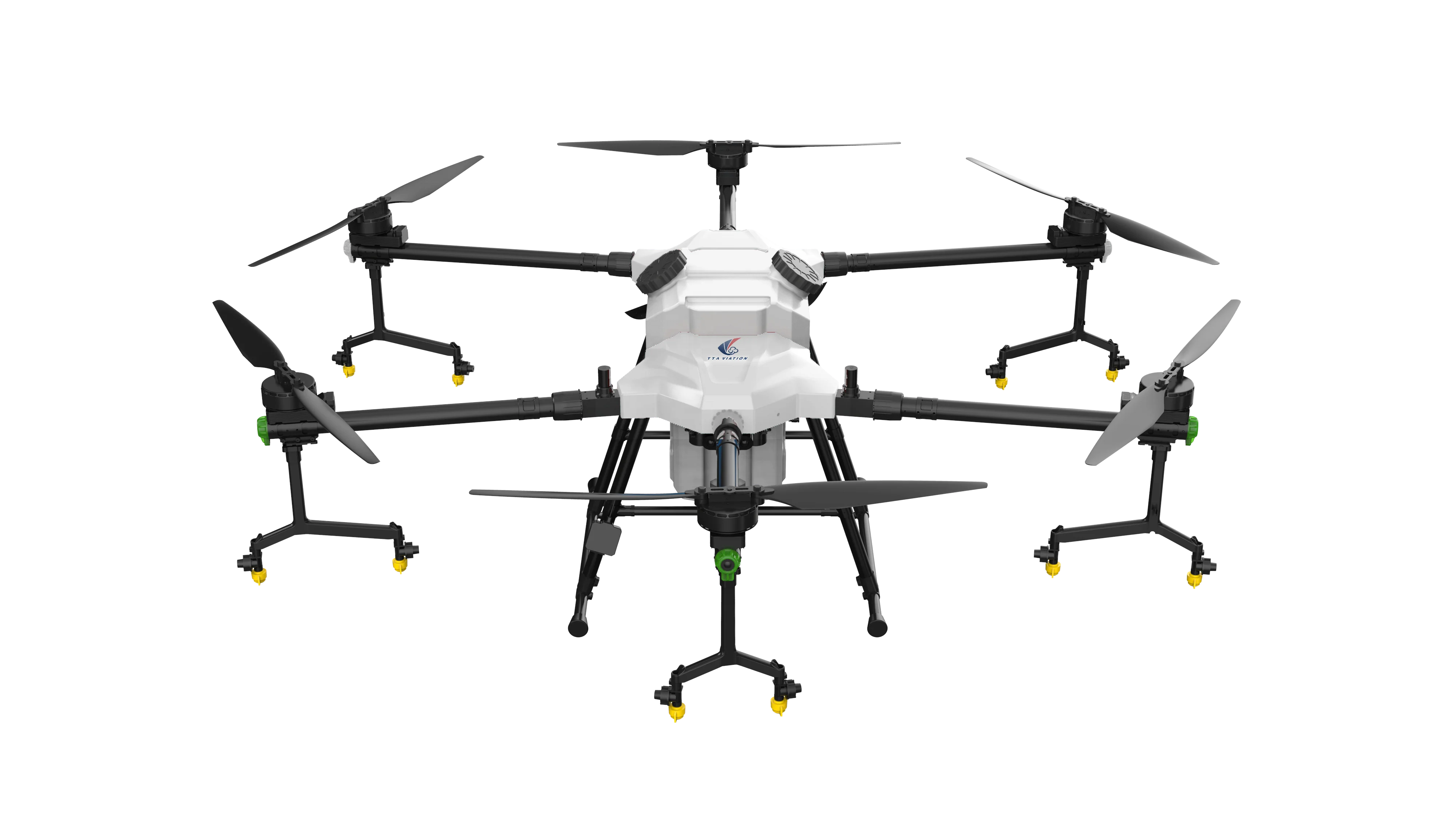

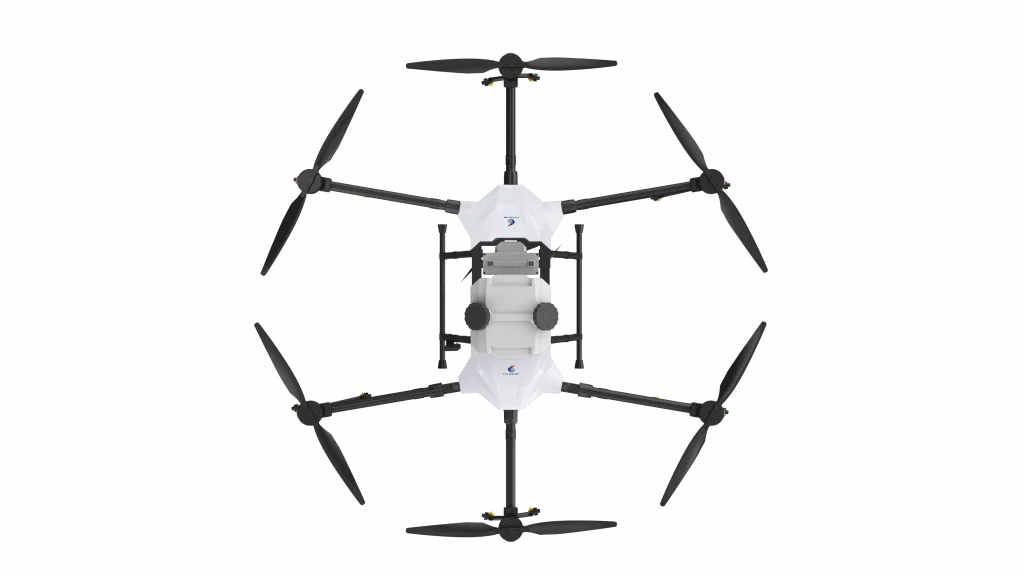

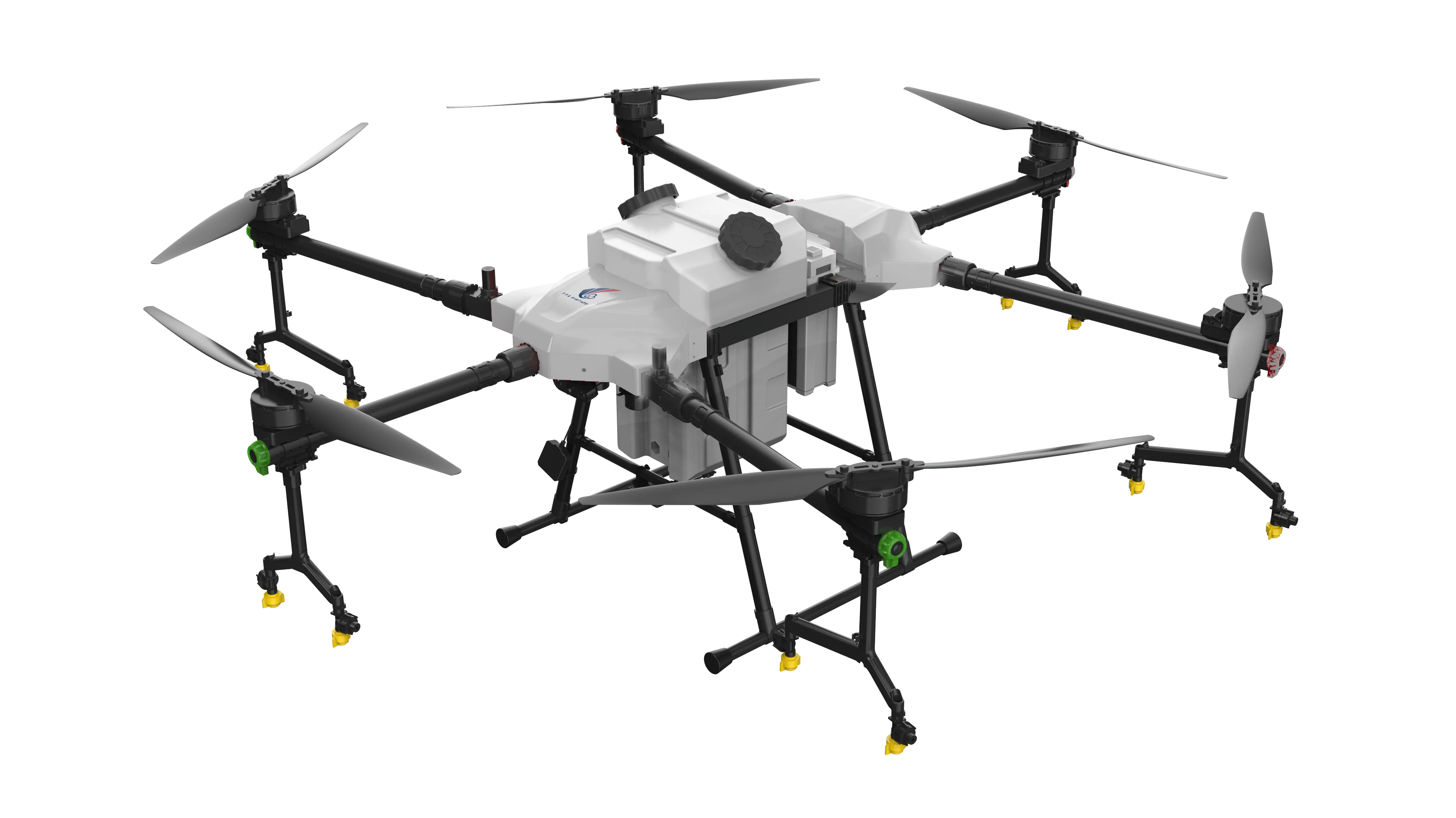

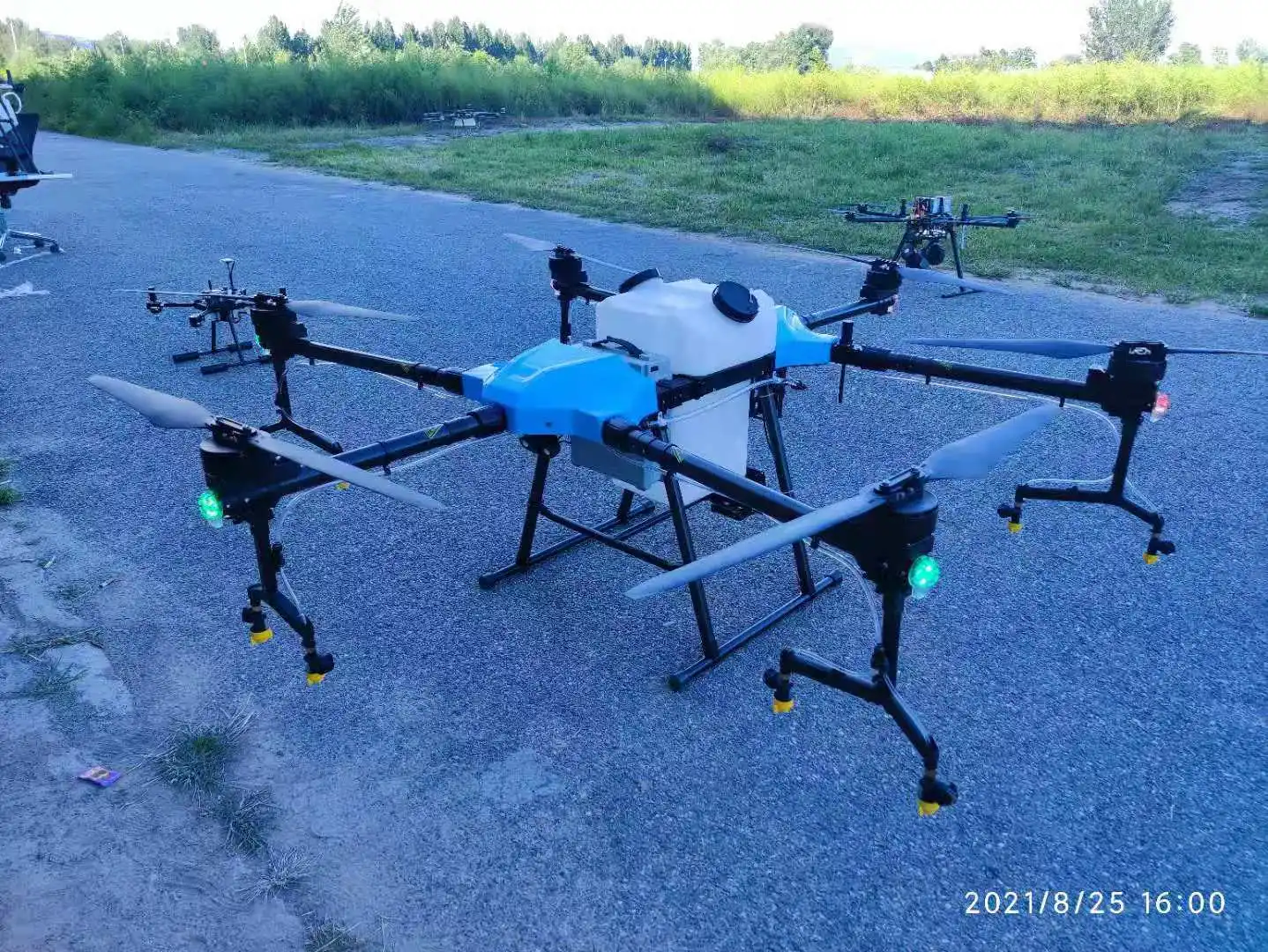

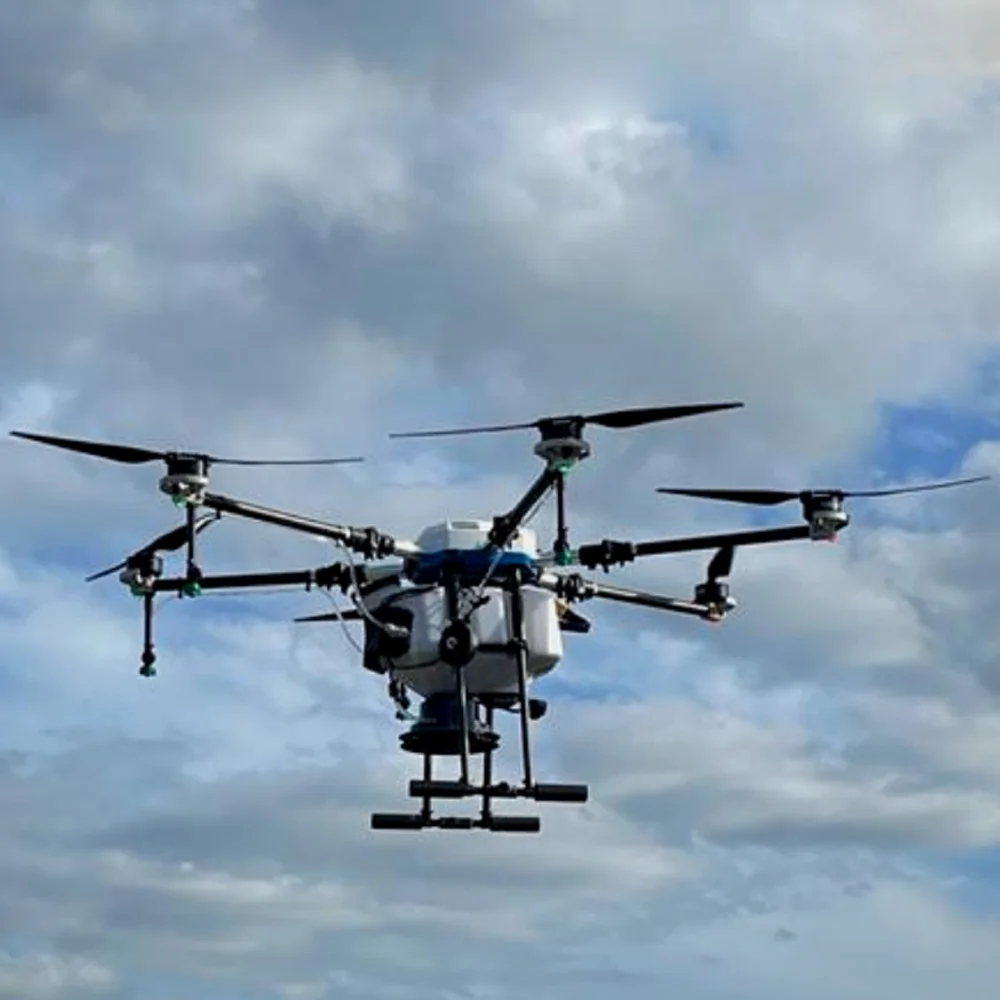

Сельскохозяйственный распылитель с большой полезной нагрузкой 30 литров, Дрон для защиты растений, беспилотник для фермы TTA G300
- Category: Aircraft >>>
- Supplier: Beijing TT Aviation Technology Co. Ltd.
Share on (1600512924771):
Product Overview
Description
Products Description
Model | M6E-G300 | |
Tank Volume | 30L | |
Work Efficiency | 4～6Acre/10min | |
Flying | ||
Full payload Flying Time | 10-13min | |
Empty payload Flying Time | ≥20min | |
Flying Speed | 0-10m/s | |
Flying Height | 3500m | |
Landing approach | Vertical take-off and landing | |
Anti-wind | <12m/s | |
Positioning | GPS&RTK | |
Spraying | ||
Spray droplet diameter | 80-200μm | |
Quantity of Nozzles | 12pcs | |
Recommend Spray Speed | 4-6m/s | |
Spray Width | 4-6M | |
Spraying Area | 48～60 hectares per day | |
Main Features
model 1
Find your crop field and set waypoint from the GCS GoogleMap, the route will automatically appear. The start point, the final point and the working direction can all be set.
model 2
Import kml file directly , the route will automatically appear. The start point, the final point and the working direction can all be set.
model 3
Only need to set A and B point and give the drone a direction order then the drone will fly and spraying
automatically.
automatically.
Accuracy:
Horizontal: ±1cm + 1ppm Vertical：±2cm + 1ppm
Function:
Make sure the field can be fully covered.
To avoid damage neighbor crop and pollution.
One base station supports multiple drones work at same time.
Horizontal: ±1cm + 1ppm Vertical：±2cm + 1ppm
Function:
Make sure the field can be fully covered.
To avoid damage neighbor crop and pollution.
One base station supports multiple drones work at same time.
Spraying system
Double water pumps generate bigger pressure , max 4L/min adjustable flow rate.
Bigger inlet for you to fill in the chemical faster and no leaking.
Advanced flow meter makes the error of precise spraying within 2%.
Bigger inlet for you to fill in the chemical faster and no leaking.
Advanced flow meter makes the error of precise spraying within 2%.

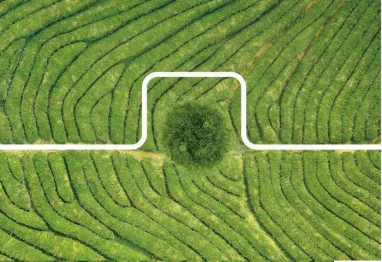

Obstacle avoidance sensor
Equip front and back Obstacle avoidance sensor makes the drone has the ability to automatically detect obstacles to avoid
unexpected crash and lose.
The GCS presents the distance from the obstacles at the same time.
unexpected crash and lose.
The GCS presents the distance from the obstacles at the same time.

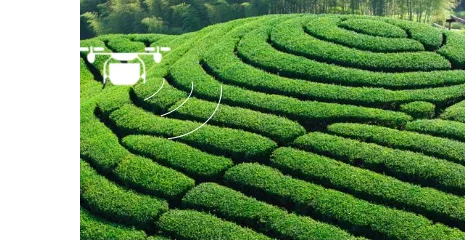

Terrain following module
To make the drone has the ability to work on undulating crop field and make the spraying work much easier.

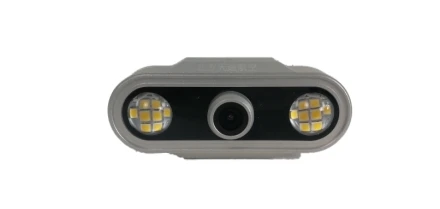

FPV camera
Real time video monitoring let you know detail information of drone and your crop situation !
Dual LED light. Support night flight!
Dual LED light. Support night flight!

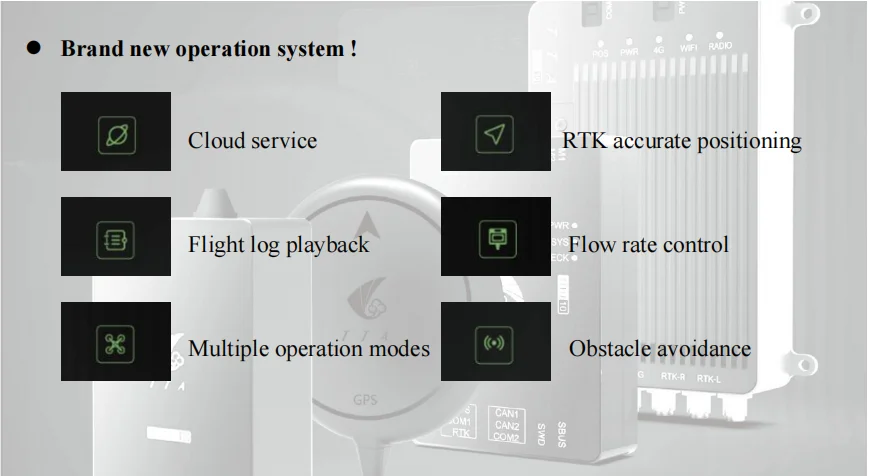

Cloud service / Background management platform
For better management not only your drones but your spraying records !
Support real time monitoring of everything drone situation.
It will collect all the drones data include sprayed area, spraying location,
spraying log, etc.
Support real time monitoring of everything drone situation.
It will collect all the drones data include sprayed area, spraying location,
spraying log, etc.

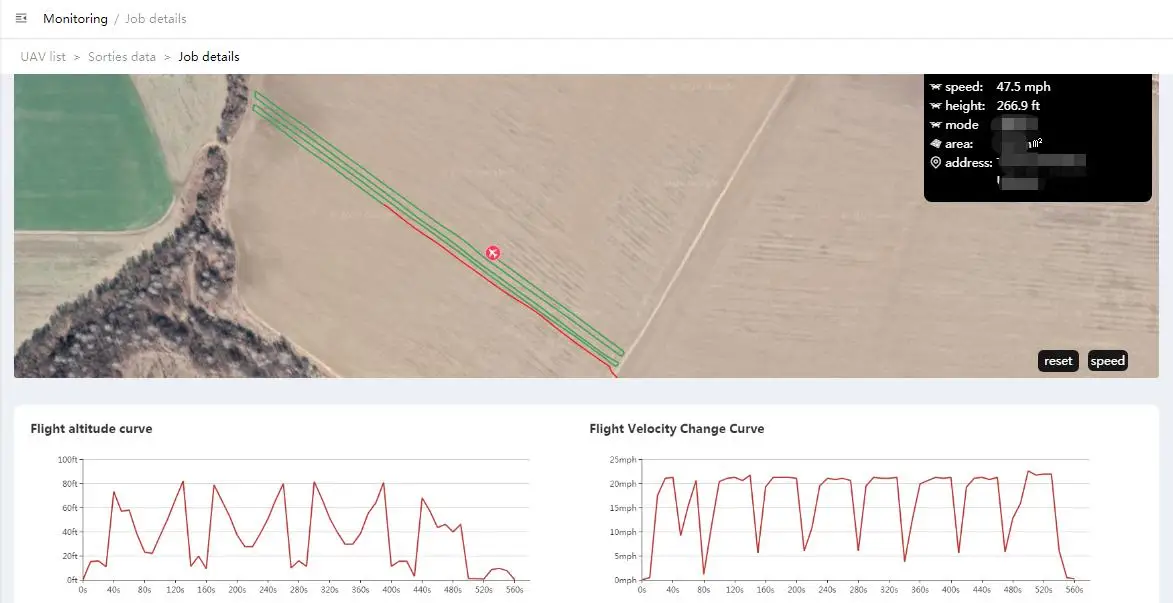

Precheck and After-check
You can review the detail performance of the drone by flight log playback function and also can view the flight route ! Which allow you to check your drone in details before flying and check the mission records after flight.

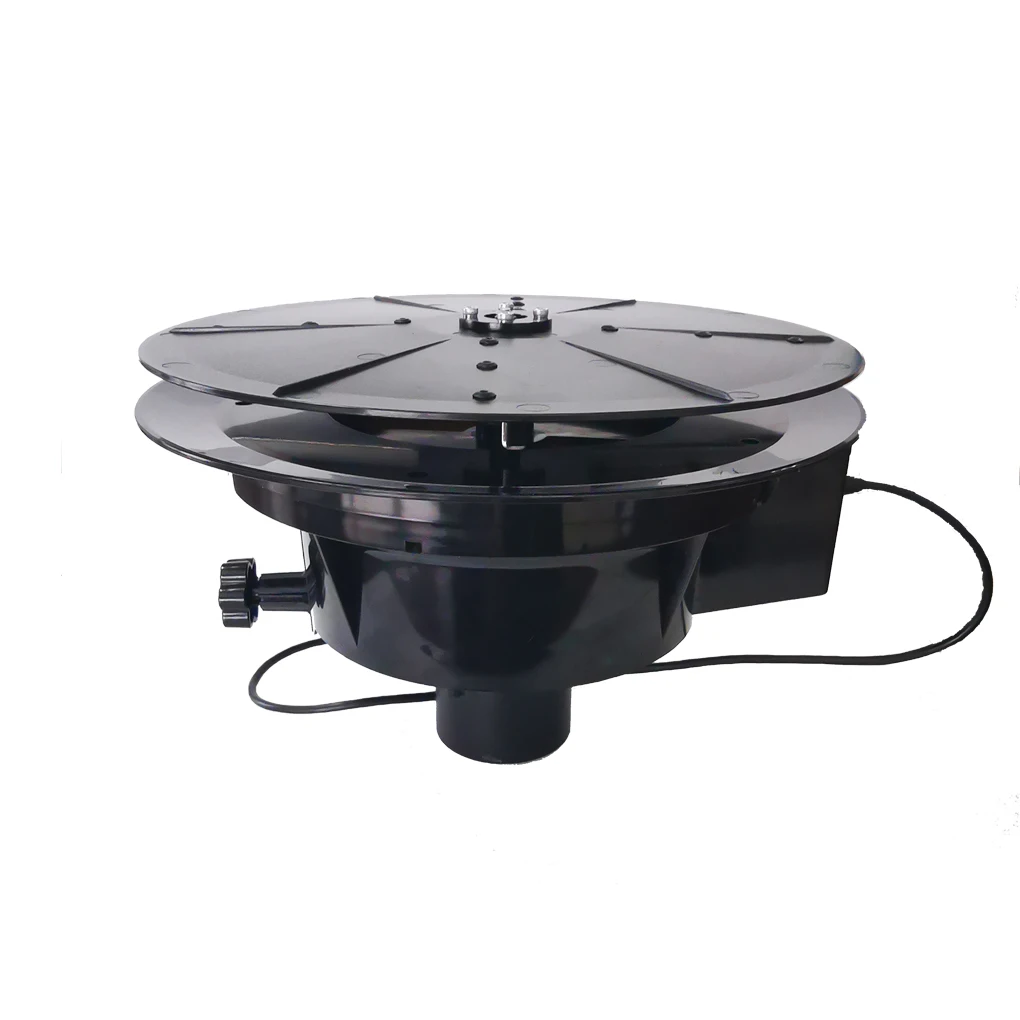

Seed spreader
The spreader will be attached on the water tank for sowing.
Company Profile
Company Profile
Beijing TT Aviation Technology Co.Ltd(TTA) was founded in 2008 and the head office is located in Zhongguangcun Science and Technology Park,Changping District, Beijing . The company has established 8 branches in China.
With a number of software copyrights and more than 160 drone industry patents,TTA is granted as National High-Tech Enterprise and Zhongguancun High-Tech Enterprise .
TTA is a specialized unmanned aerial vehicle (UAV) industry chain provider. Our main products are multi-rotor, unmanned helicopter and fixed wing UAV. The company integrates researching and development, manufacturing, test and training to provide professional UAV products, service and training to our customers (Government, Institutions, Enterprise, farmers).
TTA Education is the No. 1 CAAC Examination Center in North China. It has the qualification to train and test UAV pilot, captain, instructor and types of UAV are multi-rotor , helicopter, fixed wing, and VTOL UAV. More than 20,000 UAV pilots get certificate from TTA
With a number of software copyrights and more than 160 drone industry patents,TTA is granted as National High-Tech Enterprise and Zhongguancun High-Tech Enterprise .
TTA is a specialized unmanned aerial vehicle (UAV) industry chain provider. Our main products are multi-rotor, unmanned helicopter and fixed wing UAV. The company integrates researching and development, manufacturing, test and training to provide professional UAV products, service and training to our customers (Government, Institutions, Enterprise, farmers).
TTA Education is the No. 1 CAAC Examination Center in North China. It has the qualification to train and test UAV pilot, captain, instructor and types of UAV are multi-rotor , helicopter, fixed wing, and VTOL UAV. More than 20,000 UAV pilots get certificate from TTA
