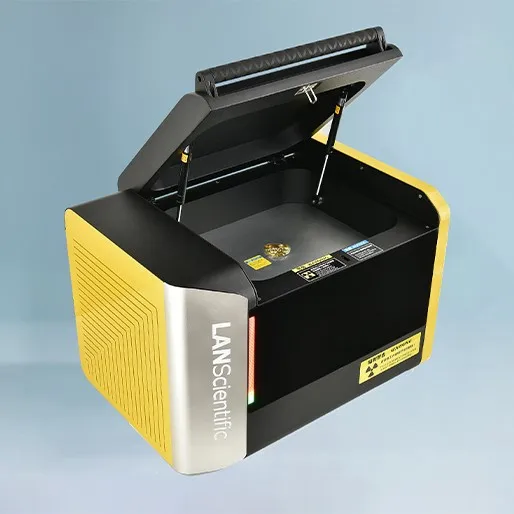

ScopeX 980CS benchtop XRF analyzer spectrometer XRF gold tester machine XRF metal analyzer
- Category: >>>
- Supplier: Yantai Stark Instrument Co. Ltd.
Share on (1600512936568):
Product Overview
Description
Product Description
The ScopeX desktop XRF analyzer is equipped with highly intelligent software and high-quality hardware, featuring wide linear range, fast analysis, good reproducibility and high accuracy. Sample preparation is simple, sample size and shape can be diverse, and high sample handling capacity can be realized. Suitable for large-scale continuous analysis, process control, product quality inspection and other links, it is an ideal tool for petroleum, coating, precious metals, cement, minerals, metal materials and plastics and other industries.
Main Features
High performance configuration
Low energy X-ray with intelligent vacuum system, Si, P, S, Al, Mg and other light elements have a good excitation effect, XRF technology can be used to analyze the high content of Cr, Ni, Mo and other key elements.
A variety of collimator, filter automatic switch
5mm, 3mm, 1mm, 0.5mm four kinds of collimator, collimator and filter can be automatically switched by the software, save time and effort, through the appropriate combination of collimator and filter can improve the detection accuracy and sensitivity.
Nondestructive testing
Without damaging or affecting the performance of the tested object, the whole test process without any damage.
Peltier refrigeration
Peltier electric refrigeration without liquid nitrogen. Reduce the complexity of the device, and save manpower and equipment maintenance costs.
Data transmission
USB, WIFI, wireless Bluetooth and other methods for data transmission.
User-defined
The file can be in EXCEL, PDF and other formats. Users can customize the test report, including company logo, spectral spectrum and other sample information.
Safety
Fully enclosed metal chassis and leakage protection switch, radiation safety in line with international standards.
Technical Parameters
Test object | Solid, liquid, powder |
Range of element | Na—U |
Sample room size | 330×290×78mm（L×W×H） |
Sample weight range | 0-2.5KG |
Cover open | Automatic |
Mainframe size | 570×400×400mm（L×W×H） |
Mainframe weight | 64KG |
X-ray tube | High power side window X-ray tube |
Voltage | Up to 50KV |
Current | Maximum 1mA |
Cooling Method | Air cooling |
Detector | SDD |
Test environment | Air mode、Helium mode、Vacuum mode |
Sampling Method | Hand sampling、Autoinjection |
Sample Observation | 5 megapixel HD industrial camera |
PC(CPU) | CPU is I3-7100 with the same main frequency or above |
RAM | DDR4 4 GB memory or above |
ROM | 1TB HDD or 256GB SSD or above |
OS | Windows 10 |
Temperature conditions | 10°C~35°C |
Relative humidity | 40%-70% （No condensation） |
Power supply | 220VAC |
Rated power | ScopeX 980/ScopeX 980S:100W ScopeX 980CS/ScopeX980CSR:600W |
Application

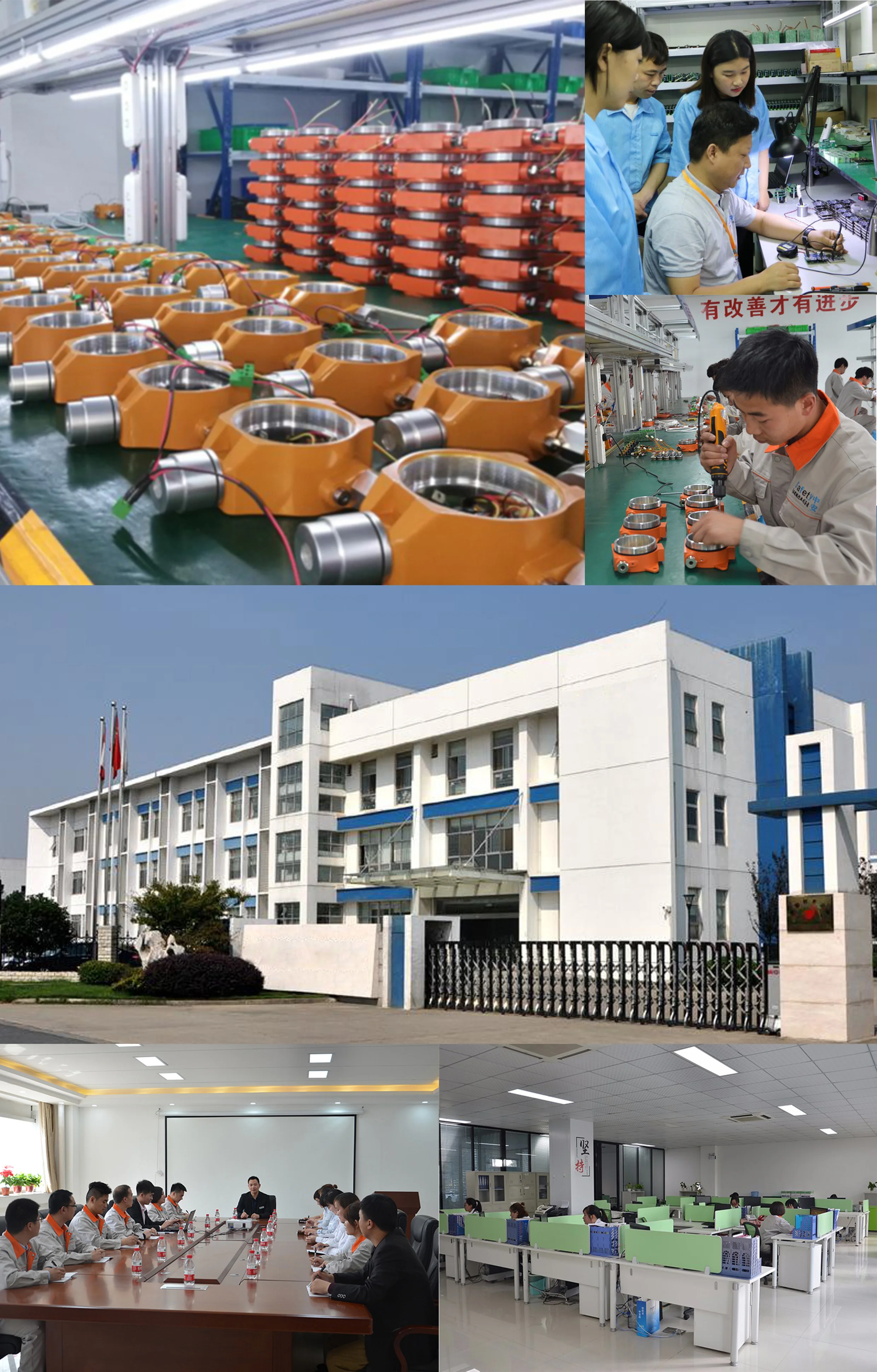

Company Profile
