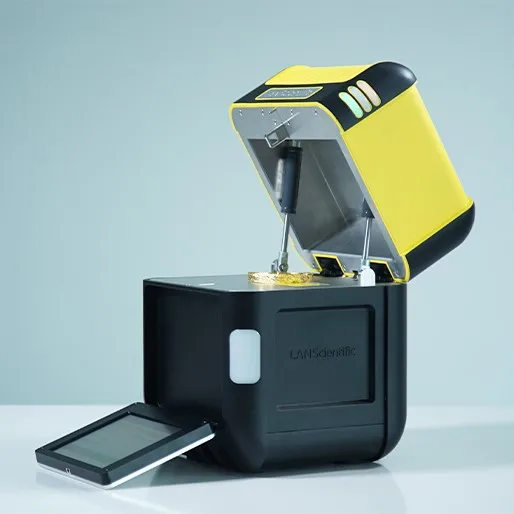

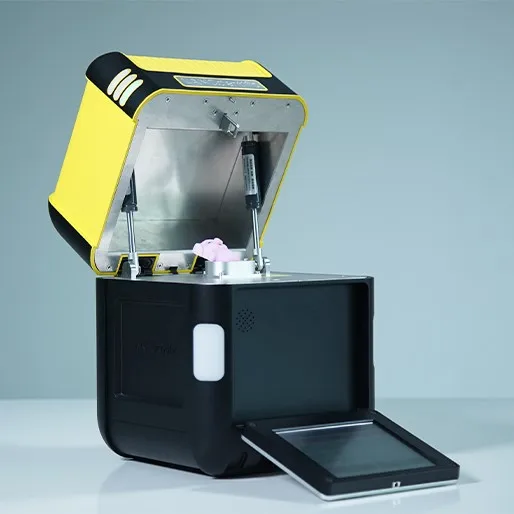

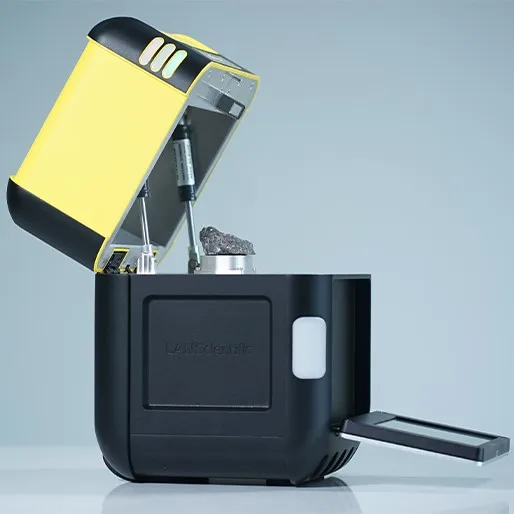

PeDX GOLD series portable XRF precious metal analyzer xrf gold analyzers testing machine xrf gold tester
- Category: >>>
- Supplier: Yantai Stark Instrument Co. Ltd.
Share on (1600512957281):
Product Overview
Description
Product Description
The PeDX GOLD Precious Metal Analyzer has become a widely used, popular and reliable method for determining the elemental composition and purity of precious metals. Compared with other testing methods, using an analyzer to analyze precious metals is a faster and more economical method of nondestructive testing. It can be used for on-site Karat identification of gold, identification of gold-plated samples, and accurate analysis of the chemical composition of platinum, silver and other precious metal alloys.
Main Features
One-click intelligent operation
The whole analysis process can be completed in just a few seconds. The operation is simple and even non-technical people can easily use it.
Easy customization
On the basis of testing, it provides a variety of custom Settings. You can change test conditions according to detection needs, or change thresholds according to screening needs, so as to realize personalized screening of different materials and elements.
Multiple forms of data output
Analytical data reports can be made in PDF format or Excel format. When exporting data in Excel format, you can also confirm and edit the data in detail in the table. Users can also create customized professional reports, including company logo, company address, test results, spectrogram and other sample information (such as product description, origin, batch number, etc.).
Accurate and reliable qualitative and quantitative methods
It integrates advanced algorithms such as super-FP algorithm and correction curve method of LANScientific's front, making the instrument not only faster, higher accuracy and stronger consistency of measurement.
Technical Parameters
Weight | 4.1KG |
Size | 200×200×268mm（L×W×H） |
Size of Sample Room | 170×130×60mm（L×W×H） |
Excitation source | Up to 50kV, 200uA X-ray tube, upper excitation power 4W |
Detection Range | Mg—U |
Detector | BOOST Si-pin/SDD（Optional） |
Operation System | Based on the I. MX 6 Quad， quad-core Cortex-A9 processor Dedicated analytics operating system, 32GB of system memory |
Data Processing | USB, Bluetooth, WIFI, can connect the device to the Internet, remote setting and maintenance of the instrument |
Target | Ag/W/Rh (Optional) |
Resolution | <136eV |
Operating Ambient Temperature | -20℃~50℃ |
Operating Ambient Humidity | 10%~90% relative humidity, non-condensing |
Display | 5.7-inch absorbable color touch screen display |
Test Time | User customize |
Optional | Built-in 5-megapixel HD camera |
Lauguage | Chinese, English, etc |
Air mode | Air mode, helium mode, vacuum mode (optional) |
Application
