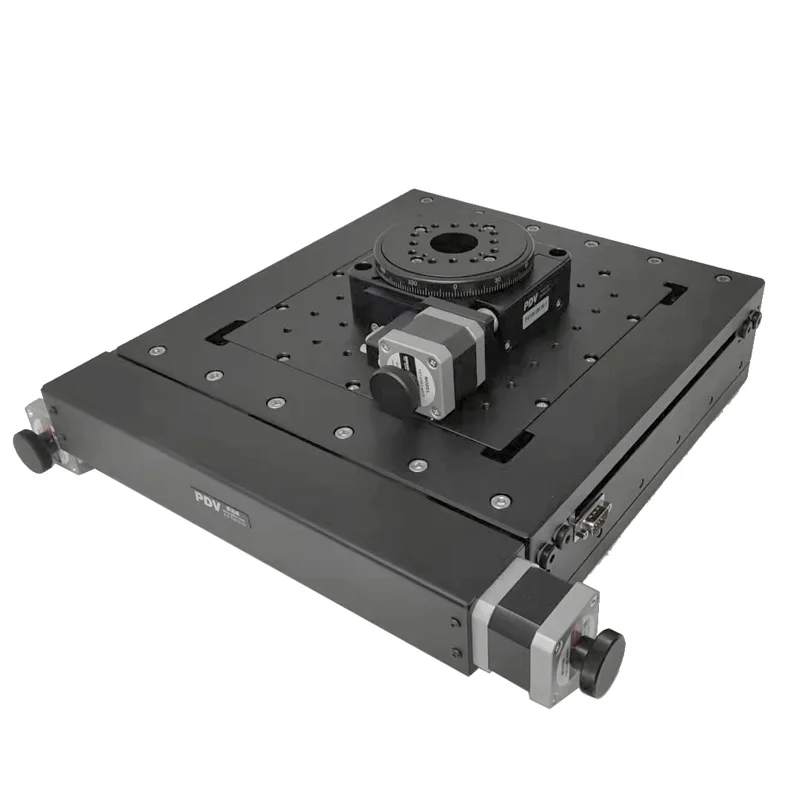

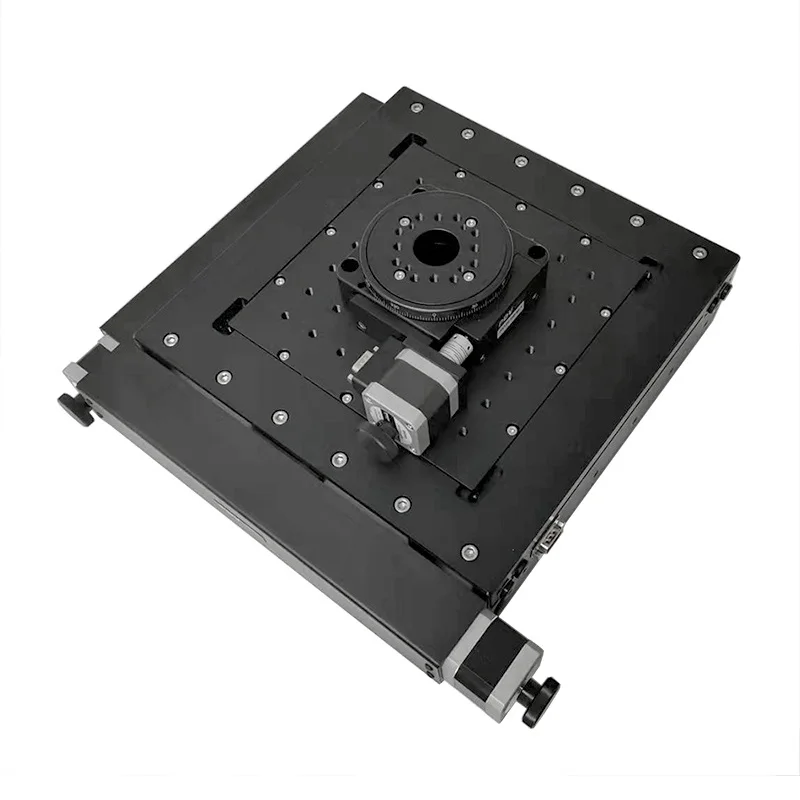

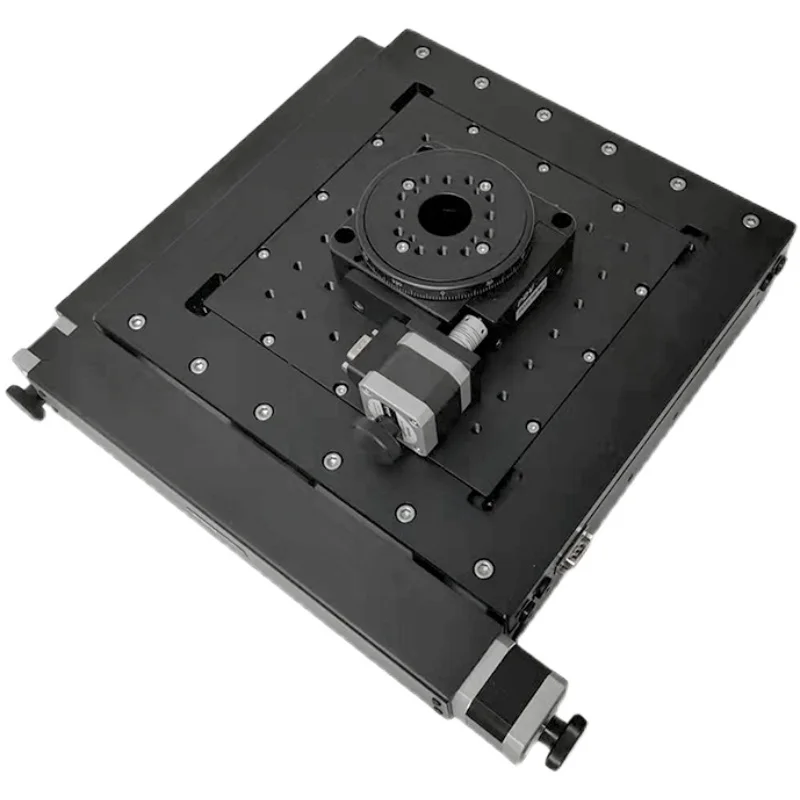

XYZ Motorized Three axis Combined Stage XY Translation Table Electric Lifting Slide Table

Product Overview

Description

The product does not include the controller, and the controller is ordered separately

Controller purchase link

https://www.alibaba.com/product-detail/KZ-100-Motion-controller_62054931027.html?spm=a2747.manage.0.0.187b71d2BbrNjZ

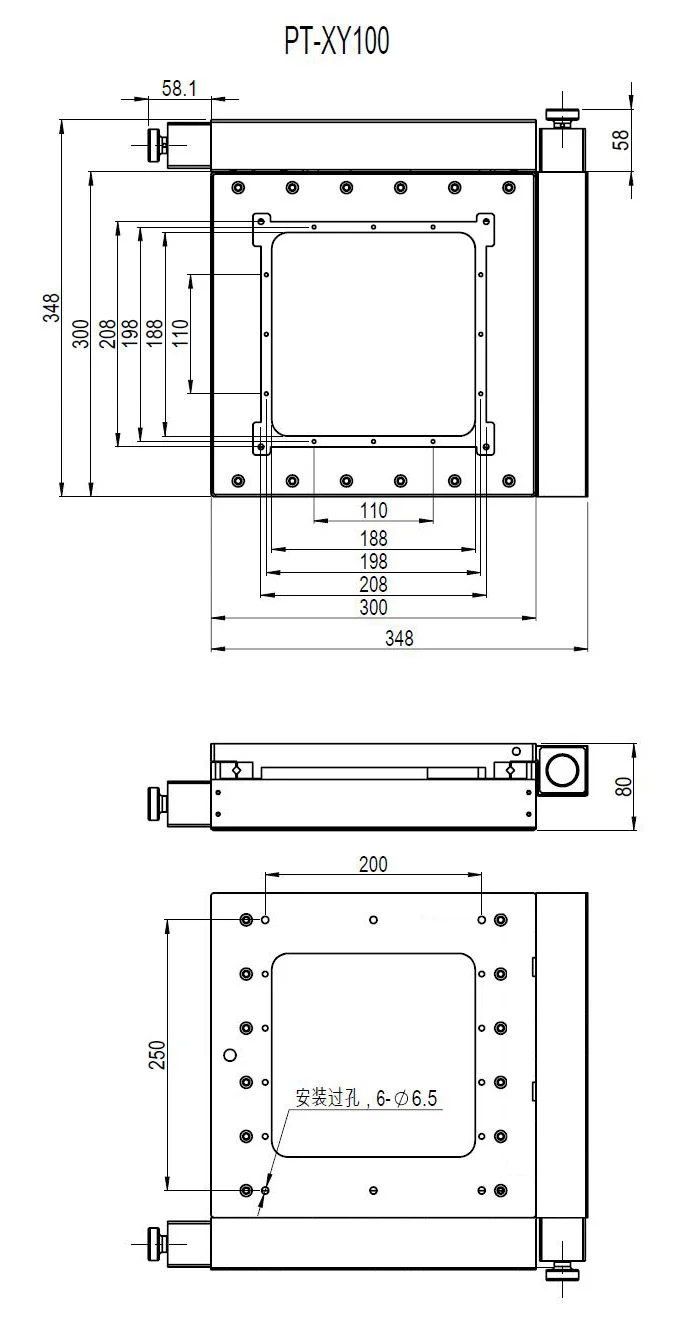

Electric Integral Combination Stage: PT-XY100



Product features:

1. stepper motor is equipped as standard, which can be automatically controlled by the company's motion controller.

2. the product is small and light in structure, which is suitable for use under light load and low speed, as well as in scientific experiments.

3. high quality fine grinding lead screw drive, small lead, the same fine fraction can achieve high resolution.

4. the ingenious structural design of air elimination check nut can minimize the clearance of grinding lead screw pair.

5. the precision square guide rail is comfortable to move, and has the function of laterally adjusting the guide rail preload and eliminating clearance. It can be used in multi-dimensional combination.

6. the fine grinding of the bottom plate of the electric moving table and the reasonable fixing mode of the guide rail greatly reduce the pitch and yaw of the electric moving table, and greatly improve the straightness and parallelism of the movement.



Model Number		PT-XY100
Structure	Travel Range(mm)	100mm
	Platform(mm)	300mm x 300mm
	Screw Guide	4
	Travel Guide	Precise Crossed Roller Bearing
	Stepper Motor	42(1.8°)
	Material	Aluminum Alloy
	Surface Preparation	Black-Anodized
	Load Capacity(Kg)	50
	Weight(Kg)	8.3
Accuracy	Resolution(μm)	20(Non MS), 2.5(8 MS)
	Max Velocity	40mm/sec
	Repeatability(μm)	2
	Absolute Accuracy(μm)	3
	Straightness(μm)	5
	Moving Parallelism(μm)	15
	Pitching	50"
	Yawing	25"
	Backlash(μm)	2
	Lost Motion(μm)	2
Accessory	Installing Grating Ruler (Optional)
	Reloading Servo Motor (Optional)

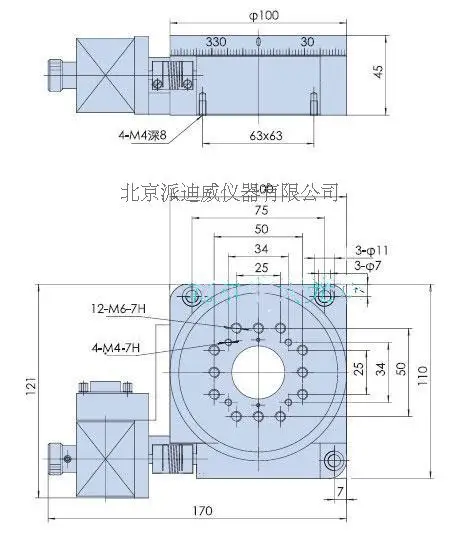

Precision Electric Rotary Stage (Worm Gear): PX110-100



Model Number		PX110-100
Structure	Rotation Range	360°
	Platform Size	φ100mm
	Transmission Ratio	180:1 or  90:1
	Drive Mechanism	Worm Gear
	Travel Guide	Bearing
	Stepper Motor (1.8°)	42BYG
	Material Surface	Aluminum Alloy (Black-Anodized)
	Central Load	45kg
	Weight	1.7kg
Accuracy	Design Resolution	0.01°(Non-MS Driver)
		0.0005°=1.8″(20MS Drive)
	Max Velocity	25°/sec
	Repeatability	0.005°=18″
	Absolute Accuracy	0.01°=36″
	End jump accuracy	15μ
	Backlash(μm)	0.005°=18″
	Eccentricity	5μ
	Lost Motion(μm)	0.005°=18″
	Parallelism	80μ
