Framework Available PP Honeycomb Fiberglass Reinforced Panel for Roof Tent Trailer Floor
- Category: >>>
- Supplier: Hangzhou Holycore Composite Material Co. Ltd.
Share on (1600513073751):
Product Overview
Description
Product Description

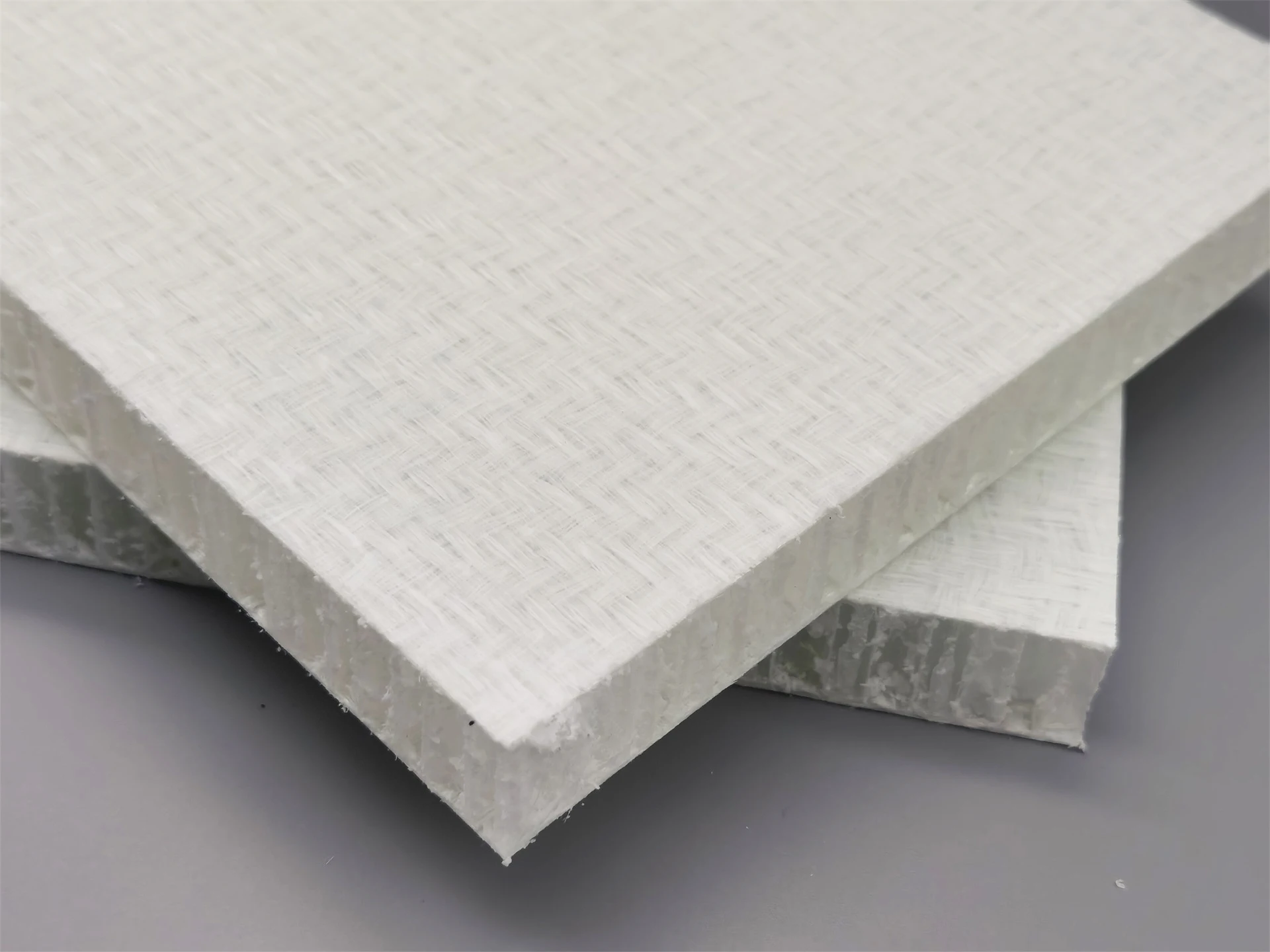

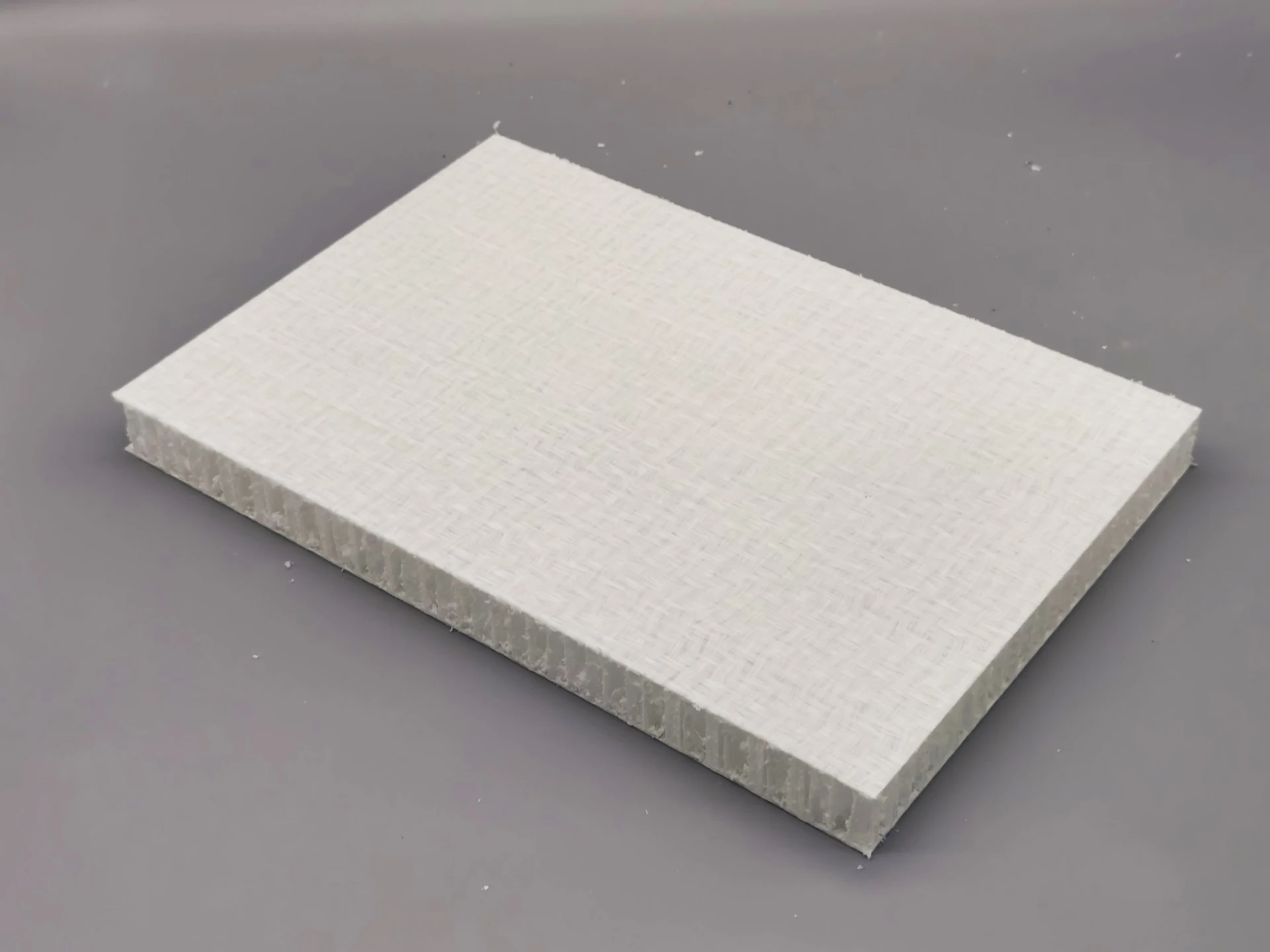

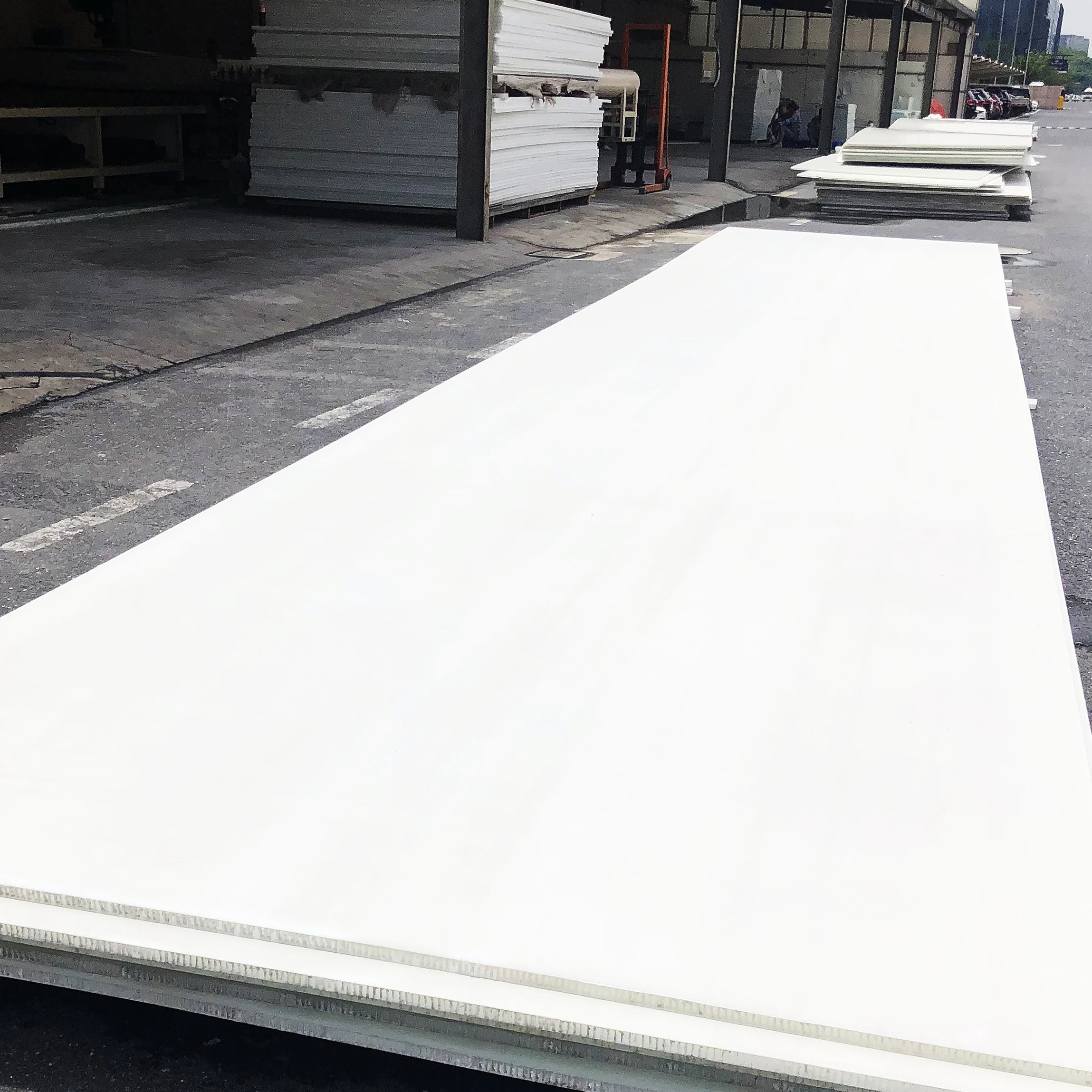

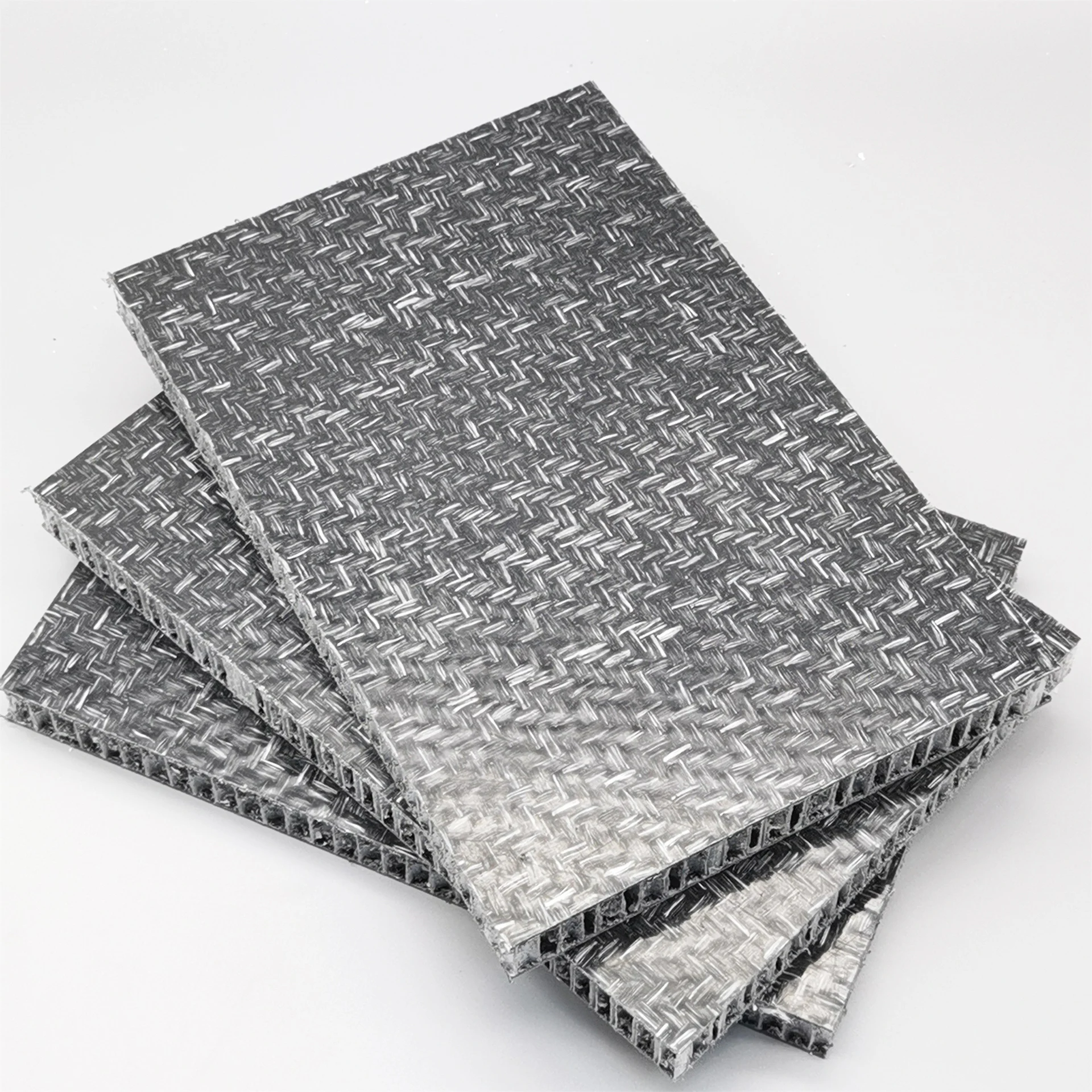

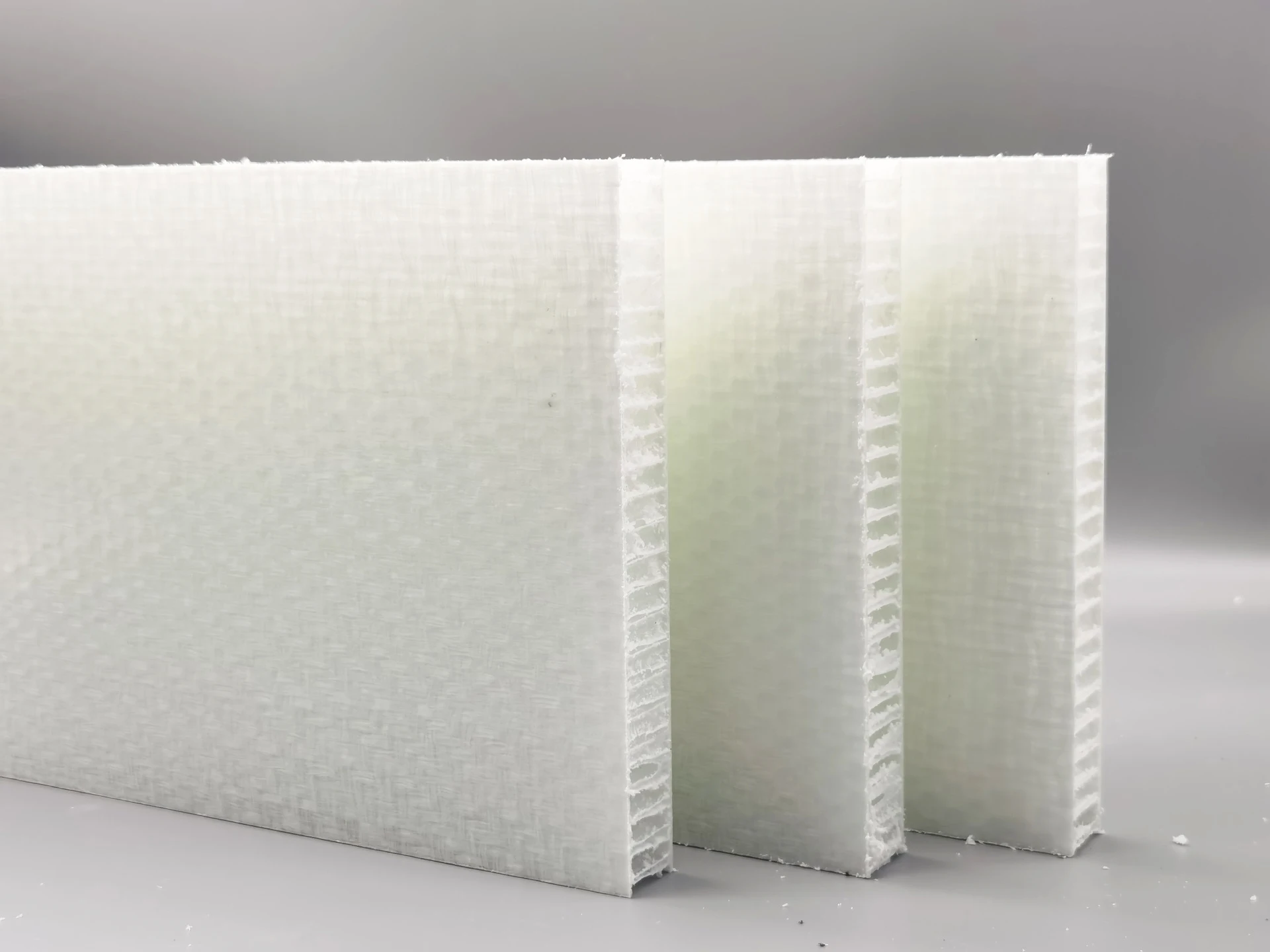

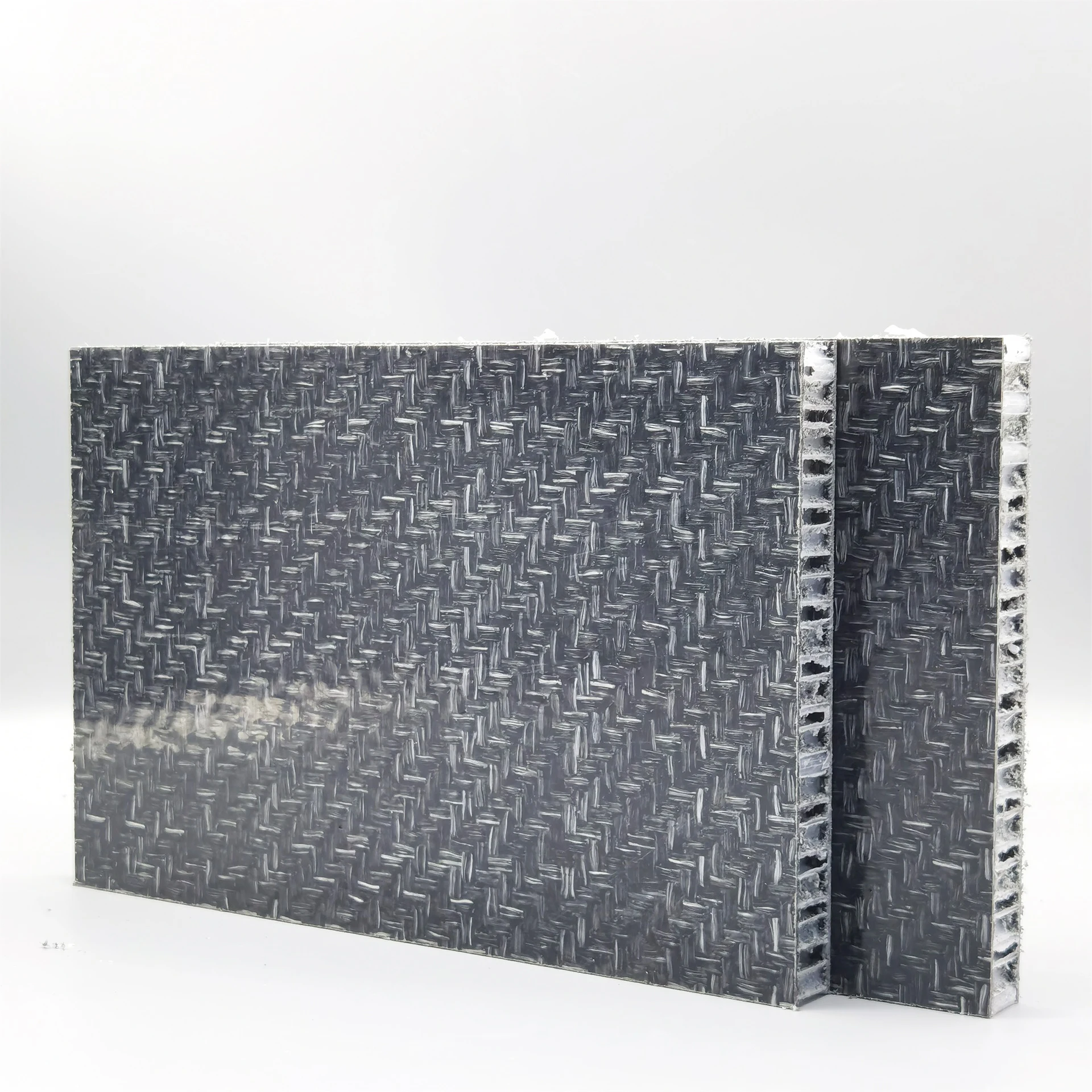

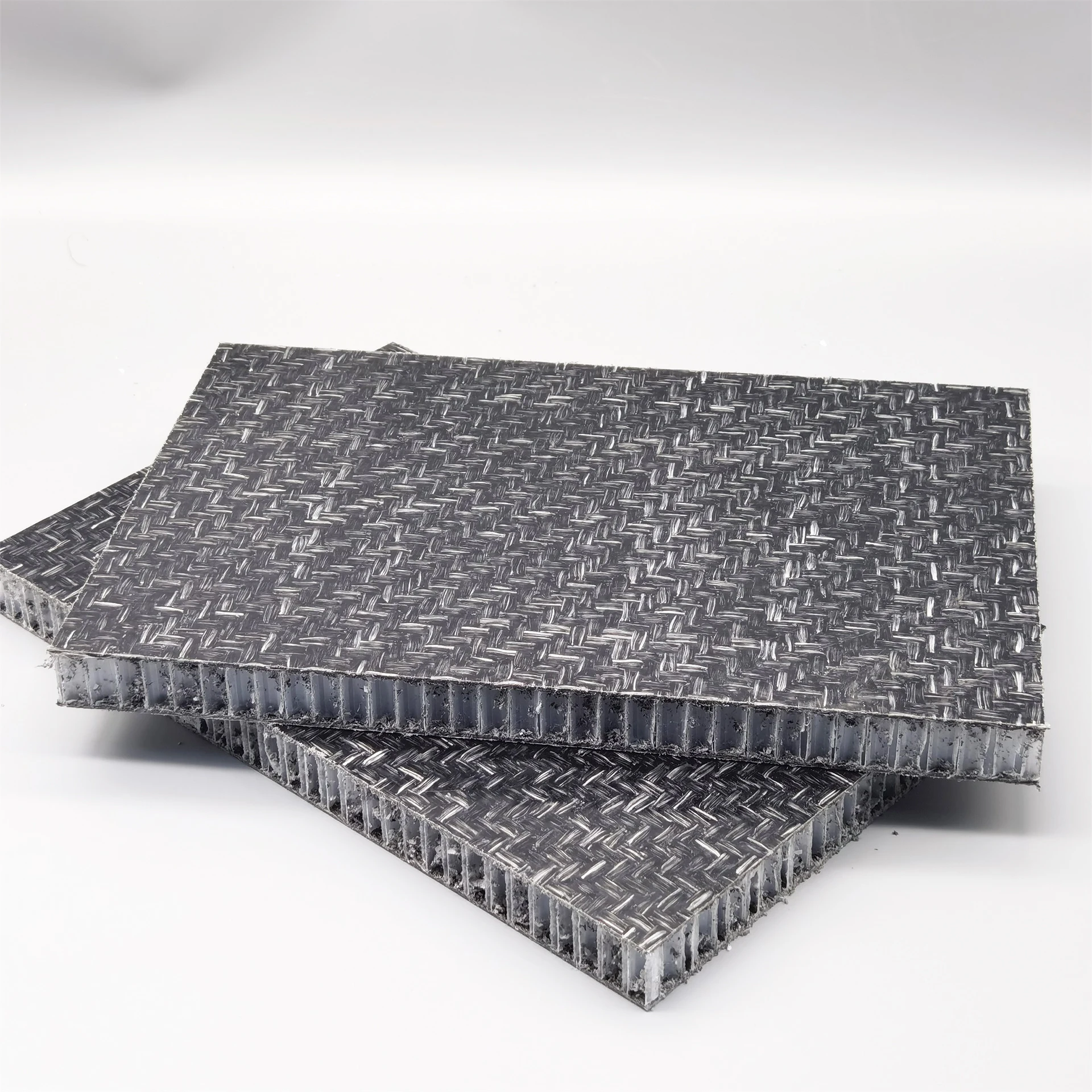

HolyPan is one of the lightest and strongest composite sandwich panels produced for industries.This innovative sandwich panel is thermally fused with polypropylene honeycomb core and fiberglass reinforced polypropylene skin.
The core material gives HolyPan high resistance due to its honeycomb structure, and the super strong fiberglass-reinforced skin materials provide high stiffness and an extremely good impact resistance of the panel surface. The thermally fused connection between the honeycomb core and the skins leads to an indivisible connection and makes HolyPan much lighter and eco friendly. And the delamination of the skin is almost impossible which distinguishes it from other traditionally glued or laminated panels.

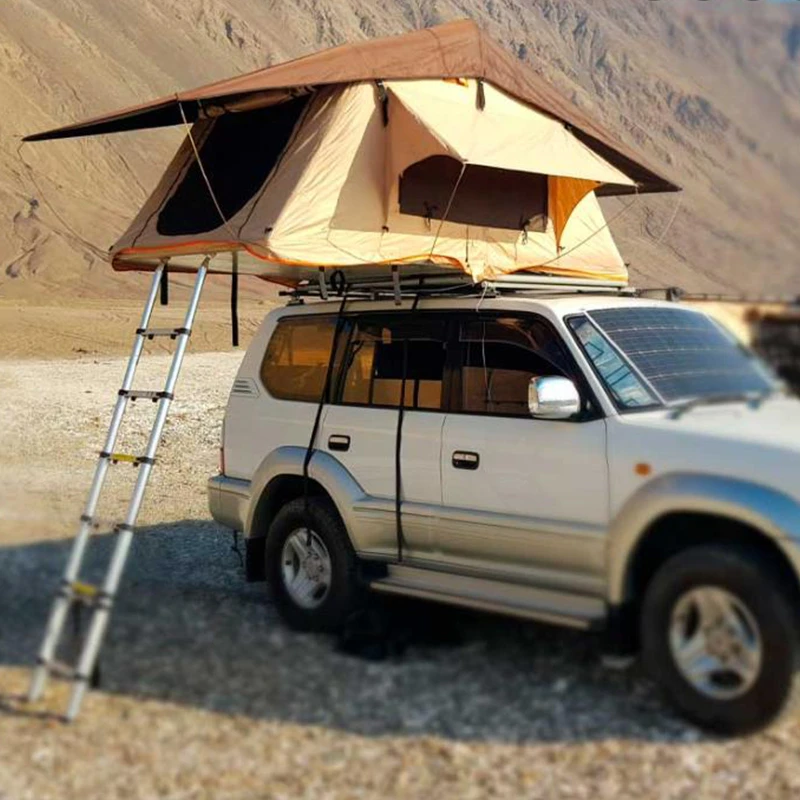

Compared with traditional aluminum/foam panels, thermoplastic glass fiber reinforced honeycomb panels have higher impact strength, which can effectively increase the service life of roof tents.

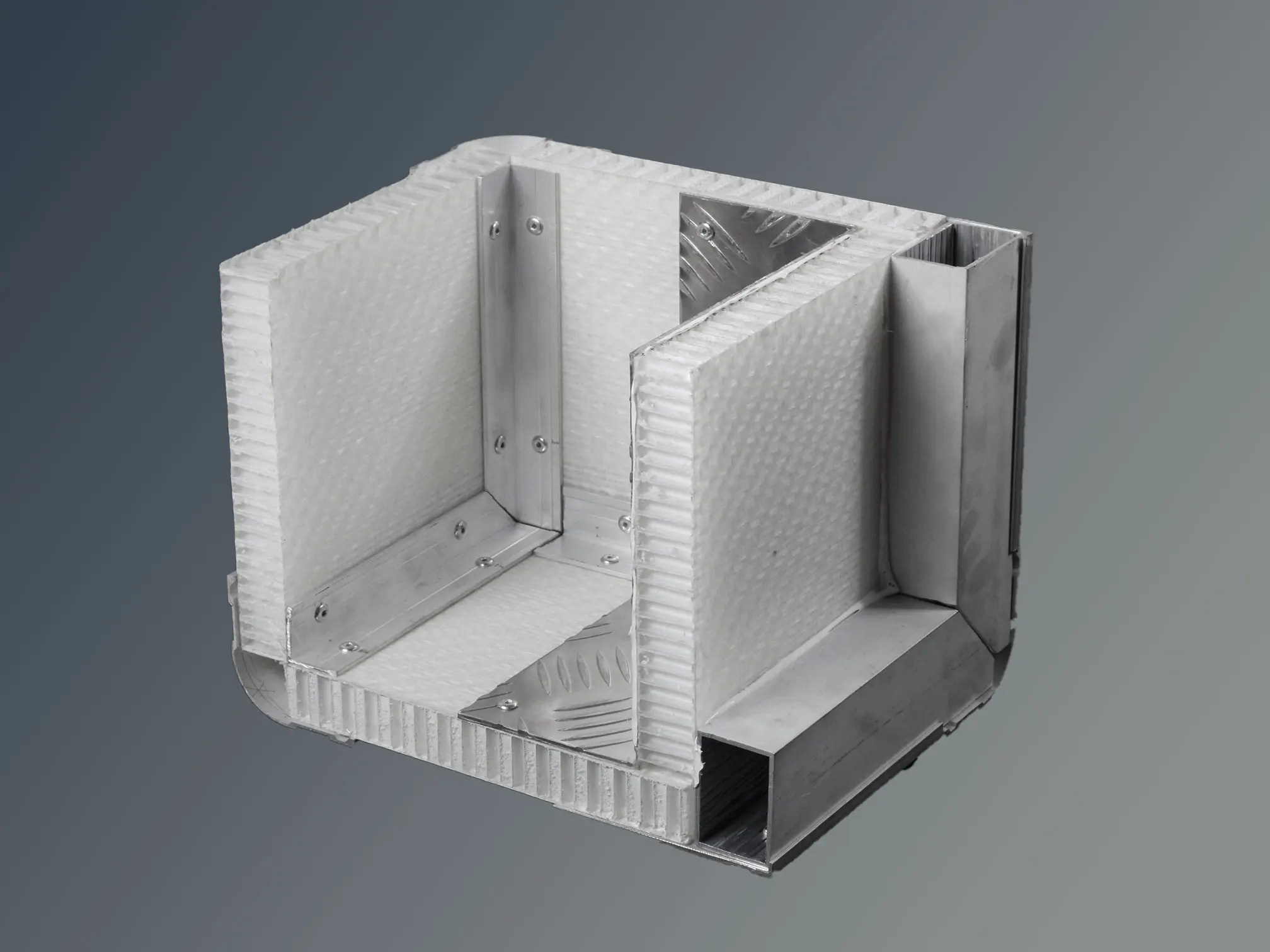

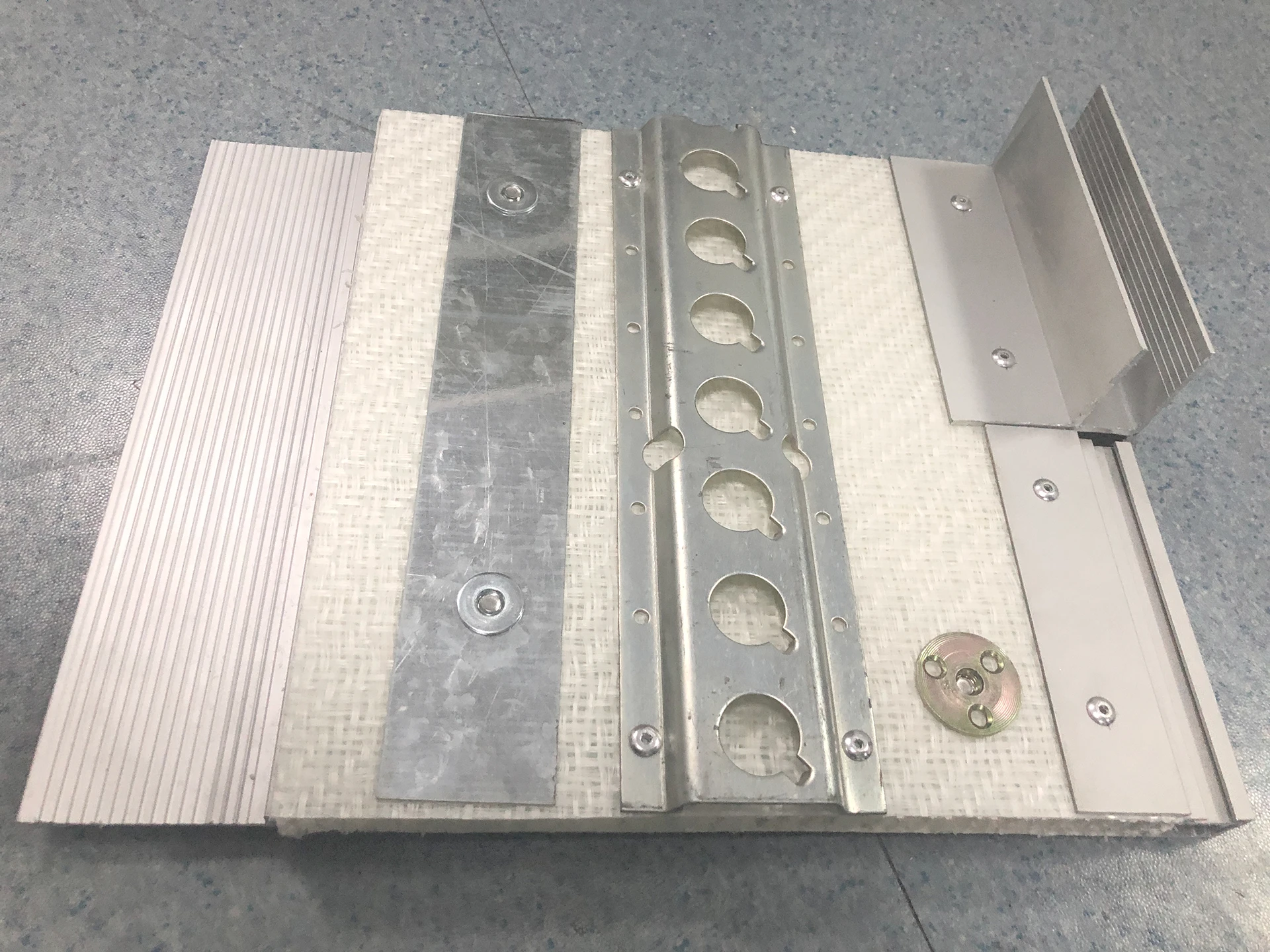

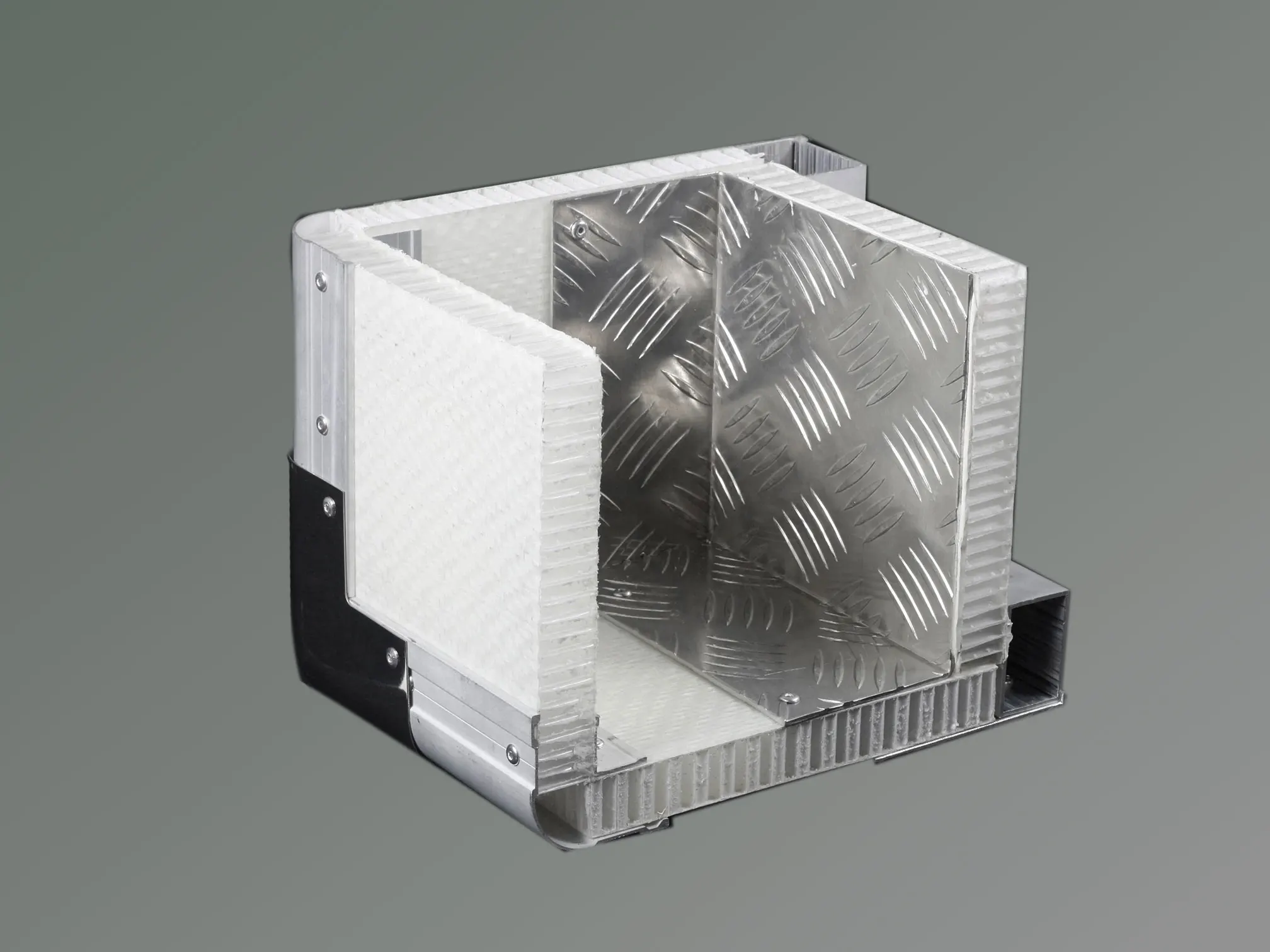

HolyPan is waterproof and moisture-proof , the size and shape of the sheet can be customized, and the connection with the profile is also very convenient, which can effectively shorten the assembly process.
Specification
Physical Properties of HolyPan | ||||||
Items | Results 25mm | Results 30mm | Standard | |||
Compressive Strength | 2.0MPa | 2.1MPa | ASTM C365 | |||
Shear Strength | 0.45MPa | 0.55MPa | ASTM C273 | |||
Shear Modulus | 16.5MPa | 20MPa | ASTM C273 | |||
Peel Strength | 145 （N*mm)/mm | 160 （N*mm)/mm | ASTM D1781 | |||
Bending Strength | 8.6MPa | 8.7MPa | ASTM C393 | |||
Impact Strength | Height 359mm | Height 359mm | ASTM D5628-96 | |||
Details and Advantages
Light weight and high strength The honeycomb structure core material and fiberglass reinforced skin laminated through thermoplastic process high strength.
Durable and stable Water and acid resistant, not easy to corrode and crack, can be used in a humid environment for a long time.
Environmentally friendly Using 100% recyclable materials, healthy and non-toxic, can replace wood and save nature resources.
Easy to laminate The smooth and flat polypropylene panel is easy to laminate and maintain, which can effectively save human costs and maintenance costs.
Great temperature suitability The panel is stable in the temperature of -40℃ and 80℃, which is very safe and reliable.
For more product and service information, please contact us through the link below, and we’re looking forward to your inquiry!

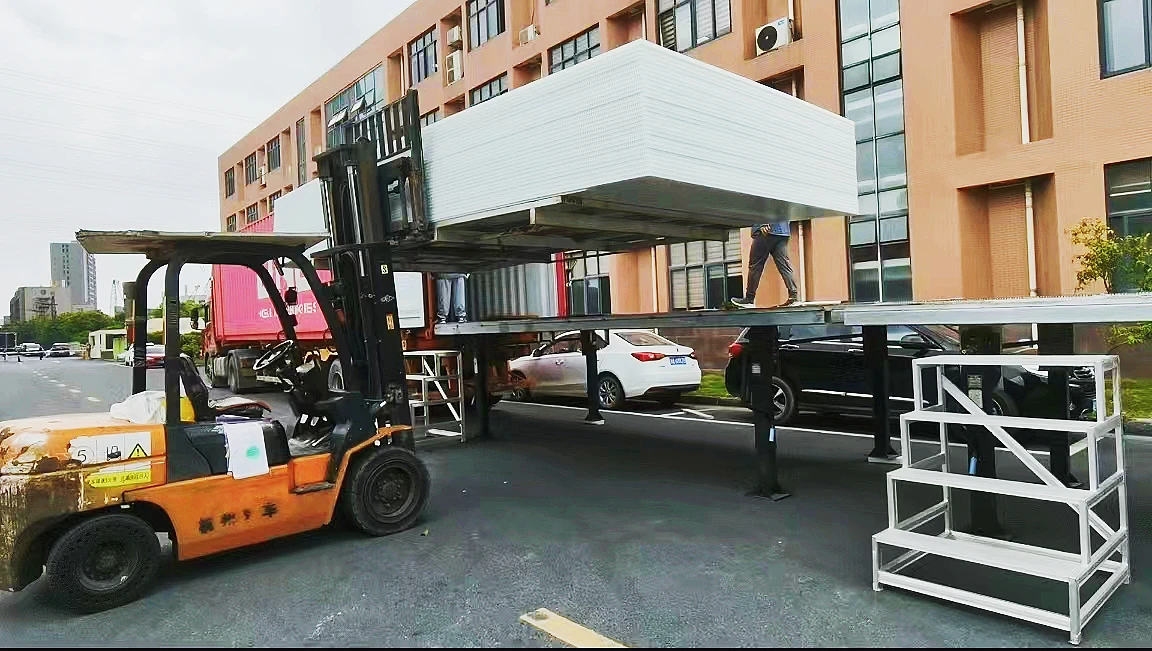

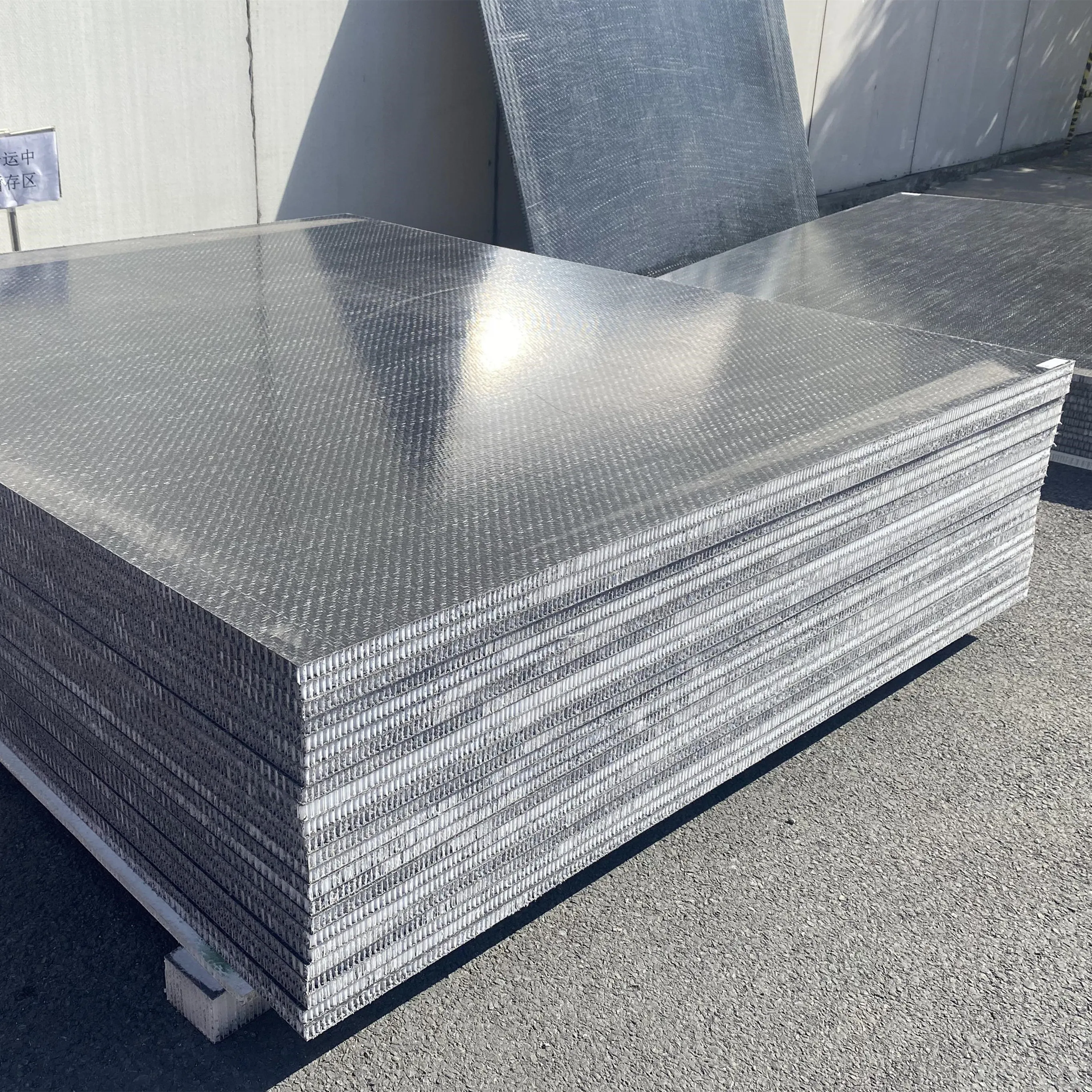

Packing & Delivery
FAQ
1.Can the panels be cut to different sizes?
We can customize different sizes for you, but there will be some wastage.
3.What colors are the panels?
2.How the panels are packed?
We will provide packaging solutions according to the size of the board, bulk or pallet.
3.What colors are the panels?
General colors are black and white, other colors need to be customized individually, and the MOQ is 3000㎡.
Company Profile

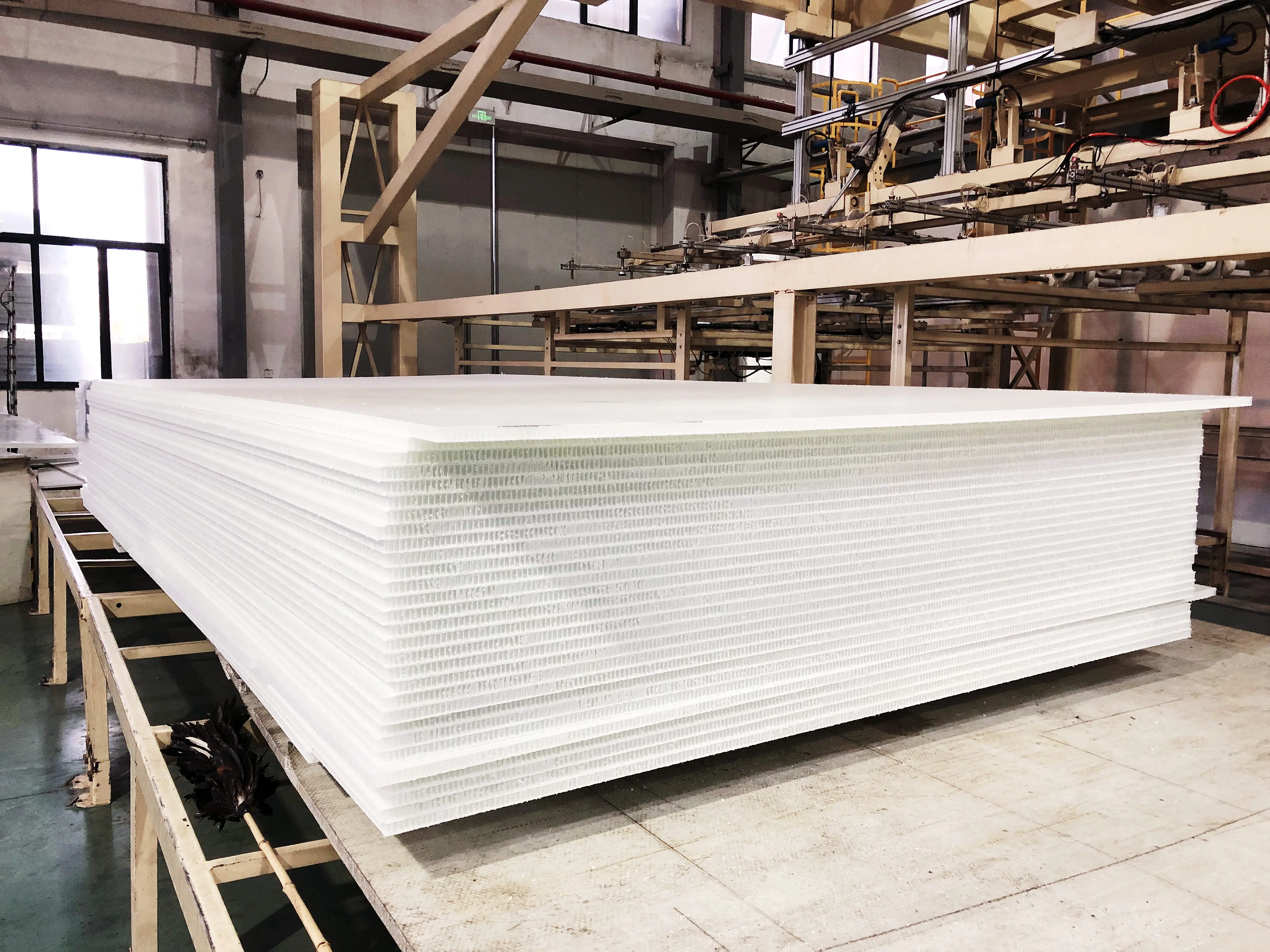

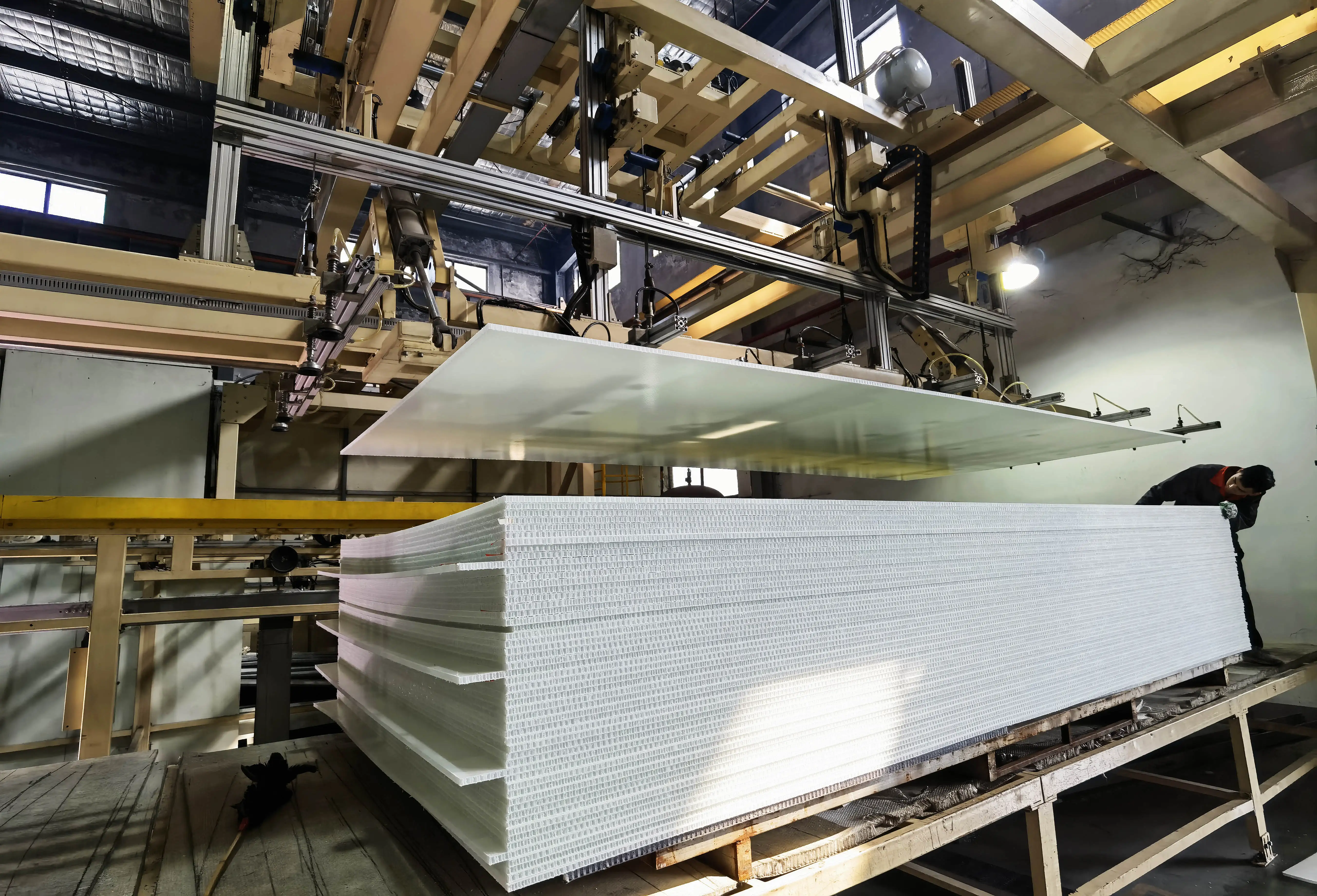

HolyCore is a wholly-owned investment of Wazam New Material. It was established in 2012 with a registered capital of 8.5 million US dollars and a total investment of over 20 million US dollars. We have an independent R&D and design team of more than 20 employees, and we have 12 honeycomb core production lines, 2 thermoplastic sandwich panels production lines, 2 roller painting lines, 7 CNC engraving machines and one truck body assembly workshop more than 10,000 square meters. With the joint efforts of all employees, we have obtained ISO 9001 and IATF 16949 certification.
At present, our main overseas markets are Europe, North America, Southeast Asia, Australia, and the Middle East. We have established many distributors in these areas to provide services to our customers. Innovative materials , drive the future, we look forward to working with you to build a green world.
