GTMSMART Plastic Container Making Machine Take Away Food Container Making Machine

GTMSMART Plastic Container Making Machine Take Away Food Container Making Machine

A. Product Application

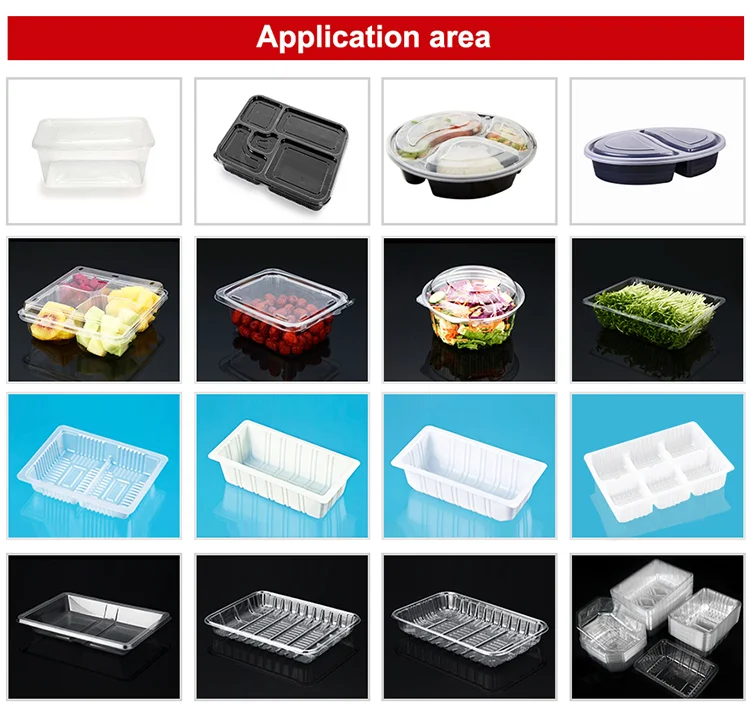

Mainly for the production of variety plastic containers ( egg tray, fruit container, package containers, etc) with thermoplastic sheet.

B. Product Features

1. Mechanical, pneumatic, electrical integration. Each action program is controlled by PLC.

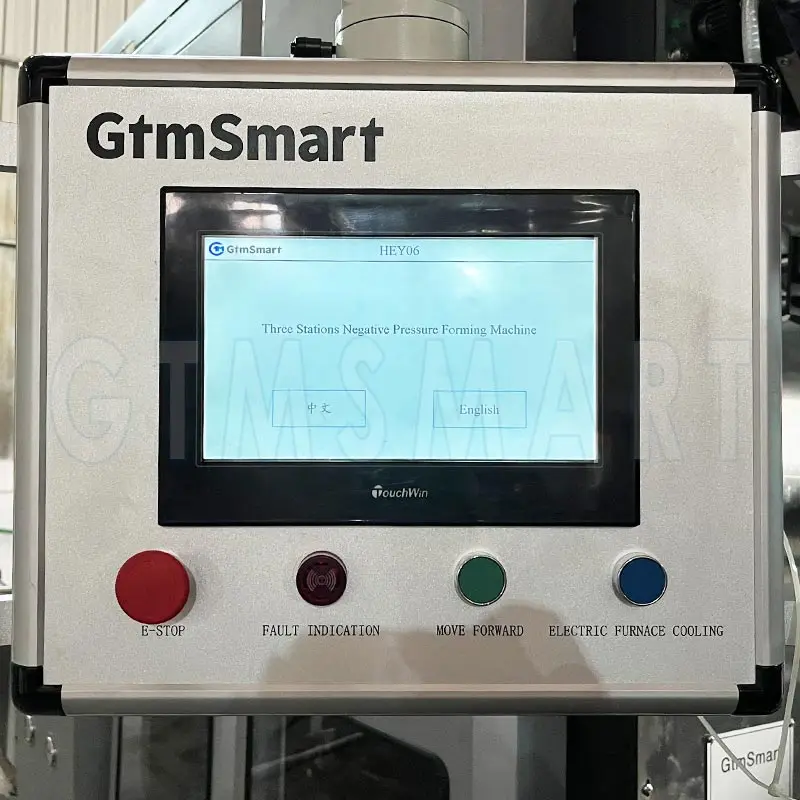

Touching screen operation is simple and convenient.

2.Vacuum Forming In-mould Cutting.

3.Up and down moulds forming type.

4.Servo feeding, length step less adjusting, high speed accurately and stablity.

5.Up and down heater with two phases heating.

6.Electric heating furnace temperature control system adopts full computer intelligent automatic compensation control, partition control using digital input interface one by one, has the high precision fine-tuning, uniform temperature, heating up fast (only 3 minutes from 0-400 degrees), stability (not influenced by external voltage, temperature fluctuations no more than 1 degree), low energy consumption (energy saving about 15%), the furnace plate advantages for long life.

7.Forming and cutting station with open and close servo motor control, products with automatic tally output.

8.Products can be choosing by you to down stacking type,Or the manipulator is taken in the mold

9.With product information and data memory function.

10.Feeding caterpillar width can be synchronization automatic or discretely electric adjusting.

11.Heater automatic shift out device.

12.Mechanical loading device, reduce workers labor strength.

C. Product Parameter

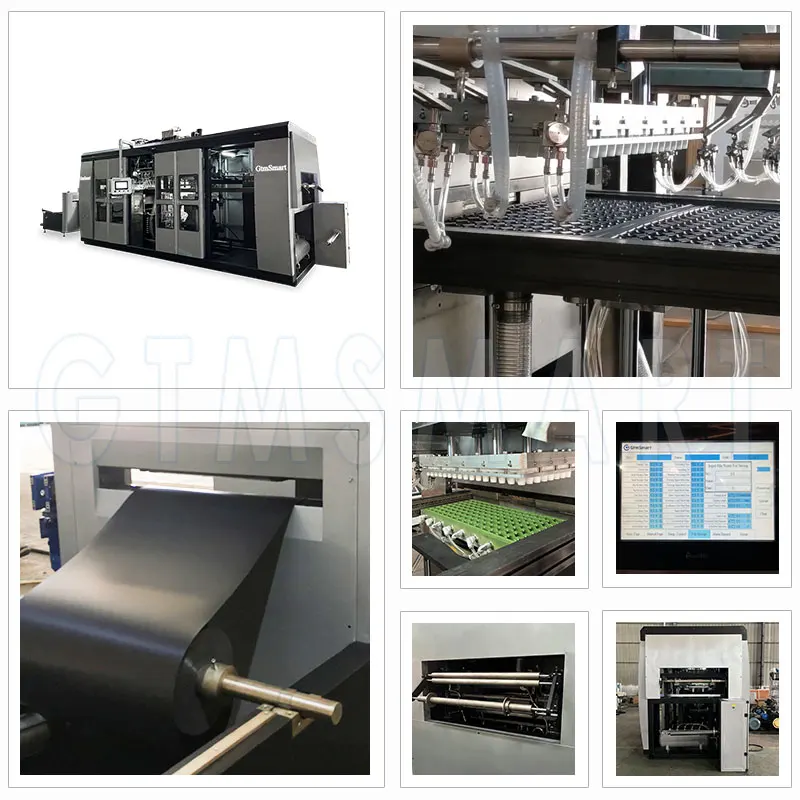

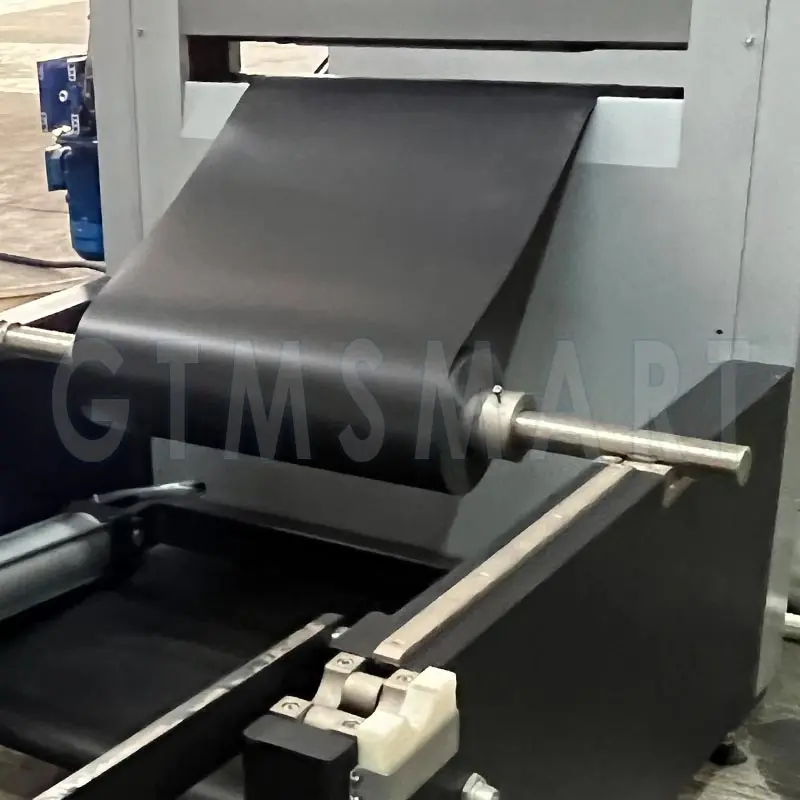

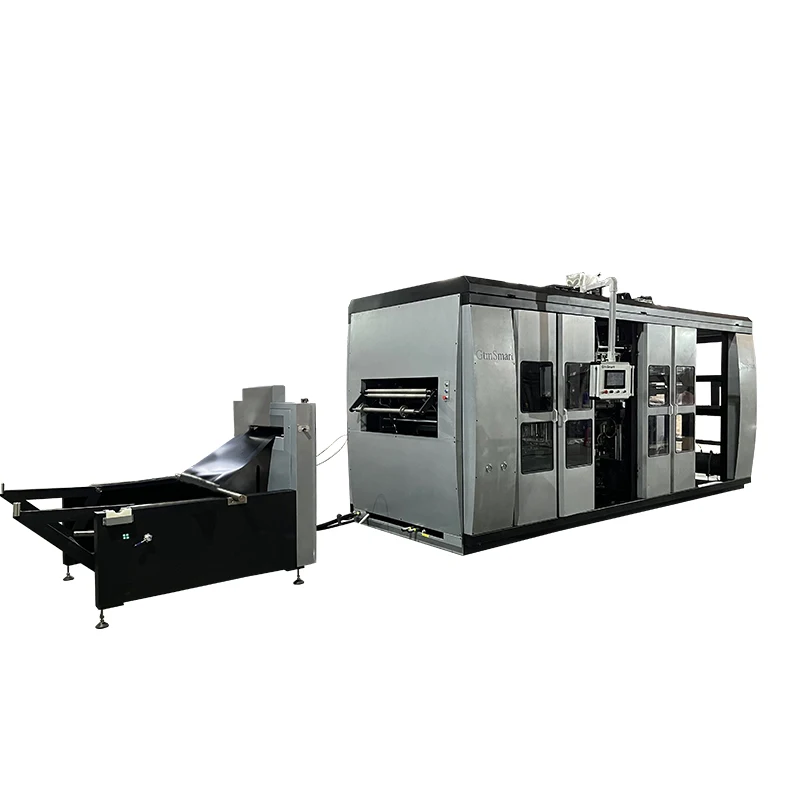

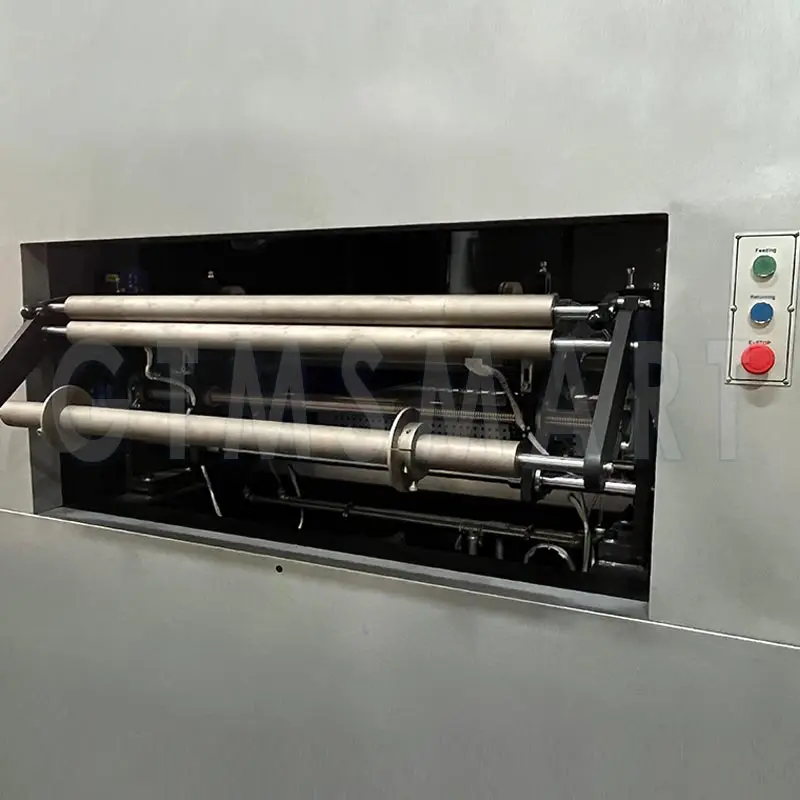

D.Product Display
