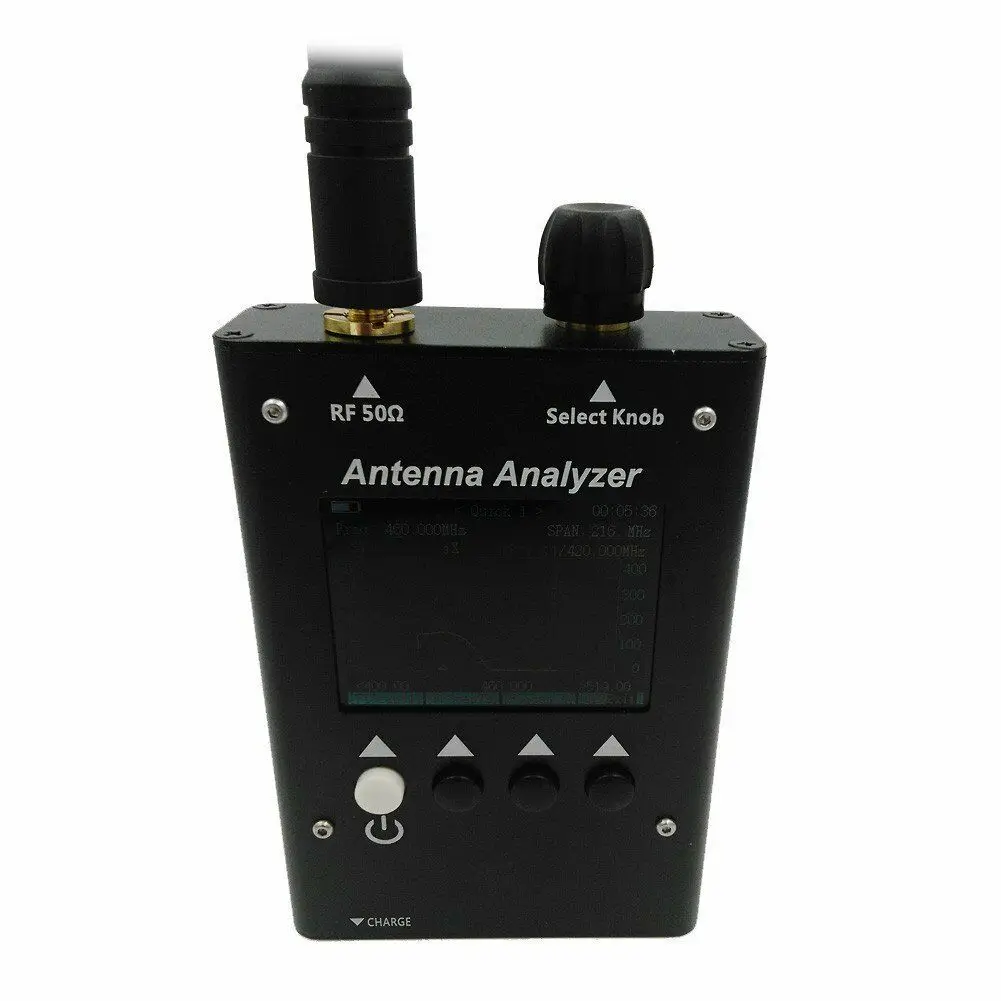

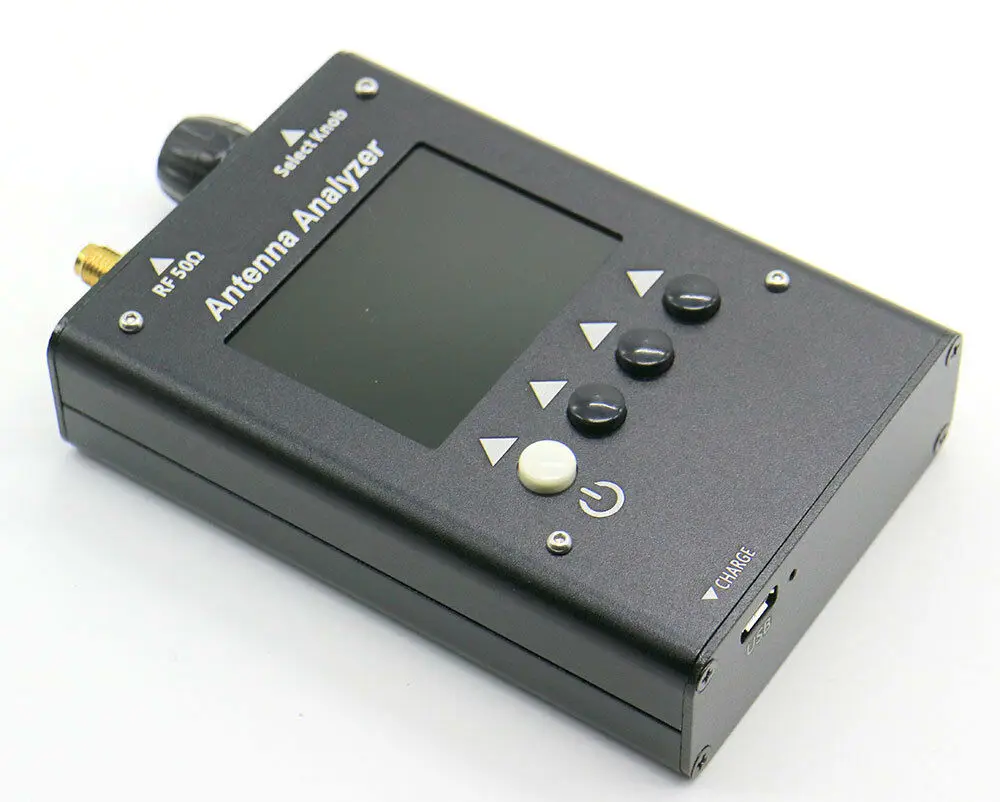

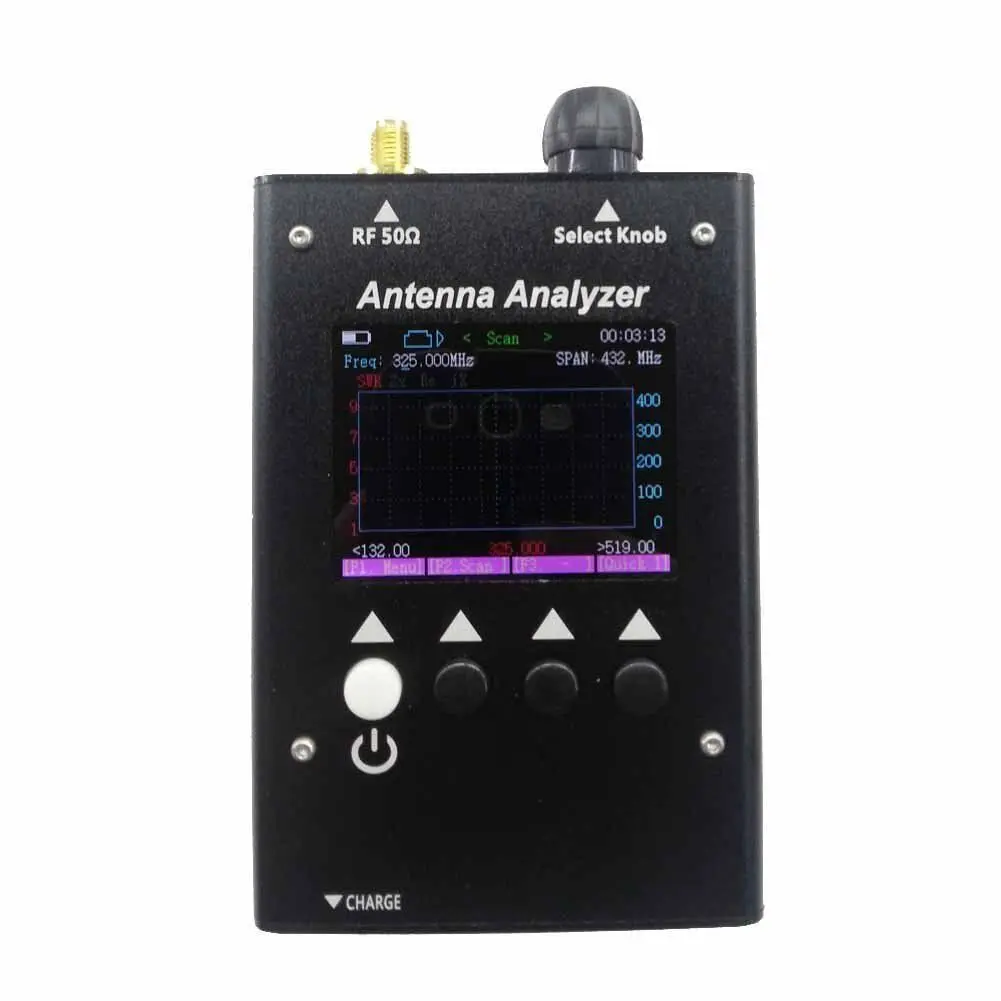

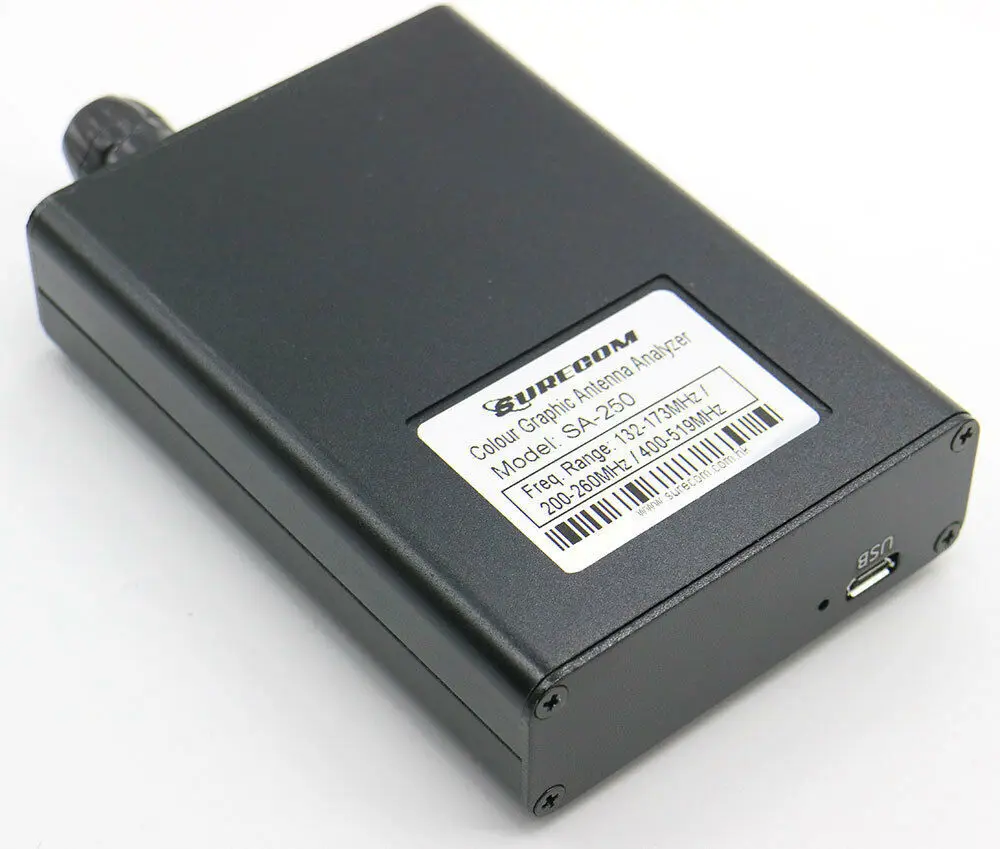

NEW MODEL SURECOM SA250 Full Band VHF/UHF Color Graphic Antenna Analyzer
- Category: >>>
- Supplier: Yiwu Liufang E-Commerce Firm
Share on (1600513116850):
Product Overview
Description
Products Description
SURECOM SA250 3 Band VHF/UHF Colour Graphic Antenna Analyzer for UV-5R
Introduction
SA-250 antenna analyzers designed for testing, checking, tuning or repairing antennas and antenna feed lines.
Mainly, these are S.W.R. (Standing Wave Ratio) and impedance measurement instruments (vector impedance analyzers).
Easy-to use measurement modes. make SURECOM attractive for professionals and hobbyists. It is quite important that graphical
display of various parameters over a wide frequency range is a key feature of these analyzers which significantly reduces the time
required to adjust an antenna.
Main Features:
2.2 ” precision LCD screen,High-lumen LCD brightness, easy to read in direct sunlight
Heavy duty Aluminum enclosure,strong anti-interference ability.
Very compact and convenient for field use
Built-in rechargeable Li-ion battery
Full Band control (No need select Band )
Easy setup, only four control buttons with convenient on-screen soft menus
Constant Battery Status Indicator and Auto Shut-off
Built-in timer shows elapsed time when unit is turned on
High efficiency IC, low power consumption, the longest working hours
More choice measurement frequency Span .
One botton quick scan mode (V1,V2,U) or 3 band by full screen.
Auto marker the Best s.w.r. level reference
Specifications:Model No.SA-250Frequency Range:132-173Mhz / 200-260Mhz / 400-519MHzConnector:SMA-Female (50 OHM)RF Output Power:
1-1.5V(5 - 10dB)Frequency Step:0.1/1/10/100/1000KHzV.S.W.R. Range:1.00-19.99ZRX Range:0-99.9Build-in Battery :3.7V 900mah ,Li-ion
14500Voltage input :DC5V> 500mA Frequency stability:<0.5PPMSpan width:
0.54MHz/1.35MHz/2.7MHz/5.4MHz/10.8MHz/27MHz/54MHz/108MHz/216MHz/432MHzCharger indicator: Two-color LED Hidden (when not charging)
there are three instructions state:
1, charging (red) ;
2, charging is completed (green)
3, Battery fault (flashing)Charger Plug:Standard Micro USB connectorSize: 70 x 120 x 25 mmColour Display:TFT LCD 320 x 240 pixels
Weight:172g
Power Management
Power Source: Built-in 3.7V, 900-mAh ,Size 14500 of Lithium battery.
Charge Controller: Smart charger, LED charging-status indicator
Voltage Monitor: On-screen DVM, plus battery condition icon
Charger Source: Any USB port, analyzer accepts Micro-USB plug
Power Savers: Auto-off timer, Auto Run/Stop RFgenerator controlInterface
RF Connector: SMA-female , (optional PL-259 ,N connector need adapter)
Battery Charge Connector: Micro-USB
Screen: 2.2 inch high-output color TFT
Function Keys : 4 botton, with on-screen (soft-menu) identifiers
Tuning: Rotary encoder with press-in tuning-step selection
Weight and Dimensions
Case: Aluminum metal
Size: 2.8" wide x 4.0" high x 1.0" deep (7 cm x12cm x 2.5 cm)
Weight: 6.1 oz (0.172 kg)

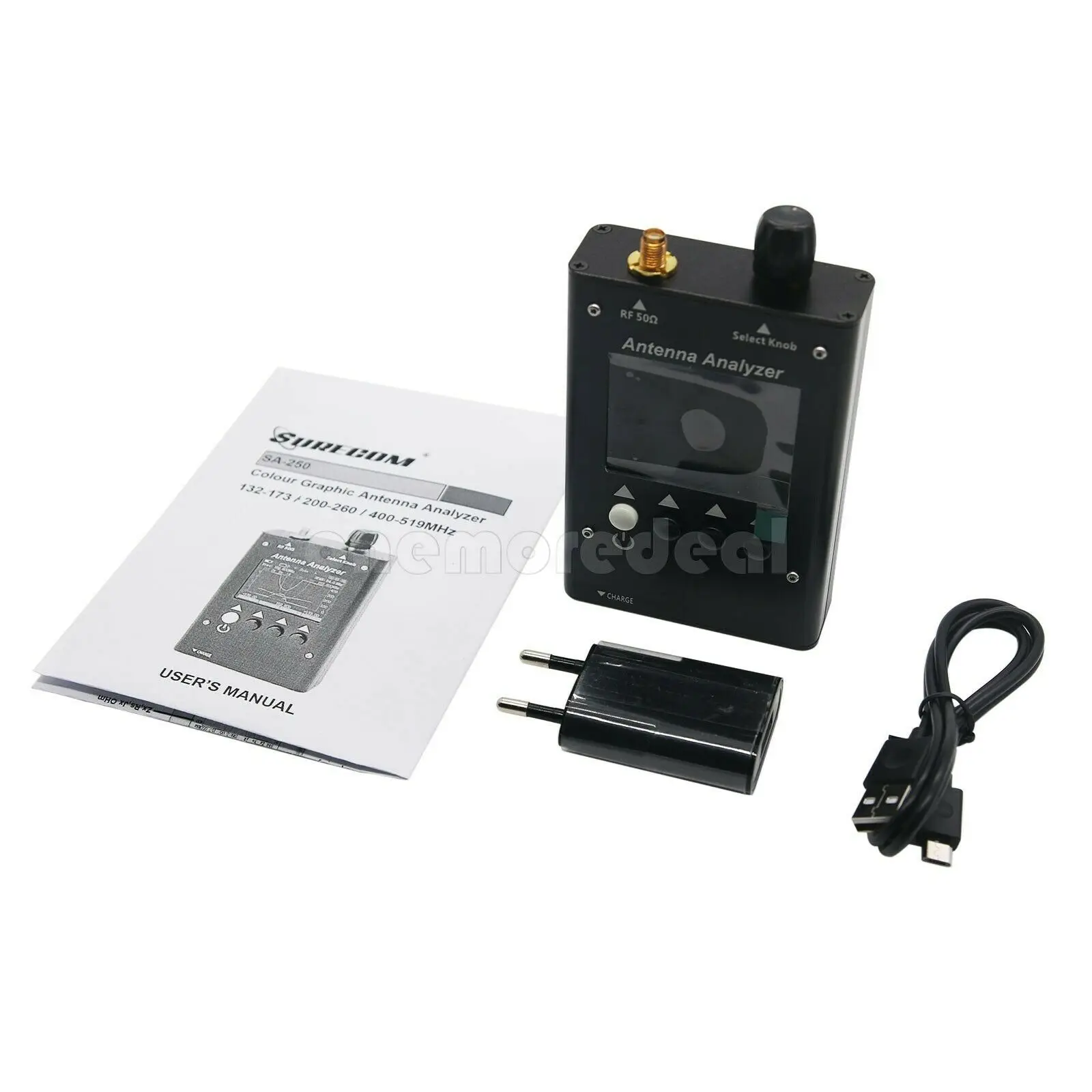

PACKAGE CONTAIN:
1 x SURECOM SA-250 (ENGLISH VERSION) Color Graphic Antenna Analyzer
Introduction
SA-250 antenna analyzers designed for testing, checking, tuning or repairing antennas and antenna feed lines.
Mainly, these are S.W.R. (Standing Wave Ratio) and impedance measurement instruments (vector impedance analyzers).
Easy-to use measurement modes. make SURECOM attractive for professionals and hobbyists. It is quite important that graphical
display of various parameters over a wide frequency range is a key feature of these analyzers which significantly reduces the time
required to adjust an antenna.
Main Features:
2.2 ” precision LCD screen,High-lumen LCD brightness, easy to read in direct sunlight
Heavy duty Aluminum enclosure,strong anti-interference ability.
Very compact and convenient for field use
Built-in rechargeable Li-ion battery
Full Band control (No need select Band )
Easy setup, only four control buttons with convenient on-screen soft menus
Constant Battery Status Indicator and Auto Shut-off
Built-in timer shows elapsed time when unit is turned on
High efficiency IC, low power consumption, the longest working hours
More choice measurement frequency Span .
One botton quick scan mode (V1,V2,U) or 3 band by full screen.
Auto marker the Best s.w.r. level reference
Specifications:Model No.SA-250Frequency Range:132-173Mhz / 200-260Mhz / 400-519MHzConnector:SMA-Female (50 OHM)RF Output Power:
1-1.5V(5 - 10dB)Frequency Step:0.1/1/10/100/1000KHzV.S.W.R. Range:1.00-19.99ZRX Range:0-99.9Build-in Battery :3.7V 900mah ,Li-ion
14500Voltage input :DC5V> 500mA Frequency stability:<0.5PPMSpan width:
0.54MHz/1.35MHz/2.7MHz/5.4MHz/10.8MHz/27MHz/54MHz/108MHz/216MHz/432MHzCharger indicator: Two-color LED Hidden (when not charging)
there are three instructions state:
1, charging (red) ;
2, charging is completed (green)
3, Battery fault (flashing)Charger Plug:Standard Micro USB connectorSize: 70 x 120 x 25 mmColour Display:TFT LCD 320 x 240 pixels
Weight:172g
Power Management
Power Source: Built-in 3.7V, 900-mAh ,Size 14500 of Lithium battery.
Charge Controller: Smart charger, LED charging-status indicator
Voltage Monitor: On-screen DVM, plus battery condition icon
Charger Source: Any USB port, analyzer accepts Micro-USB plug
Power Savers: Auto-off timer, Auto Run/Stop RFgenerator controlInterface
RF Connector: SMA-female , (optional PL-259 ,N connector need adapter)
Battery Charge Connector: Micro-USB
Screen: 2.2 inch high-output color TFT
Function Keys : 4 botton, with on-screen (soft-menu) identifiers
Tuning: Rotary encoder with press-in tuning-step selection
Weight and Dimensions
Case: Aluminum metal
Size: 2.8" wide x 4.0" high x 1.0" deep (7 cm x12cm x 2.5 cm)
Weight: 6.1 oz (0.172 kg)
PACKAGE CONTAIN:
1 x SURECOM SA-250 (ENGLISH VERSION) Color Graphic Antenna Analyzer
Details Images
Application Scenario

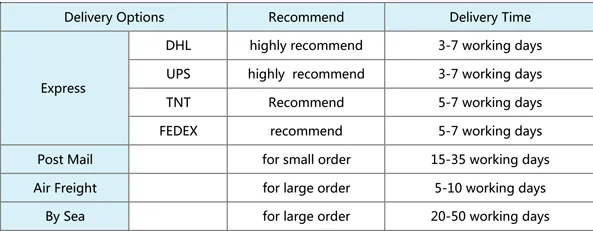

Packing & Delivery

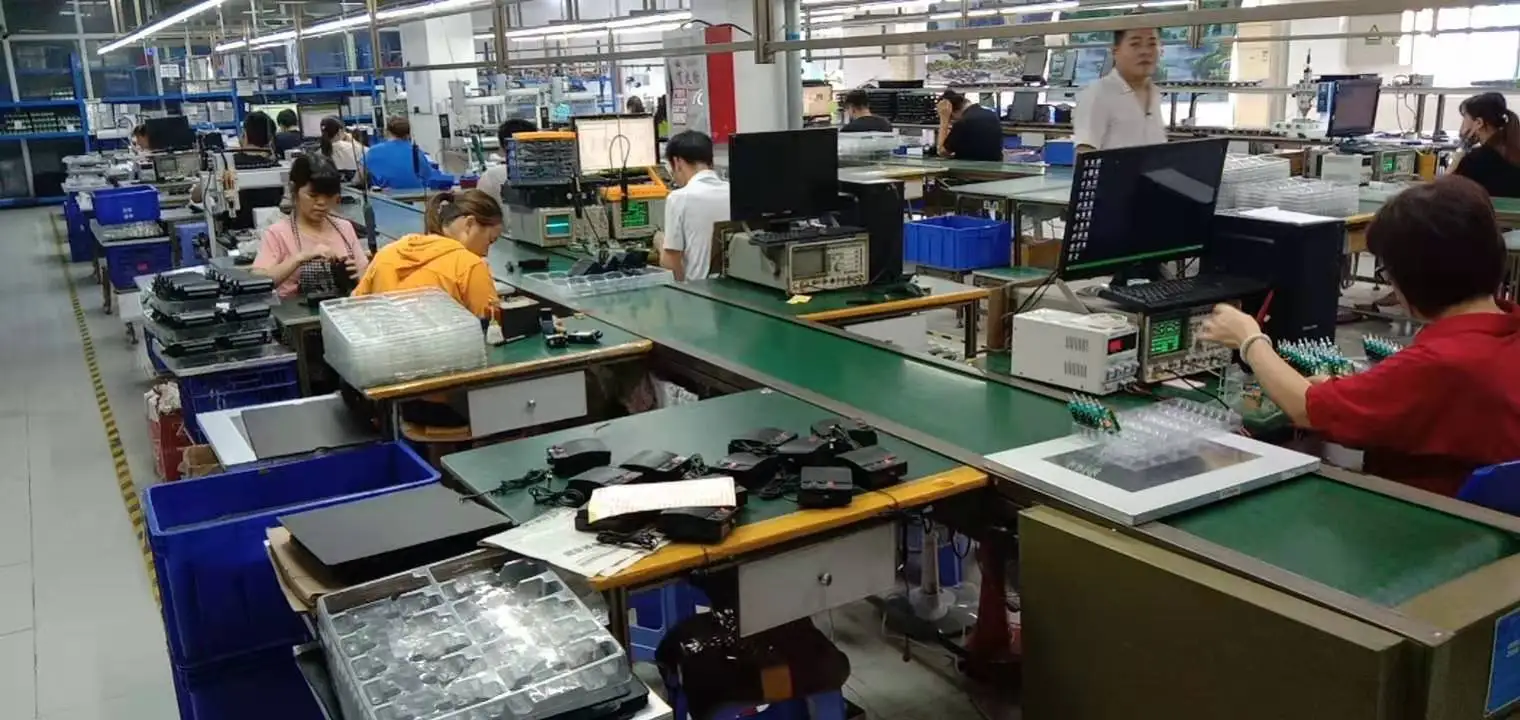

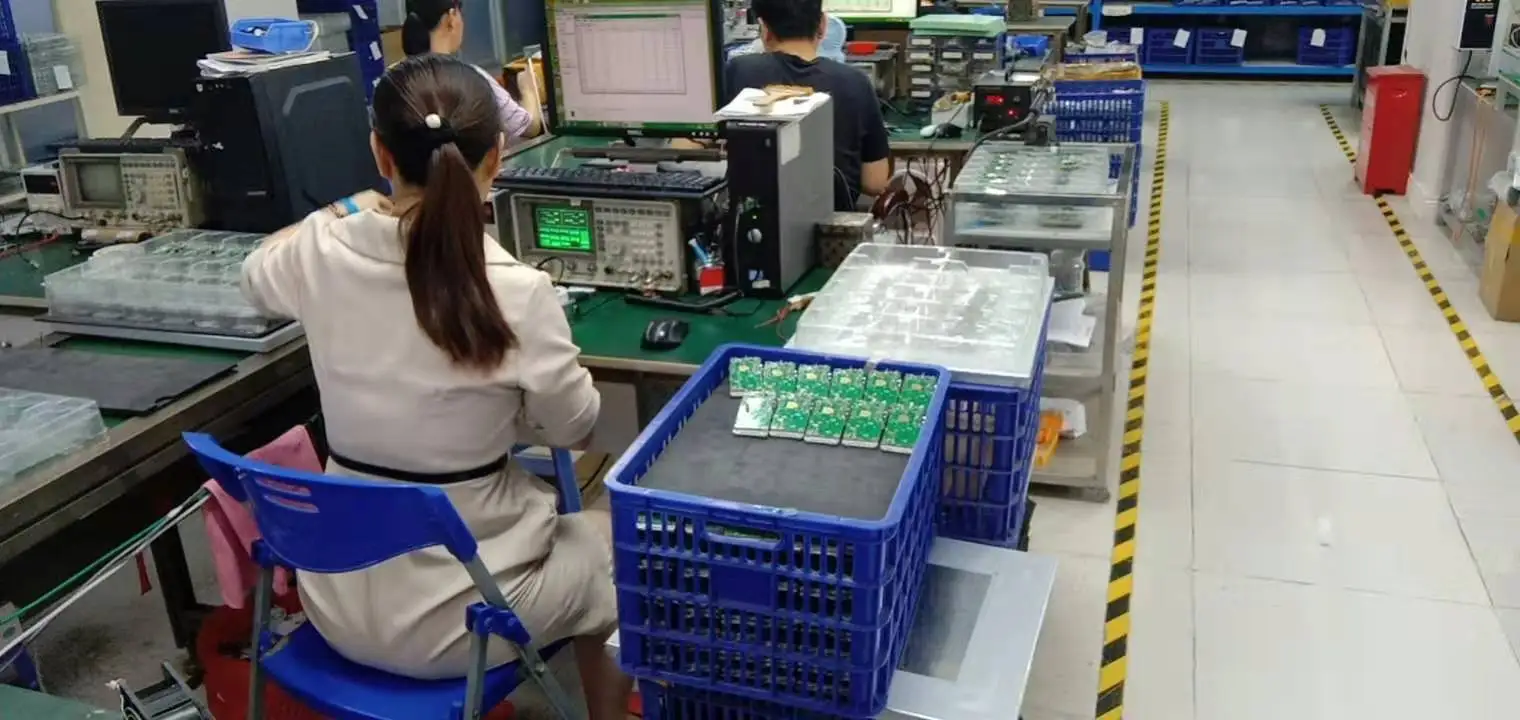

Company Profile
QuanZhou Belt and Road Trading Co., Ltd. ( YiWu Liufang E-commerce Firm ) Specializes in the research, manufacture and wholesaleof communication products. Established in 2017,Long-term cooperation with a number of walkie-talkies and accessories factories. Our main products : walkie talkie and mobile radio ,antenna/battery/charger/speaker microphone and all other type radio accessories and parts,mobile signal booster,Spy camera,LED light ,SWR meter and all other electronics accessories and test equipment . In addition to supply electronic products ,we can aslo source anything for you from china , We stand by our clients and maintain our top standards in customer satisfaction. It is our main focus to see you achieve an abundance in business success.
For more information ,kindly refer to our company website : www.hotsaleradios.com ; www.mariosourcng.com

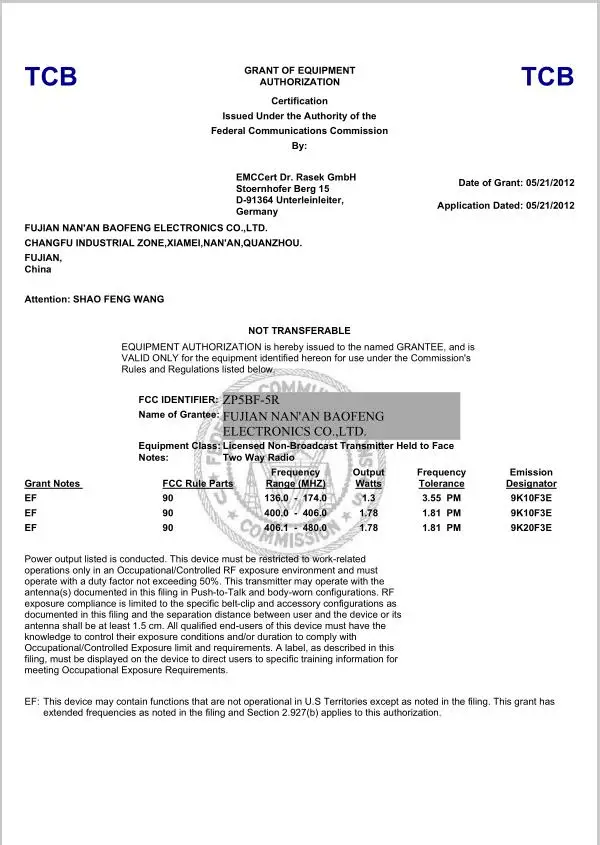

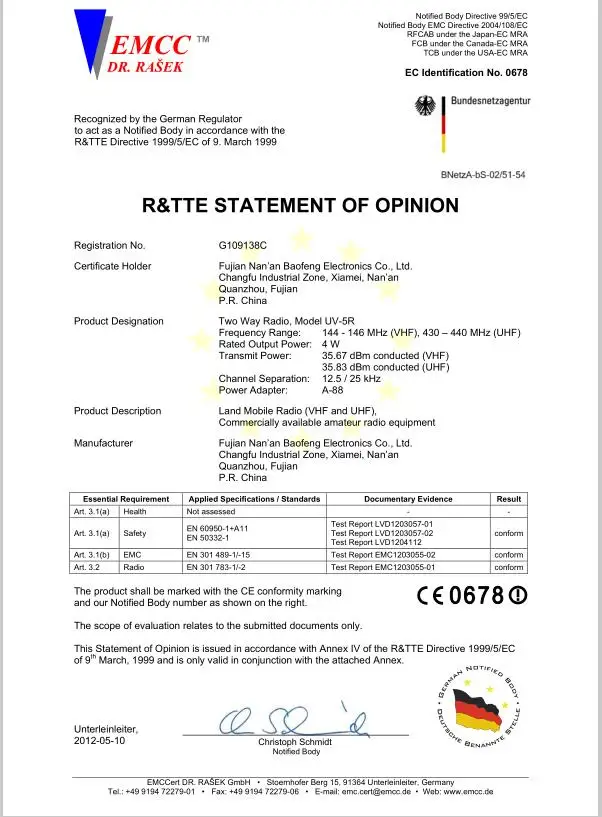

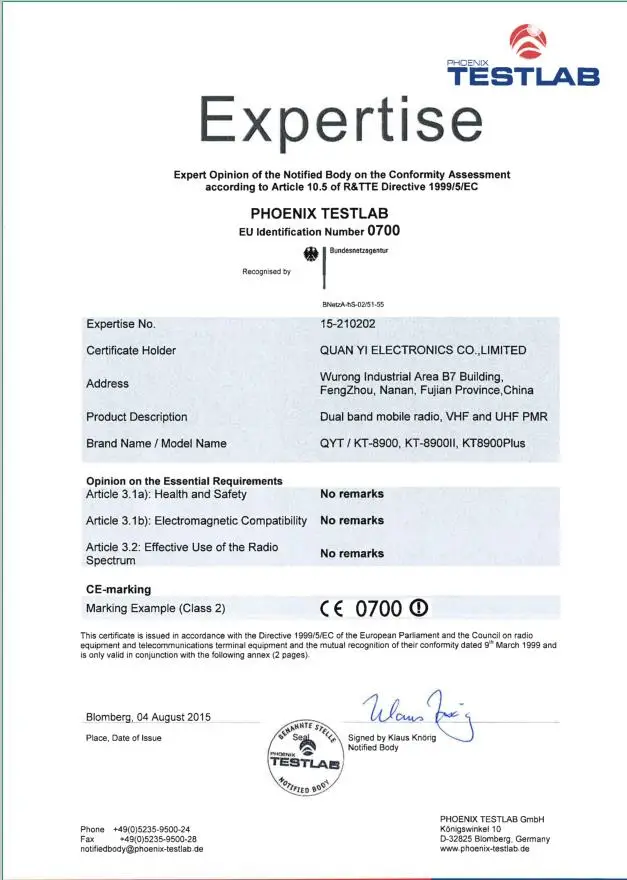

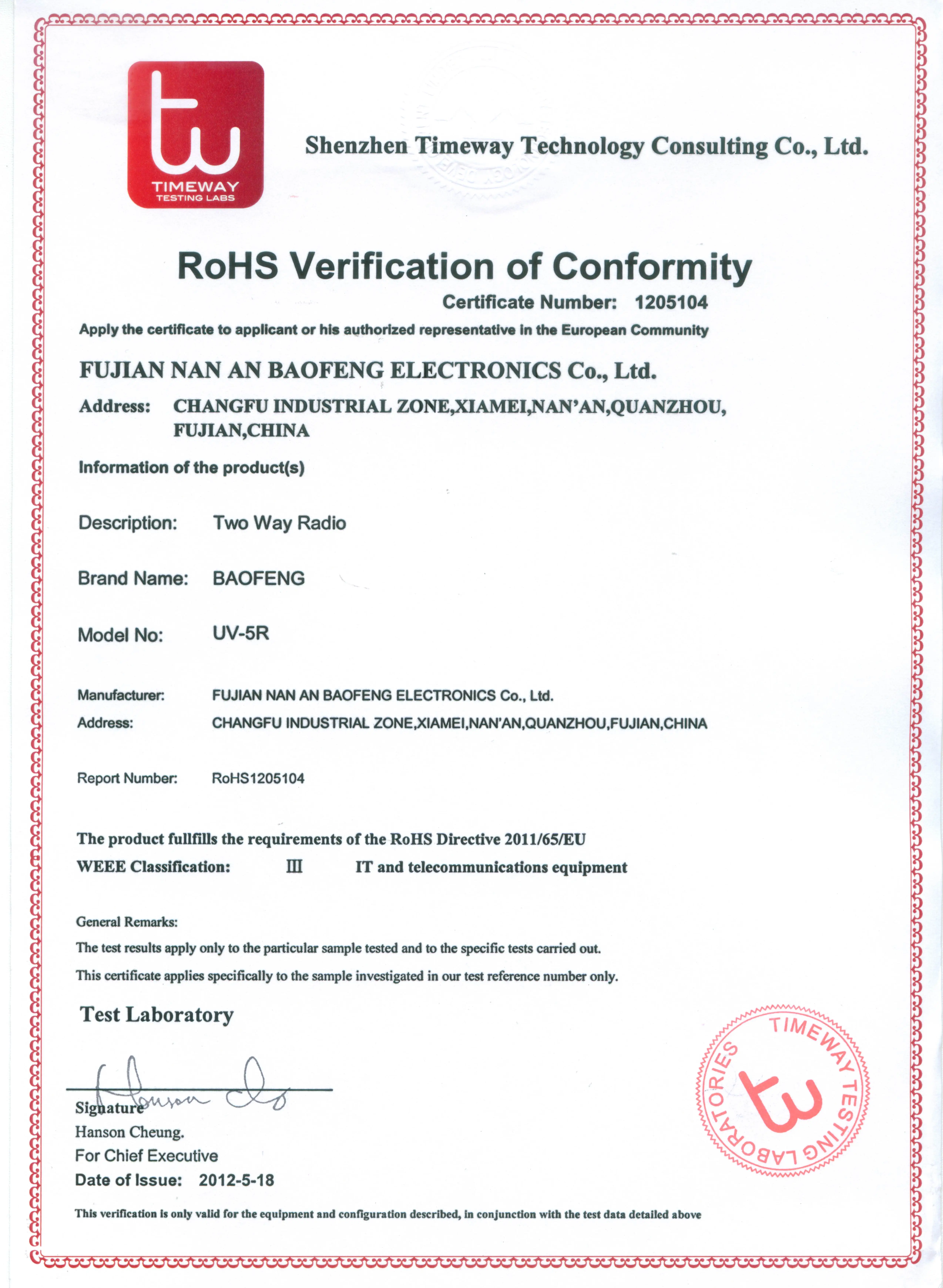

Certifications
FAQ
1.Q.Do you have MOQ?
A: Depends on different ideas, Can be negotiated.The larger the quantity is, the competitive the unit price will be.
2. Q: Can you offer free sample to test?
A: In general, sample cost should bear by new clients. Bue the sample cost will be refund when the order reach 1000 stes.
A: Depends on different ideas, Can be negotiated.The larger the quantity is, the competitive the unit price will be.
2. Q: Can you offer free sample to test?
A: In general, sample cost should bear by new clients. Bue the sample cost will be refund when the order reach 1000 stes.
3. Q: Do you accept customized?
A: Yes, OEM and ODM services are all supported.
4. Q: When can you ship the item?
A: 1-3 days for sample order, 3-5days for bulk order if we have stock.
5. Q: When can i find tracking in Internet?
A: Usually, we will give you the tracking number and you can find the information on Internet in 2days.
A: Yes, OEM and ODM services are all supported.
4. Q: When can you ship the item?
A: 1-3 days for sample order, 3-5days for bulk order if we have stock.
5. Q: When can i find tracking in Internet?
A: Usually, we will give you the tracking number and you can find the information on Internet in 2days.
