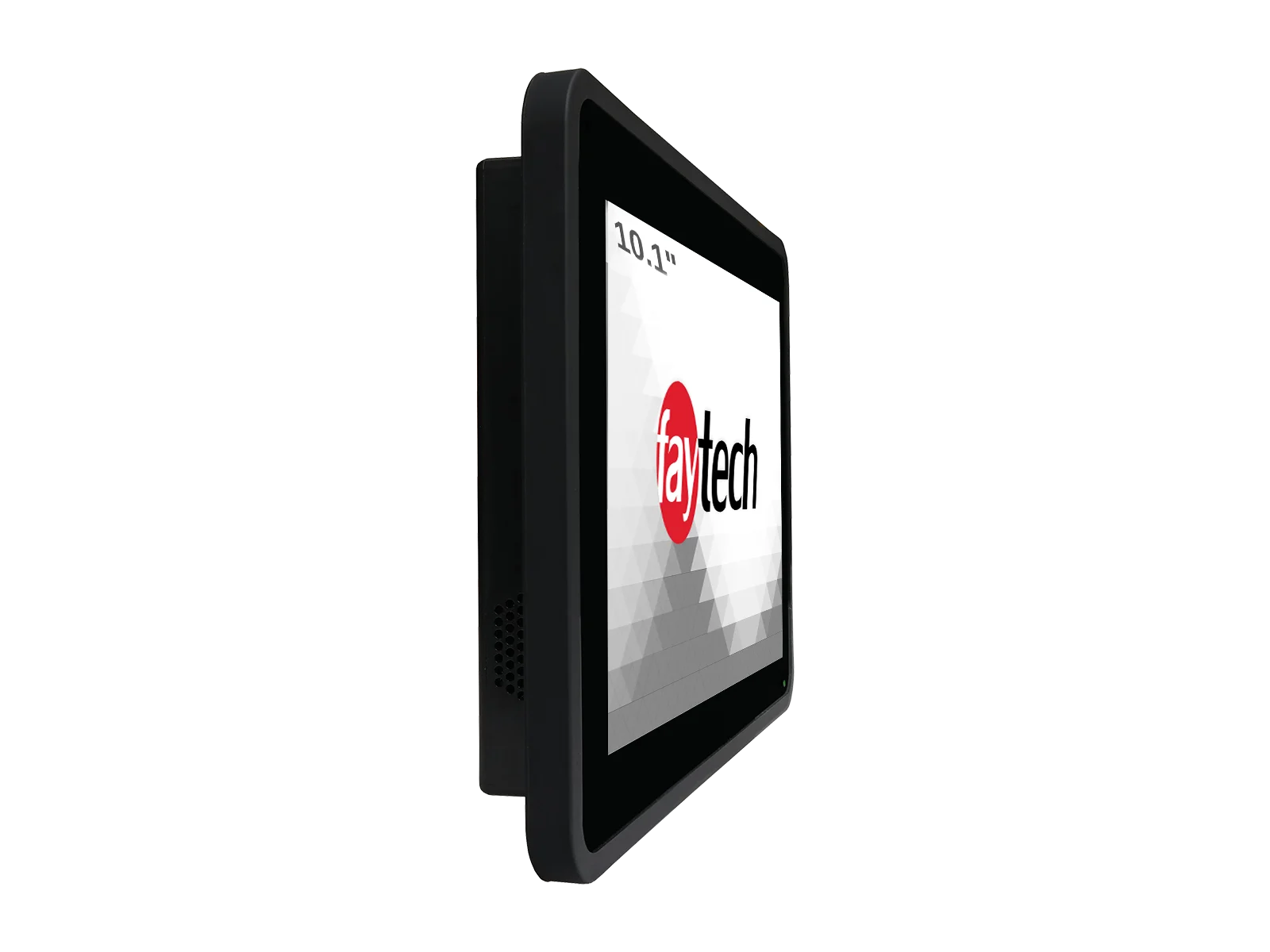

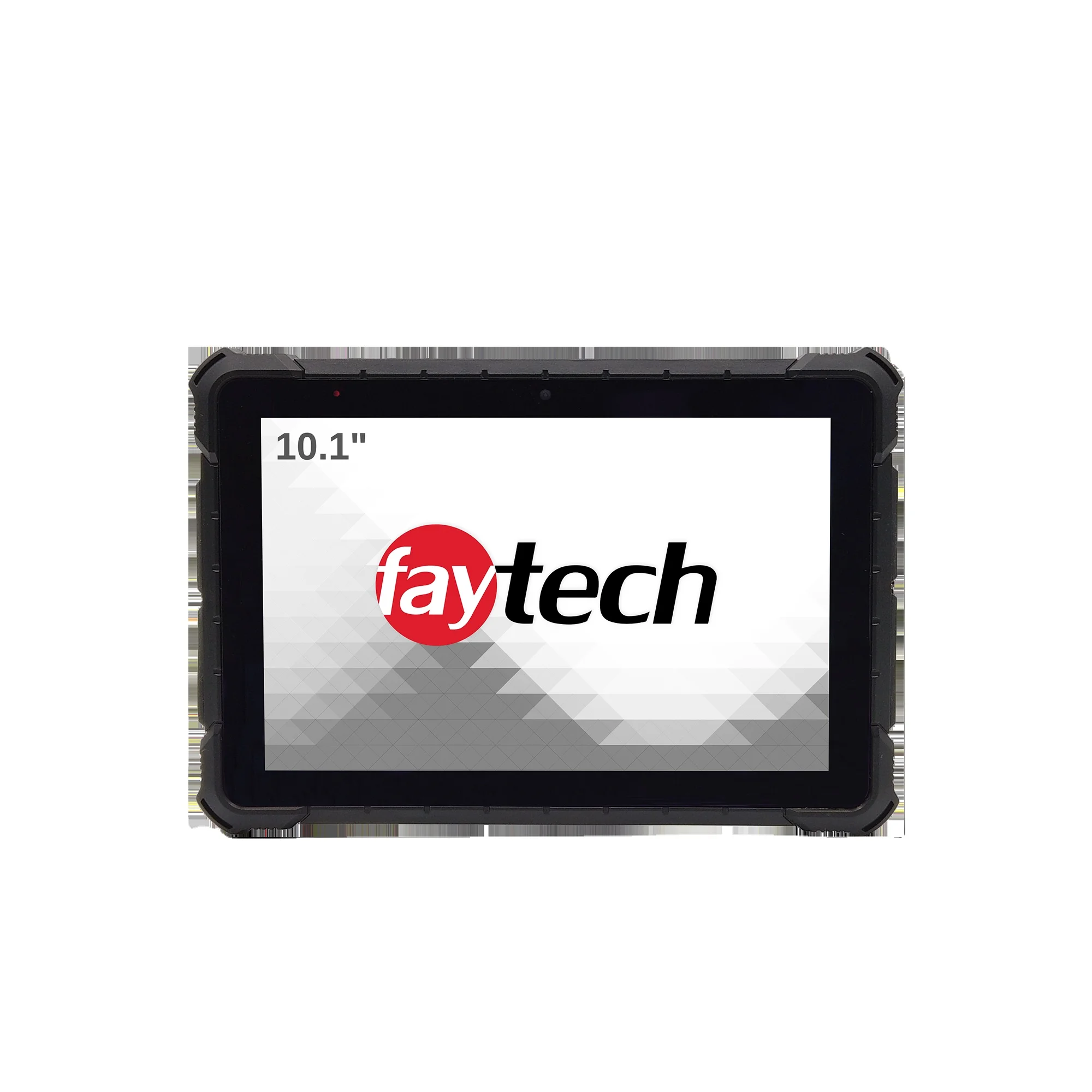

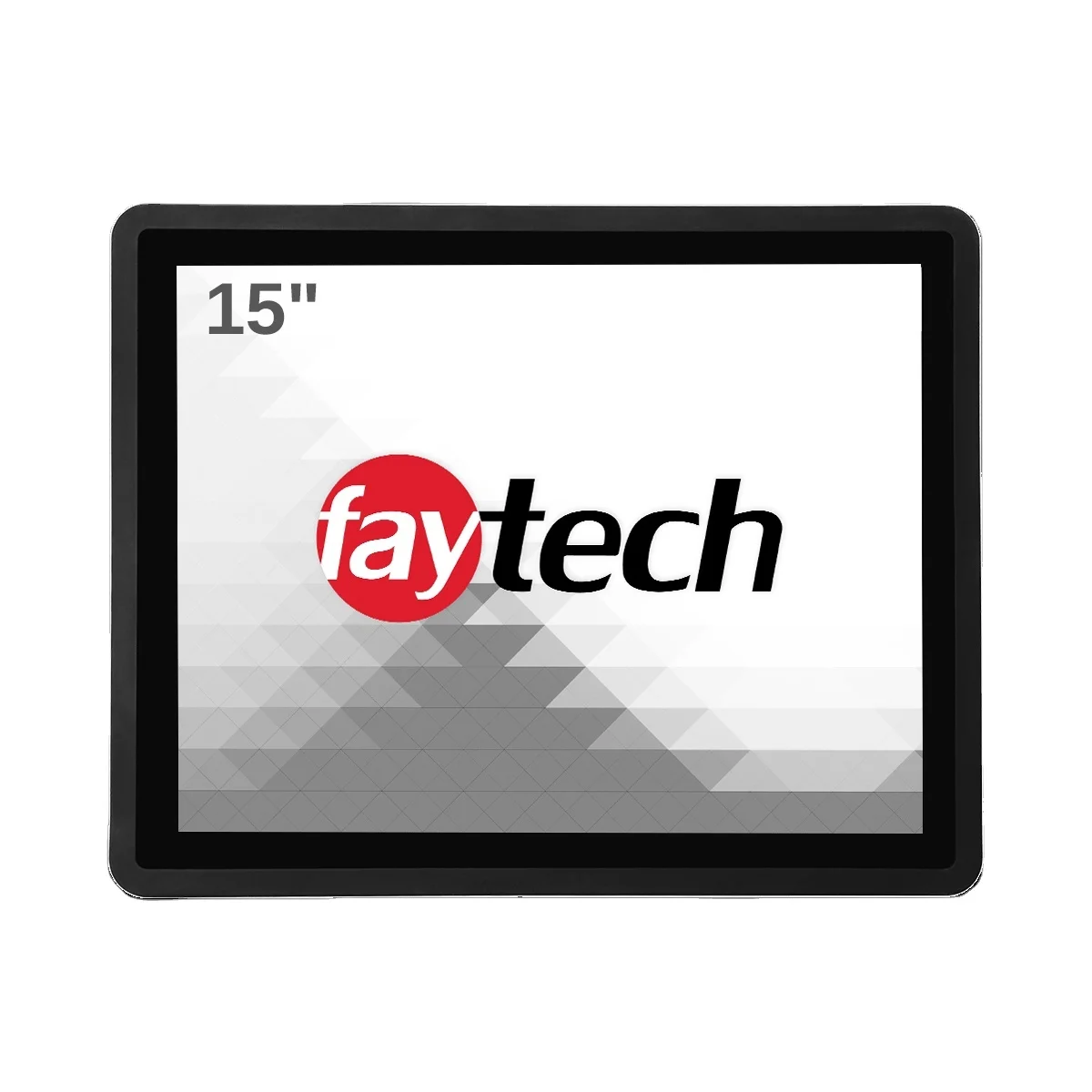

13 15 17 Inch Smart Android Tablet Open Frame Touch Screen Panel Computer Player Capacitive Touch Screen Monitor All In One Pc
- Category: >>>
- Supplier: Faytech (Shenzhen) Tech. Co. Ltd.
Share on (1600513137565):
Product Overview
Description
Product Description

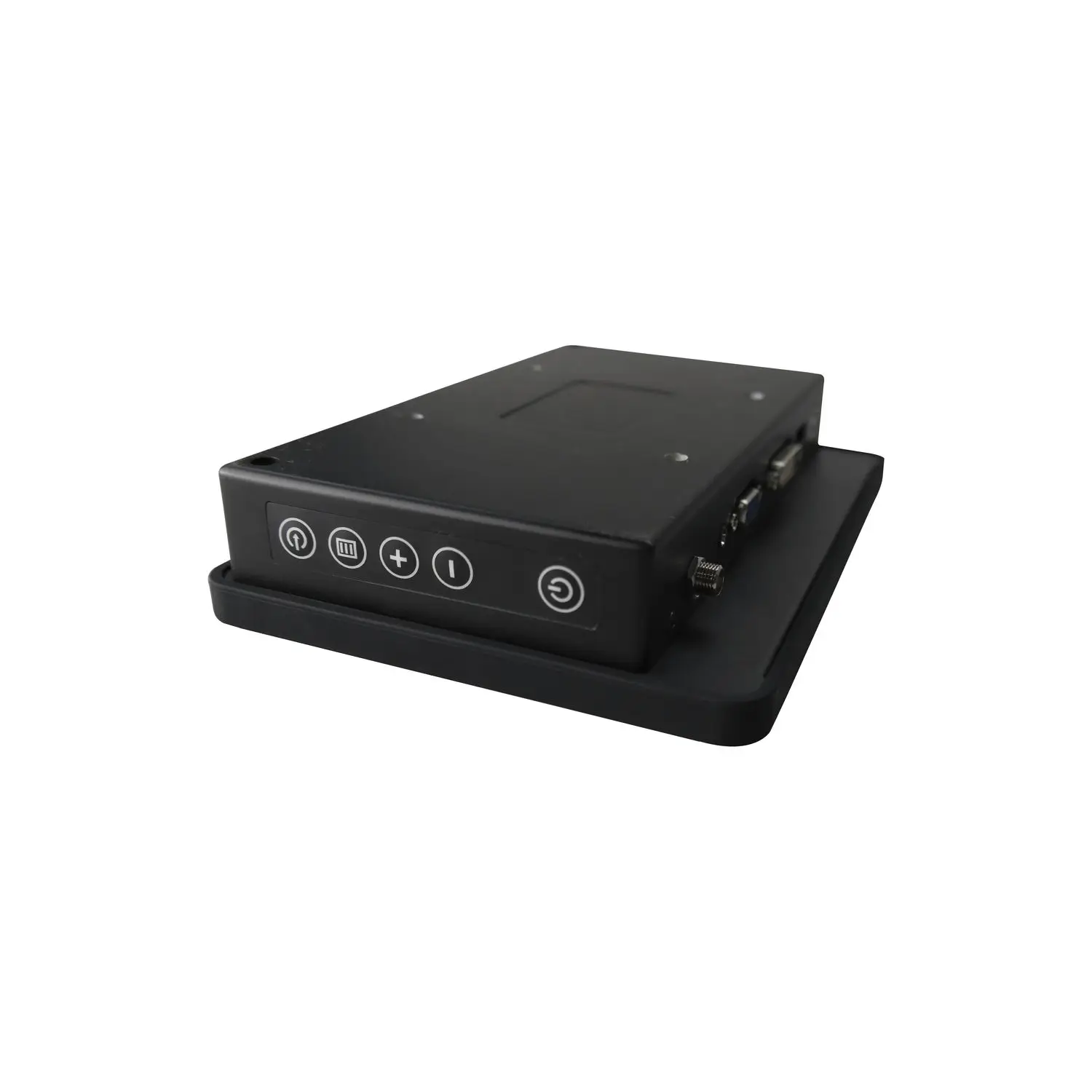

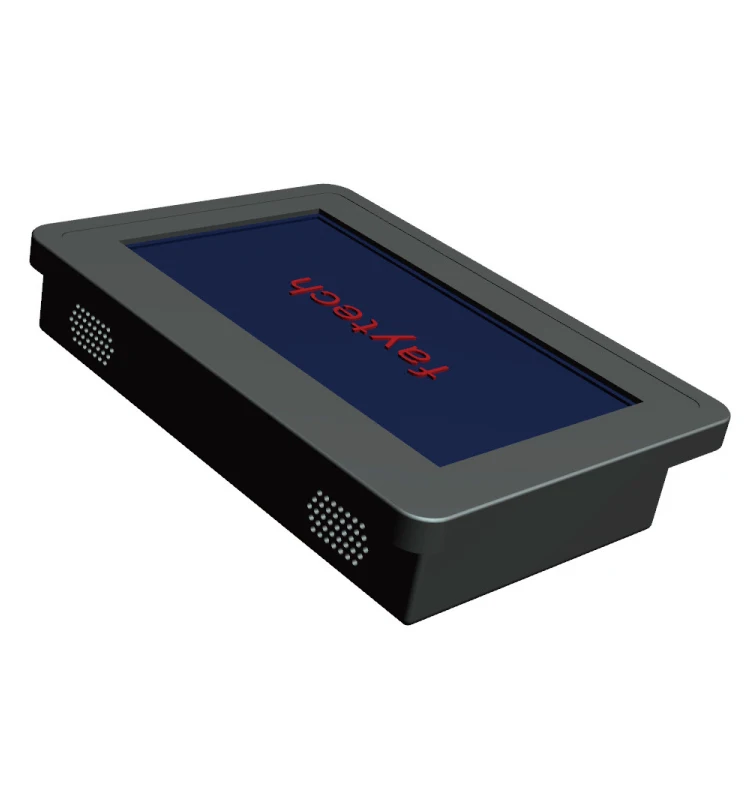

faytech 7" Industrial Devices POS Monitor Touch Screen Cash Register Systems
FT07TMCAPOB
Product Details
| Model number | FT07TMCAPOB |
| Global article code | 3030509590 |
| European article code | 1010502304 |
| EAN number | 6920734007103 |
IP Rating
| IP 65 front / IP40 back |
LCD Panel
| Screen diagonal | 7" / 17.78 cm |
| Display active screen size | 15.42 cm × 8.59 cm (11.96 in x 8.976 in) |
| Aspect ratio | 16:9 |
| Physical resolution | 1024×600 px |
| Maximum showable resolution | 1920×1080 px |
| Brightness | 500 (cd/m²) |
| Contrast | 700:1 |
| Typical reaction time Tr/ Tf | 10/15 (ms) |
| Visual angle horizontal/vertical | 150/145 (°) |
| Backlight | LED |
| Backlight lifetime | 20,000 (hours) |
Touch Panel
| Touch technology | Projected Capacitive 10-point Multitouch |
| Available touch panel drivers | Windows Linux Mac Android |
| Touch lifetime | Unlimited |
| Surface hardness | 7H |
| Surface treatment | Anti-glare (chemical etching) |
| Glass strengthening | Chemically Strengthened |
Operation/Mechanical
| Operating temperature | -10 °C ~ +60 °C (14 °F ~ 140 °F) |
| Humidity range | 10% - 90% RH |
| Net weight | 0.95 kg / 2.0943 lb |
| Gross weight (incl. cartonage) | 1.90 kg / 4.1887 lb |
| Housing material | Rubber front, aluminum back case |

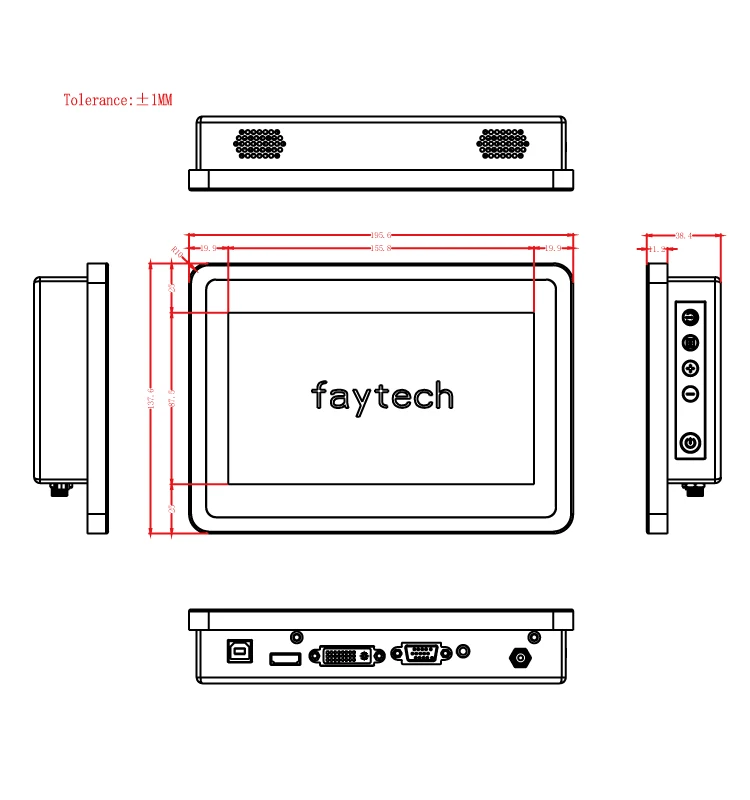

| Housing sizes | 195.6 mm x 137.6 mm x 38.7 mm (7.700 in x 5.417 in x 1.523 in) |
| Clamp support | No |
| cut-out for clamp supports (L X H) | N/A |
| Amount of clamps required | N/A |

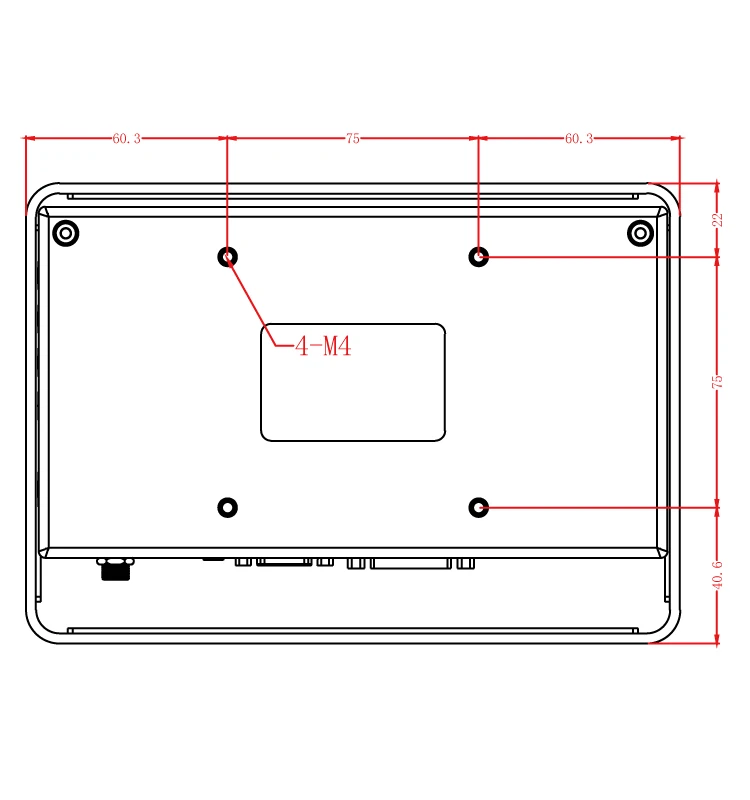

| Mounting | VESA 75 |
Power
| Power indicator | Green LED |
| Power supply | 100-240V ACDC active switching; 12V DC-Out |
| Working power | 12 V |
| Power consumption | 7 W |
| Standby power | 1 W |

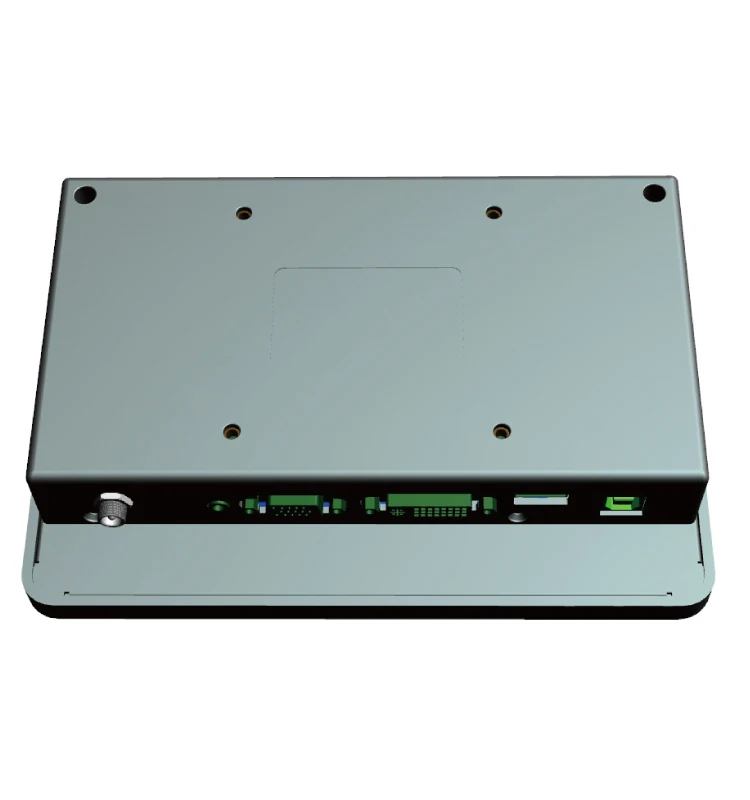

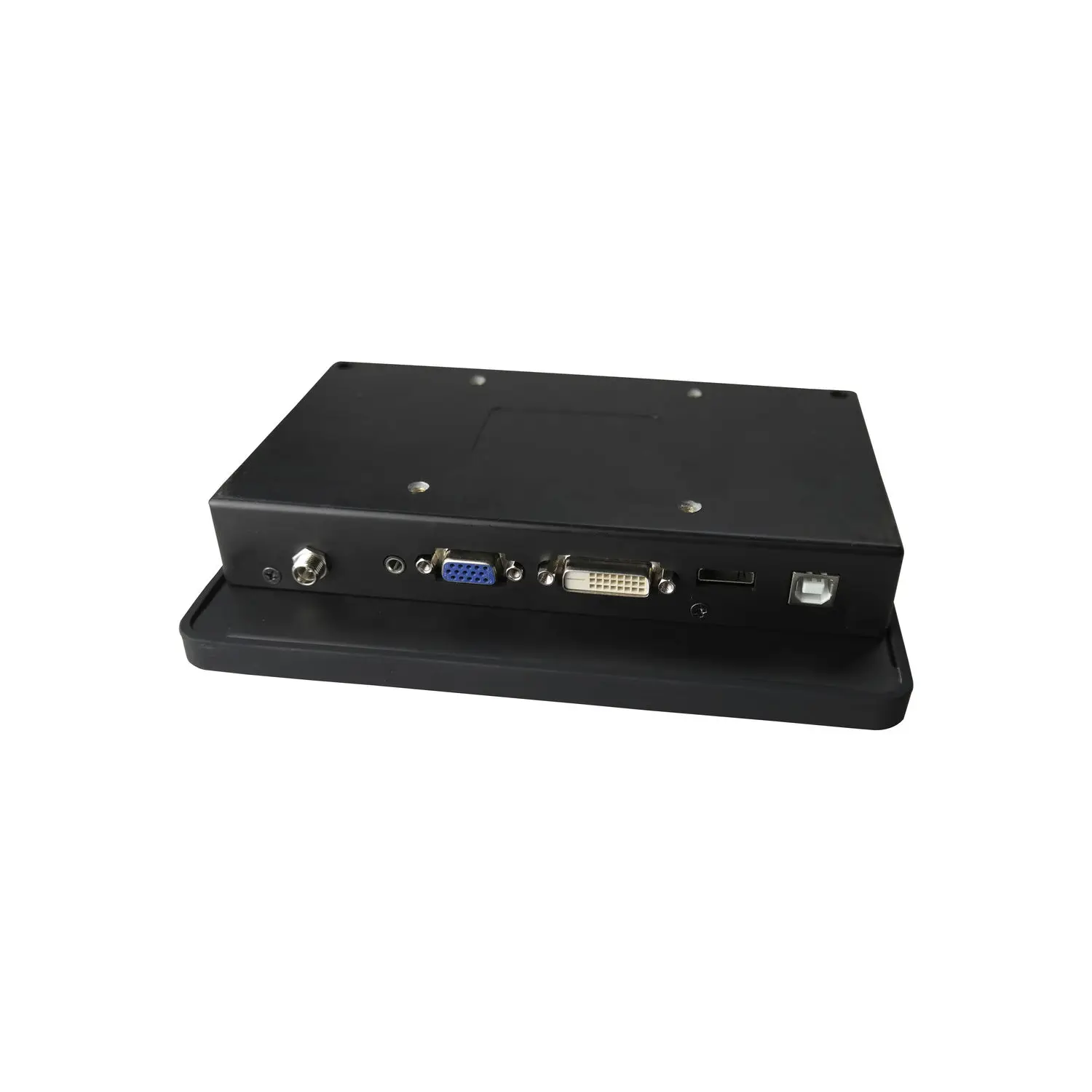

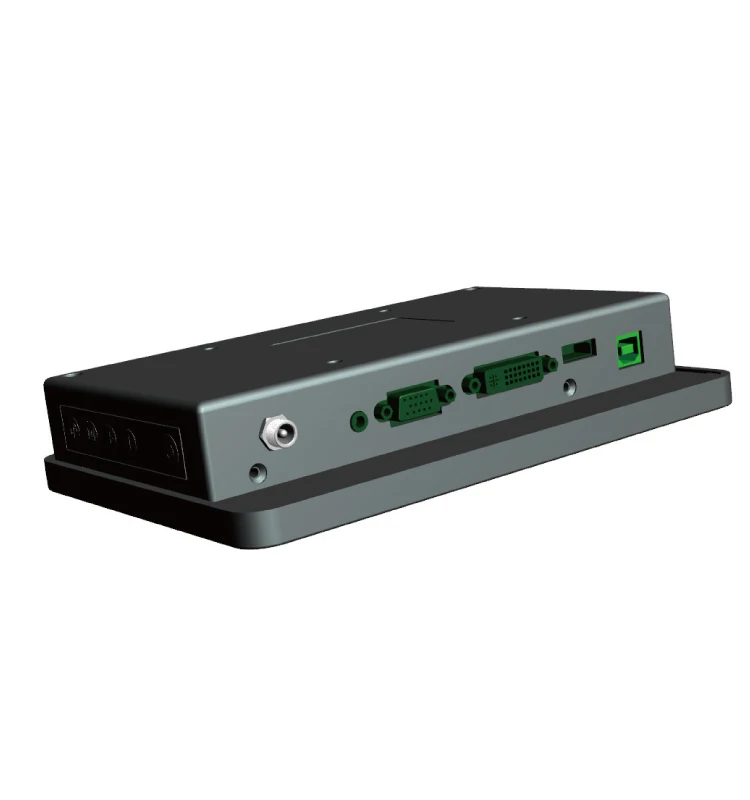

External Connectors
| Video | 1x HDMI 1.3 (incl. HDCP) 1x DP 1x VGA |
| Audio | 1x PC-Audio |
| Touch Connectors | 1x USB |
| Other Connectors | 1x 12V DC-In (screwable) |
Included in the delivery
| Power Supply (see Power section) Short Installation Manual Cables - VGA, USB Touch, Audio Cable |
Company Information
Certifications
faytech guarantees extraordinary quality and consistency throughout the company in compliance with the above certifications to ensure all products meet the internal rigorous quality standards.
