Nema 24 4Nm Closed Loop Stepper Motor Kits 2 Phase Nema24 Servo Motor LC60H2127 driver LCDA86H DC48V 7A
- Category: >>>
- Supplier: Shenzhen Xinlichuan Electric Co. Ltd.
Share on (1600513139739):
Product Overview
Description
Lichuan 5.5NM Nema24 2phase closed loop stepper motor and driver kit
Packing list
| NO. | Item No. | Description | QTY |
| 1 | LCDA86H | 2 phase closed loop stepper motor driver | 1PC |
| 2 | LC60H2127 | 2 phase 5.5NM NEMA24 Closed-loop stepper motor | 1PC |
| 3 | Encoder cable | 3M Encoder cable (Longer cable available) | 1PC |
Product Description
>>>2 phase 5.5NM NEMA24 Closed-loop stepper motor/ LC60H2127 information
Two-phase 60 series closed-loop stepper motor, the use of high-quality raw materials and high-standard permanent magnet silicon steel, with 1000-line high-precision encoder, completely overcome the open-loop stepper motor stepping problems, while significantly enhance the motor high-speed performance, To facilitate the traditional step-by-step drive program upgrade, cost reduction compared to servo motor to reduce more than 50%. Motor length 91mm ~ 149mm, the torque range: 2N.m ~ 5.5N.m, motor shaft diameter 8mm
Lichuan 2 phase 5.5NM NEMA24 Closed-loop stepper motor specification:
Motor mode | Step/angle | Length | Holiding torque | Current | Rotor inertia | Encoder line | Lead wire | Weight |
° | mm | N.M | A | g.cm2 | PPR | NO. | Kg | |
LC60H269 | 1.8 | 69+22 | 2 | 4.0 | 570 | 1000 | 4 | 1.1 |
LC60H286 | 1.8 | 86+22 | 3 | 4.5 | 620 | 1000 | 4 | 1.45 |
LC60H2102 | 1.8 | 102+22 | 4.5 | 5.0 | 1000 | 1000 | 4 | 1.87 |
LC60H2112 | 1.8 | 112+22 | 4.8 | 5.8 | 1200 | 1000 | 4 | 2.1 |
LC60H2127 | 1.8 | 127+22 | 5.5 | 5.8 | 1370 | 1000 | 4 | 2.45 |
Notes: The above is only for representative products, We can according to customer requirements to remake.

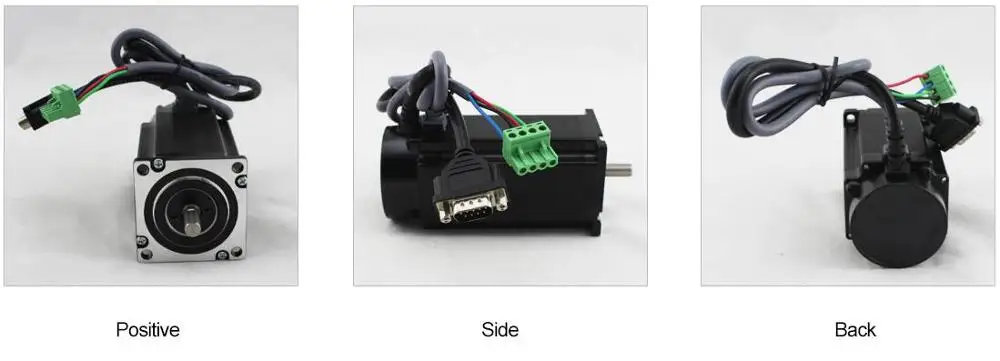

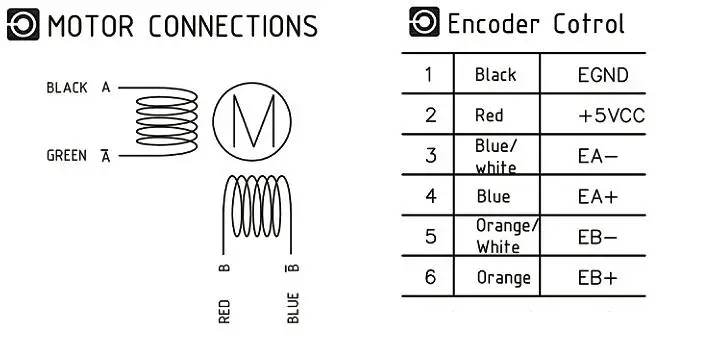

2 phase 5.5NM NEMA24 Closed-loop stepper motor size and wiring:
>>>2 phase NEMA24 Closed-loop stepper motor drive /LCDA86H information
LCDA86H using the latest dedicated motor control DSP chip and vector closed-loop control technology, completely overcome the open-loop stepper motor stepped the problem, while significantly enhance the motor high-speed performance, reduce motor heating and reduce motor vibration, improve machine processing speed and accuracy of the machine Energy consumption. This drive takes into account the dual advantages of stepping and servo, and its price than the market on the servo system significantly reduced by 50%, is the best choice for customers to upgrade the program.

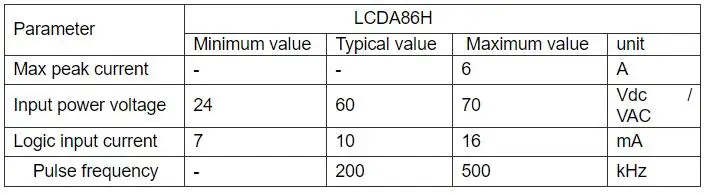

2 phase NEMA24 Closed-loop stepper motor driver /LCDA86H specification:
Features:
1. Voltage input range: VAC: 20 ~ 70V OR VDC: 30 ~ 100V
2. Maximum peak current: 6A
3. Subdivision range: the default 4000 / rev, through the debug board can be set to any subdivision (200-51200)
4. Pulse limit frequency: 200KHZ
5. Signal input: pulse, direction and enable signal
6. Output signal: in place signal and fault output signal
7. Motor encoder feedback: AB differential input
8. Closed-loop vector control to ensure that the motor high-speed large torque output, while ensuring that the motor does not lose step
9. With over-voltage, over-current, tracking error tolerance and other protection functions

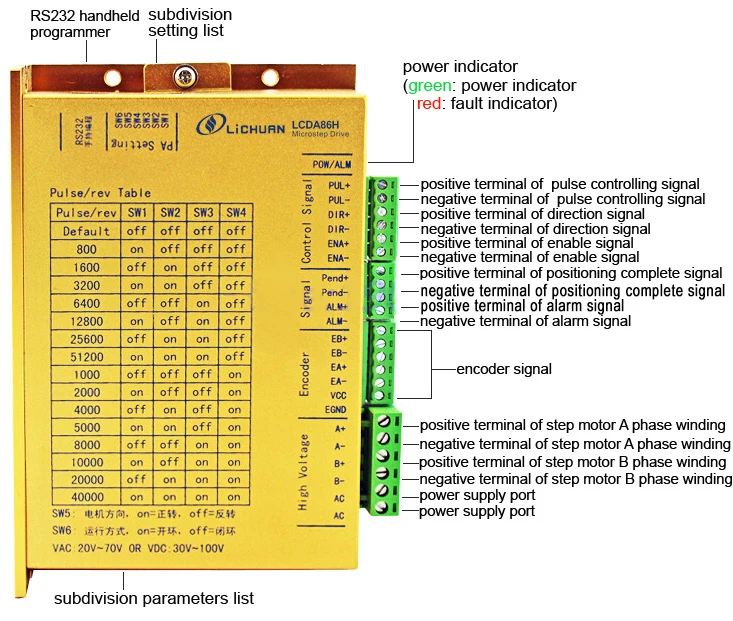

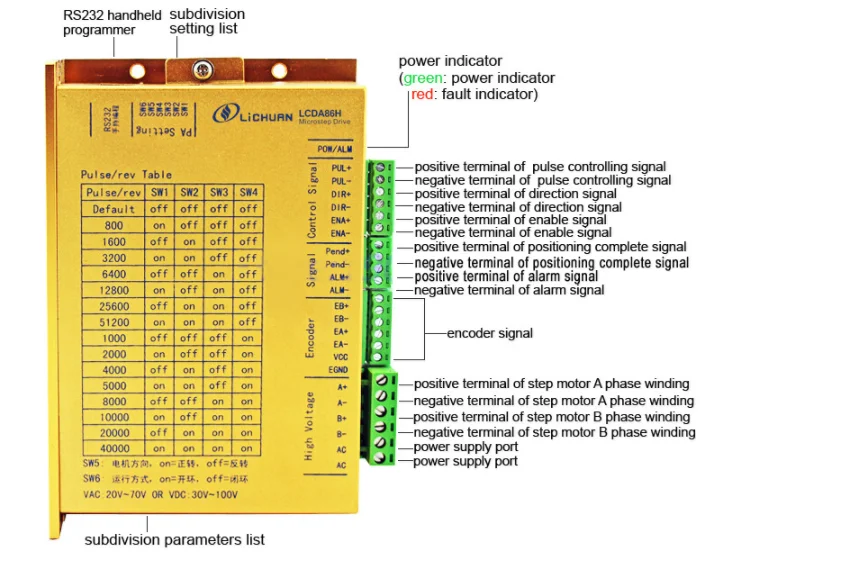

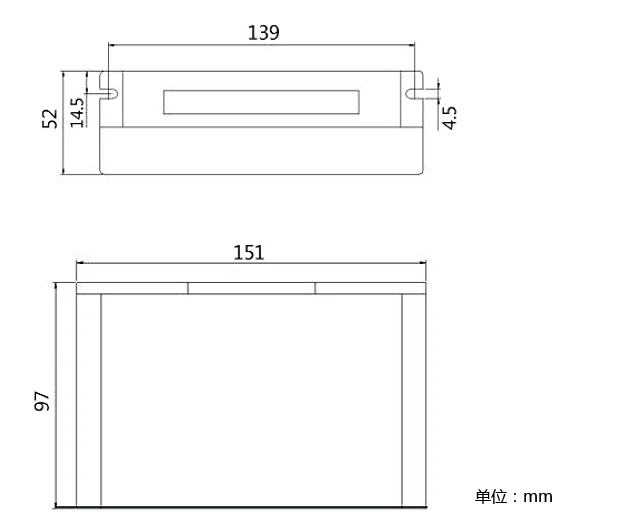

2 phase NEMA24 Closed-loop stepper motor driver /LCDA86H size and wiring:

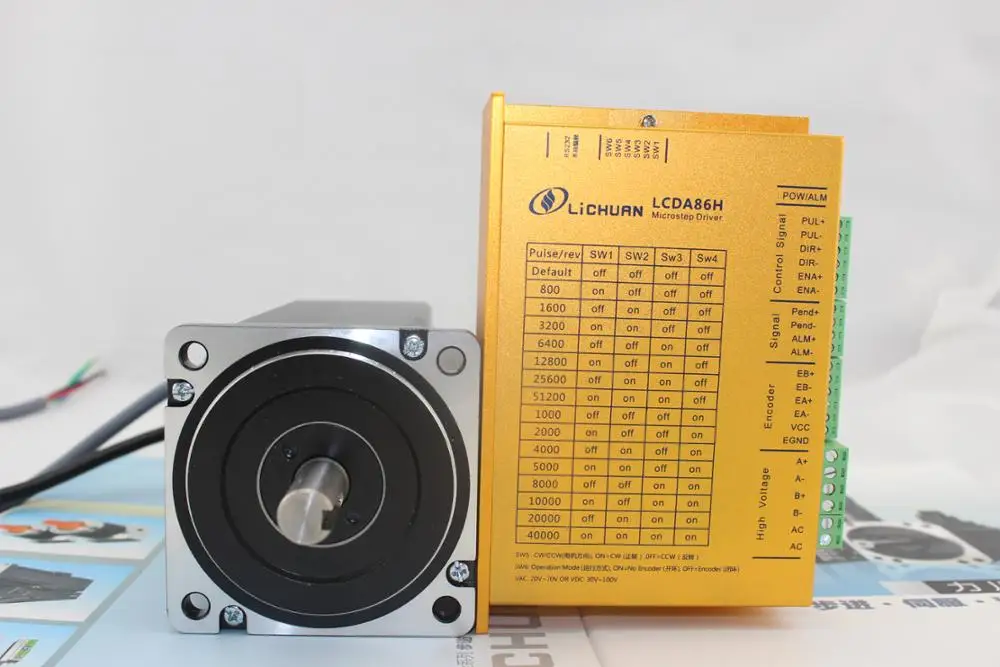

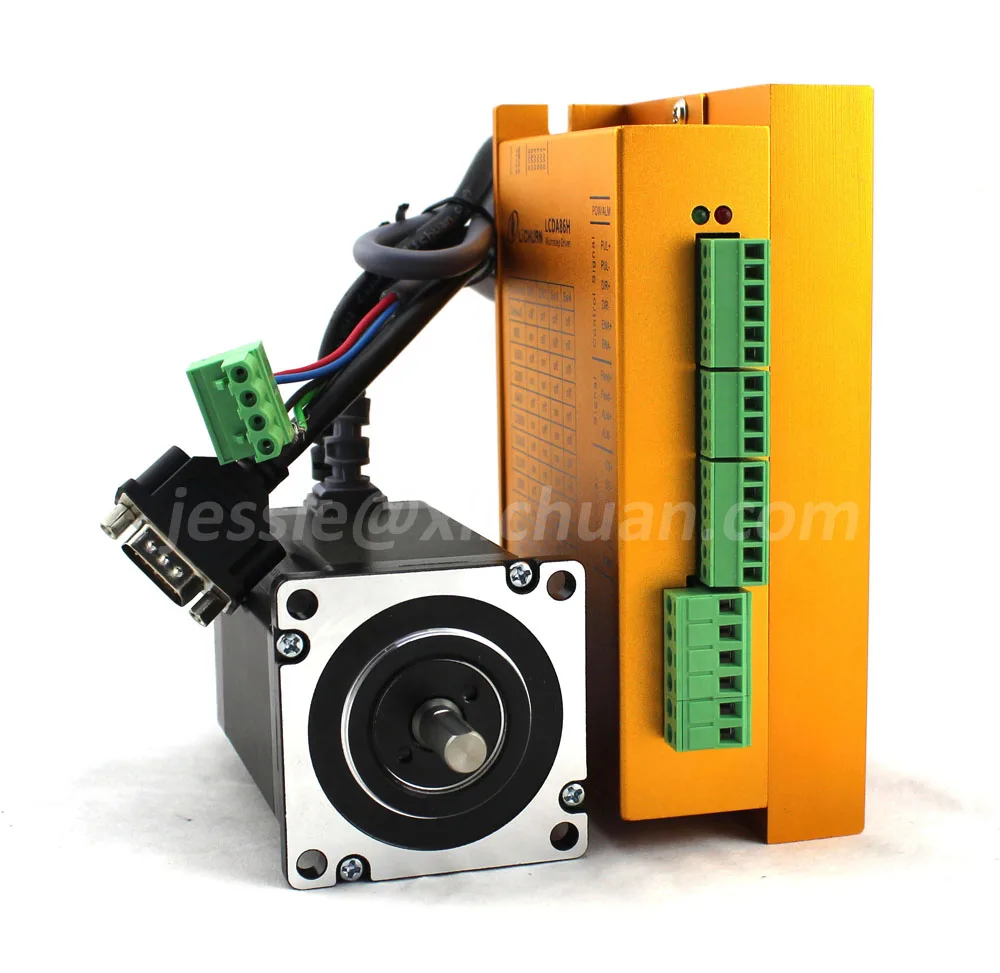

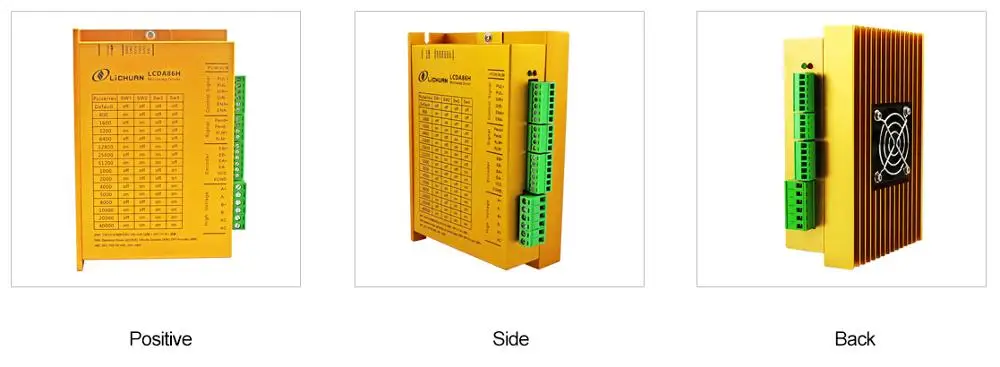

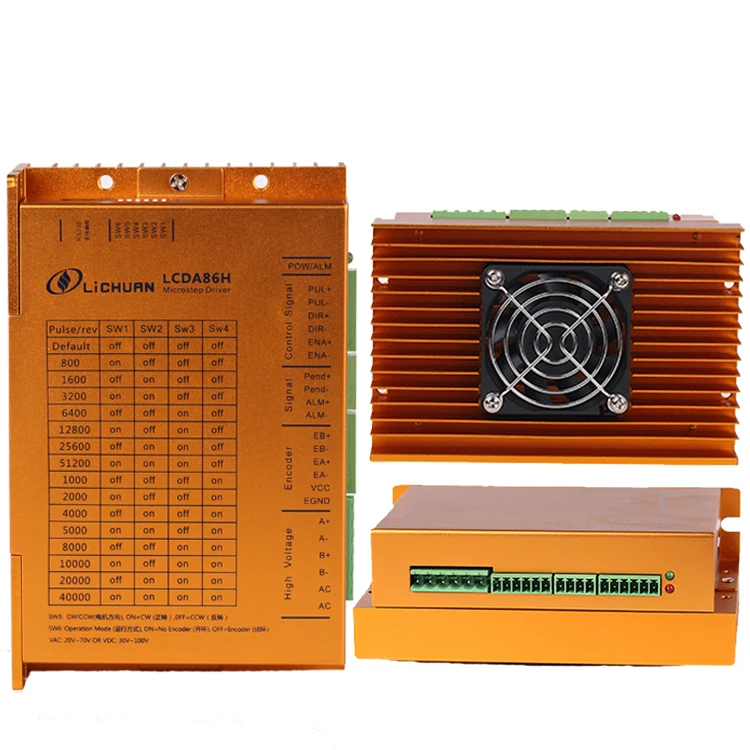

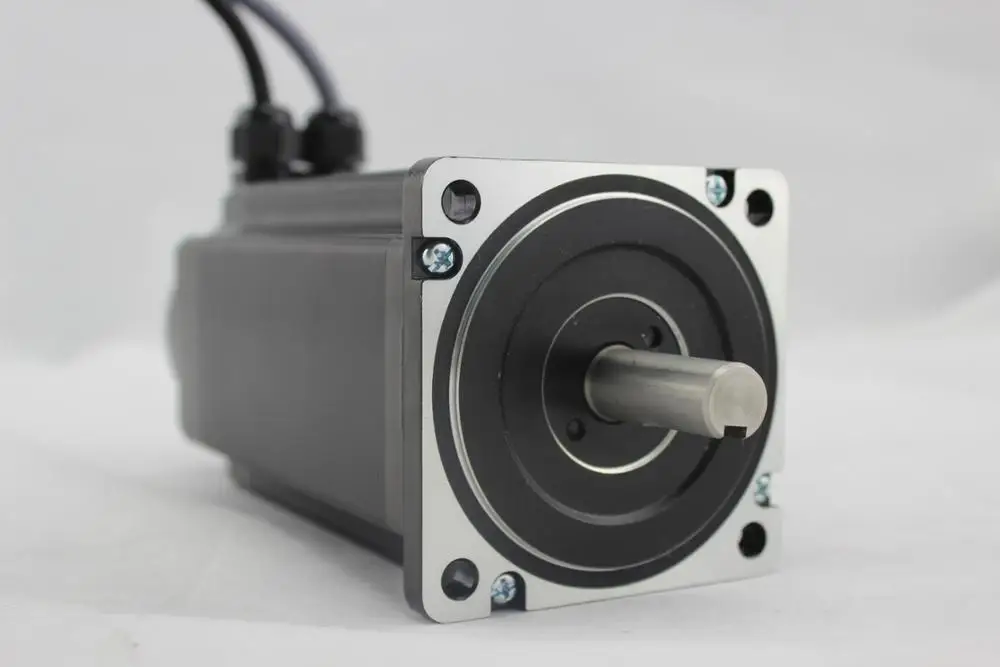

Lichuan 5.5NM Nema24 2phase closed loop cnc stepper motor driver kit LCDA86H+LC60H2127 pictures:
