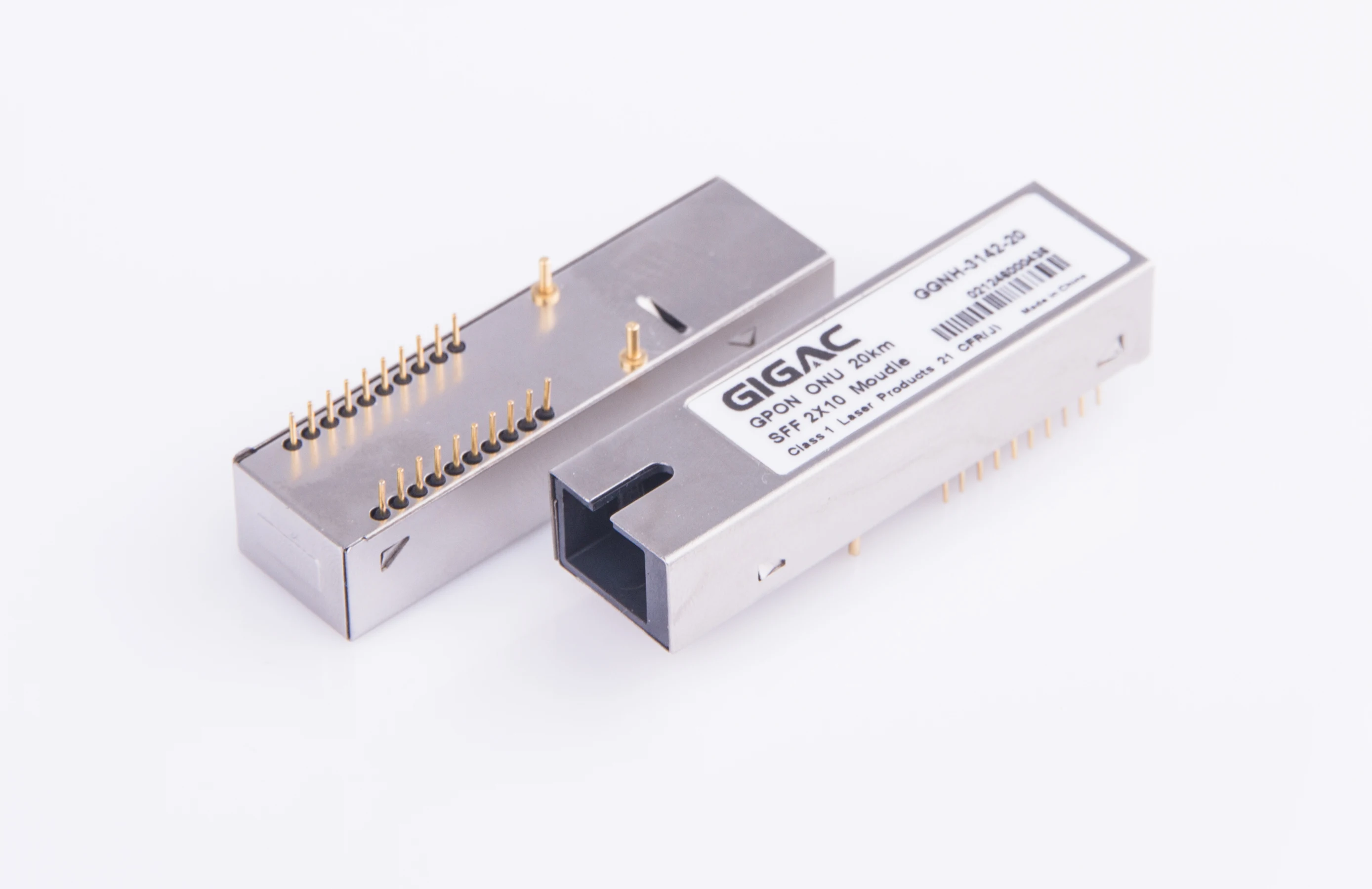

GPON ONU Transceiver SFF 1310nm DFB laser and an integrated BM laser driver mini optical transceiver

Product Overview

Description











The GPON ONU Transceiver is designed for Gigabit capable Passive Optical Network(GPON)transmission. The module incorporates 1310nm burst-mode transmitter and 1490nm continuous-mode receiver.

The transmitter section uses a 1310nm DFB laser and an integrated BM laser driver which designed to perform very small burst enable/disable delay time. The laser driver also includes digital APC and temperature compensation circuit, which are used for keeping the launch optical power and extinction ratio constant over temperature and aging.

The receiver section uses an integrated 1490nm APD photodiode and preamplifier mounted together. It has the function that indicates receiver signal-detected status (active high). An integrated WDM coupler can separate 1490nm input light and 1310nm output light.

The metallic package guarantees excellent EMI and EMC characteristics, which totally comply with international relevant standards.



Features

Optical transceiver for Gigabit-capable Passive Optical Networks (GPON) ONU side

Integrated Single fiber bi-directional optical subassembly

SFF 2×10 Package with SC Receptacle/SC Pigtail

1310nm DFB laser Burst-mode Transmitter and 1490nm APD Continuous receiver(with WDM)

+3.3V single power supply ,Low power consumption

0 to 70℃ operating case temperature

Class 1 Laser eye safety

Excellent EMI and EMC characteristics

DDM Function implemented

Compliant with RoHs





Standard

Complies with SFF MSA (1998 version form-factor)

Complies with ITU-T G.984.2, G.984.2 Amendment 1, G.984.2 Amendment 2

Complies with ITU-T G.984.5

Complies with SFF 8472 V9.5

Complies with FCC 47 CFR Part 15, Class B

Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser
