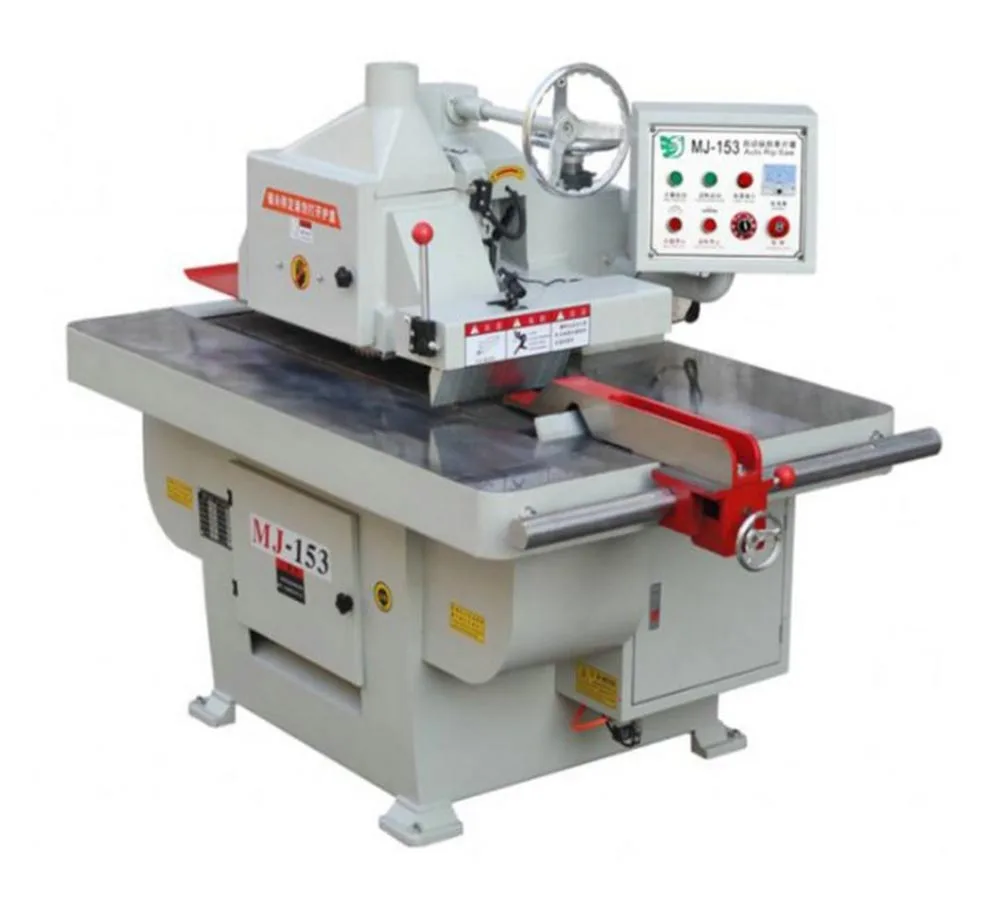

4inch thickness automatic feeding single blade rip saw MJ153/MJ163 wood edge trimming straight line rip saw

Product Overview

Description

Introduction of 4inch thickness automatic feeding single blade rip saw MJ153/MJ163 wood edge trimming straight line rip saw

Woodworking circular saw with automatic feeding is to use for solid wood cutting, mahogany opening, seam finding, trimming, high-precision wood processing such as sawing and planing, and the operation is simple and safe.



Parameter of 4inch thickness automatic feeding single blade rip saw MJ153/MJ163 wood edge trimming straight line rip saw



Model	MJ153
Max. Sawing thickness	85mm
Min. Sawing length	230~300mm
Max.planing depth	460mm
Saw shaft diameter	25.4mm
Spindle speed	2850~3600r/min
Saw blade diameter	305mm
Feeding speed	13.3~23.3m/min
Main power	8.25kw
Main motor power	7.5kw
Feeding motor power	0.75kw
Table size	1500*950mm
Dimension	1785*1100*1415mm
Weight	800kg
Other demand can be customized


Feature of 4inch thickness automatic feeding single blade rip saw MJ153/MJ163 wood edge trimming straight line rip saw

1 Excellent linear precision and sag accuracy

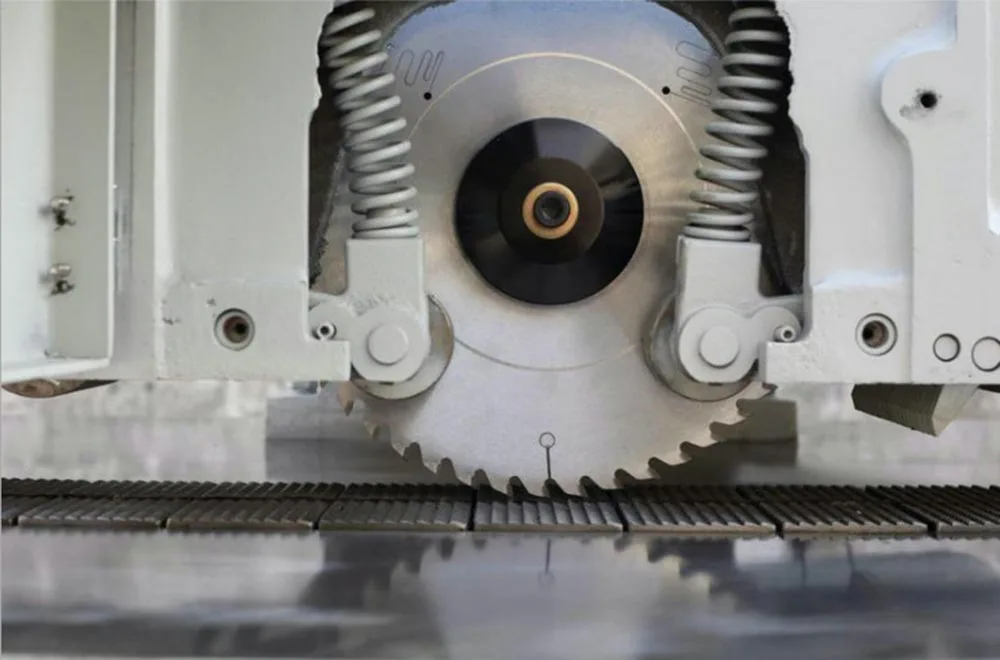

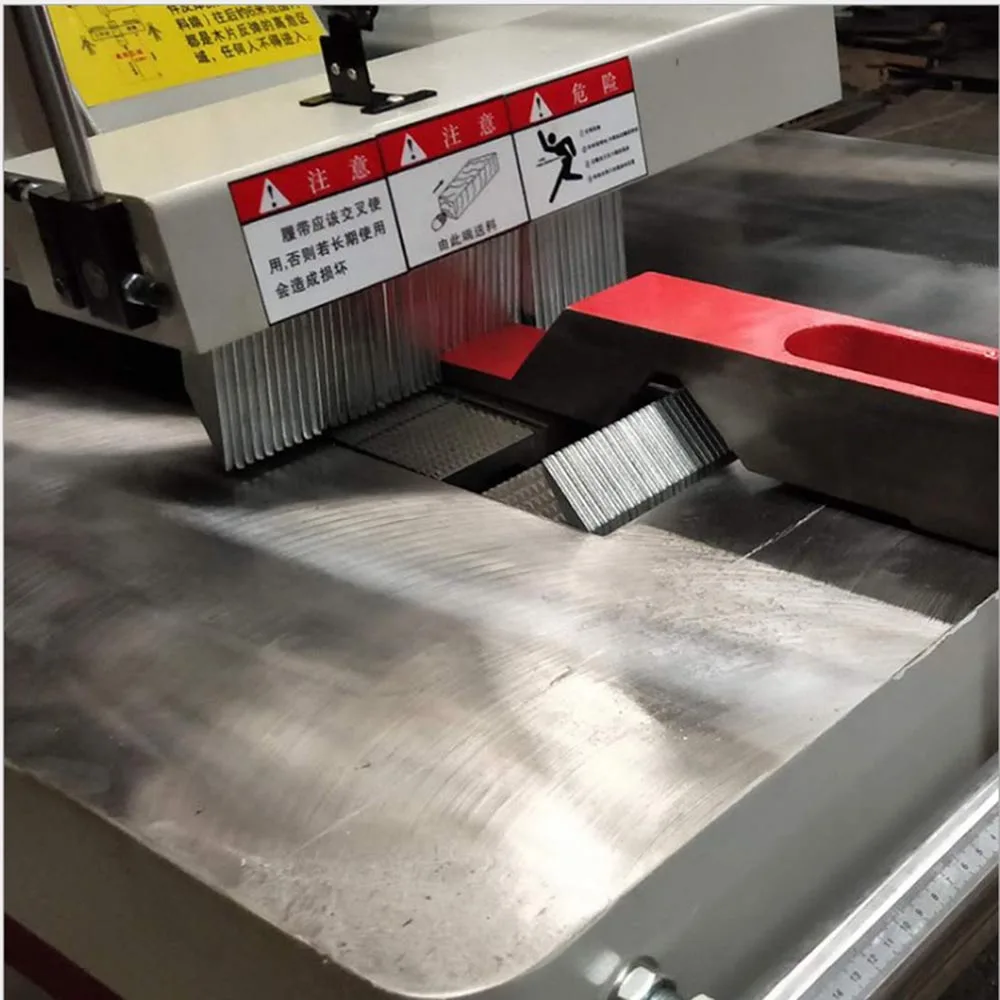

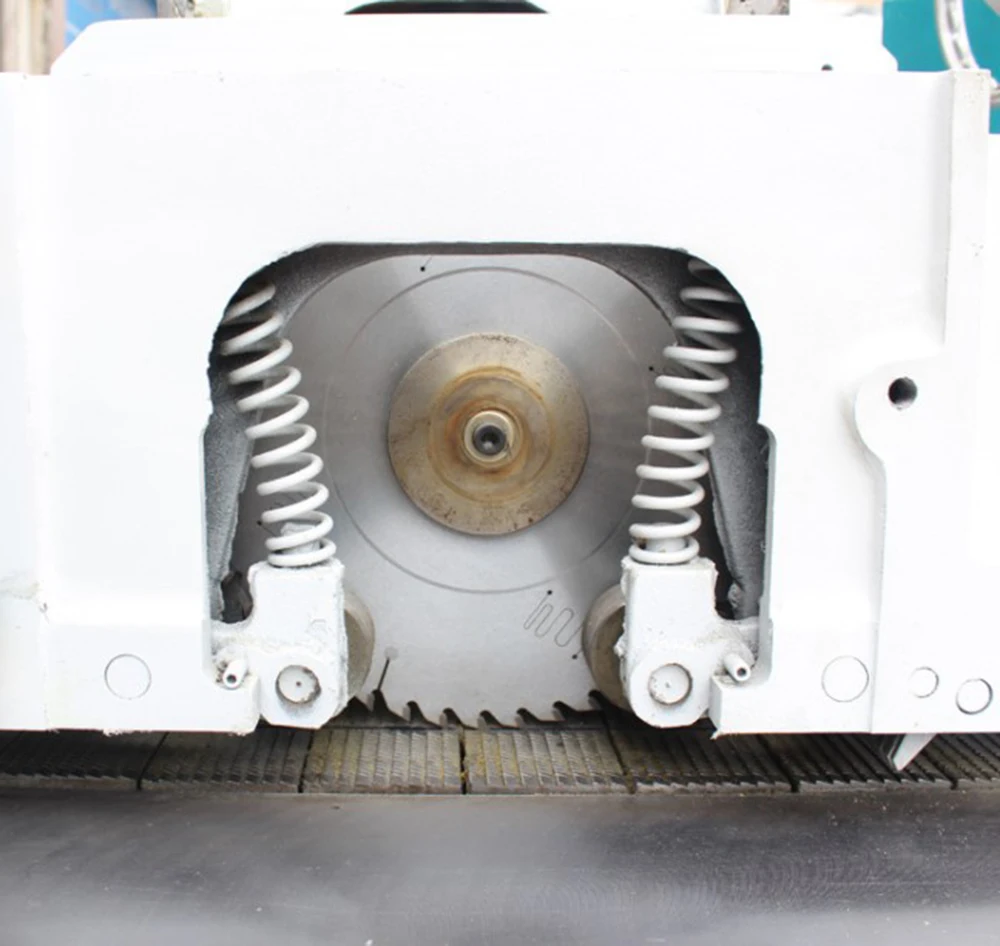

2 powerful two big three fixed anti-reverse components (anti-rebound), providing strong security

3 The unique double-end bearing seat supports the conveying sprocket to make the conveying more stable

4 ultra-wide conveyor chain plate, making wood transport more smooth

5 using multi-speed shifting, suitable for soft, hard, thick, thin wood processing

6 The work surface is lengthened, extended and extended, and the material conveying is more stable

7 Accurate current meter on the control surface, according to the motor load, so that you can accurately adjust the feeding speed

8 well-designed circuit protection, mechanical use process is more secure;

9 Unique chain plate dust removal device keeps the chain plate clean and makes the machine performance more stable

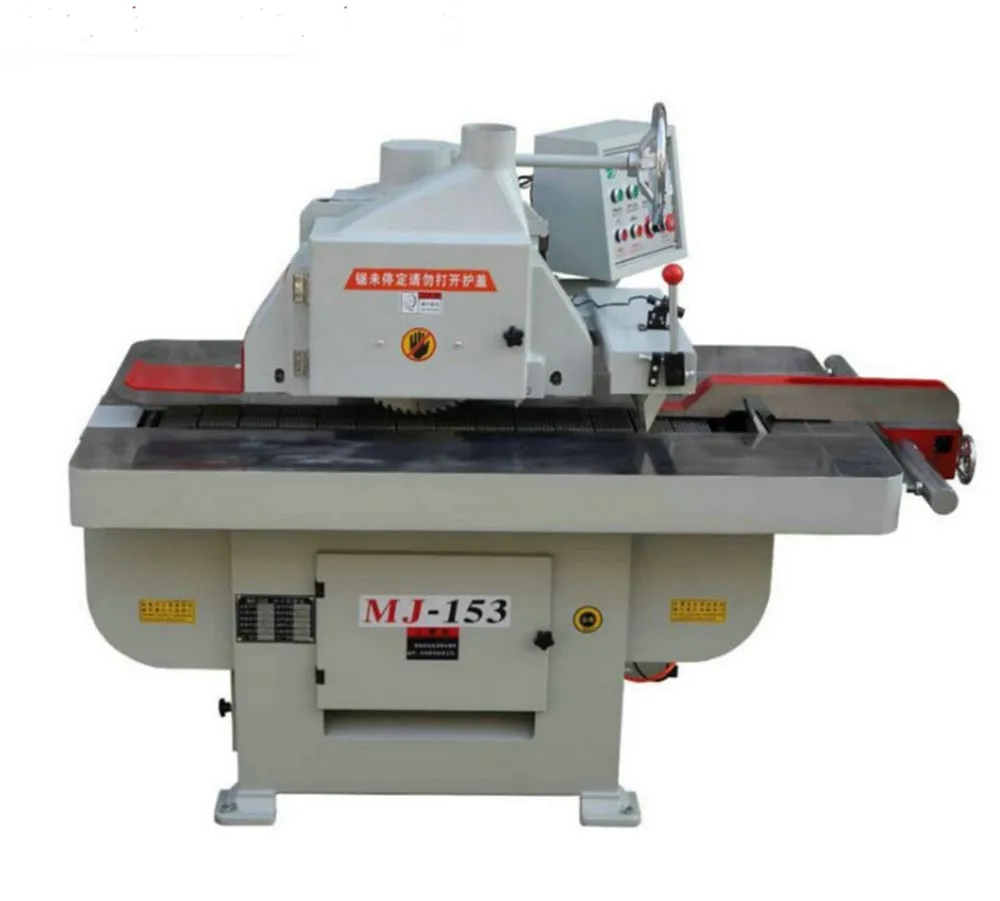

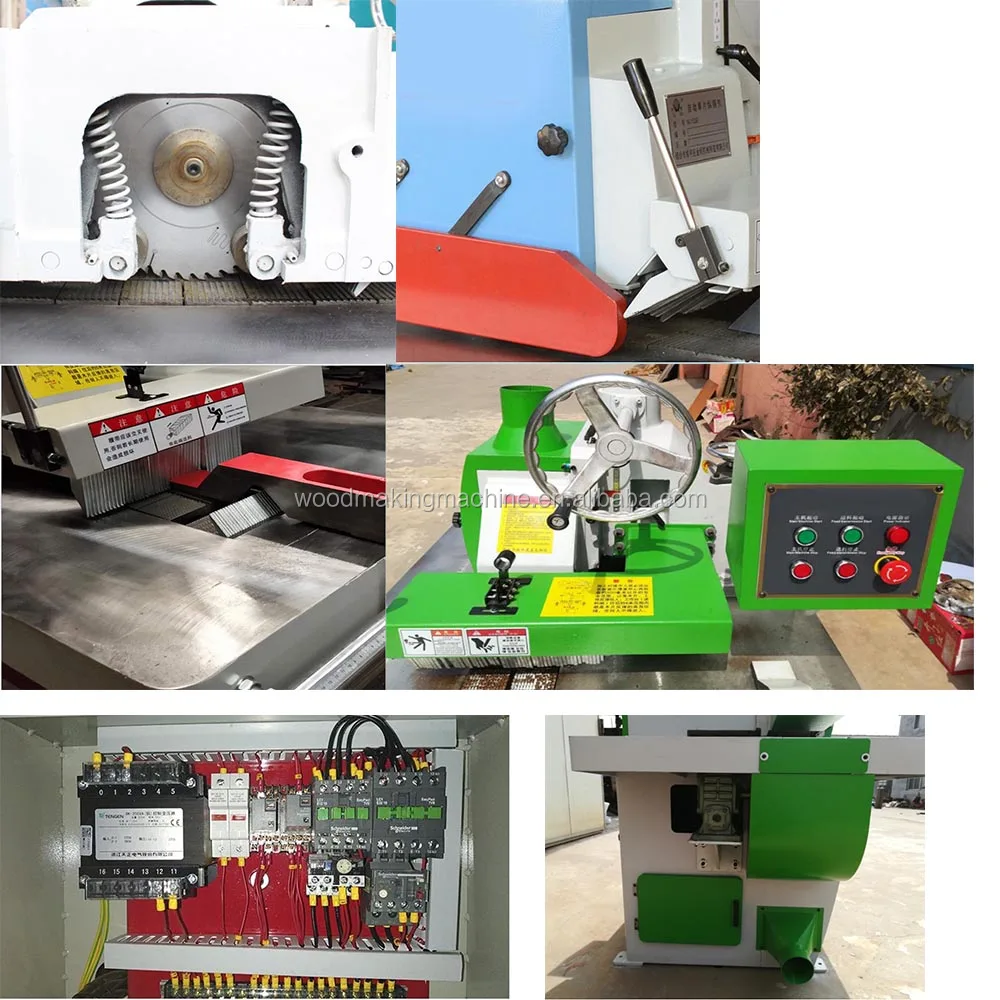

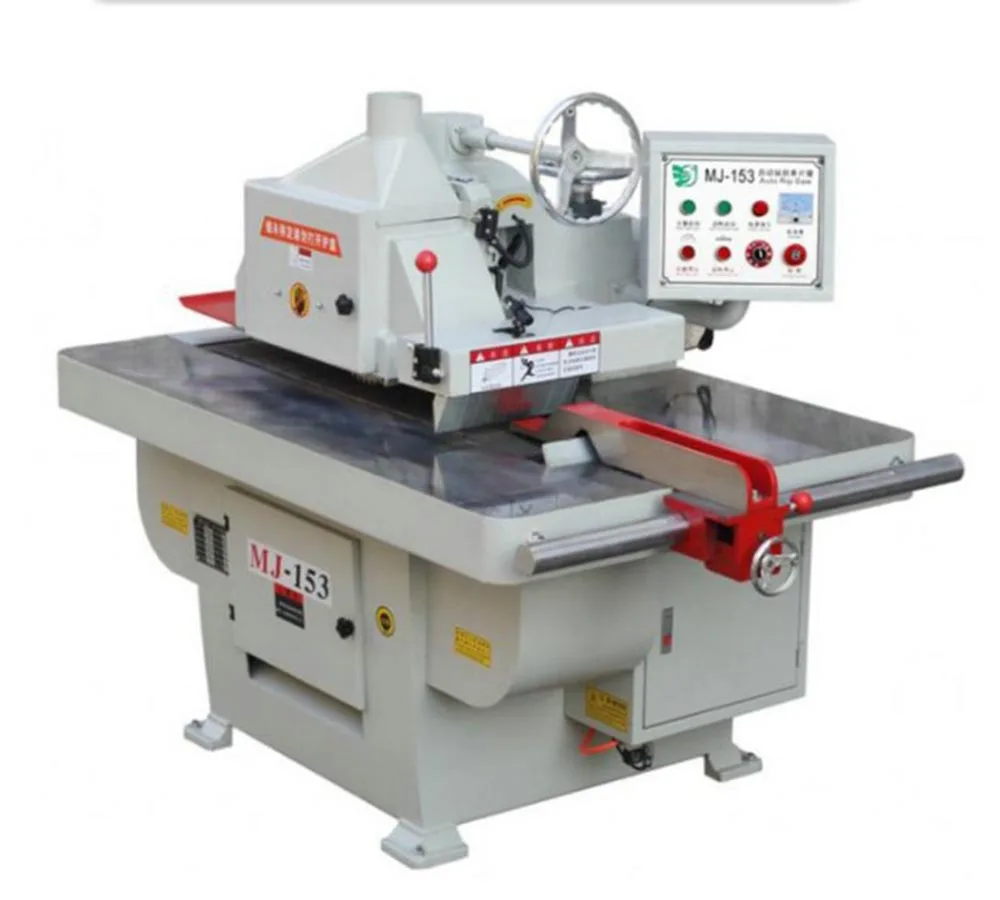

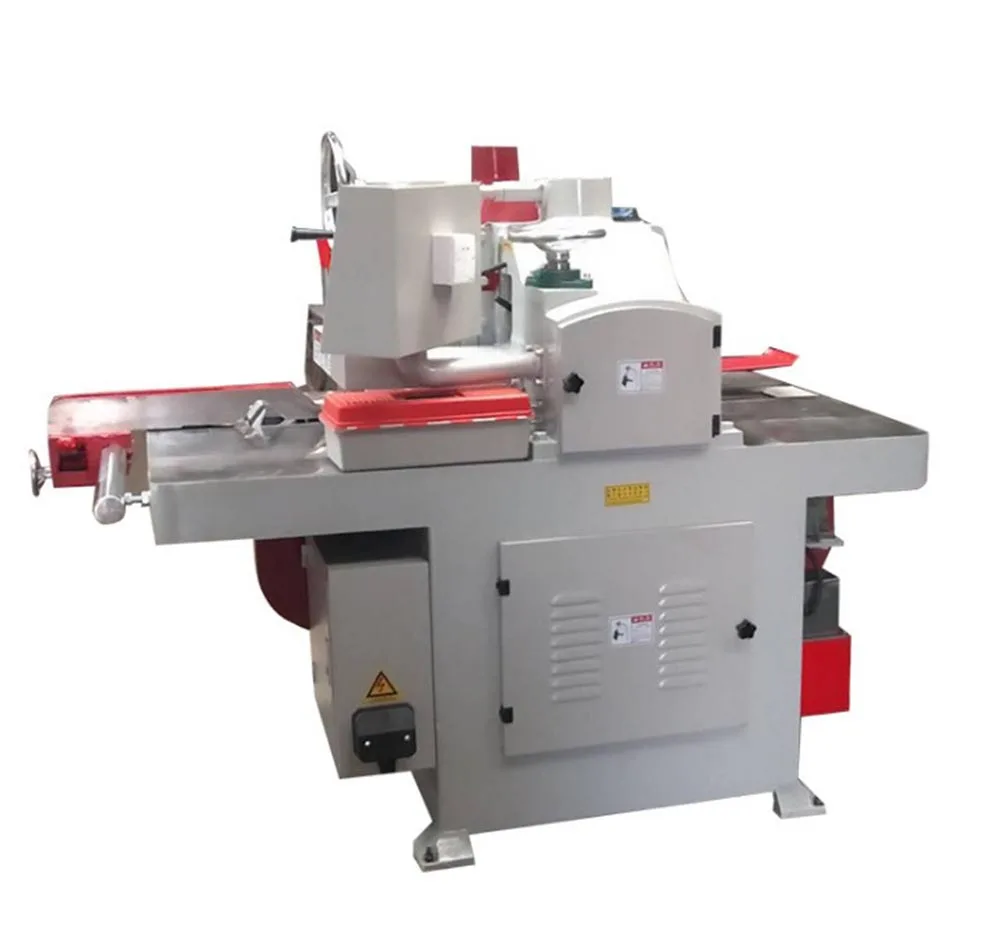

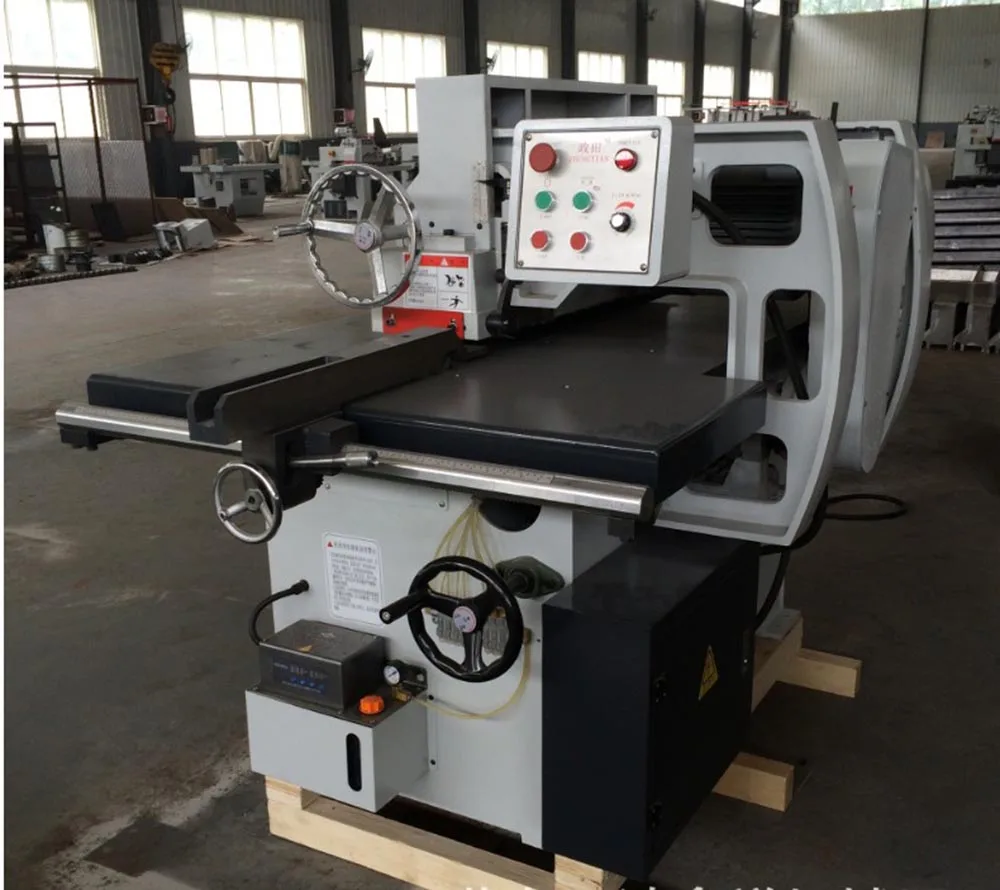

Photo of 4inch thickness automatic feeding single blade rip saw MJ153 wood edge trimming straight line rip saw

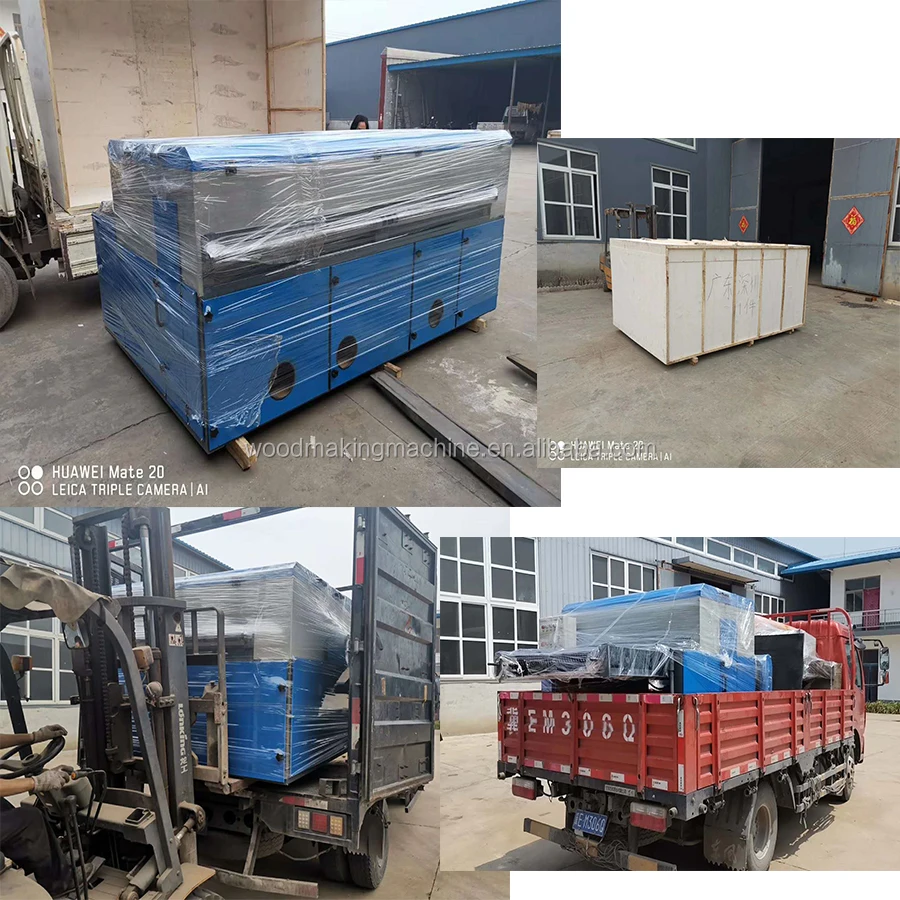

Package and delivery

Shandong Aichener Machinery Co., Ltd. mainly supply woodworking thicknesser, flat planer, Multi-functional combination planer,sander machine, polish machine, wood router and miller, band saw, slide table saw, simple or precision panel saw, scroll saw, circular saw ,Woodworking edge banding machine,Rocker saw,Drilling machine, wood engraving machine, splicing machine, finger joint machine, sharpening machine,Log peeling saw,etc , widely used in Logs, solid wood panels, splice panels, plywood and sandwish wood, warm welcomed by Lumber mill and furniture processing plant,highly valued by woodworking enthusiasts.
