Large Conference Level 10 Meeting HD 1080P 20X Optical Zoom Camera PTZ Video Conference System
- Category: >>>
- Supplier: Xian Tongveo Video Technology Co. Ltd.
Share on (1600513200787):
Product Overview
Description
Product Description

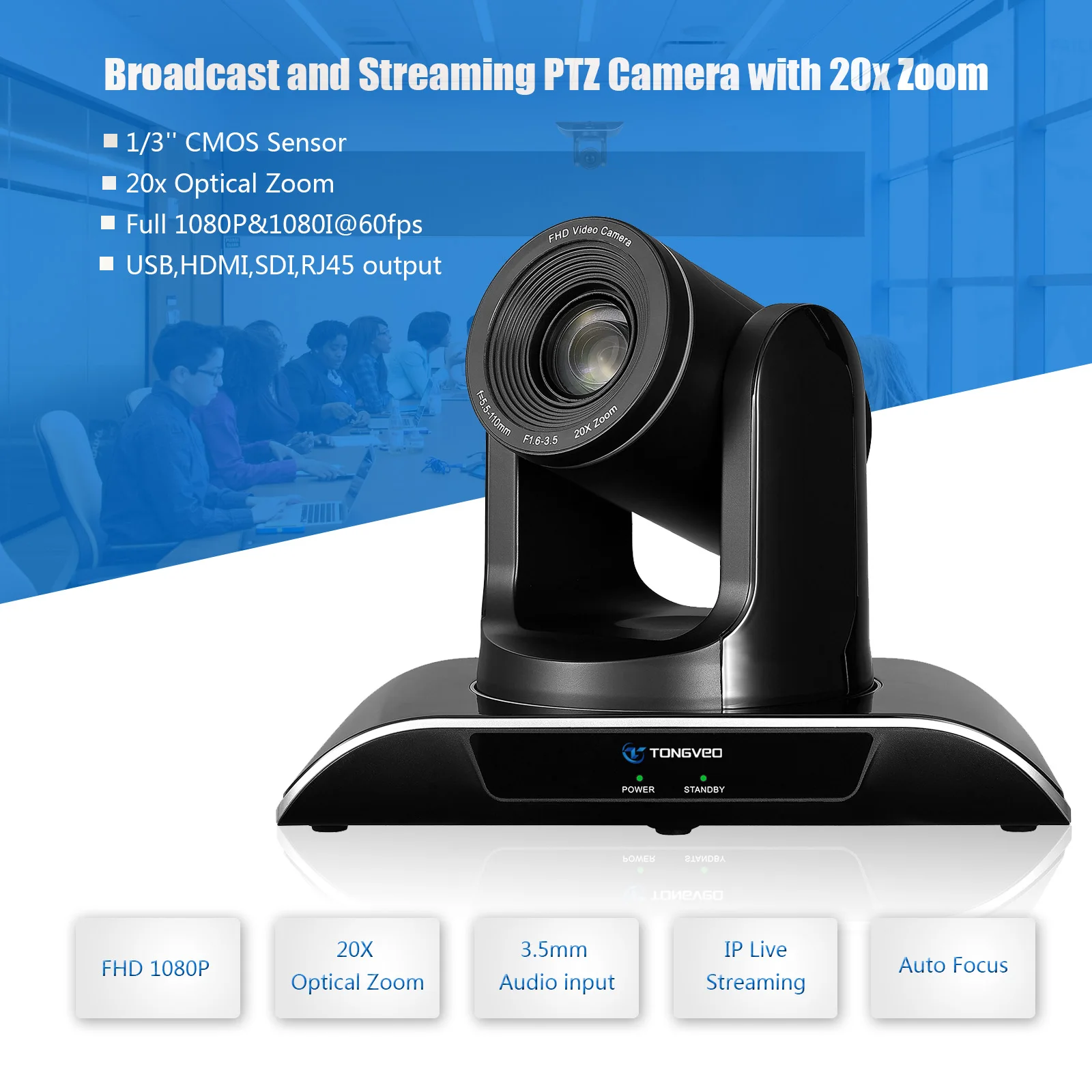

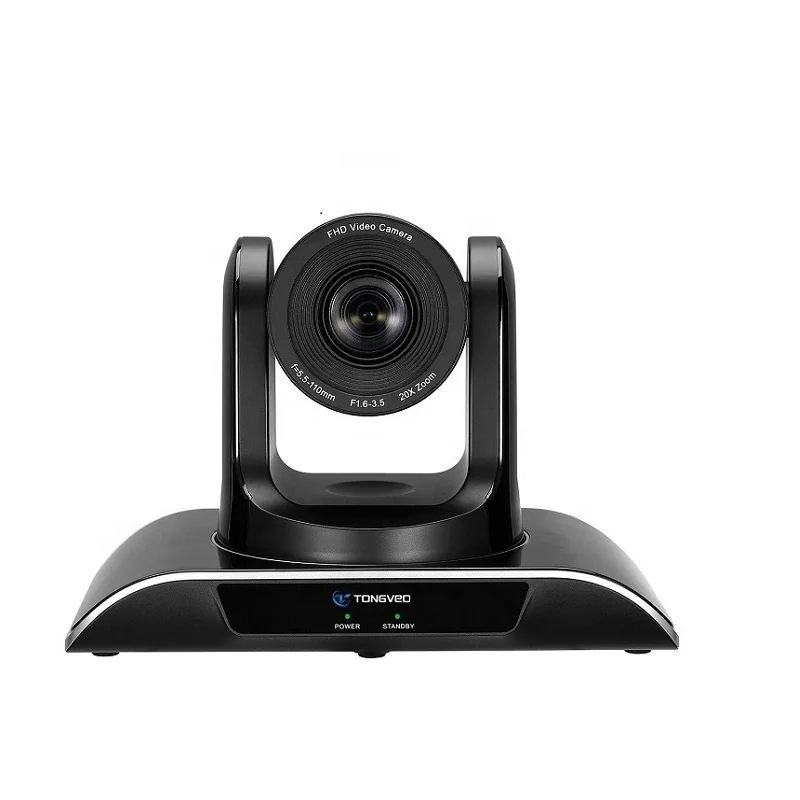

VHD20N Pan/Tilt/Zoom (PTZ) camera is obtained with RJ45, HDMI, 3G-SDI, and USB2.0 video outputs.
1 /3" HD CMOS with 2.38 mega pixel and Full HD 1080p & 1080i output resolution and a high dynamic image at 60 fps.
Wide shooting angle, high-speed, quiet, and precise positioning with smooth PTZ operations.
255 presets, Stable remote controlling. Applicable for video conferencing in a small to medium conference room.
1 /3" HD CMOS with 2.38 mega pixel and Full HD 1080p & 1080i output resolution and a high dynamic image at 60 fps.
Wide shooting angle, high-speed, quiet, and precise positioning with smooth PTZ operations.
255 presets, Stable remote controlling. Applicable for video conferencing in a small to medium conference room.
Details Images
Key Features of VHD20N Video conference camera:
1.Superb high-definition image；
2.Smooth and Silent Pan Tilt Movement； 3.20x Optical Zoom 1080P HD Video Camera Simultaneous USB,3G-SDI, HDMI, IP Streaming；
4.3.5mm Audio input；

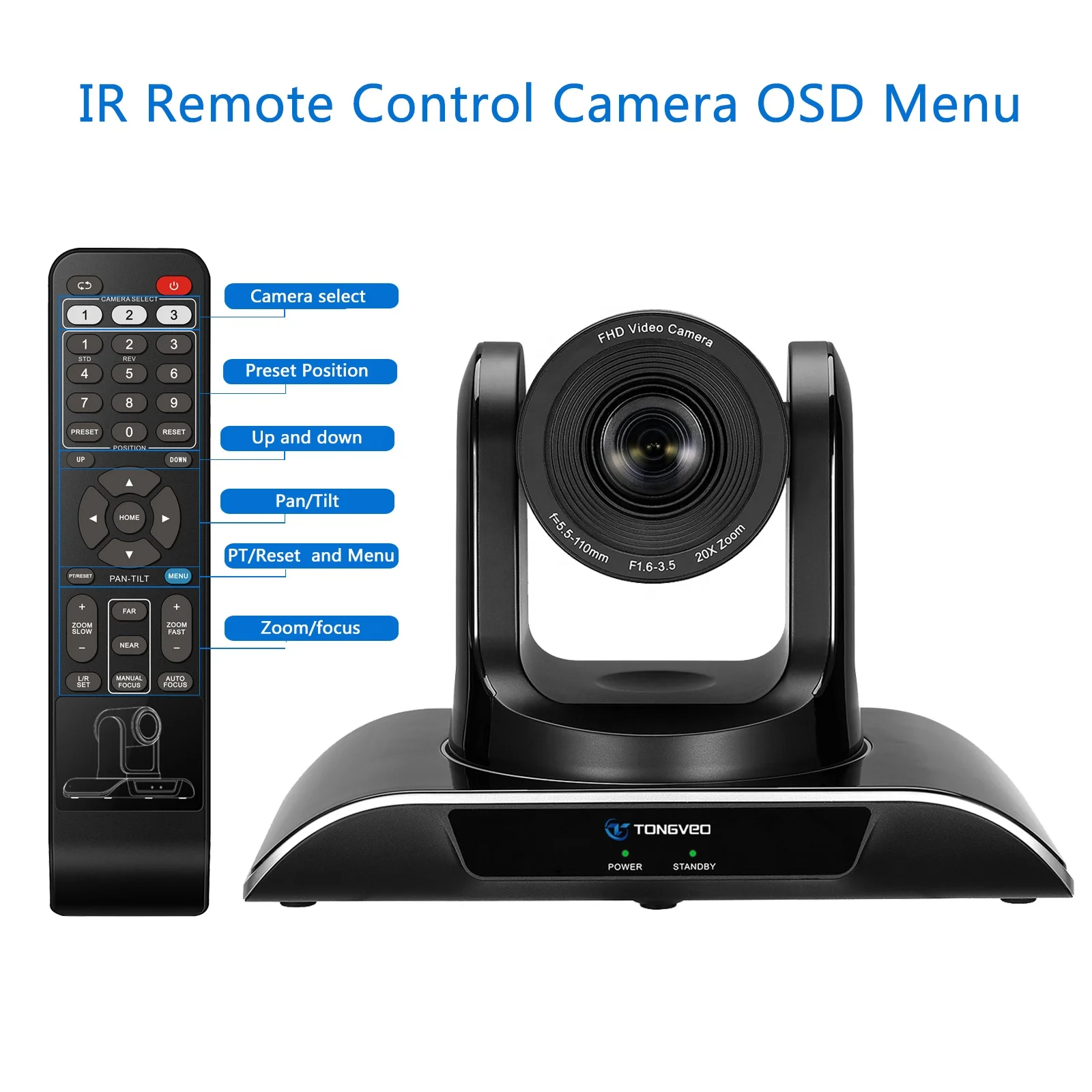

5.IP Live Streaming with RJ45 input； 6.Support infrared control, RS232
control, Web interface control；
control, Web interface control；
7.Works with most video conferencing software including Zoom, Skype for Business, Polycom, Microsoft Lync, etc.
Specification
Product Model | Large Conference Level 10 Meeting HD 1080P 20X Optical Zoom Camera PTZ Video Conference System |
Image Sensor | 1/3 inch HD Color CMOS |
Effective Pixel | 2.38 mega pixel(16:9) |
Horizontal Resolution | 1080P(1920*1080) 720P(1280*720) |
Focal Length | f=45.5-110mm |
Signal Standard | NTCS/PAL |
Zoom | 20x zoom |
FOV | 55.5°~3.0° |
Gain Control | Auto/Manual |
SNR Ratio | ≥50dB |
Preset Position | IR remote supports 10 presets, PELCO Control Protocol supports 64 presets |
Pan/Tilt Movement Range | Pan: 0~100°/S(Default: 29°/S), Tilt: 0~80°/S (Default: 20°/S） |
Control Terminal | RS-232, RS-485 |
Control Protocol | VISCA, PELCO-D, PELCO-P(RS-232, RS-485) |
Video Output | USB, SDI, HDMI, RJ45 |
Audio Input Port | 3.5mm |
Noise Reduction | 2D/3D |
Work Temperature | -10°--50° |
Work Humidity | -20°--60° |
Baud Rate | 38400/9600bps |
Address Set | 1.5kg/2.85(before/afyer packing) |
Decoder | Built-in |
Installation | Support desktop, Tripod, Wall mount and Ceiling mount |
Video Compression Format | YUV, MJPEG, H.264 |
Accessories | DC 12V power adaptor, IR remote control, Manu, USB 2.0 cable, Ceiling brackets & screws |
Size | 247*165*170mm/285*217*197mm(LxWxH) (before/after packing) |
Recommended Products
Company Profile
WHO WE ARE?
We, Tongveo is focusing on developing and implicating the technology of video conferencing products,SD,HD PTZ video conference camera and omni-directional conference microphone speakers.We are professional and we have good reputation in product development, production, sales and after service. We can design produce and sale directly in order to ensure the most competitive price and excellent quality under control.All of our products are compliant with CE,FCC and ROHS standards. We have established a sound sales & service network.Offices has been set up in Shenzhen, Hongkong, Beijing, Guangzhou, Xi'an,etc.We also successfully sold our products to many foreign countries. We are sincerely to make any meeting better and easier! Welcome your OEM/ODM orders.
WHAT WE DO?
Tongveo, which is a professional Audio &Video integration and conference solution supplier, was founded in 2011. Tongveo has more than 10 years OEM/ODM/JDM experience, been focusing on Full HD, Ultra HD video camera and audio devices covering HD video conferencing PTZ camera, HD Webcam, All-in-one camera, speakerphone, etc.
Certifications
FAQ
01. What kind of camera and microphone should l use?
Most laptops and monitors come with built-in cameras and microphones-these work great for Tenveo software. For meeting room spaces, we have video conferencing cameras and speakerphones that are specifically designed for small huddle rooms, conference and boardrooms, and large auditorium spaces. You can check our service guide for more information on different meeting room systems.
02. ls it easy to operate?
Yes, Setting up a conference room with TENVEO doesn't require a technology degree - just connect the camera to a TV and the internet, give it power and pair it to your account to start making calls. There simply isn't a more powerful or easier-to-use video conferencing solution available.
03. Can i bring more than one person into a call at the same time?
Yes.We currently offer group calling for up to 500 different participants, which could be 500 people dialing in from their
laptops, pad or mobile phones,500 different video conferencing systems full of people or some mix of individuals and video conferencing systems depending on your preferences, there are some different layout options for how you want to view those larger group calls.
04. What is the resolution of your cameras?
We have 1920x1080p@60fps progressively output, and 1080p@30fps also 720p@30fps.
05. What is the Video Connector?
There are USB 2.0, HDMI HD-SDI, and USB Video output.
06. What is the zoom of your video conference cameras?
Support fixed focus, 3x 10X, 20X,30X optical zoom.
07. How to control this Camera?
There are RS232, RS485 PTZ Control, and also support VISCA PELCO-P, PELCO-D to control through your Codec or PC through RS232, and support IR remote control.
Most laptops and monitors come with built-in cameras and microphones-these work great for Tenveo software. For meeting room spaces, we have video conferencing cameras and speakerphones that are specifically designed for small huddle rooms, conference and boardrooms, and large auditorium spaces. You can check our service guide for more information on different meeting room systems.
02. ls it easy to operate?
Yes, Setting up a conference room with TENVEO doesn't require a technology degree - just connect the camera to a TV and the internet, give it power and pair it to your account to start making calls. There simply isn't a more powerful or easier-to-use video conferencing solution available.
03. Can i bring more than one person into a call at the same time?
Yes.We currently offer group calling for up to 500 different participants, which could be 500 people dialing in from their
laptops, pad or mobile phones,500 different video conferencing systems full of people or some mix of individuals and video conferencing systems depending on your preferences, there are some different layout options for how you want to view those larger group calls.
04. What is the resolution of your cameras?
We have 1920x1080p@60fps progressively output, and 1080p@30fps also 720p@30fps.
05. What is the Video Connector?
There are USB 2.0, HDMI HD-SDI, and USB Video output.
06. What is the zoom of your video conference cameras?
Support fixed focus, 3x 10X, 20X,30X optical zoom.
07. How to control this Camera?
There are RS232, RS485 PTZ Control, and also support VISCA PELCO-P, PELCO-D to control through your Codec or PC through RS232, and support IR remote control.
