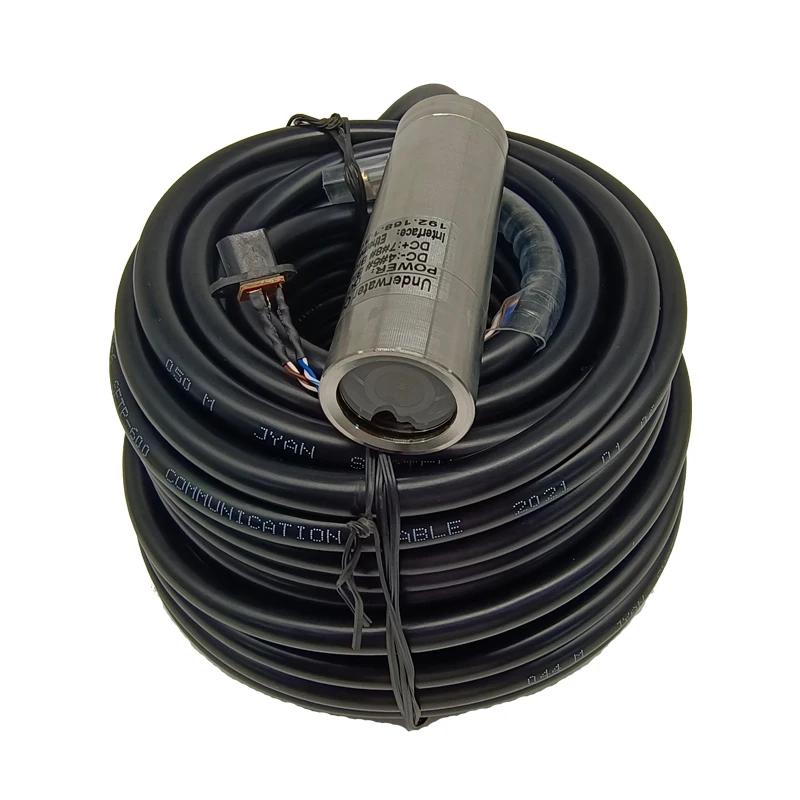

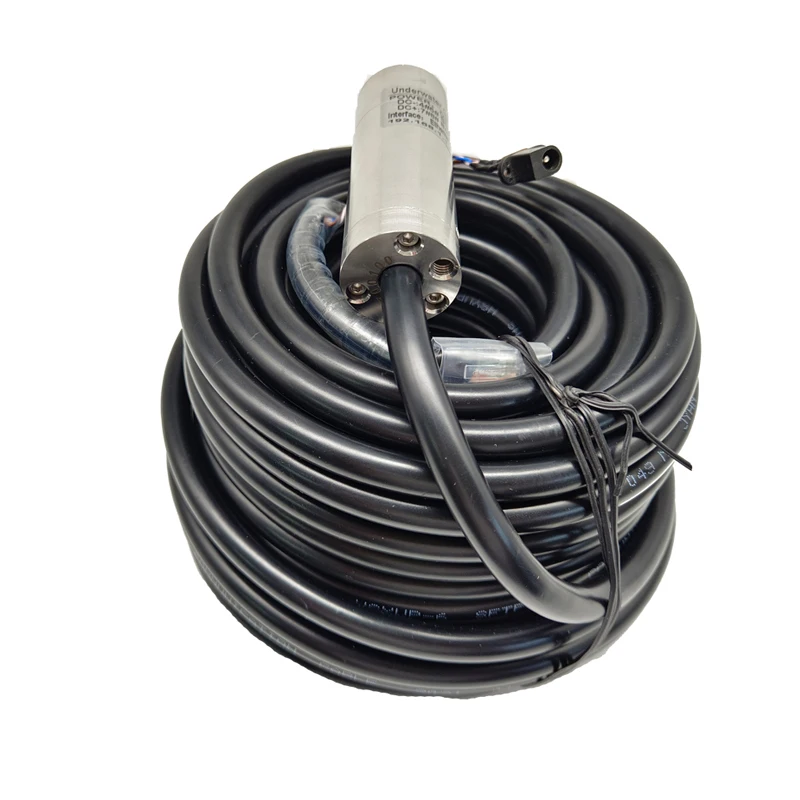

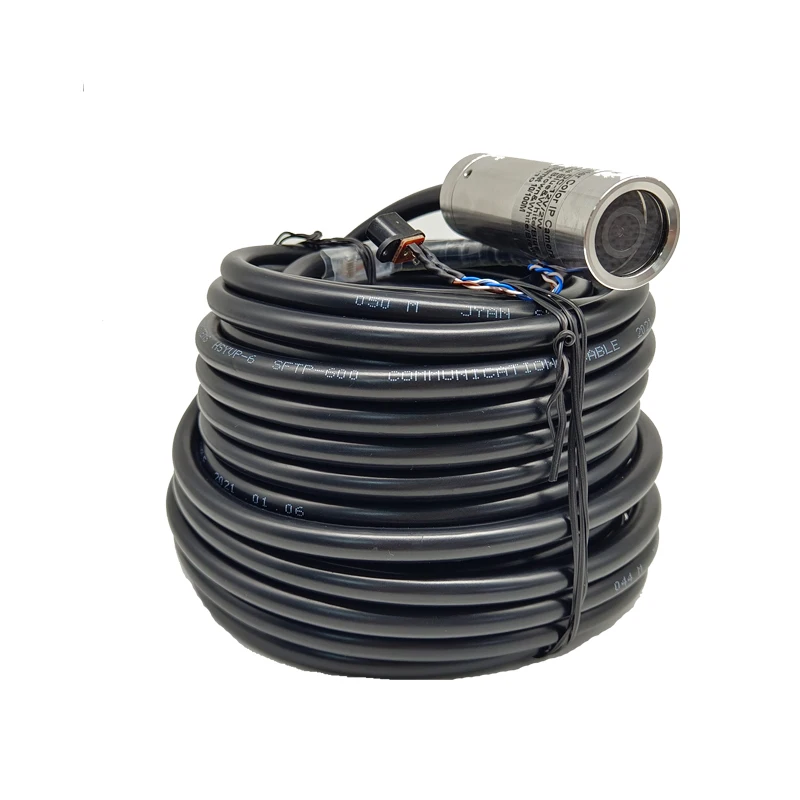

Waterproof ip68 underwater camera Aquarium Camera Ocean surveillance underwater camera

Model

EC-IP3863U

Camera Type

1080P Mini IP Underwater Camera (shallow water)

Camera

Image Sensor

2.7 inch 2MP progressive scan SONY CMOS

Effective Pixels

1080P 1920*1080

Min.Illumination

Color 0.5Lux/F1.4

Electronic Shutter

1/50(1/60)s-1/100,000s

Lens

2.5/2.8/3.6mm fixed lens

Lens Mount

M12

Material

stainless steel 316L

Compression

Compression Standard

H.265+/H.265/H.264

Video Frames

 PAL/NTSC 1080P@25/30FPS

Video stream output

Support adjustable stream 0.1M ~ 10Mpbs


Quality

3D-DNR,BLC,AWB,auto ISO

Resolution

Main Stream:

1920*1080/1280*720@25/30fps

Sub Stream: 640*480/480*360@25/30fps

Network

Parameter Settings

WEB configure and OSD supported, Real time recording,

Transmission and playback

Basic

 Dual stream, Password protection

Protocol

HTTP/Onvif/DHCP/DDNS/NTP

Alarm

Support Motion Detection, Linkage Alarm, Linkage recording,

 Sensor trigger alarm functions

Interface

Video Output

RJ45

Network Interface

1 RJ45 Ethernet interface, 10/100M adaptation

Other

Work Environment

-10°C- +60°C

Waterproof Criterion

IP68

Power Supply

POE IEEE802.3at/af

Size

30*80mm

Cable

CAT6
