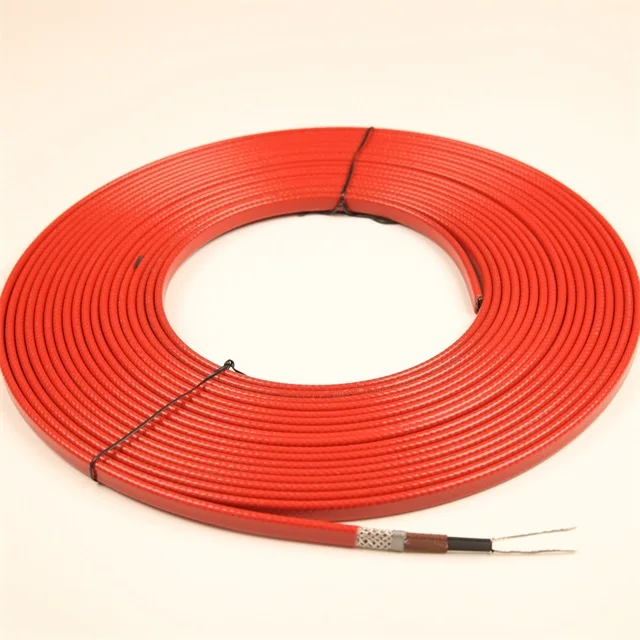

Factory Supply Self Regulating tree heating cables 120v low temperature self regulating heating cable
Factory Supply Self Regulating tree heating cables 120v low temperature self regulating heating cable
Factory Supply Self Regulating tree heating cables 120v low temperature self regulating heating cable
Factory Supply Self Regulating tree heating cables 120v low temperature self regulating heating cable
Factory Supply Self Regulating tree heating cables 120v low temperature self regulating heating cable
Factory Supply Self Regulating tree heating cables 120v low temperature self regulating heating cable
Factory Supply Self Regulating tree heating cables 120v low temperature self regulating heating cable

Factory Supply Self Regulating tree heating cables 120v low temperature self regulating heating cable

Share on (1600513215221):


Price:$1.20

Quantity:


Product Overview

Description



Product Description




The above are some of our cooperative customers.
At present, we not only sell products in the China market, our products also hot sale in North America, Europe, South America, the Middle East, etc..

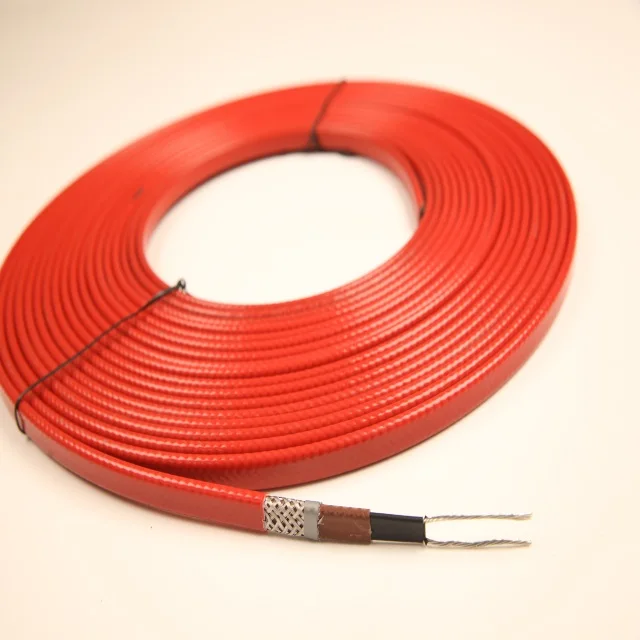

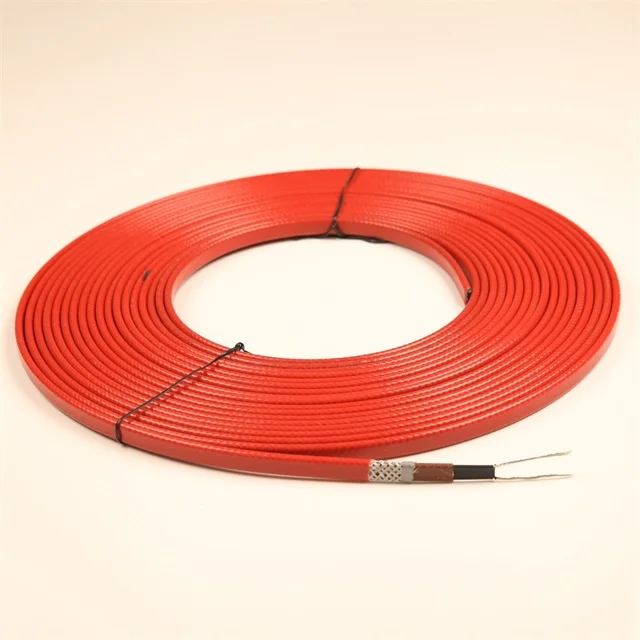

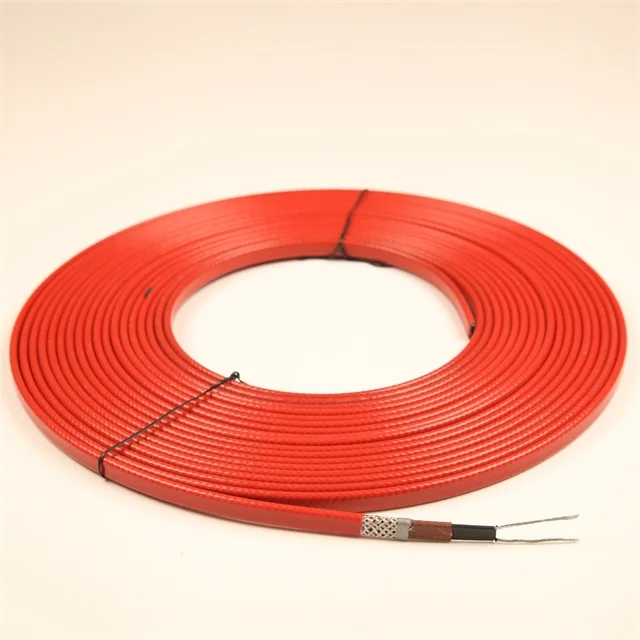

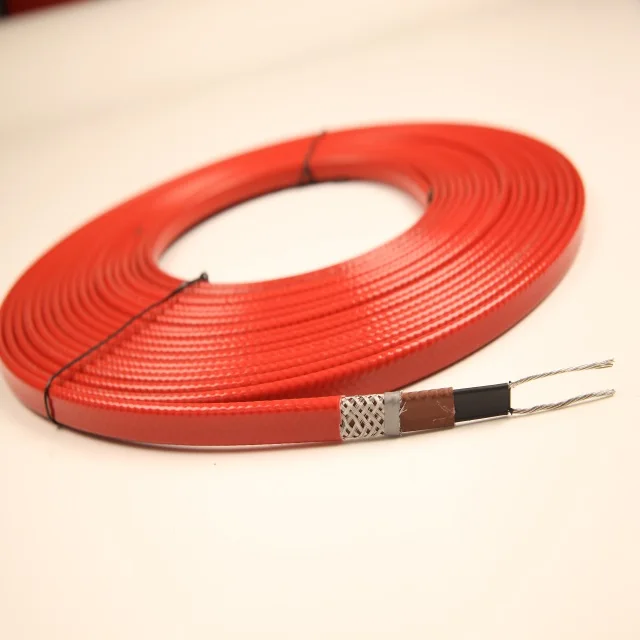

Factory Supply Self Regulating tree heating cables 120v low temperature self regulating heating cable
MOQ: 2000 meters
OEM and ODM available






Introduction

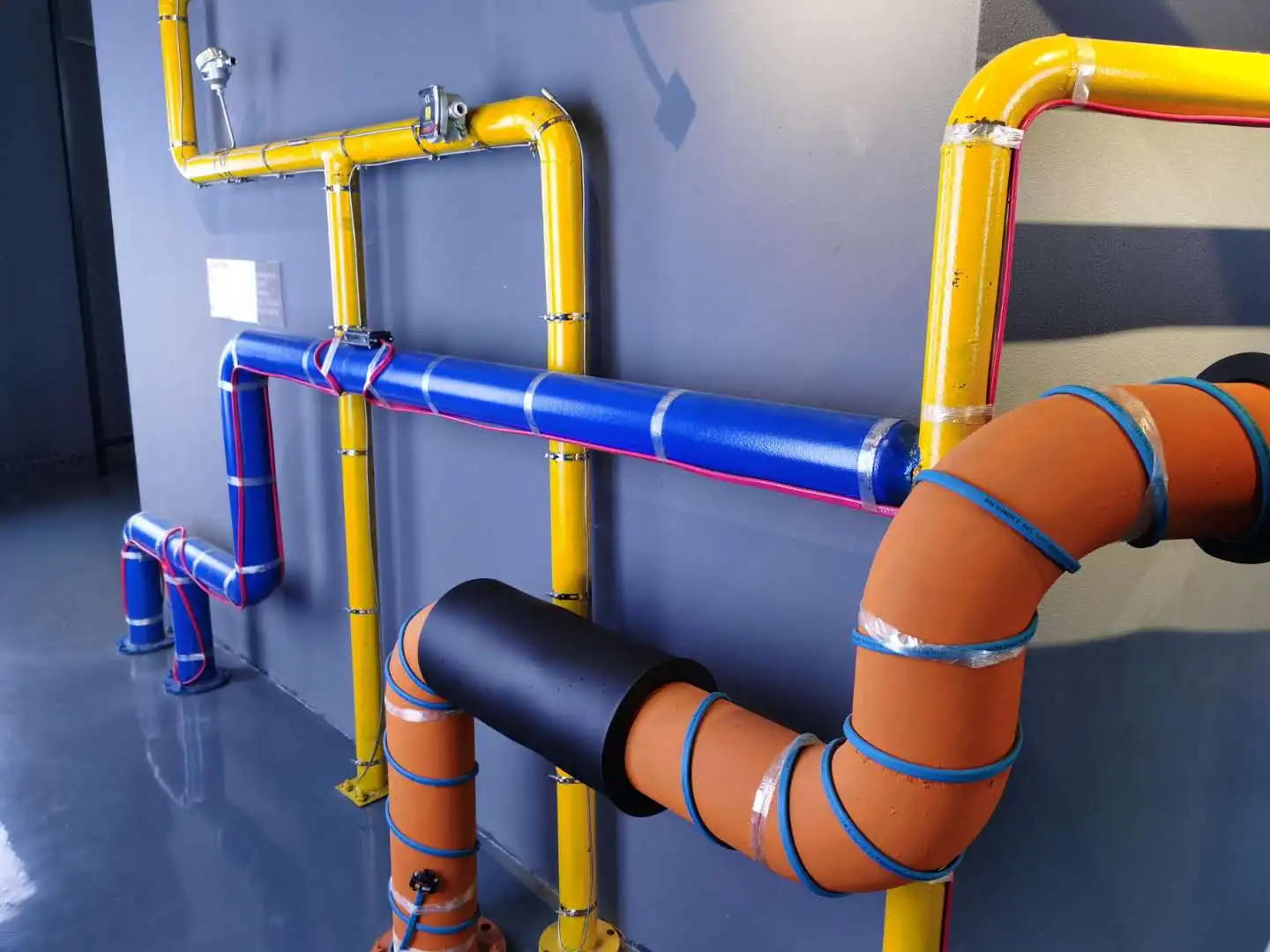

SSR pipe heat cable is applied to industrial pipeline system.

Material:semiconductor heater matrix extruded between parallel bus wires.

Work principle:As temperature increases, the heater’s resistance increases which lower the output wattage.
Conversely, as the temperature decreases, the resistance decreases and the cable produces more heat. .

The cable can also be cut to any length.


Technical Data
Power output: 35,45,60 (W/m)
Max. maintain temperature: 110°C
Max. exposure temperature: 135°C
Min. installation temperature: -40°C
Rated voltage: 110V-120V / 220V-240V


Product Parameters

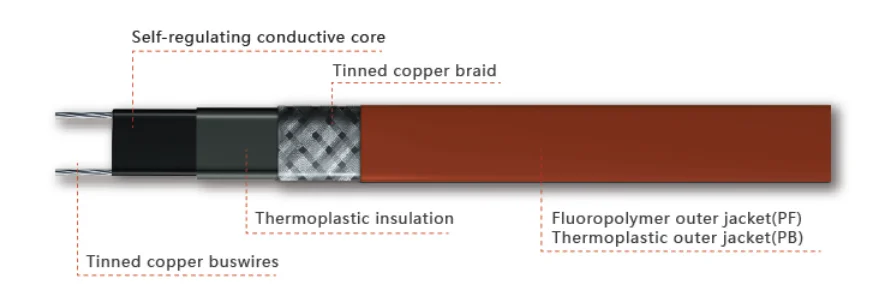

SSR pipe heat cable series:
SSR-P
Tinned copper braid provides additional mechanical and ground protection.
SSR-PB
Flame retardant thermoplastic outer jacket protects against certain inorganic chemical solutions, it also protects against abrasion and impact damage.
SSR-PF
Fluoropolymer outer jacket is used for exposure to organic or corrosive working conditions.
Max. resistance of braid
≤18.2Ω/km
Bus wire gauge
16 AWG
Certificates
CE, EAC, EAC ex, ATEX, ISO9001, ROHS，IEC ex

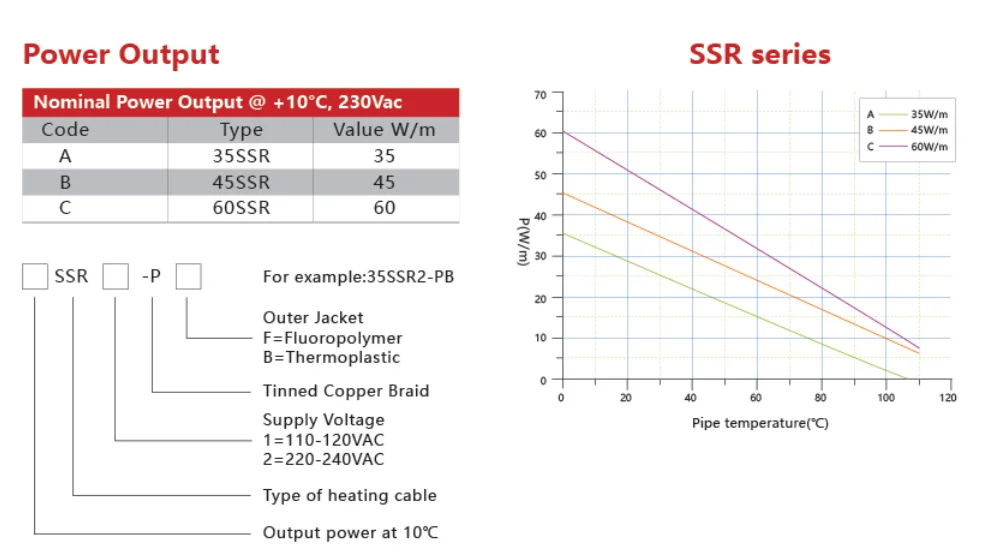

Technical Summary
Part Number
Output power @+10°C
(W/m)
Max. maintain temperature
(°C)
Max. length
@+10°C 16/30A
(m)
Max. length @+0°C 16/30A
(m)
Max. length @-20°C 16/30A
(m)
Dimension
(mm)
Weight
(kg/100m)
35SSR-PB
35
110
75/100
65/90
45/60
13.6X6.4
13
35SSR-PF
35
110
75/100
65/90
45/60
13.3X6.1
12.5
45SSR-PB
45
110
60/85
50/75
35/50
13.6X6.4
13
45SSR-PF
45
110
60/85
50/75
35/50
13.3X6.1
12.5
 60SSR-PB
60
110
50/70
40/60
30/45
13.6X6.4
13
 60SSR-PF
60
110
50/70
40/60
30/45
13.3X6.1
12.5




Our Advantages


Product Characters
1.Long life time: PTC semi-conductive matrix with high quality and excellent technology.
2.Low energy consumption: Due to unique PTC property, the cable adjust the output power respond to ambient temperature.
3.Excellent heat resistance: PTC semi-conductive matrix is treated by irradiation cross linking reaction. High insulation
resistance.
4.Cut to length: PTC semi-conductive matrix is composed of the infinite parallel connection of carbon particles, allowing it to be cut to the exact length required.
5.Easy for installation: Linear cable, complex installation available, never overheat when overlapped
6.Cable durable: UV protection, high and low temperature resistant, weather resistant.


Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.


Packaging and Shipping




Recommend Products


Underfloor heating cable
Underfloor heating cable diameters from 3.6mm to 5.8mm, available for in-concrete heating, for bathroom and little rooms
Foil underfloor heating mat
Urtra thin underfloor heating mat, available for wooden floor
Thermostat
Manual thermostat, programmable thermostat, wifi thermostat, touch screen thermostat




Certifications




Company Profile






FAQ


Q1: - Are you manufacturer?
- Yes, our company focus on heating cable manufacturing since 2004, located in Hefei City, Anhui Province, China.
Welcome to visit our company!

Q2: - What's the MOQ?
- MOQ for self-regulating heating cable is 1000m. MOQ for electric underfloor heating mat is 2000 sqm.
The less quantity can be negotiated.

Q3: - How long the warranty will be?
- The limited warranty for self-regulating heating cable is 10 years.
Warranty for electric underfloor heating mat & cable is 25 years.
We provide warranty against all defects in factory's material, design and workmanship.

Q4: - How long the delivery time will be?
- Normally within 7-15 days, big order should be negotiated.

Q5: - What is the Payment Term?
- T/T, L/C, Western Union, PayPal, Alibaba Secure Payment, D/P, etc.
Usually by T/T 30% as deposit in advance and the balance 70% should be paid when goods ready to ship or pay against the copy of B/L.
