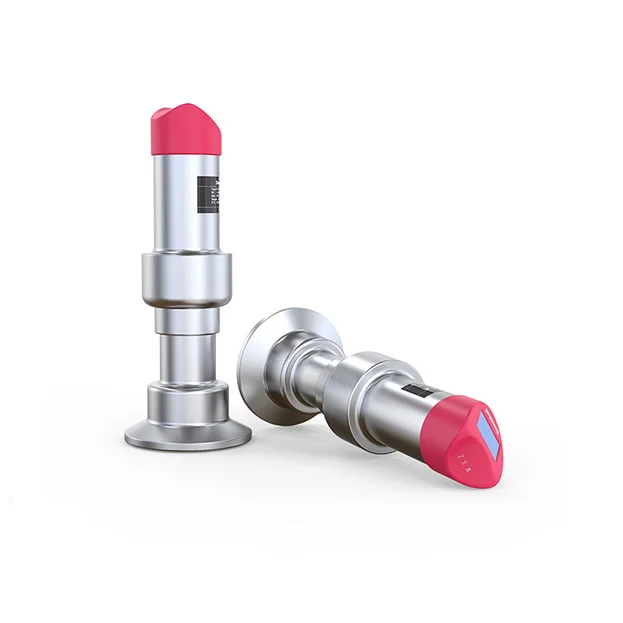

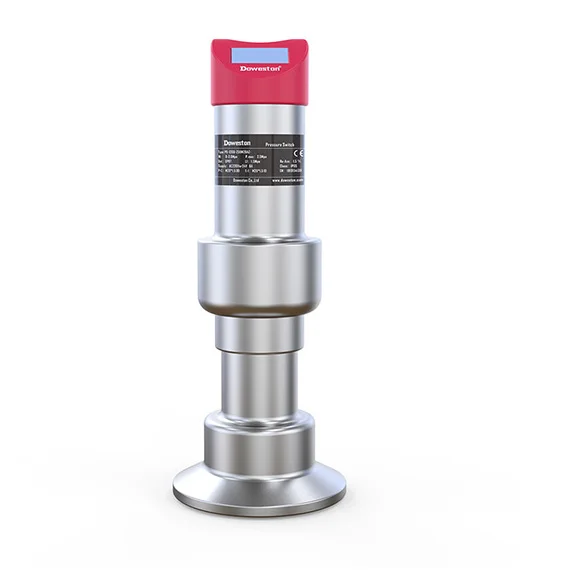

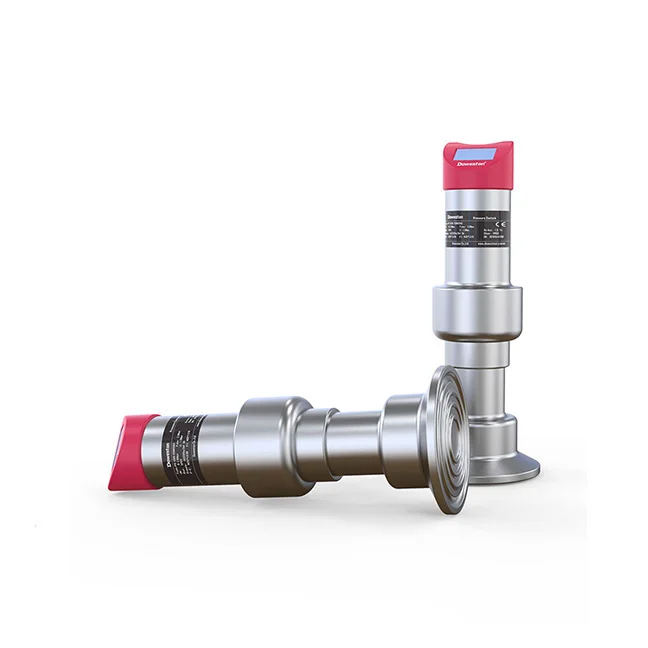

PSC-120Q series
Sanitary digital display pressure switch
It is the first choice for CIP/SIP cleaning and disinfection pressure control in food, medicine and other industries
The PSC-120Q sanitary pressure switch has an exquisite and compact design. The middle part of the welding process diaphragm is made of high-quality stainless steel 316L, and the roughness Ra≤0.4μm, which meets the aseptic standard. The filling liquid meets the sanitary standard. There are various international standard process connections. Specially designed for the food and pharmaceutical industry, suitable for CIP/SIP cleaning and sterilization, diversified information output, with multiple connection methods such as chucks, clamps, and threads, which can meet the measurement requirements of most sanitary grade requirements.


Performance characteristics


■The meter head can rotate freely at 300° for easy observation
■ 4-digit high-brightness LED display
■The operating point does not drift, and the measurement range is wide
■Comply with IO-Link communication standard
■ Good market feedback, high sales volume and good stability
■ Compact structure, small size
■Chuck clamp connection, easy to disassemble and wash
■ The pressure range can be manufactured according to the pressure value selected by the user arbitrarily
■ Sealed stainless steel sensor is safe and reliable


Technical parameter


Applicable medium
Dry gases, gases, liquids that require sanitary requirements
Measuring range
0-40MPa
Accuracy
±0.25%FS, ±0.5%FS, ±0.75%FS Adjustment accuracy≤±5FS
Repeat accuracy
±0.5% of measured value
Switch signal
1 or 2 optional
PNP, NPN normally open or normally closed can be set
Rated current≤300mA
Corresponding time≤30ms
Analog output
4-20mA analog
Accuracy 0.5%FS
Load ≤500Ω
Input voltage
15-36V DC
show
4-digit LED highlight display
Setting method
Key setting
Operating temperature
-20-85℃
Environmental temperature and humidity
-20-80℃ 45-75%RH
Vibration resistance
10g (IEC 60068-2-27, under resonance condition)
Impact resistance
50g (IEC 60068-2-6, mechanical shock)
Material
Process connection: stainless steel 316L
Shell material: stainless steel 304:
Button: TPE-E
Display window: PC (polycarbonate)
Display body: PC+ABS-Blend
Electrical protection
Reverse phase, short circuit, overload protection
Protection level
Electrical part IP67
Electrical connections
M12*1.4 4/5-pin aviation plug
Service life
100 million switching cycles
Installation method
External thread (G thread, M thread, NPT thread), flange and clamp are optional
weight
About 0.55kg


Application areas:
■PSC-120Q sanitary pressure switches are widely used in industrial fields such as water plants, equipment plants, food and beverage plants, pharmaceutical engineering, mechanical equipment, etc., to realize the control of liquid and gas pressure.
