Manufacturer from China DDCS V3.1 4 Axis CNC Lathe Controller With E Stop MPG Handwheel Encoder For Wood Engrave Machine
- Category: >>>
- Supplier: Shenzhen Digital Dream Numerical Technology Co. Ltd.
Share on (1600513231692):
Product Overview
Description
Professional original CNC controller manufacturer and has a warehouse in the USA
Products Description

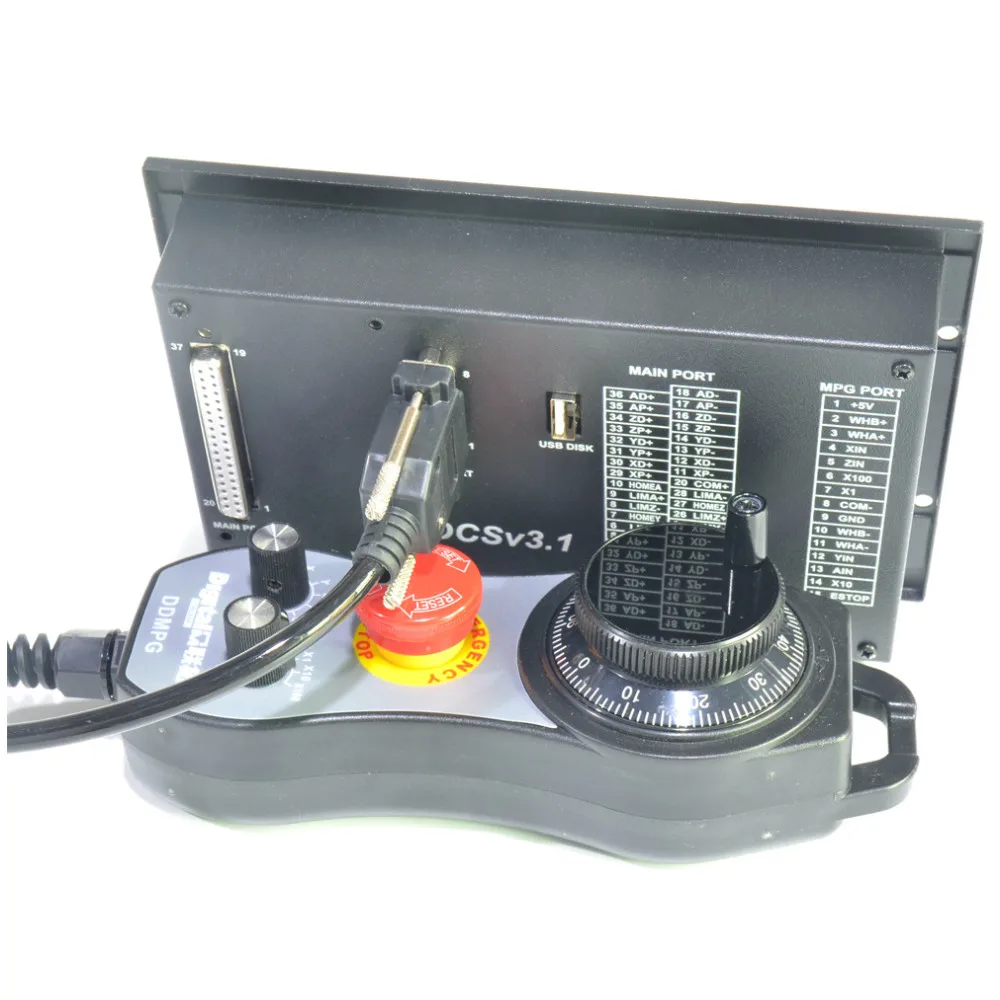

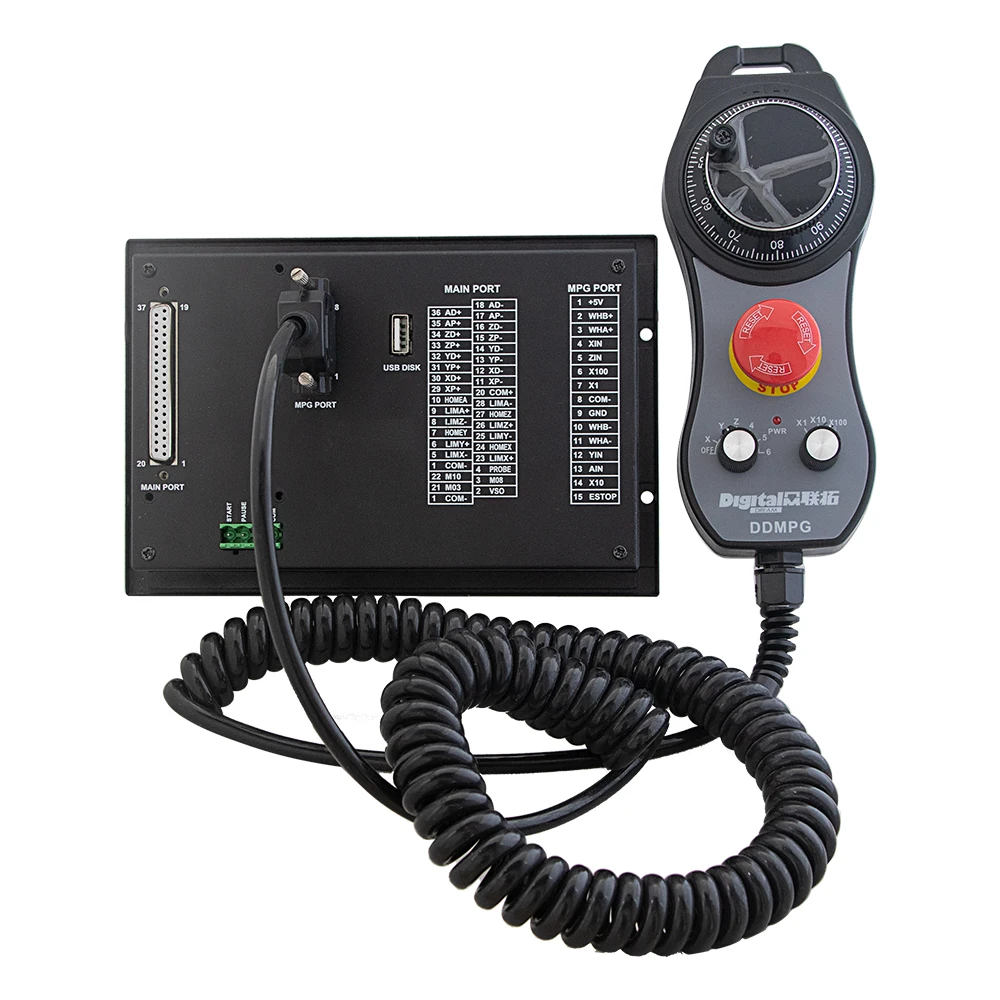

DDCS V3.1 + DDMPG Handwheel Kit:
The DDCS V3.1 is a 3~4 axis Standalone/Offline motion controller for stepper and servo systems. The highest output pulse per axis is 500KHz. The pulse width is adjustable (refer to driver manual). The control period of each position is only 4 milliseconds. This provides high control precision for stepper motors and servo motors. Meet the needs of various CNC machines: Engraving machines, Milling machines, Routers, Cutting...etc. DDCS V3.1500 Brief technical features as following:1): Adopts the ARM+FPGA design framework. ARM controls the human-computer interface and code analysis and the FPGA provides the underlying algorithms and creates the control pulse. This guarantees reliable control and easy operation. The internal operating system is Linux based;
2)ARM9 main control chip, FPGA core algorithm chip. Jog function for each axis (continuous, step, defined distance). Customer can define the distance, Only support NPN type limited switch;
3): Supports the FANUC with high universality to be compatible with G code set, 1GB internal memory, no size limited of the G-code file;
4): 5 inches TFT Screen, resolution ratio: 480x272, 16 photoelectric isolated digital inputs, 3 photoelectric isolated digital outputs, Analog spindle control 0-10V spindle control (can be modified as PWM output). Differential Pulse and direction output signal;
5):Support the operation of quickly specify the running position, support for “Power Cut” recovery. Data is automatically saved;
6): Support the origin and Limit share the same Input ports;
7): Language: Chinese, English and Russian;
8): Control System Unit is compatible with Metric Units and Imperial Units;
9): MPG and extended Keyboard can also control and edit the controller system；
10): With functions of Try cutting(handwheel guiding) and Single-stage processing mode;
11): 3 kinds Probing Modes: Fixed Position of tool sensor, Floating Position of the tool sensor, Rectangular block Sensor..
2)ARM9 main control chip, FPGA core algorithm chip. Jog function for each axis (continuous, step, defined distance). Customer can define the distance, Only support NPN type limited switch;
3): Supports the FANUC with high universality to be compatible with G code set, 1GB internal memory, no size limited of the G-code file;
4): 5 inches TFT Screen, resolution ratio: 480x272, 16 photoelectric isolated digital inputs, 3 photoelectric isolated digital outputs, Analog spindle control 0-10V spindle control (can be modified as PWM output). Differential Pulse and direction output signal;
5):Support the operation of quickly specify the running position, support for “Power Cut” recovery. Data is automatically saved;
6): Support the origin and Limit share the same Input ports;
7): Language: Chinese, English and Russian;
8): Control System Unit is compatible with Metric Units and Imperial Units;
9): MPG and extended Keyboard can also control and edit the controller system；
10): With functions of Try cutting(handwheel guiding) and Single-stage processing mode;
11): 3 kinds Probing Modes: Fixed Position of tool sensor, Floating Position of the tool sensor, Rectangular block Sensor..
Brand: | Digital Dream | Warranty: | 1Year | ||
Model: | DDCS V3.1 + DDMPG handwheel | Axis Optional: | 3Axis / 4Axis | ||
MOQ: | 1pc | Stock: | Rich | ||

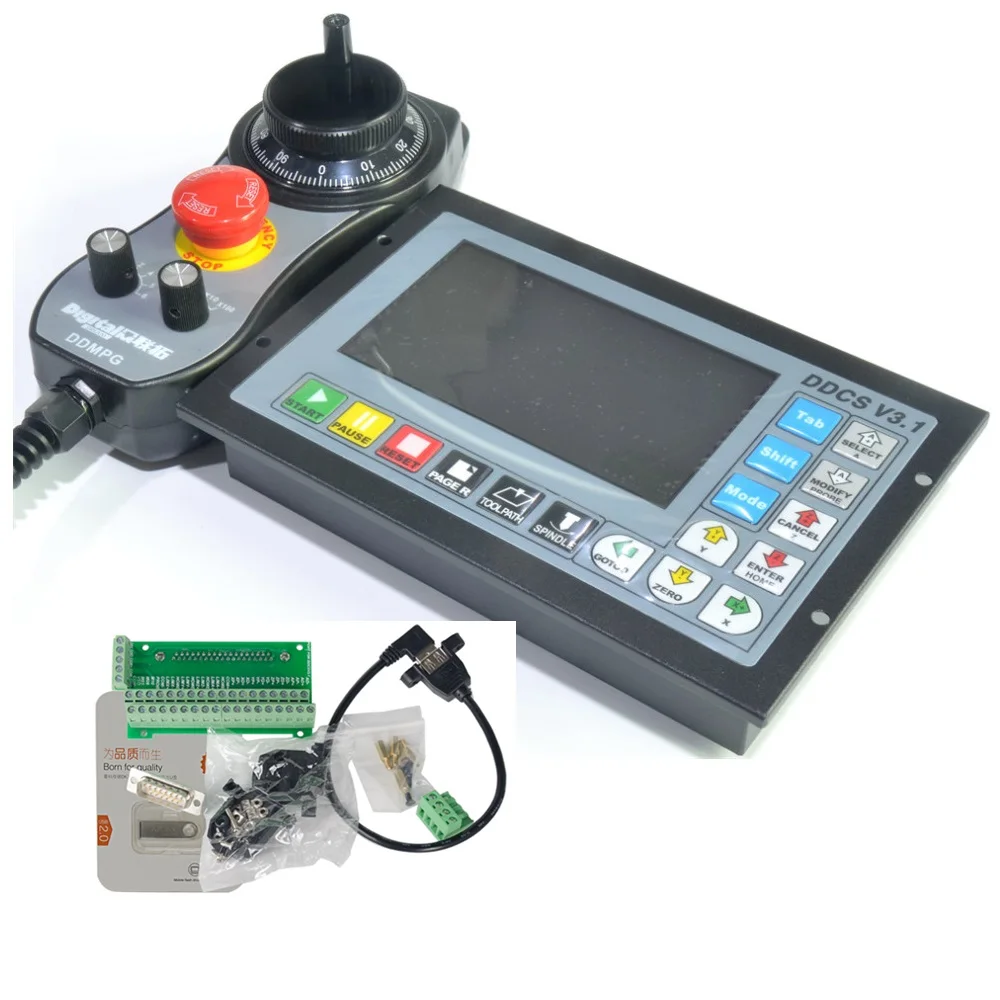

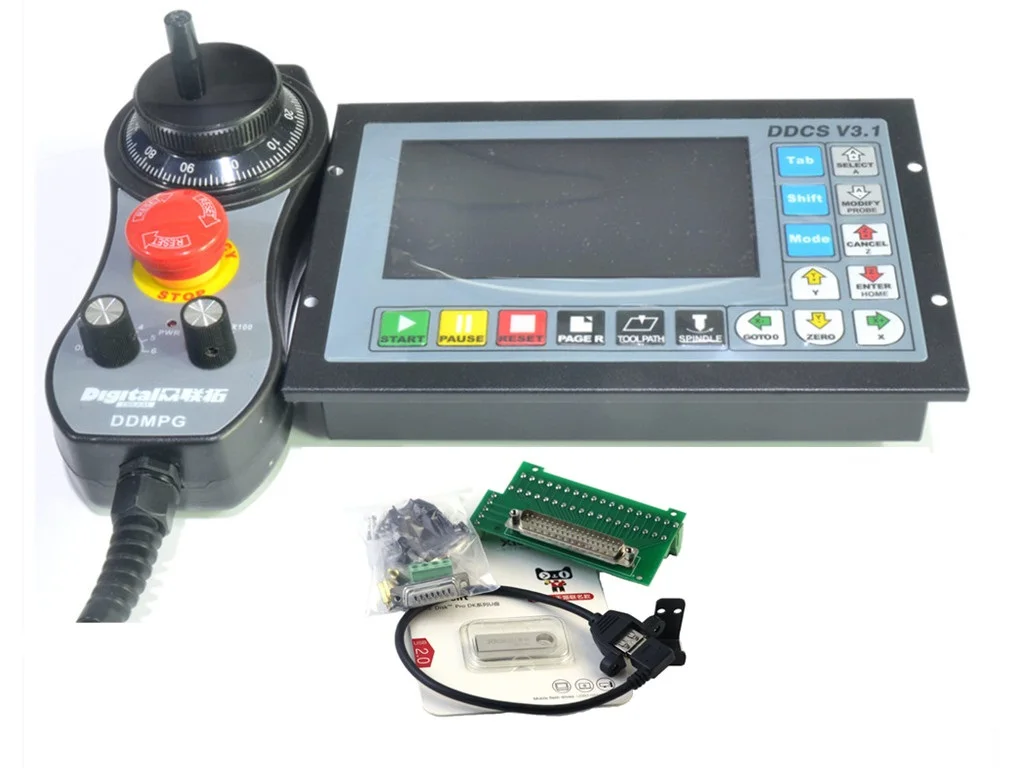

1Package Includes: | 1 x DDCSV3.1 CNC offline controller (3/4 axis optional) 1 x DDMPG handwheel 1 x Hook (for DDMPG hanging) 1 x 3 layer wiring terminal for main port 1 x 4GB USB flash drive 1 x USB extension cable 29cm 1 x DB-15 Male plug for MPG connection 1 x star/pause/stop/com terminal 1 x other small accessories (The User manual and Install software will be provided, or also can download from our official website: www.ddcnc.com ) | ||||
DDCS V3.1 & DDMPG handwheel Details Images
DDMPG Details:

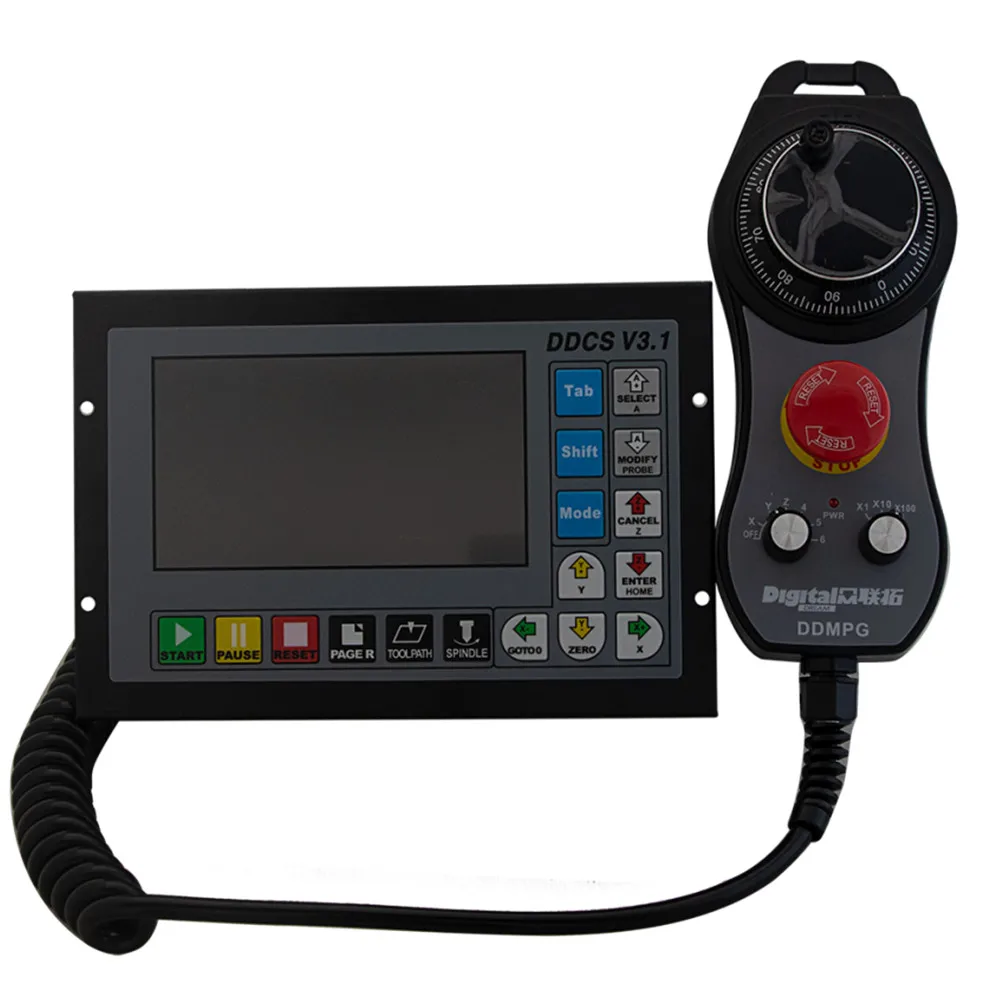

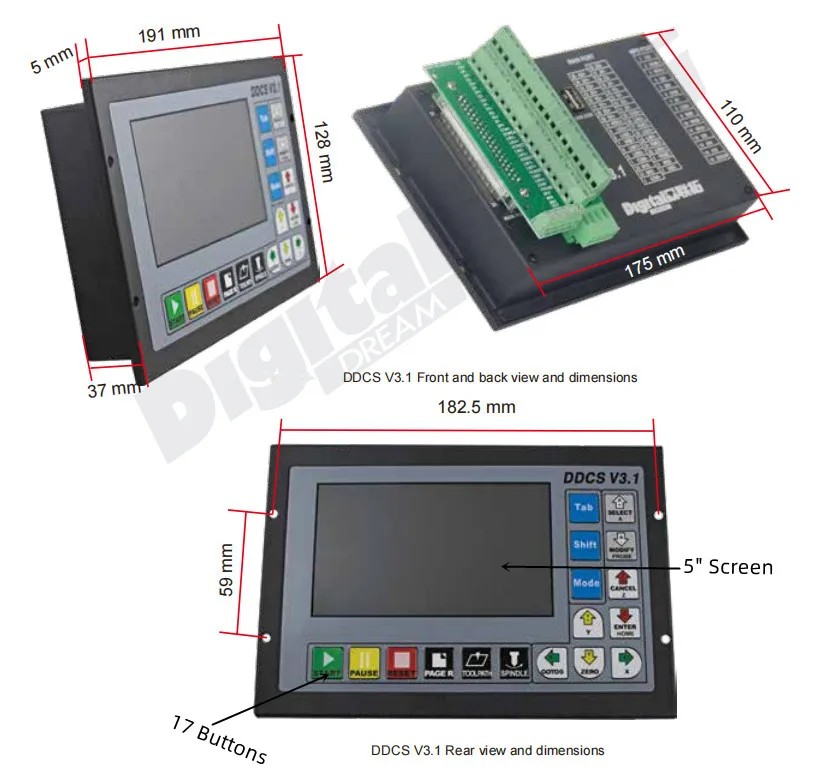

DDCS V3.1 cited the new circuit design and metal box, which can avoid the noise a lot. The panel layout structure of the DDCSV3.1 is very rational to save space. All operations are controlled by only 17 keys, 5" TFT display, Dimensions as below image:

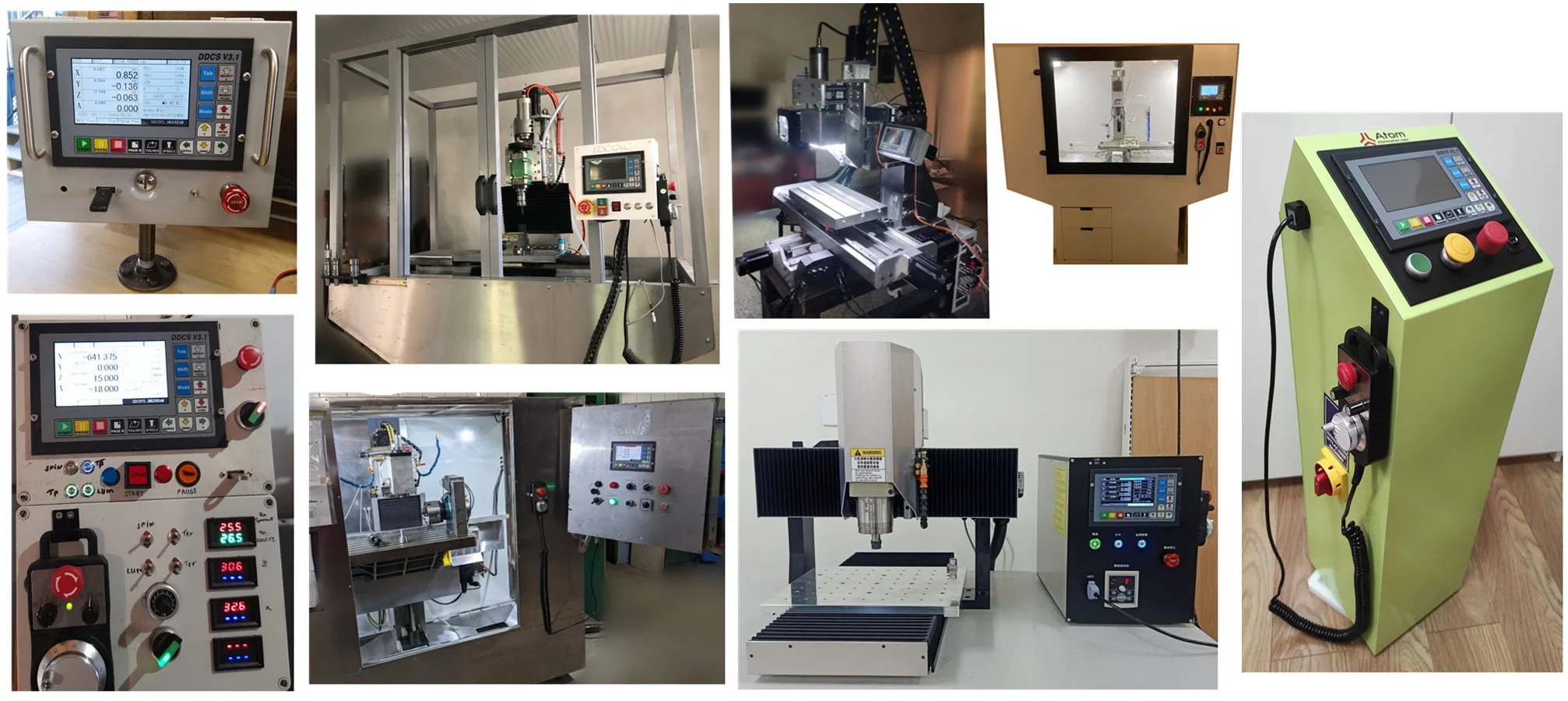

Pictures of the Panel box and machines shared by our customers
DDCS V3.1 Wiring board define, the connection method please check on the manual.

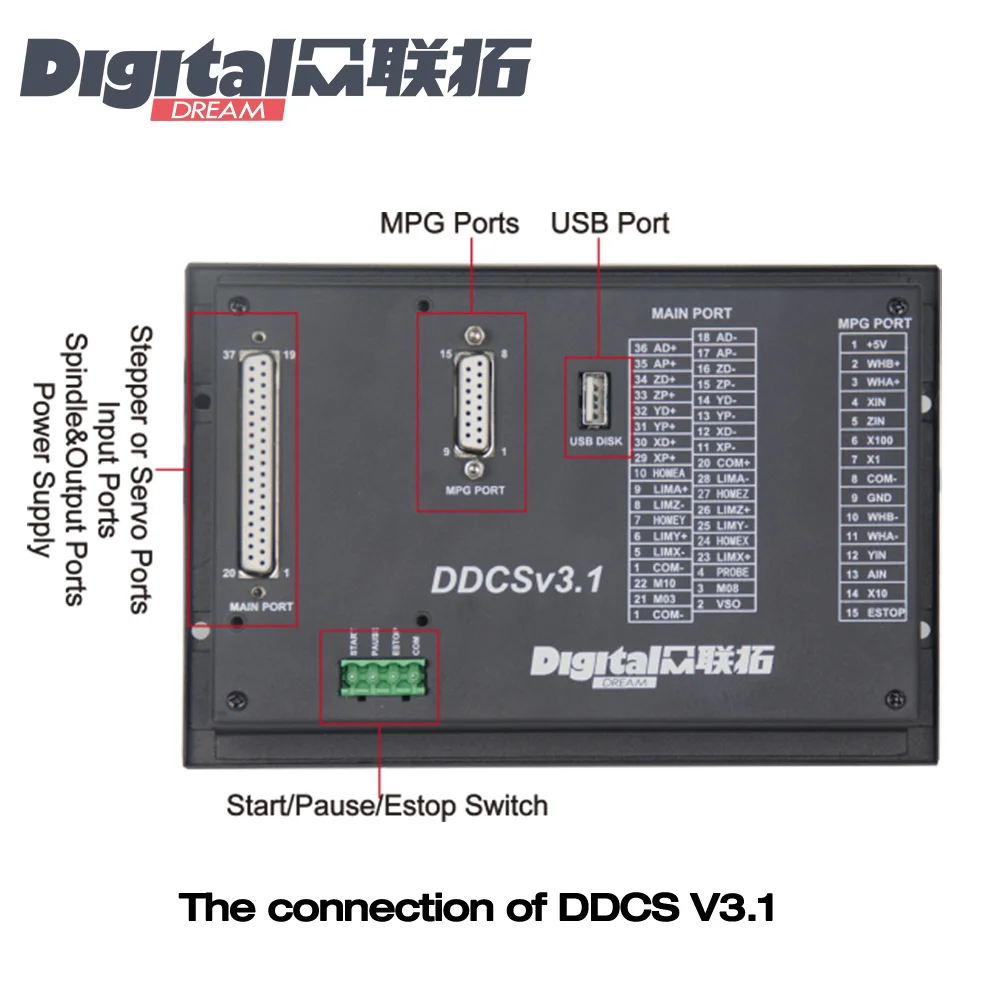

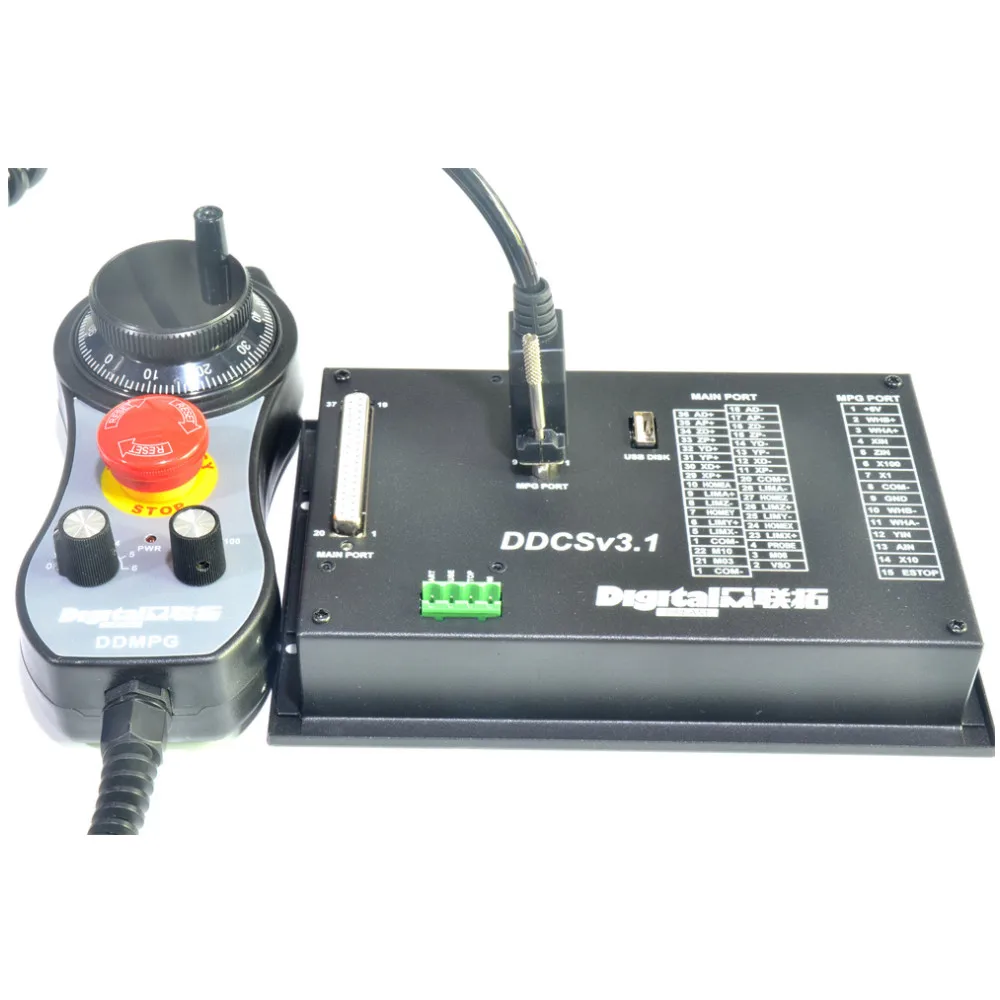

Includes: Input Ports, Spindle&Output Ports, stepper/Servo control step and direction output, MPG Port, USB Port and power supply Port as below image.
DDCS V3.1 Power supply explanation

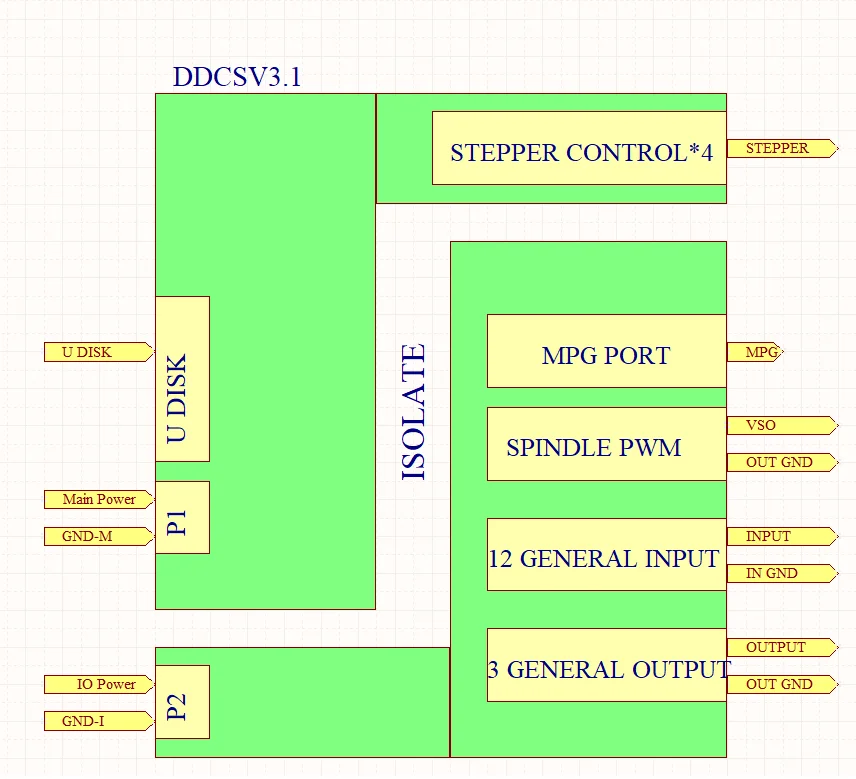

In general, the power supply of industrial control’s equipment products are complex. They have many different ground levels. The internal power structure of this product is as following picture.
The Controller need two power supplies, Main power is for system, IO Power is for IO ports. The Main Power input and USB stick and Stepper/Servo Control module share the same ground. IO Power, MPG Port, Spindle PWM, 12 Inputs and 3 Outputs share same ground, between them which is optical isolation. As for the spindle port, take the output ground for
references and the 0-10V adjustable voltages to adjust the spindle speed (refer to spindle VFD manual). The M3/M8/M10 digital output ports pull to ground.
references and the 0-10V adjustable voltages to adjust the spindle speed (refer to spindle VFD manual). The M3/M8/M10 digital output ports pull to ground.
