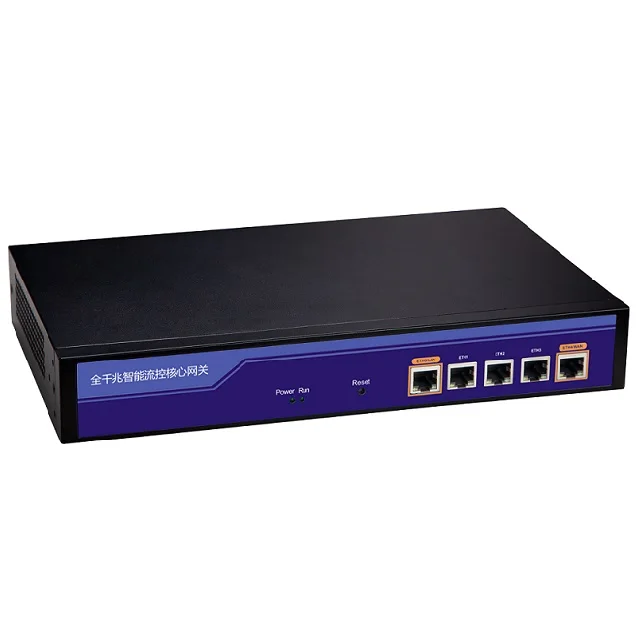

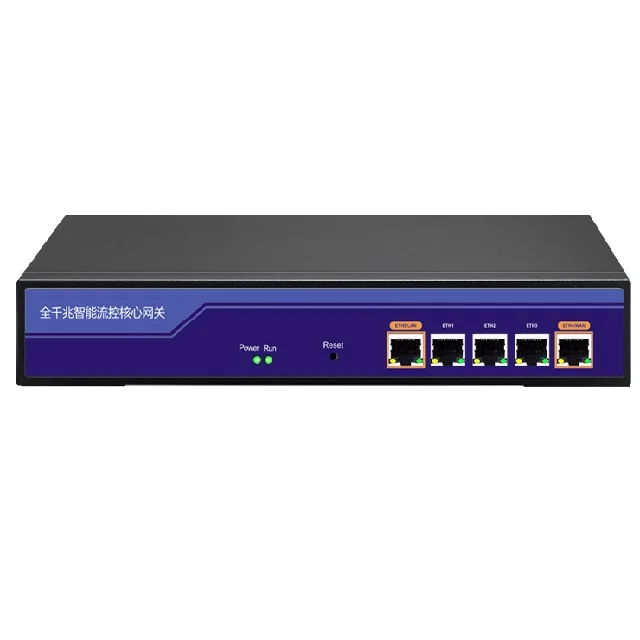

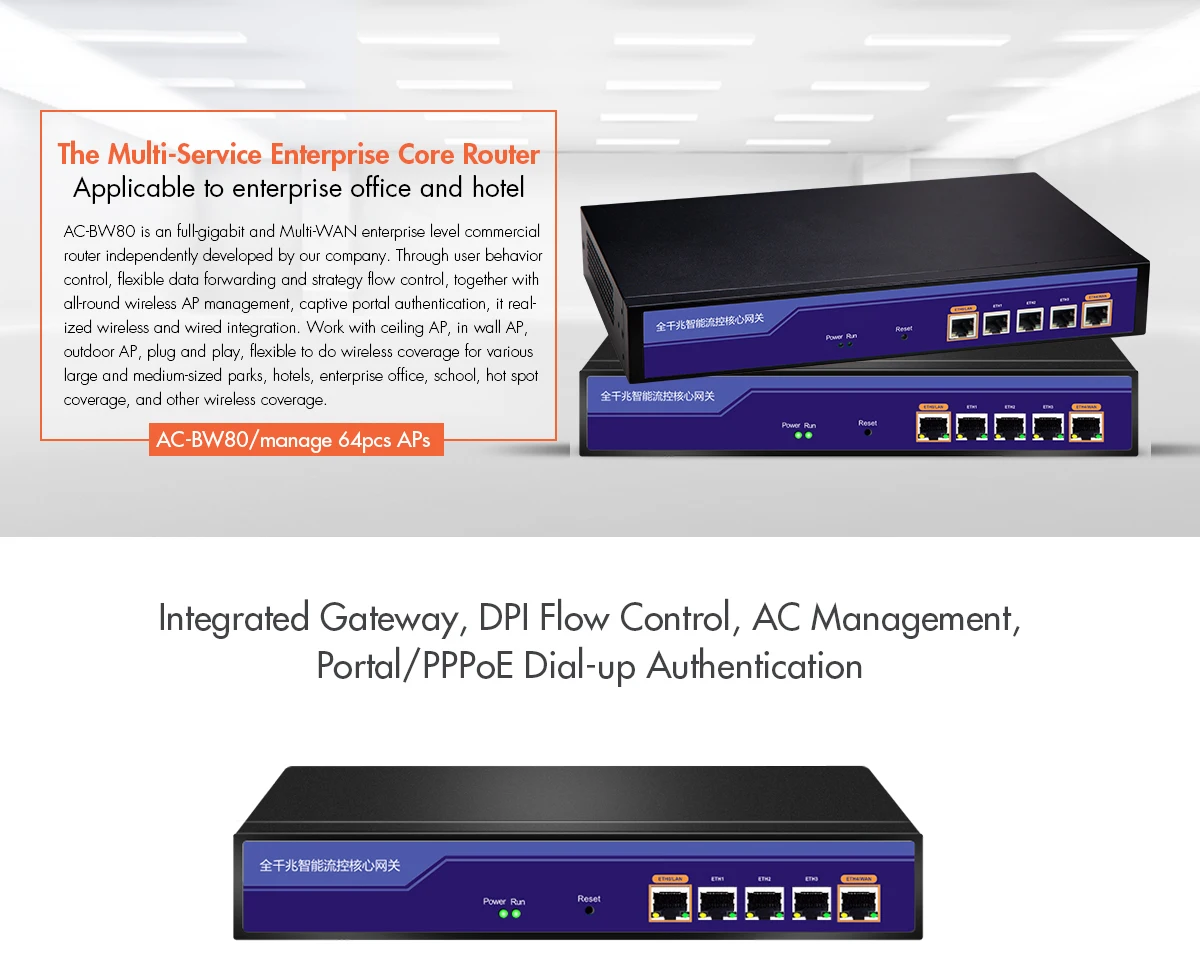

Chipset MT7621 small size Enterprise Gateway based,ac controller wifi
- Category: >>>
- Supplier: Shenzhen Yunlink Technology Co. Ltd.
Share on (1600513234012):
Product Overview
Description
Product Description
Specification
Model | AC-BW80 | |
Protocol | IEEE 802.3, 802.3u, 802.3ab TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DDNS, IPsec, PPTP, L2TP, CAPWAP Protocol | |
CPU | MT7621 | |
DDR | 256M | |
Flash | 16M | |
Heat Dissipate | Natural heat dissipation | |

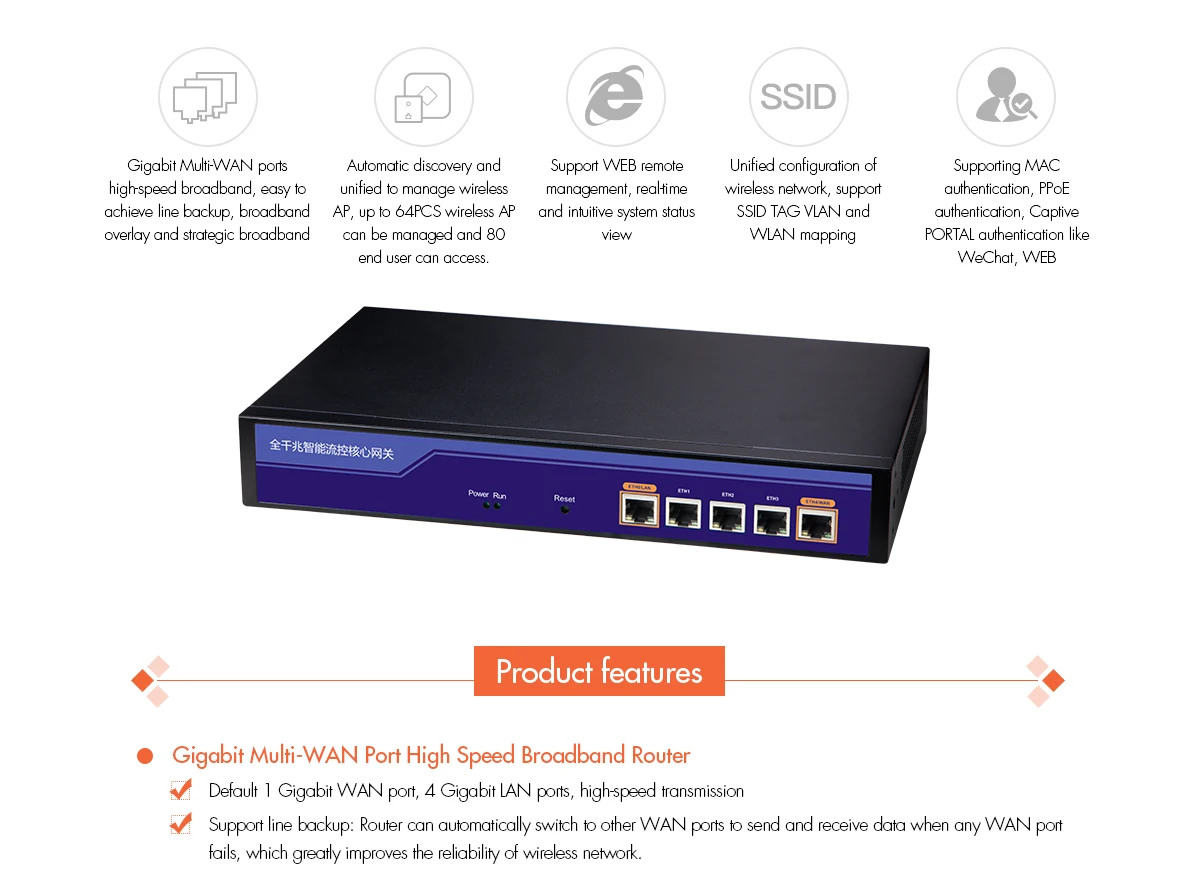

Ports | 4 × 10/100/1000Mbps LAN ports (can set to WAN port) | |
1 × 10/100/1000Mbps WAN port | ||
Power | AC:100-240V,50HZ | |
Dimension | 277.8 *180 *37.7mm | |
Working Temperature | -20℃~55℃ | |
Storage Temperature | -40℃ ~ 70℃ | |
Working Humidity | 5% ~ 97%RH (No condensation) | |

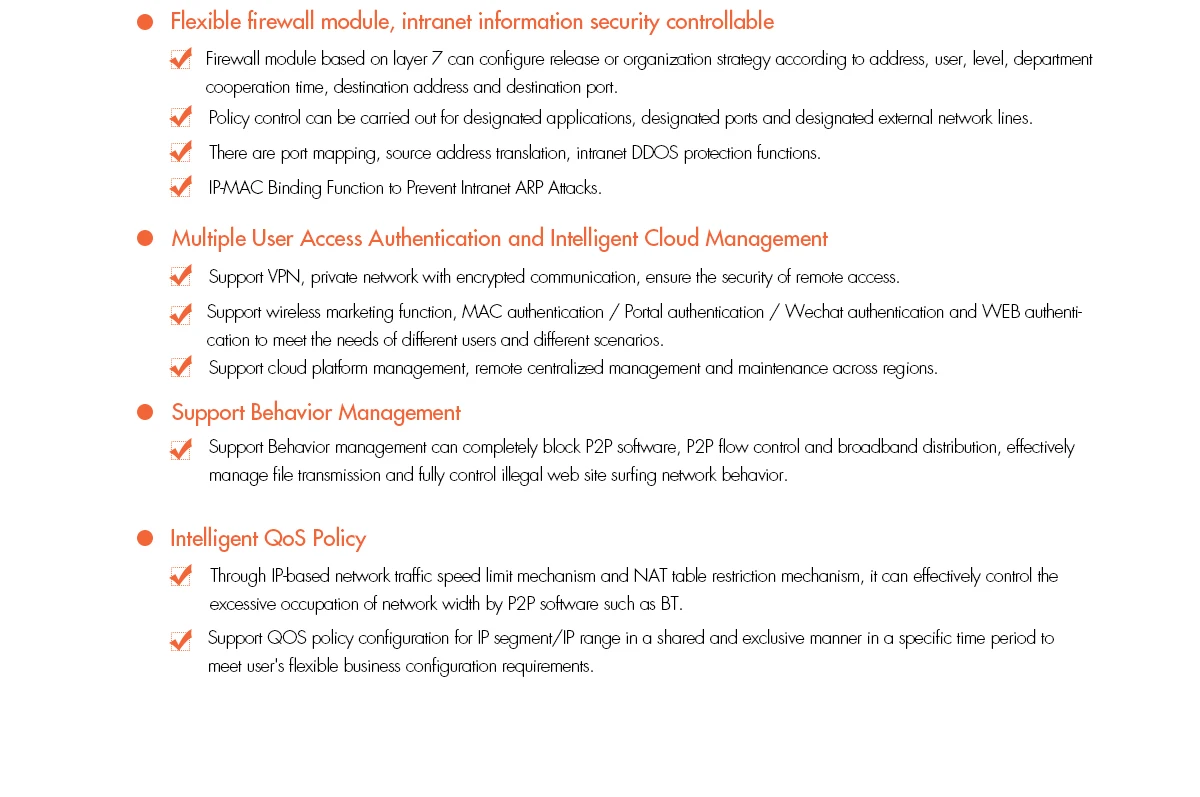

Firmware features | ||
AP Management | Max to access and manage 80 users | |
Max to manage 16PCS wireless AP | ||
Centrally and remotely to manage/configure wireless AP | ||
View user’s status | ||
Smart Flow Control | One click smart flow control | |
Powerful multiline diversion | ||
Application Priority Automatically | ||
Load Balance | Multiple WAN, multiple ISP network access | |
Intelligence load balance | ||
Ethernet line backup | ||
Ethernet Superimposed | ||
Policy routing: based on IP address, destination IP address, source MAC address, network port, domain, destination port, Extranet port, Identity binding | ||
Protocol binding | ||
Routing | Static Routing | |
Behavior Management | All-round to block P2P firmware | |
P2P flow control and bandwidth allot | ||
File and URL filter | ||
Monitor network behavior at all times | ||
Bandwidth limitation | IP-based bandwidth limitation | |
Safeguard / Restrict bandwidth | ||
Time strategy | ||
IP based session restriction | ||
Security Center | MAC address filter | |
UPR/key words filter | ||
Web content filter | ||
IP address filter | ||
Port mapping | ||
DMZ | ||
Defense Center | TCP/UDP/ICMP flood defense | |
Block TCP scanning | ||
Block ping WAN port | ||
ARP Detection | Send GARP packets | |
ARP Scanning on WAN/LAN port | ||
Online detection | ||
IP-MAC binding | ||
Authentication | PPPoE authentication | |
Portal authentication like Wechat Authentication, WEB password authentication, One-time password authentication, SMS authentication | ||
Radius authentication: work with the 3rd party radius server | ||
Management | Web/CLI/Telnet management | |
Remote management | ||
Others | DDNS, VPN management | |
Content | AC-BW80 *1 | |
Power Cable *1 | ||
Installation Accessory | ||
QIG*1 | ||
Packing & Delivery
This is the netural packing, but if you want to print your LOGO on it, we can do that also.
MOQ=500PCS.
Then 10PCS/CTN
Then 10PCS/CTN

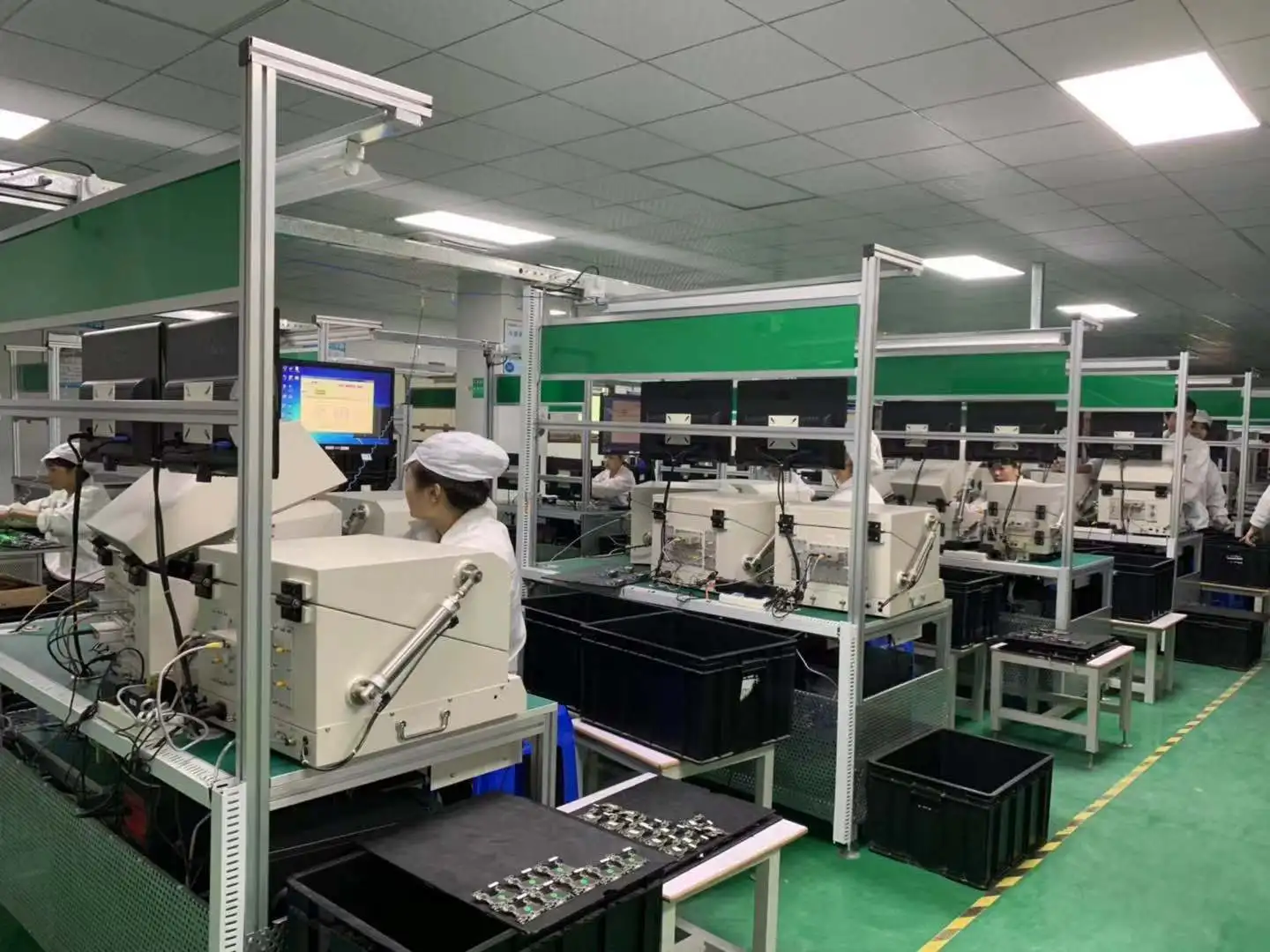

Company Profie

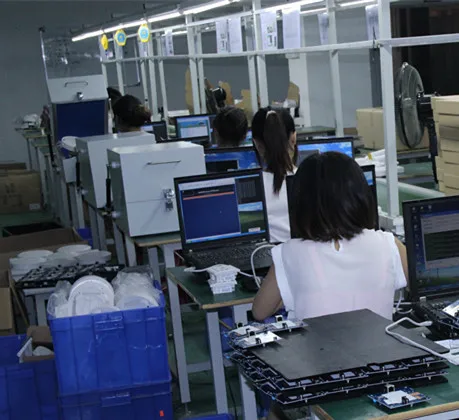

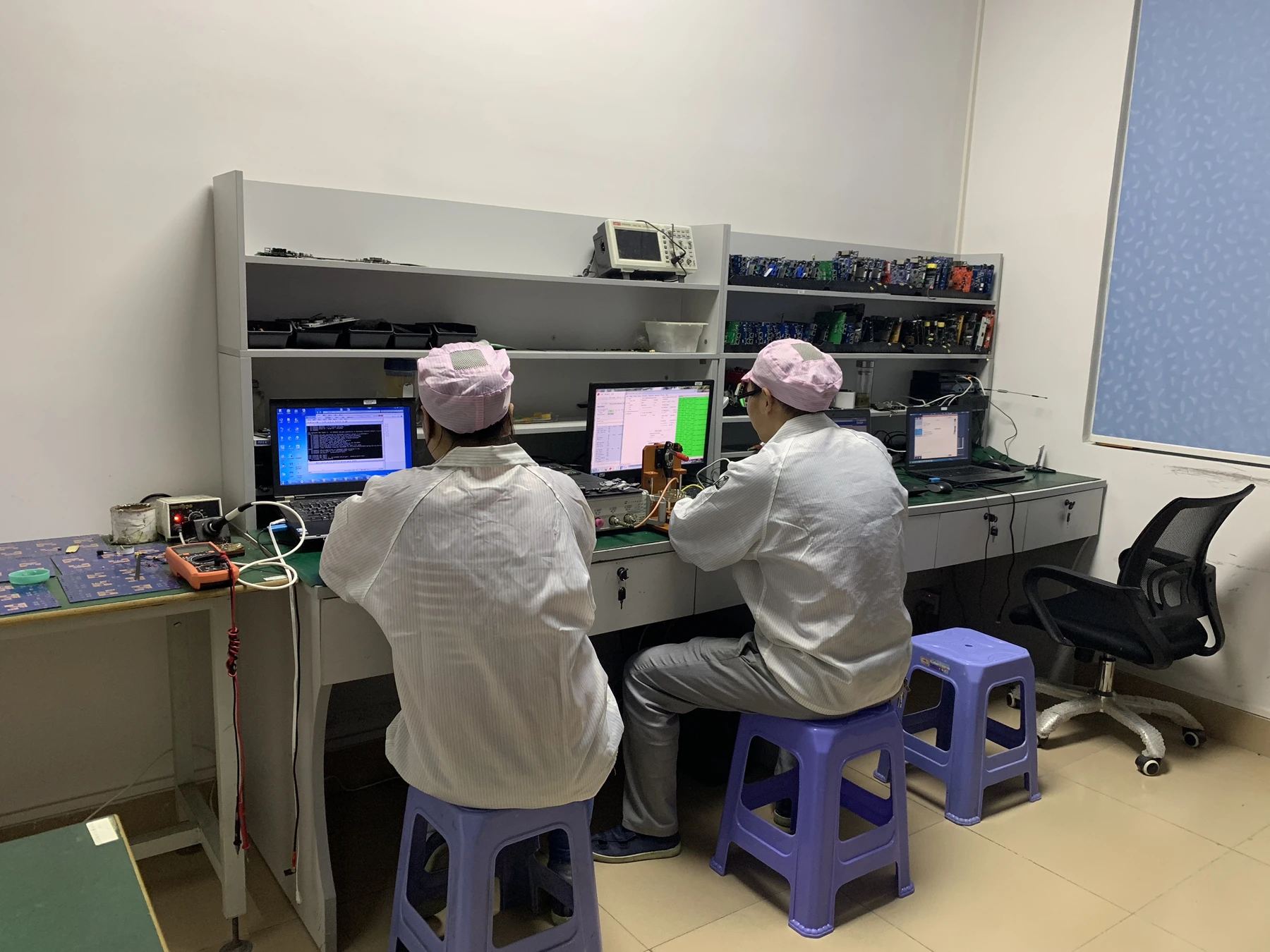

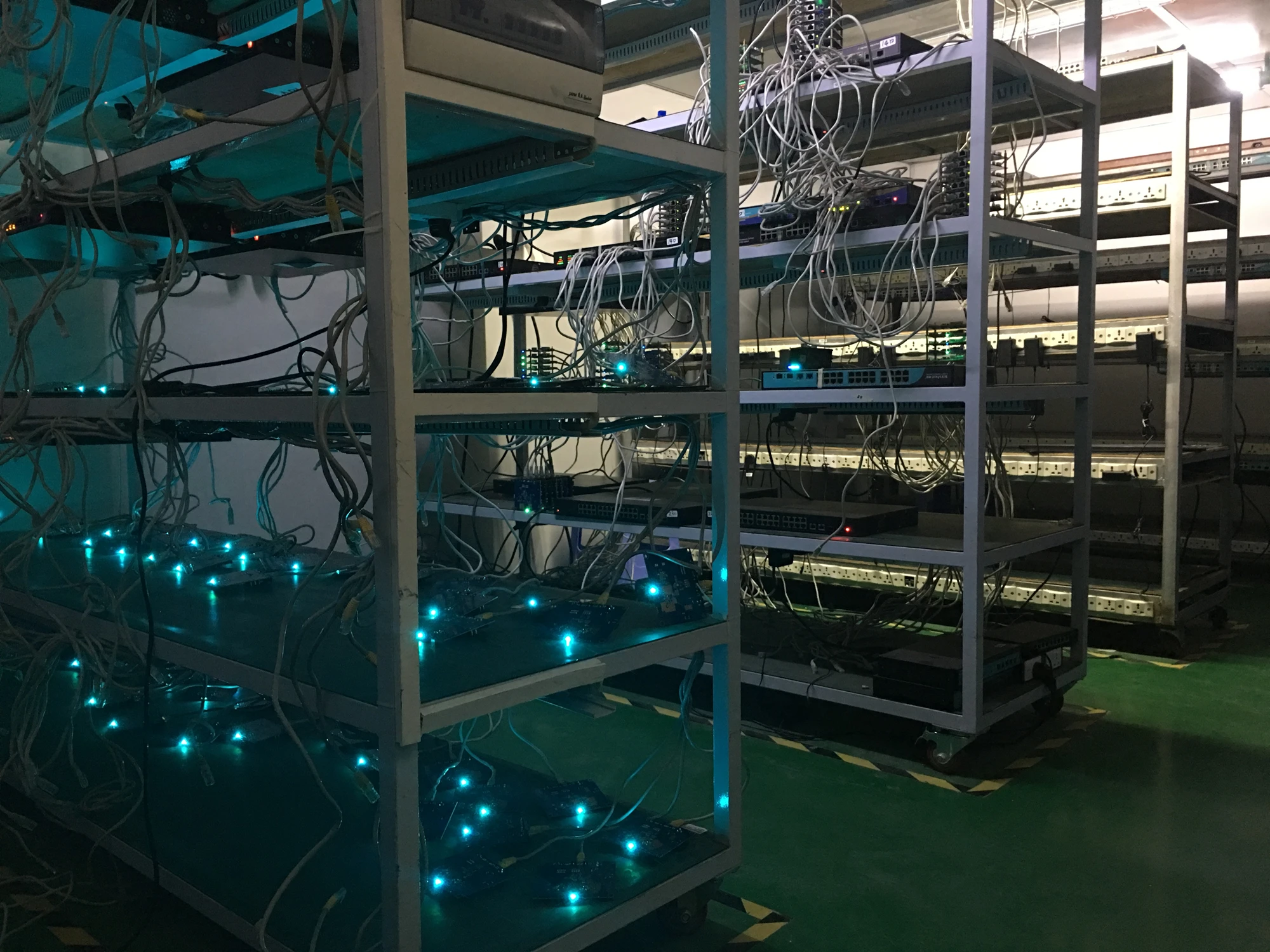

Company and factory video certified by SGS; True OEM&ODM manufacturer with SMT workshop, DIP lines, Testing lines and
Assemble/packing lines; What's more, we have our own engineer and QC testing machine to verify each productes.
Assemble/packing lines; What's more, we have our own engineer and QC testing machine to verify each productes.
FAQ
Q1: How can I get product Price List?
A1: Contact us by WhatsApp, Email, TradeManager, Skype, Line, Facebook Messenger, Viber, WeChat, our contact details are at the
bottom of this page.
Q2: Can I get samples to test before place an order?
A2: Yes, welcome samples order to test and check quality. Mixed samples are acceptable. Go to top of this page, click "Start
Order" to place samples order directly by Trade Assurance, easy and safe!
Q3: How does your factory do regarding quality control?
A3: Quality is the priority, it's our life!
All products with CE RoHS certificates, and 100%QC inspection before shipment.
Q4: What's the best way for shipping?
A4: For small order, by express is the best, and for big orders, by air, or by Ocean shipping is better.
Q5: Can we get support if we have our own market position?
A5: Plz inform us your detailed mind on your market demand.
we will discuss and propose helpful suggestion for you, then find the best solution for you.
Q6: What is the warranty for your products?
A6: Warranty time is 12months, if problems during use, we will help you to solve.
