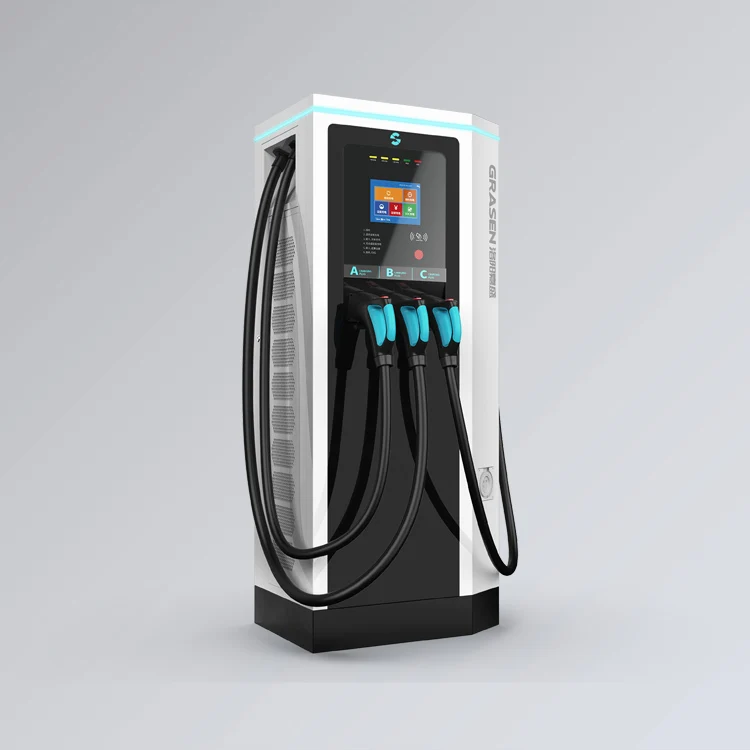

Wholesale 60Kw To 200Kw Ev Charger Station Of Electricity For Electric Car EV Charging Stations Price
- Category: Vehicle Parts & Accessories >>>
- Supplier: Luoyang Grasen Power Technology Co. Ltd.
Share on (1600513242048):
Product Overview
Description
Products Description

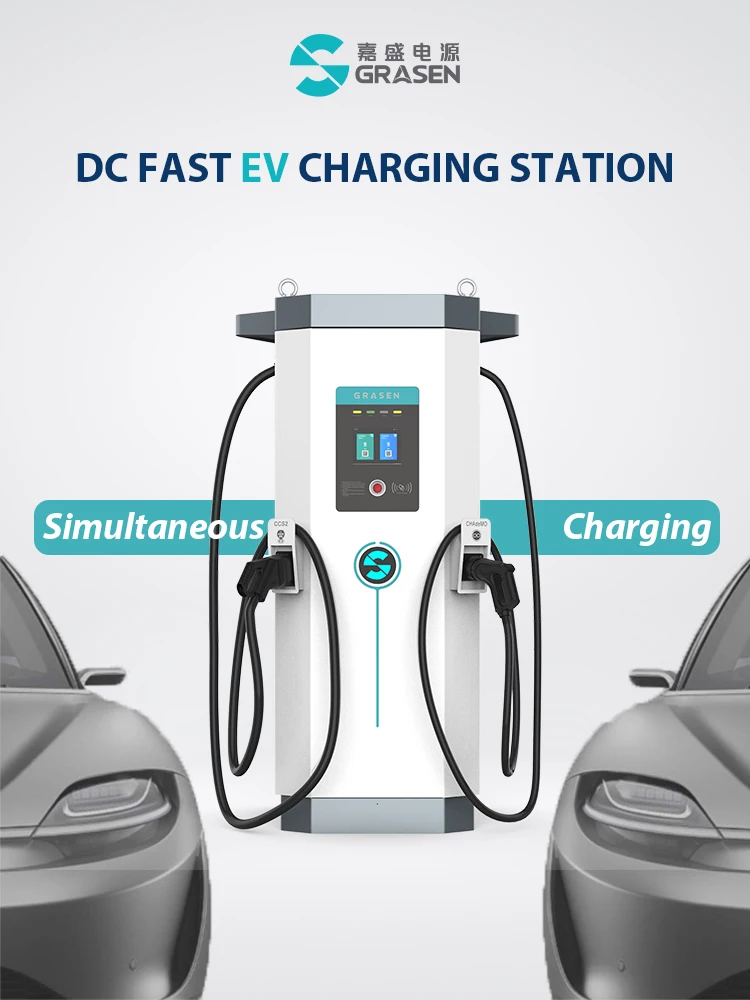

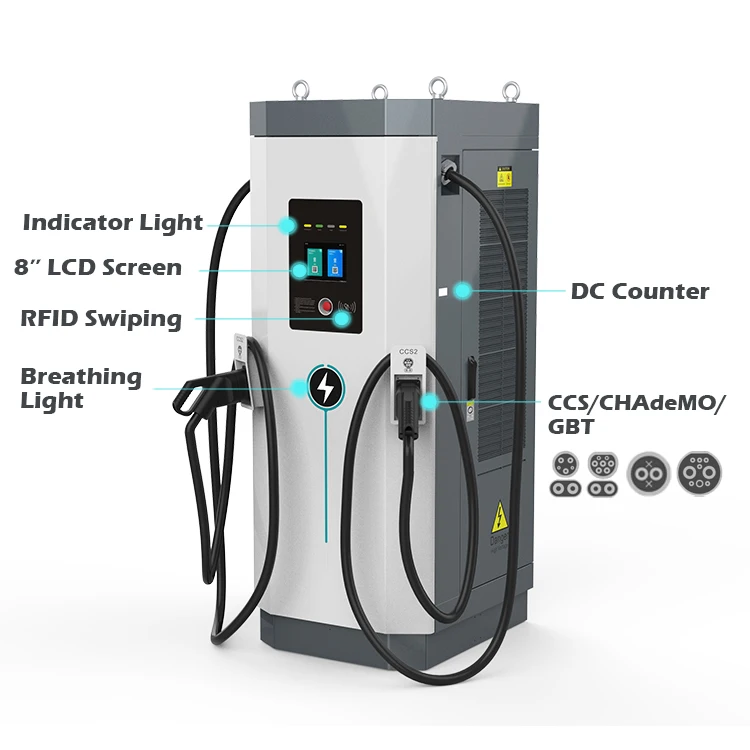

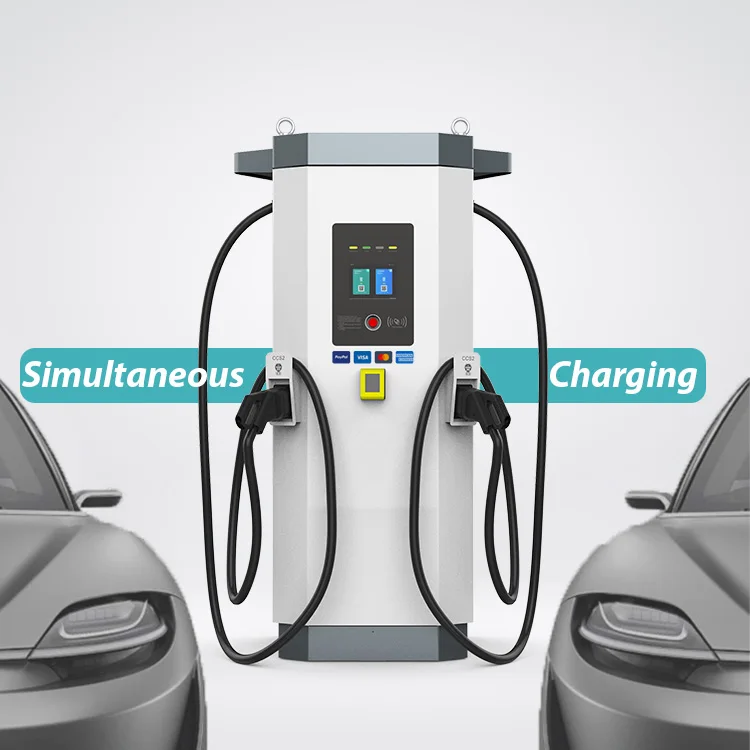

Wholesale 60Kw To 200Kw Ev Charger Station Of Electricity For Electric Car EV Charging Stations Price
Type | Floor mounted ev charging station | ||||||||||
Power | 60KW | 90KW | 120KW | 150KW | 160KW | 180KW | |||||
Input Rating | 3-phase 400V±15%/440V±15%/480V±15% | ||||||||||
Working Frequency | 45~65Hz | ||||||||||
Output Voltage | 200~750V DC; 150~1000V DC | ||||||||||
Max. Output Current | CHAdeMO 125A; CCS 200A; GBT 250A; | 5~300A | 5~400A | 5~500A | 5~533A | 5~600A | |||||
Connectors | CCS2, CHAdeMO, GB/T | ||||||||||

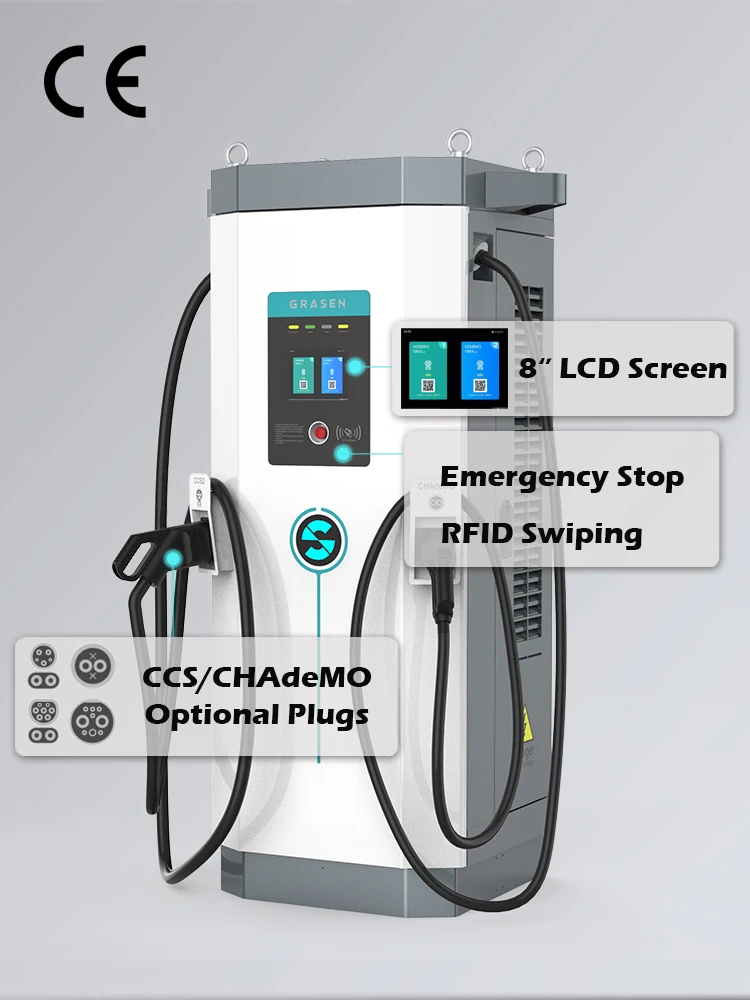

Display | 8'' LCD Touch Screen | ||||||||||
Network Connection | 4G(GSM or CDMA)/Ethernet | ||||||||||
Communication Protocols | OCPP1.6J (OCPP2.0.1 upgradable) | ||||||||||
Operating Temperature | -30℃ ~ +55℃ | ||||||||||
Storage Temperature | -40℃ ~ +70℃ | ||||||||||
Operating Humidity | ≤95% non-condensing | ||||||||||
Protection | IP55 | ||||||||||
Acoustic Noise | ＜60dB | ||||||||||
Compliance and Safety | TUV CE/IEC61851-1/IEC61851-23/IEC61851-21-2 | ||||||||||
Introduction

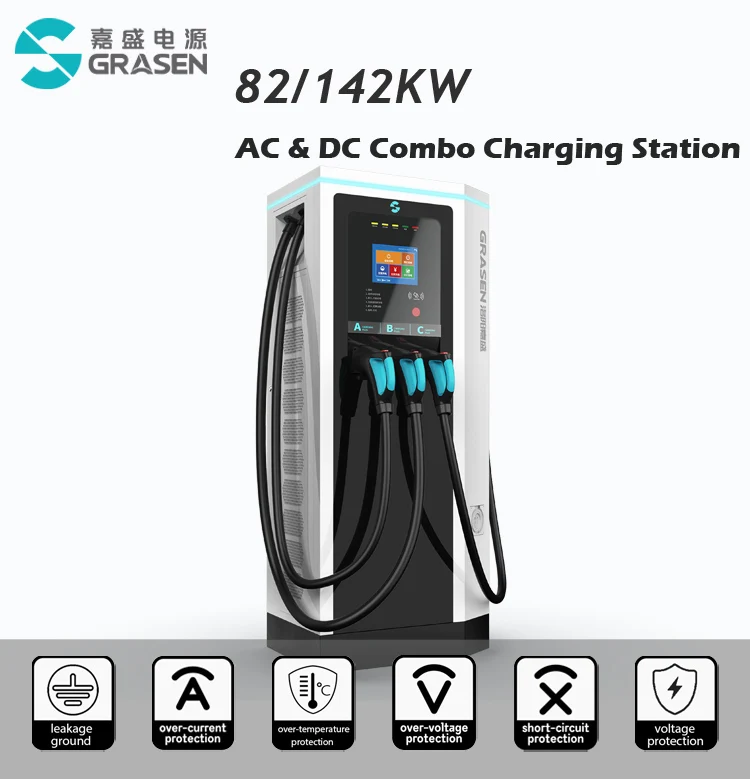

GRASEN AC & DC integration combo lltra fast charger, flexible multi-protocol design with CCS, CHAdeMO and AC Type 2. Boosts the EV battery to 80% within 30 minutes based on battery pack size.

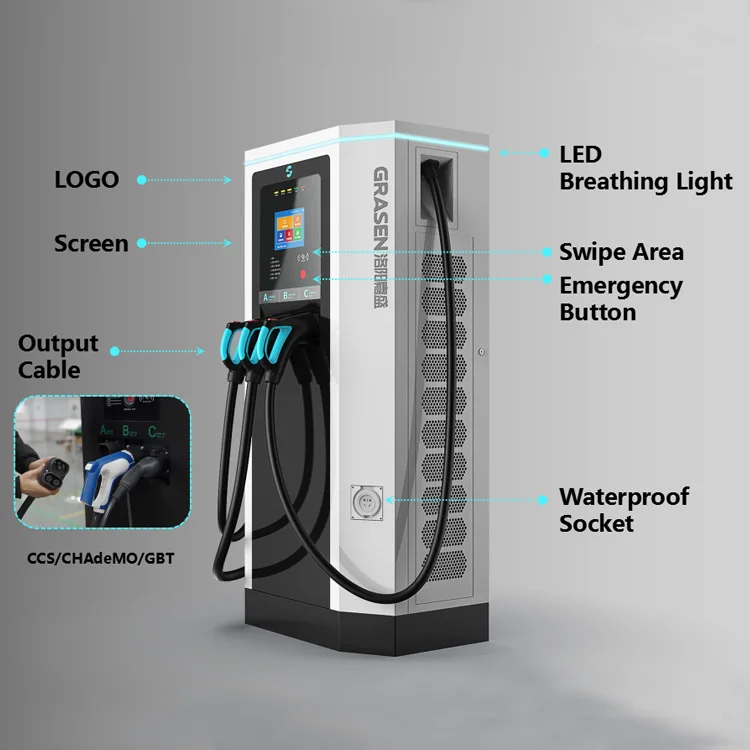

* Output power - Triple plugs
82KW (30KW + 30KW + 22KW)
142KW (60KW + 60KW + 22KW)
* Connectors - CCS1, CCS2, Chademo, GB/T, Type 2
* Networking way: 4G, Ethernet
* OCPP 1.6 /2.0.1 supported
* TUV CE certificates

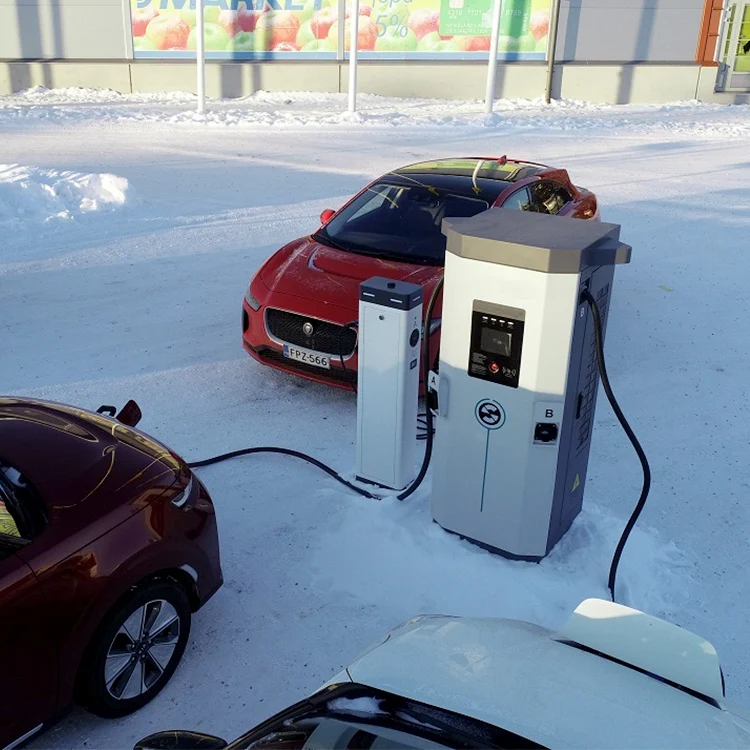

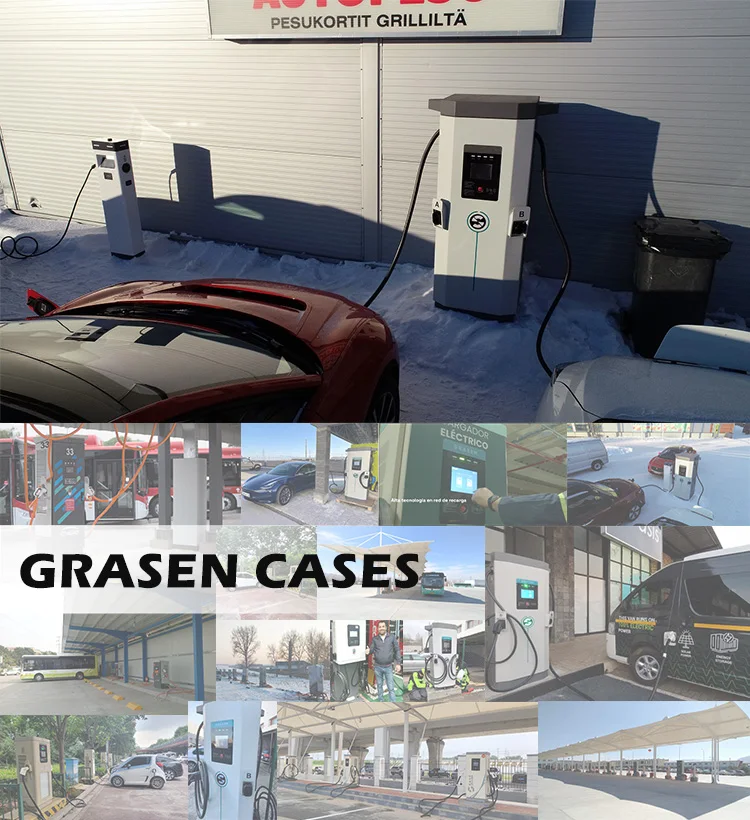

* Suitable for public parking lot, bus station, gas station, freeway service area, etc.
Product Brief Introduction | Product | Triple outlet ports AC DC Combo ev charg station | ||
Description | 82kW DC Charging Pile | 142kW DC Charging Pile | ||
Output Power | 30KW + 30KW + 22KW | 60KW + 60KW + 22KW | ||
Electrical Index | Input Rating | 400V±15%/440V±15%/480V±15% | ||
Working frequency | 45~65Hz | |||
Output voltage | 150~1000V DC; 3-phase 400V±15% AC | |||
Max. Output current | DC - CHAdeMO 125A; CCS 200A; GBT 250A; AC - Type-2 63A; GBT 32A | Max 400A | ||
Power factor | ≥0.99 | |||
Efficiency | ≥95% | |||
Function Design | Network Connection | 4G, Ethernet | ||
Display | 8'' LCD Touch Screen | |||

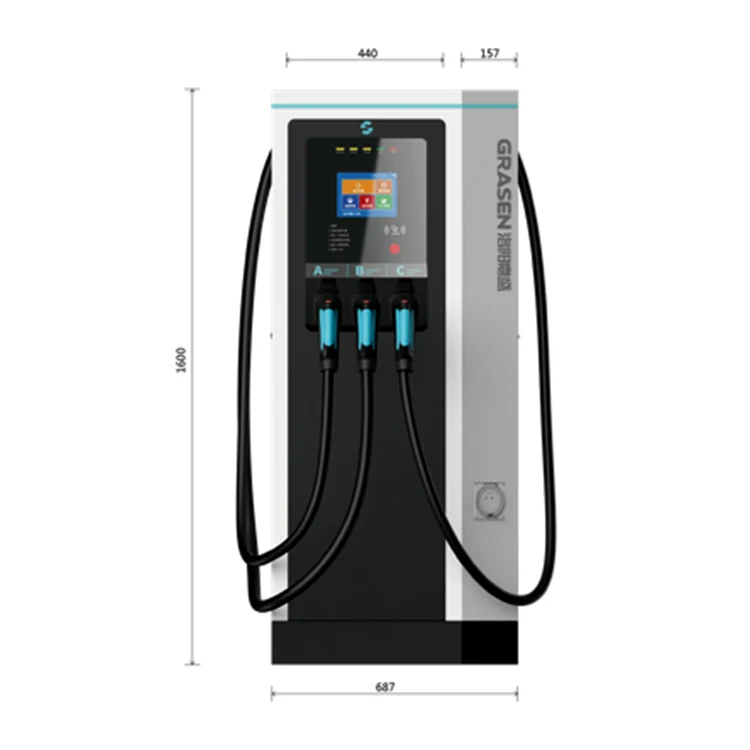

Appearance and structure | Charging cable length | 5m or 7m | ||
Mounting type | Floor-mounted type | |||
Environment Temperature | IP class | IP55 | ||
Cooling method | Forced Air-Cooling | |||
Working temperature | -30℃～+55℃ | |||
Storage temperature | -40℃～+70℃ | |||
Safety Design | Altitude | Up to 6000 feet (≤2000 m) | ||
Protection function | Over current, Under voltage, Over voltage, Over temperature, Surge protection, Short circuit, Ground fault | |||
Certificate | Certificate No. | 50347817 001_Certificate/AN504631360001 | ||
Charging Interface | DIN70121/ISO15118 | |||
Certificate | TUV CE/IEC61851-1/IEC61851-23/IEC61851-21-2 | |||
User Interface & Control | Support Language | English, Spanish, or other languages required | ||
Push Buttons | Emergency stop | |||
User Authentication | RFID card reader, user name & password, mobile No. & pin code | |||
Our Advantages
Load Balancing Charging

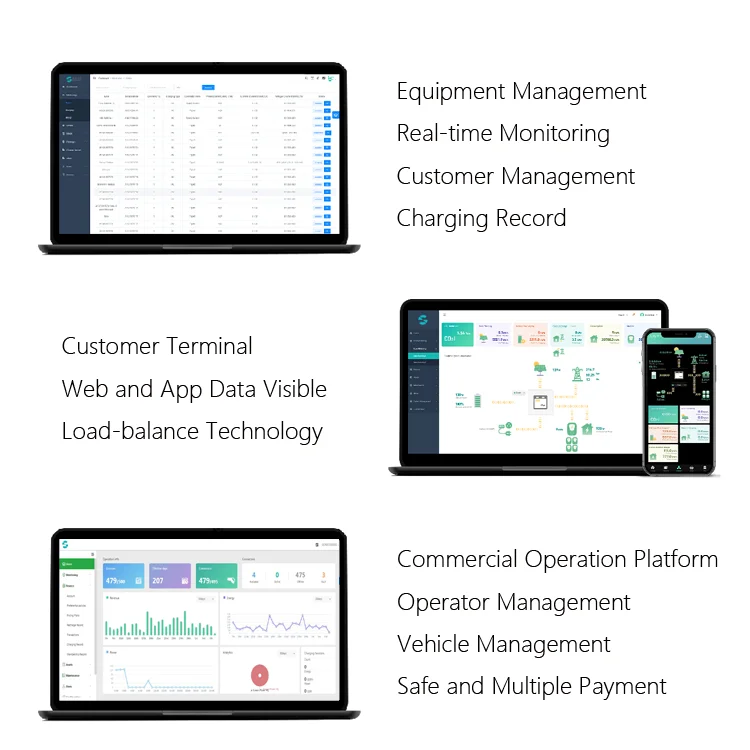

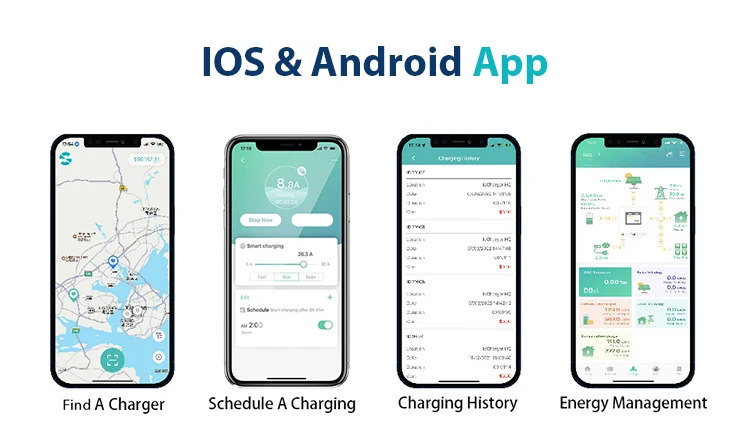

EV Charger Software
Company Introduction

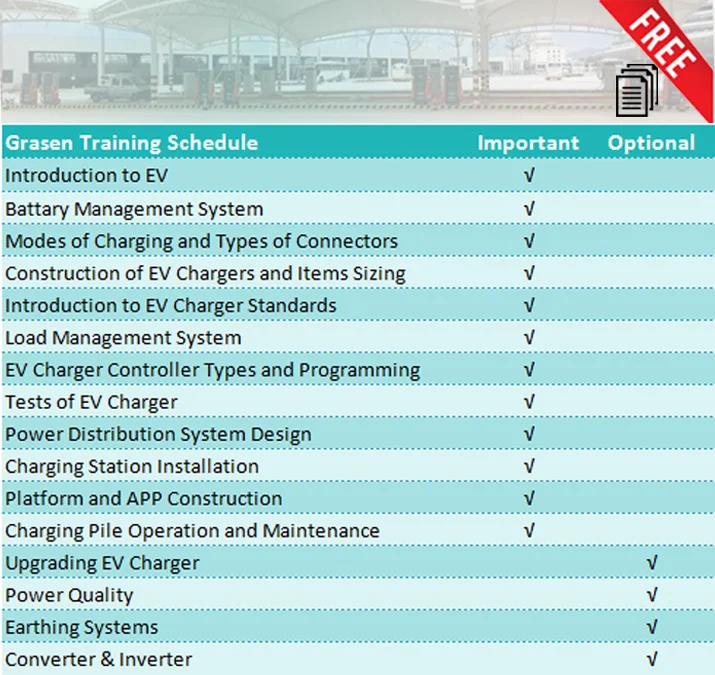

After Sales Service
Packing&Shipping
FAQ
Here are some customers' common questions:
A: We are a professional EV charging station manufacturer for over 11 years.
Q2: How long is the lead time?
A: The lead time is 4-8 weeks, it depends on the quantity and production scheduling.
Q3: What charging connectors do you have?
A: We have Type 1 (J1772), Type 2, GB/T, CCS 1, CCS2, CHAdeMo, etc.
Q4: How many kinds of payment?
A: We accept Paypal, T/T, L/C, etc.
Our Service:
1. We will reply your inquiry within 12 hours.
2. Paypal, T/T and L/C payment terms are all accepted.
3. Shipment: By air, By sea, By train, By International express (DHL, Fedex, etc.).
4. Provide operating guide (instruction).

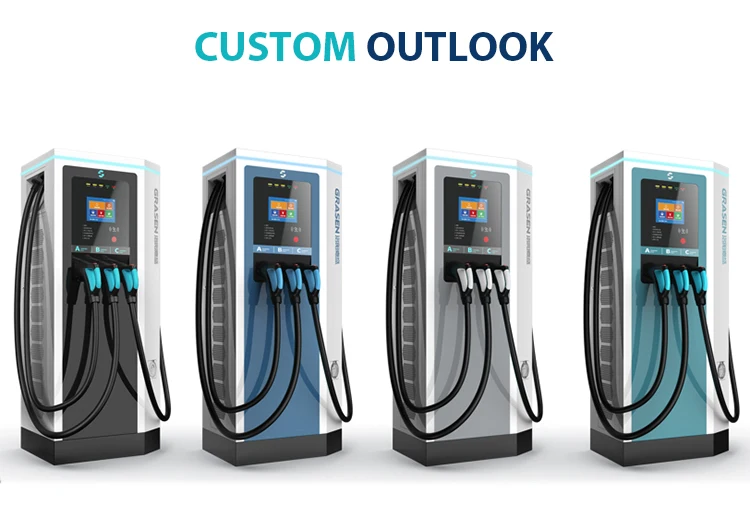

5. Customized design, sample and packing according to clients requirements.
4. Provide operating guide (instruction).
5. Customized design, sample and packing according to clients requirements.
