ISAP Integrated service access platform of the optical transmission network system
- Category: >>>
- Supplier: Shanghai B And A Technology Co. Ltd.
Share on (1600513251840):
Product Overview
Description

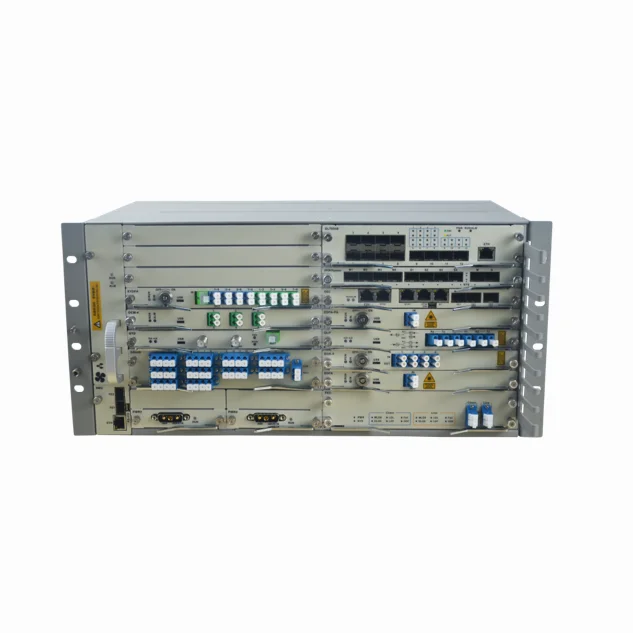

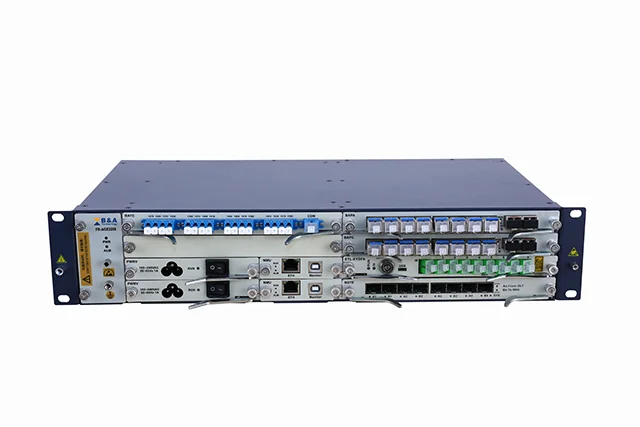

ISAP Integrated service access platform of the optical transmission network system
Products Description
Overview:
The integrated service access platform of the optical transmission network system ISAP161 is mainly used in the metropolitan area access layer network. It can complete the functions such as optical fiber saving, service multiplexing and distance extension. It
can also solve the shortage of fiber resources in the access layer network and provide clients a good solution of broadband multiple service access with low cost and high efficiency. ISAP161 can cooperate with other OTN series products and build networks according to different requirements
can also solve the shortage of fiber resources in the access layer network and provide clients a good solution of broadband multiple service access with low cost and high efficiency. ISAP161 can cooperate with other OTN series products and build networks according to different requirements
Product Paramenters
Performance Parameters | Technical Indicators |
Product Model | ISAP161 |
Equipment Size | 1U: 44 mm (height) x 482 mm (width) x 240 mm (depth) |
Service Slot | 3 slots |
Transmission Capacity of Single Equipment | 12 * 10G bidirectional transmission 24 * 10G unidirectional transmission 2 * 100G bidirectional transmission |
Wavelength | CWDM:1270nm~1610nm DWDM:C Band, 100 GHZ or 50 GHZ |
Maximum Rate of Single Channel | 200Gbit/ s |
Service Interface Type | 1.25G~100G all kind of services, including services of: STM-16/64, OC-48/192, GE, 10GE, 100GE, FC100/200/400/800/1200, FICON, ESCON, CPRI 1/2/3/4/5/6/7 |
Optical Transceivers | SFP/SFP +, LC type interface |
Network Topology | Point to point, chain type, star type, ring type |
Heat Dissipation | Fan cooling |
Power Supply Mode | AC: 90~260 V or DC: -36~-72 V (support 1+1 backup power) |
Power Consumption | 40W (Typical),100W(Max.) |
Company profile and factory
Factory:
R&D
Quality Inspection
Exhibition:
Product packaging
Certificates&Patents
Why choose us?
Contact us
FAQ
1.Can I have a sample order? What is your MOQ?
Yes, of course. We welcome you to check the quality with sample order. We do not have MOQ, 1 set is available.
2. What is the lead time?
For usual products,there have stocks,and we will ship about 3 days after received payment. But for big quantity and special products, please check lead time with our sales representative.
3. How do you ship the goods and how long does it take arrive?
Yes, of course. We welcome you to check the quality with sample order. We do not have MOQ, 1 set is available.
2. What is the lead time?
For usual products,there have stocks,and we will ship about 3 days after received payment. But for big quantity and special products, please check lead time with our sales representative.
3. How do you ship the goods and how long does it take arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
4. What is your payment terms?
Usually,we need prepayment by T/T or West Union. We can also support L/C,Credit terms.
5. What is your warranty time ?
We promise 18 months warranty for all products shipped from us.
6. Could I return the products if there is a quality problem?
Yes, if there is a quality problem,we could accept free exchange.
7. Could I use my own logo and label?
Yes,we could provide a OEM service and make the products with your own label.
4. What is your payment terms?
Usually,we need prepayment by T/T or West Union. We can also support L/C,Credit terms.
5. What is your warranty time ?
We promise 18 months warranty for all products shipped from us.
6. Could I return the products if there is a quality problem?
Yes, if there is a quality problem,we could accept free exchange.
7. Could I use my own logo and label?
Yes,we could provide a OEM service and make the products with your own label.
