Vacuum distillation furnace, VDF, for alloy metals, Pb, Sn, Sb

1. Product description

Vacuum distillation process is a clean metallurgy process which is widely used to separate the metal with different boiling point by using the different saturated vapor pressure.

CHMM furnace is to apply vacuum distillation and pyro-refining combined process  to get crude elemental Arsenic product (nontoxic), Lead-Antimony alloy as well as the crude Tin as final product.

Raw material:

This vacuum distillation furnace can treat the raw material like

l  Crude Tin (with impurities like Lead, Antimony and other metals which could be easily evaporated)

l  Soldering Tin

l  Lead-Tin alloy

l  Lead-Tin-Antimony alloy

l  Lead-Tin-Antimony-Arsenic alloy

Main technical parameters of the equipment

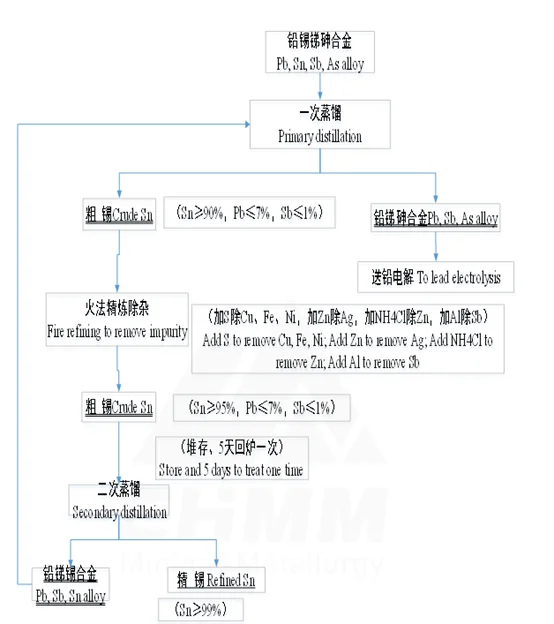

Process flow diagram

Process flow diagram

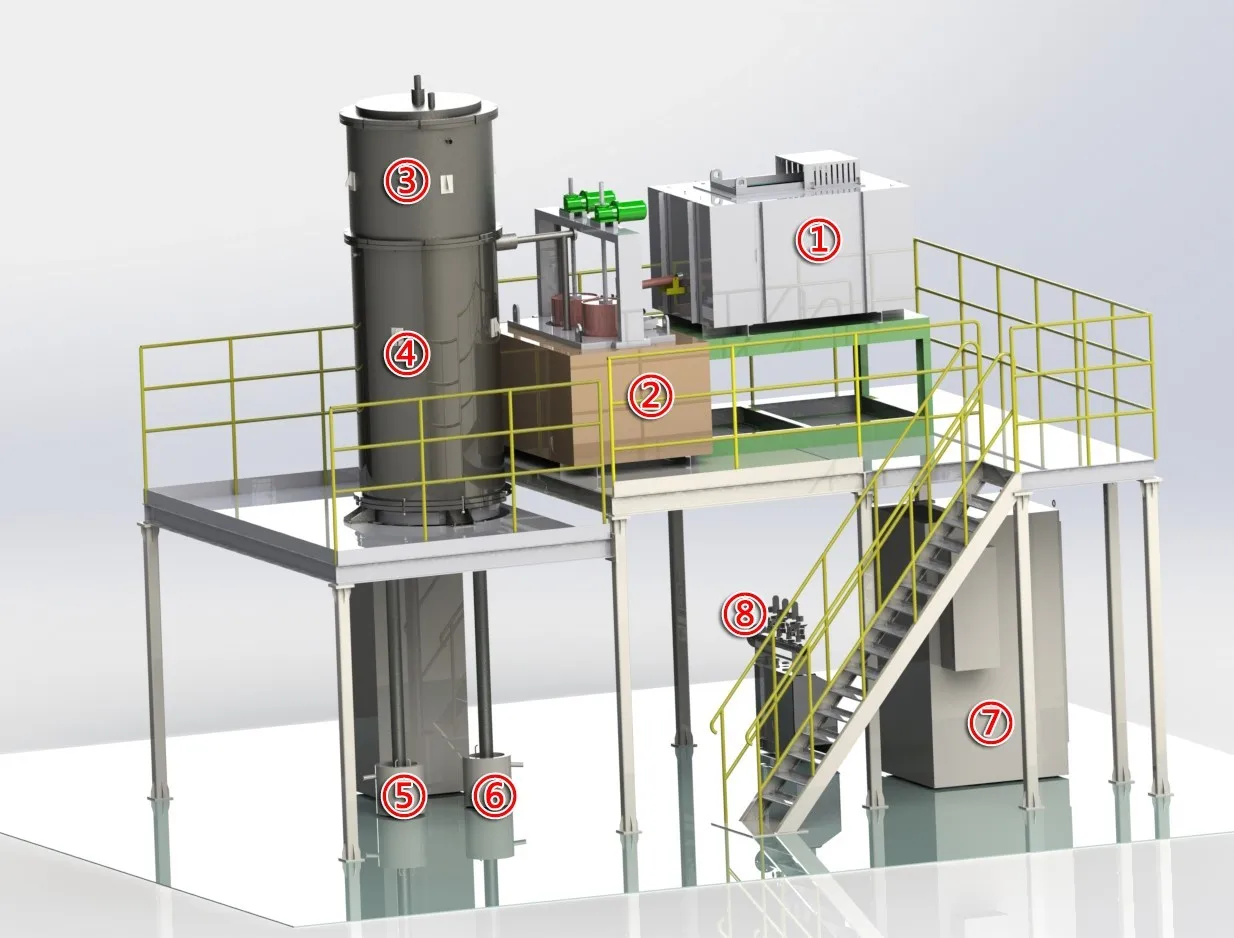

Main equipment components

1.    Melting furnace;2.Constant feeding furnace;3.As collection device; 4.Vacuum distillation furnace;5.Pb-Sb material holding furnace;6.Crude Sn holding furnace;7.Electric cabinet; 8.Transformer

Packaging Details: vacuum distillation furnace packing:Plastic wrapping film and wooden pallets

Port: CMP

Pre-Sales Service

* Inquiry and consulting support.

* Factory visit support

* Sample testing support

After-Sales Service

* Training how to install the furnace, training how to use the furnace.

* Engineers available to service machinery overseas

China has ranked as the world’s largest producer of nonferrous metals with its fast economy growth over the last two decades. After continuously making efforts on tackling key technological problems and accumulating a wealth of experiences in practice, now CHMM are delight and ready to share the CHINESSE EXPERIENCE, COST-EFFECTIVE PRODUCTS AND SERIVCES with all friends in nonferrous beneficiation and metallurgy industry all over the world.

  CHMM is providing the most advanced technology and services for sustainable use of nonferrous resources of earth, mainly to provide energy saving, environmental protection, high quality and efficient producing technology, equipment and services for the Copper, Lead, Zinc, and Tin and other nonferrous smelting industry.

  CHMM provides extensive and flexible business cooperation models for domestic and overseas customers, including research, design, equipment supply, installation, commissioning, training, test run and operation.
