1000w 1500w 2000w watt fiber laser welding machine automatic welding robot arm
- Category: >>>
- Supplier: Morn Laser Technology Co. Ltd.
Share on (1600513277361):
Product Overview
Description
Product Description

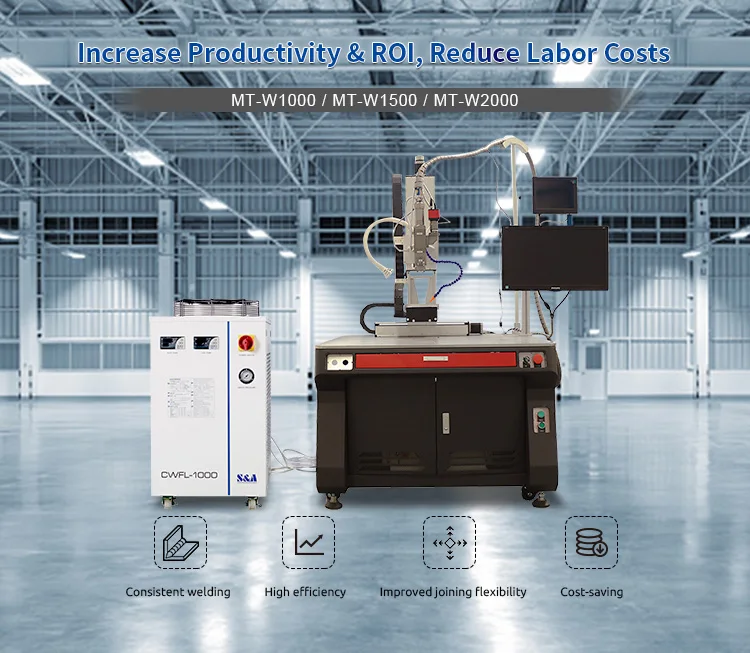

Automatic Laser Welding Machine
Scale-up your business and boost your ability to solve multi-welding challenges. Equipped with a CCD monitoring system and advanced control software, the fiber laser welder makes accurate positioning, auto-focuses on the welding parts, and produces high-tensile tight seams with top visual quality. You get more design freedom to create various seam shapes. With fixtures and rotating devices, you gain a boosted welding efficiency by quickly welding similar products in large quantities and with high consistency.
Advantages
1. Precisely and fastly weld complex parts, logo, metal words, etc.
2. Perfect welds fully meet the welding requirements of different industries;
3. CCD camera monitoring system offers real-time display of welding effect;
4. 360° rotation welding, large welding range and flexible welding of hard-reach position;
5. Expandable with a handheld welding gun to achieve manual welding;
6. High electro-optic conversion rate and low energy consumption;
7. Suitable for 24h industrial mass production.
Machine Parameter
Model | MT-W1000 / MT-W1500/ MT-W2000 |
Laser source | 1000W/1500W/2000W |
Laser head | Automatic |
Welding depth | 0.8-1mm |
Output power tunability | 10-100% |
Emission wavelength | 1080±5nm |
Modulation Frequency | 50-20kHz |
Spot size | φ0.2-1.8mm |
Power supply | AC 220V 50Hz single phase/AC 380V 50Hz three phrase |
Electric current | 10-32A |
Total power | 6kw/8kw/10kw |
Operating temperature | 10-40℃<70% Humidity |
Cooling method | Water cooling S&A 1000w/1500w/ 2000w |
Rotary | For option |
Material | SS, CS, Brass, Aluminum, Galvanized sheet |
Weight | 220KG |
Package Dimension: | 161*127*145cm |
Max welding thickness | ||||||||
Power | Stainless steel | Carbon steel/Galvanized sheet | Aluminum | Brass | ||||
1000w | 4mm | 3mm | 1mm | 1mm | ||||
1500w | 4.5mm | 3.5mm | 1.5mm | 1.2mm | ||||
2000w | 5mm | 4mm | 2mm | 2mm | ||||

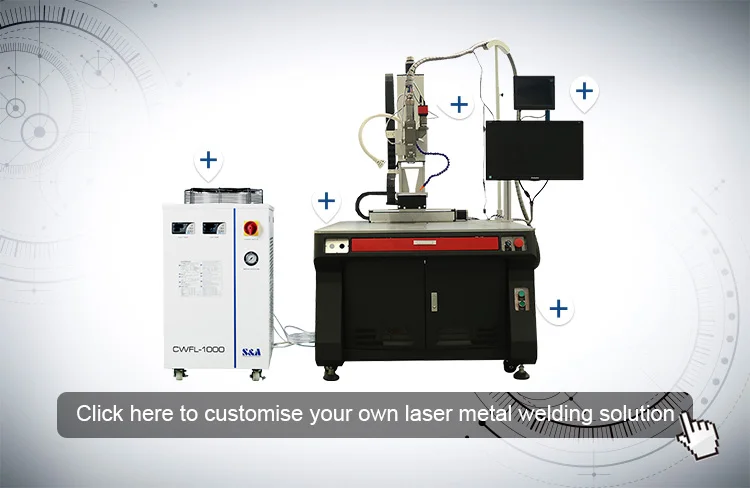

Online Customization

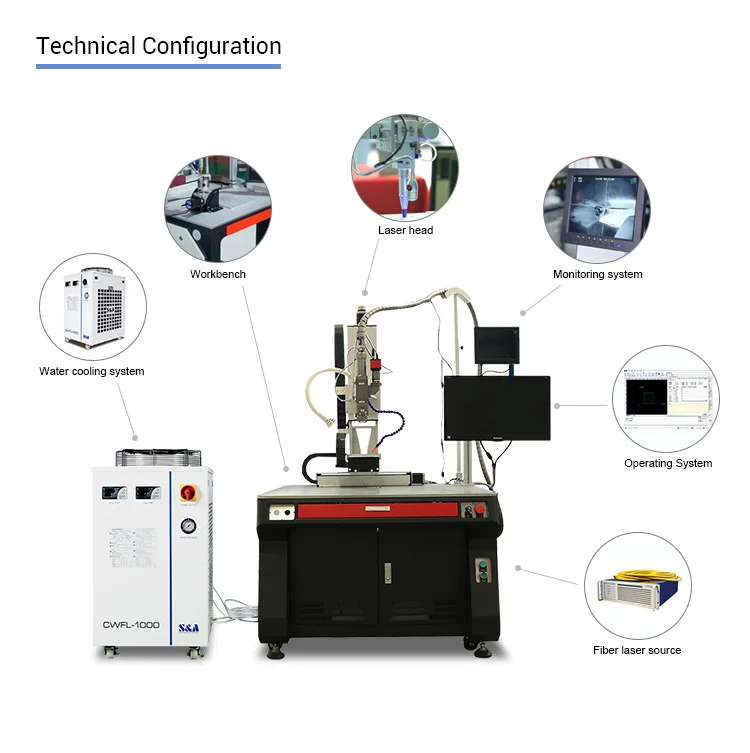

Machine Details

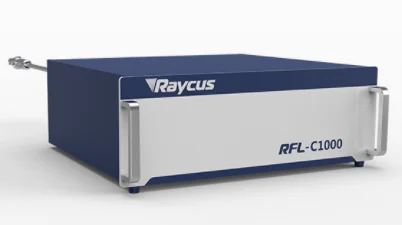

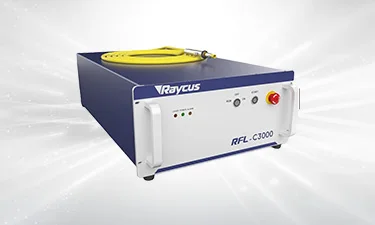

More stable and cost less than yag laser source. The lifetime is over 100,000hours

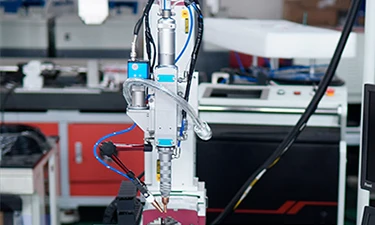

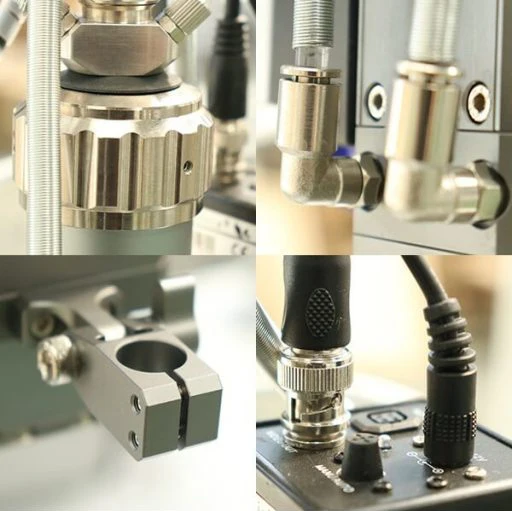

Brand laser welding head features high corrosion resistant and high temperature resistance. It has longer service life than ordinary laser heads.

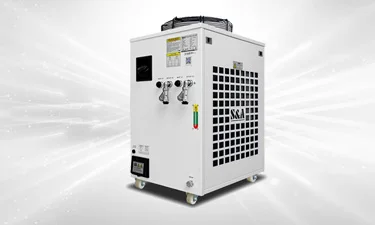

S&A water cooling system
Intelligent dual temperature dual control mode provides effective temperature control solutions for fiber lasers in all directions

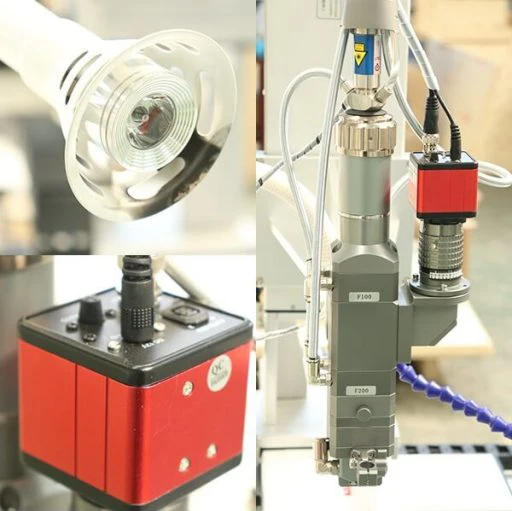

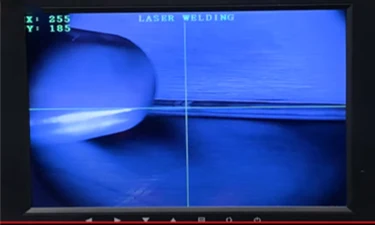

Equipped with a CCD monitoring system and advanced control software, makes accurate positioning, auto-focuses on the welding parts, and produces high-tensile tight seams with top visual quality.
Combined manual welding and auto welding
An add-on handheld laser welding head is available for long-distance welding of large areas and large objects. Also, you could
customize the welding table for large format welding.
More design freedom to create various seam shapes

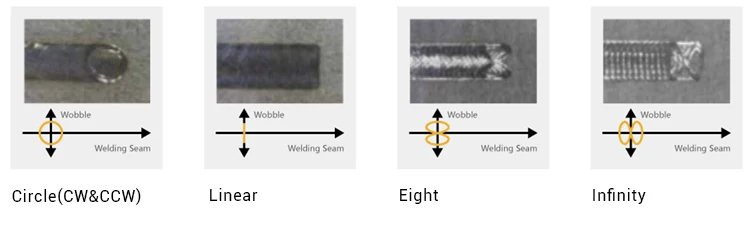

Adjustable wobble mode and frequency to design your welds freely
Welds a variety of geometric shapes including dots, lines, circles, triangles, eight, double-O using our advanced wobble welding head.
Welds a variety of geometric shapes including dots, lines, circles, triangles, eight, double-O using our advanced wobble welding head.
Application & Sample

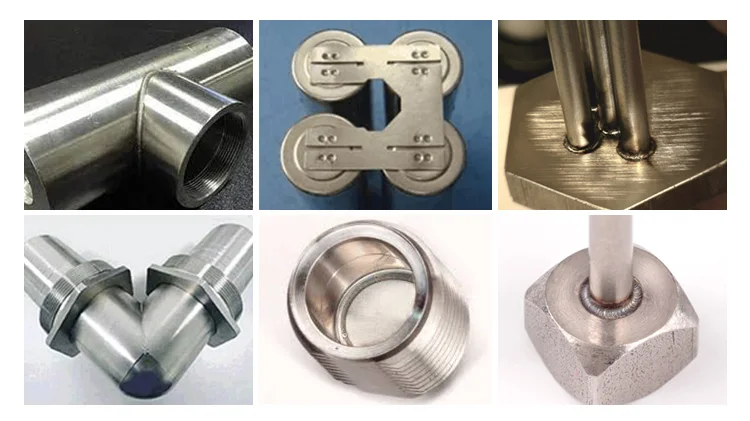

Favored by fabricators of medical equipment, electronics, battery aluminum shells, connectors, hardware accessories, kettles, sinks, clock precision parts, automobiles, this auto laser welder fits for welding of thin metals and welds stainless steel, aluminum, copper, and other metals effortlessly.
About Morn Laser
FAQ
Q: How to select the suitable machine?
A: Tell us your material, detail requirements by words, pictures or video.
We will recommend you the suitable model with the reasonable price.
Q: I don’t know which one is suitable for me ?
A: Please tell me your
1) Max work power:choose most suitable model.
2) Materials and welding thickness::choose most suitable power.
Q: How thick can 1000w be welded?
A: The 1000w welding machine can weld materials with a thickness of 2mm
Q: Can carbon steel be welded?
A: Yes, not only carbon steel, all metal materials can be welded
Q: Can the machine be customized according to my requirements ?
A: Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
