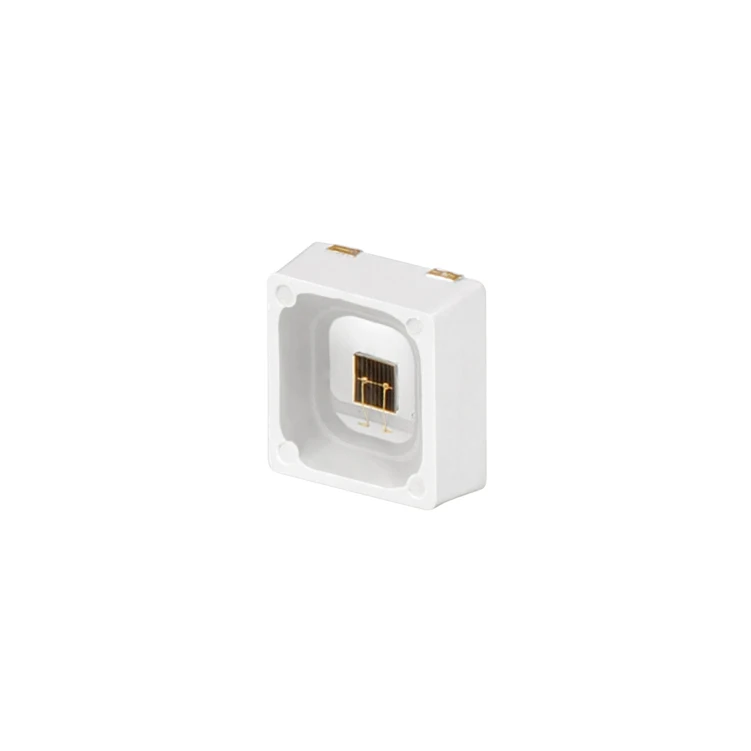

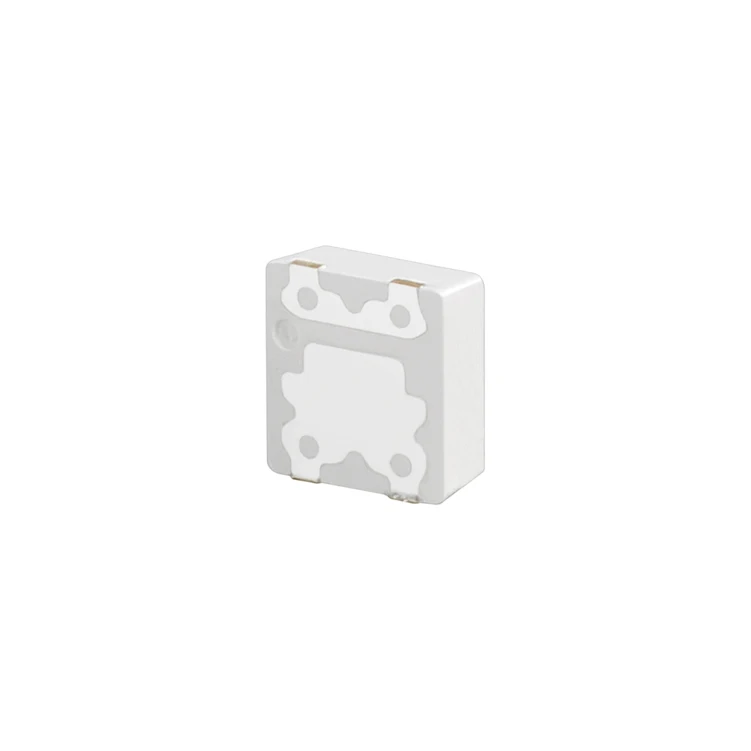

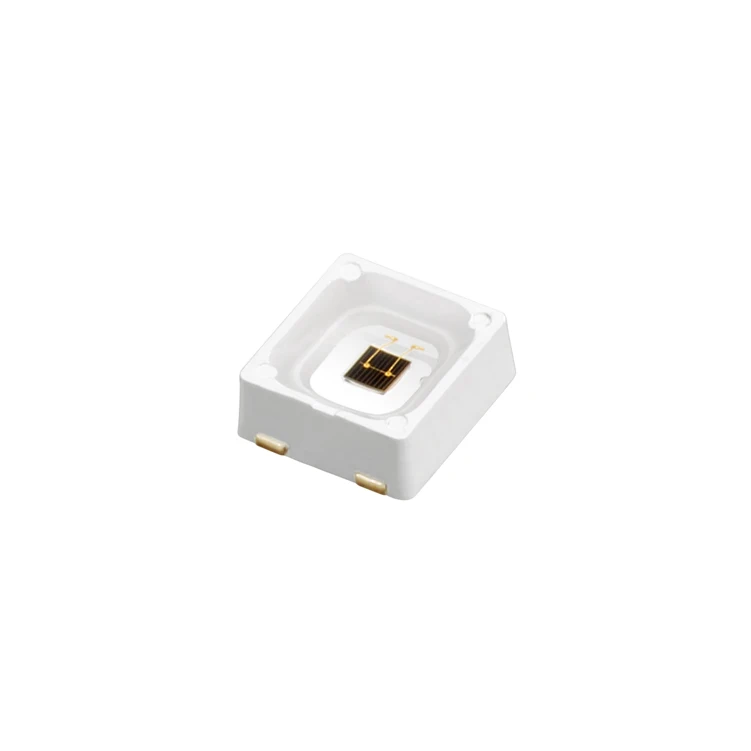

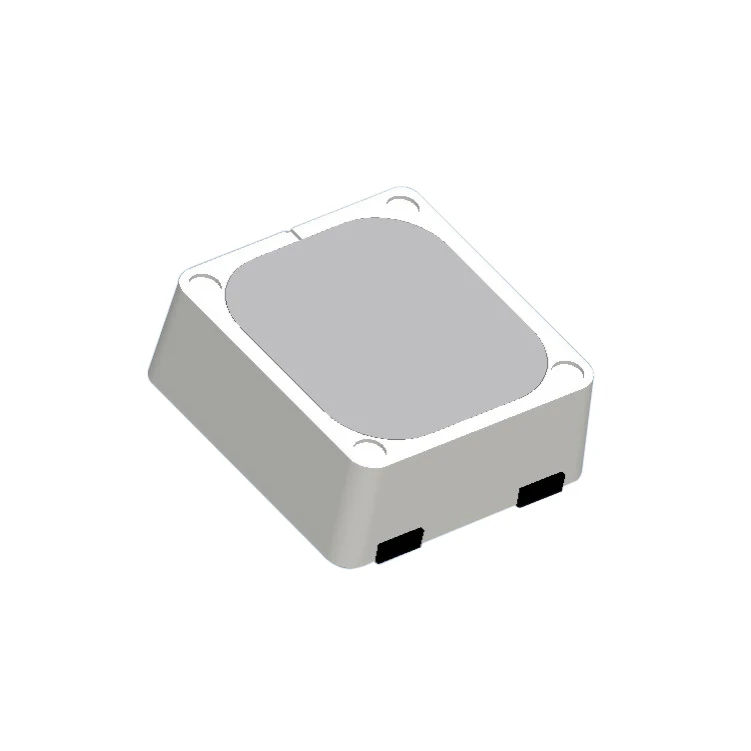

High Power Infrared Led IR Light Source IR Led 810nm 850nm 5W
Applications
1, Infrared remote control units with high power requirement
2, Smoke detector
3, Infrared applied system
4, Infrared illumination for cameras
5, Surveillance systems
Maximum Rating (TSoldering: 25℃)
Parameter | Symbol | Min. | Typical | Max. | Unit |
Forward Current | IF | - | - | 1000 | mA |
Peak Forward Current Pulse Width≦100μs ,Duty≦1% | IFP | - | - | 1400 | mA |
Reverse Voltage | VR | - | - | 5 | V |
Power Dissipation at(or below) 25℃ Free Air Temperature | Pd | - | - | 2.3 | W |
Operating Temperature Range | Top | -40 | - | 85 | ℃ |
Storage Temperature Range | Tstg | -40 | - | 100 | ℃ |
Soldering Temperature | Tsol | - | - | 260 | ℃ |
Thermal Resistance(junction to case) | Rs | - | - | 12 | ℃/W |
Electrostatic Discharge(HBM) | ESD | - | - | 2000 | V |
Electro-Optical Characteristics (TSoldering=25℃)
Parameter | Symbol | Min. | Typ. | Max. | Unit | Condition | ||||||
Radiant Intensity | Ie | 120 | 160 | 240 | mW/sr | IF=1A, tP=10ms | ||||||
- | ||||||||||||
Forward Voltage | VF | 1.7 | 1.95 | 2.3 | V | IF=1A, tP=10ms | ||||||
Peak Wavelength | λp | - | 820 | - | nm | IF=1A, tP=10ms | ||||||
Centroid Wavelength | λ centroid | - | 815 | - | nm | IF=1A, tP=10ms | ||||||
Spectral Half-width | △λ | - | 25 | - | nm | IF=1A, tP=10ms | ||||||
Viewing Angle | 2θ1/2 | - | 120 | - | deg | IF=1000mA | ||||||
Dimensions of active chip area L x W(Typ.) | 1066x1066 | um x um | ||||||||||
Reverse Current | IR | - | - | 5 | uA | VR =5V | ||||||
Notes: 1, Tolerance of Radiant Intensity: ±10% 2, Tolerance of Forward Voltage: ± 0.1V | ||||||||||||

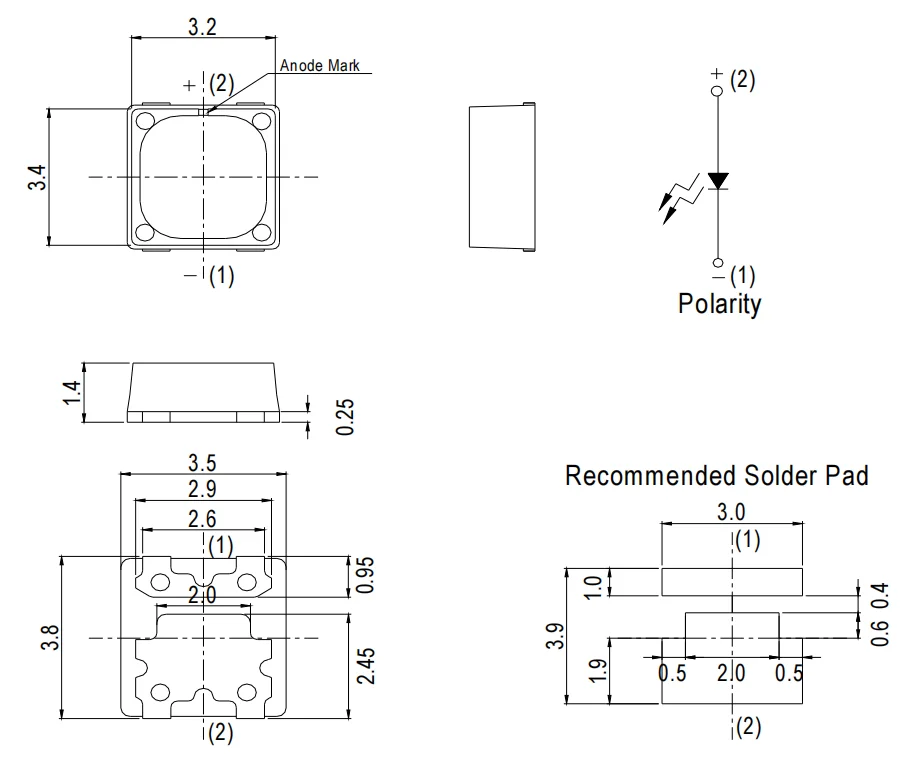

Dimensional Drawing
Remark:
1, All dimensions are in millimeters.
2, Tolerance is ±0.15mm unless other specified.
