CNC EDM EROSION D1060
1. Machine weight is 10% heavier than others.
2. The three-axis is Taiwan C3 ball screw, Taiwan precision linear railway.
3. All models adopt integral table bed body with good stability.Work table level measurement by 9 points’ test, geometric
accuracy is 50%~70% higher than national standard.Ensure high quality machine tools.
4. Oil pumping motor is Denmark Grundfos, New design of oil flushing, Oil suction device ,with more reasonable pumping oil route by rotating at clockwise to ensure constant oil cooling during processing. without oil foam.
5, 3-5 oil suction ports to ensure oil absorption for processing, it’s easy to open and close doors,
6. All oil pipelines adopt Taiwan import interlayer rubber hose, which ensures soft at winter and with high compressive
strength. Valve is USA or Taiwan Brand.
2. The three-axis is Taiwan C3 ball screw, Taiwan precision linear railway.
3. All models adopt integral table bed body with good stability.Work table level measurement by 9 points’ test, geometric
accuracy is 50%~70% higher than national standard.Ensure high quality machine tools.
4. Oil pumping motor is Denmark Grundfos, New design of oil flushing, Oil suction device ,with more reasonable pumping oil route by rotating at clockwise to ensure constant oil cooling during processing. without oil foam.
5, 3-5 oil suction ports to ensure oil absorption for processing, it’s easy to open and close doors,
6. All oil pipelines adopt Taiwan import interlayer rubber hose, which ensures soft at winter and with high compressive
strength. Valve is USA or Taiwan Brand.
CODE | ITEM | DETAILS | ||||
1 | WORKTABLE（WIDTH×LENGTH） | mm | 1250*800 | |||
2 | CNC TYPE | |||||
3 | JAPAN MAKINO SYSTEM | |||||
4 | MAX.LOAD BEARING OF WORKTABLE | kg | 3500 | |||
TRAVEL | ||||||
5 | X AXIS | mm | 1000 | |||
6 | Y AXIS | mm | 600 | |||
7 | Z AXIS | mm | 500 | |||
8 | WORKING TABLE TO ELECTRODE MIN/MAX DISTANCE | mm | 500-1000 | |||
STRUCTURE INDEX | ||||||
9 | DISPLAY METHOD | 15” TFT-LCD | ||||
10 | WORKING TANK INNER SIZE | mm | 2100 x1250 x 600 | |||
11 | VERTICAL CONTROLLER WEIGHT | kgs | 250 | |||
POWER SOURCE | ||||||
12 | MIN. Electrode Consumption | <0.2% | ||||
13 | WORKING CURRENT | A | 30/50/75/100 | |||
14 | MIN. DRIVING UNIT | um | 5 | |||
15 | POWER REQUIREMENT | 380/415 V, 50/60 Hz for three-phase | ||||
ENVIRONMENTAL REQUIREMENT | ||||||
16 | ENVIRONMENTAL TEMPERATURE REQUIREMENT | 0℃～40℃ | ||||
17 | RELATIVE HUMIDITY | 20%～80% | ||||
ACCURACY | ||||||
18 | POSITIONING ACCURACY | mm | <0.005 | |||
19 | REPOSITIONING ACCURACY | mm | <0.003 | |||
20 | MAX WORKING SURFACE ROUGHNESS | um | Ra<0.1~0.15 | |||
21 | MAX. WORKING EFFICIENCY | m3/min | 550/750/1050 | |||
PRODUCT SPECIFICATIONS
No | Item | Data | ||
1 | Power | 37.5KW | ||
2 | Bucket capacity | 2.8 M3 | ||
3 | Operating weight | 125Ton | ||
4 | Max. tractive force | 96kN | ||
5 | Max. breakout force | 96kN | ||
6 | Tipping load | 60kN | ||
7 | Engine displacement | 6750ml | ||
8 | Max. torque | 500N.m |
Machine Details
High rigidity:”cross”workbench structure,single column spindle is designed,Machine table is made of granite (00 class)material

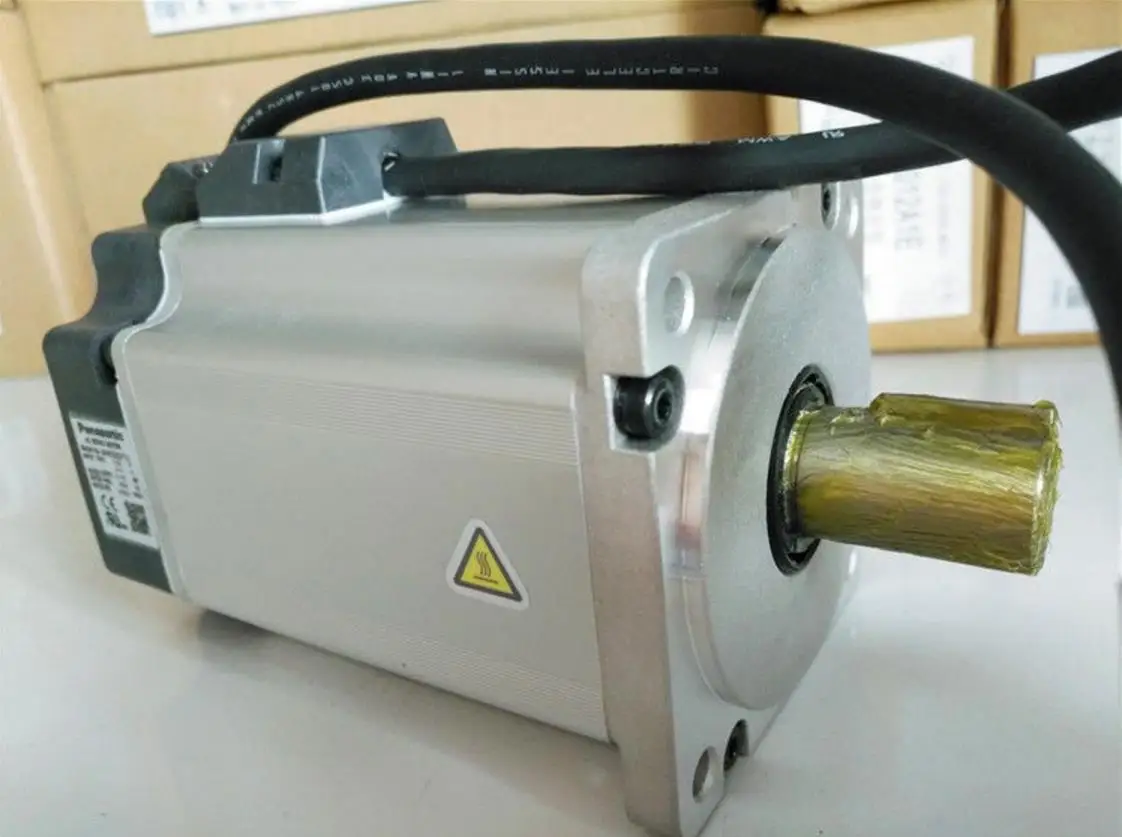

High precision: Japanese panasonic AC servo motor, Taiwan imported silver HIWIN or Yintai PMI precision leadscrew, Japan THK guide
High quality: positioning accuracy [JIS standard] 5 mu m/any 100mm and repeated positioning accuracy 2 mu m,adopt full japan Makino CNC system
Security measures: liquid level protection, liquid temperature protection, automatic fire extinguishing devices and Power failure return,contact perception,diagnosis and error message etc functions
High precision: Japanese panasonic AC servo motor, Taiwan imported silver HIWIN or Yintai PMI precision leadscrew, Japan THK guide
High quality: positioning accuracy [JIS standard] 5 mu m/any 100mm and repeated positioning accuracy 2 mu m,adopt full japan Makino CNC system
Security measures: liquid level protection, liquid temperature protection, automatic fire extinguishing devices and Power failure return,contact perception,diagnosis and error message etc functions
