Microwave sensor motion sensor for automatic sliding door
- Category: >>>
- Supplier: Xiamen Universal Electronic Co. Ltd.
Share on (1600513307113):
Product Overview
Description
Products Description
2. Equipped with electronic filtering function to make it has a strong anti-interference ability, effectively adapt to rain and wind, lighting, and other special cases.
Product Paramenters
Realization technology | Microwave and microprocessor |
Launch frequency | 24.125GHZ |
Launch power | <20 dBm EIRP |
Launch frequency density | <5mW/cm² |
Assemble an altitude maximal | 3.5M |
Assemble a dip angle | 15° ,30° ,45° , 60° |
The maximum checks range (while assembling 2.2 meters of altitude | 4m(W) *2m(H) |
Checking pattern | Move |
The minimum checks speed | 5cm/s (Along the longitudinal axis of air wire to tests) |
Power source frequency | 50-60 HZ |
Maximal contact voltage | 42V AC-60V DC |
Maximal contact electric current | 1A (Electric resistance) |
The maximum change power | 30W(DC) / 60VA(AC) |
Output retention time | 0.5 second |
Temperature range | -20°C to +55°C |
Protection rate | IP 52 |
Outer covering material | ABS Plastic |
Outer covering color | Black |

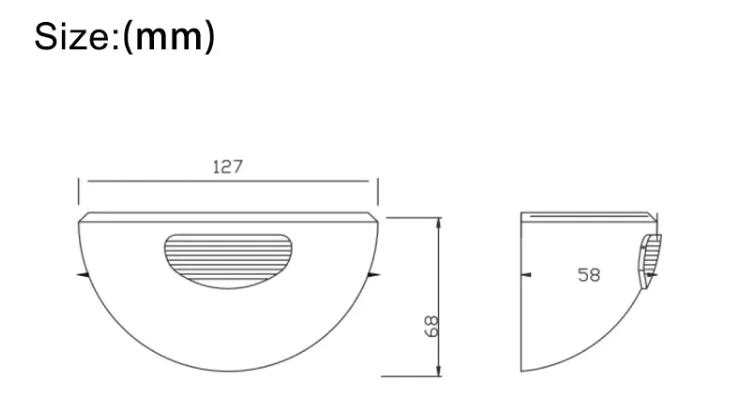

External form dimension | 128mm(L) * 66mm(W)* 60mm(H) |
Weight | 0.100kg |
Conducting wire length | 2.5m |

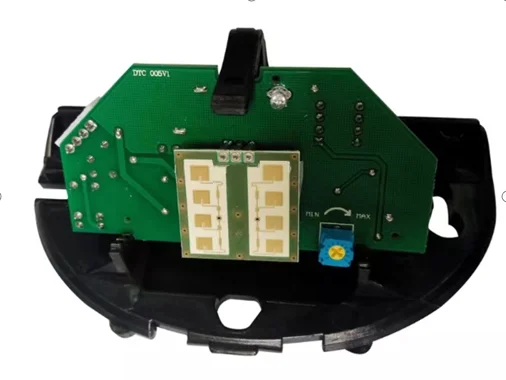

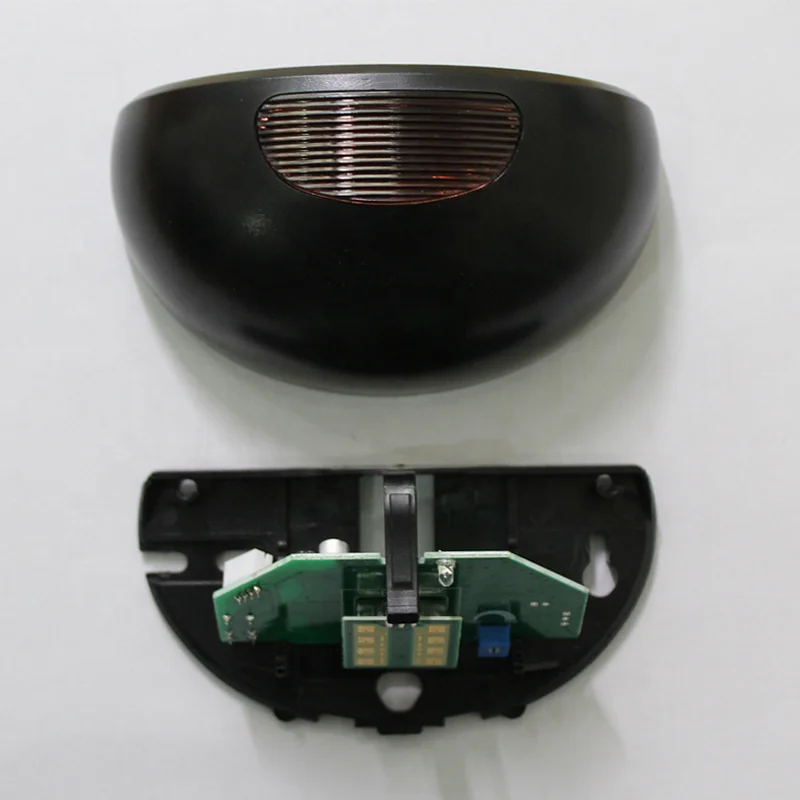

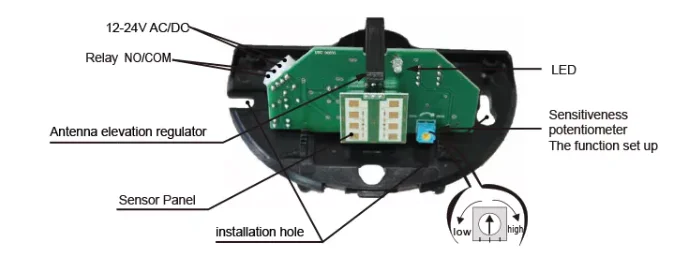

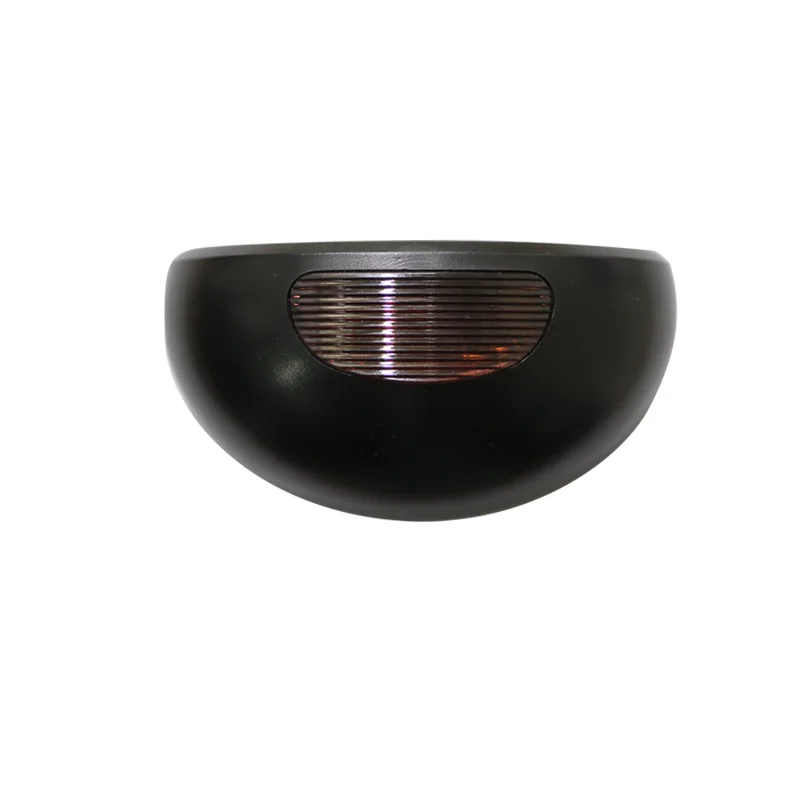

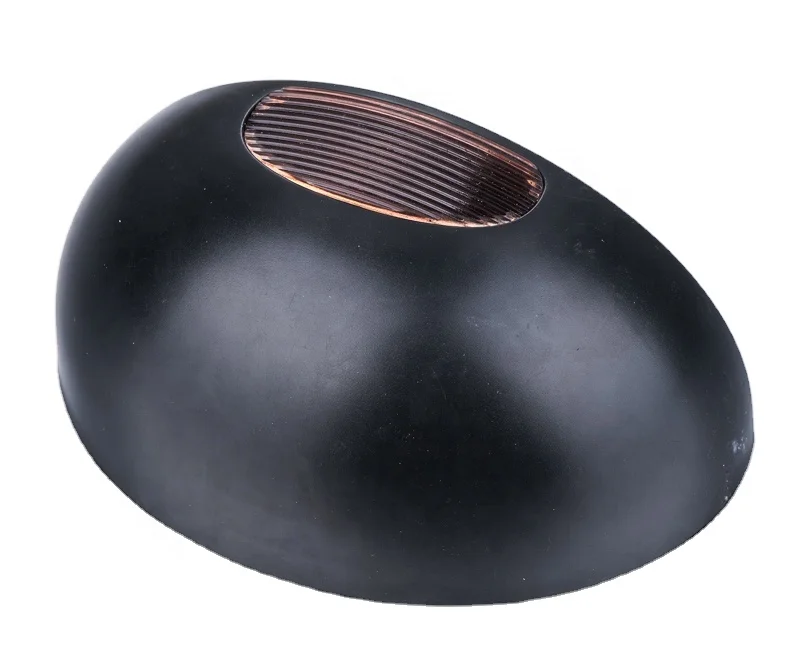

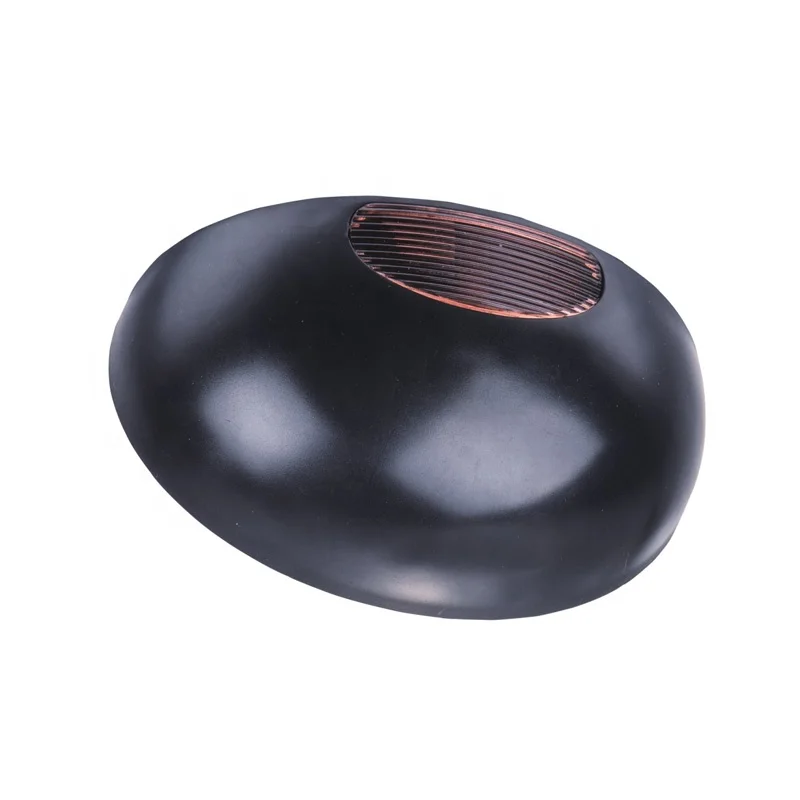

Details Images

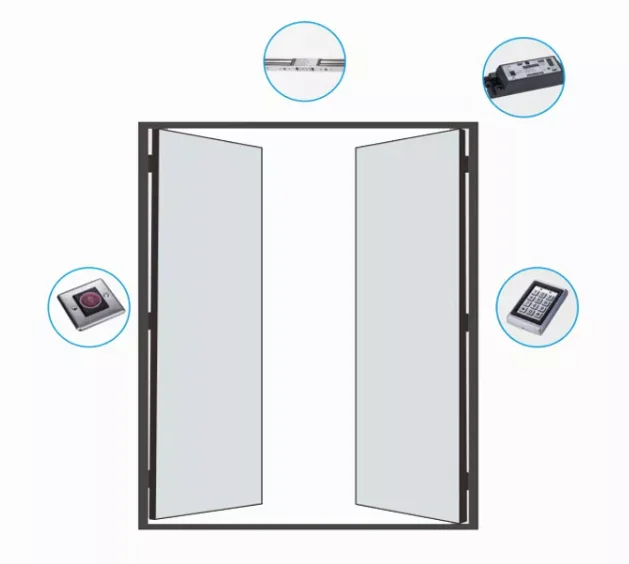

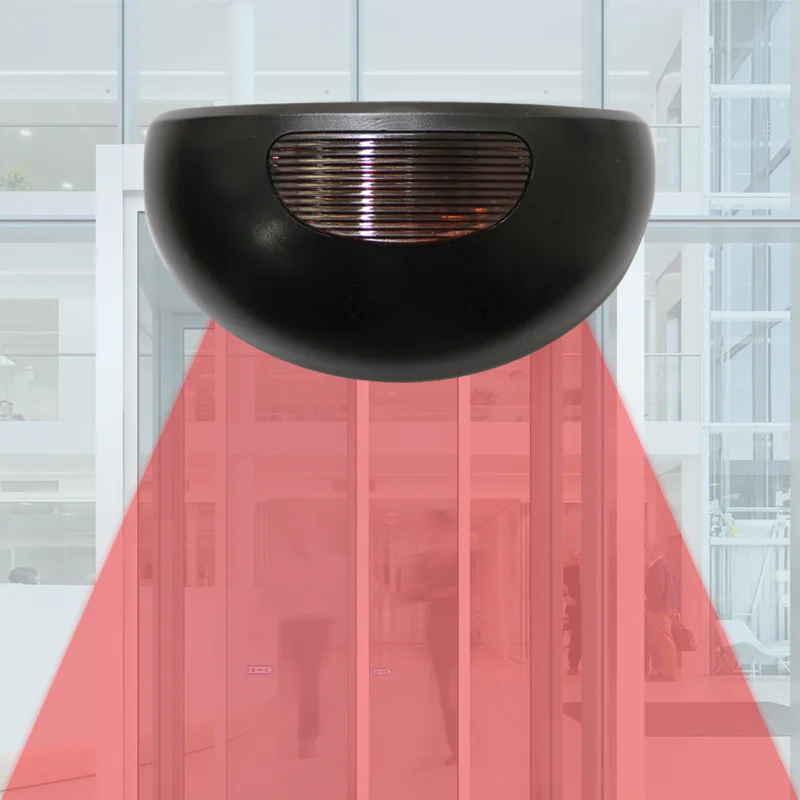

Application
Recommend Products

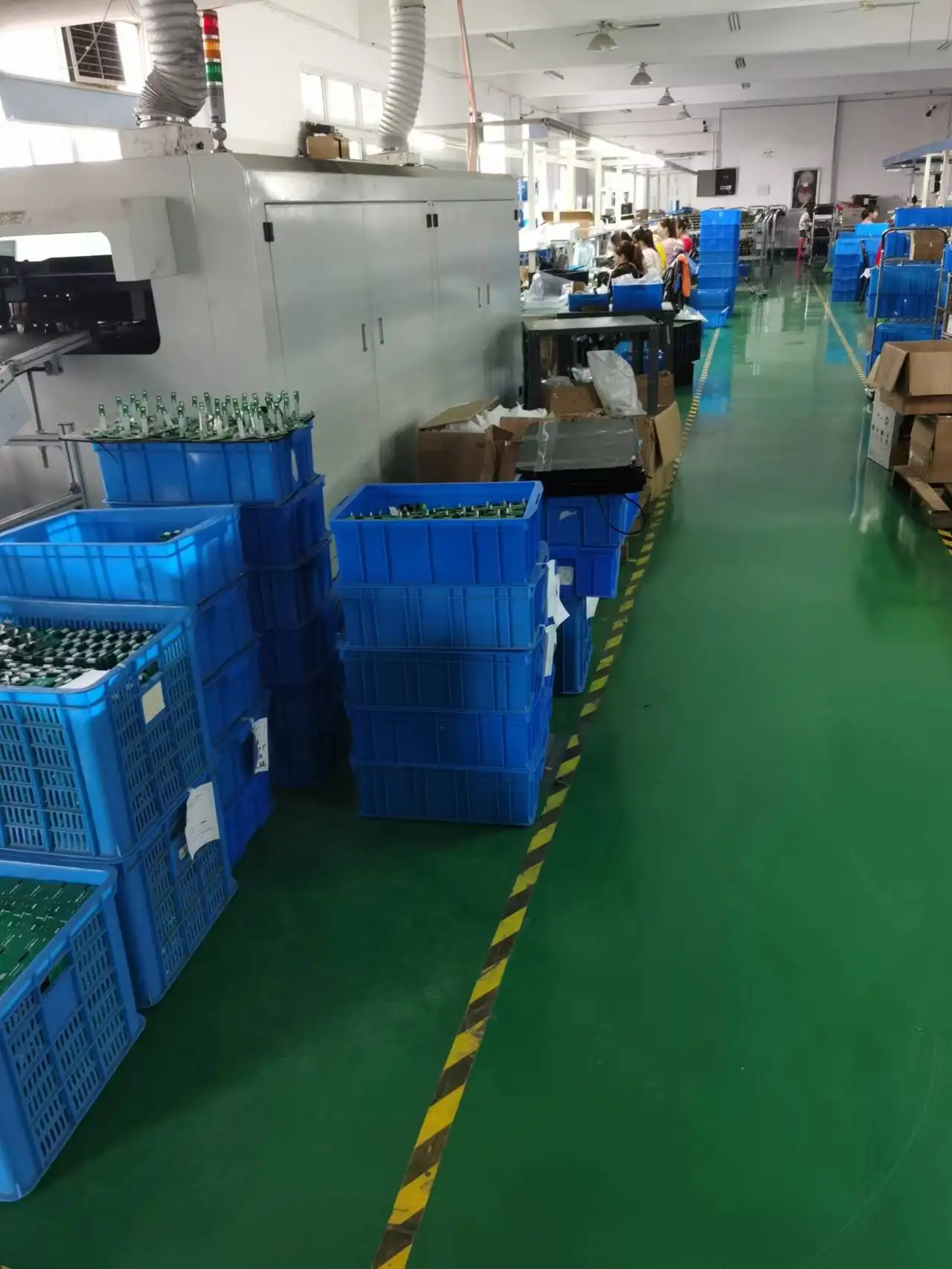

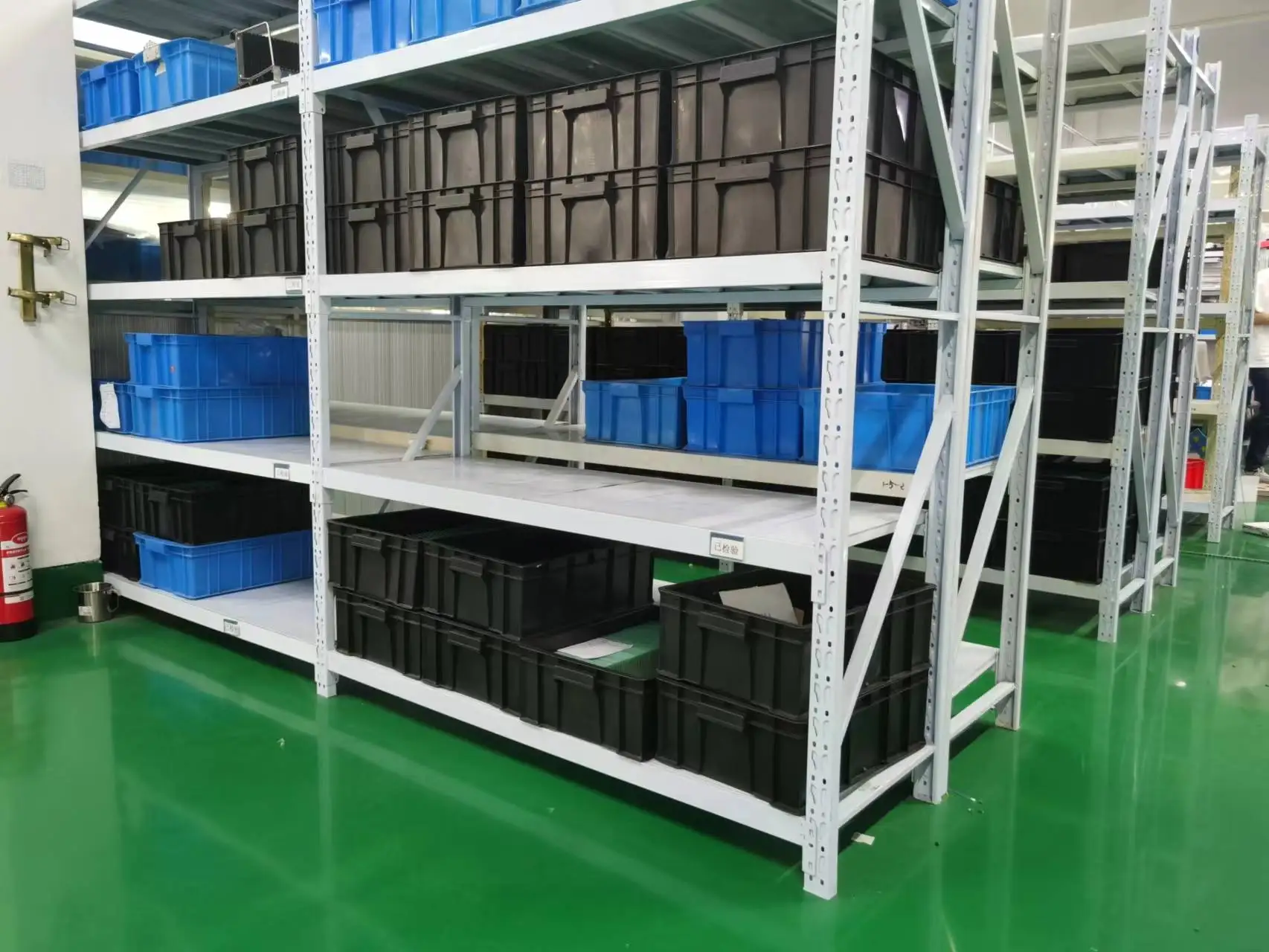

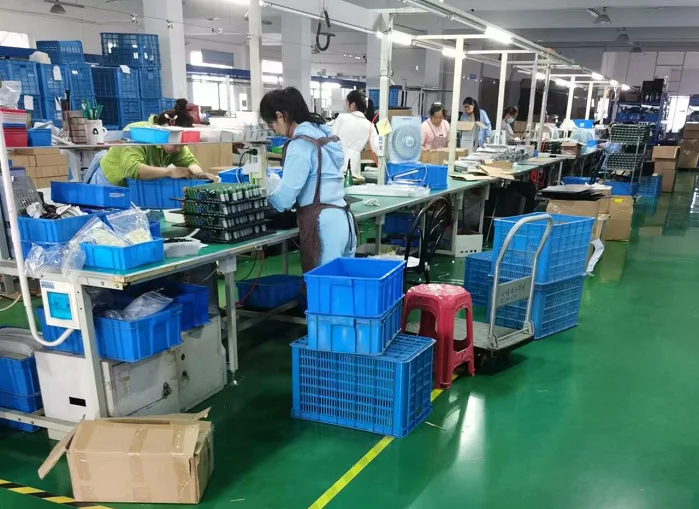

Factory
Certifications
Why Choose Us
1. Any inquiries will be answered within 24hours, we have been tilling in the automatic door & gate industry for more than 20 years.
2. Professional automatic door solution service provider.
3. OEM available:
1)Customized logo or color box
2)Any idea of yours on the automatic door accessories, we can manage to fulfill and put it into production.
4. High quality, fashion leading, reasonable&competitive price.
5. After-sale service:
1) All products will go through strict quality check in our factory before packing, we have an experienced QC team who is in charge of quality checking before shipping.
2) All products will be well packed before shipping.
3) All our products have a 1-year warranty, and we are sure our products will be free from maintenance within the warranty period in general.
6. Produce according to order, brand new product, fast delivery.
2. Professional automatic door solution service provider.
3. OEM available:
1)Customized logo or color box
2)Any idea of yours on the automatic door accessories, we can manage to fulfill and put it into production.
4. High quality, fashion leading, reasonable&competitive price.
5. After-sale service:
1) All products will go through strict quality check in our factory before packing, we have an experienced QC team who is in charge of quality checking before shipping.
2) All products will be well packed before shipping.
3) All our products have a 1-year warranty, and we are sure our products will be free from maintenance within the warranty period in general.
6. Produce according to order, brand new product, fast delivery.
