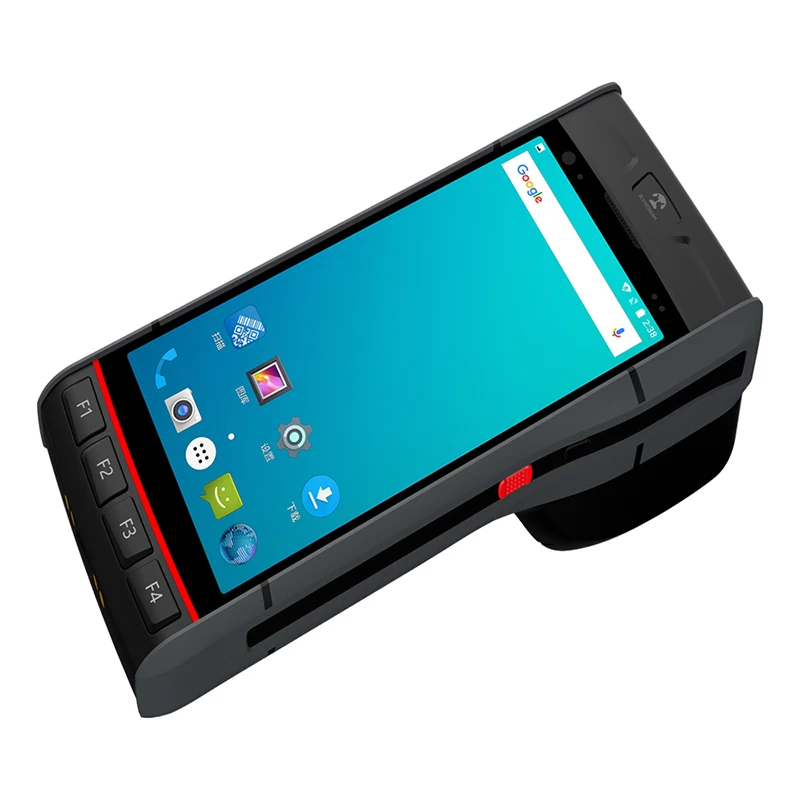

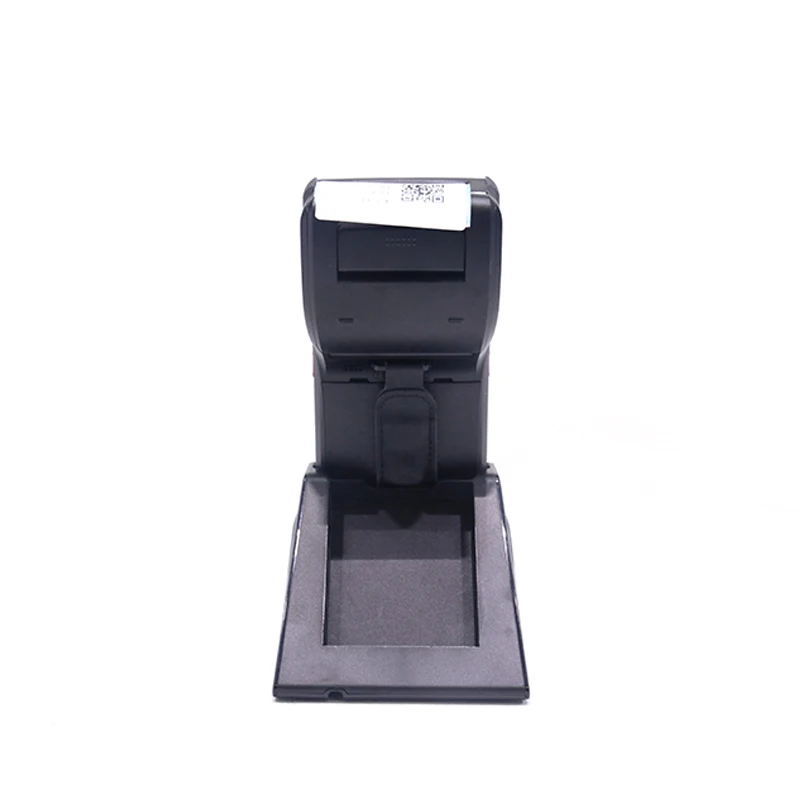

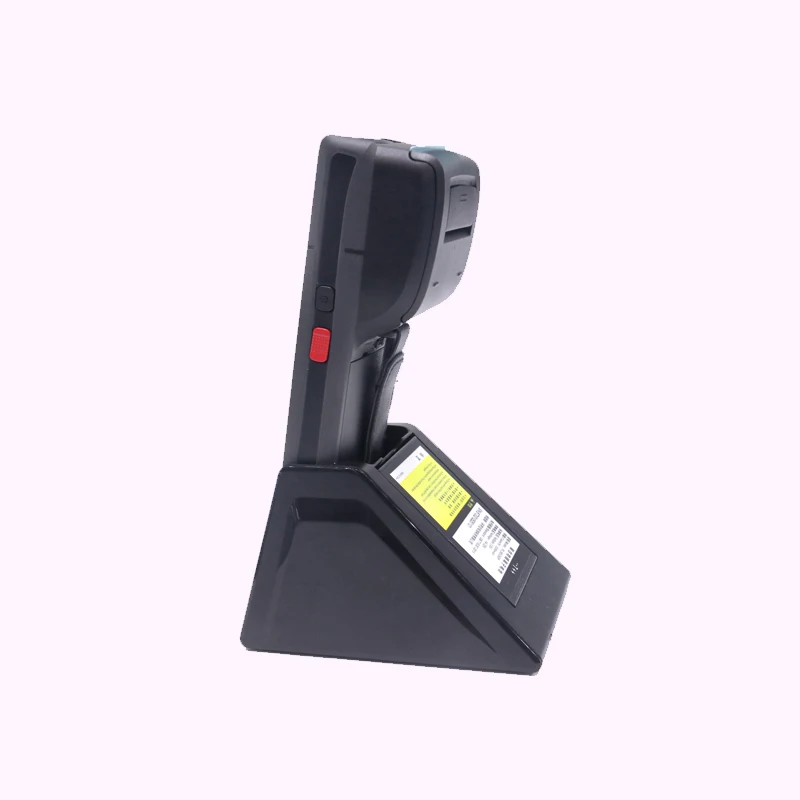

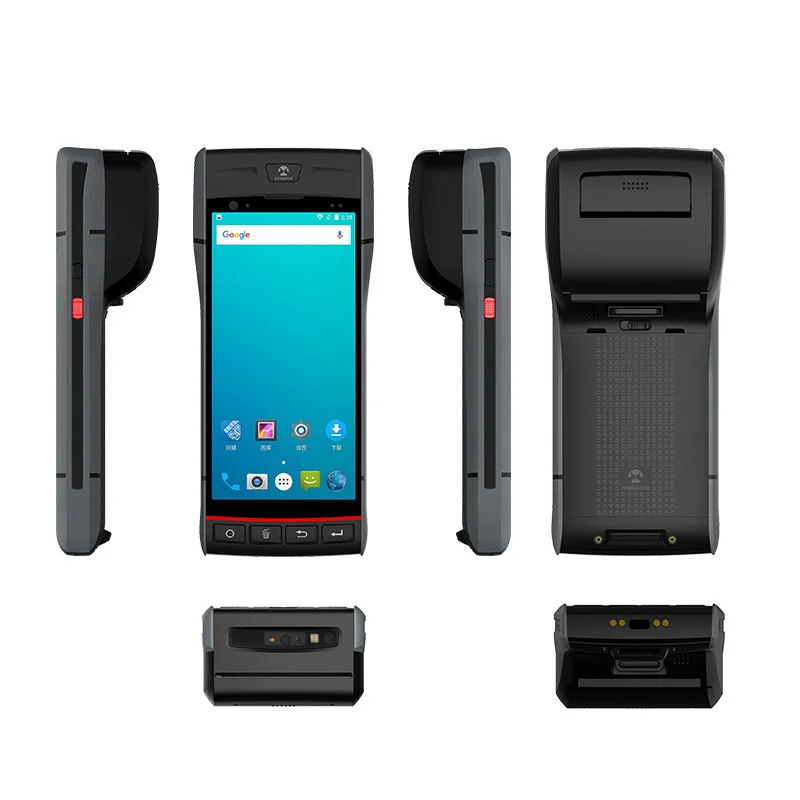

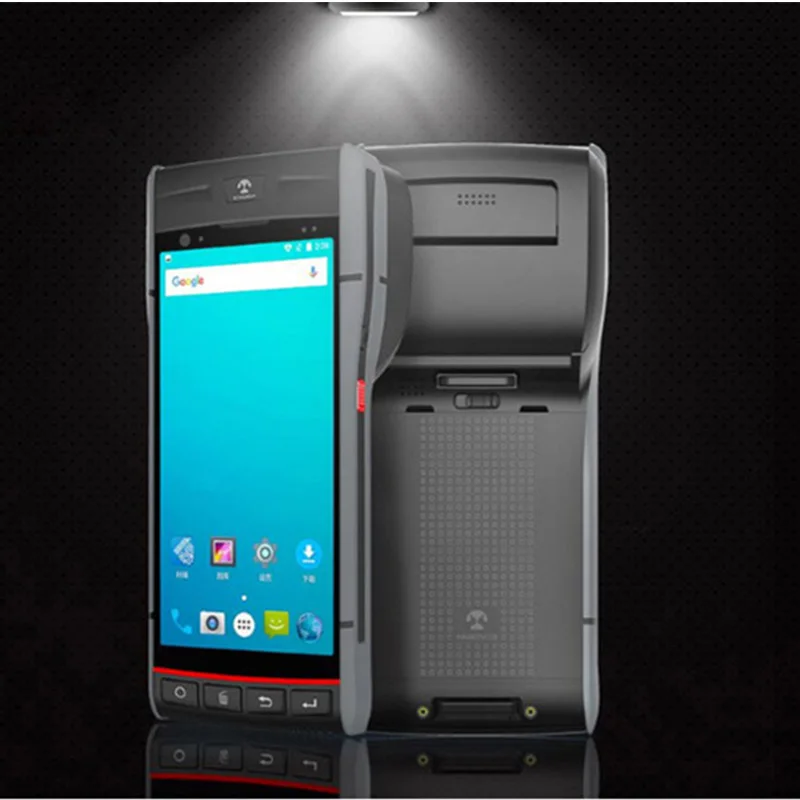

Rugged Handheld Android POS PDA 1D 2D QR Barcode Scanner NFC RFID Reader Printing Portable Data Terminal
- Category: >>>
- Supplier: Shenzhen Rugline Technology Co. Ltd.
Share on (1600513310066):
Product Overview
Description
Appearance
Products Description
Product Paramenters
Handheld PDA POS RS60 | ||
Performance | ||
Quad core | ||
CPU | Cortex-A53 Quad-core 64-bit 2.0GHz high-performance processor | |
RAM+ROM | 2GB+16GB Supports up to 3GB+32GB or 4G+64G | |
Expand memory | Micro SD(TF) Supports up to 128GB | |
System | Android 9.0 | |
Data communication | ||
WLAN | Dual-band 2.4GHz / 5GHz, Supporting IEEE 802 a/b/g/n/ac protocol | |
WWAN | 2G：GSM（850/900/1800/1900mhz） | |
3G：WCDMA（850/900/1900/2100mhz） | ||
4G：FDD:B1/B3/B4/B7/B8/B12/B20 | ||
TDD:B38/B39/B40/B41 | ||
BT | Support BT 2.1+EDR/3.0+HS/4.1+HS Transmission distance 5-10 meters | |
GNSS | Support Gps, Galileo, Glonass, Beidou | |
Physical parameter | ||
Dimensions | 177mm×72mm×(23.7-48.8)mm | |
Weight | ＜500g (Depends on device function configuration） | |
Display | 5.5 inch IPS color display with resolution 720*1440 | |
TP | Corning gorilla glass, Supports multi-touch Supported gloves and wet hands | |
Battery capacity | Rechargeable polymer battery (3.8V 5600MAh) removable | |
Standby time >350 hours | ||
Working time > 12 hours | ||
Charging time 3-4H, Using standard power adapter and data cable | ||
Fast charging:1.5H（Optional） | ||
Expansion Card slot | PSAM x 2, Nano SIM card x 1 , TF card × 1 | |
Communication interface | Type-C USB x 1, OTG | |
Audio | Speaker (mono), Microphone, Earpiece | |
Keypad | Silicone button: Power button, Volume +/- button, Scan button × 2 | |
Sensors | Gravity sensor, Light sensor, Proximity sensor, Vibration motor | |
Data collection | ||
Barcode scanning (Optional) | ||
2D Imager scanner | Newland EM3090 Honeywell N3601 Honeywell N6603 | |
2D Symbologies | PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code, Maxicode,Hanxin Code,etc. | |
Thermal sticker printer | ||
Printing speed | 70mm/s | |
Print points | 384 dots | |
Paper width | 58mm | |
Paper diameter | 35mm | |
Paper type | Support for Sticker / label Black mark printing | |
Camera | ||
Rear camera | 13MP HD camera,Support auto focus, Flash, Anti-shake, Macro shooting | |
Front camera | 2MP color camera | |
NFC (optional) | ||
Frequency | 13.56MHz | |
Protocol | Support ISO14443A/B, 15693 agreement | |
Distance | 2cm-5cm | |
Language/input method | ||
Input | English, Pinyin, Five strokes, Handwriting input, Support soft keypad | |
Language | Language packs in Simplified Chinese, Traditional Chinese, English, Korean, Japanese, Malaysian,etc. | |
User environment | ||
Operating temperature | -20℃ - 55℃ | |
Storage temperature | -40℃ - 70℃ | |
Environment humidity | 5%RH--95%RH(no condensation) | |
Drop specification | 6 sides Supports 1.2 meters drops and 30 times to the concrete within the operating temperature | |
Rolling test | 500×0.5m rolling for 6 sides | |
Sealing | IP66 | |
Accessories | ||
Standard | Adapter, Data cable, Protective film, Instruction manual | |
Certifications
Packing and Shipping
Standard Packaging
International Express
Contact
Jason | Sales Manager
Shenzhen Rugline Technology Co., Ltd.
T:+86-0755-89221485;
M:+86-13713810467;
Skype: xcl.jason ;
Whatsapp: +86-13713810467;
E: jason@rugline-tech.com
T:+86-0755-89221485;
M:+86-13713810467;
Skype: xcl.jason ;
Whatsapp: +86-13713810467;
E: jason@rugline-tech.com
FAQ
Q :Are you manufacturer?
A: Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.we can even customized with your logo if needed. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
Q: Can i choose multiple function into 1 device?
A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID (LF/HF/UHF),Fingerprint/ Bar code scanner.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online,Western Union,Paypal,Alipay,Trade Assurance and so on.
Q: What's Your Products Warranty?
A: We Offer 12 Months Warranty after shipment sent.
Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 24/36 Months, and the price for the warranty extension is 10% up.
Q: How long it will take for delivery?
A: For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we could send the parts or components and teach customer to fit if they have technician or can also send back to us to fix it.
Q: Can you do customized and preload our software?
A:We are professional rugged device manufacture with 11 years experiences, support customize project and preload software.
A: Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.we can even customized with your logo if needed. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
Q: Can i choose multiple function into 1 device?
A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID (LF/HF/UHF),Fingerprint/ Bar code scanner.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online,Western Union,Paypal,Alipay,Trade Assurance and so on.
Q: What's Your Products Warranty?
A: We Offer 12 Months Warranty after shipment sent.
Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 24/36 Months, and the price for the warranty extension is 10% up.
Q: How long it will take for delivery?
A: For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we could send the parts or components and teach customer to fit if they have technician or can also send back to us to fix it.
Q: Can you do customized and preload our software?
A:We are professional rugged device manufacture with 11 years experiences, support customize project and preload software.
