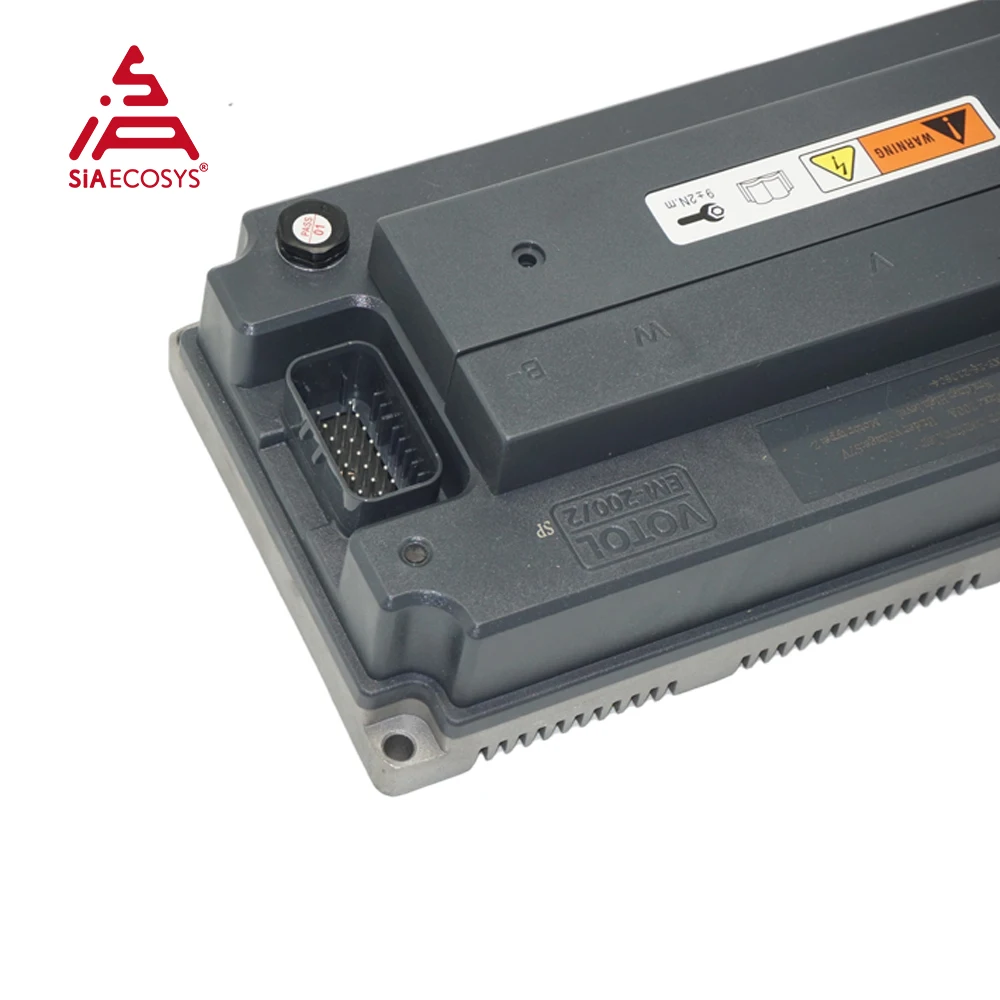

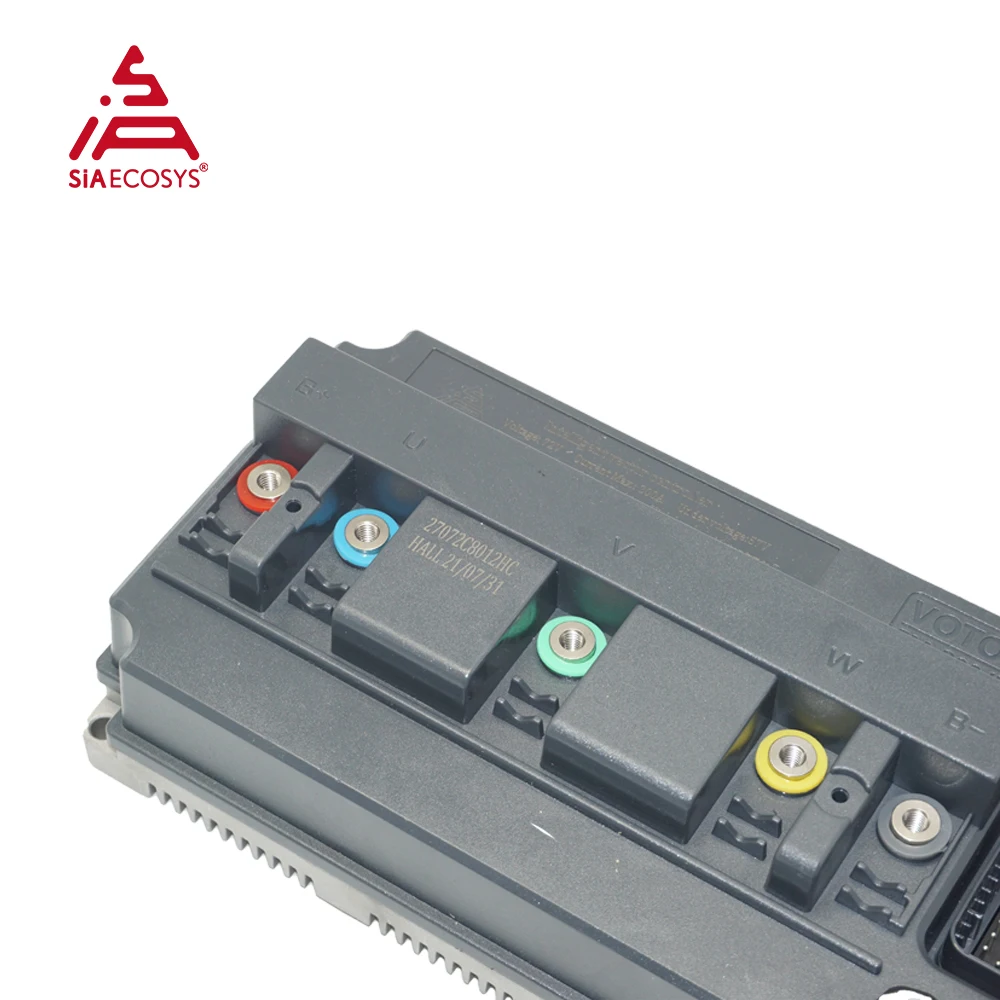

SiAECOSYS/VOTOL Programmable EM200 2sp 72V 600A 130KPH Controller for Electric Scooter Bike E Motorcycle

Product Overview

Description

SiAECOSYS/VOTOL Programmable EM200-2sp 72V 600A 130KPH Controller for Electric Scooter Bike E-Motorcycle

EM series controller is sine wave type controller, which is brushless DC controller with flux-weakening. Generally, it matches well with QS Motors, if you want to match with new brand motor, some parameters should be tested by yourself.

P.S. If you have any confused about the shipping cost, please feel free to contact with us.

Also could place order but don't pay first, then we could adjust the price.



ATTENTION:Please note the matched motor parameters when placing the order.

In this way, we can adjust the controller to the best condition for the customer before delivery.

1/If it is matching hub motor, please tell us the motor speed, polar number, motor size and model;

2/If it is matching mid drive motor, please tell us the motor power.

We recommend to match Votol controller with QSMOTOR.(It may not work properly with other brands motors)



One set including below kits

1. 1pcs X EM200-2sp sine wave controller with CAN BUS



Key Features

1). The materials are imported.

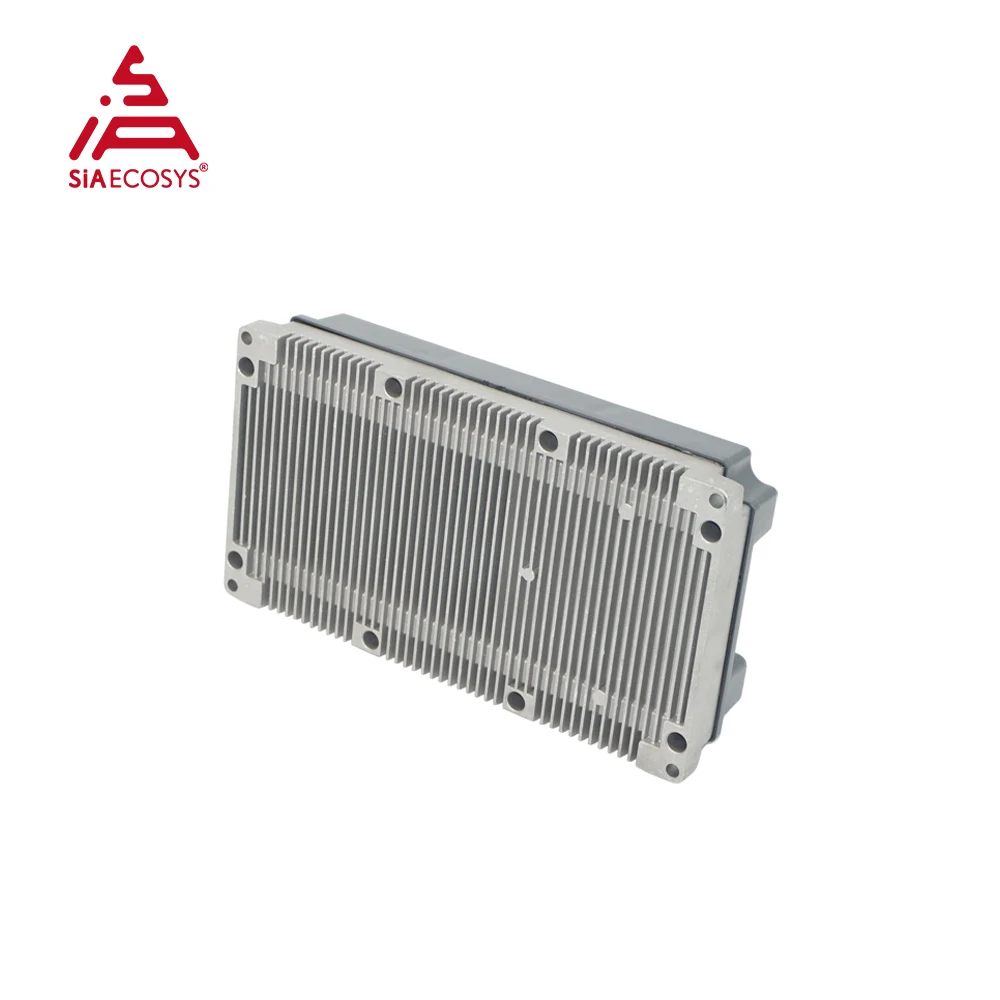

2). With the aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board

3). Small in size

4). High efficiency, low temperature rise, small running current

5). With flux weakening function



Product Description

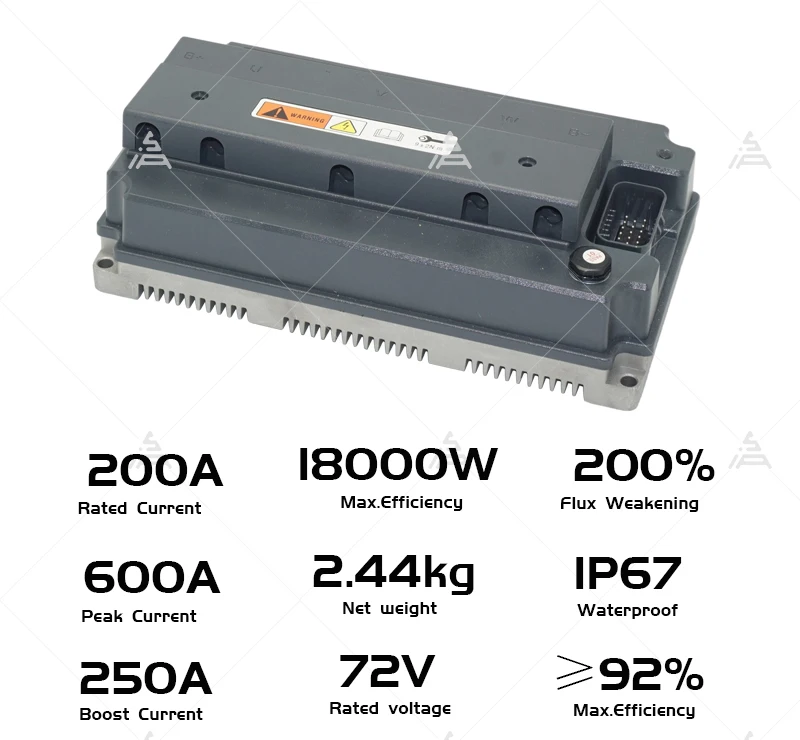

EM200-2sp is cost effective controller with waterproofing grade IP67, suit for 4-8kW motors.

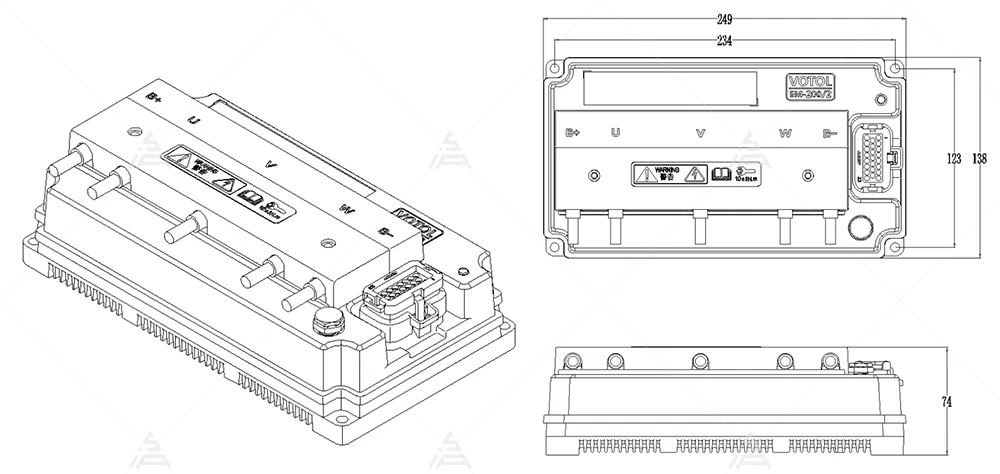

Drawing

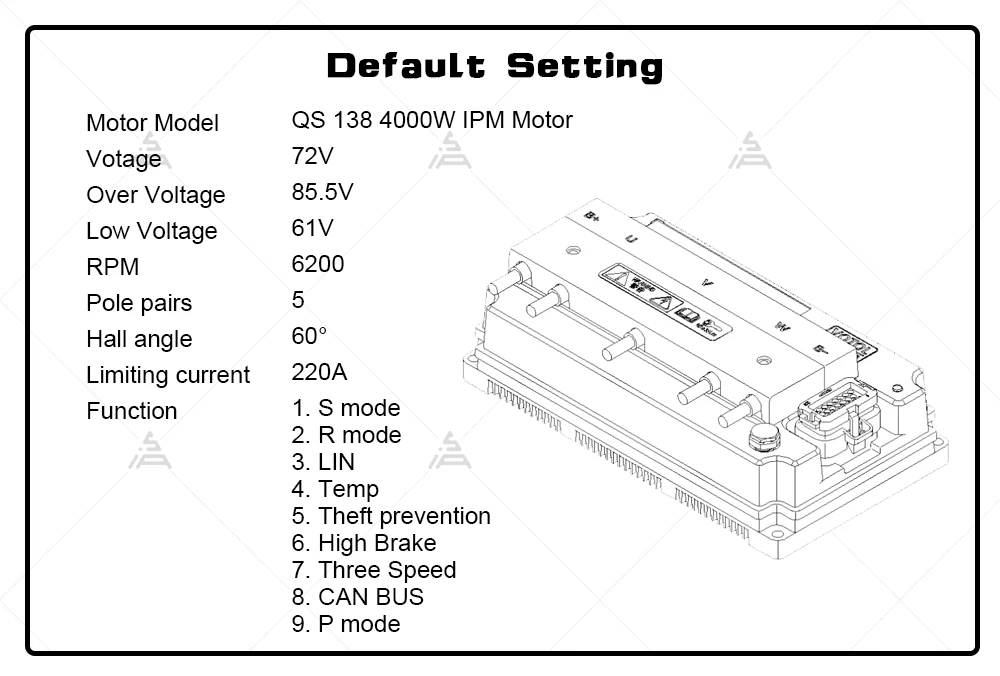

Default Setting

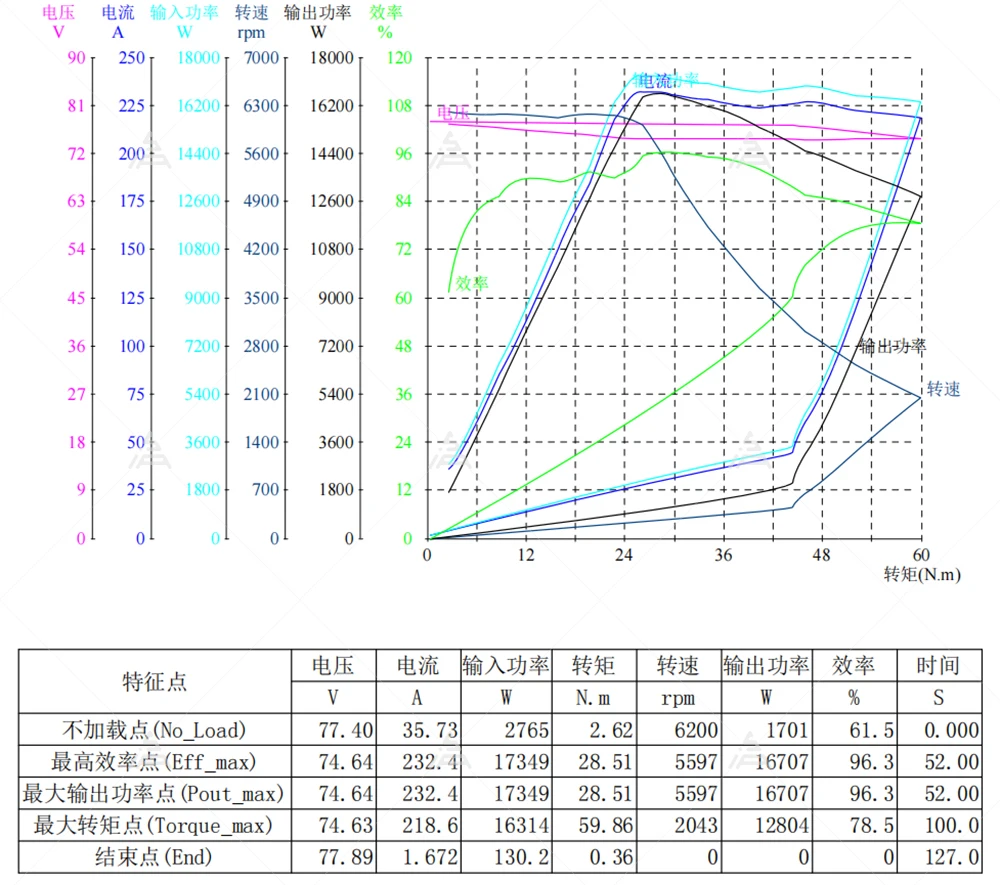

Test Report

EM200-2sp with QSMOTOR 138 4000W mid drive motor

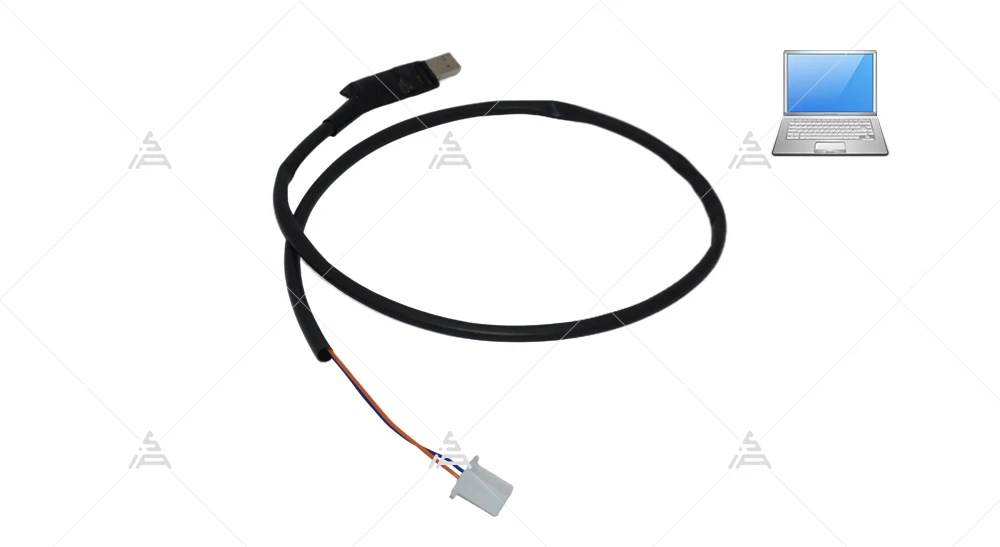

Debugging Cable

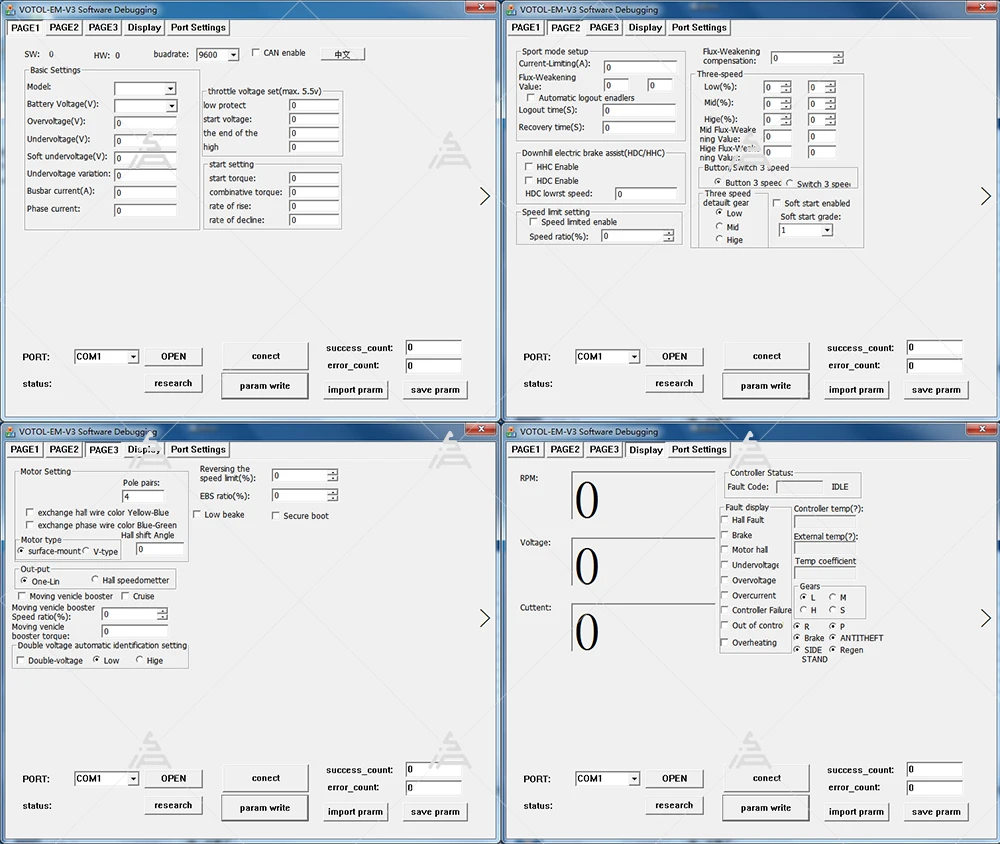

Software interface(PC)

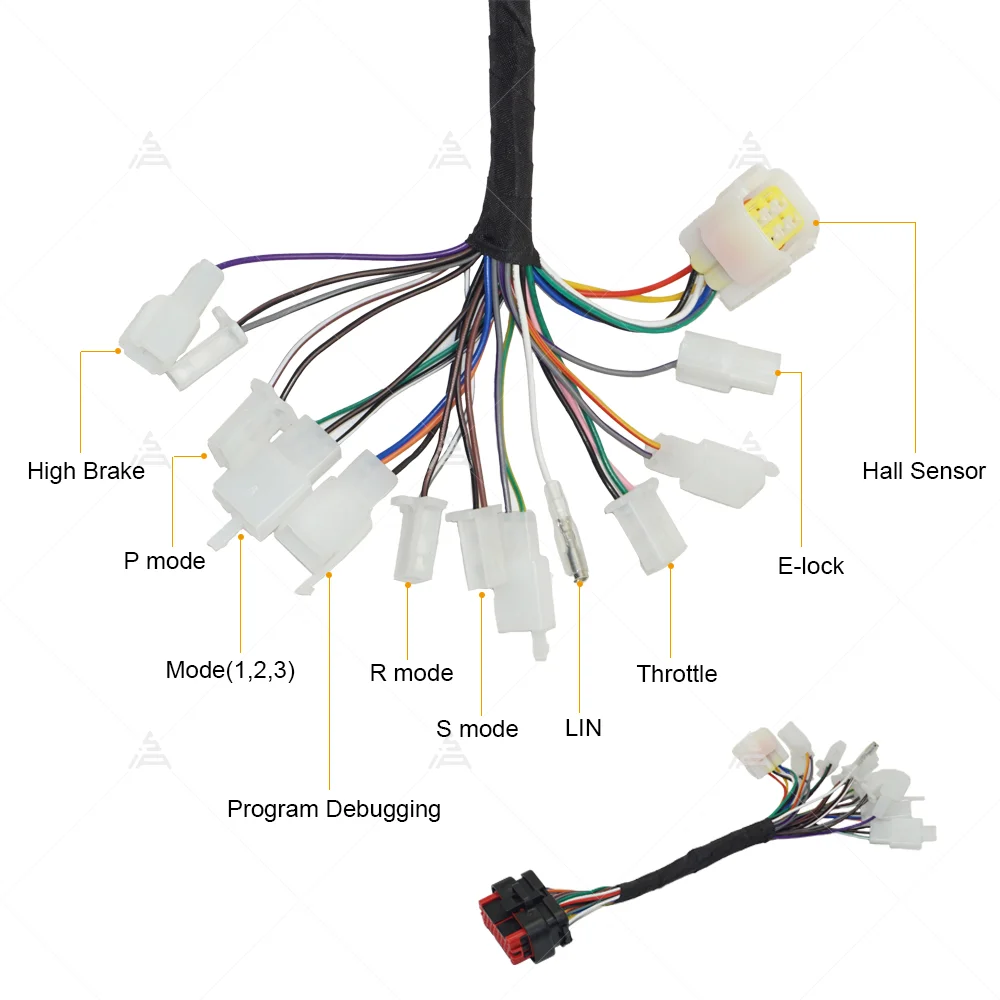

Wiring Diagram

For the detail of wiring manual, pls contact our online service.











Programmable Software & User manual (Before you received the controller)

Pls. Contact with sales to get the link and password to download the manuals and software before/when you got the controllers.
