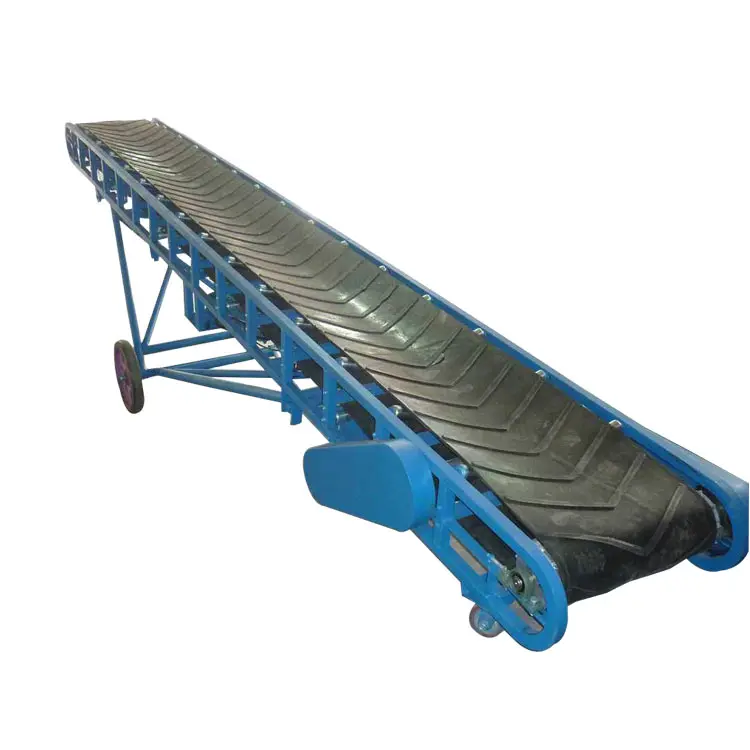

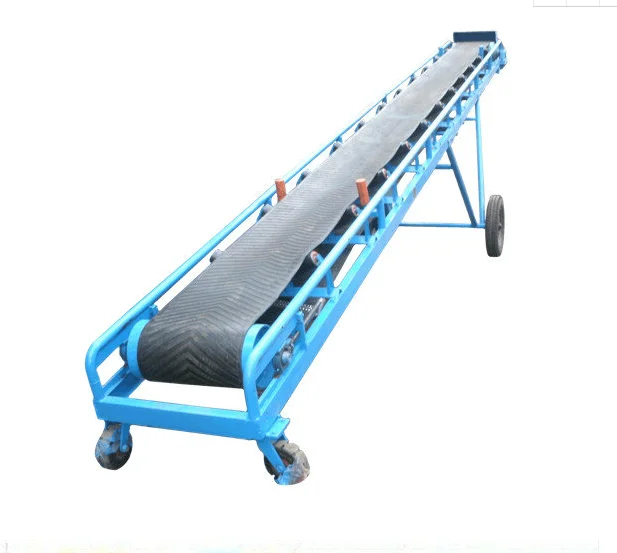

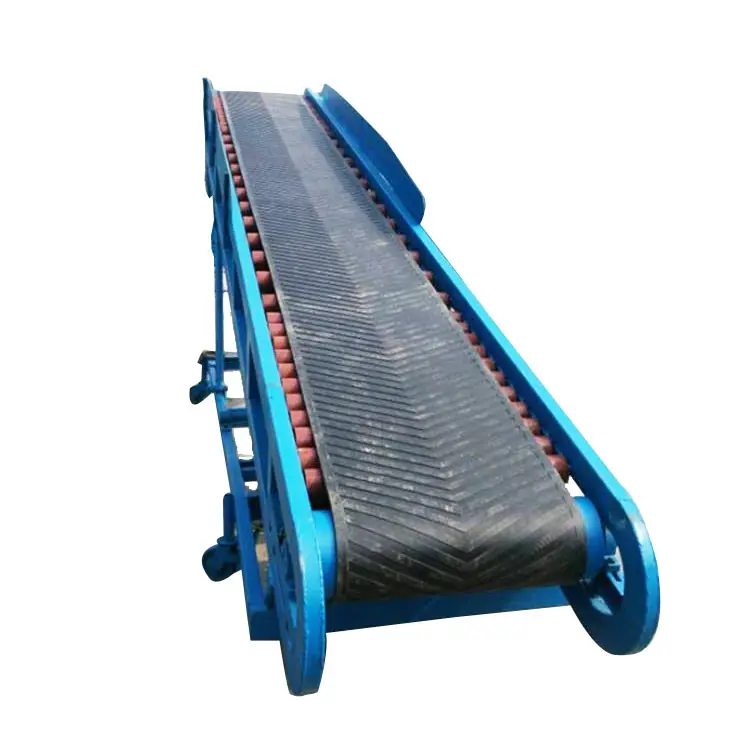

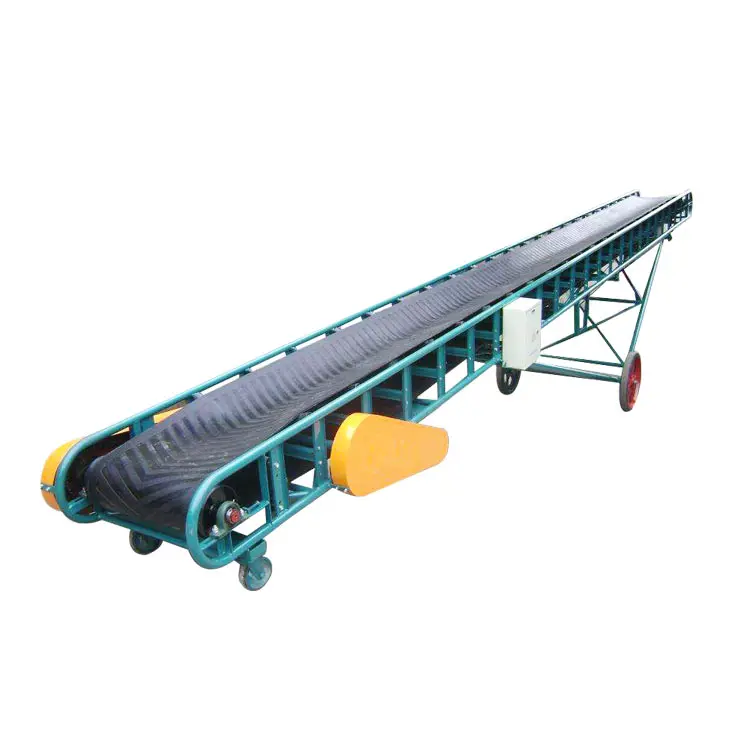

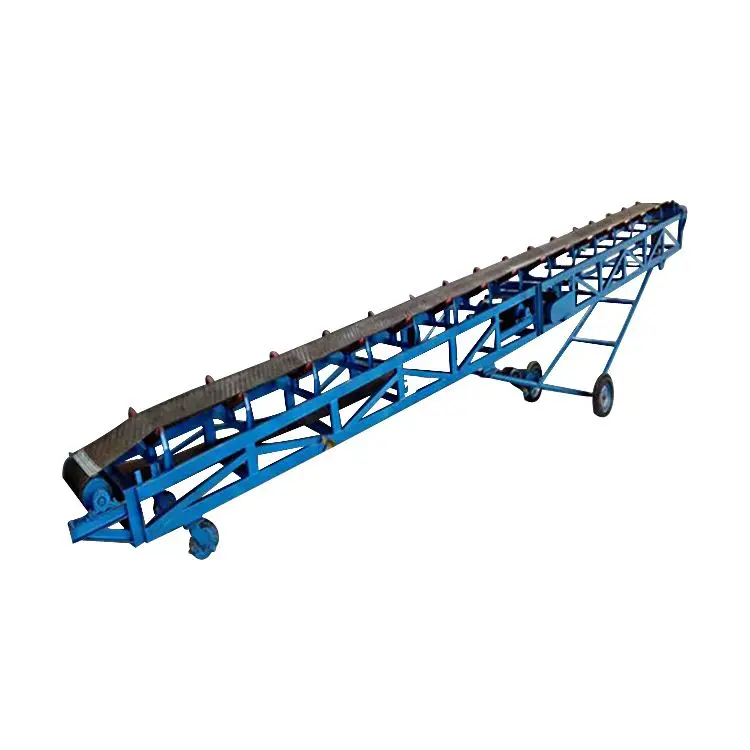

DY series industrial mobile belt conveyor for coal bulk material sand transporting
- Category: >>>
- Supplier: Henan Lanyi Environmental Technology Co. Ltd.
Share on (1600513326681):
Product Overview
Description
DY series industrial mobile belt conveyor for coal bulk material sand transporting
Our advantages on mobile belt conveyor:
1).OEM service.
2).Factory direct sales and discounts for new customer
3).professional engineer team
4).Thorough after-sale service.
5): The production time is about 5 working days.
Product Description
DY type mobile belt conveyor is a high-efficiency, safe and reliable, and highly mobile continuous loading and unloading equipment. It is mainly used in places where loading and unloading sites are frequently changed, such as ports, docks, stations, coal yards, warehouses, construction sites, sand and gravel yards, farms, etc., used for short-distance transportation and loading and unloading of bulk materials or bags and Cartons.DY type mobile belt conveyor is divided into two types: adjustable and non-adjustable. The operation of the conveyor belt is driven by electric drum. The lifting and running of the whole machine are non-motorized.
Technical parameter
| Model | Belt Width (mm) | Length(m) | Belt Speed (m/s) | Lifting Height | Slope Angle | Capacity (m³/h) |
| DY-500 | 500 | 3-25 | 0.8-2.0 | adjustable by motor | 0-30 | 50-140 |
| DY-650 | 650 | 3-25 | 0.8-2.0 | adjustable by motor | 0-30 | 100-250 |
| DY-800 | 800 | 3-25 | 0.8-2.0 | adjustable by motor | 0-30 | 170-350 |
| DY-1000 | 1000 | 3-25 | 0.8-2.0 | adjustable by motor | 0-30 | 270-550 |

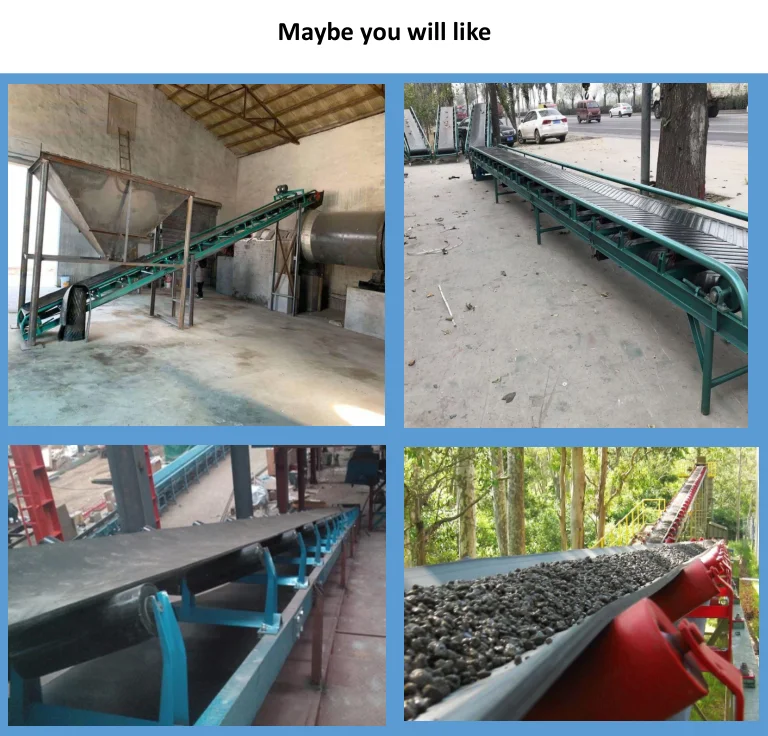

Hot selling
 |  |  |
| Fixed belt conveyor | Belt conveyor | PVC food grade belt conveyor |
The belt conveyor main parts:
Application:

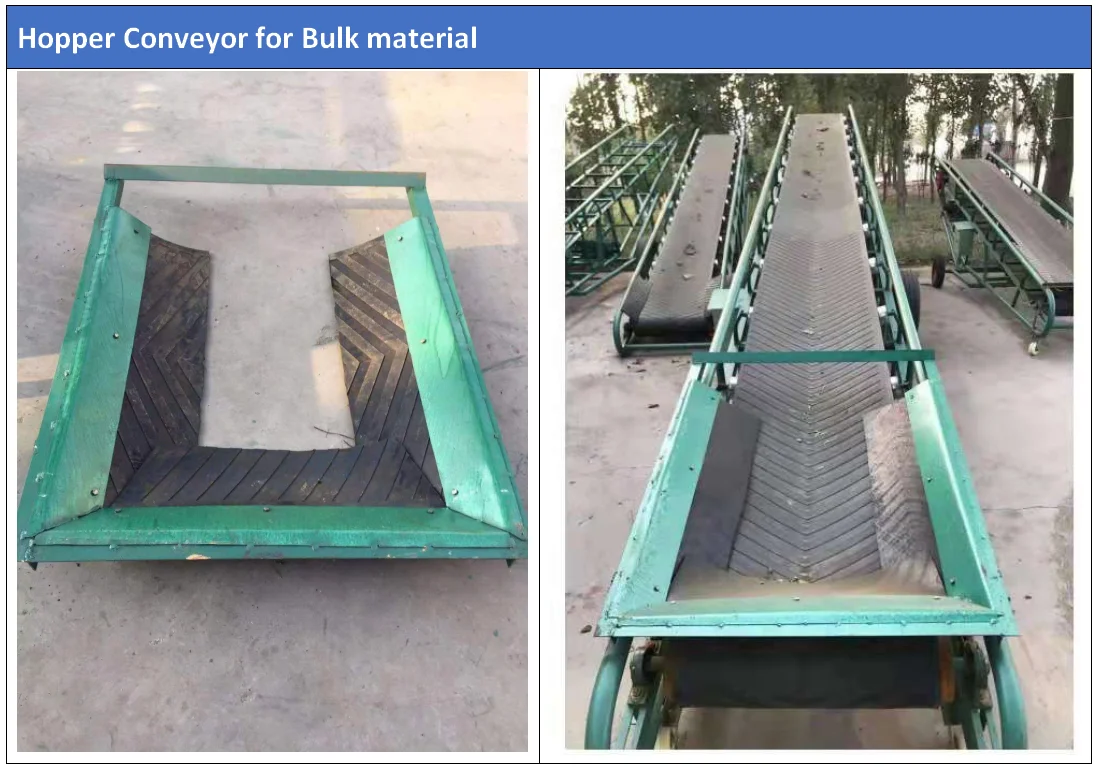

Bulk material: cement, sand, gravel, grain, fertilizer, sugar, salt, cookies etc.
Other material: cartons, bags, machine parts etc.
Product Overviews
How to confirm the model?
1.The capacity that you require?
2.Whats the material to be conveyed?
3.The conveying length and the width of the belt?
4.Whether need adjust height of the motor?
5.The conveying angle?
Our Conveyor Main functions:
1): With Forward and reverse runnig ways.

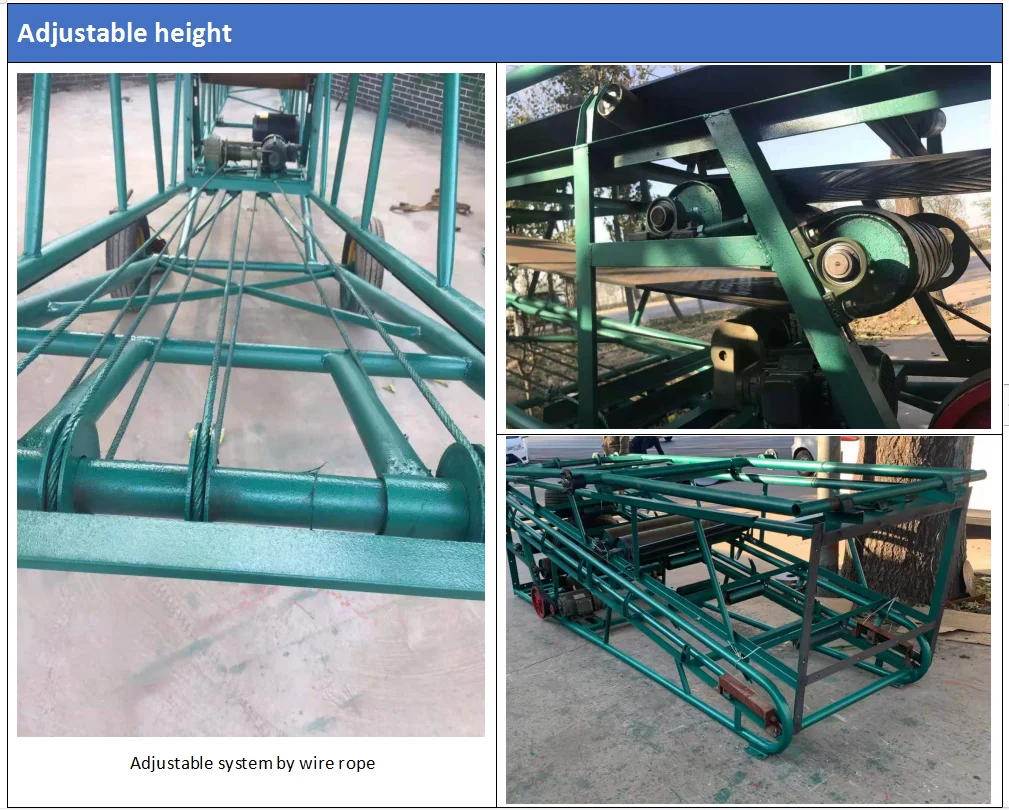

2): With Adjustable height by Electrical Motor.
3):For truck loading and unloading.
4): Profesional design, Move easlily.

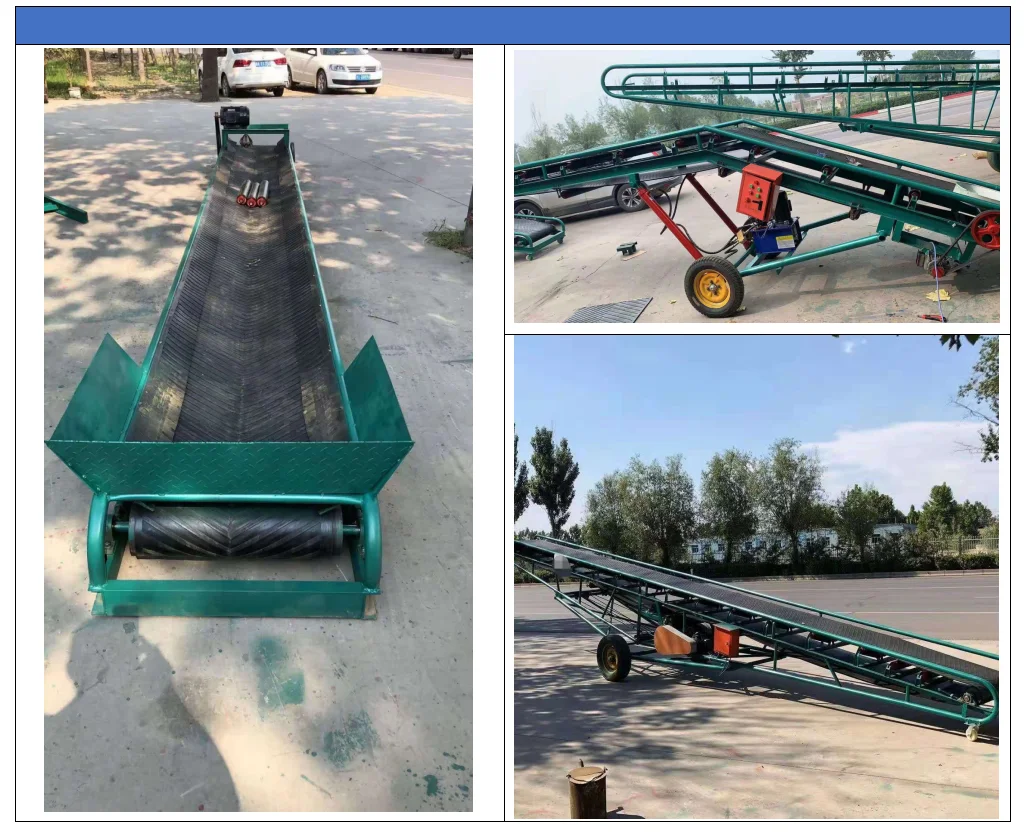

Product details:

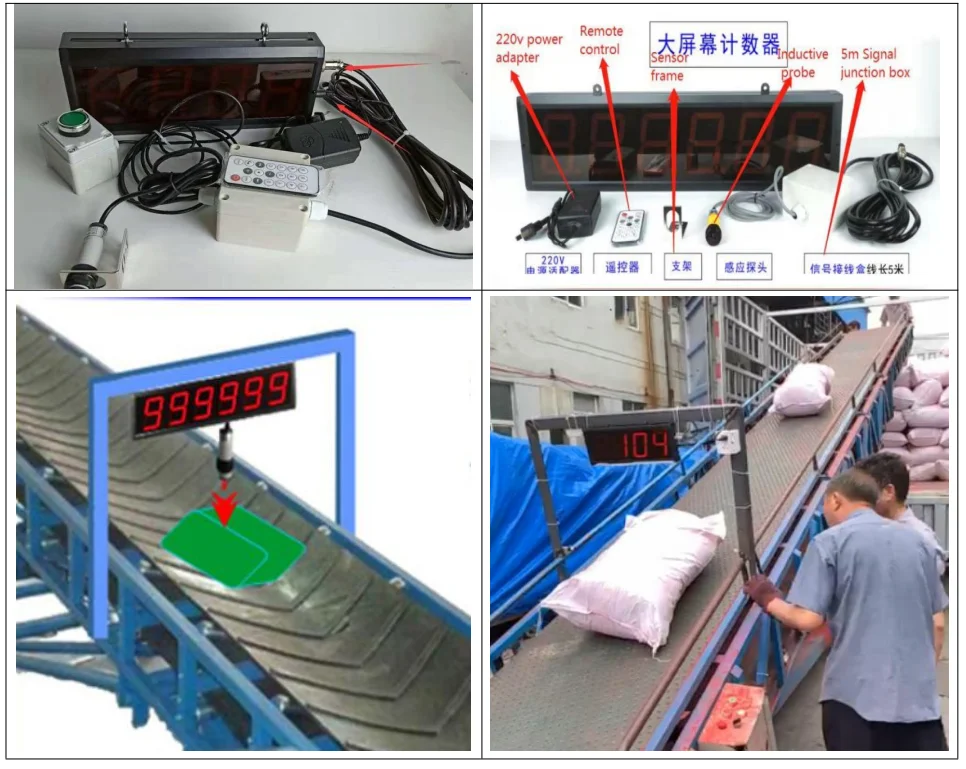

100% accurate counting Conveyor Counters for sacks and cartons:
Packaging & Shipping
1: The production time is about 5-7working days.
2: the machine will be package by the export standard plywood box or by the container.
3: About the shipping, Our factory use the most professional forwarders and vessel company, to make sure customers goods to arraive at the destination port safely.

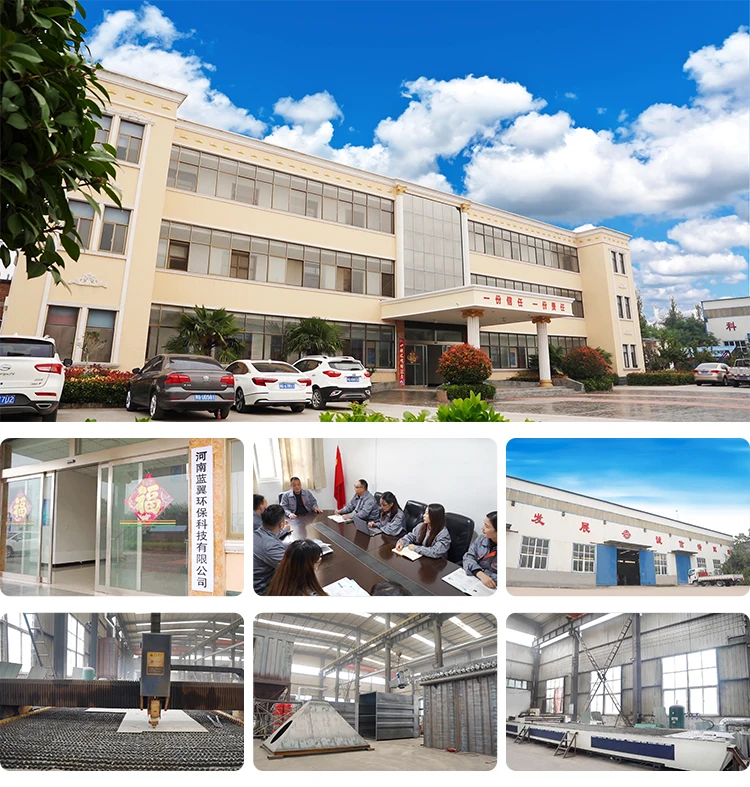

Company Information
Henan Lanyi Environmental Technology Co., Ltd.is a professional manufacturer integrating technology development ,design, manufacture, installation and after-sales service. Our company is mainly engaged in the processing and manufacturing of screening equipment, conveying equipment. The main products are including belt conveyor ,vibrating screen machine,screw conveyor ,bucket elevator and lift platform.Our products are widely used in chemical ,building materials,food,biological,pharmaceutical and other industries.
Customer visit
Certification
FAQ
FAQ
Are you a factory or trading company?
We are a factory
The payment Term
We company accept T/T,L/C,Western Union Credit Card and so on.
The delivery time
Normal delivery time within 7 working days, complete production line or larger equipment may take longer. Exact delivery shall be confirmed when place the order.
The quality
Welcome to our factory and check the quality of product.And we will send you the video and pictures before shipment after you order.
Equipment warranty
Equipment with 12 months warranty, can be extended to 24 months as request.
