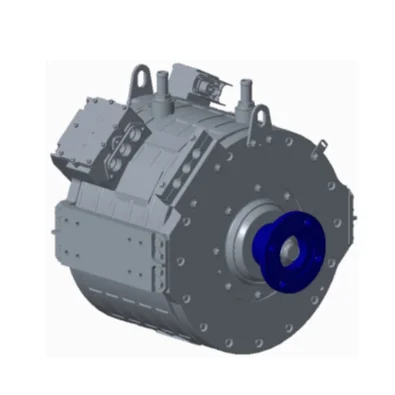

Rawsuns GOOD 2100Nm 160kW synchronous electric motor inverter ev conversion kit controller for 8.5m city bus
- Category: >>>
- Supplier: Rawsun Technology (shantou) Co. Ltd.
Share on (1600513330852):
Product Overview
Description
Product Description
RAWSUN Direct drive system
RDD series products
Rawsun Technology (Shantou) Co., Ltd. is a growing company committed to power generation and electric drive system solutions. Rawsun EV systems cover 10kw to 450 kw automotive and Marine electric systems, which include electric vehicle drive systems,vehicle control systems and lithium battery systems, Rawsun EV systems are mainly used in electric passenger cars, special electric commercial vehicles, electric buses from 6 meters to 18 meters, electric trucks from 2 tons to 110 tons, electric ships and electric engineering machines.
Scope of supply:Non-standard products, customized solutions according to your needs.

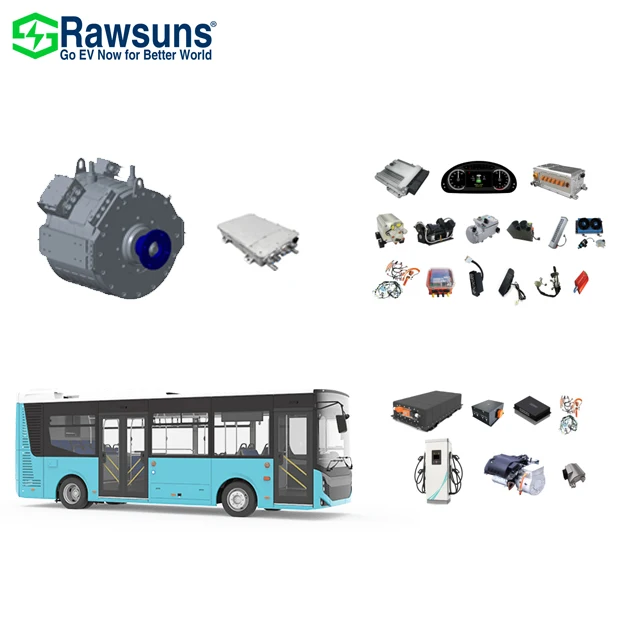

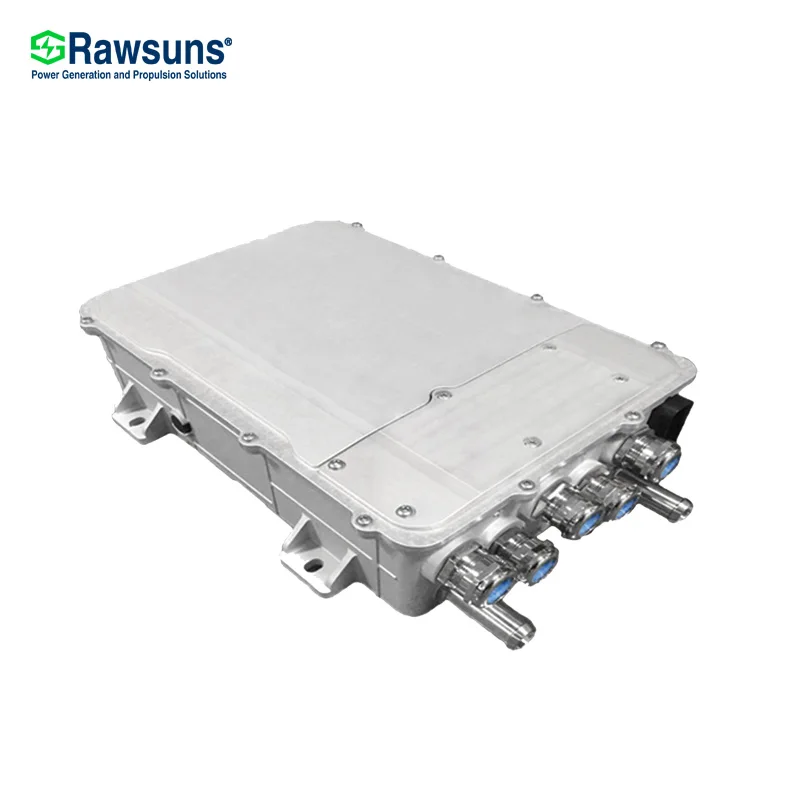

-- EV Drive System (1. Drive motor 2. Motor controller 3.Gearbox 4. Axle)

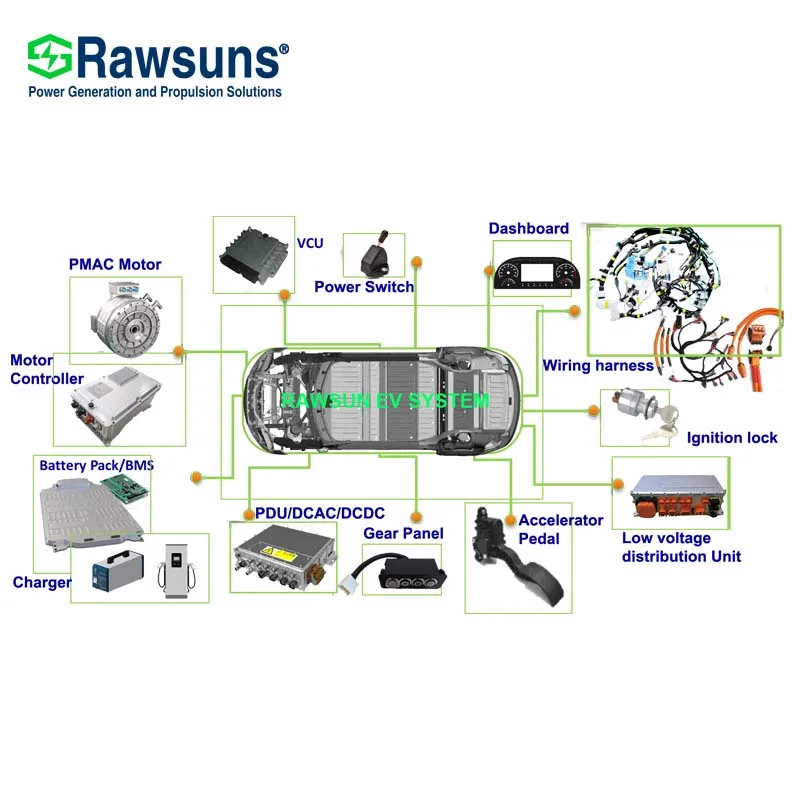

-- EV Control System ( 5.VCU with software 6.BMS with software 7.Dashboard 8.PDU/Precharge/DCDC/DCAC/DCAC/OBC Integrated Controller 9.Steering hydraulic pump 10. Braking air pump 11. Air Conditioner 12. HV Defroster 13. HV Heater 14.Intelligent cooling system 15. System Wire harness 16. Low voltage distribution box 17. Gear Panel/Operator 18. Accelerator pedal/Operator 19. Ignition lock 20.CANbus Analyzer )
-- EV Lithium Battery System (21.battery packs 22. Insulation detector 23. Contactors and fuses 24.Current sensor 25.Temperature sensors 26. MSD 27. Battery PDU 28. Human Machine Interface 29. Thermal management system 30. Battery Wire Harness 31. AC Charger 32. DC Charger 33. Range extender (DC generator ) 34. EVCC Module 35. SECC Module Rawsun has provided full electric systems for electric trucks, electric yachts, electric farming vehicles, electric buses,electric trucks, electric garbage trucks, electric sightseeing boats,electric winches, hybrid amphibious vehicles, electric tractors, electric heavy trucks ect.to vehicle/boat/ machinery manufacturer customers from East Asia, Southeast Asia,Africa,Oceania , Mid-east, Europe and America.

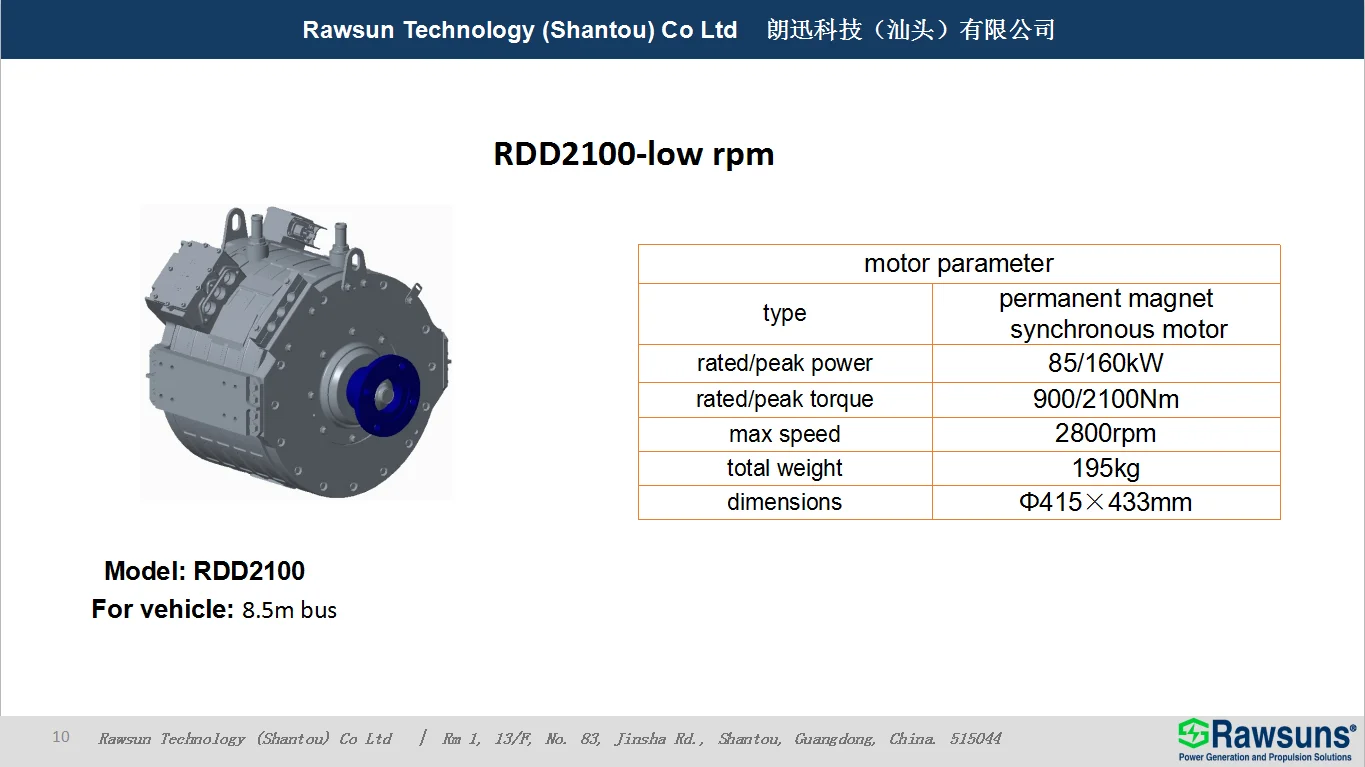

Direct Drives EV Kits independently developed by Rawsun uses permanent magnet synchronous motors,peak speed coverage 2600-5000 Nm peak torque coverage 850-2800 Nm,peak power coverage 120-200 Kw,applied by global OEMs, with High torque/power density, Excellent smoothness, Low noise and High reliability.
Rawsuns GOOD 2100Nm 160kW synchronous electric motor inverter ev conversion kit controller for 8.5m city bus
Rawsun EV motor
RAWSUN 7kw - 360kw traction motor and conversion kit for electric vehicles/boats
Rawsun EV motor have wide ranges applications for Low-Speed vehicles, Passenger vehicles, Commercial vehicles, TAD(Transmission-mounted electric drive), DM (Direct-drive motor) , PHD (Parallel Hybrid drive), MHD (Multi-mode Hybrid Drive),EAD(Electric Alex Drive)., We also provide motor controller, DCDC, DCAC, PDU, OBC, VCU, dashboard, Pedal, gear panel, battery pack with BMS, WireHarness to complete the ev conversion kit.

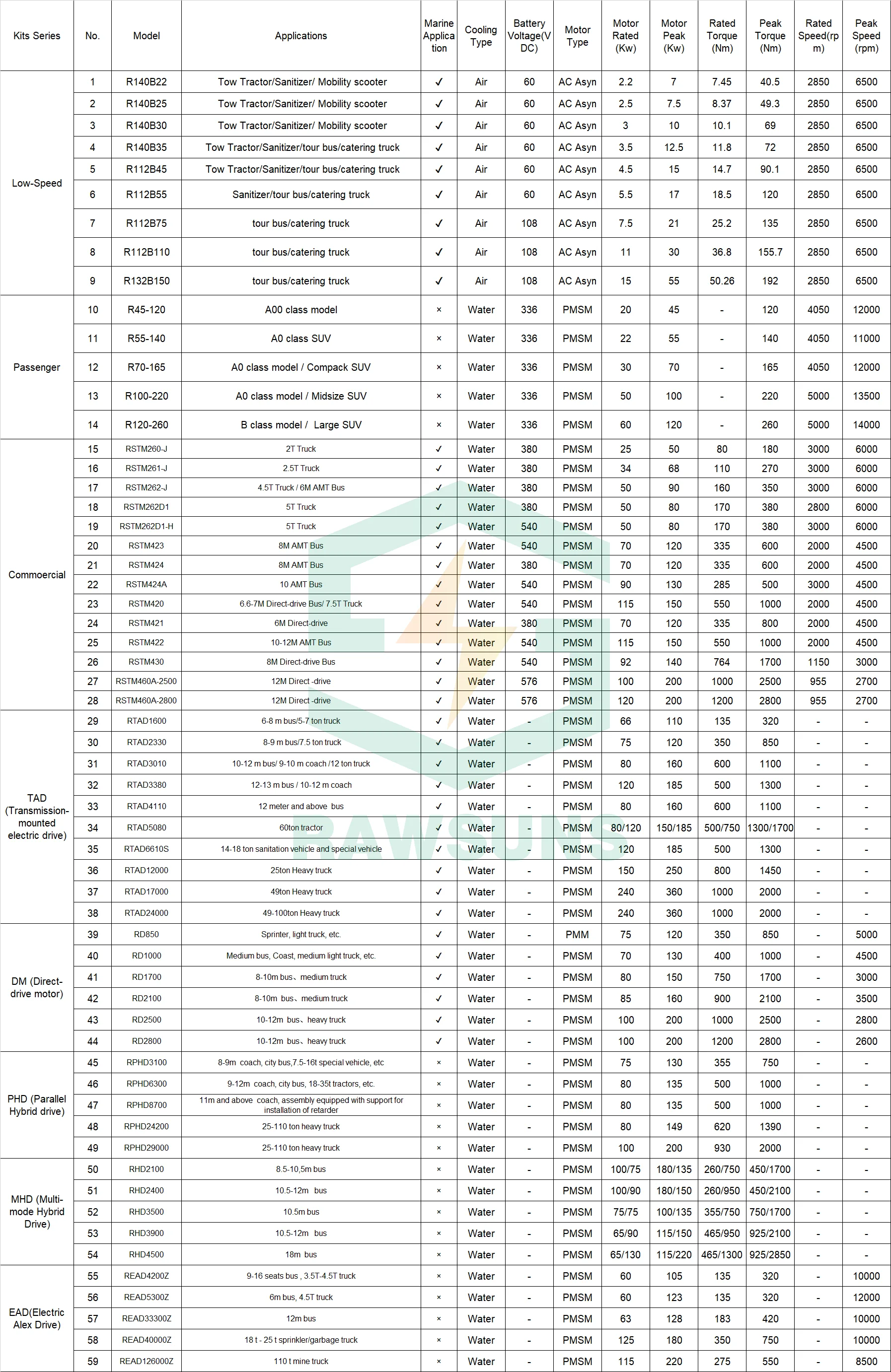

Model | Applications | Battery Voltage | Motor Rated KW | Motor Peak KW | Tmin /N.m | Tmax/N.m | Speed min rpm | Speed max rpm | Imax/A |
RSTM260-J | 2T Truck | 380 | 25 | 50 | 80 | 180 | 3000 | 6000 | 190 |
RSTM261-J | 2.5T Truck | 380 | 34 | 68 | 110 | 270 | 3000 | 6000 | 320 |
RSTM262-J | 4.5T Truck / 6M AMT Bus | 380 | 50 | 90 | 160 | 350 | 3000 | 6000 | 300 |
RSTM262D1 | 5T Truck | 380 | 50 | 80 | 170 | 380 | 3000 | 6000 | 385 |
RSTM262D1-H | 5T Truck | 540 | 50 | 80 | 170 | 380 | 3000 | 6000 | 288 |
RSTM423 | 8M AMT Bus | 540 | 70 | 120 | 335 | 600 | 2000 | 4500 | 295 |
RSTM424 | 8M AMT Bus | 380 | 70 | 120 | 335 | 600 | 2000 | 4500 | 370 |
RSTM424A | 10 AMT Bus | 540 | 90 | 130 | 285 | 500 | 3000 | 4500 | 300 |
RSTM420 | 6.6-7M Direct-drive Bus/ 7.5T Truck | 540 | 115 | 150 | 550 | 1000 | 2000 | 4500 | 340 |
RSTM421 | 6M Direct-drive | 380 | 70 | 120 | 335 | 800 | 2000 | 4500 | 374 |
RSTM422 | 10-12M AMT Bus | 540 | 115 | 150 | 550 | 1000 | 2000 | 4500 | 340 |
RSTM430 | 8M Direct-drive Bus | 540 | 92 | 140 | 764 | 1700 | 1150 | 3000 | 350 |
RSTM460A-2500 | 12M Direct -drive | 576 | 100 | 200 | 1000 | 2500 | 955 | 2700 | 500 |
RSTM460A-2800 | 12M Direct -drive | 576 | 120 | 200 | 1200 | 2800 | 955 | 2700 | 543 |
Related Products
Company Introduction
Rawsun Technology (Shantou) CO., LTD
Located in Shantou China, with Rawsun Power Co Ltd , one of the largest manufacturing bases of diesel generator sets and motors in Changtai, China, covering an area of 50,000 sq.m. Over the past 15 years, Rawsun Power devoted itself to researching, manufacturing and selling superb diesel generator set and permanent magnet synchronous motors, range from 10KVA to 4000KVA. Rawsun Power produces varied types of generators for different users, including soundproof type, super silent type, containerized type, mobile type, open type ect.
Rawsun has established long-term cooperation with world leading companies, such as CUMMINS, PERKINS, DOOSAN, MITSUBISHI, MTU, STAMFORD,LEROY SOMER,MARATHON ect in the area of generating sets. With the excellent quality and service, Rawsun has built a good reputation with customers, and our products are exported to over eighty countries and regions, over 12000 units production capacity per year.
Relying on the drive motor products and supporting the electric drive controller, Rawsun provides customers with innovative and energy-saving electric drive core components and precise and perfect motor drive solutions, and is committed to becoming the top automotive motor system manufacturer in the world. Rawsun implements the high starting point development strategy, devotes to the product innovation research and development and the enterprise's scientific management, gradually establishes the worldwide marketing service network, equipped with the first-class product sales and technical support team, and improves the pre-sales and after-sales service system. Rawsun ev motor and system has been widely used in full electric buses, electric trucks and electric boats, Rawsun adhering to the concept of lean manufacturing, adhere to the people-oriented, focusing on research and development, take the market as the guidance, take the quality as life, to innovation as the electric propulsion system, provides the omni-directional service for the customer and electric vehicle drive system with the professional solutions. Rawsun strives to create the champion products of environmental protection, precision and stability, and makes unremitting efforts to become an outstanding contributor of global power generation and propulsion solutions.
Rawsun dedicate to provide the green power and propulsion solution all over the world. We will create a great future hand in hand with you - our customers, partners and friends.
Rawsun has established long-term cooperation with world leading companies, such as CUMMINS, PERKINS, DOOSAN, MITSUBISHI, MTU, STAMFORD,LEROY SOMER,MARATHON ect in the area of generating sets. With the excellent quality and service, Rawsun has built a good reputation with customers, and our products are exported to over eighty countries and regions, over 12000 units production capacity per year.
Relying on the drive motor products and supporting the electric drive controller, Rawsun provides customers with innovative and energy-saving electric drive core components and precise and perfect motor drive solutions, and is committed to becoming the top automotive motor system manufacturer in the world. Rawsun implements the high starting point development strategy, devotes to the product innovation research and development and the enterprise's scientific management, gradually establishes the worldwide marketing service network, equipped with the first-class product sales and technical support team, and improves the pre-sales and after-sales service system. Rawsun ev motor and system has been widely used in full electric buses, electric trucks and electric boats, Rawsun adhering to the concept of lean manufacturing, adhere to the people-oriented, focusing on research and development, take the market as the guidance, take the quality as life, to innovation as the electric propulsion system, provides the omni-directional service for the customer and electric vehicle drive system with the professional solutions. Rawsun strives to create the champion products of environmental protection, precision and stability, and makes unremitting efforts to become an outstanding contributor of global power generation and propulsion solutions.
Rawsun dedicate to provide the green power and propulsion solution all over the world. We will create a great future hand in hand with you - our customers, partners and friends.
Certifications
Workshop Pictures
Packing&Shipping
