PMSM motor 2m 1.5m 1m large size big standing fan
- Category: >>>
- Supplier: Fujian Huada Electric Co. Ltd.
Share on (1600513333023):
Product Overview
Description

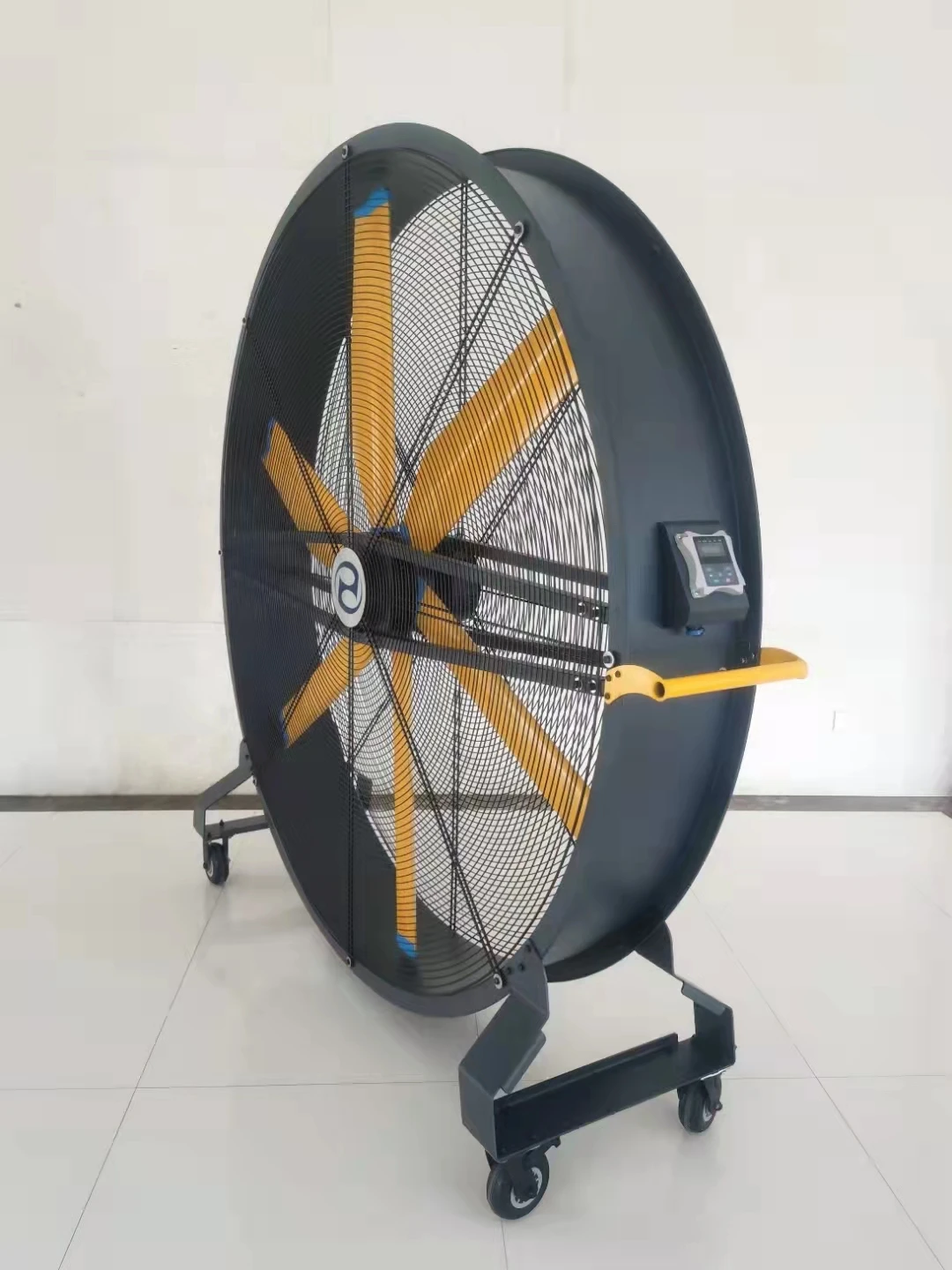

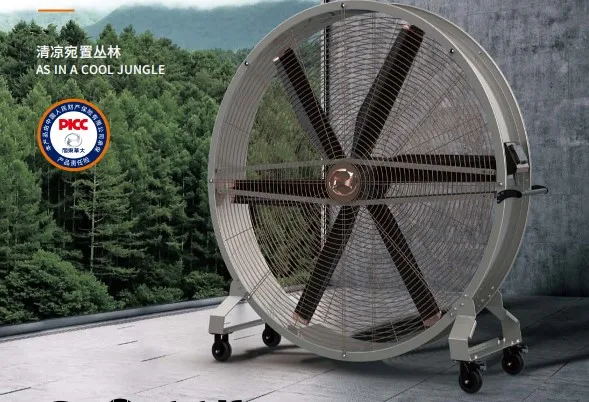

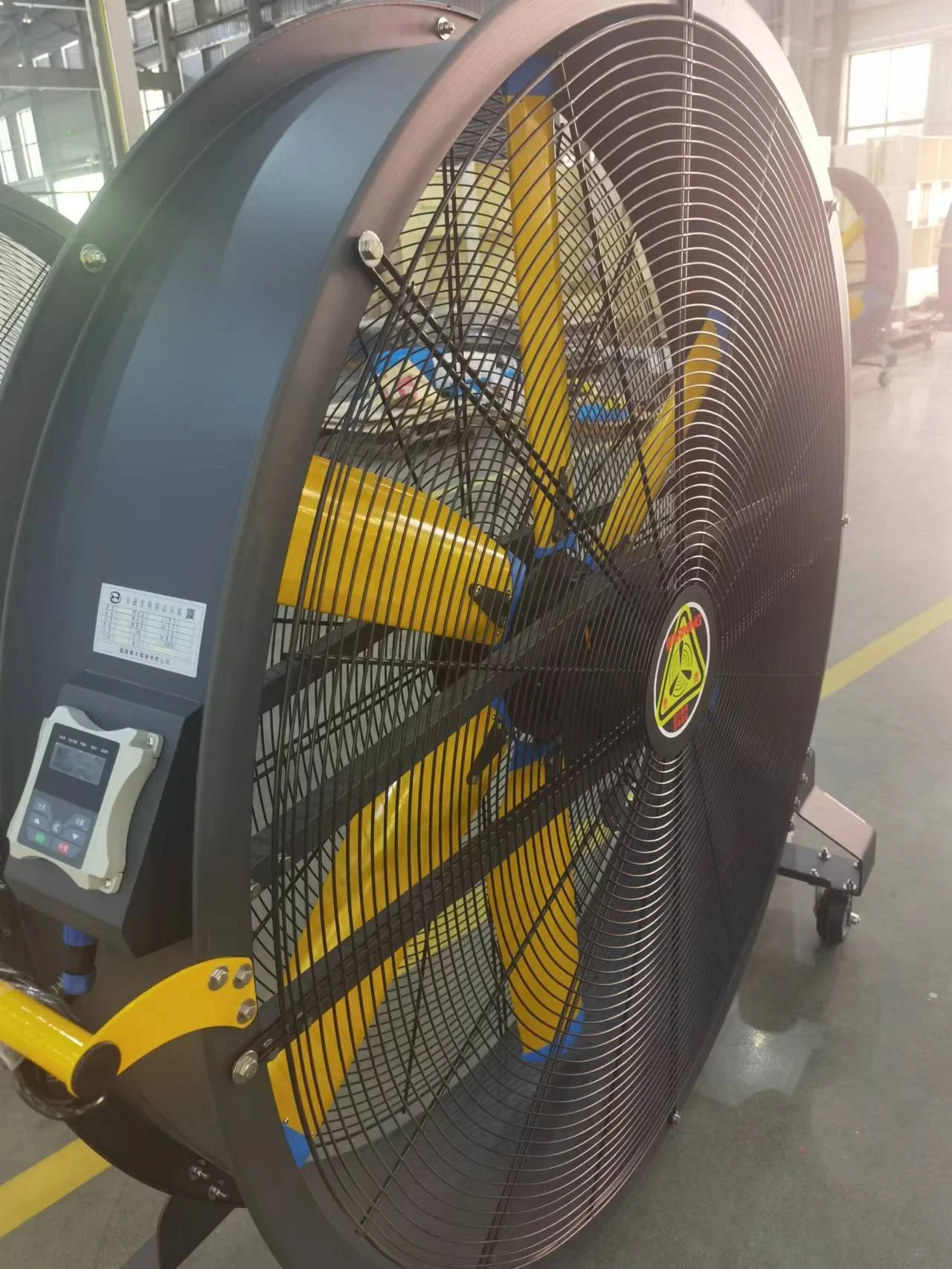

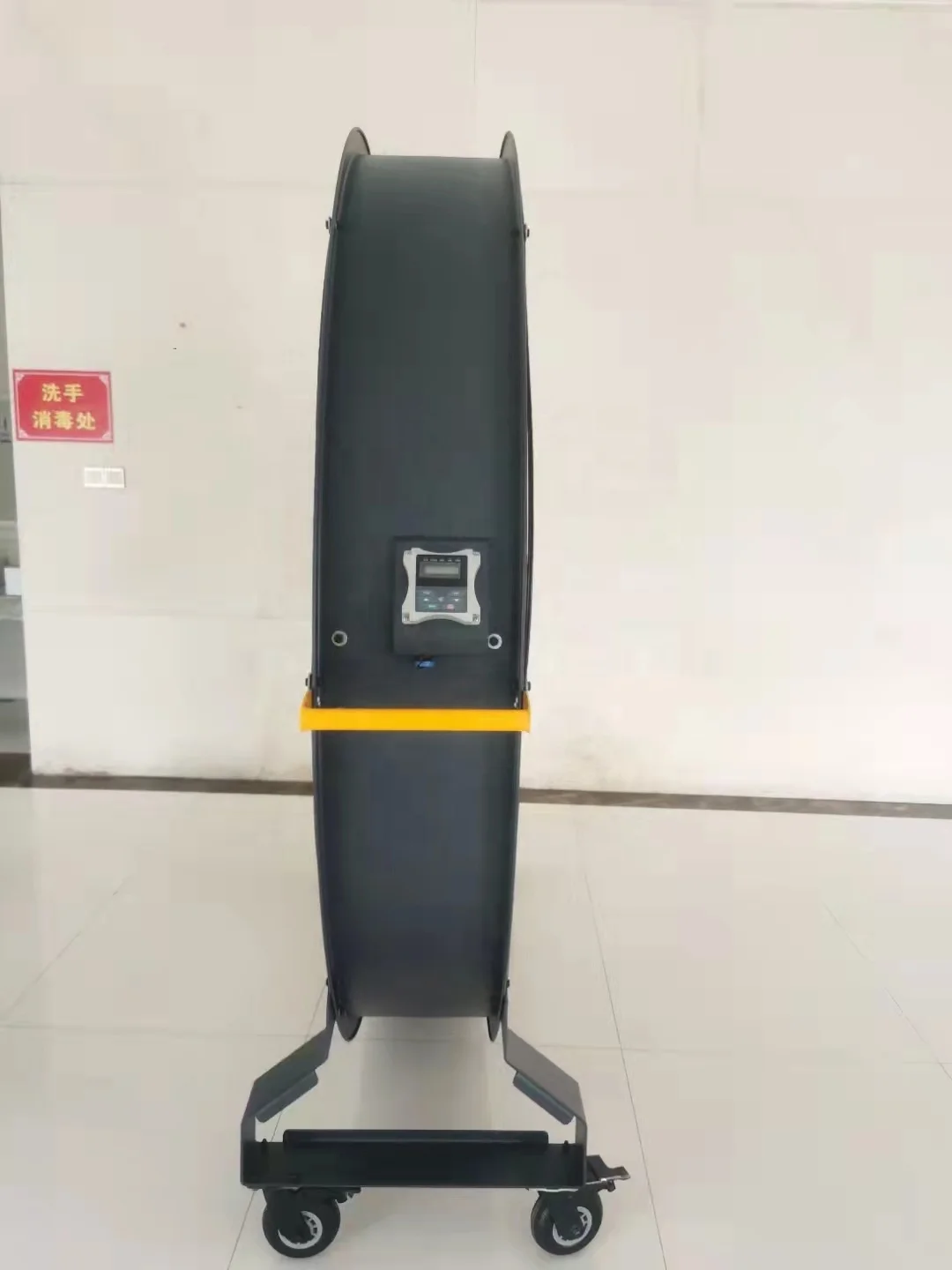

Large standing movable fans with permanent magnet motor

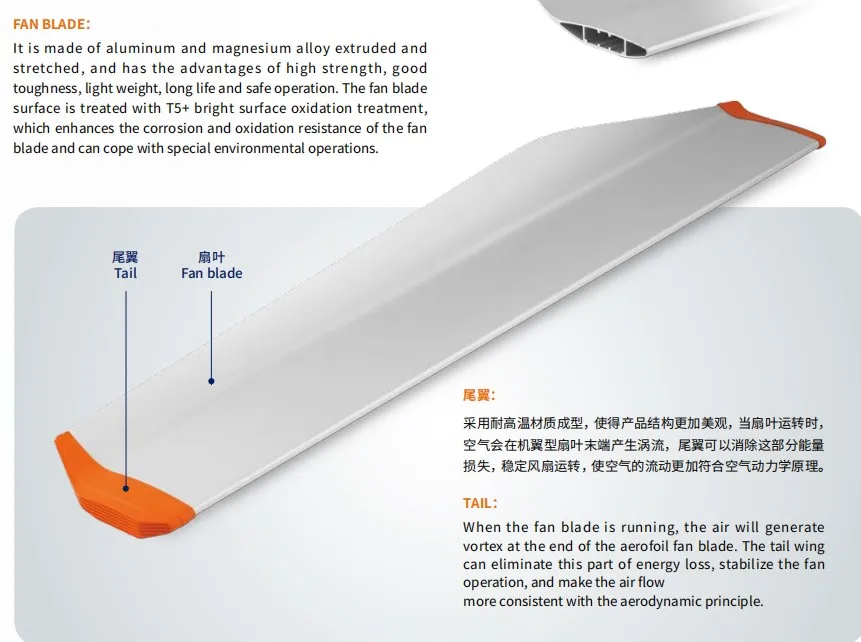

HDY series the PM VFD movable fan unique wing design, straight blade diameter from 1~2m, adopting the principle of aerodynamics and advanced technology manufacturing blades wing, formed by strong air agitation ability of circulation flow field, produce like the breeze system of nature, the body will feel three-dimensional wind from all directions, increased sweat evaporation area,increase your comfort level. At the same time avoid the use of traditional high-speed fan in the direction of the wind all year round, causing a variety of human health problems, greatly improve the comfort of the environment. HDY series fans can be combined with the actual needs of different occasions to adjust the wind volume, the wind speed in the range of 1m-6m /s can be arbitrarily adjusted.In the open space, the industrial energy-saving mobile fan's maximum blowing distance is 28 meters.
Tech Data for large movable fan
Model | Diameter(m) | Voltage(v) | Frequency(HZ) | Power(w) | Rotating Speed(rpm) | Airflow(m³/min) | weight(kg) | Noise(dB) | Coverage area(㎡) |
HDY-2-32 | 2 | 220/380 | 50/60 | 550 | 240 | 1000 | 121 | 39 | 260 |
HDY-1.5-32 | 1.5 | 220/380 | 50/60 | 370 | 400 | 700 | 80 | 39 | 150 |
HDY-1-32 | 1 | 220/380 | 50/60 | 250 | 600 | 400 | 40 | 39 | 80 |

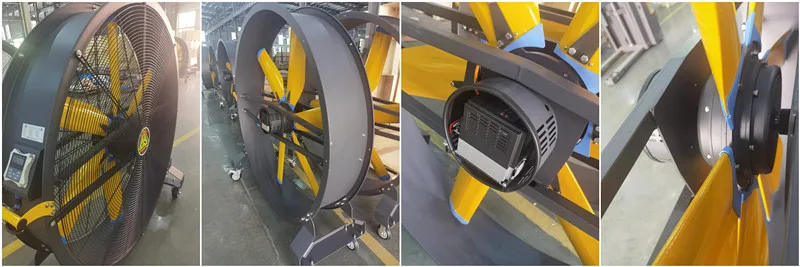

HDY series the PM VFD movable fan is a new product specially developed for improving the comfort of working
environment.Self-designed variable frequency speed control, high efficiency and energy saving permanent magnet external rotor motor drive.It has the advantages of low noise, small volume, light weight, compact structure and beautiful appearance.
environment.Self-designed variable frequency speed control, high efficiency and energy saving permanent magnet external rotor motor drive.It has the advantages of low noise, small volume, light weight, compact structure and beautiful appearance.

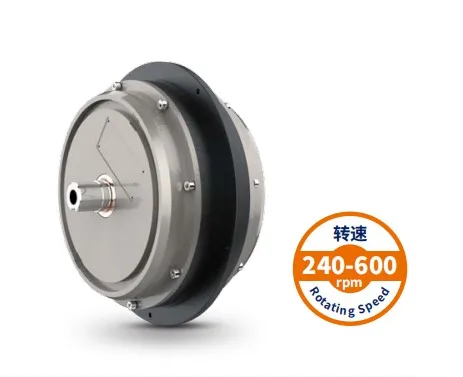

PMSM Motor
Features
1 Rotating Speed:240 rpm-600 rpm2 Frequency modulation width (0~200HZ)
3 Saving energy and high efficient
4 Without rotor losses
5 High efficiency and precision
6 Large power factor
7 Improve grid operating environment.
1 Rotating Speed:240 rpm-600 rpm2 Frequency modulation width (0~200HZ)
3 Saving energy and high efficient
4 Without rotor losses
5 High efficiency and precision
6 Large power factor
7 Improve grid operating environment.

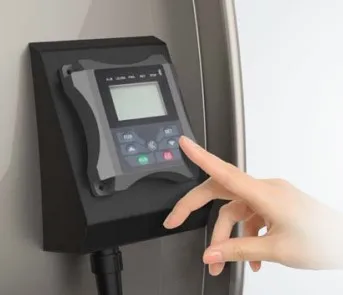

Controller
1 The system is no position vector control, anti - electromagnetic interference, anti - radiation, small size, light weight,
beautiful appearance. 2 System function is simple, 4 buttons easy to operation (start, stop, speed up, slow down). 3 System with
overvoltage, undervoltage, voltage loss regulation, current, lack of phase, overload, collision, overheating, lightning, abnormal
protection.
beautiful appearance. 2 System function is simple, 4 buttons easy to operation (start, stop, speed up, slow down). 3 System with
overvoltage, undervoltage, voltage loss regulation, current, lack of phase, overload, collision, overheating, lightning, abnormal
protection.

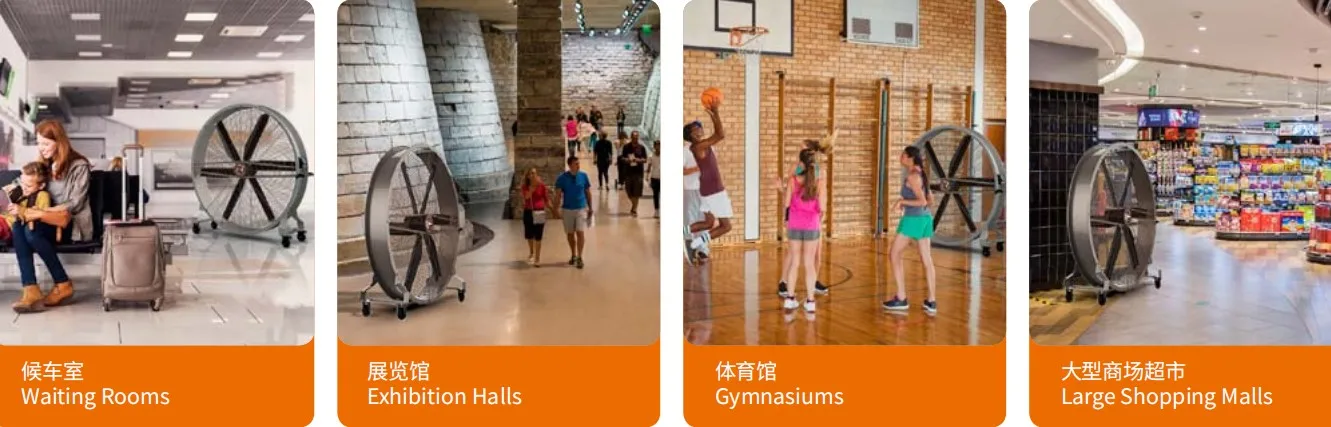

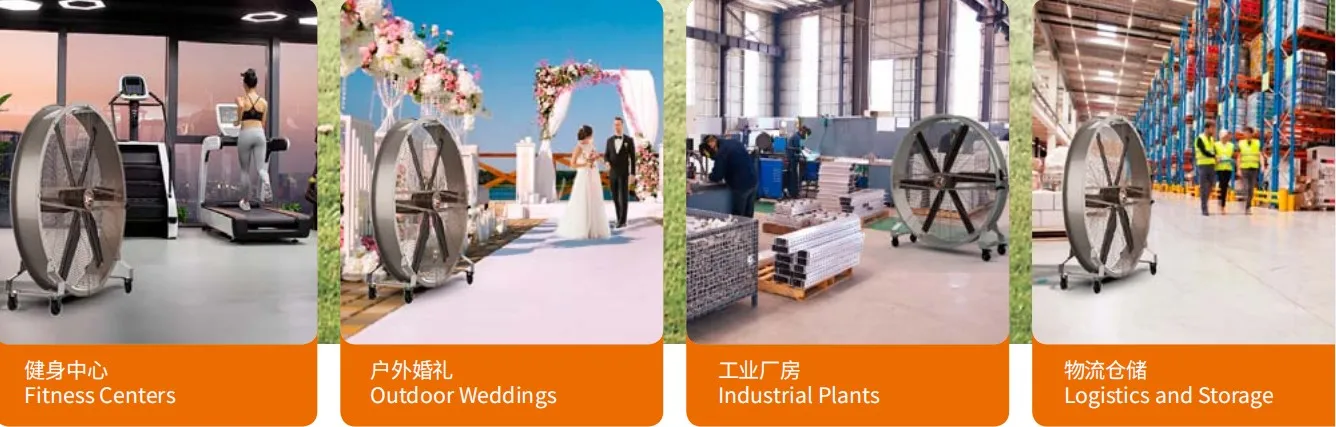

Application cases
Application
Widely used in fitness center, outdoor wedding venues, industrial factory, logistics warehousing, waiting room, exhibition hall,physical education hall and other large space places, as a new type of ceiling fan space ventilation, personnel cooling. It can push a large amount of airflow to the ground, forming a certain height of the moving airflow layer, thus contributing to the overall air circulation; Like the natural breeze system, enjoy the intimate experience of natural wind.

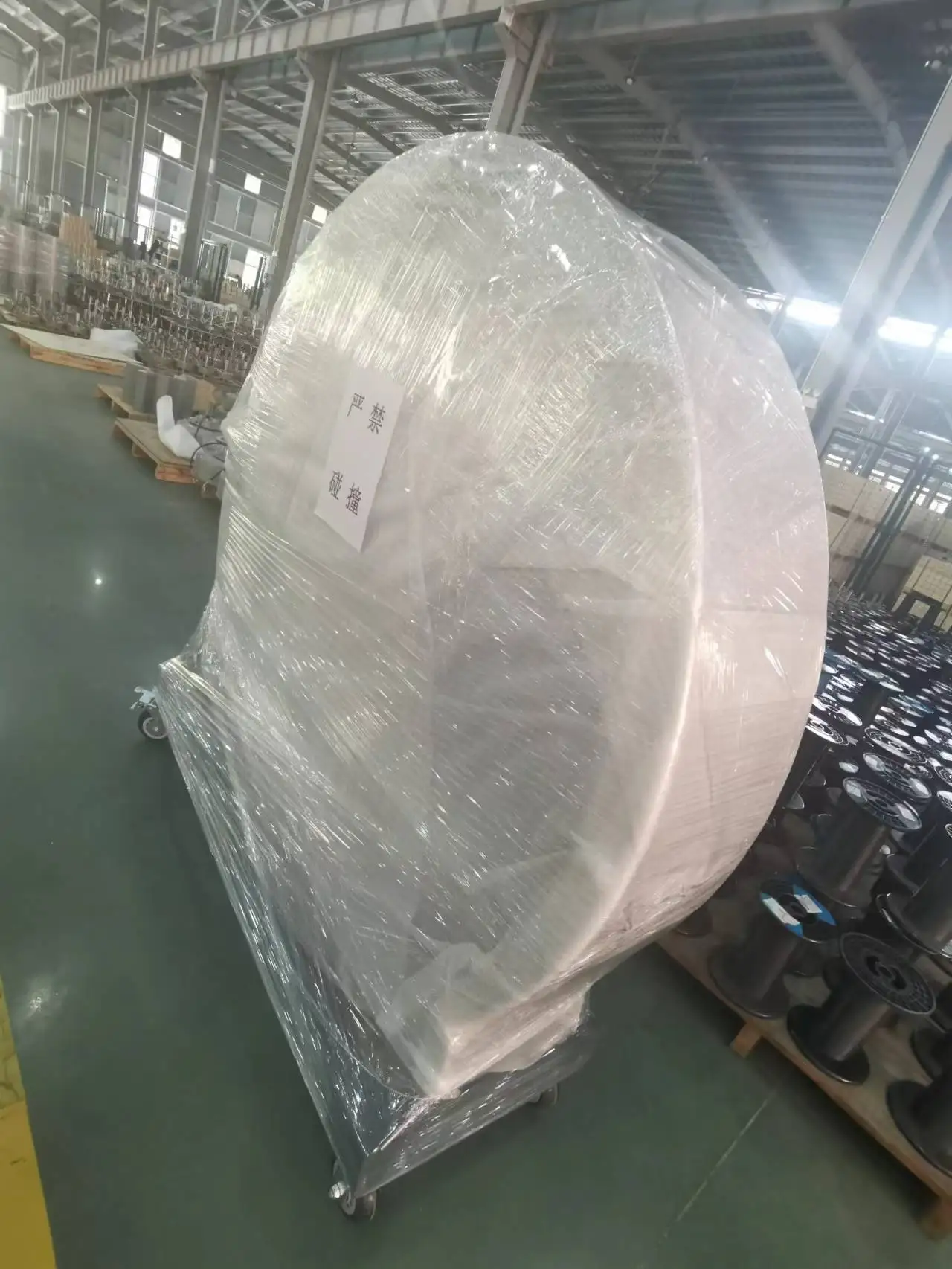

Packing details
