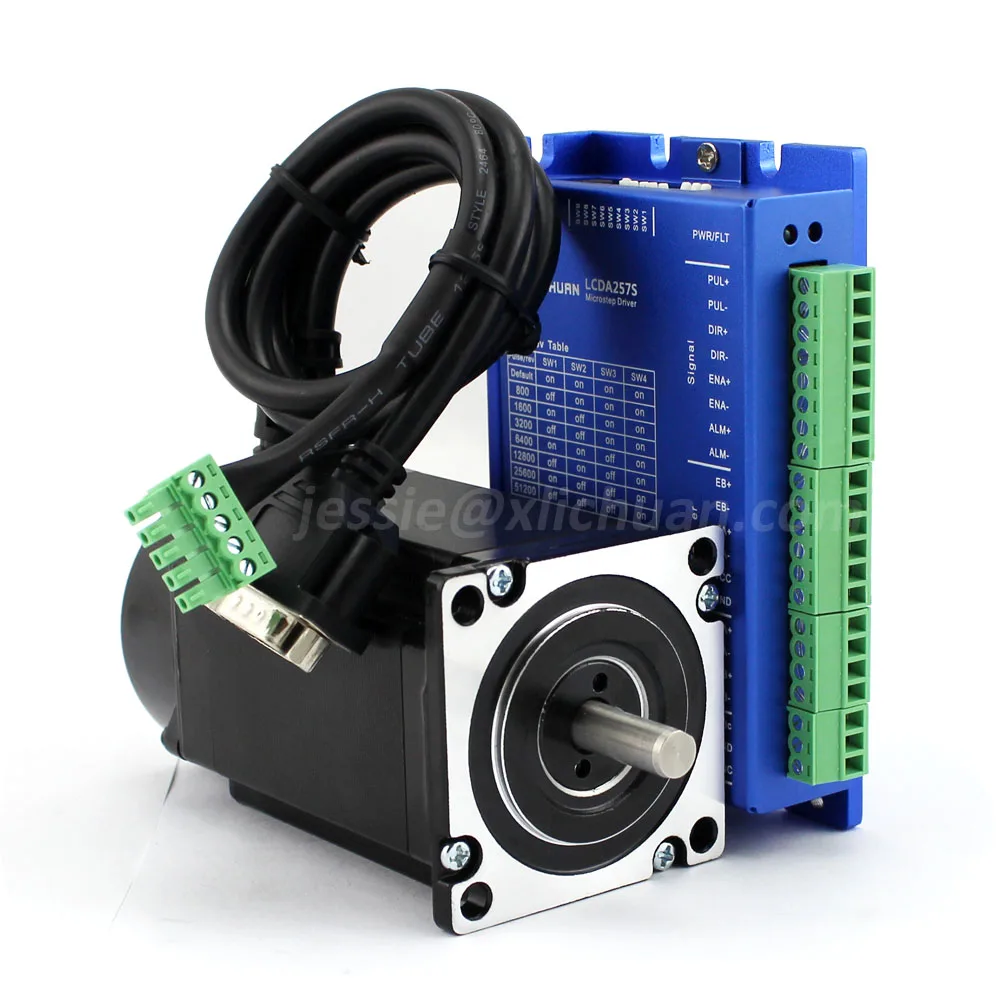

Nema23 2.2nm Closed Loop Stepper Motor Kit Servo Driver DC48V LC57H280 driver LCDA257S 3m encoder cable

Motor LC57H280 Information

Lichuan's LC-H2 series 2 phase closed loop stepper motors,they are are designed to match with Lichuan's 2 phase easy servo drivers including the LCDA257S,LCDA86H and LCDA808H. They are available from NEMA23 to NEMA34 (57,60mm and 86mm) with holding torque from 2Nm to 12Nm. LC57H280 is NEMA23 2.2Nm closed loop stepper motors.1000-line optical incremental encoders,the matched drive is LCDA257S,They all have encoder feedback, high speed, high precision.

2 Phase Nema23 Closed-loop Stepper Motor Specifications

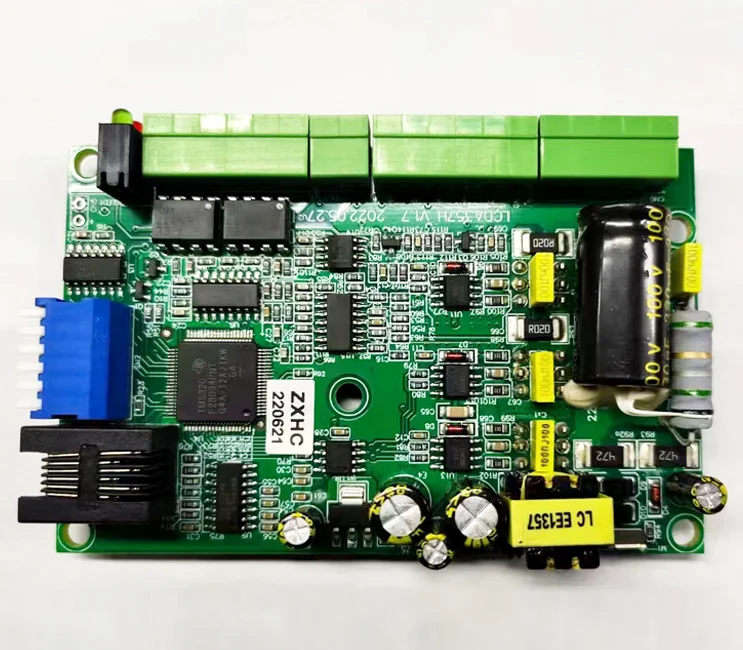

Driver LCDA257S Information

LCDA257S 2 phase hybrid stepper servo drive system integrated servo control technology into the digital step driver. It adopts typical tricyclic control method which include current loop,speed loop and position loop.

This product has the advantage of both step and servo system, is a highly cost-effective motion control products.

Features
1. Voltage input range: DC: 20V ~ 50V (recommended 36V or more)
2. Maximum peak current: 6A
3. Subdivision range: 400 ~ 51200ppr
4. Pulse form: pulse + direction, CW / CCW
5. Impulse response frequency: 0 ~ 200kHz
6. Logic input current: 10 ~ 20mA
7. Power-on parameter auto-tuning function
8. Closed-loop vector control to ensure that the motor high-speed high-torque output, while ensuring that the motor does not lose step
9. With over-voltage, over-current, tracking error tolerance and other protection functions

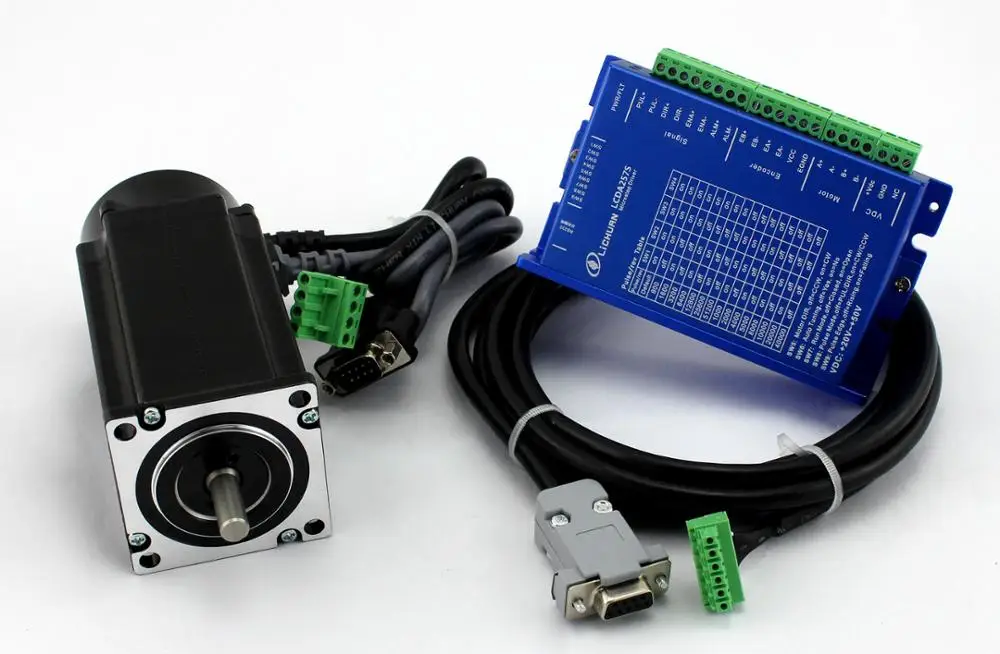

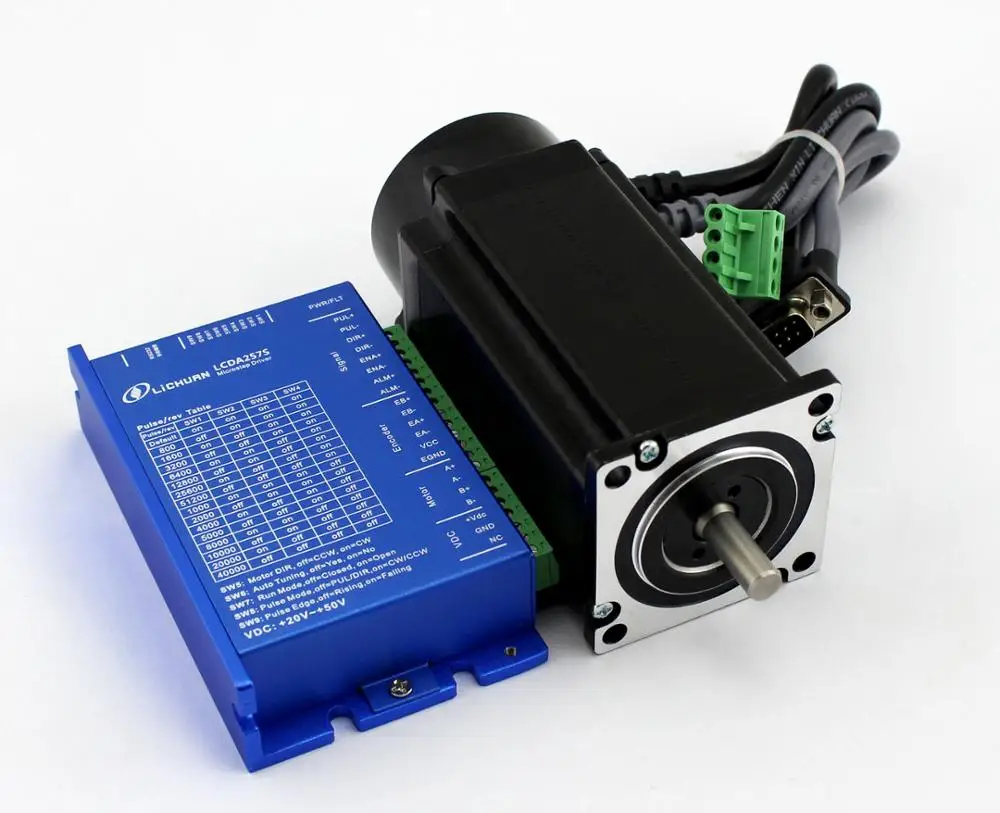

        1.Motor,drive,cable system                    2. Special packing materials                          3. Complete package
