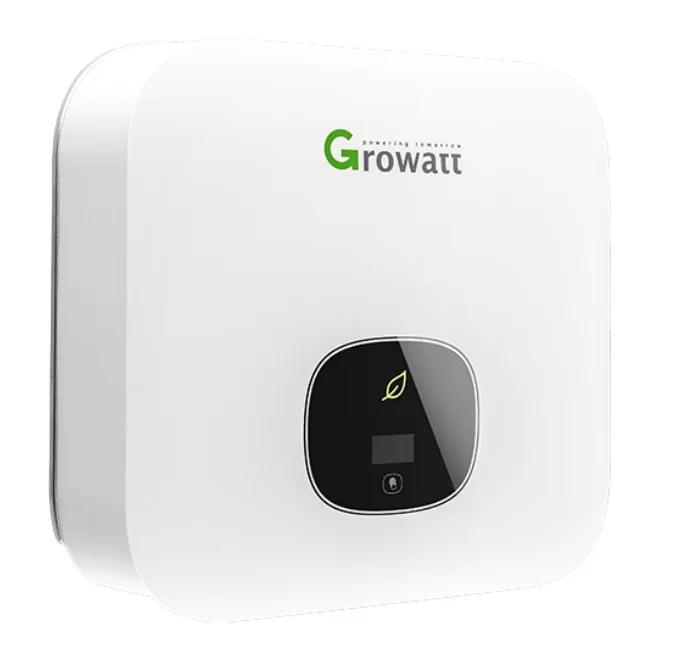

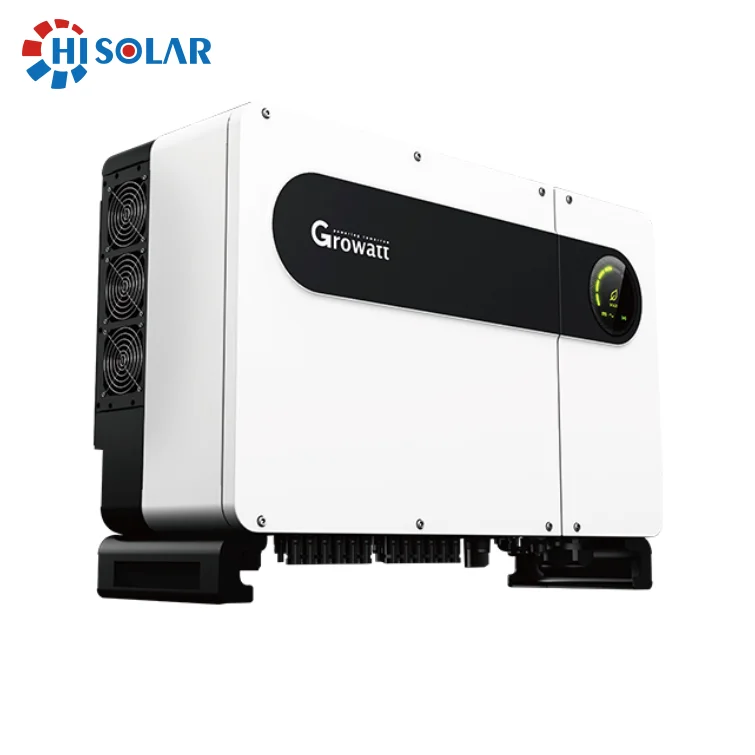

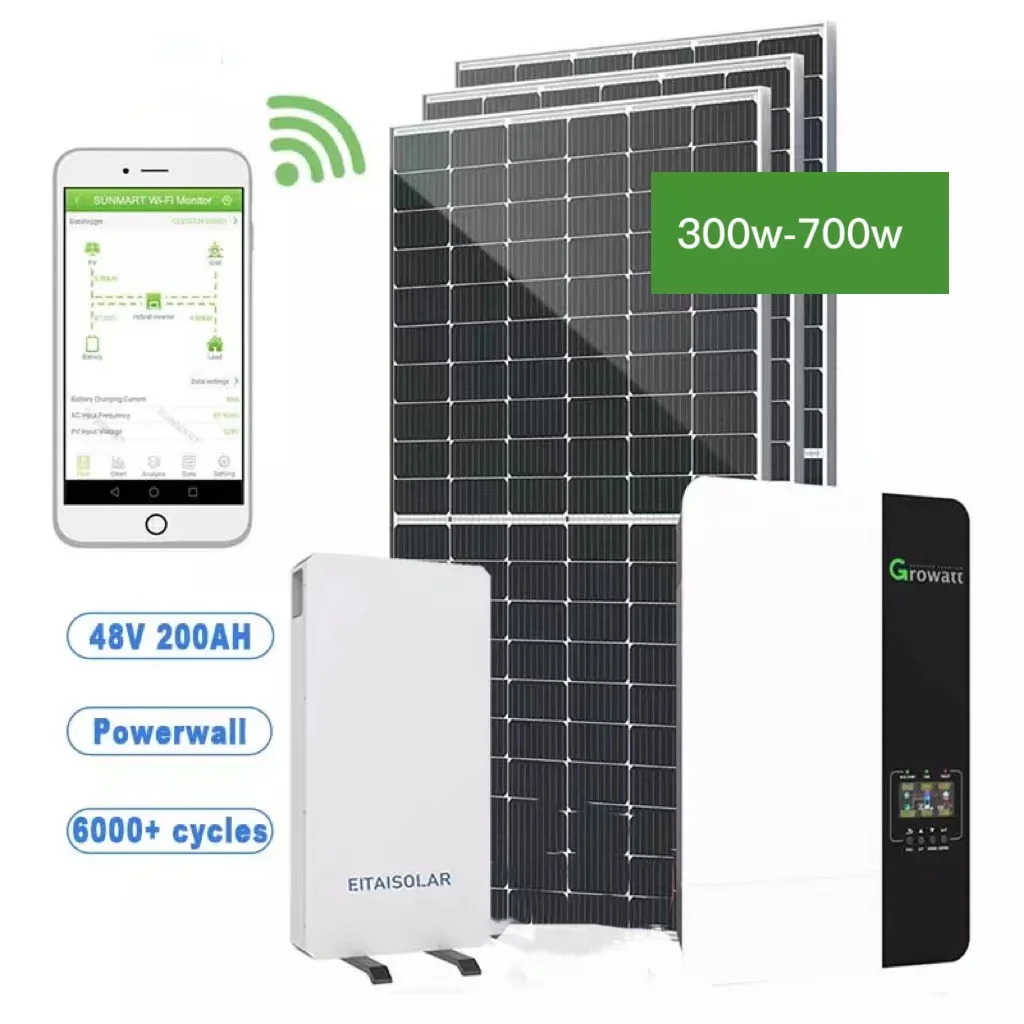

Growatt On Grid InveRter 10Kw 15 Kw 30Kw 40Kw 50Kw 60Kw 100Kw 120Kw 150 KW Single Phase Solar System
- Category: >>>
- Supplier: Zhejiang Shengqi Technology Co. Ltd.
Share on (1600513349824):
Product Overview
Description
Product Description
Datasheet | SPF 2000TL HVM-24 | SPF 3000TL HVM-24 | SPF 2000TL HVM-48 | SPF 3000TL HVM-48 | SPF 5000TL HVM/HVM-P | |||||||
Battery Voltage | 24VDC | 48VDC | ||||||||||
Battery Type | Lithium/Lead-acid | |||||||||||
INVERTER OUTPUT | ||||||||||||
Rated Power | 2000VA/ 2000W | 3000VA/ 3000W | 2000VA/ 2000W | 3000VA/ 3000W | 5000VA/ 5000W | |||||||
Parallel Capability | No | No/ Yes，6 units maximum | ||||||||||
AC Voltage Regulation (Battery Mode) | 230VAC ± 5% @ 50/60Hz | |||||||||||
Surge Power | 4000VA | 6000VA | 4000VA | 6000VA | 10000VA | |||||||
Efficiency (Peak) | 93% | |||||||||||
Waveform | Pure sine wave | |||||||||||
Transfer Time | 10ms typical, 20ms Max | |||||||||||
SOLAR CHARGER | ||||||||||||
Maximum PV Array Power | 1500W | 1800W | 4500W | |||||||||
MPPT Range @ Operating Voltage | 30VDC ~ 80VDC | 60VDC ~ 115VDC | ||||||||||
Maximum PV Array Open Circuit Voltage | 102VDC | 145VDC | ||||||||||
Number of Independent MPP Trackers/ Strings Per MPP Tracker | 1/1 | |||||||||||
Maximum Solar Charge Current | 50A | 30A | 80A | |||||||||
Maximum Efficiency | 98% | |||||||||||
AC CHARGER | ||||||||||||
Charge Current | 30A | 15A | 60A | |||||||||
AC Input Voltage | 230 VAC | |||||||||||
Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) | |||||||||||
Frequency Range | 50Hz/60Hz (Auto sensing) | |||||||||||
PHYSICAL | ||||||||||||
Protection Degree | IP20 | |||||||||||
Dimension (W/H/D) | 315/400/130mm | 350/455/130mm | ||||||||||
Net Weight (kgs) | 8 | 8.5 | 8 | 8.5 | 11.5 | |||||||
OPERATING ENVIRONMENT | ||||||||||||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||||||||||
Altitude | <2000m | |||||||||||
Operating Temperature | 0°C - 55°C | |||||||||||
Storage Temperature | -15°C - 60°C | |||||||||||

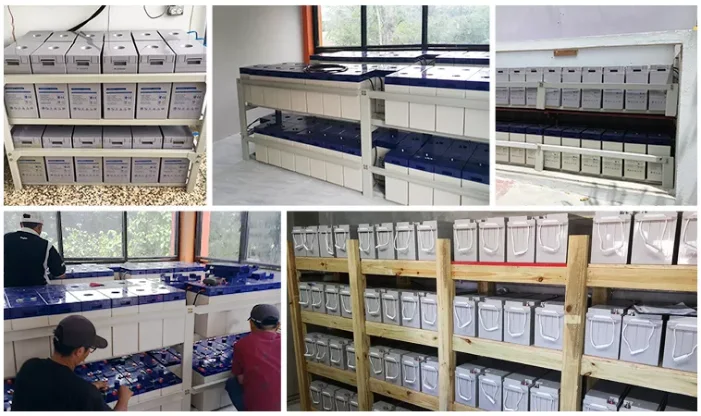

Product show

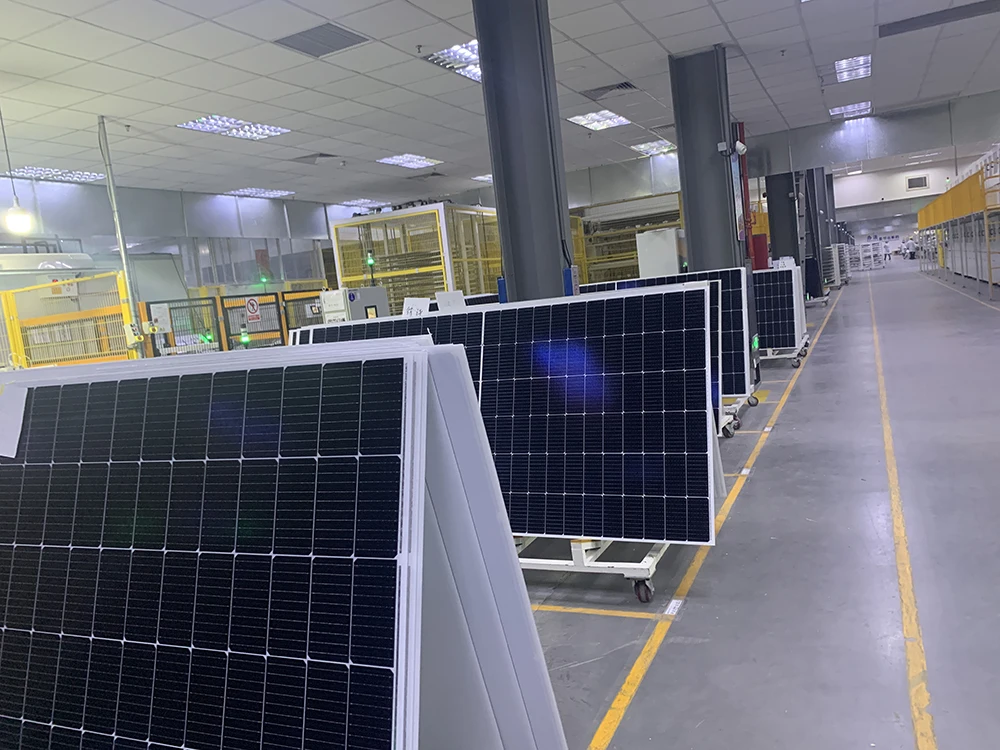

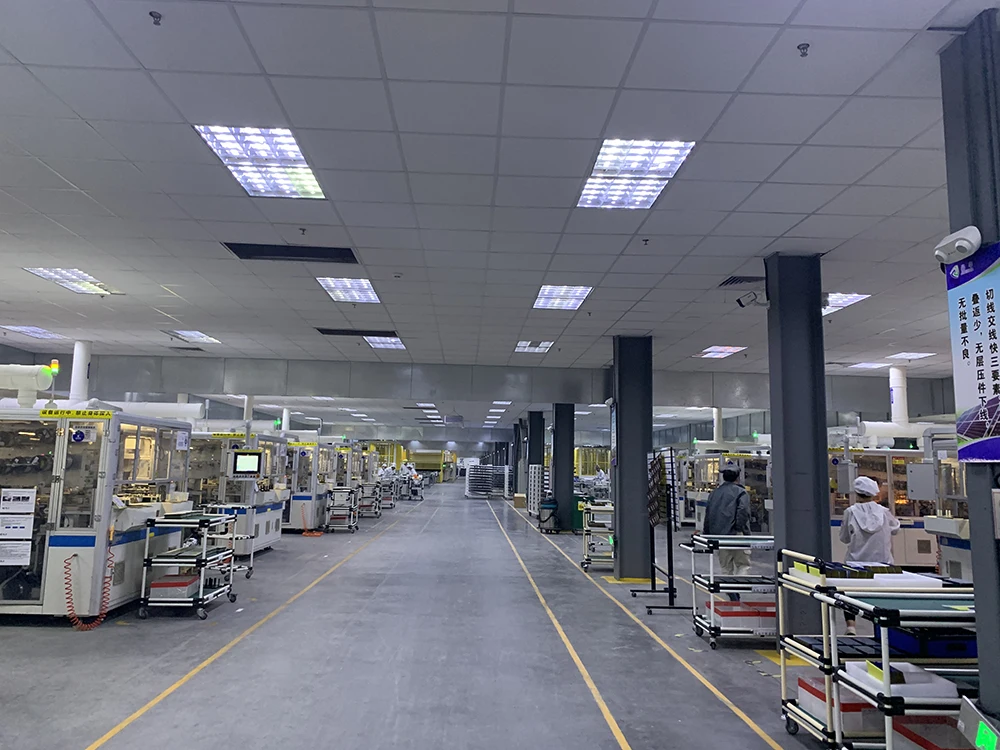

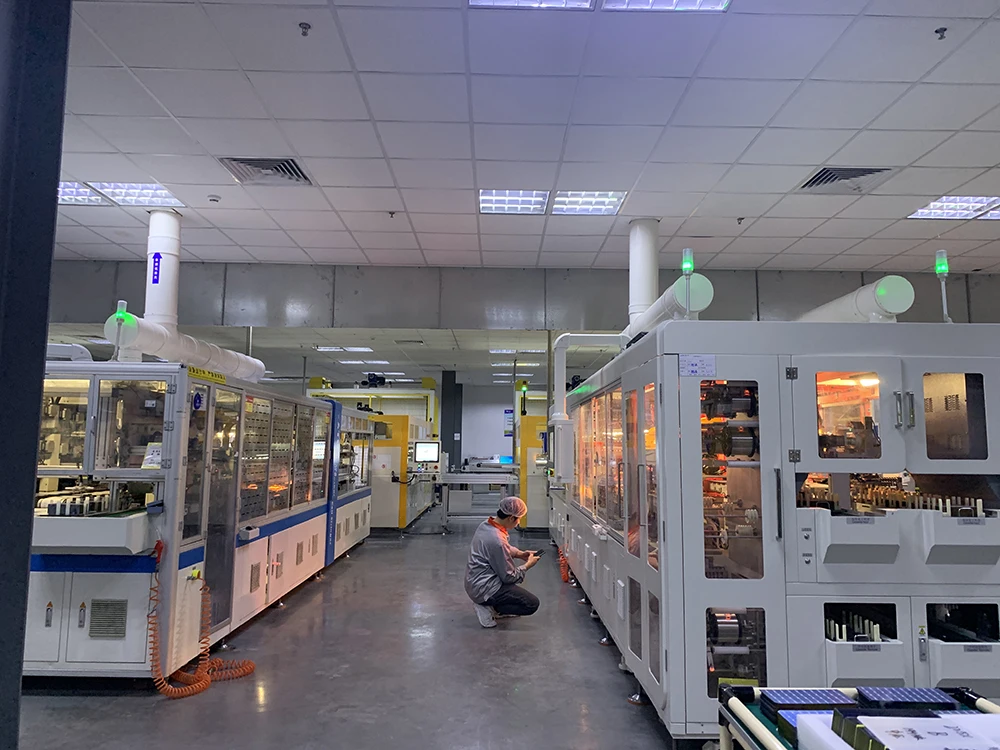

Company Information
About us
Hi Solar New Energy is a group company focusing on new energy products. We have three factories , two factories in Yangzhou, Jiangsu and one in Guangzhou. With the experienced R&D and production team, we can provide the complete solution for solar photovoltaic applications, Li-ion battery applications and EV chargers . Our main products include solar panels(PV panels), solar inverter , solar gel battery , solar street lights, solar charge controller, solar pump , solar power system , Li-ion battery . polymer lithium battery and so on.\t
Why choose us
1. complete range of solar products, one-stop shop .
2.15 years manufacturing experinece, working with many governmental projects.
3. professional sales team, 24-hour online service with very rapid reply in alibaba platform.\t
Packaging & Shipping
FAQ
Q1. Can you tell me briefly about your company?
A1:We have three factories with one hundred million RMB registration capital, more than 800 staffs, and the sales volume is more than two hundred million USD in 2021.
Q2. Can I get a free sample?
A2:Yes, we will giving you free samples and even free shipping once we identify you as a good customer.
Q3. What is the definition of 24-hour online?
A3:We have hard workers and we are working in good cycle, normally your inquiry will get feedback within 2 hours.
Q4.How to guarantee the quality of your products?
A4:We have more than 50 R&D staffs , modern facilities to examine the products, and all the products have their own warranty periods.
Q5. How about OEM and ODM service?
A5:Yes, we can provide such service if your ordering quantity reach MOQ.
Q6. Is it possible to communicate at site during the pandemic season?
A6:We know it's hard, but we will still go abroad for detail communication if we think it's a good business opportunity.
A1:We have three factories with one hundred million RMB registration capital, more than 800 staffs, and the sales volume is more than two hundred million USD in 2021.
Q2. Can I get a free sample?
A2:Yes, we will giving you free samples and even free shipping once we identify you as a good customer.
Q3. What is the definition of 24-hour online?
A3:We have hard workers and we are working in good cycle, normally your inquiry will get feedback within 2 hours.
Q4.How to guarantee the quality of your products?
A4:We have more than 50 R&D staffs , modern facilities to examine the products, and all the products have their own warranty periods.
Q5. How about OEM and ODM service?
A5:Yes, we can provide such service if your ordering quantity reach MOQ.
Q6. Is it possible to communicate at site during the pandemic season?
A6:We know it's hard, but we will still go abroad for detail communication if we think it's a good business opportunity.
