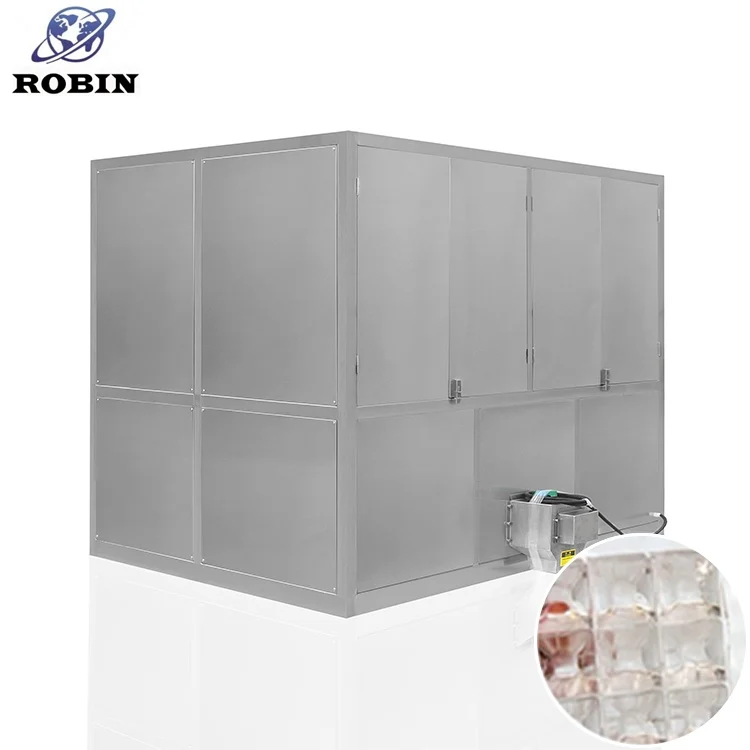

3 Ton per day industrial cube ice maker with high quality
- Category: >>>
- Supplier: Jinan Robin Machinery Co. Ltd.
Share on (1600513350885):
Product Overview
Description
Product Description

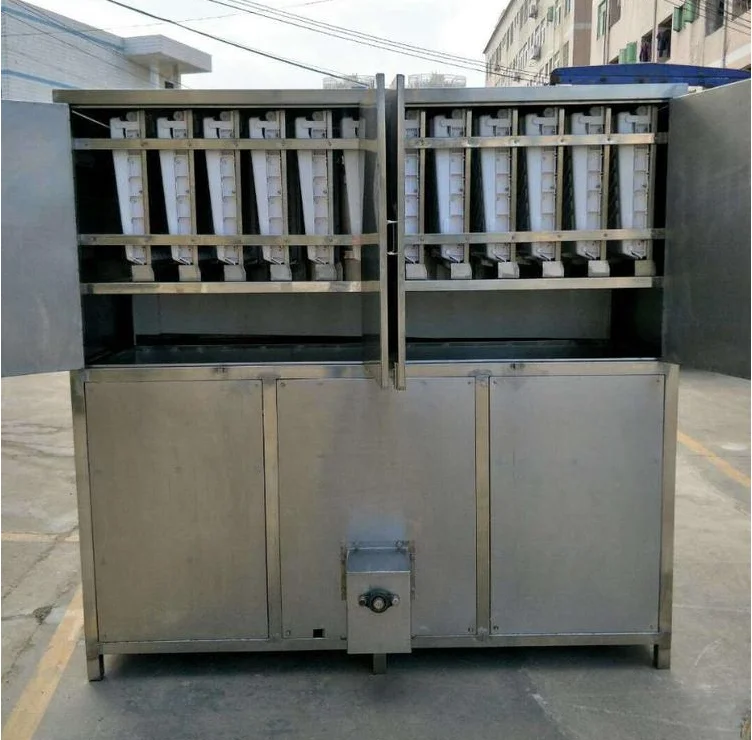

3 Ton per day industrial cube ice maker with high quality
Robin Ice Cube Machine has firstly adopted the three leading technologies: adjustable ice thickness, automatic water supplying, automatic ice freezing and ice falling. It is an edible ice cube machine and has completely solved the problems of uneven ice thickness and ice falling difficulties. With the combined use of flat-plate heat exchange technology and hot gas circulating defrost technology, it has greatly improved the ice cube machine's capacity, energy consumption, and performance stability.
ROBIN ICE CUBE MACHINE FEATURE
1, Large Capacity: different capacity from 1ton/day to 25tons/day. Its production is stable and can reach 90%-95% even in summer. When the ambient temp is lower than 20℃, input water temp is lower than 25℃, its production can reach 100%-130%.

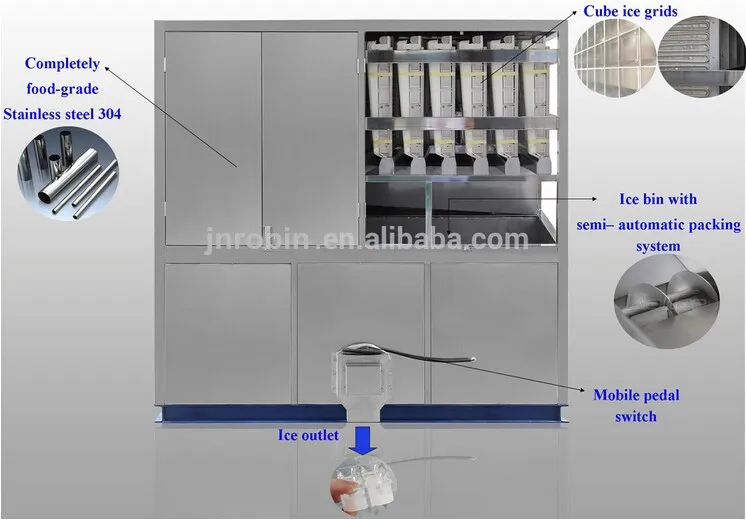

2, Safe and Sanitary: Reasonable design for the frame and structure and water system with SUS304 ensure the ice cube sanitary for human consumption
3, Lower Power Consumption: Greatly save energy, only 75~80KW*H are consumed to produce one-ton ice; when the ambient temp is lower than23℃, it just consumes 70-85 KWH/Ton, compared with other small ice cube maker (normally 150-165 KWH/Ton), its energy saving rate reaches more than 30%
4. Automatic Operation: Equipped with Siemens PLC + Touch Screen Controlling System, which allows multiple furigeration effect and working condition.

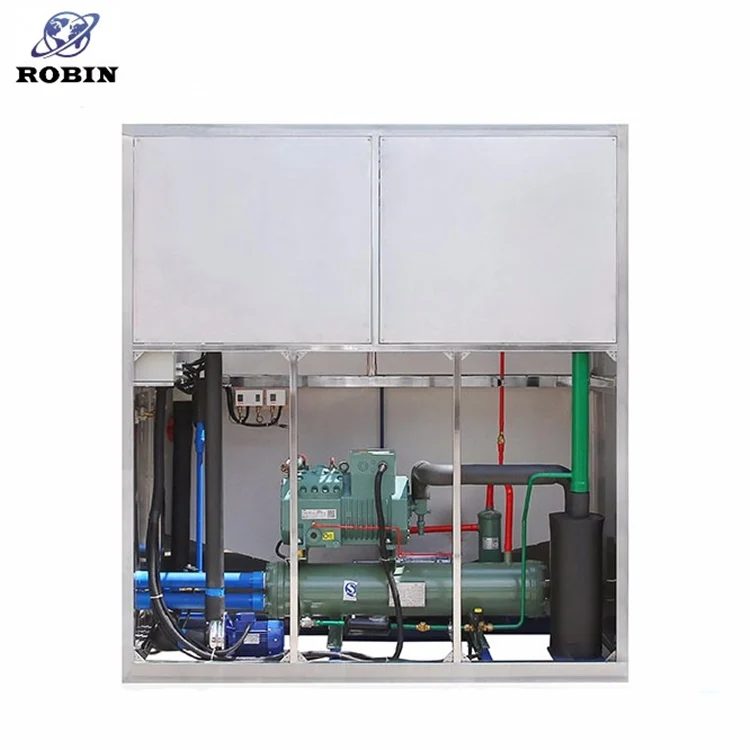

Cube ice machine parameter
| Industrial mobile ice cube making machine equipment 3 ton per day | |
Model | RBC-3T |
| Daily capacity | 3000kg/24hr |
| Compressor | Bitzer/Bock/Copeland/Franscold |
| Power supply | 380V/50Hz/3P |
| Compressor power | 14HP |
| Cooling tower motor power | 0.37KW |
| Refrigerant | R404A |
| Evaporator | 12 pieces |

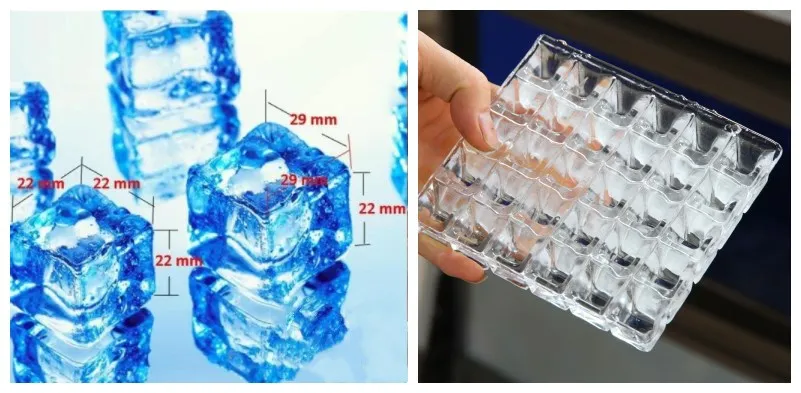

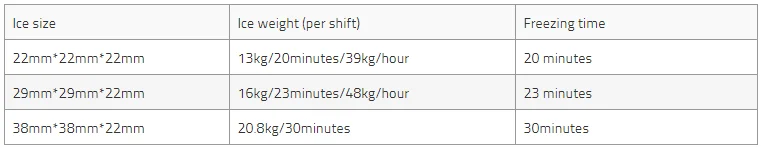

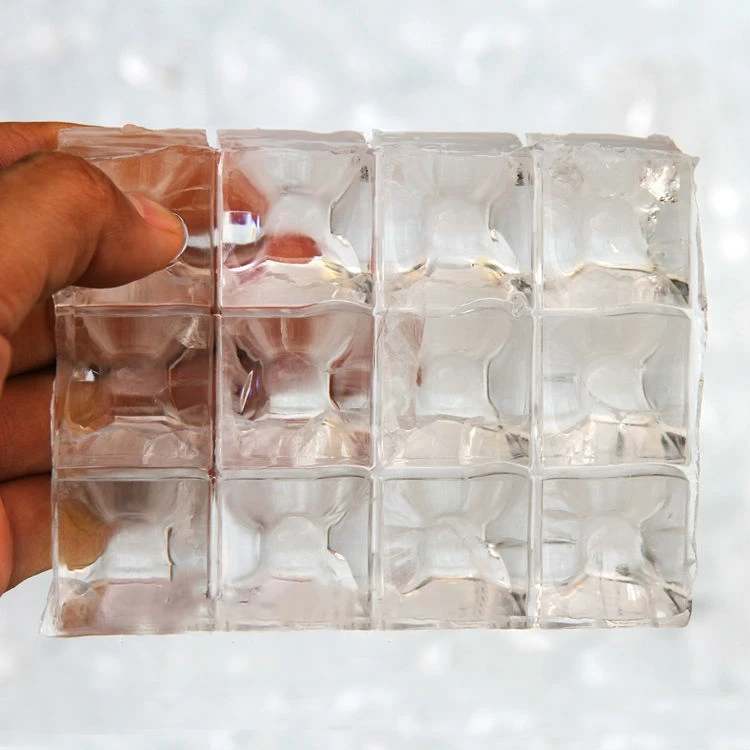

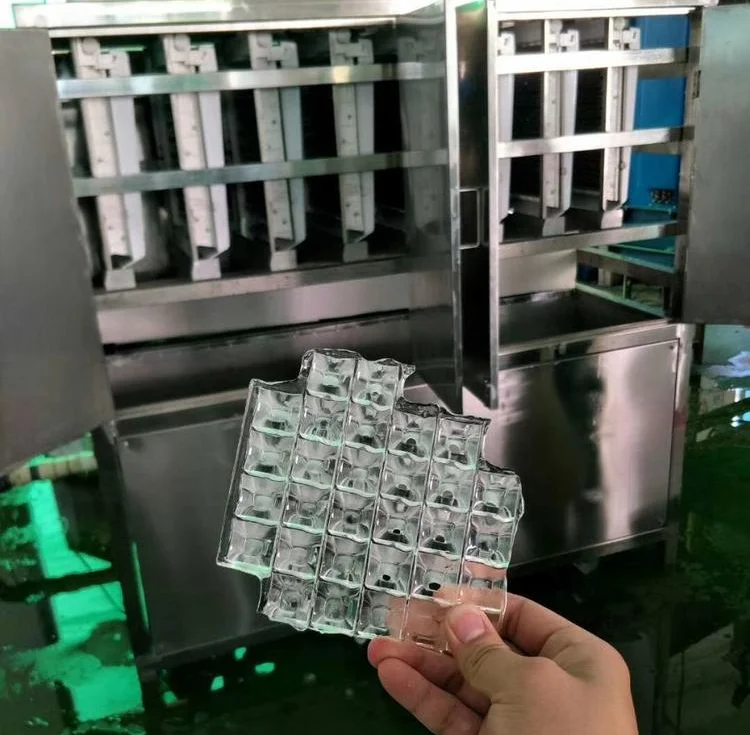

Cube ice size
Application Fields
Details

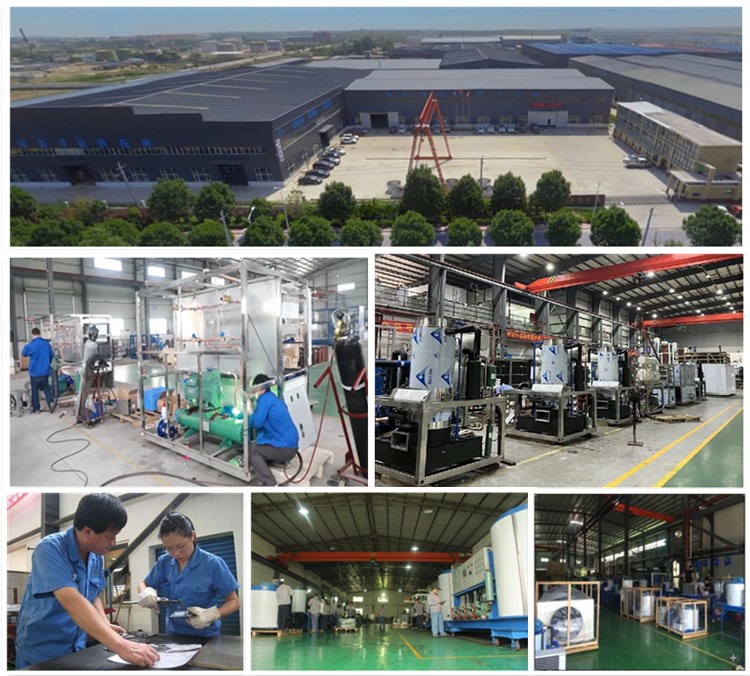

Jinan Robin Machinery CO., LTD is located in Jinan, Shandong, which is an comprehensive enterprise specializing in design, production,technical support and services for ice making machine, such as flake ice machine, seawater machine, block ice machine, tube ice machine, cold room, refrigeration equipment. The large, medium and small sized ice machine can applied to the supermarket, hotel, Marine fishery, aquatic products processing, food processing, chemical industry, concrete cooling and the coal mine cooling etc.
Based on the principle of "Customer First, Credit First", Robin Machinery has established long-term cooperative relationships with many companies. Sincerely welcome friends from all walks of life to visit, inspect and negotiate business.
Certificate
Exhibition
Perfect service system: All ice machines come out with 12 months full warranty. If the machine breaks down in 12 months, Robin will send the parts for free, even send the technician over if situation needed. When beyond the warranty, we will supply the parts and service only for factory cost. | |
| Process: | Please provide the copy of Sales Contract and describe the problems appeared. |
| Problems confrimation: | |
| Slight problem: | Please send the proof to our After-Sales Department, we will reply within two days. |
| Serious problem: | |
| A | We will dispatch our Quality and Problems Appraisers to make a confirmation. |
| B | Have a negotiation of the compensation and sign agreements |
| C | Our After-Sales Department will perform the duties as the agreement |
Certifications
FAQ
1, What should I prepare to buy the ice machine from you?
First, we will need to confirm your exact requirement on the ice machine's daily capacity, how many tons of ice do you want to produce/consume per day?
Second, the install place power/water confirmation, for most big ice machines, will need run under 3 Phase industrial use power, most Europ/Asia countries is 380V, 50Hz,3P, most North and South America countries are using 220V,60Hz,3P, please confirm with our salesman and make sure it is available in your factory.
Third, with all above details confirmed, then we are able to provide you the exact quotation and proposal, a Proforma Invoice will be provided to guide you the payment[T/T or L/C or Trade Assurance Order on Alibaba.com directly] to close the deal, for all our standard design, we will need about 35~45 working days on the production.
Fourth. After the production done, the salesman will send you test report or video to confirm the ice machines production capacity and performance, then you can arrange the balance and we will arrange the delivery for you. All documents including the Bill of Lading, Commercial Invoice, and Packing List will be provided for your importation.
2, How to install the ice machine?
For most air cooling type ice machine, as it is all in one design, you need only connect the power and water, then it can be put to use. Manual book and video will be provided you guide you the installation and operation.

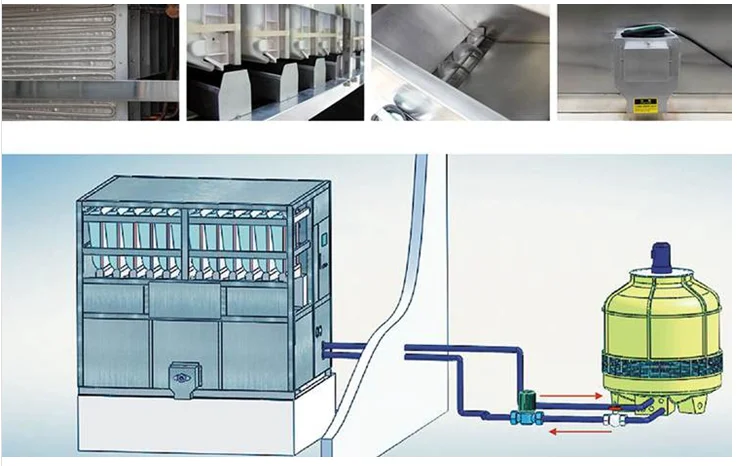

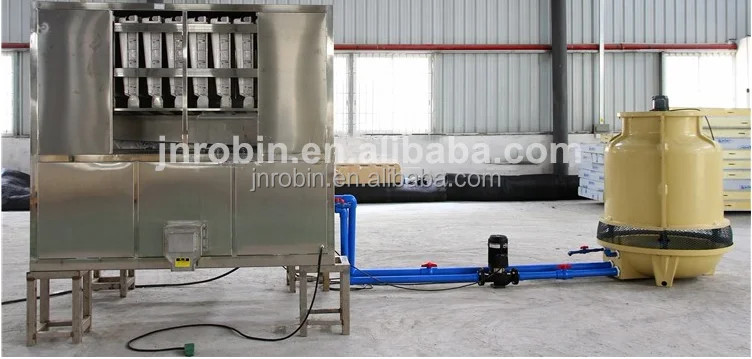

For the water cooling type ice machine or the split designed ice machine, will need to assemble the cooling tower and connect the water pipe..., Manual book and video will be provided you guide you the installation and operation. We can also send our engineer to guide you each step, only need you to take care of the VISA, TICKETS, foods, and accommodation.
3, What if I buy your ice machine, but I cannot find the solution for the problem?
All ice plants come out with 12 months full warranty. If the machine breaks down in 12 months, we will send the parts for free, even send the technician over if situation needed. When beyond the warranty, we will supply the parts and service only for factory cost. Please provide the copy of Sales Contract and describe the problems appeared.
 |  |
 |  |
