5.08mm Pitch Right Angle PCB socket Screw Terminal Block male female Solder Termination Connector
5.08mm Pitch Right Angle PCB socket Screw Terminal Block male female Solder Termination Connector

5.08mm Pitch Right Angle PCB socket Screw Terminal Block male female Solder Termination Connector

Share on (1600513360292):


Price:$0.01

Quantity:


Product Overview

Description



Specification


Product name
5.08mm Pitch Right Angle PCB socket
Contact
Copper Ally with Ni Plated
Terminal screw
Steel galvanized with Cr3+ Plated
Wire guard
Copper Ally, Tin Plated
Housing
Polyamide
Voltage rating
300VAC
Current Rating
16Amps/way max
Withstand Voltage
2500V AC/minute
Wire range
12-26AWG

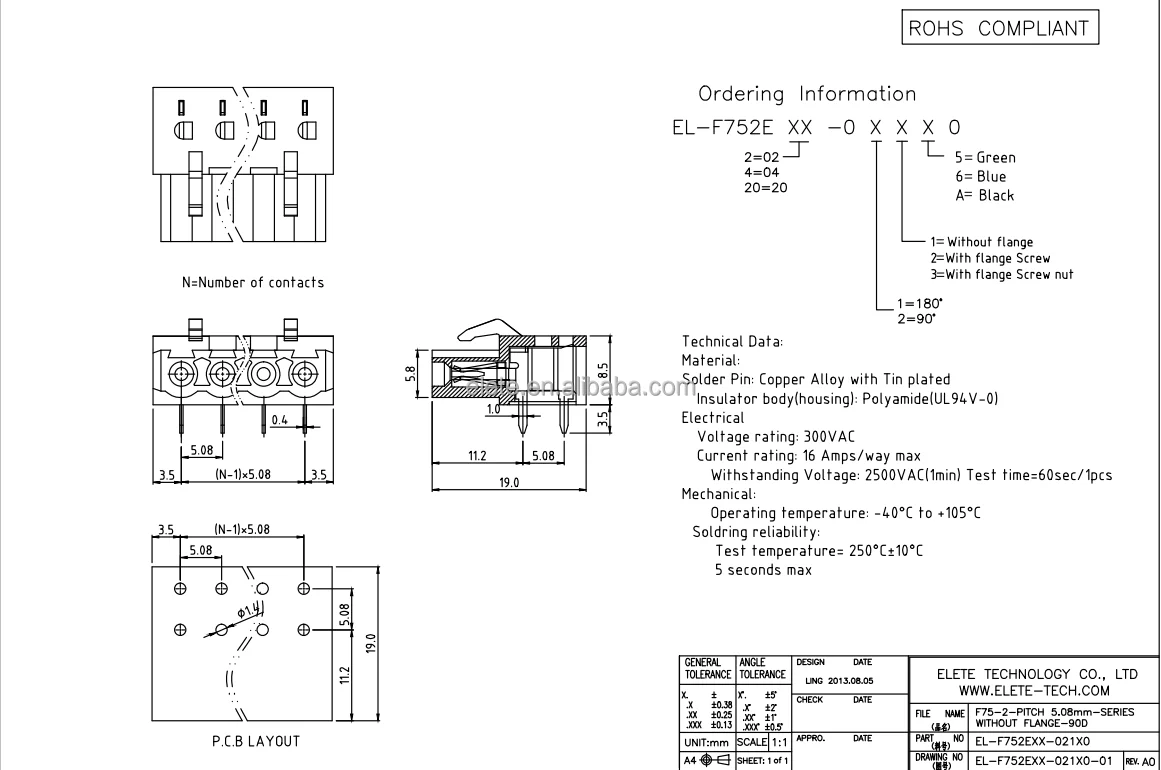

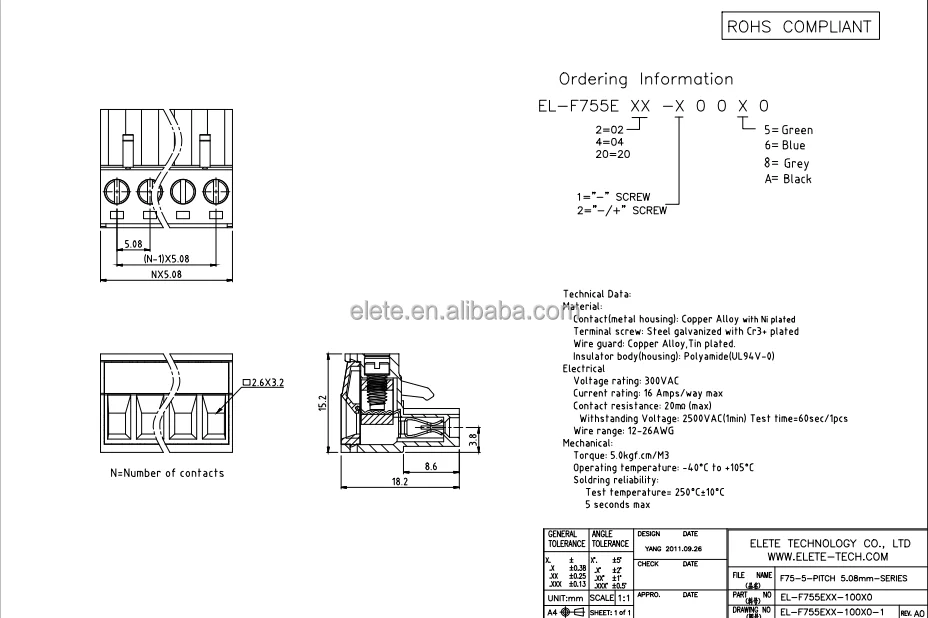

DRAWINGS

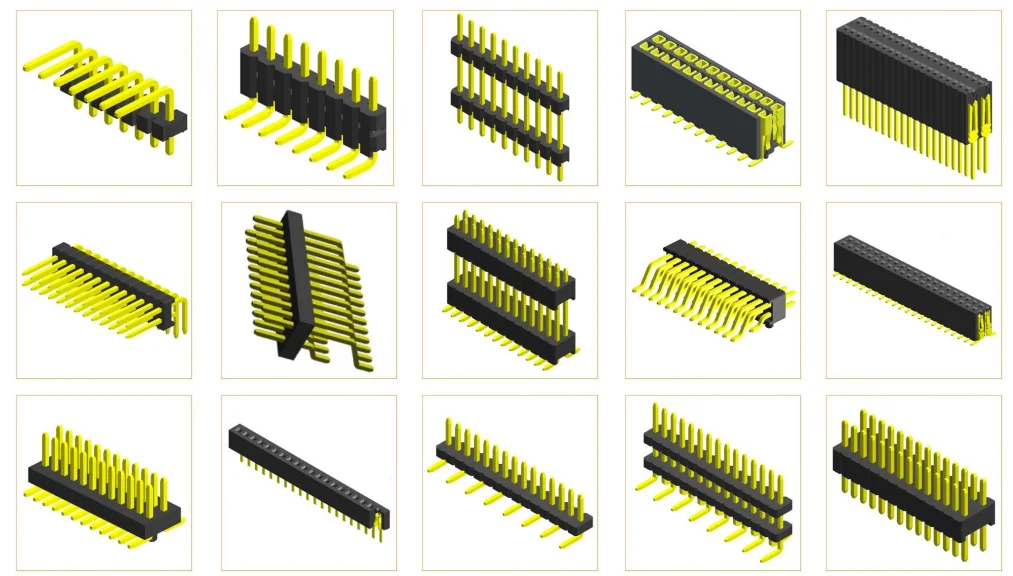

MORE PRODUCT
