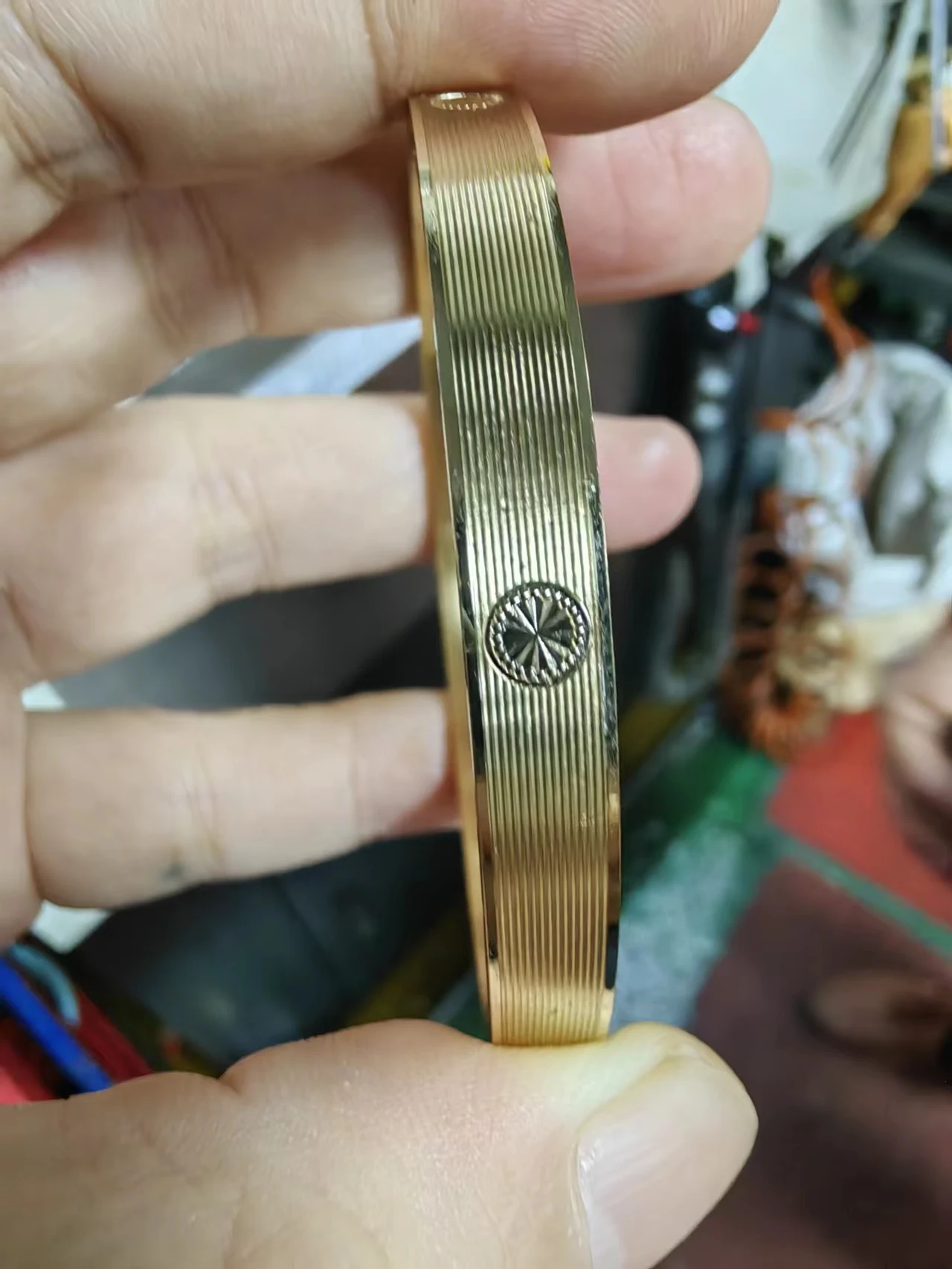

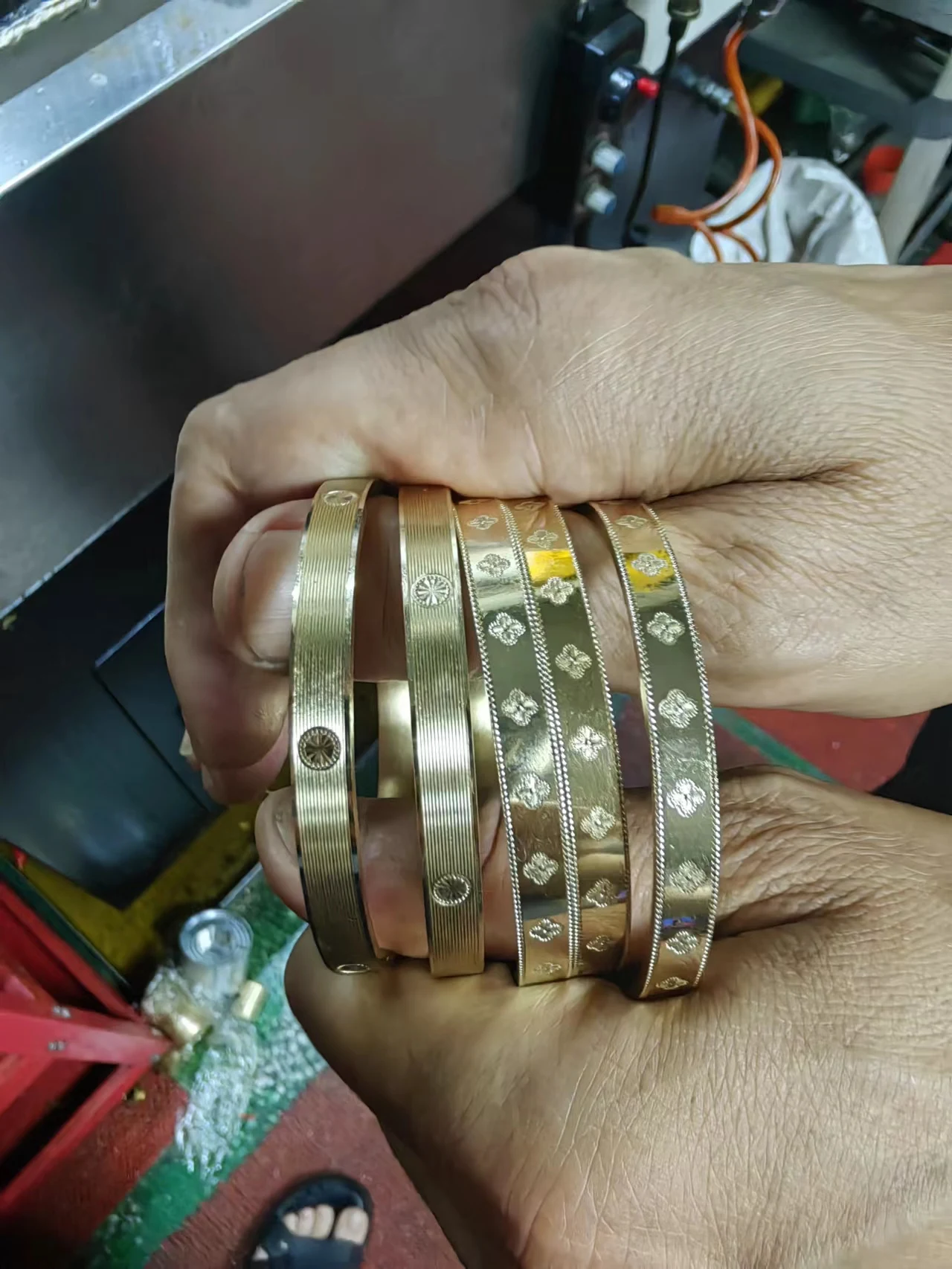

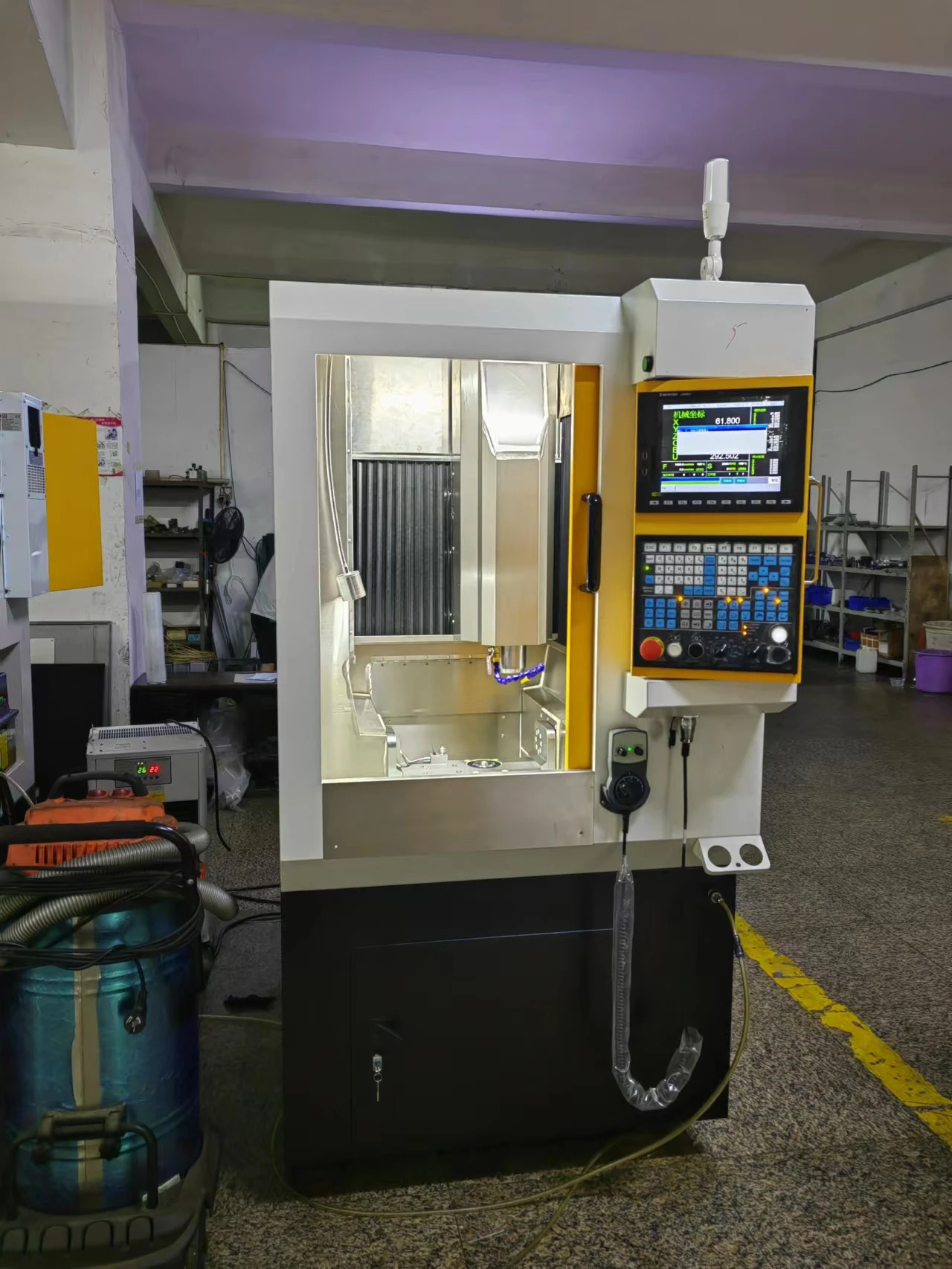

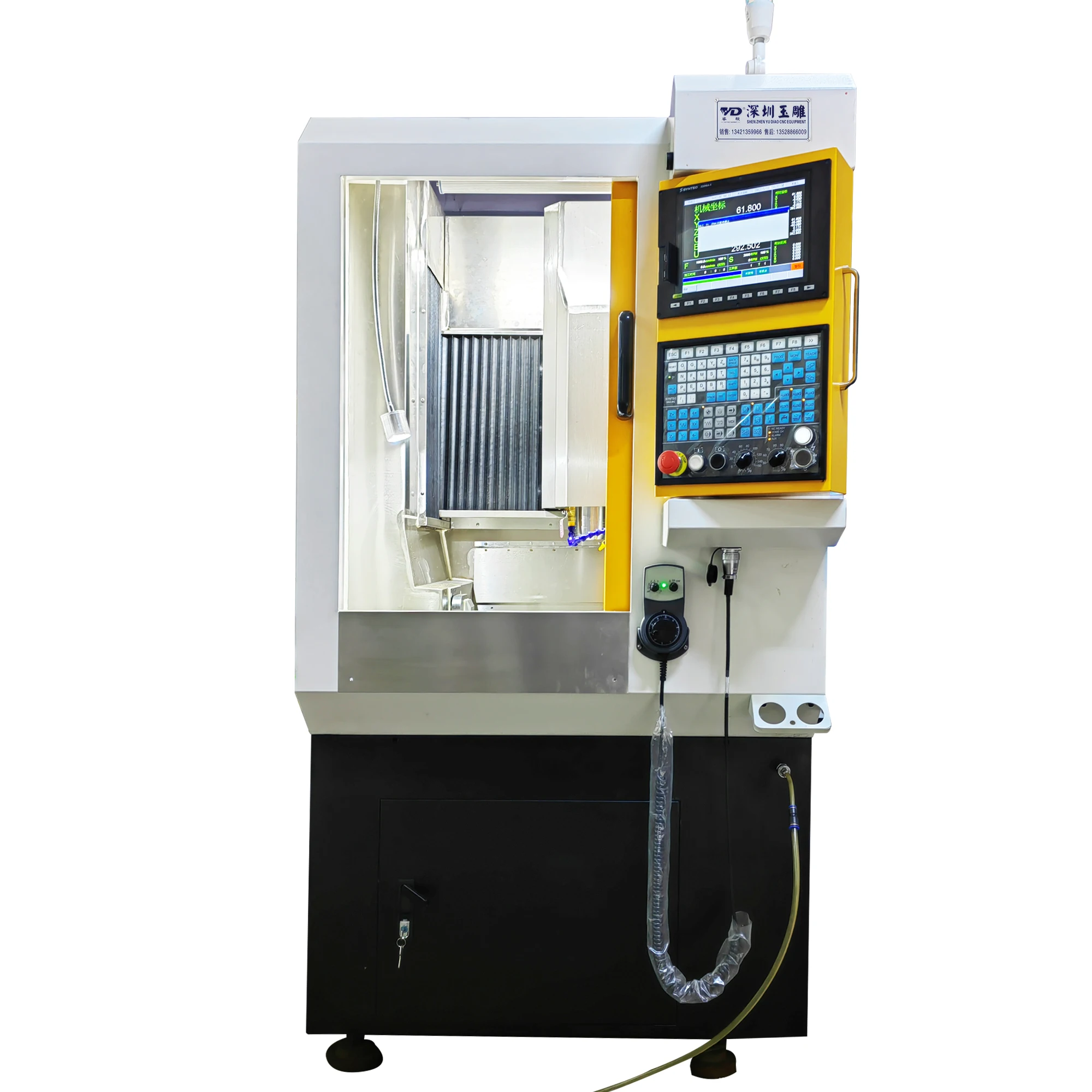

RY-320S-5 Gold K gold jewelry Ring bracelet precious metal recyclable 5 axis precision metal engraving machine
RY-320S-5 Gold K gold jewelry Ring bracelet precious metal recyclable 5 axis precision metal engraving machine
RY-320S-5 Gold K gold jewelry Ring bracelet precious metal recyclable 5 axis precision metal engraving machine
RY-320S-5 Gold K gold jewelry Ring bracelet precious metal recyclable 5 axis precision metal engraving machine
RY-320S-5 Gold K gold jewelry Ring bracelet precious metal recyclable 5 axis precision metal engraving machine
RY-320S-5 Gold K gold jewelry Ring bracelet precious metal recyclable 5 axis precision metal engraving machine
RY-320S-5 Gold K gold jewelry Ring bracelet precious metal recyclable 5 axis precision metal engraving machine

RY-320S-5 Gold K gold jewelry Ring bracelet precious metal recyclable 5 axis precision metal engraving machine

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description



Products Description




1. The casting structure is stable, reasonable and beautiful. The cast iron of our company is cast with HD250 grade, which has time aging and annealing aging to ensure that the cast iron body is stable and not deformed and durable.
2. The main parts of the fuselage are the first and second configuration parts imported from the same industry: for example: the guide rails are precision grade guide rails from Taiwan Shangyin or Yintai or ABBA; the screw rods are Japan's NSK, THK or German Rexroth (Rexroth); the system adopts Taiwan's new generation bus absolute value control system and integrated drive; the servo motor adopts the high inertia of Japan's Panasonic servo motor; the wire adopts Japanese wire and custom wire;





Applicable industries: ceramics, glasses, fiberboard, mobile phones, molds, hardware (hardware accessories in various industries), glass, auto parts, electronic cigarettes, smart wear, PCD circuit boards, accessories, handicrafts, die-casting parts, jewelry, seal signs,




A
Technical parameters of machine tool：
1
The machine body and all parts are made of nano castings
2
Table size
280×180mm
3
T-groove (width x quantity x spacing)
/
4
The largest load
100KG
5
Maximum feed height
280mm
6
Distance from spindle face to work
100-280mm
7
Triaxial travel X/Y/Z
280/200/180mm
8
The spindle diameter
Ǿ80mm
9
Spindle speed
400000RPM
10
Spindle motor power
4KW
11
Spindle tool library capacity
12
12
Tool change time
5S
13
The spindle taper
ISO20
14
Knife library classes
Servo disc rotation
15
Fast moving rate X/Y/Z
12/12/12m/Min
16
Processing speed
6－12m/Min
17
Positioning accuracy
±0.006/300mm
18
Repetitive positioning accuracy
±0.006/300mm
19
Machined surface accuracy
≤Ra1.6
20
The machining accuracy
±0.01mm
21
Optional four-axis five-axis
Yes
22
Angle of rotation of axis A
±105 degrees
23
Fifth axis C axis rotation Angle
360 degrees
24
Five-axis linkage mode
5 axis with the move
25
Working voltage
380V/50HZ±10% or 220V/60HZ
26
Machine size (l * W * H)
1000×1380×1900mm
27
The body weight
2000KG
B
Machine tool configuration details brand parameters：
1
The system configuration
Taiwan SYNTEC 210MA/LNC5800
2
The spindle
4KW high-precision, high-speed, high-quiet oil-cooled spindle
3
 Ball screw
Japan NSK, Germany RexRoth) 2505
4
Linear guide
Taiwan HIWIN/ABBA high precision guide H25
5
Servo unit
Panasonic Servo motor 750W/LNC
6
Wire rod bearing
Taiwan TPI precision grade bearing
7
Switching power supply
Taiwan Ming weft
8
Electric switch
China chint
9
converter
 * Square converter
