Heavy Duty Equipment Q35y 25 Iron Worker Machine Automatic Steel Punching Machine Hydraulic Ironworker
- Category: >>>
- Supplier: Zhenjiang Lifeng Machinery Technology Co. Ltd.
Share on (1600513390211):
Product Overview
Description
Specification
Type | Unit | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 |
Punching pressure | TON | 65 | 90 | 120 | 160 |
Max.cutting thickness | mm | 16 | 20 | 25 | 30 |
Cutting angel | ° | 7° | 8° | 8° | 8° |
Slide Stroke | mm | 80 | 80 | 80 | 80 |
Travel times | times/min | 8-15 | 8-15 | 8-15 | 8-15 |
Throat depth | mm | 300 | 355 | 400 | 600 |
Punching thickness | mm | 16 | 20 | 25 | 26 |
Max.punching diameter | mm | 25 | 30 | 35 | 38 |
Main motor Power | Kw | 4 | 5.5 | 7.5 | 11 |
Dimension （LxWxH） | mm | 1640*730 *1770 | 1640*800 *1990 | 2350*960 *2090 | 2635*1040 *2300 |
Weight | kg | 1600 | 2000 | 4800 | 6800 |
Main Feature:
The hydraulic ironworker machine industrial-grade combined punching and shearing machine featuring multiple functions, including: round hole, square hole, oblong hole punching; steel plate, flat bar, angle steel, C-channel, H-beam punching; steel plate bending; angle steel shearing, notching and bending; flat, round, square bar, C-channel, I-beam, T-bar shearing/cutting; angle bending and pipe notching.
● The multi functional mechanical iron worker (Q35Y series) can cut and punch all kinds of materials such as plate, square bar, angle, round bar, channel and so on；
● It has another special function, that is, it can also bend the plate below 500mm；
● With its multifunction, the machine is your first choice among the counterpart machine；
● All the components are of the highest quality in their safety, function, capacity and maintenance；
The hydraulic ironworker machine industrial-grade combined punching and shearing machine featuring multiple functions, including: round hole, square hole, oblong hole punching; steel plate, flat bar, angle steel, C-channel, H-beam punching; steel plate bending; angle steel shearing, notching and bending; flat, round, square bar, C-channel, I-beam, T-bar shearing/cutting; angle bending and pipe notching.
● The multi functional mechanical iron worker (Q35Y series) can cut and punch all kinds of materials such as plate, square bar, angle, round bar, channel and so on；
● It has another special function, that is, it can also bend the plate below 500mm；
● With its multifunction, the machine is your first choice among the counterpart machine；
● All the components are of the highest quality in their safety, function, capacity and maintenance；

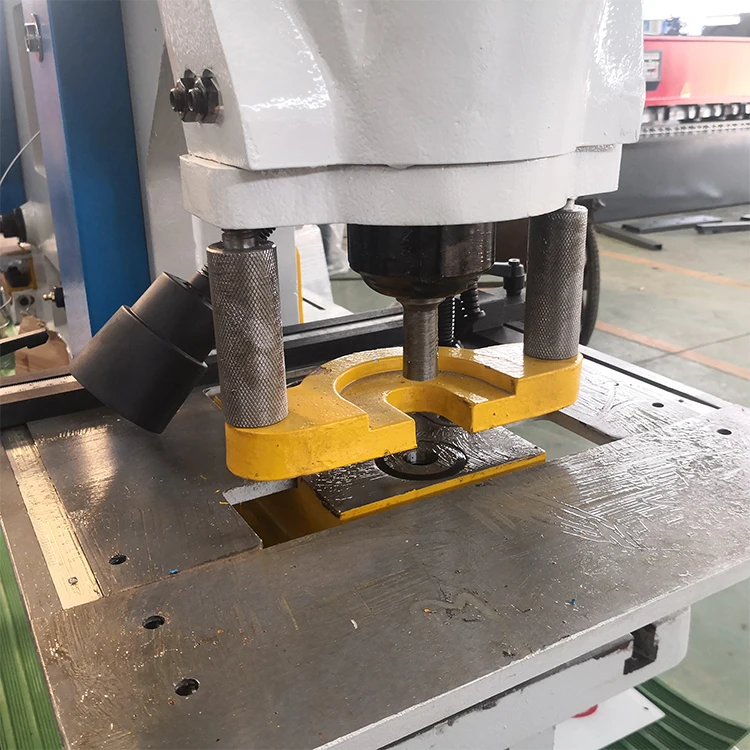

Punching station
● A full range of punches and dies are available for various punching needs.
● Quick change retaining nut system for fast punch tooling change.

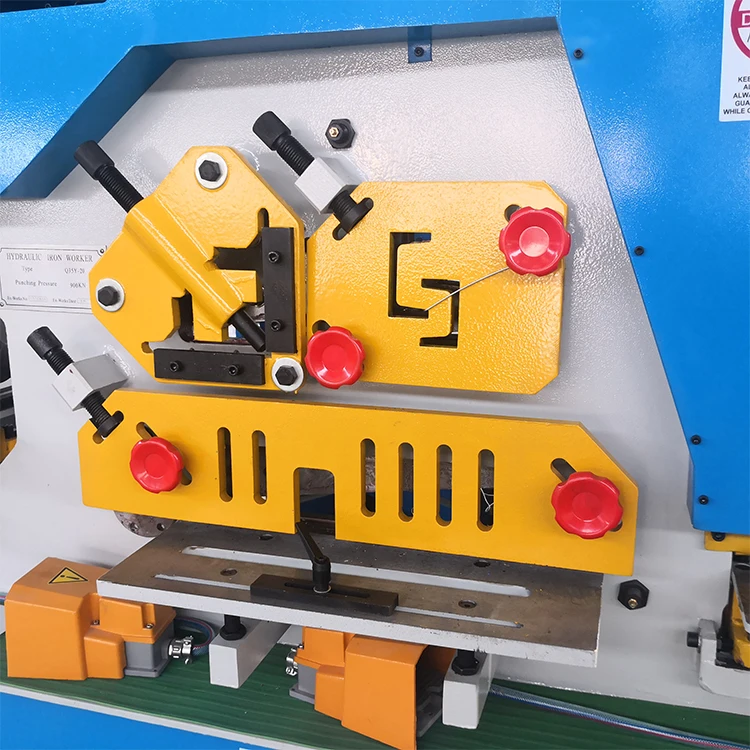

Flat Bar shearing, Angle shearing, Bar shearing
● One hold-down for various sizes of square bar shearing and round bar shearing.
● Optional channel and section bar shear tooling is available for most models.

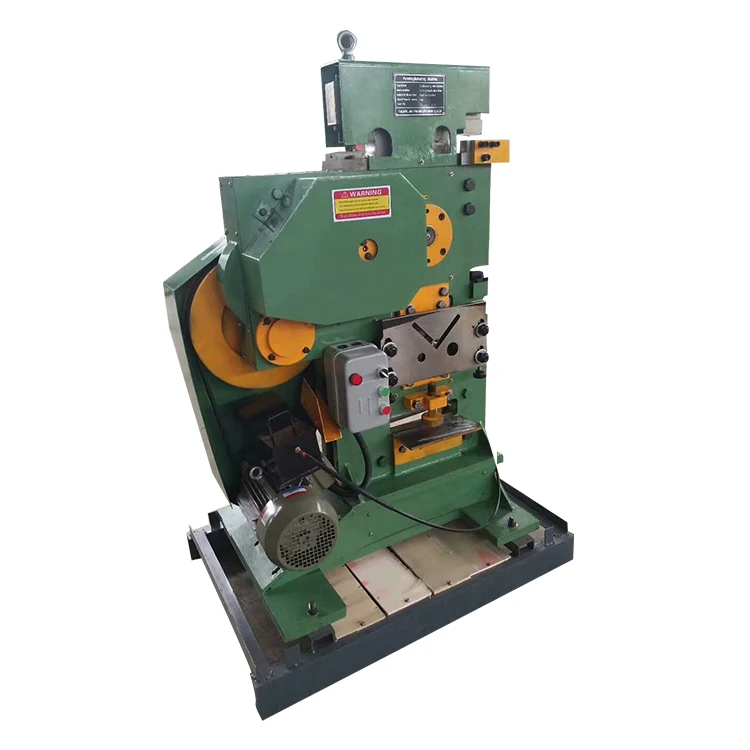

Small type hydraulic iron worker
We have more types and welcome your consultation.
Product Picture
Company Profile
Zhenjiang Lifeng Machinery Technology Co., Ltd is located in the western suburbs of Zhenjiang.
The transportation is convenient .And it is only 50 kilometers from the Nanjing Lukou International Airport.
Our company is a medium-lot producer which is professional in producing machinery blade,mold,roll,CNC machine tools,ventilation machinery,sheet metal machinery.
The products are sold throughout the large and medium enterprises including steel.
Mills,paper,plastics,metallurgical,chemical,rubber tire factories and various packaging industry.With excellent facilities,superb technology,strict testing and advanced management,the company’s product quality has always been at the top of the same industry.
We have been in good faith-based and pragmatic sense,step by step to move forward with excellent product quality,perfect after-sales service.We have created the corporate image to the satisfaction of users and established a broad market space.
The transportation is convenient .And it is only 50 kilometers from the Nanjing Lukou International Airport.
Our company is a medium-lot producer which is professional in producing machinery blade,mold,roll,CNC machine tools,ventilation machinery,sheet metal machinery.
The products are sold throughout the large and medium enterprises including steel.
Mills,paper,plastics,metallurgical,chemical,rubber tire factories and various packaging industry.With excellent facilities,superb technology,strict testing and advanced management,the company’s product quality has always been at the top of the same industry.
We have been in good faith-based and pragmatic sense,step by step to move forward with excellent product quality,perfect after-sales service.We have created the corporate image to the satisfaction of users and established a broad market space.
Certifications
Workshop
Payment & Delivery
FAQ
Q:Are you trading company or manufacturer?
A:We are factory.
Q: How about your machine quality?
A: Doctson is a mature brand in China. Through our over ten years research in technology, our design including structure and detailed security and precision has enhanced greatly, and can match all the standard or more strict standard.
A:We are factory.
Q: How about your machine quality?
A: Doctson is a mature brand in China. Through our over ten years research in technology, our design including structure and detailed security and precision has enhanced greatly, and can match all the standard or more strict standard.
