ELM327 USB V1.5 with Switch Car Diagnostic Cable for ELMconfig Forscan CH340 25K80 chip HS CAN / MS CAN
- Category: >>>
- Supplier: Shenzhen Tuobiyi Co. Ltd.
Share on (1600513394289):
Product Overview
Description

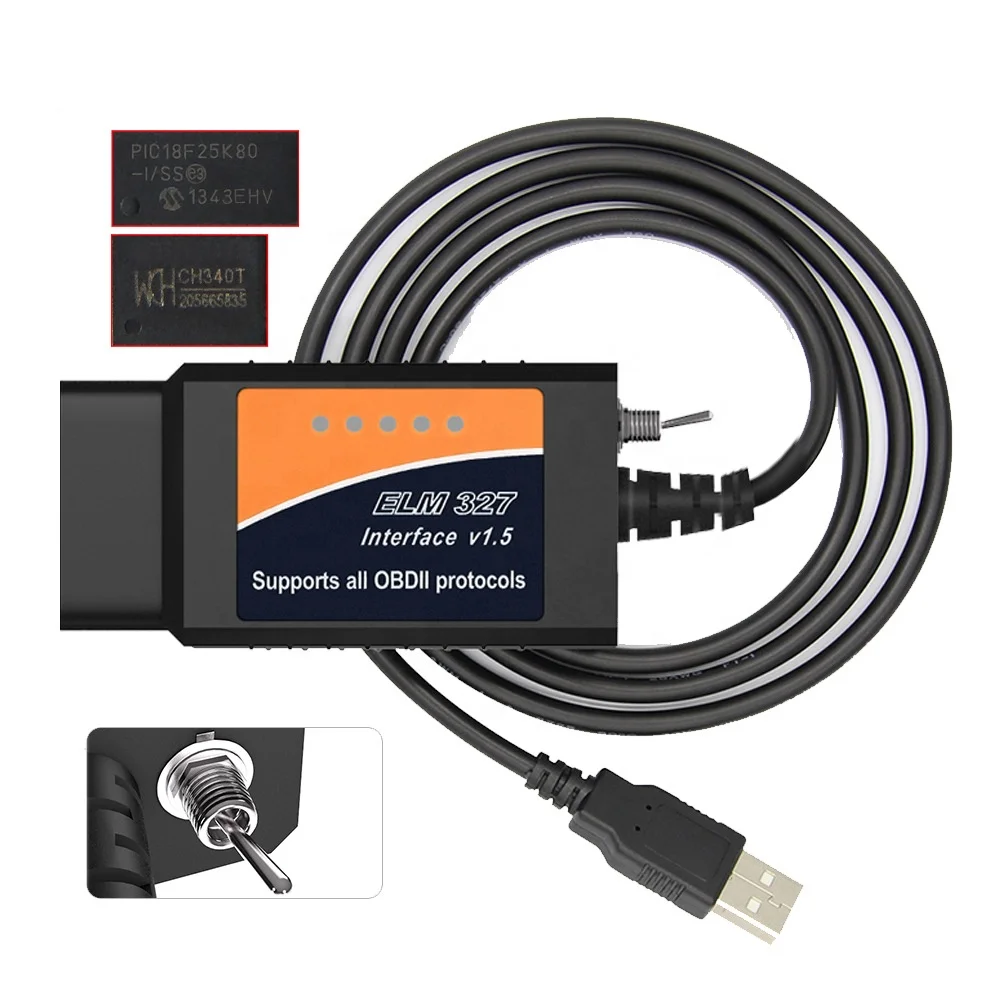

ELM327 USB V1.5 with Switch Car Diagnositc Cable for ELMconfig Forscan CH340+25K80 chip HS-CAN / MS-CAN

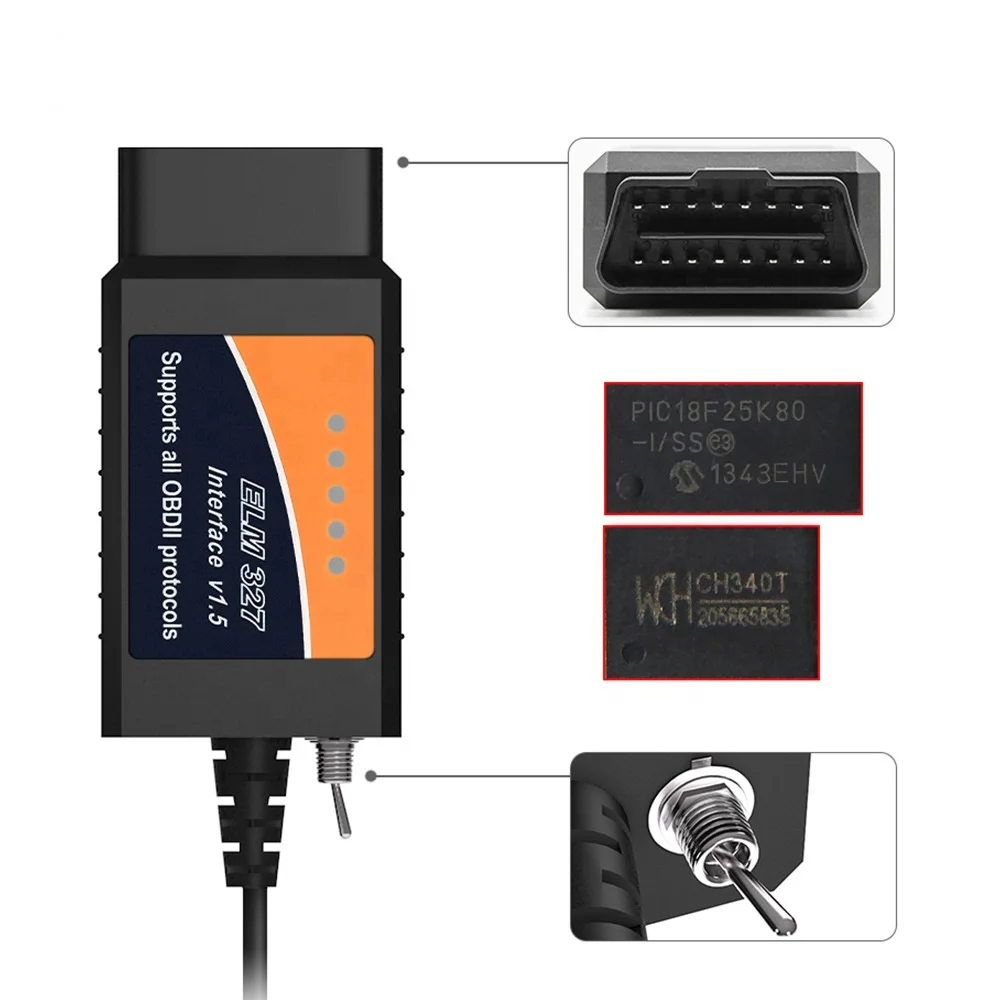

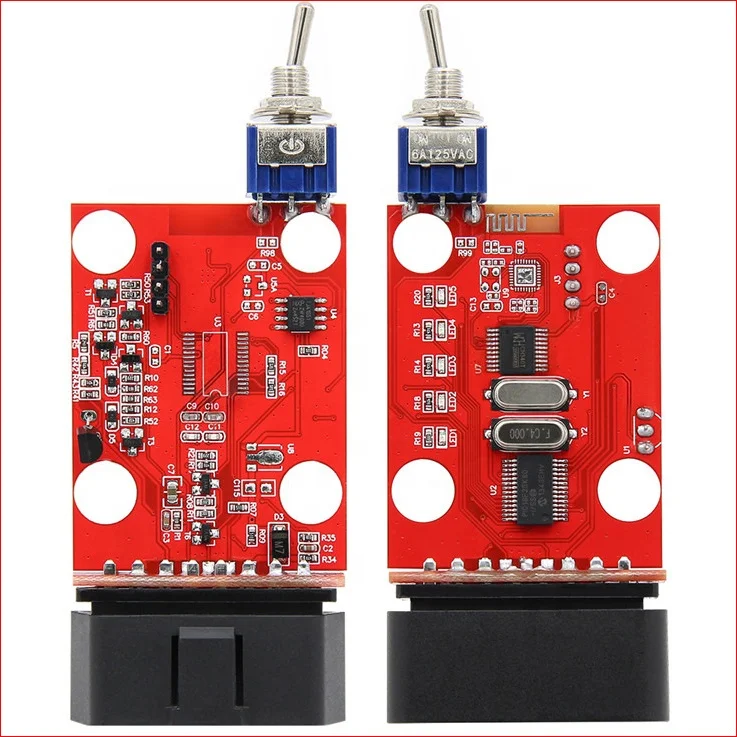

1: Latest ELM327 includes PIC25K80 and CH340T.

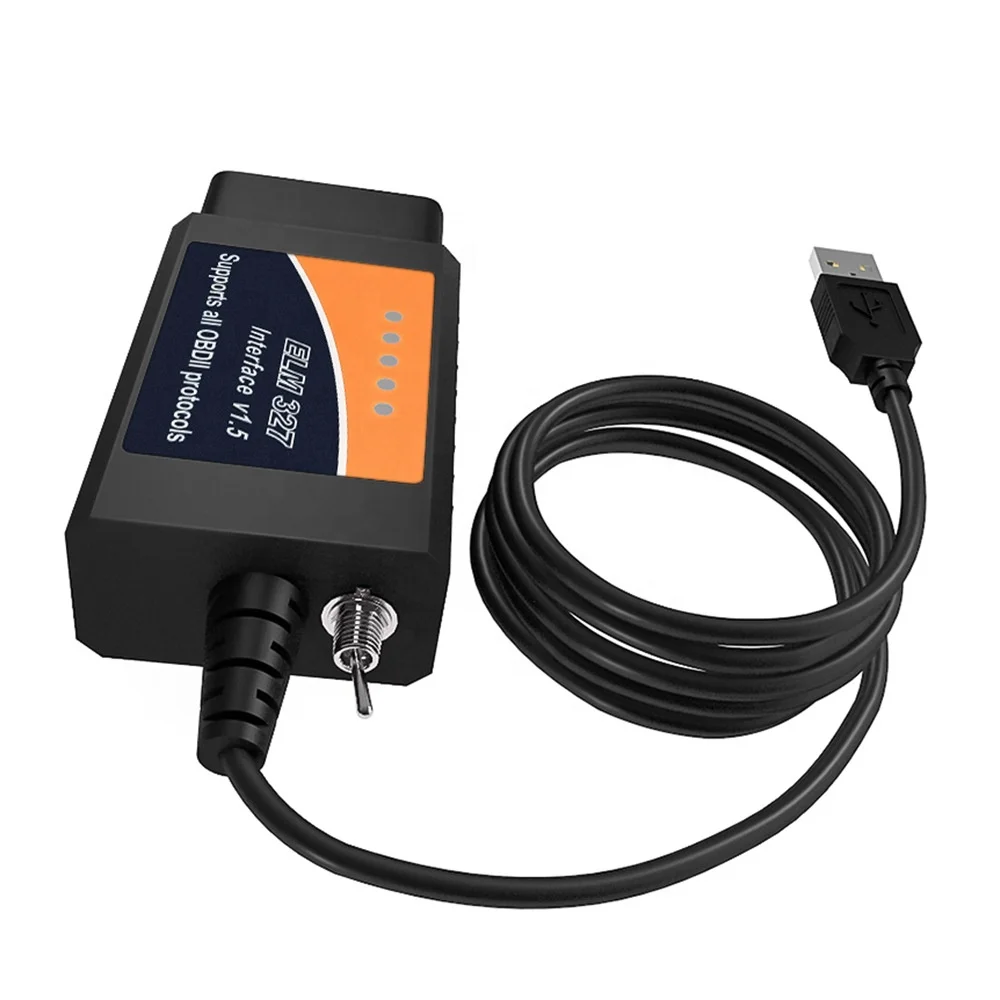

2: Manufactured modification to include a switch to connect to different CAN buses, MS CAN bus and HS CAN bus.
3: Designed for FORScan software, compatible with software venders; for FORScan, for Elmconfig, for FF2 and for FoCCCus, plus more.
4: Support Windows XP and WIN7 32bite.
OBDII Protocols:
SAE J1850 PWM (41.6Kbaud)
SAE J1850 VPW (10.4Kbaud)
ISO9141-2 (5 baud init, 10.4Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
SAE J1939 CAN (29bit ID, 250*Kbaud)
CAN (11*bit ID, 125*Kbaud)
CAN (11*bit ID, 50*Kbaud)
Product Description
Introduction:
With the cable and the one of the supported software vendors you can detected modules which are not visible for regular
OBD2 scanners. This includes showing you trouble codes, PIDs, running tests and services procedures which are never displayed by other OBD2 scanners and a standard ELM327.
Basic Features:
Reset fault /trouble codes / parameter ids (PIDs)
Change car configuration data
Run tests
Services procedures
Program certain models
Pin Configurations:
Switch position one: HS CAN - Occupies pins 6 and 14
Switch position two: MS CAN - Occupies pins 3 and 11
Supported Software:
For FORScan
For Elmconfig
For FoCCCus
For FF2
Plus more
Please note that many models (approximately since 2003-2004) are equipped with MS CAN bus, in addition to the regular HS CAN bus.
In contrast to HS CAN bus, MS CAN bus is not supported by the stock ELM327, because MS CAN is a manufacturer-specific solution and
located on non-OBD2 pins. This ELM327 has been modified to allow it to implement the MS CAN bus.
ELM327 supports HS CAN from the stock, because for HS CAN completely matches to the OBD2 standards. It occupies pins 6 and 14. MS CAN bus occupies pins 3 and 11.
Supported Vehicles:
Many vehicles that can be addressed using an ELM via an OBDII connector.
Packing List:

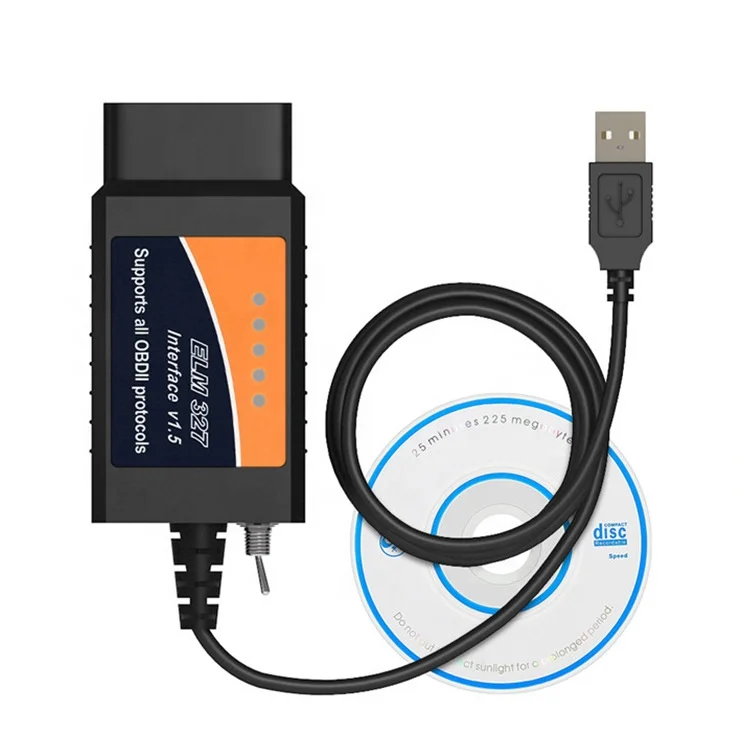

1 x ELM327 Diagnostic cable
1 x CD Driver
2: Manufactured modification to include a switch to connect to different CAN buses, MS CAN bus and HS CAN bus.
3: Designed for FORScan software, compatible with software venders; for FORScan, for Elmconfig, for FF2 and for FoCCCus, plus more.
4: Support Windows XP and WIN7 32bite.
OBDII Protocols:
SAE J1850 PWM (41.6Kbaud)
SAE J1850 VPW (10.4Kbaud)
ISO9141-2 (5 baud init, 10.4Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
SAE J1939 CAN (29bit ID, 250*Kbaud)
CAN (11*bit ID, 125*Kbaud)
CAN (11*bit ID, 50*Kbaud)
Product Description
Introduction:
With the cable and the one of the supported software vendors you can detected modules which are not visible for regular
OBD2 scanners. This includes showing you trouble codes, PIDs, running tests and services procedures which are never displayed by other OBD2 scanners and a standard ELM327.
Basic Features:
Reset fault /trouble codes / parameter ids (PIDs)
Change car configuration data
Run tests
Services procedures
Program certain models
Pin Configurations:
Switch position one: HS CAN - Occupies pins 6 and 14
Switch position two: MS CAN - Occupies pins 3 and 11
Supported Software:
For FORScan
For Elmconfig
For FoCCCus
For FF2
Plus more
Please note that many models (approximately since 2003-2004) are equipped with MS CAN bus, in addition to the regular HS CAN bus.
In contrast to HS CAN bus, MS CAN bus is not supported by the stock ELM327, because MS CAN is a manufacturer-specific solution and
located on non-OBD2 pins. This ELM327 has been modified to allow it to implement the MS CAN bus.
ELM327 supports HS CAN from the stock, because for HS CAN completely matches to the OBD2 standards. It occupies pins 6 and 14. MS CAN bus occupies pins 3 and 11.
Supported Vehicles:
Many vehicles that can be addressed using an ELM via an OBDII connector.
Packing List:
1 x ELM327 Diagnostic cable
1 x CD Driver
