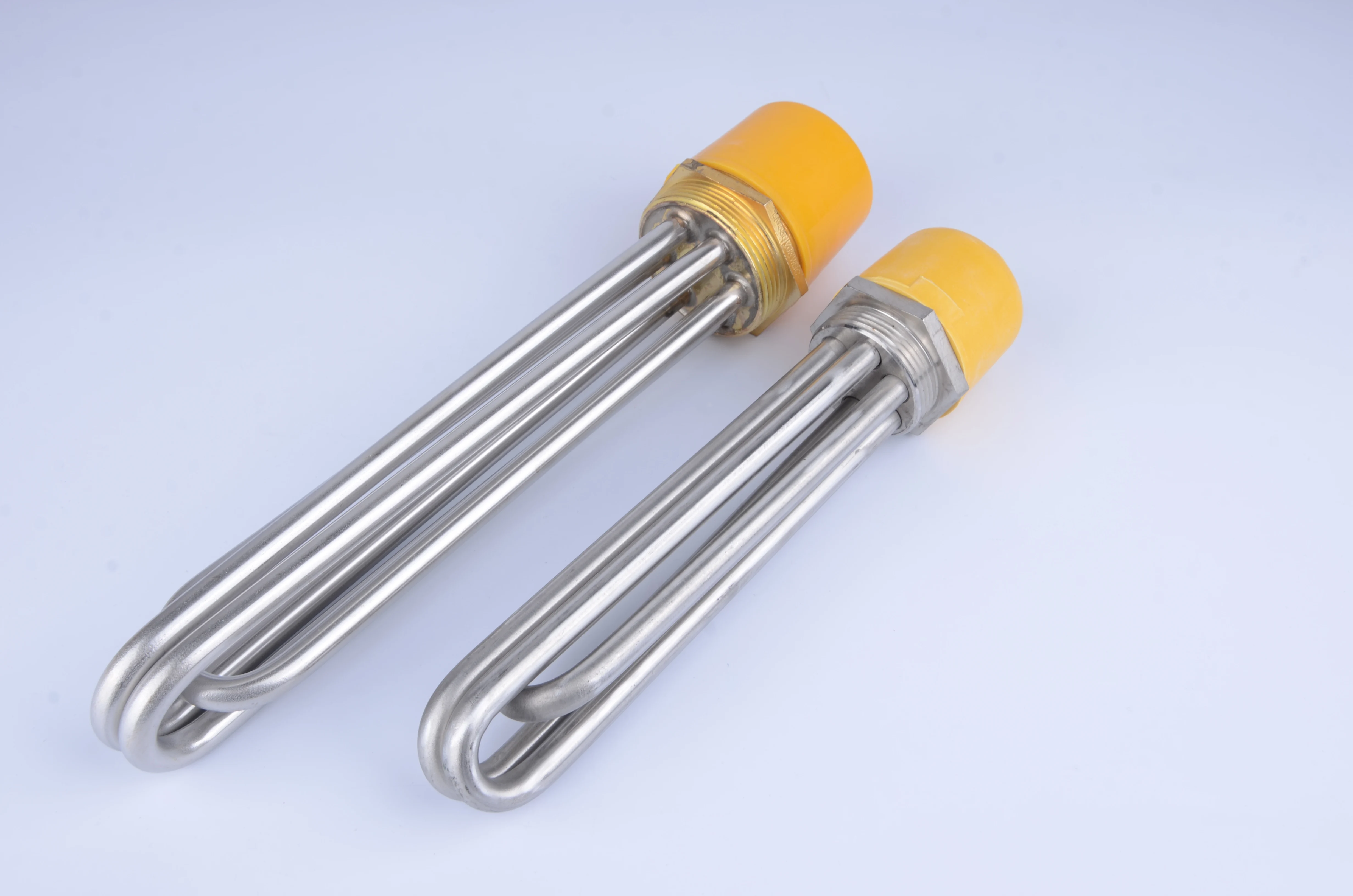

Industrial Electric Tubular Rod Heating Element 220V 230V 380V Immersion Heater
- Category: >>>
- Supplier: Taizhou Luertai Electric Heating Appliance Co. Ltd.
Share on (1600513404259):
Product Overview
Description
Product Description
Cartridge heater introduction
Electric heater cartridge is a piece of equipment, made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr2080),High temperature leads, seamless stainless steel sheath(304,321,316,800,840). usually in tube form,that is used in heating applications.by way of insertion into metal blocks via a series of drilled holes.
Cartridge heaters are manufactured in two basic forms - high density and low density. High density cartridge heaters are used to heat plastic injection moulds, dies, platens and so forth, whereas low density cartridge heaters are more suitable for packing machinery, heat sealing, labelling machines and hot stamping applications.

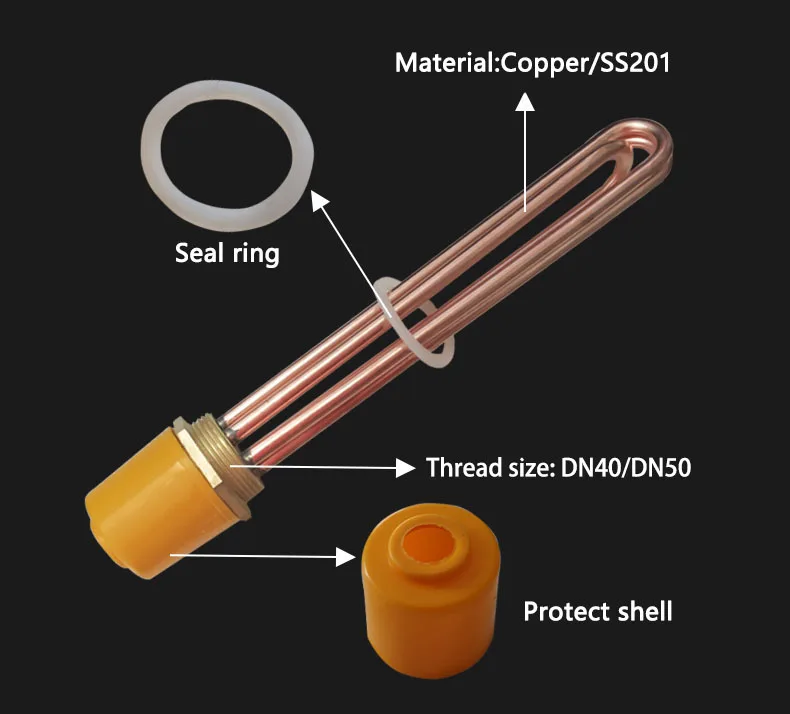

Thread size | Specification | Combining form | Single tube specification | Tube OD | Tube material | Length |

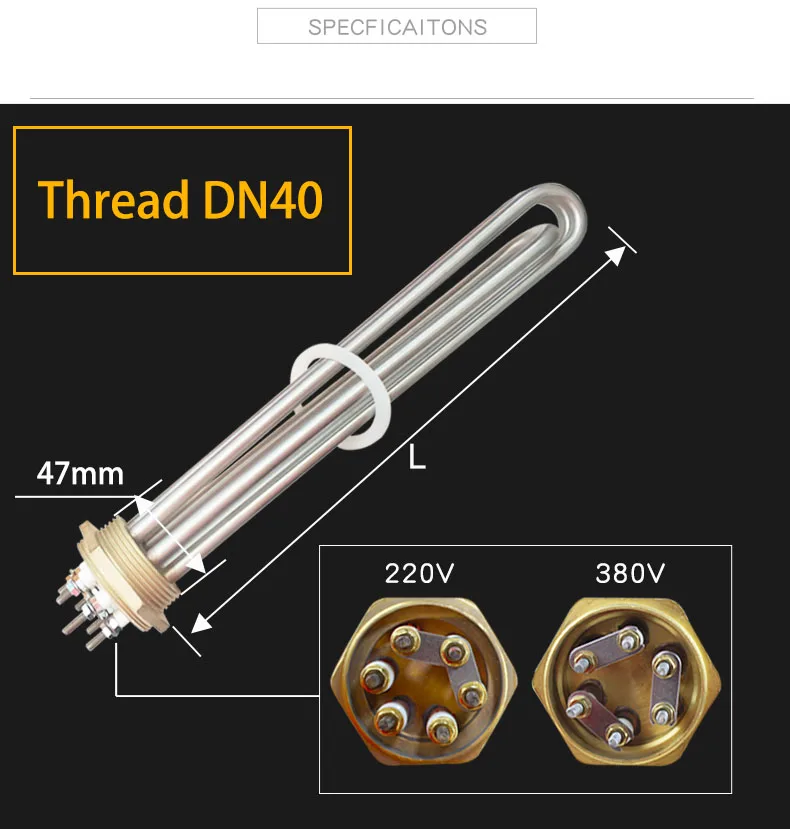

DN40 | 220V 3KW 380V 3KW | 3pcs tube | 220V 1KW | 8mm | SS201 | 200mm |
DN40 | 220V 4.5KW 380V 4.5KW | 3pcs tube | 220V 1.5KW | 8mm | SS201 | 230mm |
DN40 | 220V 6KW 380V 6KW | 3pcs tube | 220V 2KW | 8mm | SS201 copper | 250mm |
DN40 | 220V 9KW 380V 9KW | 3pcs tube | 220V 3KW | 8mm | SS201 copper | 350mm |
DN40 | 380V 6KW | 3pcs tube | 380V 2KW | 8mm | SS201 copper | 250mm |
DN40 | 380V 9KW | 3pcs tube | 380V 3KW | 8mm | SS201 copper | 300mm |
DN40 | 380V 12KW | 3pcs tube | 380V 4KW | 8mm | SS201 copper | 350mm |
Thread size | Specification | Combining form | Single tube specification | Tube OD | Tube material | Length |

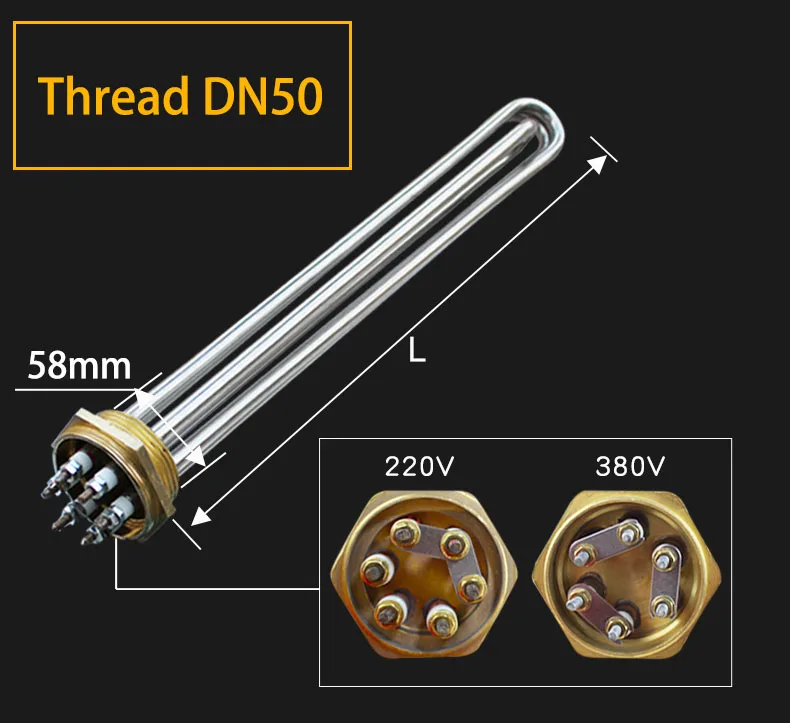

DN50 | 220V 6KW 380V 6KW | 3pcs tube | 220V 2KW | 10mm | SS201 | 250mm |
DN50 | 220V 9KW 380V 9KW | 3pcs tube | 220V 3KW | 10mm | SS201 | 300mm |
DN50 | 380V 6KW | 3pcs tube | 380V 2KW | 10mm | SS201 copper | 250mm |
DN50 | 380V 9KW | 3pcs tube | 380V 3KW | 10mm | SS201 copper | 300mm |
DN50 | 380V 12KW | 3pcs tube | 380V 4KW | 10mm | SS201 copper | 350mm |
Thread size | Specification | Combining form | Single tube specification | Tube OD | Tube material | Length |
DN40 | 380V 6KW | 3pcs tube | 380V 2KW | 10mm | copper | 500/600mm |
DN40 | 380V 9KW | 3pcs tube | 380V 3KW | 10mm | copper | 500/600mm |
DN40 | 380V 12KW | 3pcs tube | 380V 4KW | 10mm | copper | 500/600mm |
DN50 | 380V 9KW | 3pcs tube | 380V 3KW | 10mm | copper | 600mm |
DN50 | 380V 12KW | 3pcs tube | 380V 4KW | 10mm | copper | 600mm |
Certifications
We have CE,ROHS and letters patent
Company Profile
About us

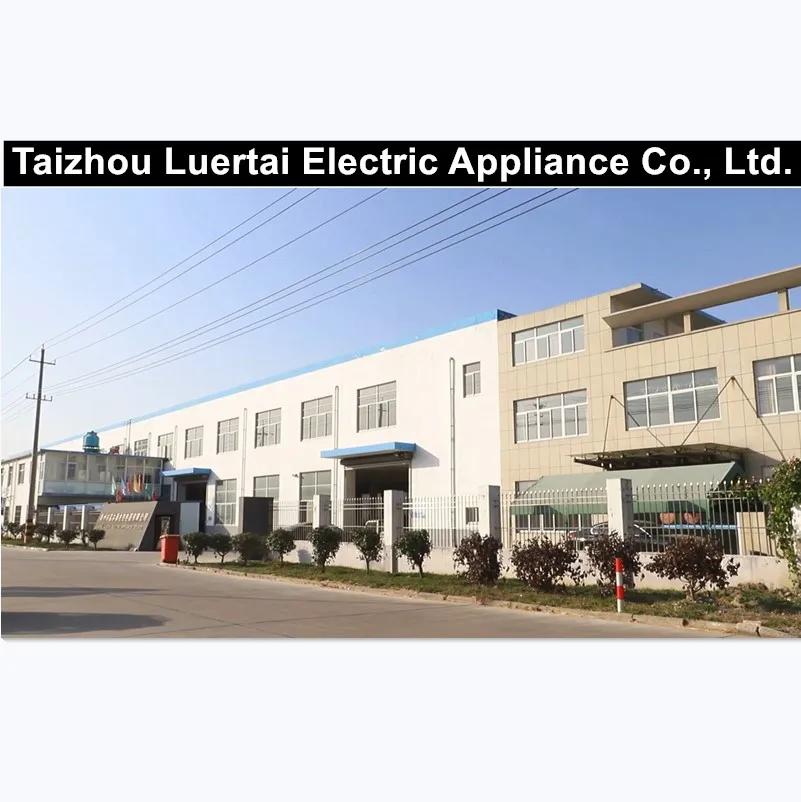

Taizhou Luertai Electric Appliance Co., Ltd. was founded in 2003.We have got strong capability of technology development and complete production equipment. We take the product quality as the foundation of our company and build customers' relationship with quality service. Satisfied, persisting in continuous improvement, our policy of 'Quality First, Customer First, Honesty, and Service", and gradually grow into a manufacturing enterprise with product development and large-scale production capacity.

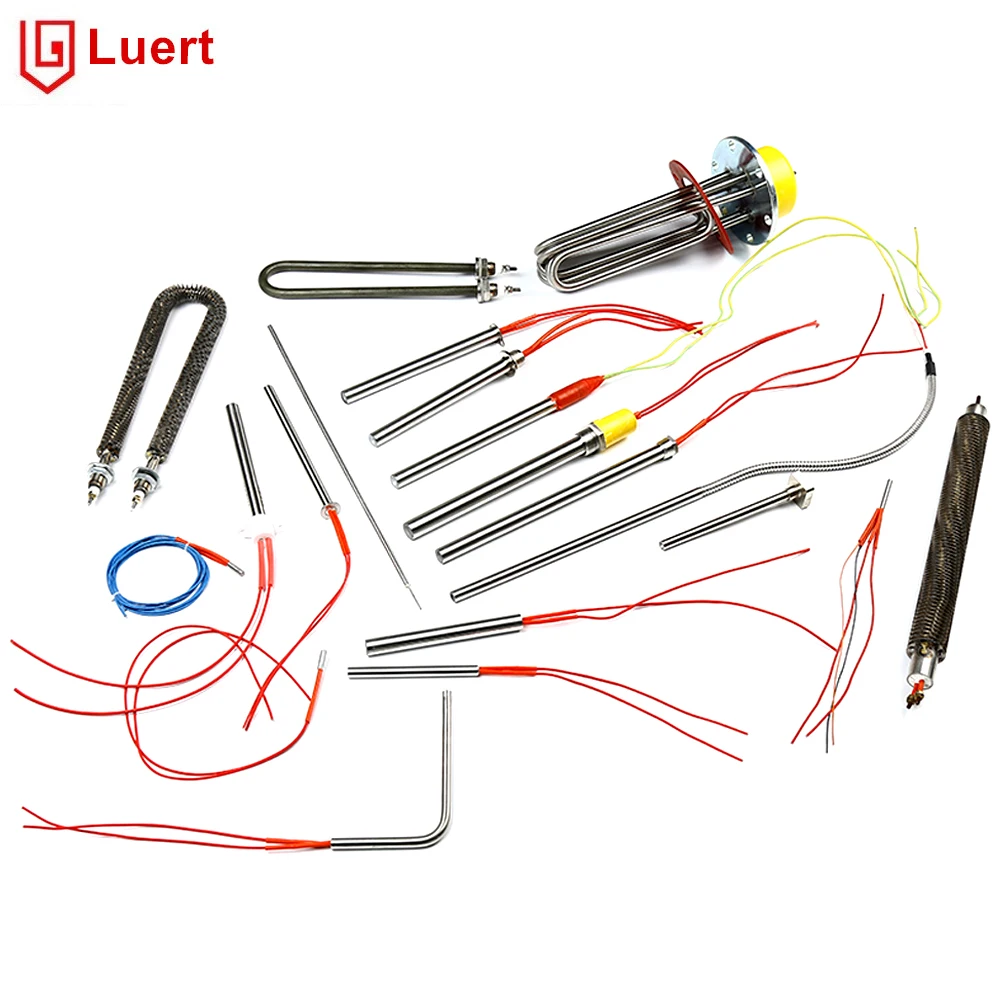

Our main products are: cartridge heaters, mold heaters, double-head eheaters, radiator heaters, filter housing single-head heaters, micro single-head heaters, 3D printing heaters, water heaters, steaming rice heaters, sauna electric heaters, civil purpose heaters, industrial heaters, finned heaters, finned electric heaters, titanium electric heating pipe, flange electric heating pipe, cast aluminum heater, heating ring and other stainless sheath products.
Our main products are: cartridge heaters, mold heaters, double-head eheaters, radiator heaters, filter housing single-head heaters, micro single-head heaters, 3D printing heaters, water heaters, steaming rice heaters, sauna electric heaters, civil purpose heaters, industrial heaters, finned heaters, finned electric heaters, titanium electric heating pipe, flange electric heating pipe, cast aluminum heater, heating ring and other stainless sheath products.

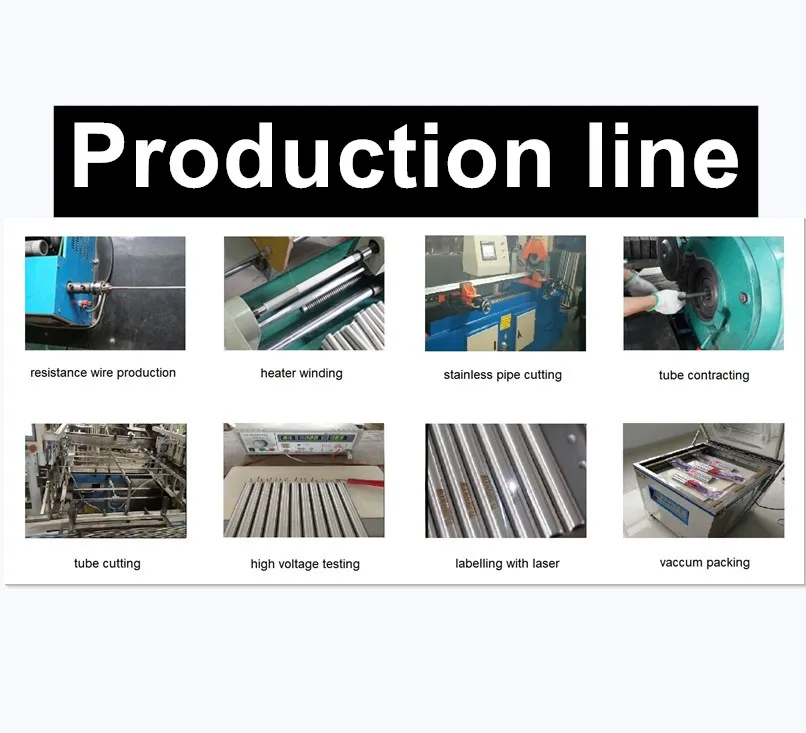

Process Introduction
