Moisturisor stainless steel SS304 mono screw pump
- Category: >>>
- Supplier: Wenzhou Ranking Imp.& Exp. Co. Ltd.
Share on (1600513432750):
Product Overview
Description
Moisturisor cream stainless steel SS304 SS316L mono screw pump
what is mono pump (screw pump)
Mono pump is designed for for viscous fluids & slurries, like tomato sauce, date paste, fruit puree, glue, cream ...
Mono pumps are a type of positive displacement pump, also known as screw pump, progressing cavity pump, progressive Cavity Pump, helical rotor pump, and eccentric screw pump. Because of mono pump's excellent ability to handle high viscosity fluid, paste, puree, slurry, mono pump offered by ranking machinery is widely used in tomato sauce making, lotion cream making, glue making and many other chemical industries.
Mono pumps are a type of positive displacement pump, also known as screw pump, progressing cavity pump, progressive Cavity Pump, helical rotor pump, and eccentric screw pump. Because of mono pump's excellent ability to handle high viscosity fluid, paste, puree, slurry, mono pump offered by ranking machinery is widely used in tomato sauce making, lotion cream making, glue making and many other chemical industries.

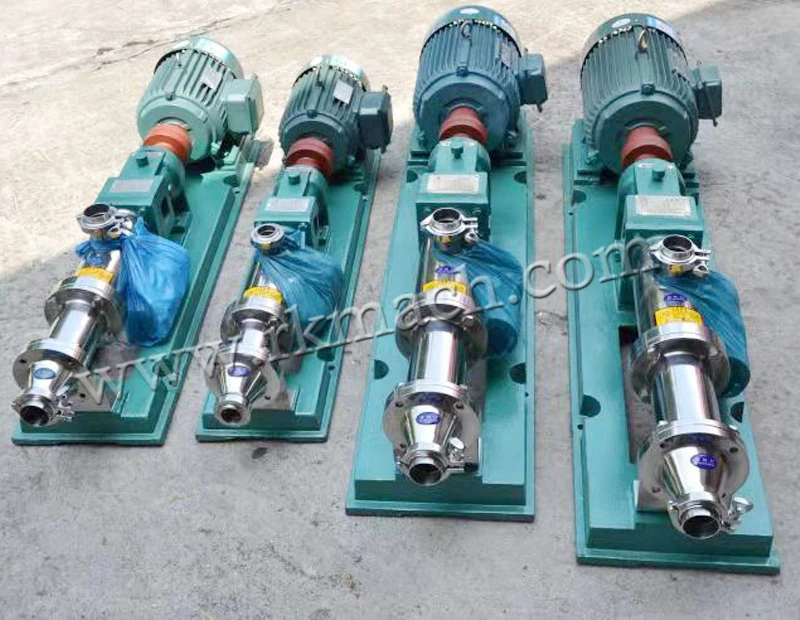

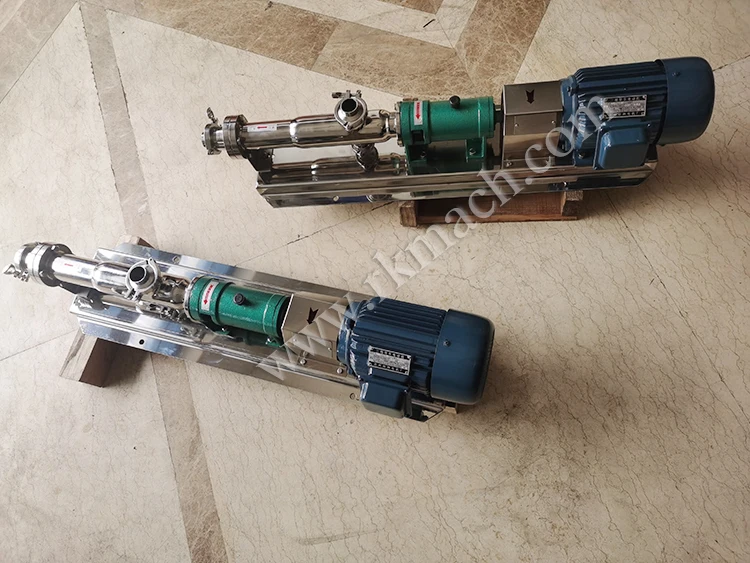

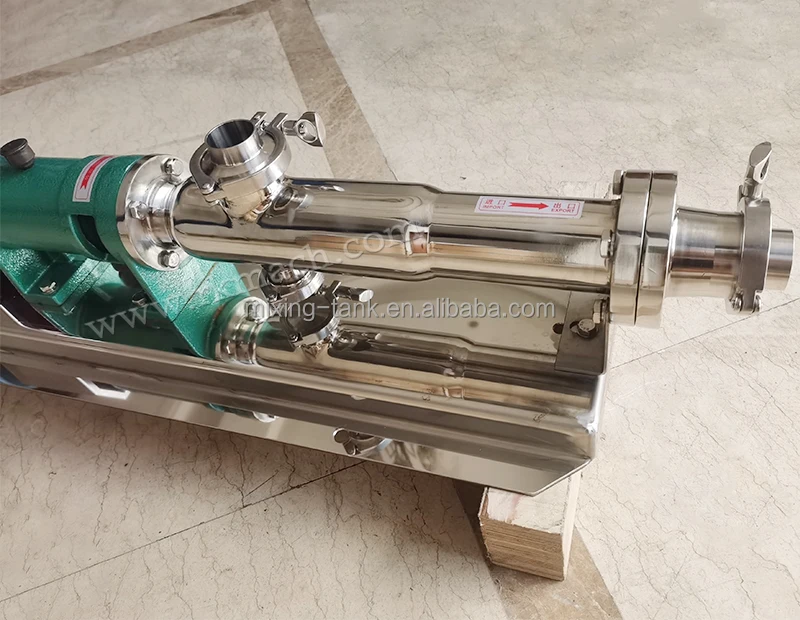

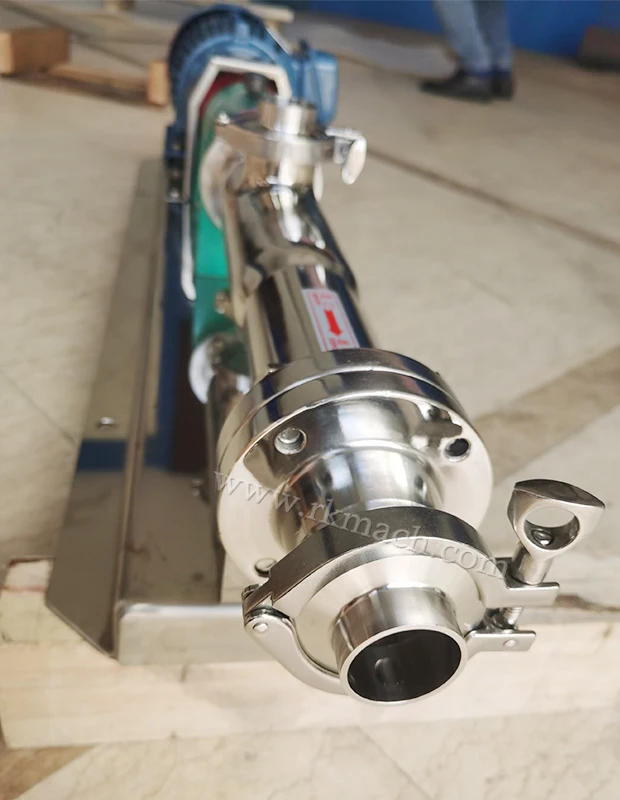

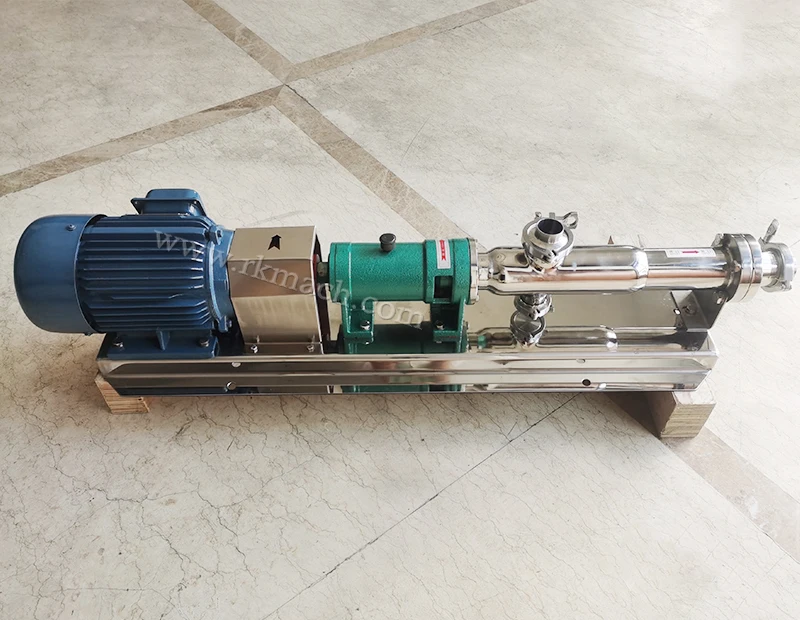

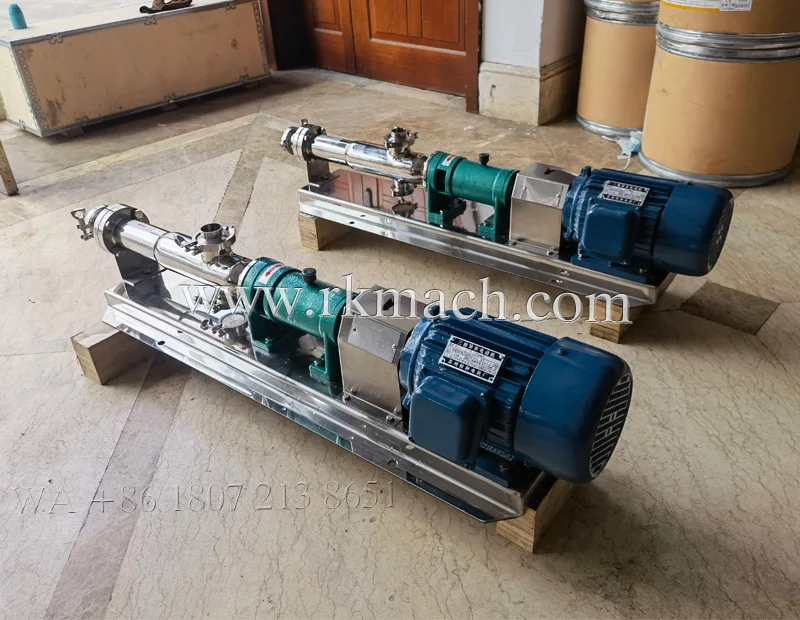

stainless steel mono pump Picture
most hot sell stainless steel mono pump G25-1, G30-1, G35-1 for industrial use, and sanirary type mono pump GW25-1, GW30-1, GW35-1, GW40-1 for food industrial.
Mono pump structure
Sanitary mono pump consists essentially of a rubber stator in the form of a double internal helix and a single helical rotor which rolls in the stator with a slightly eccentric motion. The rotor maintains a constant seal across the stator and this seal travels continuously through the pump, giving a positive uniform displacement. The Mono pump is manufactured to meet mining conditions.
The mono pump rotor is made of stainless steel. The length of the mono pump stator and rotor provides for a twist of slightly more than 360 degrees to provide for a complete seal. For greater heads the length of stator and rotor are increased so as to provide two or more complete seals in series and the head is then developed in stages.
if buyers need high lift head, single stage mono pump, double stage mono pump and 3 stage mono pumps are all available . max output pressure can be 2.4MPA
mono pump's advantage
compared with centrifugal pump / lobe pump / portable barrel pump, mono pump suitable for viscous fluids, slurries, liquids that contain large particles, gas-liquid mixtures and sheer sensitive fluids, and it is an ideal choice for potentially tough applications when other pumps like centrifugal pump / Rotary lobe pump /portable barrel pump may fail.
Mono pump specification
Here below are some hot sell mono pump screw pump technical specification. for more details, please contact our on line sales team.
Mono pump price
Mono pumps are made of stainless steel, the mono pump price depends on the price of stainless steel raw material. The mono pump screw pump price listed on Alibaba site may not the exact price. please contact our on line team to get the latest price for the mono pump you need. Our sales team and technical team are ready to offer you a timely service for both the mono pump price and mono pump specification.
