2.6KW AC серво мотор 2.6KW 2500 об/мин 10N.M. Однофазный cnc Серво привод и мотор сервопривода для промышленных швейных машин
- Category: >>>
- Supplier: Shenzhen Xinlichuan Electric Co. Ltd.
Share on (1600513438193):
Product Overview
Description

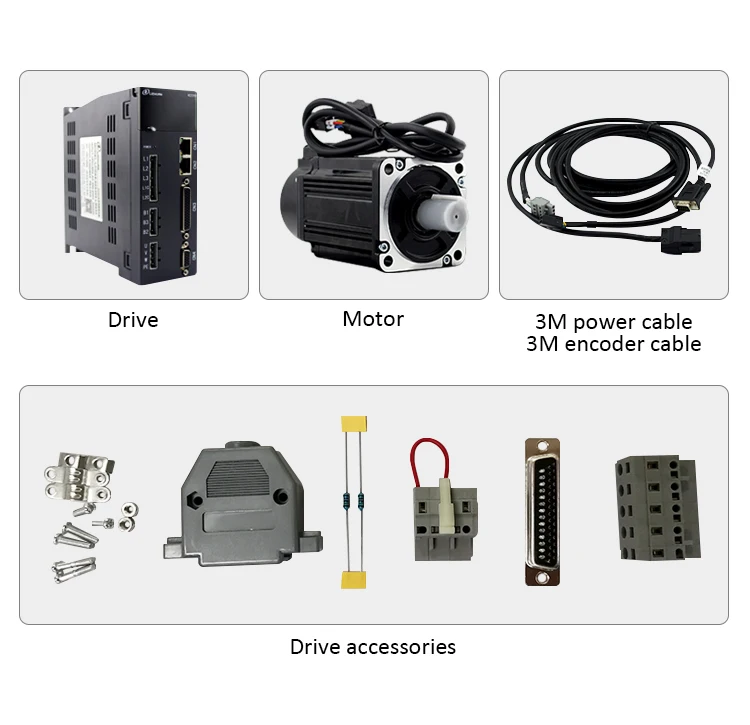

NO. | Product Name | Model / Description | Quantity |
1 | Lichuan 2.6KW 130M10025B 17 bit absoulted encoder Servo Motor | 130M10025B | 1 |

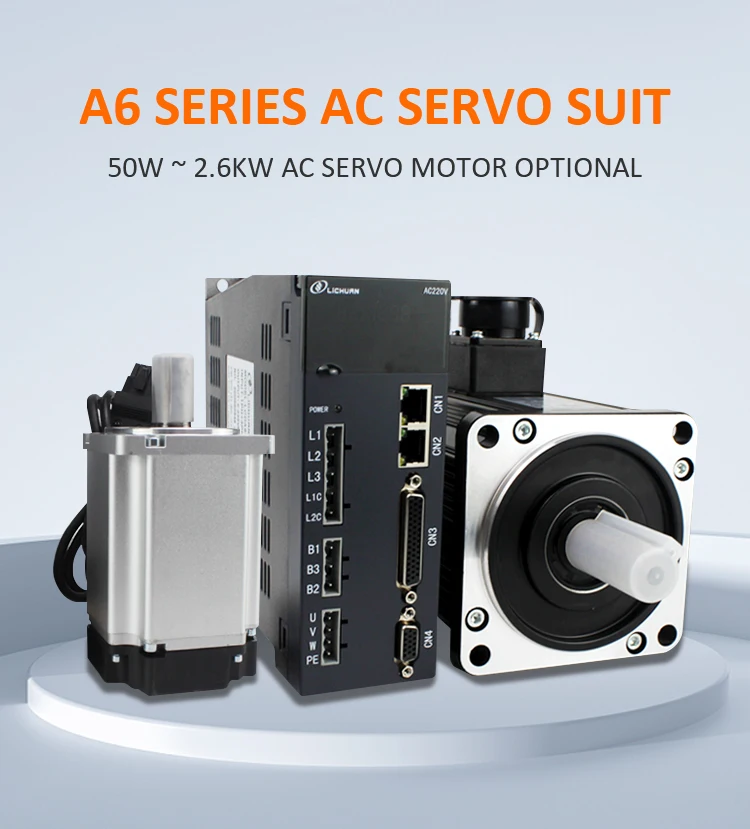

2 | Lichuan 2.6KW AC Servo Driver | A6 Series servo driver | 1 |
3 | Motor Cable | Standard (3m) | 1 |
4 | Encoder Cable | Standard | 1 |
Products Description
Input power | Control power | Single phase 220VAC | |
Main power | Single-phase/three-phase 220VAC | ||
Working environment | Temperature | 0 ~ 45°C | |
Humidity | ≤90% RH or less, no condensation | ||
Altitude | Altitude ≤1000m | ||
Installatioon Environment | No corrosive gas, flammable gas, oil mist or dust, etc | ||
Installation method | Vertical installation | ||
Encoder feedback | 2500 p/r (resolution: 10000), incremental encoder | ||
Control signal | Digital input | 10 ordinary digital inputs, with configurable functions. | |
Digital output | 6 digital outputs, with configurable functions. | ||
Pulse signal | Input | 2 high-speed inputs: differential (600K) and single-ended (200K) pulses. Support pulse input mode: PULS+DIR, A+B, CW+CCW | |
Output | 3 high-speed pulse outputs, output signal form: 5V differential signal. 1 channel Z signal single-ended output signal. | ||
Analog signal | Input | 2 analog inputs, 12-bit resolution, input range -10～+10V. AI2 is fixed as the torque limit input | |
Output | None | ||
Communication function | RS485 communication, Modbus protocol. The main controller can control the position/speed/torque of the servo through RS485, up to 32 control stations | ||
Display panel and key operation | 5 butions (Mode, Set, Left, Up, Down) and 6 digital tubes | ||
Regenerative discharge braking resistor | Built-in 100W, 40Ω braking resistor. In frequent braking situations, an external braking resistor is required | ||

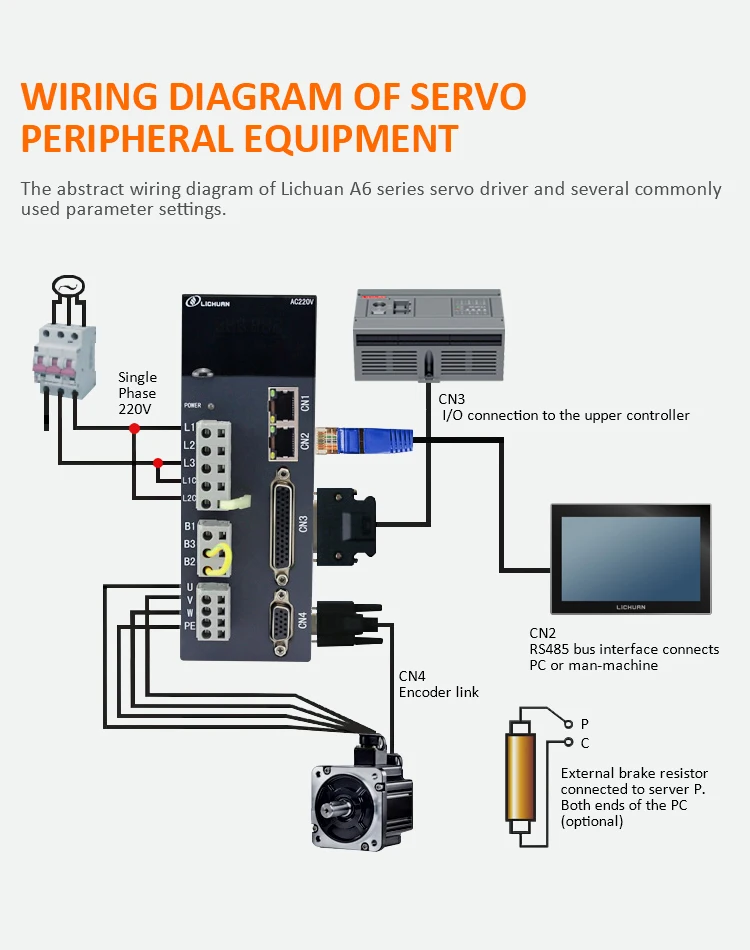

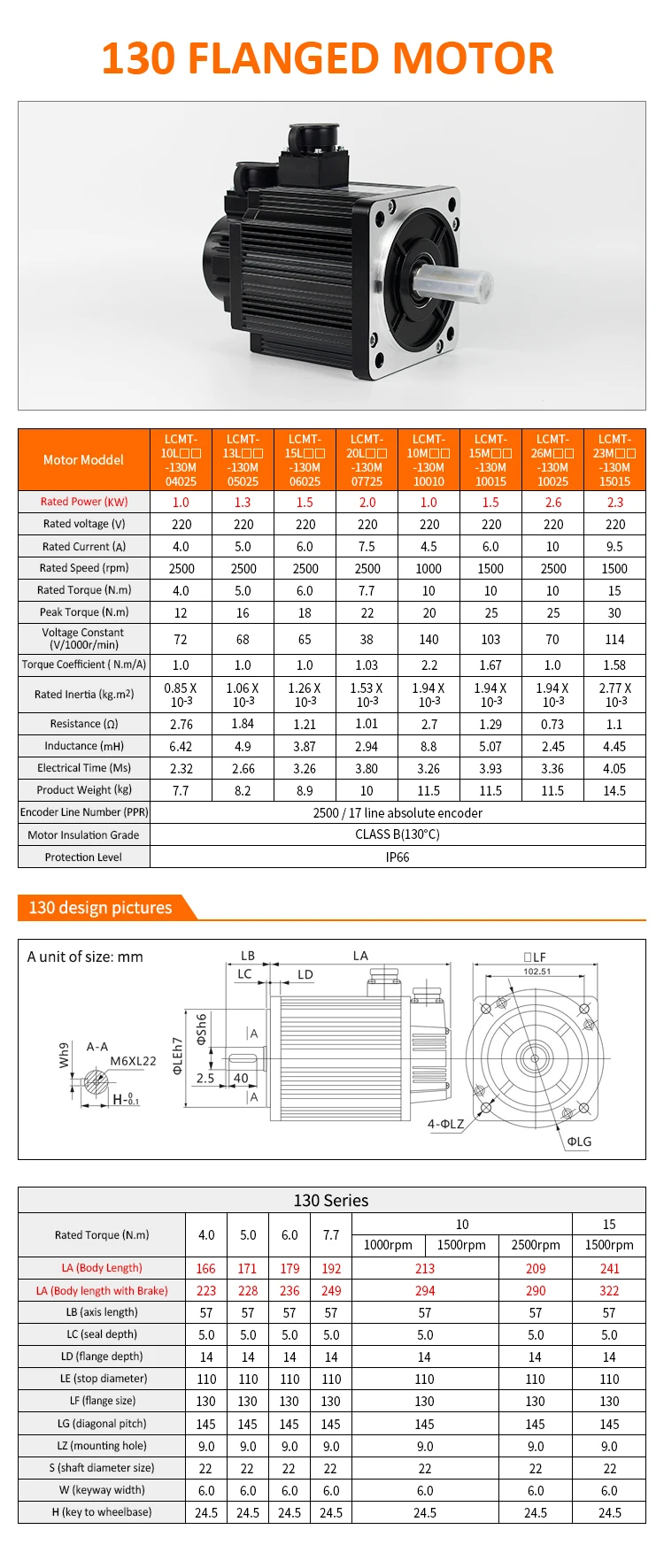

Product Parameters and Wiring
Product packaging

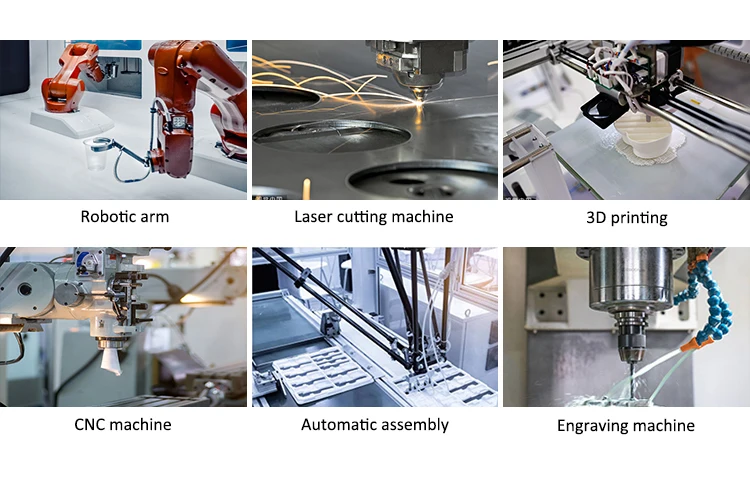

Application Area
