Product Overview
Description
Products Description

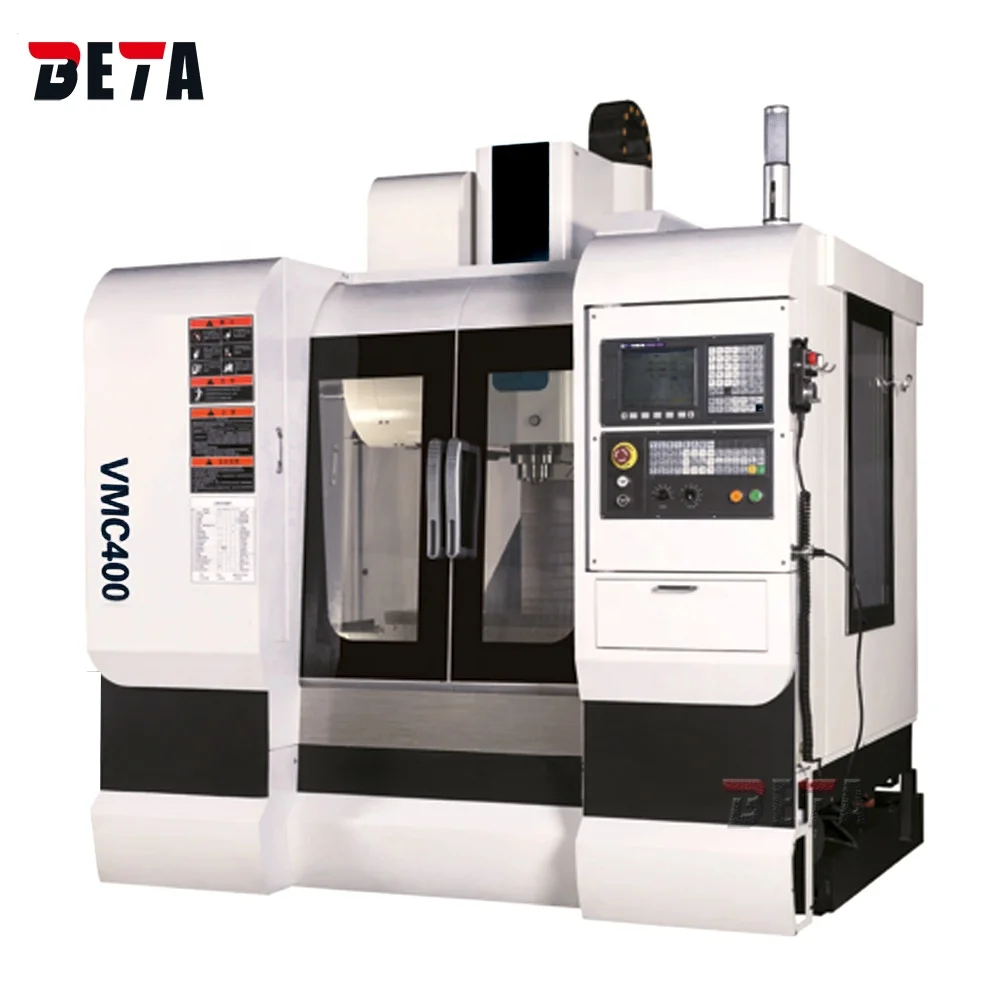

VMC400E High accuracy cheap machine CNC vertical machining center hot selling
Product Parameters
Specifications | unit | VMC400E |
worktable : | ||
Table size | mm | 600*350 |
T slot | no | 3 |
Centre distance | mm | 120 |
T-Width | mm | 14 |
Max. load of worktable | kg | 100 |
machining range :- | ||
Longitudinal travel | mm | 400 |
Cross travel | mm | 350 |
Vertical travel | mm | 400 |
spindle nose to table surface | mm | 60-460 |
Spindle taper | BT40 | |
Speed Range | rpm | 40-8000 |
spindle motor power | kw | 5.5 |
feed : | ||
cuttiing feed X/Y/Z | mm / min | 2-10000 |
rapid feed X/Y/Z | m / min | 30/30/24 |
tool magazine | ||
tool magazine capacity | piece | 16 |
tool magazine type | Umbrella type | |
Max. tool diameter (full) | mm | 8 |
Max. tool length | mm | 80/130 |
Max. tool weight | kg | 300 |
Tool changing time (tip to tip) | s | 3/7 |
accuracy | ||
positioning accuracy | mm | ±0.005/300JIS |
repeat positioning accuracy | mm | ±0.003 JIS |
overall dimensions(LxWxH) | mm | 3020*1950*2380 |
Machine weight | kg | 2400 |

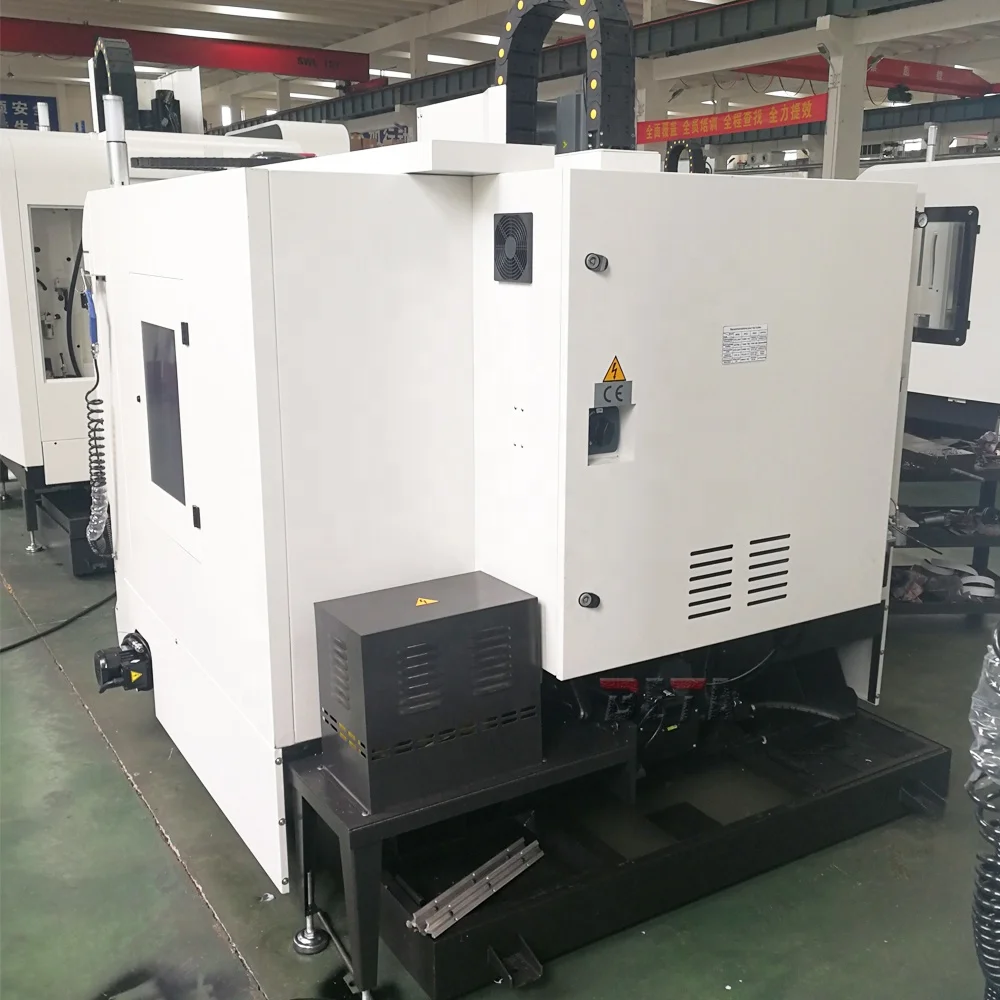

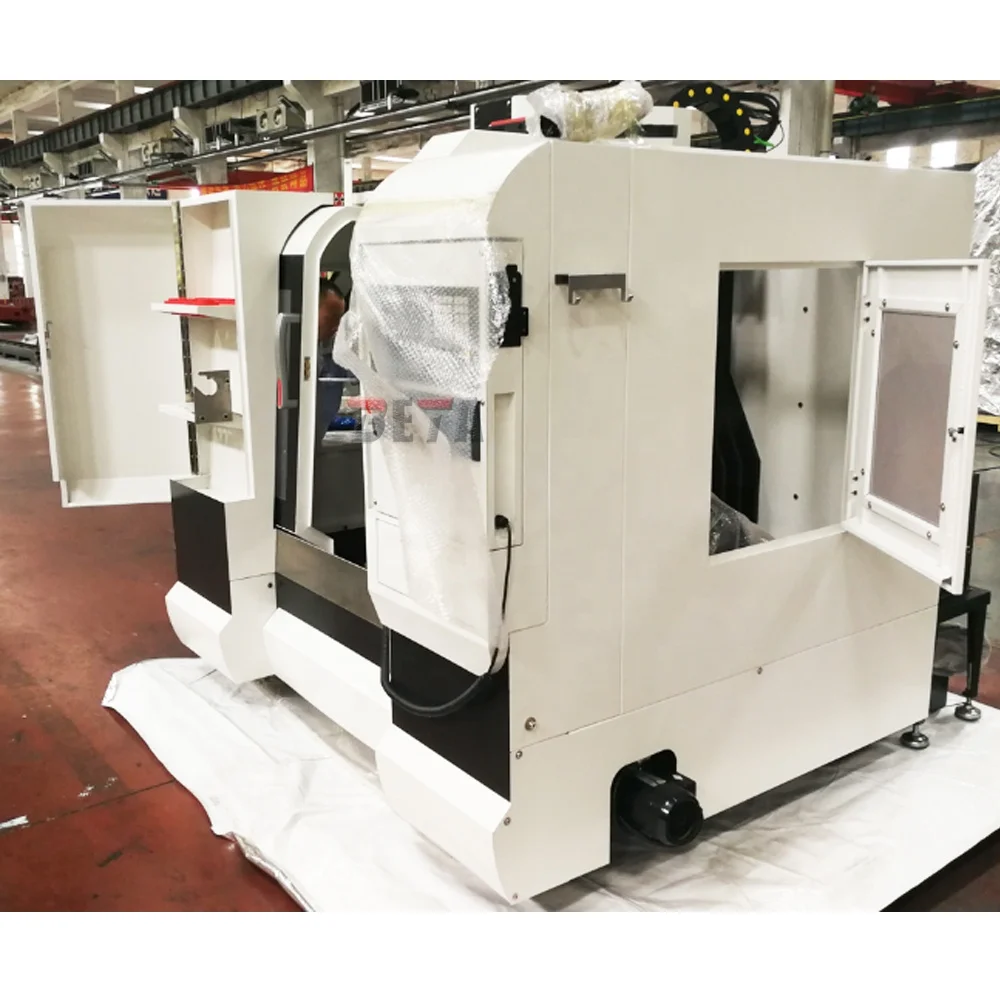

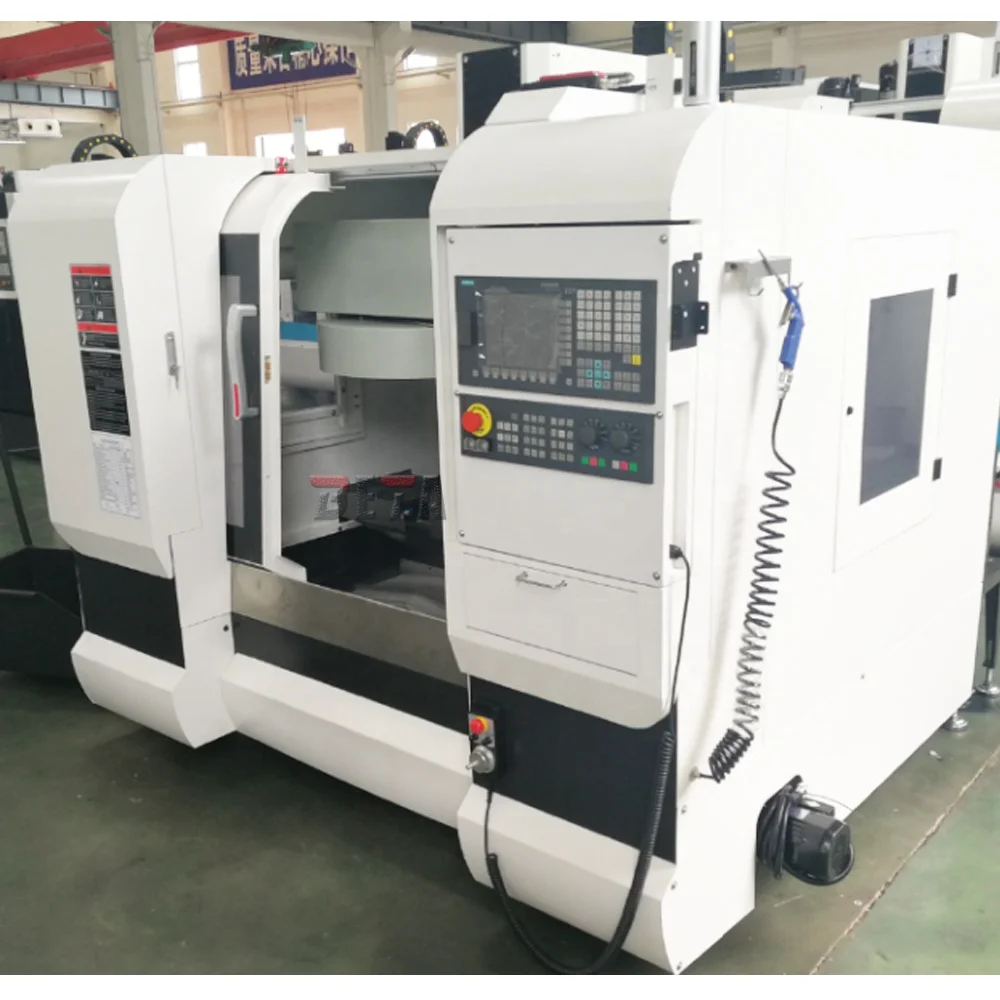

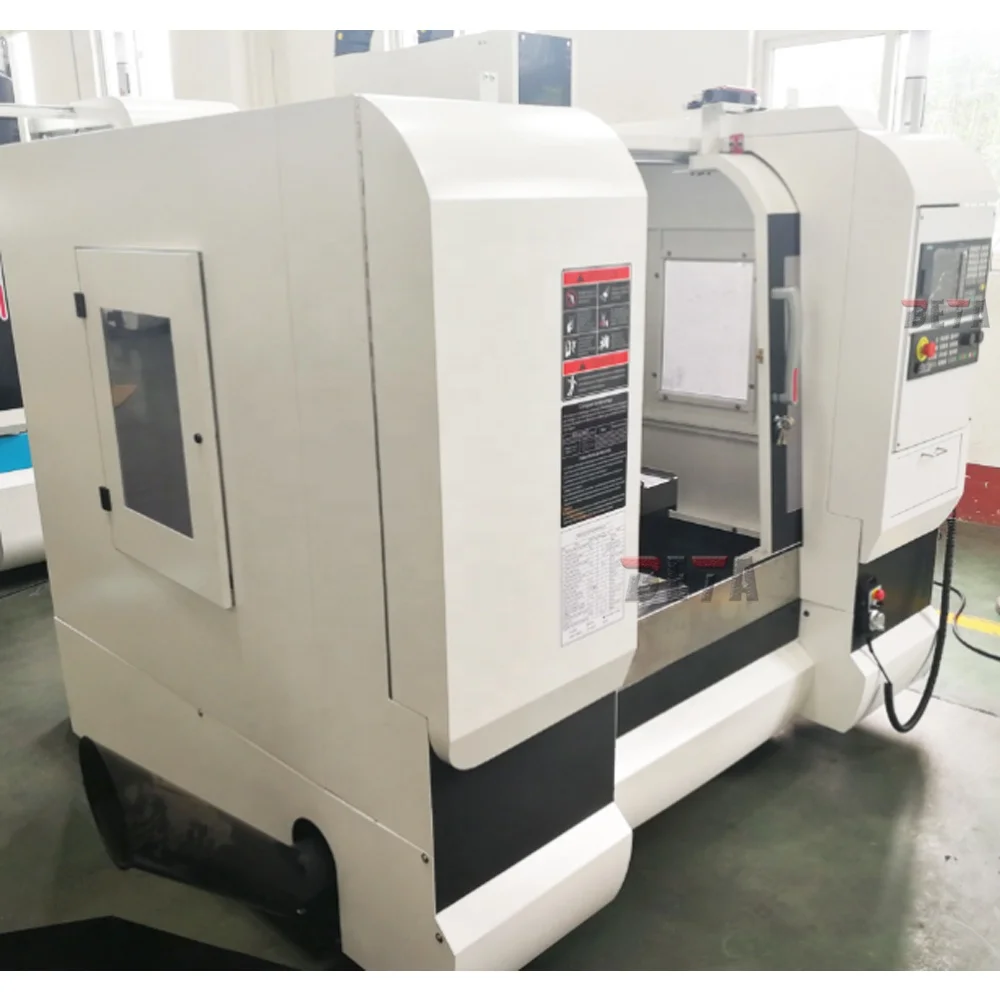

Details Images
Standard accessories:
Taiwan spindle BT40-120-10000RPM (highest speed 8000rpm), X,Y,Z linear guide ways ,

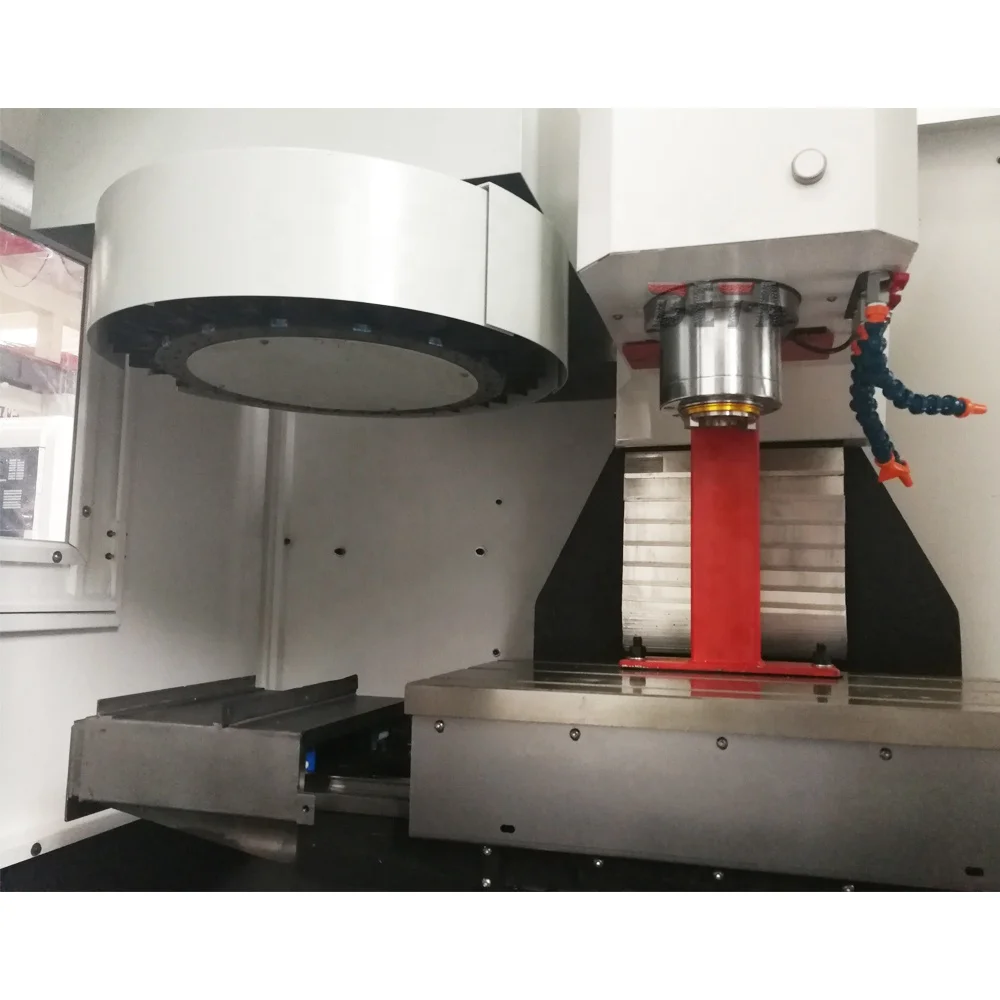

Taiwan umbrella type tool magazine with 16 tools,
Taiwan high precision ball screws,
spindle blowing chip removal system, pindle front seal
Germany FAG bearings,
auto centralized lubrication system,
two water cooling, one air cooling
electrical hand wheel(MPG),
working lamp, alarm light,rigid tapping,
air gun
Taiwan umbrella type tool magazine with 16 tools,
Taiwan high precision ball screws,
spindle blowing chip removal system, pindle front seal
Germany FAG bearings,
auto centralized lubrication system,
two water cooling, one air cooling
electrical hand wheel(MPG),
working lamp, alarm light,rigid tapping,
air gun
Optional accessories:
arm type tool magazine with 16pcs
the 4th axis rotary table 120mm with manual tail stock(Taiwan)
Chain type chip removal system with flushing
Screw type chip removal system with flushing
Renishaw tool setting probe TS27R
BT40-120 direct connection spindle 10000rpm(highest speed 8000rpm)
oil cooling (If you choose direct connection spindle, we suggest you equip with oil cooling)
Schneider electric
Heat exchanger
the 4th axis rotary table 120mm with manual tail stock(Taiwan)
Chain type chip removal system with flushing
Screw type chip removal system with flushing
Renishaw tool setting probe TS27R
BT40-120 direct connection spindle 10000rpm(highest speed 8000rpm)
oil cooling (If you choose direct connection spindle, we suggest you equip with oil cooling)
Schneider electric
Heat exchanger

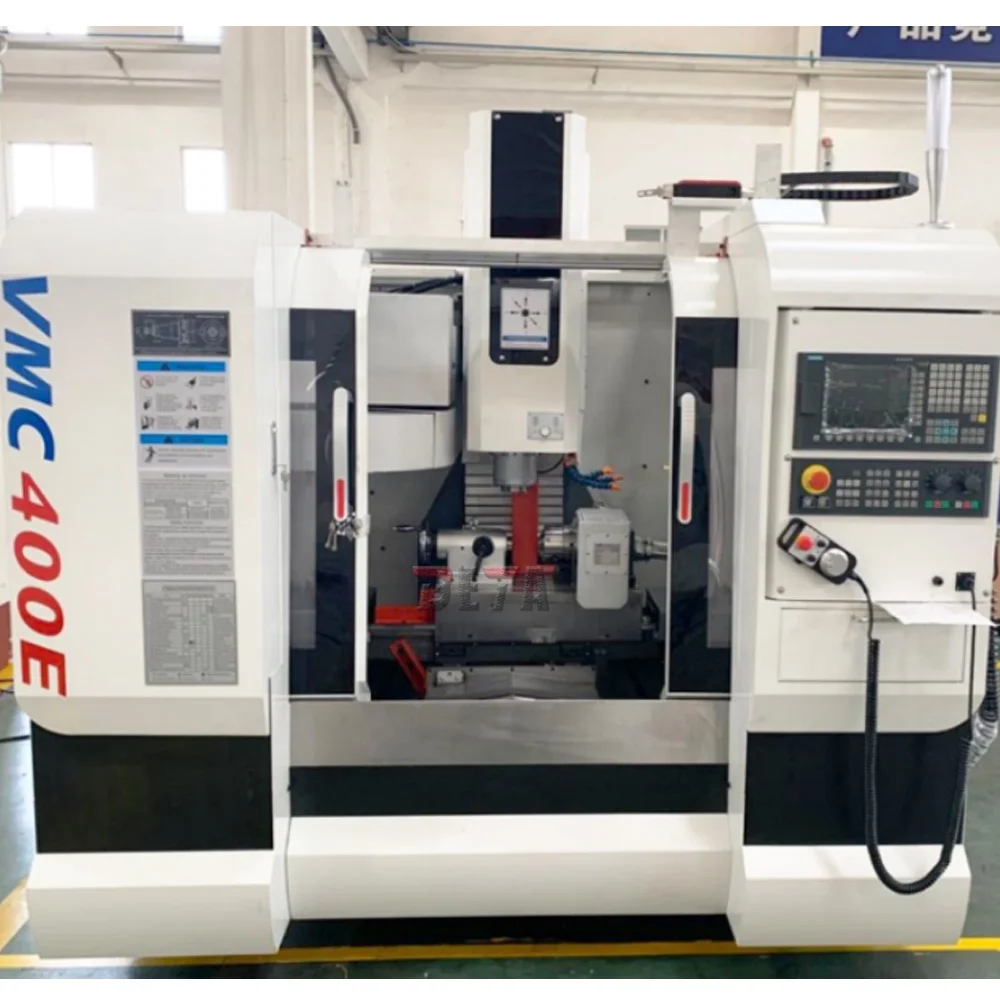

Optional 4th axis rotary worktable
Taiwan BT40 spindle
Cooling through spindle
Taiwan linear guide way
Optional disc type automatic tool changer
Max.spindle speed 8000 rpm
CNC system: GSK, Siemens, Fanuc
600*350mm worktable size
