Pogo Pin Magnetic Connector L3.0~12 mm SMD SMT Pin Spring Load POGOPIN
- Category: >>>
- Supplier: Bestconn (Wuhan) Technology Co. Ltd.
Share on (1600513459328):
Product Overview
Description
Place of Origin | GUA |
Brand Name | BSC |
Model Number | |
Type | Push Pull Connector |
Application | Automotive |
Gender | Male |
Pitch | 2.54mm |
Plunger material | Brass 3604 |
Barrel material | Brass 3604 |
Spring material | SUS304 |
Housing material | PA9T |
Plating | 1U'' Au Min over 50~100U'' Nickel |
Rated current | 1A |
Voltage | DC 12V |
Durability | 10, 000 cycles Min |
Spring Force | 40g+/-20% at working height |

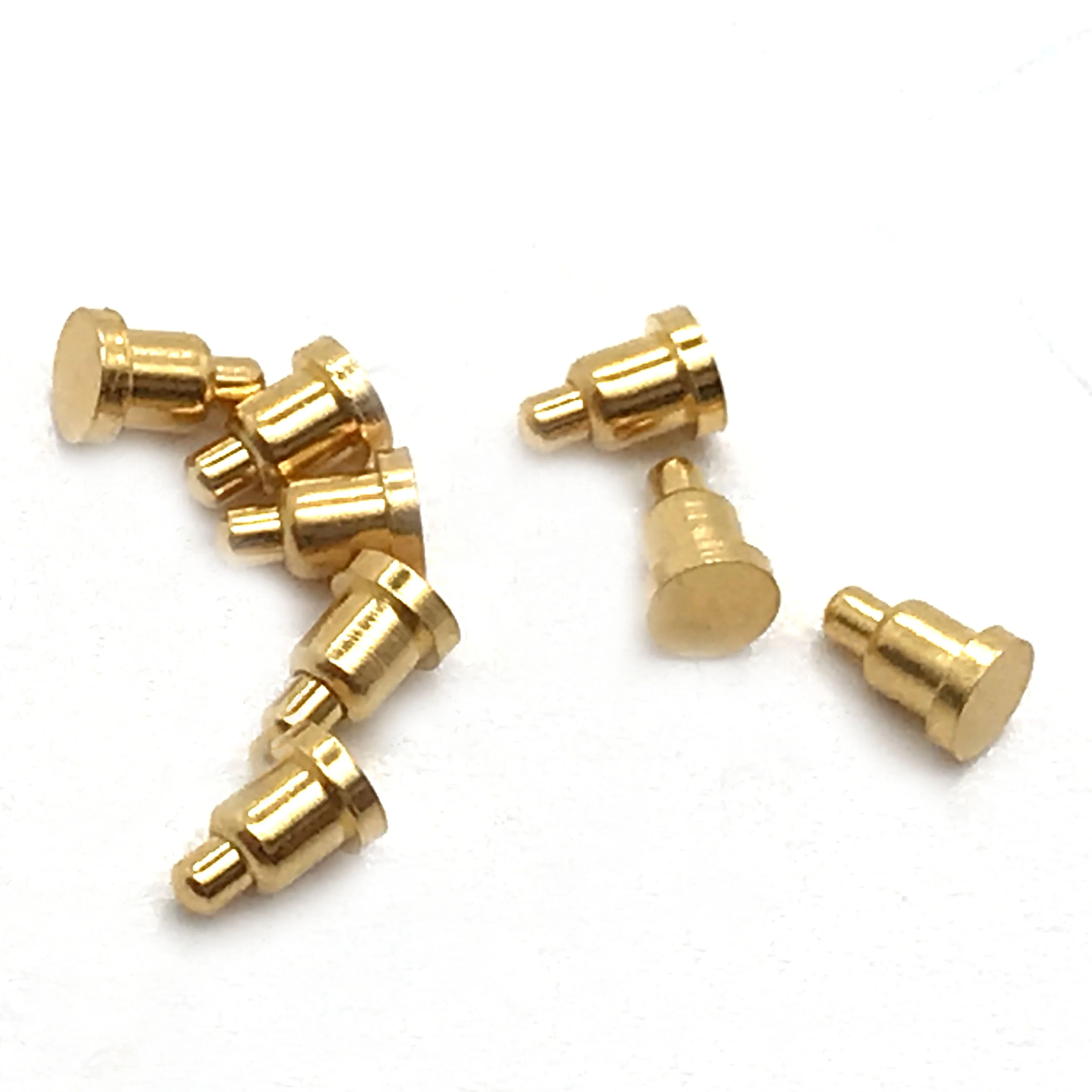

Pogo Pin is a spring-type probe formed by Plunger, Tube and Spring assembly by precision instrument riveter which is called Spring pin, Spring thimble, Spring probe, Spring Loaded, Pogo Pin connector.The bottom of a Plunger on a Pogo Pin is usually a sloping structure which is designed to ensure that the plunger keeps the Plunger in contact with the inside wall of the tube while it is working and allowing the current to flow mainly through the gold-plated plunger and tube to ensure the stability and low impedance of the Pogo Pin.
The POGO PIN has high life, low resistance, high current, small space and flexible design
The products are widely used in aerospace and military industry, industrial equipment, smart bracelets, smart phones, Tablet computers, digital cameras 3C, medical equipment and electrical equipment and Mobile phones
The products are widely used in aerospace and military industry, industrial equipment, smart bracelets, smart phones, Tablet computers, digital cameras 3C, medical equipment and electrical equipment and Mobile phones
Bestconn(Wuhan) Technology Co.,Ltd is a specialized provider of connector total solution, in developing and delivering reliable Bconnectors, cable, and wire harness that stand for quality, reliability, and convenience. Our products are widely used in electronic applications around the world including telecommunications, household appliances, electronic toys, automotive, medical equipment, and more. We can provide standard or custom products to your requirement. Creating superior products and the highest value for our customers is our ultimate goal. Welcome to join us and let’s link to the future together!
Products Range
PIN HEADERS/FEMALE HEADERS/EJECTOR HEADERS/BOX HEADERS/PLCC/IC SOCKET/IC ADAPTER/MACHINE FEMALE HEADER/MACHINE PIN HEADER/WAFER/DIP PLUG/IDC SOCKET/DIN41612/BOARD-TO-BOARD CONNECTOR/TERMINAL BLOCKS/MMICRO MATCH/CABLE ASSEMBLY
