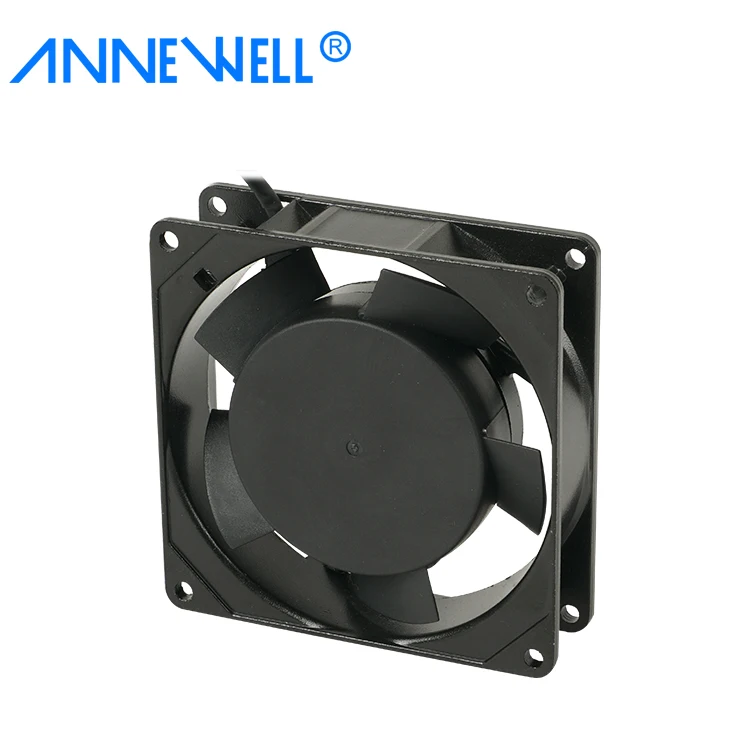

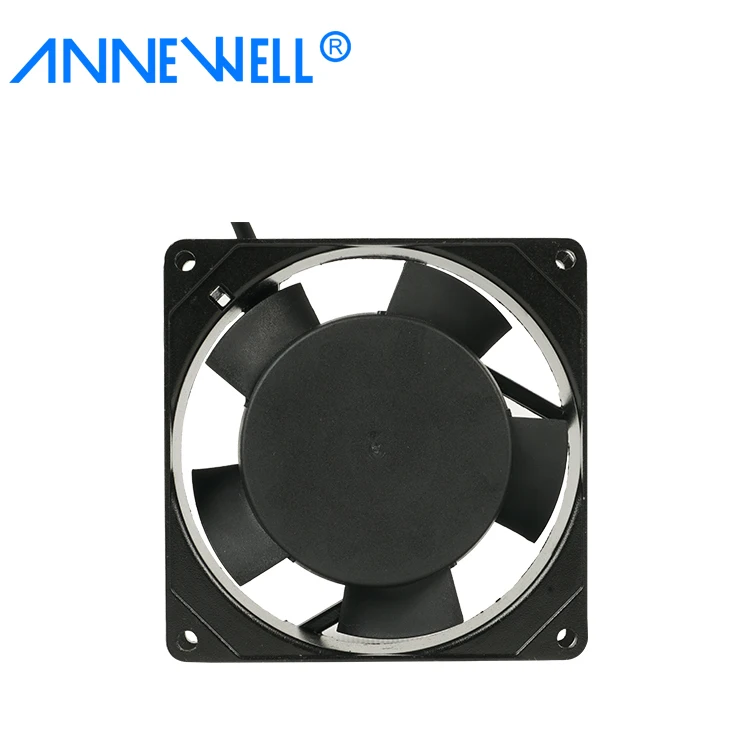

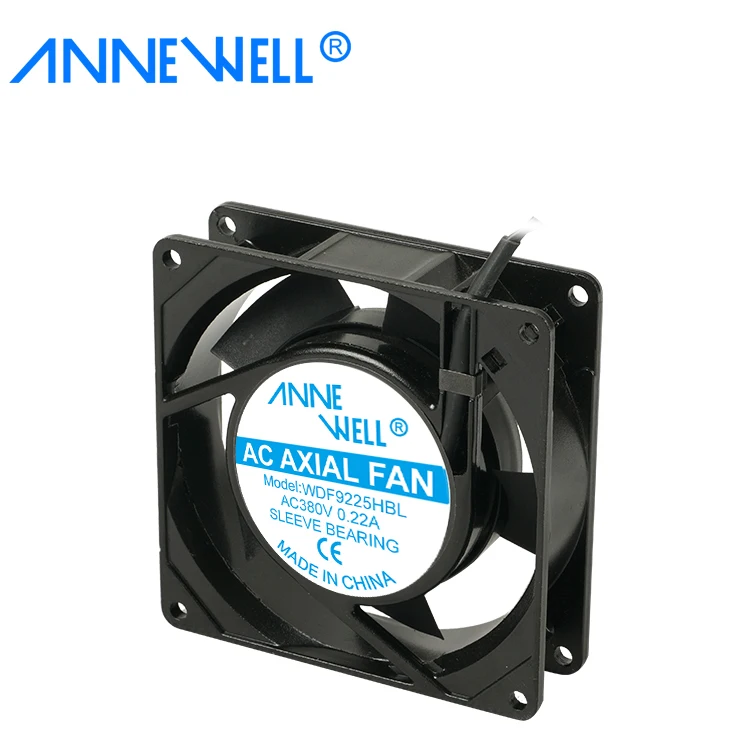

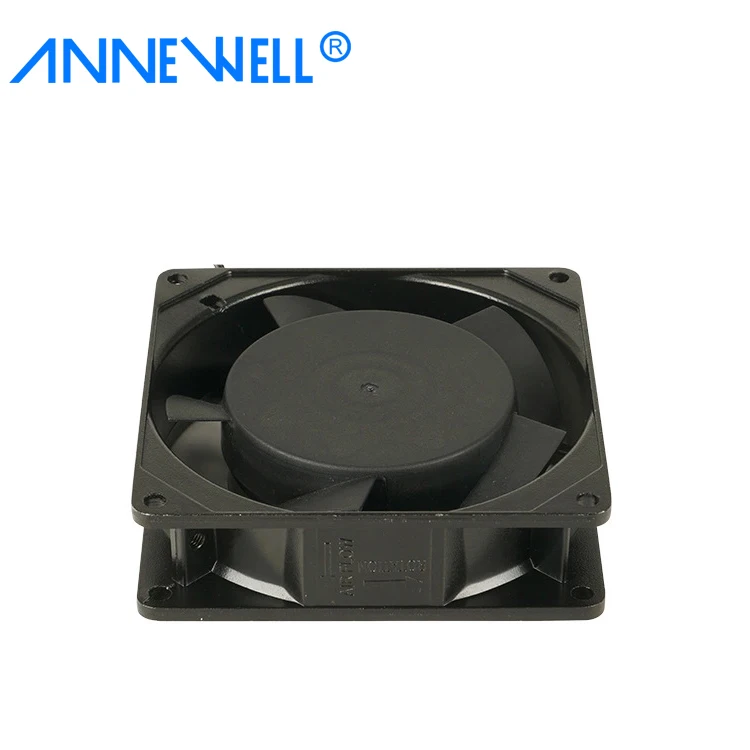

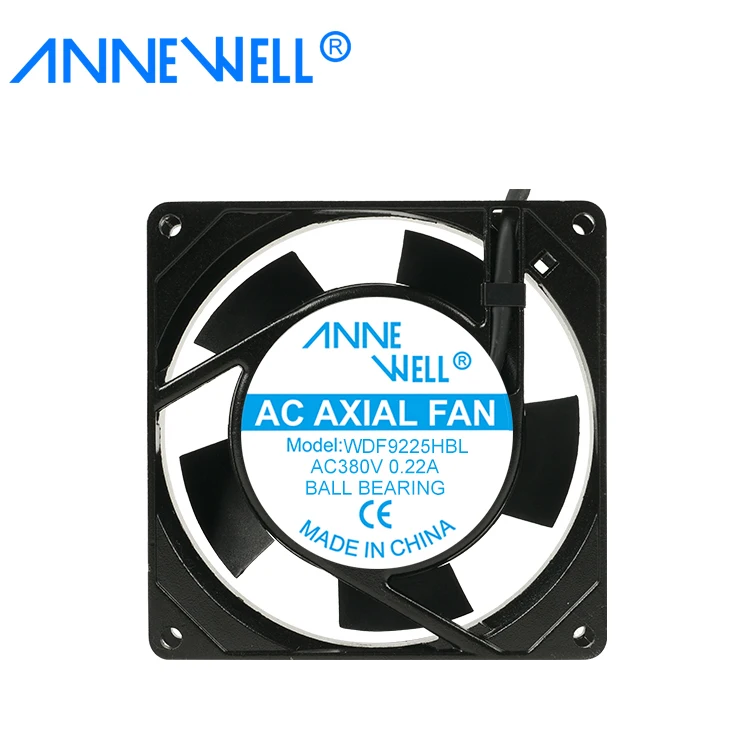

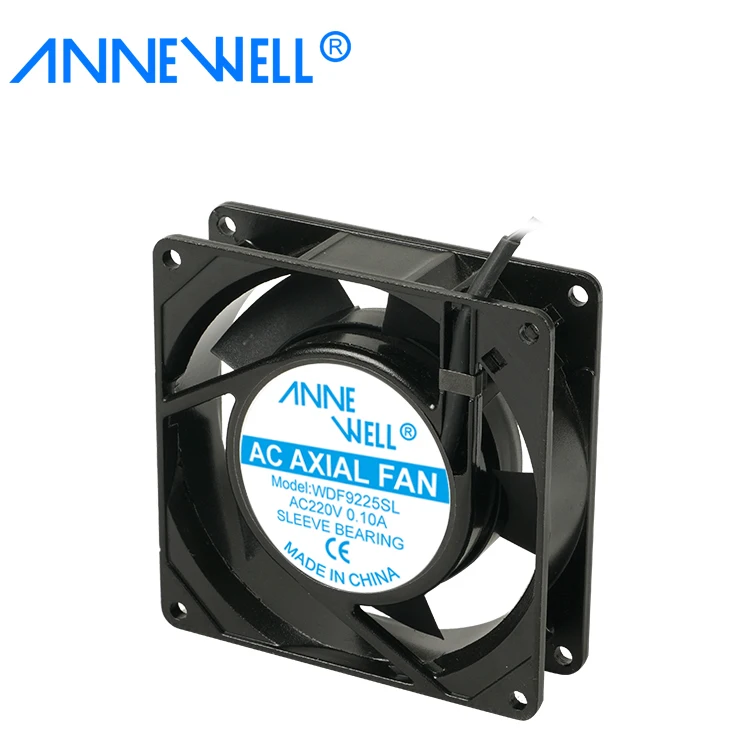

90mm High temperature resistant High CFM ventilation fan 220volt 230v ball/sleeve bearing 92mm 9225 ac Chassis axial cooling fan
- Category: >>>
- Supplier: Xuchang Wonderful Electric Co. Ltd.
Share on (1600513468290):
Product Overview
Description
92mm 9225 92x92x25 Brushless Axial Flow Ac Mini Cooling Fan 220v

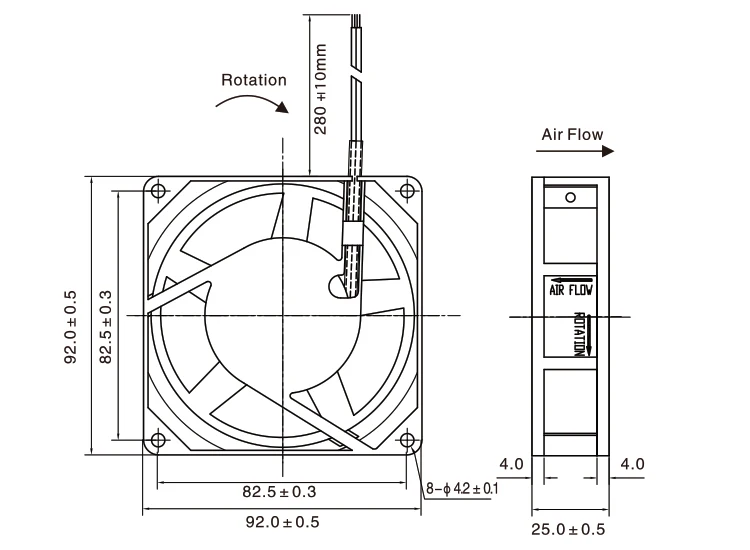

| Model | WDF9225 | Size | 92x92x25mm |
| Frame | Aluminum Alloy | Impeller | PBT+30%GF |
| Bearing Type | Sleeve/Ball | Lead Wire | AWG#22 UL 1007 (Optional) |
| Motor | Shaded Pole Induction Motor | Insulation | Class B |
| Weight | 280g | ||
| Application | 3D printers,Stage lighting,VR equipment,Intelligent Manicure machine, Projector,High-speed camera,Head mounted display,Automotive industry, Cabinet industry, Power industry,UAV application, Electric forklift,LED lighting industry, Hand held air detector,Charging machine,Nebulizer.Electromagnetic oven,Humidifier,Smart toilet,Intelligent household lampblack machine,Air purifier,Car GPS,Car LED lamp,Aromatherapy machine.CPU cooler,Case. | ||

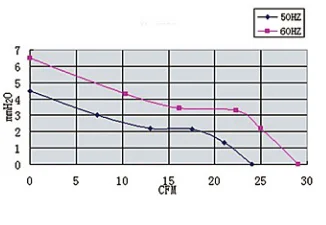

| Model | Bearing | Rataed voltage | Frequency | Rated current | Rated input power | Nominal speed | Air flow | Air pressure | Noise | Weight | ||
| CFM | m³ /min | mm-H2O | inch-H2O | |||||||||
| WDF9225H23 | BALL/Sleeve | 230 | 50/60 | 0.08 | 17/15 | 2500/3000 | 24/29 | 0.67/0.81 | 4.5/6.5 | 0.18/0.26 | 33/35 | 280 |
| WDF9225M23 | BALL/Sleeve | 230 | 0.05 | 13/10 | 2200/2600 | 21/25 | 0.59/0.70 | 3.0/3.3 | 0.12/0.13 | 29/33 | ||
| WDF9225H12 | BALL/Sleeve | 120 | 0.15 | 17/15 | 2500/3000 | 24/29 | 0.67/0.81 | 4.5/6.5 | 0.18/0.26 | 33/35 | ||
| WDF9225M12 | BALL/Sleeve | 120 | 0.10 | 13/10 | 2200/2600 | 21/25 | 0.59/0.70 | 3.0/3.3 | 0.12/0.13 | 29/33 | ||
92mm 9225 92x92x25 Brushless Axial Flow Ac Mini Cooling Fan 220v
