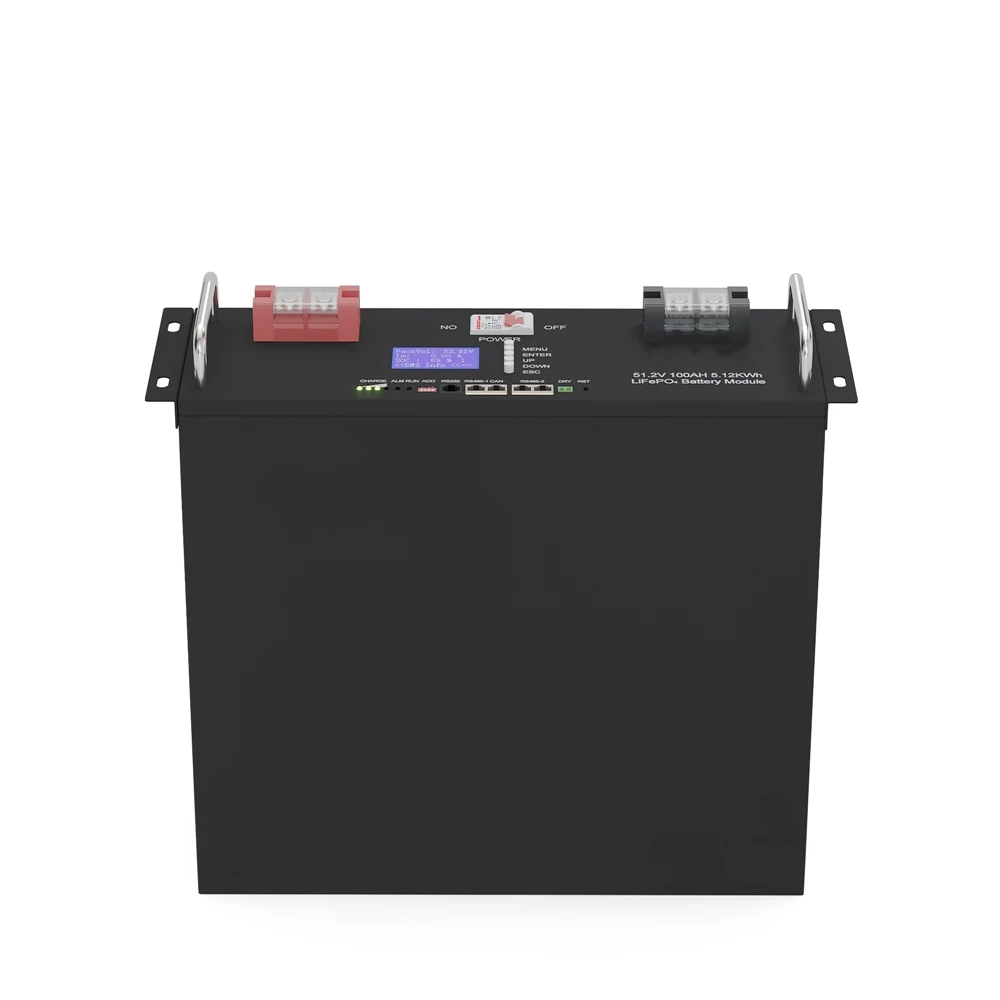

New arrival customizable 48v 50ah 100ah lithium ion lifepo4 solar battery for 10kw solar energy
New arrival customizable 48v 50ah 100ah lithium ion lifepo4 solar battery for 10kw solar energy
New arrival customizable 48v 50ah 100ah lithium ion lifepo4 solar battery for 10kw solar energy
New arrival customizable 48v 50ah 100ah lithium ion lifepo4 solar battery for 10kw solar energy
New arrival customizable 48v 50ah 100ah lithium ion lifepo4 solar battery for 10kw solar energy
New arrival customizable 48v 50ah 100ah lithium ion lifepo4 solar battery for 10kw solar energy
New arrival customizable 48v 50ah 100ah lithium ion lifepo4 solar battery for 10kw solar energy

New arrival customizable 48v 50ah 100ah lithium ion lifepo4 solar battery for 10kw solar energy

Share on (1600513471445):


Price:

Quantity:


Product Overview

Description



Battery Features

Battery Features

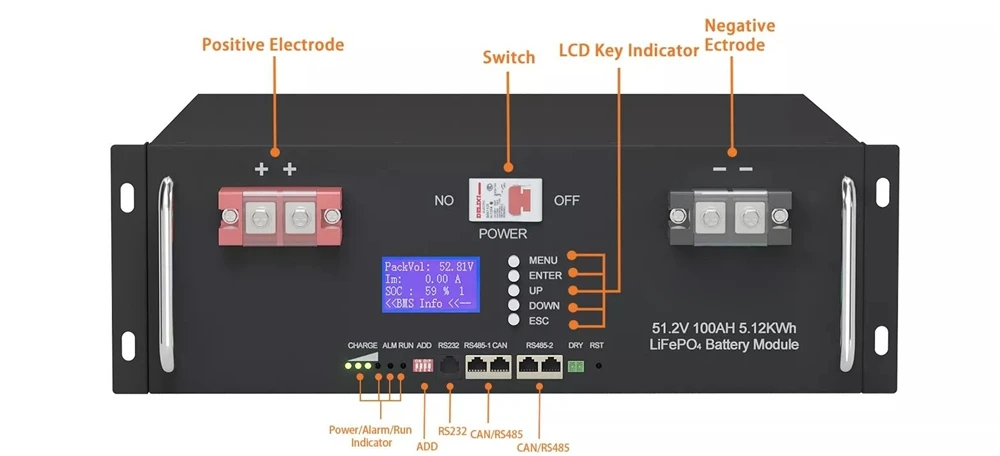

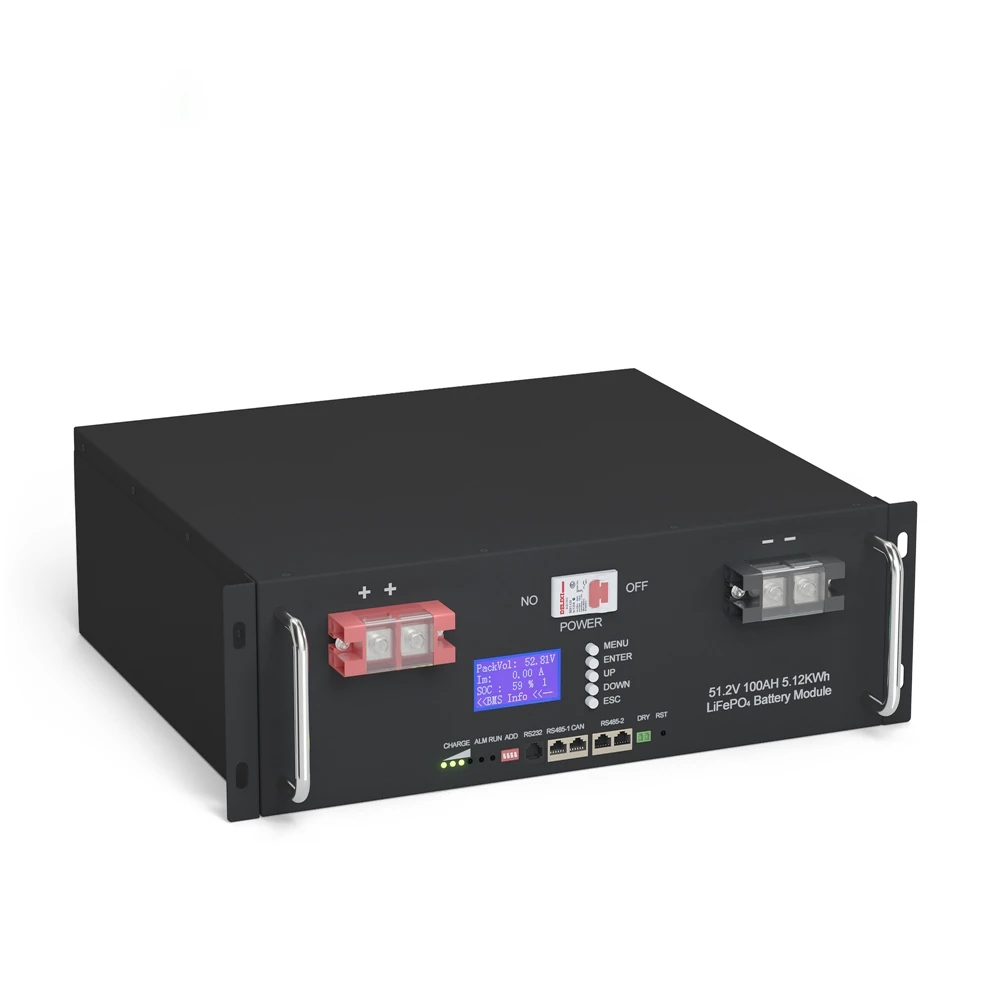

Monitor Digital Display

The battery is with a digital display that allows users to monitor the voltage of each series of cells, the battery's rated voltage and
capacity, temperatures, BMS parameters, etc.

Support max. 4 parallels

If without master control, it supports max. 4 parallels for the highest 20.48Kwh battery system; If with standard master controls,
it can be paralleled and serialized with more batteries.


Battery Functions

Battery Functions





Model No
TK2400
TK5000
TK7200
TK9600
TK12000
Voltage
48 V
48 V
48 V
48 V
48 V
Capacity
50Ah
100Ah
150Ah
200Ah
250Ah
Energy
2.4KWH
5.12KWH
7.68KWH
10.24KWH
12.80KWH
Operation voltage
35.25-54.75 Vdc
37.6-58.4Vdc
37.6-58.4Vdc
37.6-58.4Vdc
37.6-58.4Vdc
Max.charging voltage
54.75Vdc
58.4 Vdc
58.4 Vdc
58.4 Vdc
58.4 Vdc
Max.charging and discharging current
50A
100A
100A
100A
100A
Max Power
2400W
5120W
7680W
10240W
12800W
Life time(25°C)
10 years
Life cycles(80% DOD, 25°C)
6000 Cycles
Storage time / temperature
5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C
Operation temperature
-20°C to 60°C @60+/-25% Relative Humidity
Storage temperature
0°C to 45°C @60+/-25% Relative Humidity
Lithium Battery Standard
UL1642, IEC62619, UN38.3, ROHS,CE-EMC
Enclosure protection rating
IP65
Dimensions(L×W×H)mm
482*410*89
482*400*177
482*430*222
482*500*280
482*500*280
Weight
24KG
43KG
65KG
82KG
100KG

Relative Battery

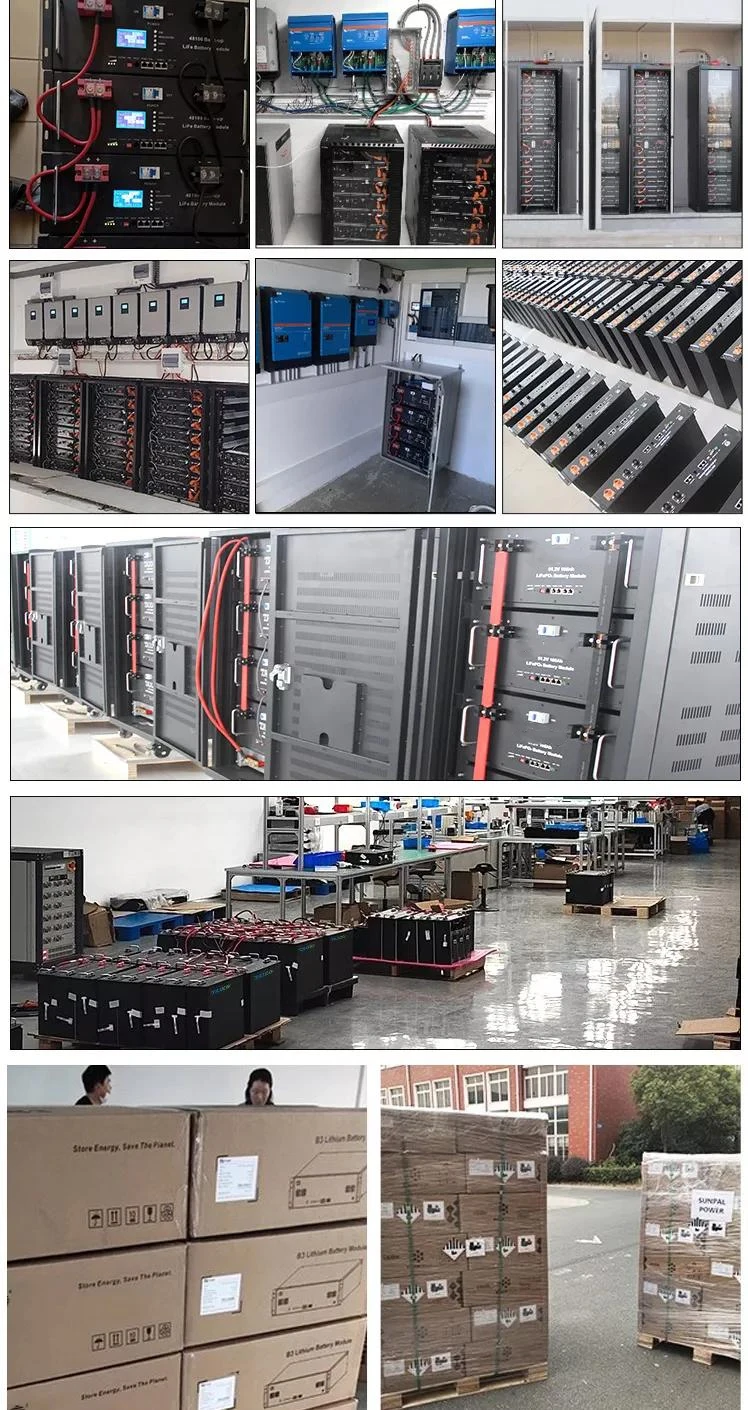

Factory Show
