Hd Lvds Controller 40 pin universal lcd controller board With Usb 5v input for 8bit LVDS LCD Screen
- Category: >>>
- Supplier: Shenzhen Wu He Tian Cheng Technology Co. Ltd.
Share on (1600513477193):
Product Overview
Description
Hd Lvds Controller 40 pin led universal lcd controller board With Usb 5v input for 8bit LVDS LCD Screen
Product description:
The external dimensions of the product are 87.5*52.8MM*7MM
This drive board Features
1. MIRCO USB power interface, 5V standard power supply, need to be greater than 1.5a
2. All plug-in sockets shall be 1.25mm with patch sockets
3,1 channel HD signal input, and this IC support is HD1.2
4, HD for high-quality gold-plated mount
5. The screen interface is defined by high-quality gold-plated connector - 40pin-EJ070NA01
6. Power amplifier output is supported, 8-2w / 4-2w
7. Special circuit design is adopted for the driver board, which can drive about 10V LED backlight and support 200MA current output at most.
8, support, ttl-40p standard interface (see ej070na-13a,), 9, standard 5 key press key board interface, and support two-color LED light display
9. LVDS signal output is supported, and adapter boards are required for individual screens
10. 40 pin-lvds definition interface can be directly driven
EJ080NA04B - 1024 x768 resolution
For other models, please check the LCD specification or consult our technical department
11. The maximum output display resolution of this driver board is 1920X1200 HD signal number input (related to the LCD screen).
The driver plate adopts full SMD components
12, the driver board can increase the remote control function (need to achieve through the software) the existing procedures only need to add remote control, direct use
13, the driver plate can automatically detect, and display the relevant input voltage information ---- note, this function for custom function, need to contact my company
Department of technology
14, HD signal display, default 4S no signal automatic machine, automatic start signal, power saving design function
15. The normal procedure of this driver board is to power on and start up without signal
16. The driving plate has four positioning holes.
requirements
17, only support HD sound output, power amplifier recommended to choose 8 Europe /1W, 8 Europe /2W,4 Europe /1W,4 Europe /2W, and other specifications
18, dual audio output interface design, better versatility
19. Driver board VCOM voltage adopts potentiometer adjustment design, which can adapt to more LCD screens, and the adjustment is convenient and simple
20. Support headphone output function, support national and international standards, two kinds of headphone standard interfaces, common 3.5mm for most mobile phones
The headset
We can provide other customized services for special
1. The client needs to change the program and connect with our company to purchase the relevant program download board.
2. using the company's USB interface program download board, you can add LOGO on the BIN code by yourself

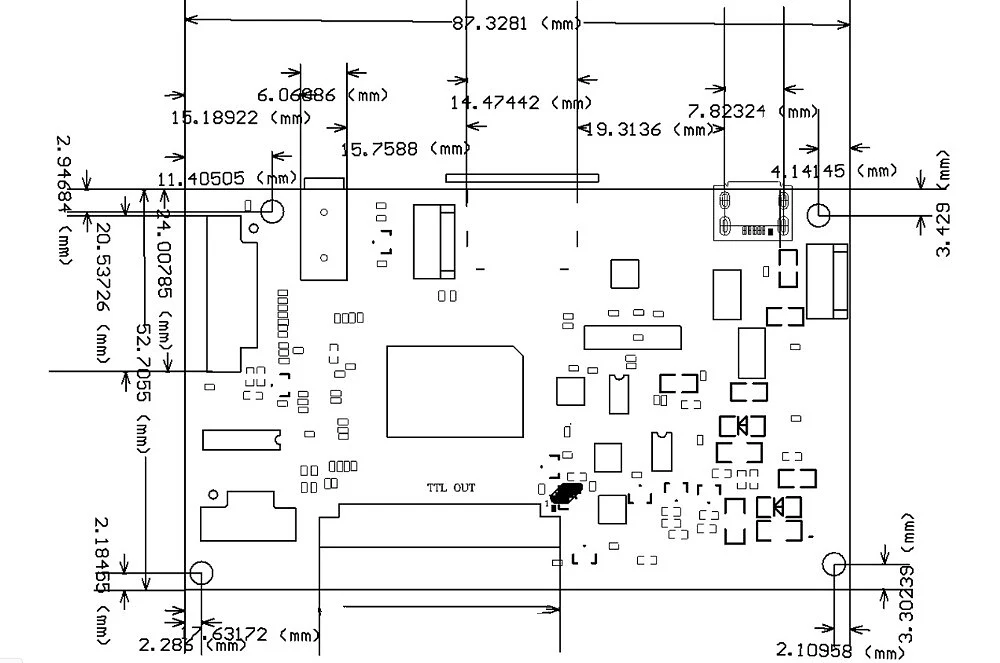

Driver Board Size
Product Paramenters
Hd Lvds Controller 40 pin led universal lcd controller board With Usb 5v input for 8bit LVDS LCD Screen
Video input | ||
Features | parameter | |
HD | Resolution: Max 1920x1200 | |
Audio input | ||
HD audio | Support | |
Speaker | ||
Speaker | support Speake 4Ω/1W；4Ω/2W； 8Ω/1W；8Ω/2W | |
headphone output | Support 3.5mm headphone output | |
Power supply | ||
Working voltage | USB 5V | |
Other | ||
Key function | Power / Menu / Source / UP / Down / Left / Right | |
Language | English German French Italian Spanish Russian Arabic | |
Storage temerature | -40~85°C | |
About us
Details Images

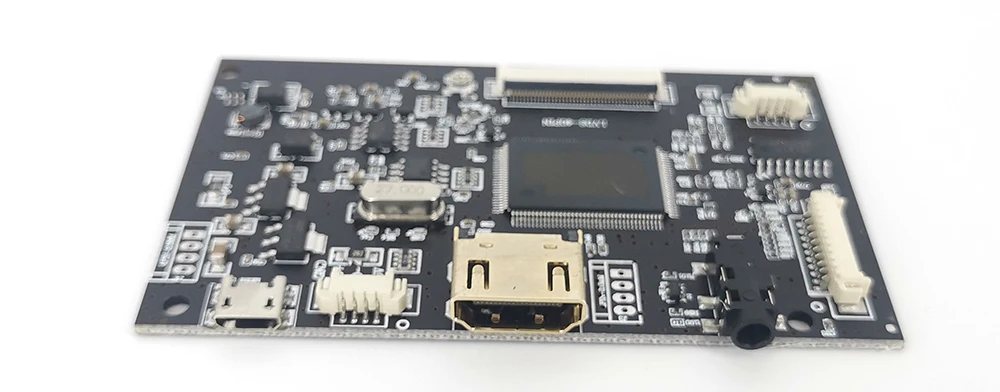

Hd Lvds Controller 40 pin led universal lcd controller board With Usb 5v input for 8bit LVDS LCD Screen

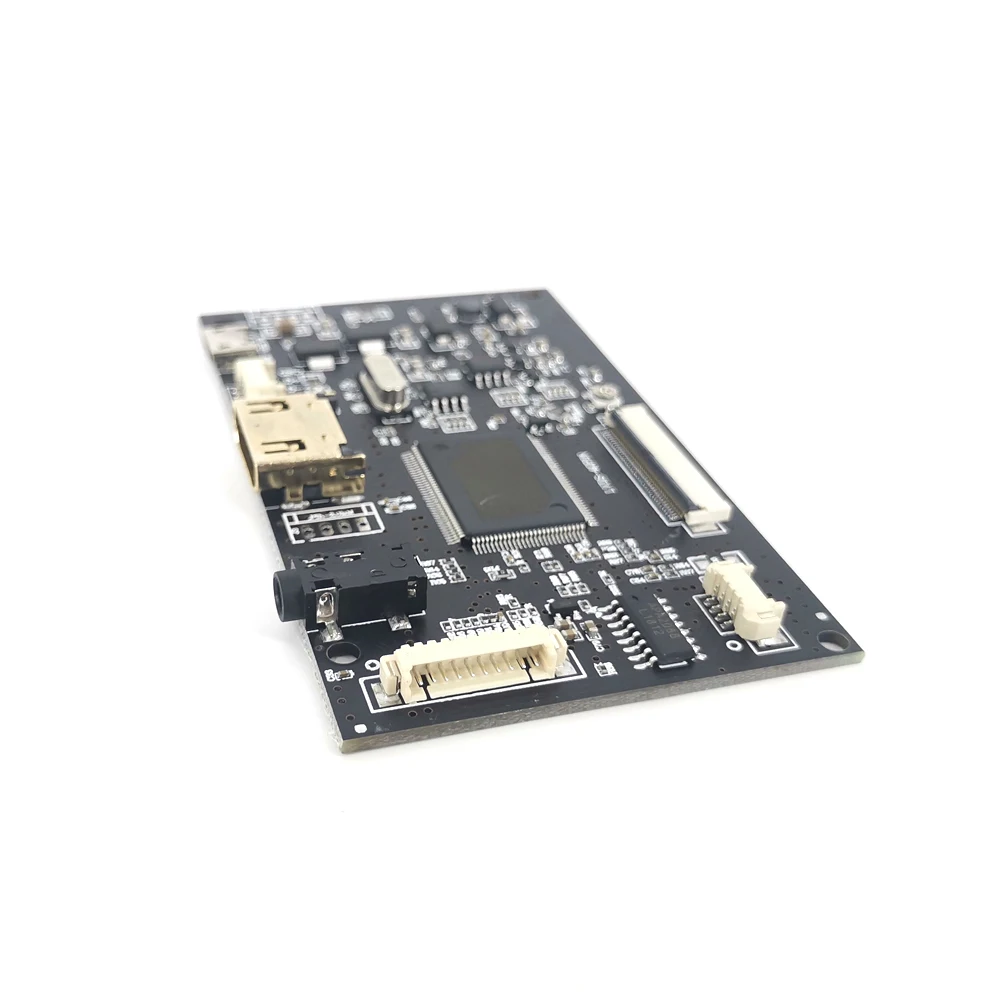

40 pin led universal lcd controller board detail
