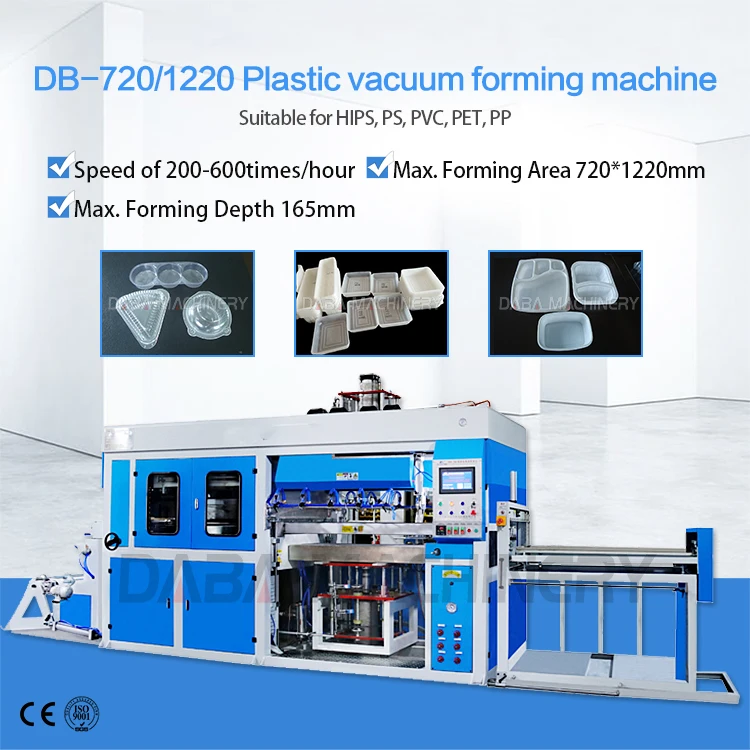

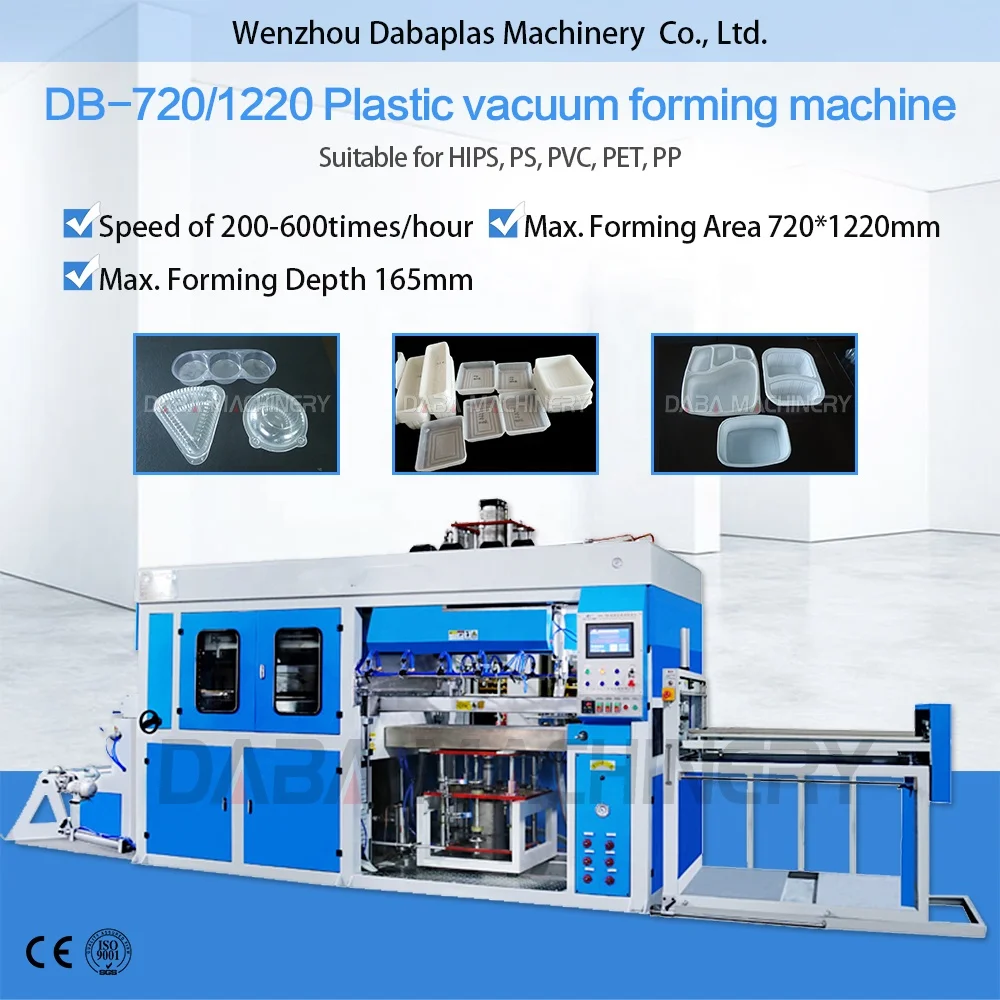

Blister plastic cake box pallet egg tray vacuum formers thermal forming making abs plastic machines
- Category: >>>
- Supplier: Wenzhou Daba Machinery Co. Ltd.
Share on (1600513556632):
Product Overview
Description
Product Description
Application Area:
This machine is suitable for forming HIPS, PS, PP, PVC, PET sheet that can produce boxes, trays, fast food,boxes, dishes, lids, cookies tray,egg tray, mobile phone tray & other blister tray.

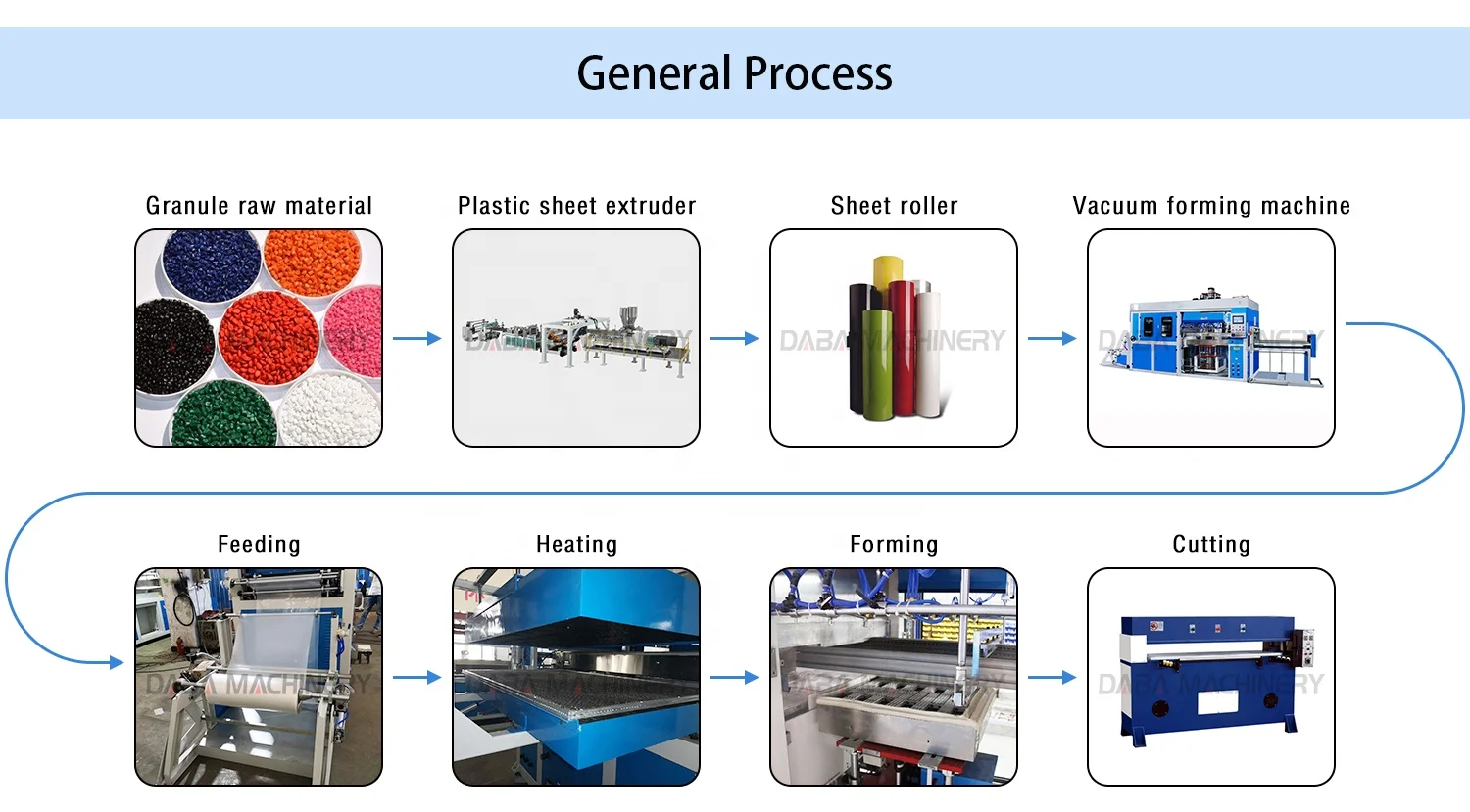

Technological process:
Carrying material(cylinder drives the chain to work)---heating(cylinder drives the electric furnace to lift in order to make a proof)---pulling( cylinder drives the chain)----lifting the lower die, falling the upper die(cylinder drives)—vacuum forming (vacuum pump air admission )---cooling(gas drives the spray gun to work, electric machinery drives the air
blowing).
Technological process:
Carrying material(cylinder drives the chain to work)---heating(cylinder drives the electric furnace to lift in order to make a proof)---pulling( cylinder drives the chain)----lifting the lower die, falling the upper die(cylinder drives)—vacuum forming (vacuum pump air admission )---cooling(gas drives the spray gun to work, electric machinery drives the air
blowing).
Specification：
No | Item | Data |
1 | Forming area | 710*1200mm(can change) |
2 | Sheet width | 610-760mm (can change) |
3 | Forming height | 0-165mm |
4 | Thickness of sheet | 0.15-1.0mm |
5 | Production speed | 200-600times/hour(depend on the shape of product and thickness of sheet) |
6 | Mould-up move | Electromotion |
7 | Electric oven power | 30 KW |
8 | Heating device | 60 independent electronics non pole adjust(one control one) |
9 | Traction motor power | 2.2KW |
10 | Vacuum pump power | 3.0 KW |
11 | Cooling-water machine power | 3.37 KW |
12 | Power | 380V 50/60HZ three phases |
13 | Air compressor | 15KW/20HP (remarked by customer) |
14 | Dimension | (L)8800*(W)1500*(H)2800mm |
15 | Weight | 3000kg |

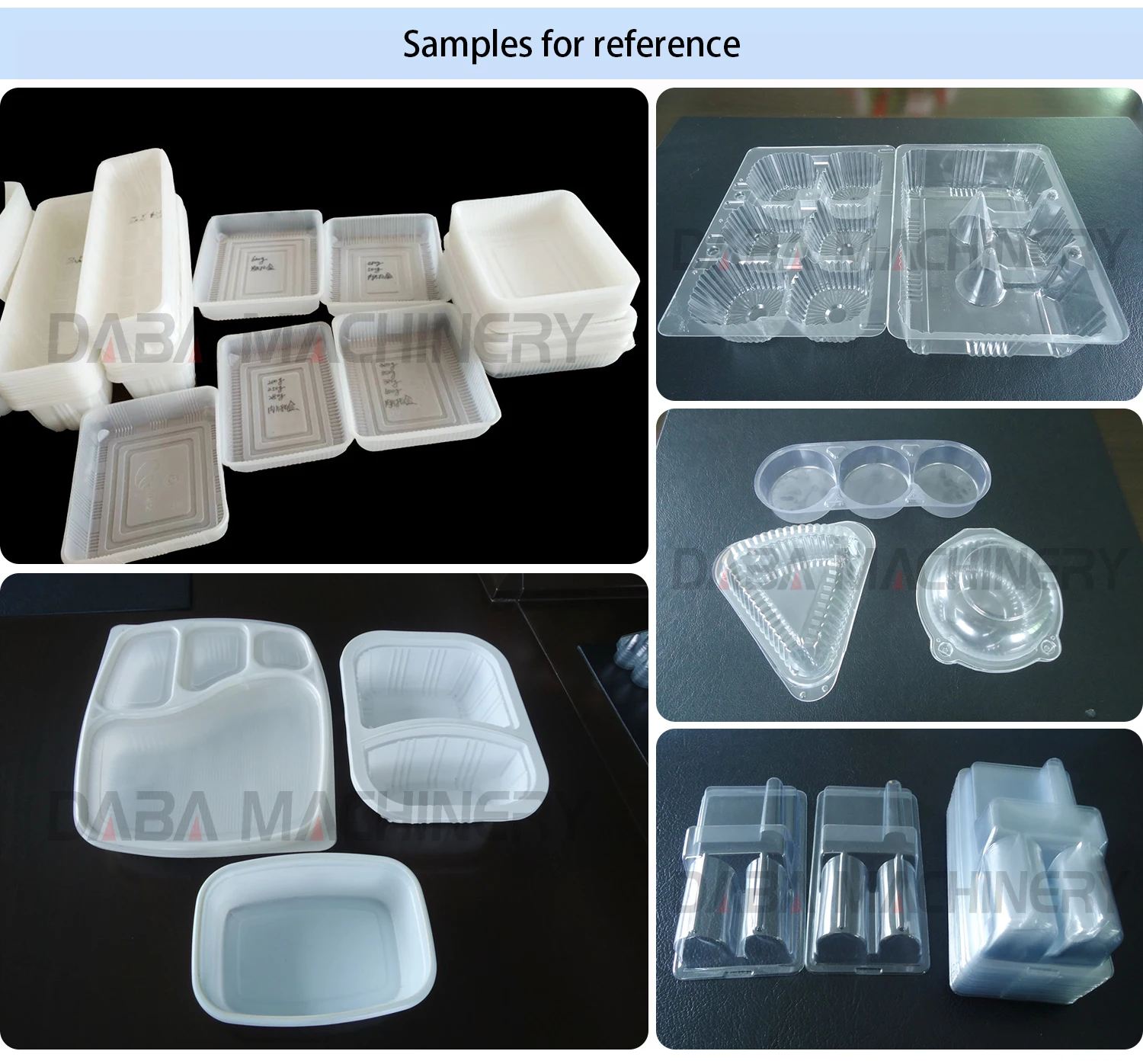

Machine made samples
Machine Video:

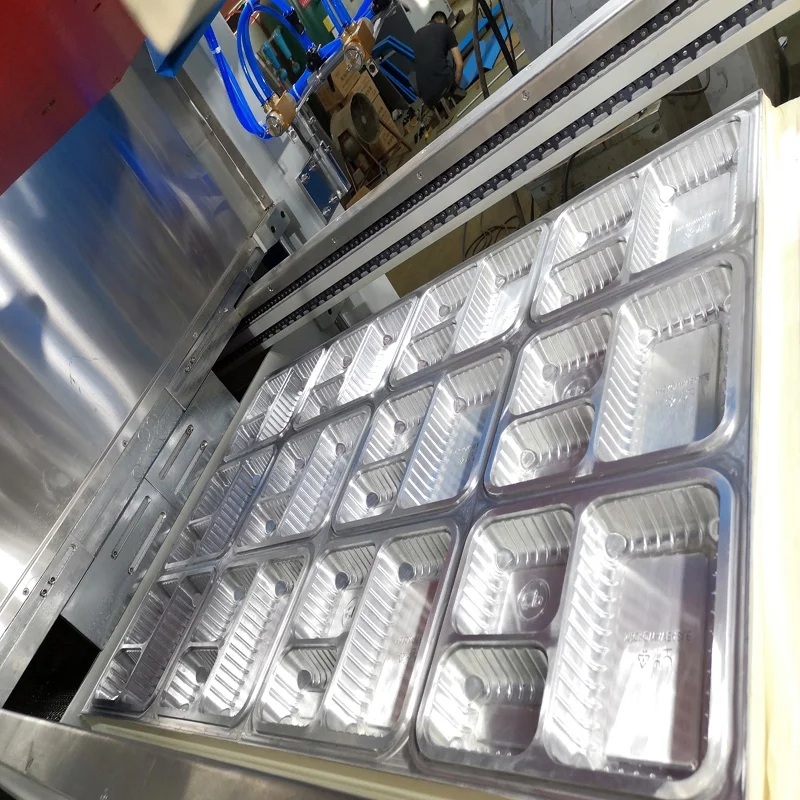

Details Images

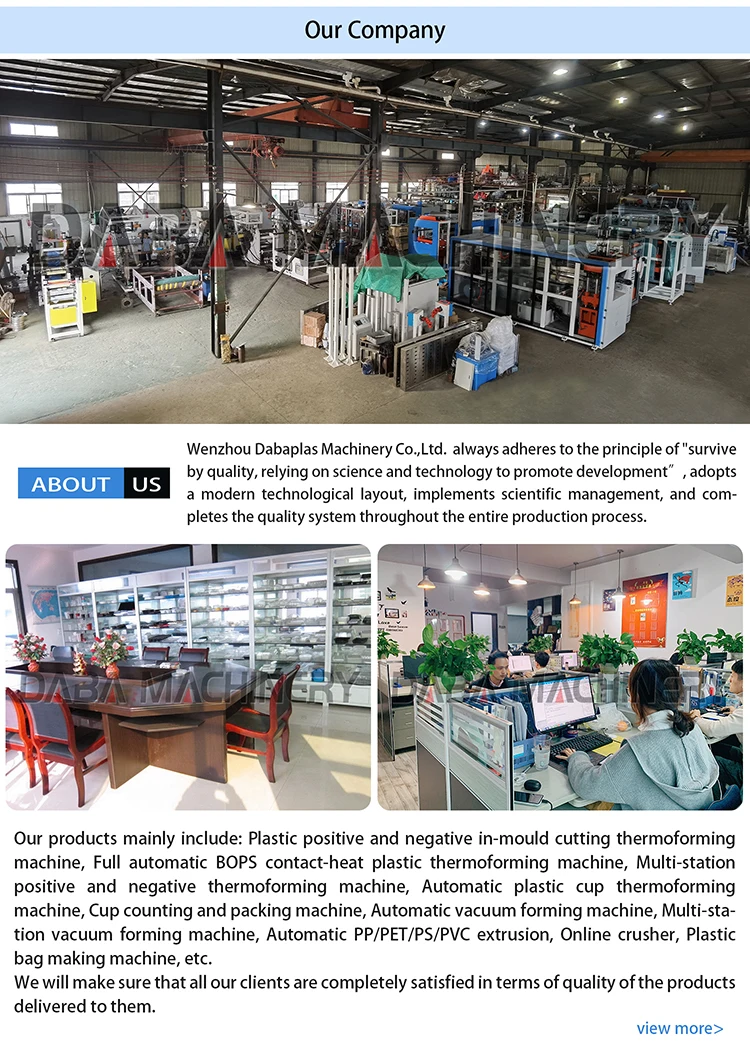

Company Profile
Customer Feedback
Every DaBa machine is quality proven, superior in design and produced as per the highest quality standards. Before leaving our factory, it is tested and retested for performance, productivity and durability. Because of good quality and service, we have won a good reputation among domestic and international customers.Our products sell well in Asia (such as India,Thailand, Vietnam, Indonesia, Malaysia, Sri Lanka), the middle east (Iran, Pakistan, Saudi Arabia, Kuwait),Europe(Russia, Rumania,Bulgaria, Italy)Africa (Nigeria, Guinea, Congo), North America and South America.
We hope to establish good and long-term business cooperation with customers from all over the world. If you have any inquiry about our machines, please feel free to contact us.
Service

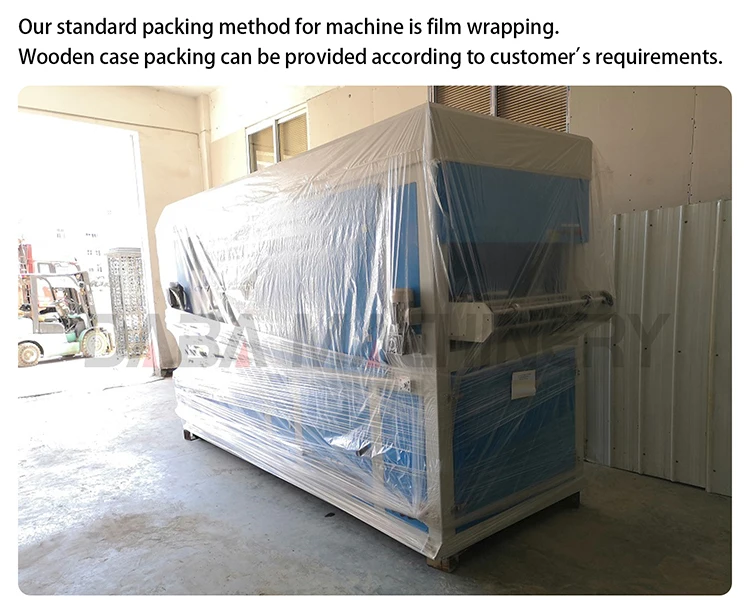

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q：What's your delivery date?
A：Usually finish the production within 45 days after received your 30% advanced payment, actually need to check according our stock & production plan.
Q: Terms of payment?
A: We accept T/T with 30% in advance and 70% before shipment. Also we could accept L/C at sight.
Q: How many days will the finish installing ?
A: We will finish installation and training within 15days.
Q: How long is your machine's warranty period?
A: All our machine have one year guarantee, starting from the day when finished installation.
Q: How could we do after one year warranty period?
A: We provide 1 year warranty. Within the warranty period, we provide free machine parts and repair service but not including shipping cost if it is not caused by human factors. After 1 year, we provide lifetime service with affordable charge.
Q: How many worker do we need to operate those machines?
A: Usually one machine needs 1-2 operators.
Q: Could you supply raw materials?
A: We can help you to order the raw materials and arrange the shipment together with machines.
