XP 1A Detector tester SF6 Advanced high sensitivity infrared detector controller gas refrigerante r134a leak detector

Features:

1.


   All controlled by microprocessor with advanced digital signal processing capability





2.


   Adopting high quality sensor, high sensitivity and long service life





3.


   Three-color video display





4.


   Seven-speed sensitivity setting, maximum enhancement 64 times





5.


   Light touch keyboard





6.


   Sensitivity adjustable at any time





7.


   Battery voltage indication





8.


   For SAEJ1627 certification, it can detect R134a, R12, R22





9.


   Can detect all halogen refrigerants





10.


    With gradient function





11.


    Powered by two No.2 alkaline batteries, wireless and portable





12.


    Equipped with high-strength box to protect detector





13.


    35cm flexible stainless steel probe




Application:
1. Leak detection of other systems and storage/recovery containers
This product works with all halogenated refrigerants (including chlorine and fluorine)
Including but not limited to CFCS such as: R12, R11, R500, R503etc...
HCFCs such as: R22, R123, R124, R502etc...
HFCs such as: R134a, R404a, R125etc...
Other mixtures can also be tested, such as AZ-50, HP62, MP39etc...
2. Detection of ethylene oxide leakage in hospital disinfection equipment (detection of halogen-carrying gas)

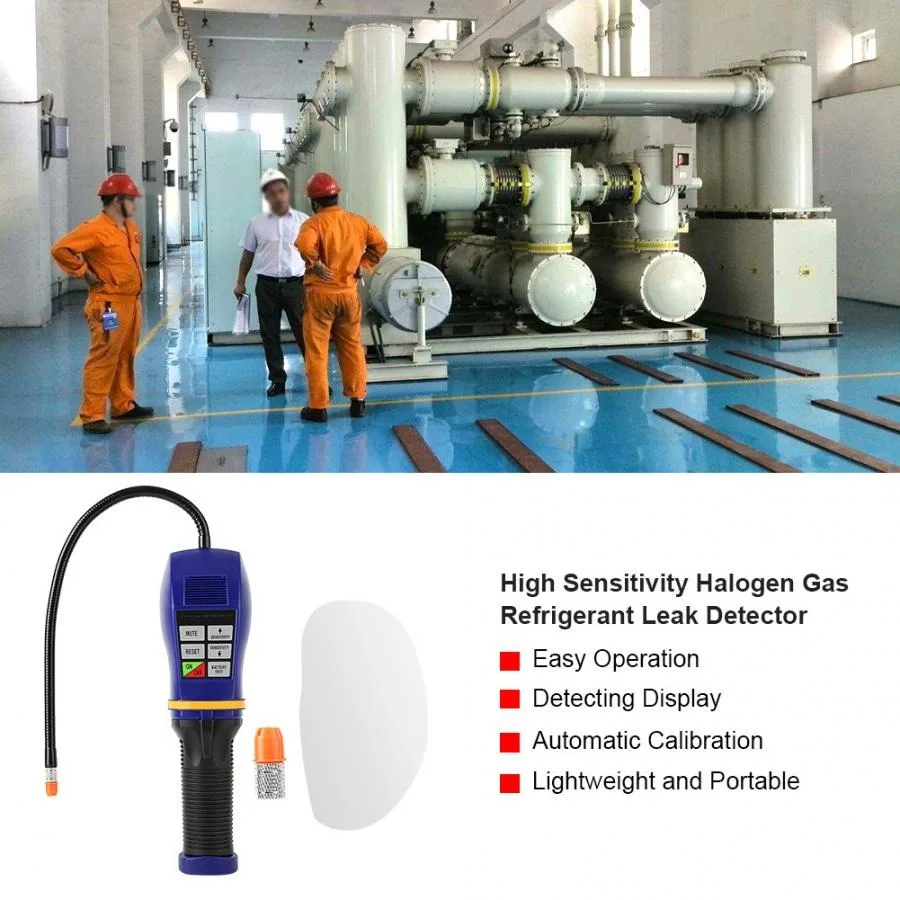

3. Detect SF-6 in high voltage circuit breaker
4. Detect most of the gases containing chlorine, fluorine and bromine (halogen gas)
5. Detect detergents used in dry cleaning equipment, such as carbon tetrachloride
6. Detect halogen gases used in fire suppression systems

Specification:
Condition: 100% Brand New
Material: ABS plastic
Color: As picture shwon
Power: 3V DC, 2 * No.2 alkaline batteries(Not Included)
Maximum sensitivity: according to for SAEJ1627 verification criteria: the guaranteed value for R12, R22 and R134a is 14g /year
Extreme sensitivity: for SF6 and all halogen-based refrigerants <3g / year
Operating temperature: 0-52°C
Battery life: about 30 hours of normal use
Accuracy: 3g / year
Response time: instantaneous
Reset time: 1 second
Preheat time: about 2 seconds
Device weight: 560g/17.6oz
Device size: 22.9 * 6.5 * 6.5cm/9 * 2.5 * 2.5in
Probe rod length: 35.5cm/14in

Package List:

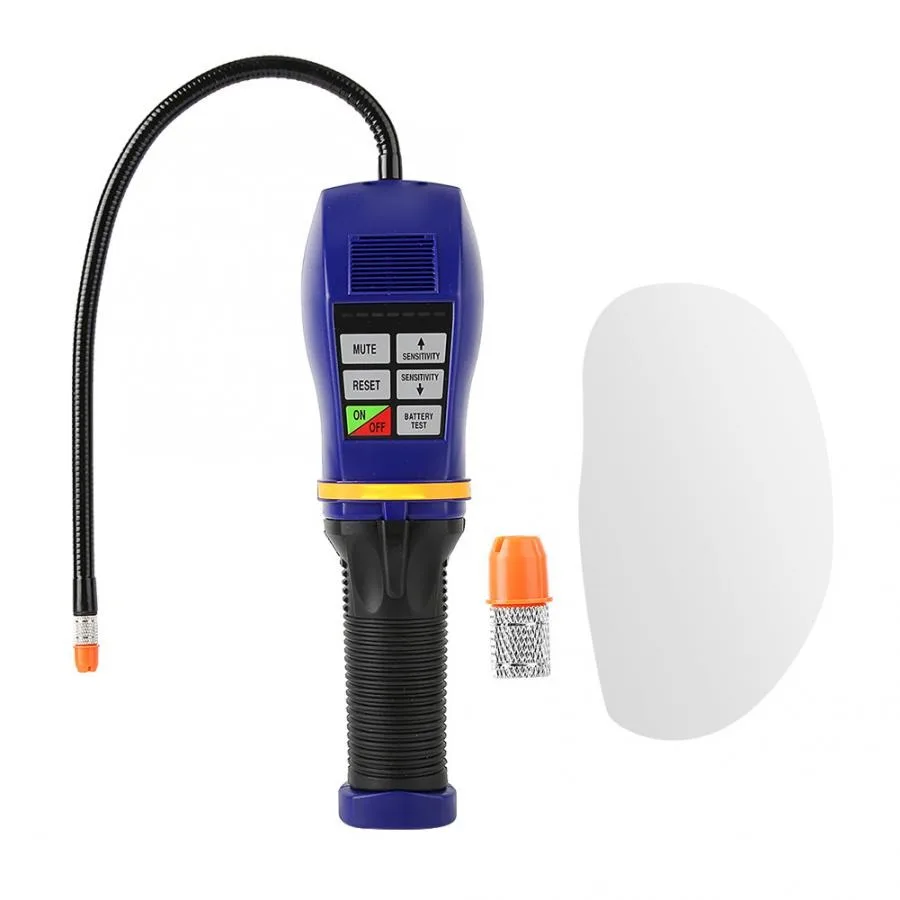

1 * Halogen Leak Detector

1 * Storage Box

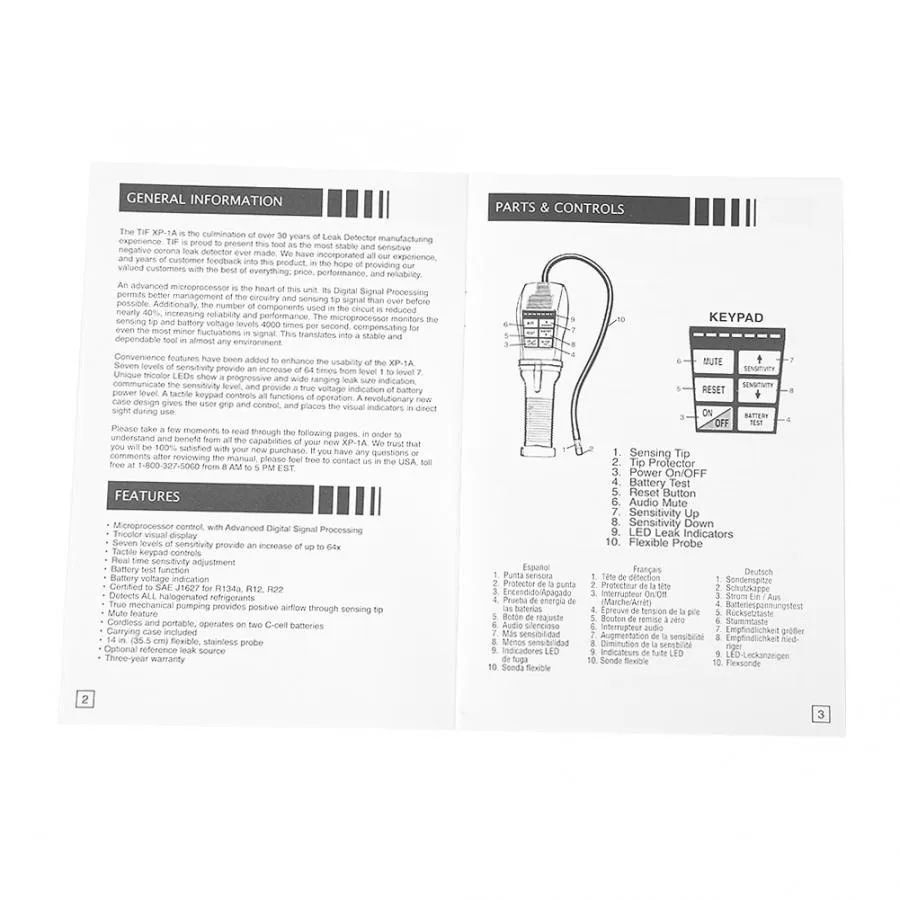

1 * User Manual
1 * Alternate Sensor Head

1 * Sensor Head Protective Cover
