TPS 3H12RI CE certified benchtop refrigerated centrifuge, desktop high speed freezing centrifuge with cheap price
- Category: >>>
- Supplier: Shanghai Toposun Industries Co. Ltd.
Share on (1600513670665):
Product Overview
Description
Product Description
As an advanced intelligent device,3H Series Intelligent High-Speed Refrigerated Centrifuge is widely applicable in a variety of fields such as biochemistry,medical treatment and public health,food safety,life science,forestry,animal husbandry,blood
banks,blood stations,biological products and pharmaceutical products.It is the ideal equipment for
separation,precipitation,concentration and preparation of samples and a high-tech product than can compare favorably with import ones and be exported in large quantities.
banks,blood stations,biological products and pharmaceutical products.It is the ideal equipment for
separation,precipitation,concentration and preparation of samples and a high-tech product than can compare favorably with import ones and be exported in large quantities.
Features
Using a brushless motor with high torque and variable frequency which is controlled by an SCM of Microchip's dsPIC30F series and driven by a special driver module of FAIRCHILD'S FSBB30CH Series to ensure the circuit's reliability.
The design of the whole machine is in line with the ergonomics,with streamlining sculpt. With a complete steel structure and a stainless steel centrifuge cavity,it is safer,better looking and more efficient.
With multiple protection measures such as super speed,over heat and imbalance as well as a special combination of shock absorbers to keep the motor running smoothly. With triple protective layers of steel bushings to achieve secure and reliable operation as well as personnel and equipment safety.
Rotors at rest will be in standby and cool down.
With TFT true-color LCD wide-screen touch monitor featured by intelligent control,easy and convenient operation,a touch panel and a simultaneous indication of both the set parameters and operation ones.
With a dedicated key indicating the centrifugal force which has the inching function for momentary centrifugation.
With a motor gate lock mute mechanical & electrical integration.
Able to provide more than 100 kinds of operating modes for the user to programme and use freely.
10 levels for speed-up and speed-down control.
Maximum rotation speed:30000r/min,Maximum centrifugal force:62400xg.
Using a brushless motor with high torque and variable frequency which is controlled by an SCM of Microchip's dsPIC30F series and driven by a special driver module of FAIRCHILD'S FSBB30CH Series to ensure the circuit's reliability.
The design of the whole machine is in line with the ergonomics,with streamlining sculpt. With a complete steel structure and a stainless steel centrifuge cavity,it is safer,better looking and more efficient.
With multiple protection measures such as super speed,over heat and imbalance as well as a special combination of shock absorbers to keep the motor running smoothly. With triple protective layers of steel bushings to achieve secure and reliable operation as well as personnel and equipment safety.
Rotors at rest will be in standby and cool down.
With TFT true-color LCD wide-screen touch monitor featured by intelligent control,easy and convenient operation,a touch panel and a simultaneous indication of both the set parameters and operation ones.
With a dedicated key indicating the centrifugal force which has the inching function for momentary centrifugation.
With a motor gate lock mute mechanical & electrical integration.
Able to provide more than 100 kinds of operating modes for the user to programme and use freely.
10 levels for speed-up and speed-down control.
Maximum rotation speed:30000r/min,Maximum centrifugal force:62400xg.

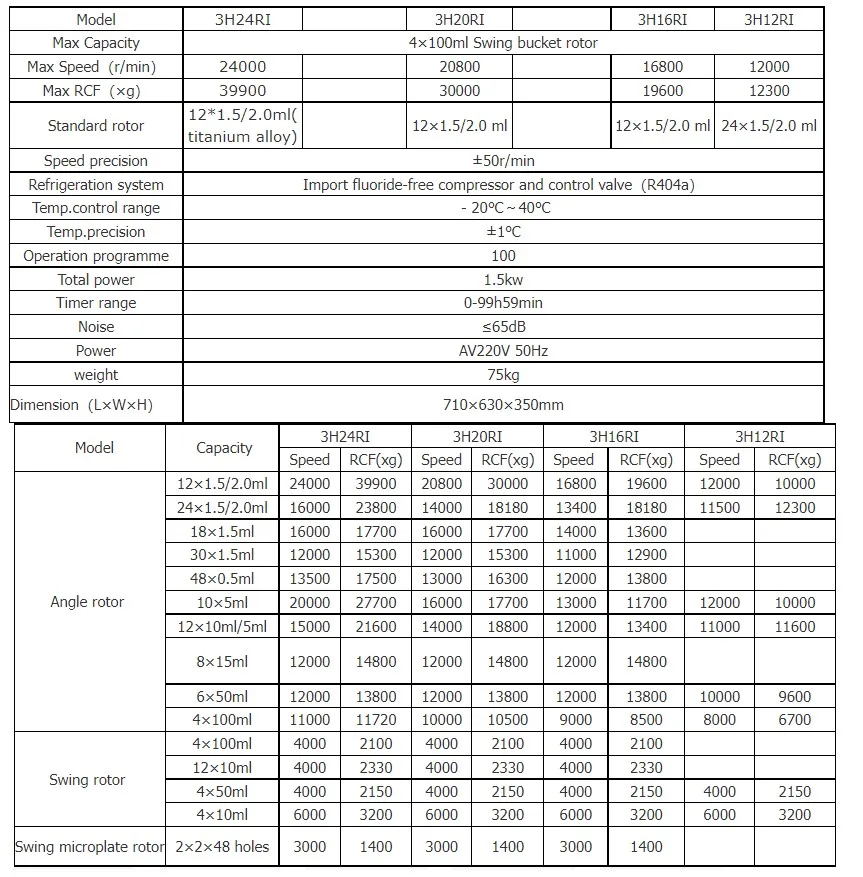

Specification
Classification | Laboratory Centrifuge |
Brand Name | Toposun |
Model Number | TPS-3H12RI |
Place of Origin | China |
Shanghai | |
Max Capacity | 4×100ml Swing bucket rotor |
Max Speed(r/min) | 12000 |
Max RCF(xg) | 12300 |
Standard rotor | 12*1.5/2.0ml ( titanium alloy) |
Speed precision | ±50r/min |
Refrigeration system | Import fluoride-free compressor and control valve(R404a) |
Temp.control range | -20℃~+40℃ |
Temp.precision | ±1℃ |
Total power | 1.5kw |
Timer range | 0-99h59min |
Noise | ≤65dB |
Identify rotor | Automatic |
Weight | 75kgs |
Dimension | 710*630*350mm |
Packing & Delivery
carton or wooden case
Company Profile
Shanghai Toposun Industries Co., Ltd. is located in Shanghai city.
We have been working on scientific instruments for a long time, especially in lab instruments, such as agricultural instruments (farinograph, extensograph, falling number tester and so on), temperature testing chambers, electronic balances, spectrophotometers, water quality meters and so on.
We have cooperated with many clients over the world. Our customers are from East Europe, South America, Southeast Asia and the Middle East. Since last year, we have established exclusive distributors in Brazil for our products.
We have enough experience in after-sales service, and we offer 1-year guarantee for all of our products and technical support for whole working life.
We have been working on scientific instruments for a long time, especially in lab instruments, such as agricultural instruments (farinograph, extensograph, falling number tester and so on), temperature testing chambers, electronic balances, spectrophotometers, water quality meters and so on.
We have cooperated with many clients over the world. Our customers are from East Europe, South America, Southeast Asia and the Middle East. Since last year, we have established exclusive distributors in Brazil for our products.
We have enough experience in after-sales service, and we offer 1-year guarantee for all of our products and technical support for whole working life.
FAQ
1. who are we?
We are based in Shanghai, China, start from 2013,sell to Mid East(25.00%),Western Europe(20.00%),South America(20.00%),Domestic Market(5.00%),South Asia(5.00%),Northern Europe(5.00%),Eastern Europe(5.00%),North America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
scientific instrument,lab equipment,liquid chromatography,physical analytical instrument,water quality tester
4. why should you buy from us not from other suppliers?
Shanghai Toposun Industries Co.,Ltd. locates in Shanghai city, we have enough experience in lab instruments, especially in agricultural instruments, we have cooperated with many customers for long time in East Europe, South America, South East Asia market.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian
We are based in Shanghai, China, start from 2013,sell to Mid East(25.00%),Western Europe(20.00%),South America(20.00%),Domestic Market(5.00%),South Asia(5.00%),Northern Europe(5.00%),Eastern Europe(5.00%),North America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
scientific instrument,lab equipment,liquid chromatography,physical analytical instrument,water quality tester
4. why should you buy from us not from other suppliers?
Shanghai Toposun Industries Co.,Ltd. locates in Shanghai city, we have enough experience in lab instruments, especially in agricultural instruments, we have cooperated with many customers for long time in East Europe, South America, South East Asia market.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian
