Product Overview
Description
Air Compressor GA37 VSD Atlas GA15VSD+ Copco GA18VSD+ GA22VSD+ Atlas GA15VSD+ Copco GA22VSD+ Screw Air Compressor GA30VSD+ Screw Compressor air Compressor Atlas GA30VSD+ Copco GA37VSD+ AtlasCopco Air-compressor GA37VSD+ Oil Lubrication AtlasCopco GA37 VSD+ Atlas GA15VSD+ Copco GA18 VSD+ GA22 VSD+ Screw Air Compressor Atlas GA30 VSD+ Copco GA37 VSD+
A new standard in compressed air performance and efficiency
Products for every site！ Options for everyone！

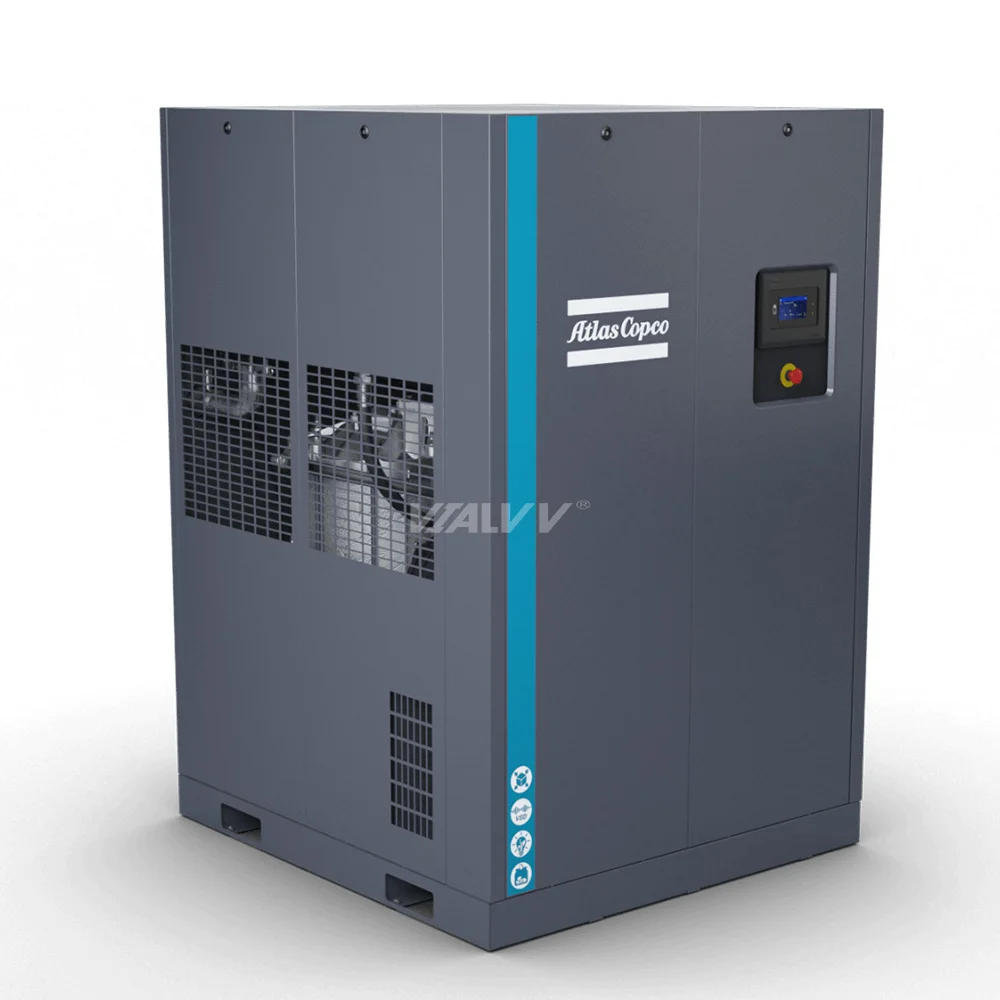

Atlas Copco’s GA 7-37 VSD+ is a true game changer for your operational environment.
It reduces energy consumption by on average 50% and assures performance
even in the harshestconditions.
The GA 7-37 VSD+ comes with Variable Speed Drive as standard,

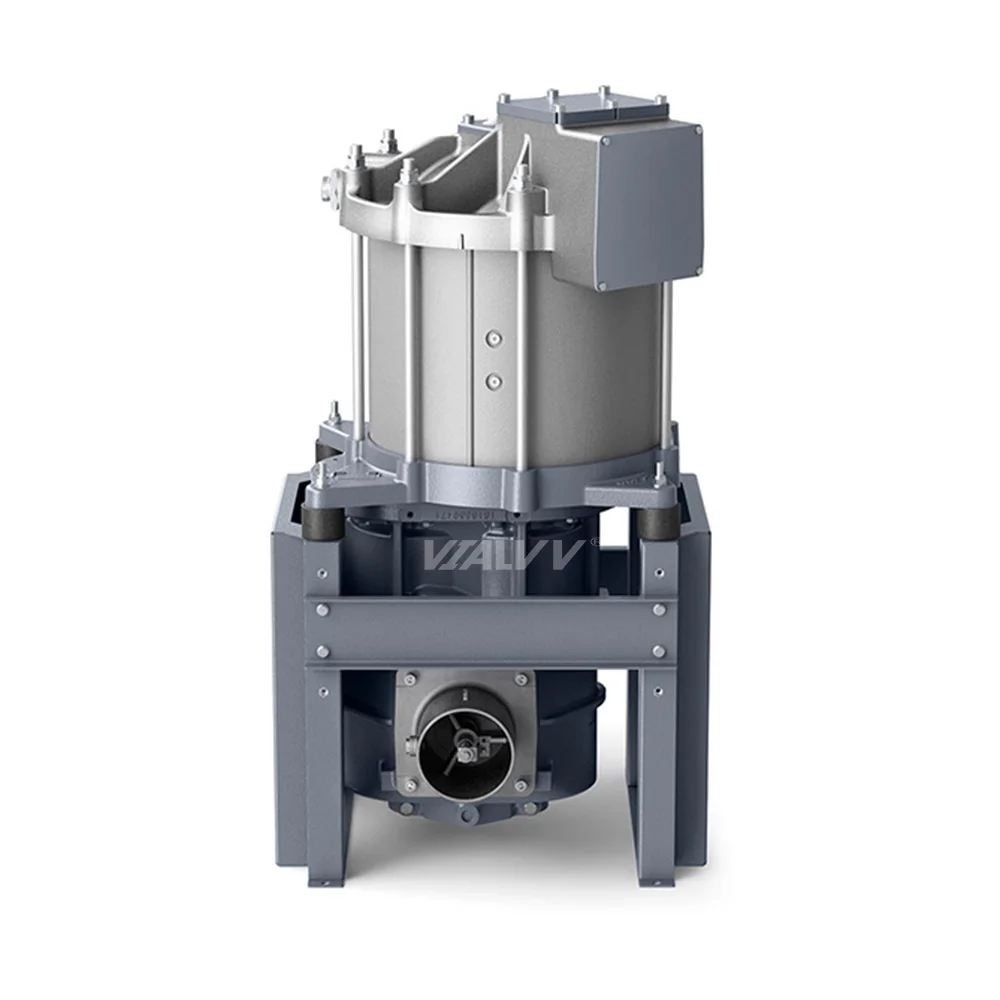

our in-house designed iPM motor technology, and advanced connectivity.
The result is a compact compressor that fits in the smallest room and that
sets a new standard in efficiency and performance for years to come.

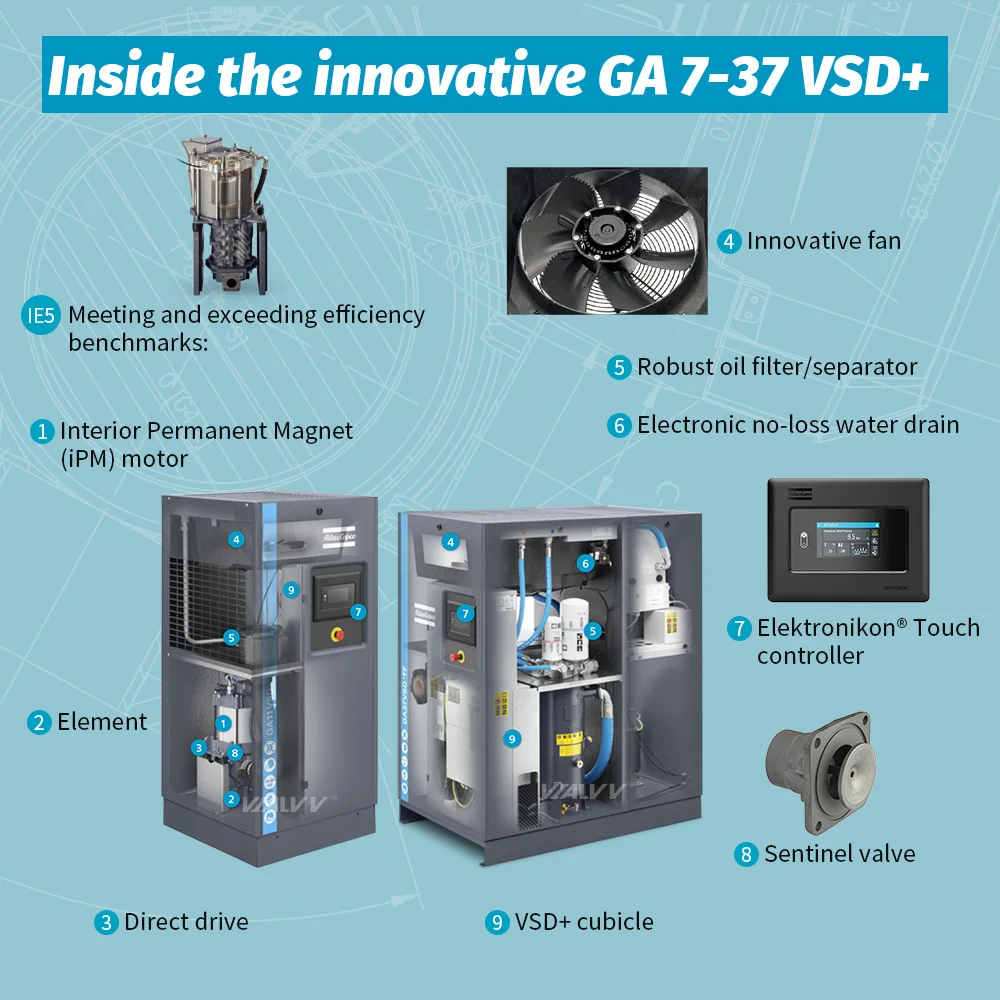

Innovative
Atlas Copco has revolutionized compressor build
and performance.
Instead of the normal spacetaking horizontal design,
the new GA 7-37 VSD+
has an upright, compact layout.
This saves
valuable floor and work space,
easesmaintenance access,
and reduces the total
cost of ownership for all customers.
Reliable
• Low maintenance:
fewer components,
increased uptime.
• Based on the unique
combination of proven
technologies and
existing components,
optimally brought
together by
Atlas Copco’s
experience and know-how.
Smart
• Easy monitoring and maintenance thanks to the
Elektronikon® Touch controller.
• Maintenance notifications and machine status are
available via SMARTLINK e-mail or text messages.
• Customized reports on the energy performance of
your machine, in compliance with ISO 50001.
Efficient
• Reduced energy consumption by 50% on
average compared to the current idling models.
• Free Air Delivery (FAD) increase of up to 12%.
IE5:Meeting and exceeding efficiency benchmarks:
• The iPM motor of the GA 7-37 VSD+ equals IE5 standards.
• The inverter and iPM motor exceed IES2
(EN 50598) requirements for power drive efficiency
Online 24 Hours
WhatsAp: +86-181-6701-6615
WhatsAp: +86-189-6700-9313
WhatsAp: +86-137-0579-6425
WhatsAp: +86-137-0579-6425
Products Description
Atlas Copco Compressor Type | Max.working pressure | Capacity FAD*(min-max) | Installed power | Weight WorkPlace | Weight | ||||||||
bar(e) | psig | l/s | m3/h | cfm | kw | hp | kg | kg | |||||
GA 7 VSD+ | 5.5 | 80 | 7.2-21.9 | 25.9-78.8 | 15.2-46.4 | 7.5 | 10 | 193 | 277 | ||||
7 | 102 | 7.0-21.7 | 25.2-78.1 | 14.8-46.0 | 7.5 | 10 | 193 | 277 | |||||
9.5 | 138 | 6.8-18.0 | 24.5-64.8 | 14.4-38.1 | 7.5 | 10 | 193 | 277 | |||||
12.5 | 181 | 7.3-14.2 | 26.3-51.1 | 15.5-30.1 | 7.5 | 10 | 193 | 277 | |||||
GA 11 VSD+ | 5.5 | 80 | 7.3-32.9 | 26.3-118.4 | 15.5-69.7 | 11 | 15 | 196 | 280 | ||||
7 | 102 | 7.3-32.5 | 26.3-117.0 | 15.5-68.8 | 11 | 15 | 196 | 280 | |||||
9.5 | 138 | 7.0-27.2 | 25.2-97.9 | 14.8-57.6 | 11 | 15 | 196 | 280 | |||||
12.5 | 181 | 7.6-23.5 | 27.4-84.6 | 16.1-49.8 | 11 | 15 | 196 | 280 | |||||
GA 15 VSD+ | 5.5 | 80 | 7.2-42.3 | 25.9-152.3 | 15.2-89.6 | 15 | 20 | 199 | 288 | ||||
7 | 102 | 7.1-41.8 | 25.6-150.5 | 15.0-88.6 | 15 | 20 | 199 | 288 | |||||
9.5 | 138 | 6.8-35.5 | 24.5-127.8 | 14.4-75.2 | 15 | 20 | 199 | 288 | |||||
12.5 | 181 | 7.3-27.9 | 26.3-100.4 | 15.5-59.1 | 15 | 20 | 199 | 288 | |||||
GA 18 VSD+ | 4 | 58 | 15.1-63.9 | 54.4-230.0 | 32.0-135.4 | 18 | 25 | 367 | 480 | ||||
1 | 102 | 14.9-62.5 | 53.6-225.0 | 31.6-132.4 | 18 | 25 | 367 | 480 | |||||
9.5 | 138 | 17.1-53.6 | 61.6-193.0 | 36.2-113.6 | 18 | 25 | 367 | 480 | |||||
12.5 | 181 | 16.4-43.5 | 59.0-156.6 | 34.7-92.2 | 18 | 25 | 367 | 480 | |||||
GA 22 VSD+ | 4 | 58 | 15.3-76.9 | 55.1-276.8 | 32.4-162.9 | 22 | 30 | 363 | 485 | ||||
7 | 102 | 15.0-75.1 | 54.0-270.4 | 31.8-159.1 | 22 | 30 | 363 | 485 | |||||
9.5 | 138 | 17.3-65.2 | 62.3-234.7 | 36.7-138.2 | 22 | 30 | 363 | 485 | |||||
12.5 | 181 | 17.1-54.1 | 61.6-194.8 | 36.2-114.6 | 22 | 30 | 363 | 485 | |||||
GA 26 VSD+ | 4 | 58 | 14.9-86.3 | 53.6-310.7 | 31.6-182.9 | 26 | 35 | 373 | 490 | ||||
7 | 102 | 14.5-85.5 | 52.2-307.8 | 30.7-181.2 | 26 | 35 | 373 | 490 | |||||
9.5 | 138 | 17.0-78.4 | 61.2-282.2 | 36.0-166.1 | 26 | 35 | 373 | 490 | |||||
12.5 | 181 | 16.4-64.5 | 59.0-232.2 | 34.7-136.7 | 26 | 35 | 373 | 490 | |||||
GA 30 VSD+ | 4 | 58 | 15.1-98.0 | 54.4-352.8 | 32.0-207.7 | 30 | 40 | 376 | 500 | ||||
7 | 102 | 15.0-97.4 | 54.0-350.6 | 31.8-206.4 | 30 | 40 | 376 | 500 | |||||
9.5 | 138 | 17.1-85.6 | 61.6-308.2 | 36.2-181.4 | 30 | 40 | 376 | 500 | |||||
12.5 | 181 | 16.7-72.0 | 60.1-259.2 | 354-152.6 | 30 | 40 | 376 | 500 | |||||
GA 37 VSD+ | 4 | 58 | 15.3-116.5 | 55.1-419.4 | 32.4-246.8 | 37 | 50 | 376 | 500 | ||||
1 | 102 | 14.8-115.0 | 53.3-414.0 | 31.4-243.7 | 37 | 50 | 376 | 500 | |||||
9.5 | 138 | 17.1-102.3 | 61.6-368.3 | 36.2-216.8 | 37 | 50 | 376 | 500 | |||||
12.5 | 181 | 16.4-86.7 | 59.0-312.1 | 34.7-183.7 | 37 | 50 | 376 | 500 | |||||
GA 37L VSD+*** | 4 | 58 | 26.2-132.9 | 94.2-478.6 | 55.5-81.7 | 37 | 50 | 860 | 1060 | ||||
7 | 102 | 25.8-131.9 | 92.9-474.7 | 54.7-279.4 | 37 | 50 | 860 | 1060 | |||||
9.5 | 138 | 24.8-116.0 | 89.2-417.7 | 52.5-245.8 | 37 | 50 | 860 | 1060 | |||||
12.5 | 181 | 38.2-98.7 | 137.5-355.2 | 80.9-209.1 | 37 | 50 | 860 | 1060 | |||||
* Unit performance measured according ISO 1217
ed. 4 2009, annex E, latest edition.
** Mean noise level measured at a distance of 1 m at max. working
pressure according to ISO 2151: 2004 using ISO 9614/2
(sound intensity method); tolerance 3 dB(A).
*** L = larger drive train. This model is part of a different series
with different specifications and additional benefits:
more energy savings, higher FAD, and a lower noise level.
FAD is measured at the following
effective working pressures:
• 4 bar(e) (GA 18-37L VSD+)
• 5.5 bar(e) (GA 7-15 VSD+)
• 7 bar(e)
• 9.5 bar(e)
• 12.5 bar(e)
Maximum working pressure:
13 bar(e) (188 psig)
Reference conditions:
• Absolute inlet pressure 1 bar (14.5 psi).
• Intake air temperature 20°C/68°F.
ed. 4 2009, annex E, latest edition.
** Mean noise level measured at a distance of 1 m at max. working
pressure according to ISO 2151: 2004 using ISO 9614/2
(sound intensity method); tolerance 3 dB(A).
*** L = larger drive train. This model is part of a different series
with different specifications and additional benefits:
more energy savings, higher FAD, and a lower noise level.
FAD is measured at the following
effective working pressures:
• 4 bar(e) (GA 18-37L VSD+)
• 5.5 bar(e) (GA 7-15 VSD+)
• 7 bar(e)
• 9.5 bar(e)
• 12.5 bar(e)
Maximum working pressure:
13 bar(e) (188 psig)
Reference conditions:
• Absolute inlet pressure 1 bar (14.5 psi).
• Intake air temperature 20°C/68°F.

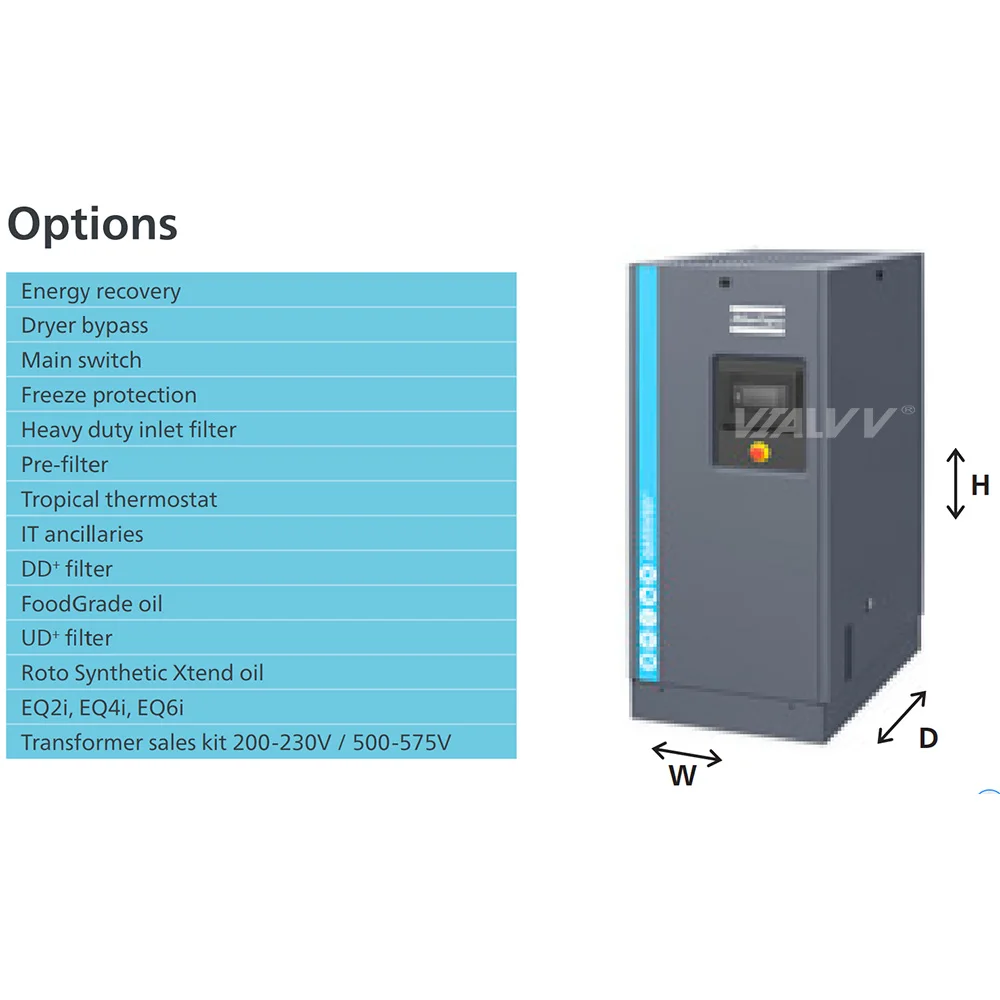

Dimensions | Standard Full Feature | Full Feature | ||||||||
D(mm) | W(mm) | H(mm) | D(mm) | W(mm) | H(mm) | |||||
GA7-15VSD- | 630 | 610 | 1420 | 630 | 985 | 1420 | ||||
GA18-37VSD- | 780 | 811 | 1590 | 780 | 1273 | 1590 | ||||
GA37LvSD | 1100 | 1153 | 1968 | 1100 | 1656 | 1968 | ||||
